Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11115 - EXZ NZ JAPAN NEW SHORT TERM 2004
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#67295) — 62 parça
◀

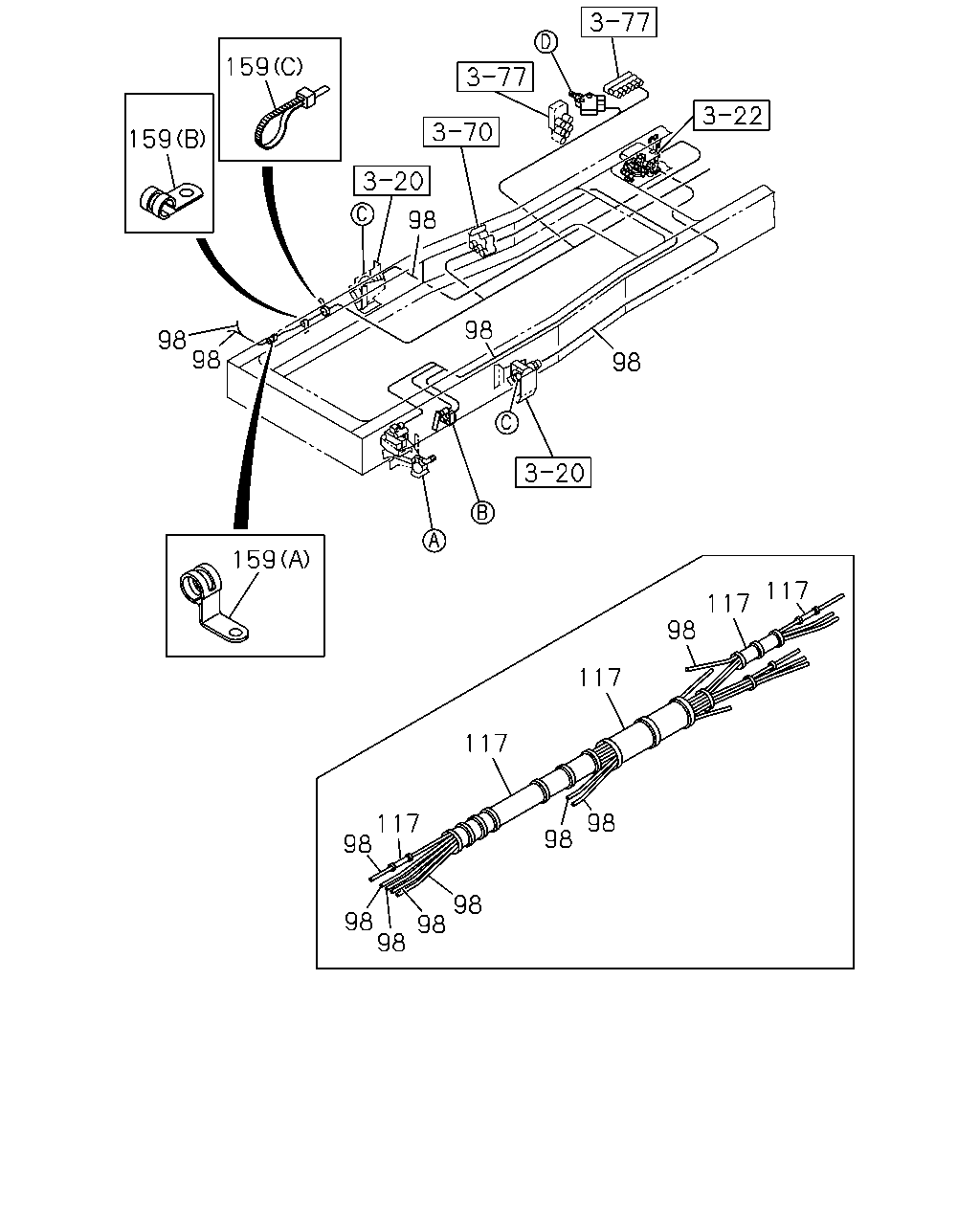

[375A] FRAME SIDE NO.2 (24 parça)

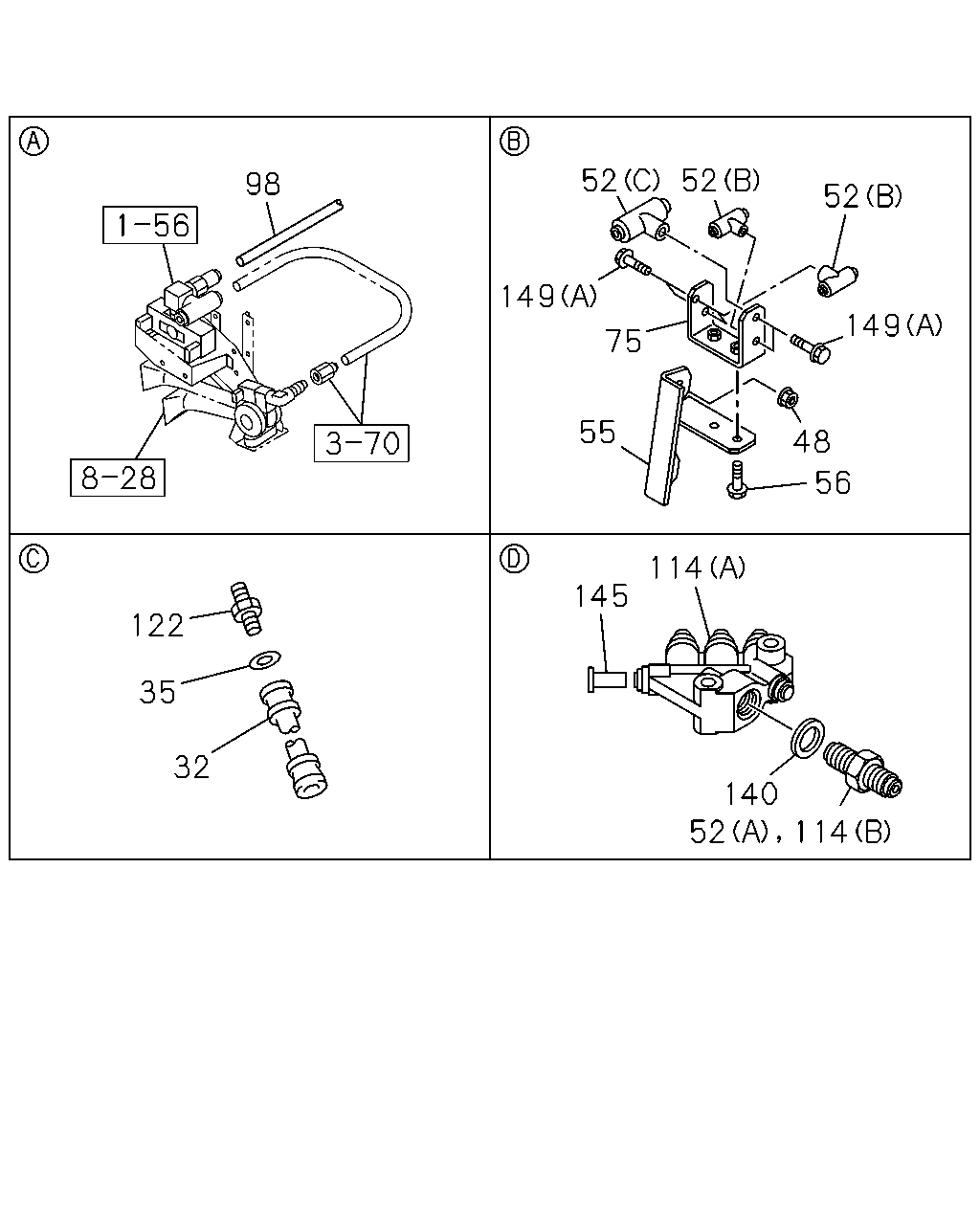

[375A] FRAME SIDE NO.1 (26 parça)

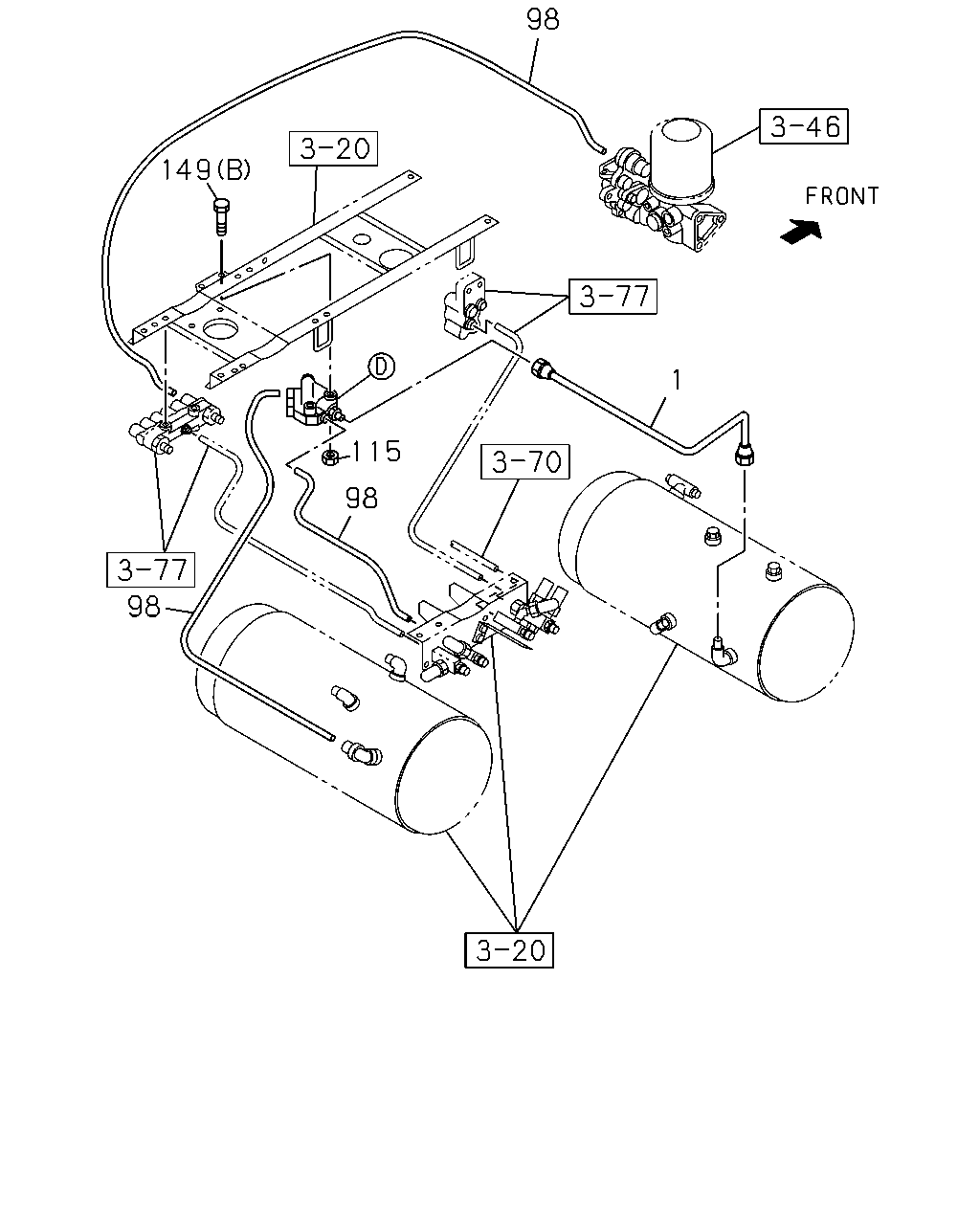

[375A] AIR TANK SIDE (12 parça)
▶
52
52
98
52
149
149
75
55
48
56
114
145
122
35
32
140
52
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
HOSE; FLEX,FRT
L=430
0-57847-430-1
02
1
0710-
35
GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
04
1
0710-
48
NUT; UNION BRKT
M12 FLANGE
0-91180-212-0
02
1
0710-
52
CONNECTOR; NYLON TUBE
(C) DIN7.5X2 & M8 2WAY
1-09661-128-0
01
1
0710-
52
CONNECTOR; NYLON TUBE
(B) DIN8X2 & M8 2WAY
1-09661-133-0
03
1
0710-
52
CONNECTOR; NYLON TUBE
(A)
8-97618-539-0
01
1
0710-0803
55
BRACKET; TUBE UNION
1-47478-381-1
01
1
0710-
56
BOLT; UNION BRKT
M8X16 FLANGE
0-28050-816-0
02
1
0710-
75
BRACKET; UNION
1-47478-382-0
01
1
0710-
98
TUBE; NYLON
SERVICED BY L=2000 OD=6
1-87411-001-0
AR
1
0710-
98
TUBE; NYLON
SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
0710-
98
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0710-
98
TUBE; NYLON
SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
0710-
98
TUBE; NYLON
SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
0710-
98
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0710-
98
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0710-
98
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0710-
114
UNION; NYLON TUBE
(B) M22X2 STRAIGHT
8-98107-103-0
01
1
0804-
114
UNION; NYLON TUBE
(A)
1-09661-611-0
01
1
0710-
122
CONNECTOR; FLEX HOSE
M20 & PT3/8
1-09660-731-1
02
1
0710-
140
GASKET; CONNECTOR
9-09572-022-0
01
1
0710-0803
145
PLUG
OD=12
1-09661-617-0
01
1
0710-
149
BOLT; UNION
(A) M8X16 FLANGE
0-28050-816-0
04
1
0710-
149
BOLT; UNION
(B) M8X45 FLANGE
0-28050-845-0
02
1
0710-
98
159
159
98
98
98
98
159
117
117
98
98
98
98
98
98
98
117
98
117
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
98
TUBE; NYLON
SERVICED BY L=2000 OD=6
1-87411-001-0
AR
1
0710-
98
TUBE; NYLON
SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
0710-
98
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0710-
98
TUBE; NYLON
SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
0710-
98
TUBE; NYLON
SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
0710-
98
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0710-
98
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0710-
98
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0710-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=7
1-87411-016-0
AR
1
0710-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
0710-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
0710-
117
TUBE; CORRUGATE
SERVICED BY L=4000 ID=13
1-87411-023-0
AR
1
0710-
117
TUBE; CORRUGATE
SERVICED BY L=4000 ID=19
1-87411-028-0
AR
1
0710-
117
TUBE; CORRUGATE
SERVICED BY L=4000 ID=22
1-87411-030-0
AR
1
0710-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
0710-
117
TUBE; CORRUGATE
SERVICED BY L=4000 ID=25
1-87411-032-0
AR
1
0710-
159
CLIP; NYLON TUBE
CHEAPER CAB(WY1) (B) ID=25 L=50
1-09700-976-0
02
1
1111-
159
CLIP; NYLON TUBE
CHEAPER CAB(WY1) (B) ID=24 L=24
1-09701-001-1
01
1
1111-
159
CLIP; NYLON TUBE
CHEAPER CAB(WY1) (A) ID=24 H=40 L=24
1-09701-243-1
02
1
1111-
159
CLIP; NYLON TUBE
EXC. CHEAPER CAB(WY1) (C) L=350
1-09707-183-0
18
1
1111-
159
CLIP; NYLON TUBE
(A) ID=28 H=45 L=30
1-09700-948-0
02
1
0710-1110
159
CLIP; NYLON TUBE
EXC. CHEAPER CAB(WY1) (A) ID=28 H=45 L=30
1-09700-948-0
02
1
1111-
159
CLIP; NYLON TUBE
(B) ID=28 L=40
1-09701-261-0
03
1
0710-1110
159
CLIP; NYLON TUBE
EXC. CHEAPER CAB(WY1) (B) ID=28 L=40
1-09701-261-0
03
1
1111-
159
CLIP; NYLON TUBE
(C) L=350
1-09707-183-0
18
1
0710-1110
159
CLIP; NYLON TUBE
CHEAPER CAB(WY1) (C) L=350
1-09707-183-0
17
1
1111-
98
149
98
115
98
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; AIR,AIR TANK TO UNION
1-49123-983-0
01
1
0710-
98
TUBE; NYLON
SERVICED BY L=2000 OD=6
1-87411-001-0
AR
1
0710-
98
TUBE; NYLON
SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
0710-
98
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0710-
98
TUBE; NYLON
SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
0710-
98
TUBE; NYLON
SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
0710-
98
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0710-
98
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0710-
98
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0710-
115
NUT; TUBE UNION
M8 FLANGE
0-91180-108-0
02
1
0710-
149
BOLT; UNION
(A) M8X16 FLANGE
0-28050-816-0
04
1
0710-
149
BOLT; UNION
(B) M8X45 FLANGE
0-28050-845-0
02
1
0710-
