Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11115 - EXZ NZ JAPAN NEW SHORT TERM 2004
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#67293) — 10 parça
◀

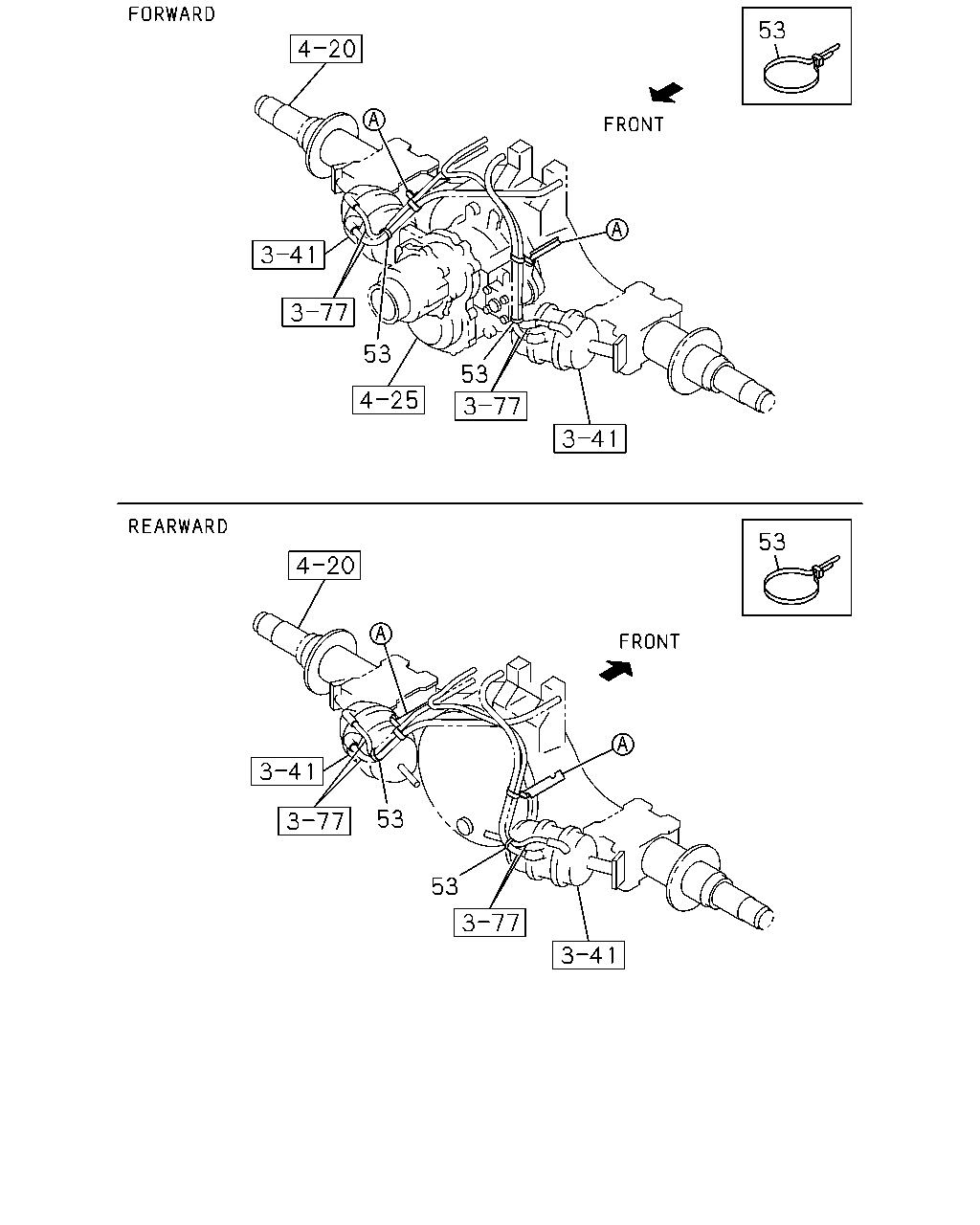

[358A] NO.2 (9 parça)
[358A] NO.1 (1 parça)
▶
69
138
153
69
138
153
138
69
153
9
9
153
38
69
138
9
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
08
1
0710-
38
NUT; CLIP FIX
M8 FLANGE
0-91180-108-0
01
1
0710-
69
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
05
1
0710-
138
CLIP; TUBE
ID=35 L=33
1-09700-945-0
05
1
0710-
153
BRACKET; NYLON TUBE
(A) REARWARD
1-42129-487-1
01
1
0710-
153
BRACKET; NYLON TUBE
(D) FORWARD
1-42129-500-0
01
1
0710-
153
BRACKET; NYLON TUBE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) FORWARD
1-42129-494-0
01
1
0710-
153
BRACKET; NYLON TUBE
(B) REARWARD
1-42129-486-1
01
1
0710-
153
BRACKET; NYLON TUBE
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) FORWARD
1-42129-486-1
01
1
0710-
53
53
53
53
53
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
53
CLIP; UNION
L=250
1-09707-126-0
04
1
0710-
