3-22 — AIR CONTROL PARTS (#67287) — 60 parça

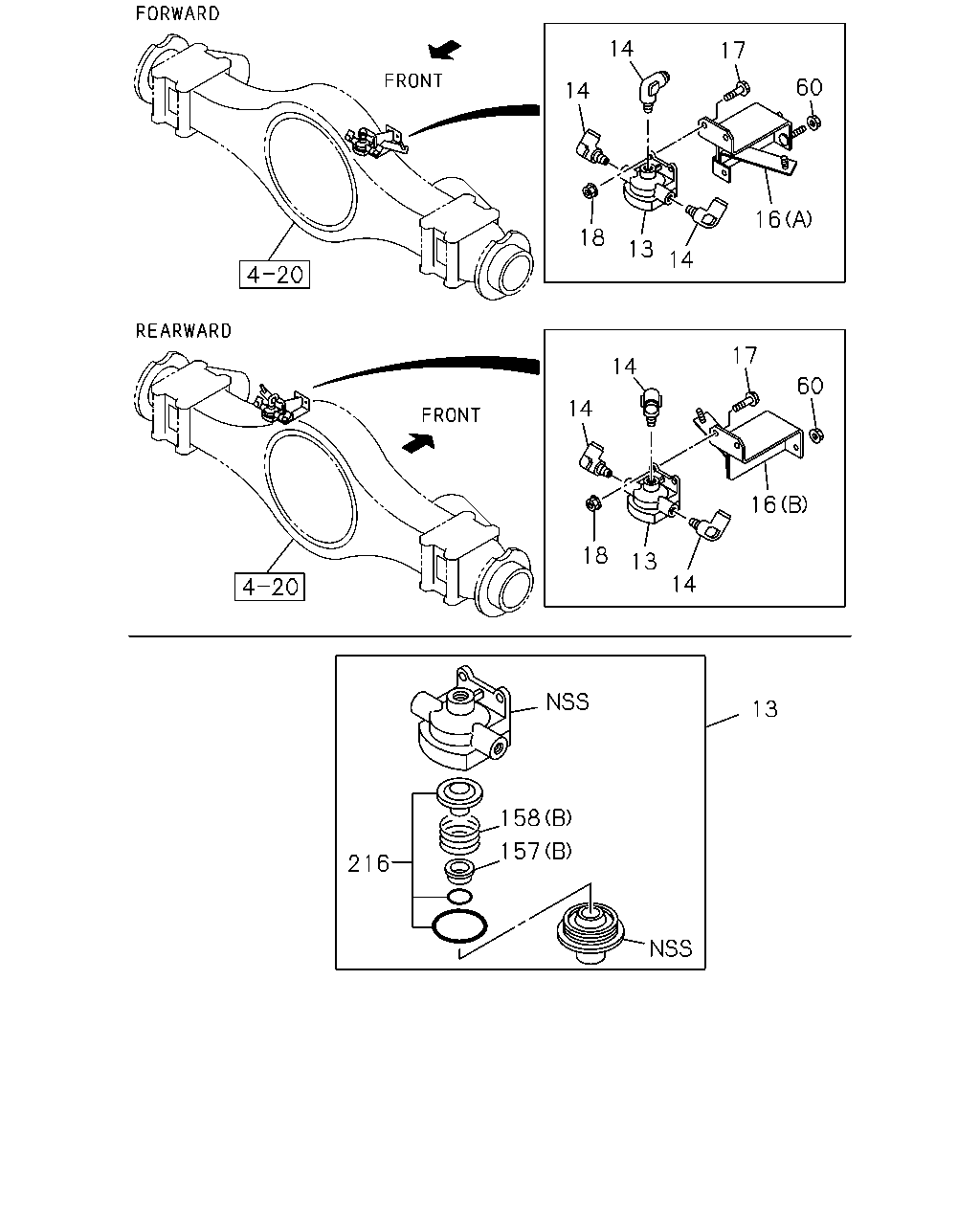

çizim 116966
14 14 17 60 16 14 13 18 18 14 14 17 60 16 13 14 13 216 158 157
BalonParca AdiParca NoAdetTipApplied Date
13 VALVE ASM; QUICK RELEASE 1-48410-657-0 02 1 0710-1008
13 VALVE ASM; QUICK RELEASE 8-98170-205-0 02 1 1009-
14 CONNECTOR; RELAY VLV
DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 0710-
16 BRACKET; VLV,PARKING BRK
(A) 		1-47479-939-0 01 1 0710-
16 BRACKET; VLV,PARKING BRK
(B) 		1-47479-940-0 01 1 0710-
17 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0710-
18 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0710-
60 NUT; RELEASE VALVE FIX
M8 FLANGE 		0-91180-108-0 02 1 0710-
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 0710-1008
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1009-
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0710-
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 0710-
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0710-
216 REPAIR KIT; QUICK RELEASE VLV 1-85579-062-0 02 1 0710-1008
216 REPAIR KIT; QUICK RELEASE VLV 8-98171-596-0 02 1 1009-

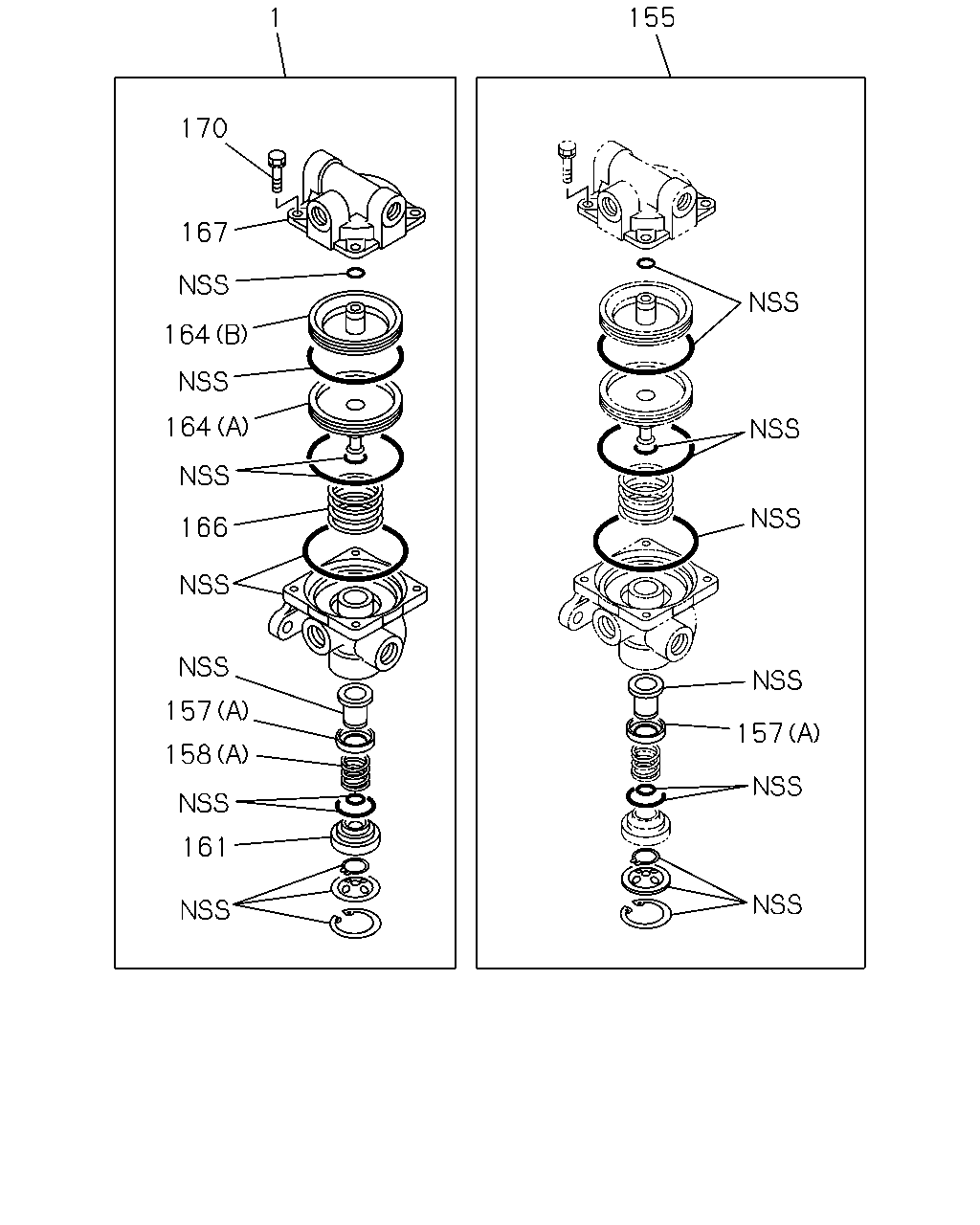

çizim 117150
155 1 170 167 164 164 166 157 157 158 161
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48240-041-1 01 1 0710-
155 REPAIR KIT; RELAY VALVE 1-85576-035-0 01 1 0710-
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 0710-1008
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1009-
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0710-
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 0710-
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0710-
161 GUIDE; VALVE 1-48129-014-0 01 1 0710-
164 PISTON; RELAY VALVE
(A) 		1-48219-032-0 01 1 0710-
164 PISTON; RELAY VALVE
(B) 		1-48219-047-0 01 1 0710-
166 SPRING; PISTON 1-48219-048-0 01 1 0710-
167 COVER; VALVE 1-48219-050-1 01 1 0710-
170 SCREW; COVER TO BODY 1-48219-041-0 04 1 0710-

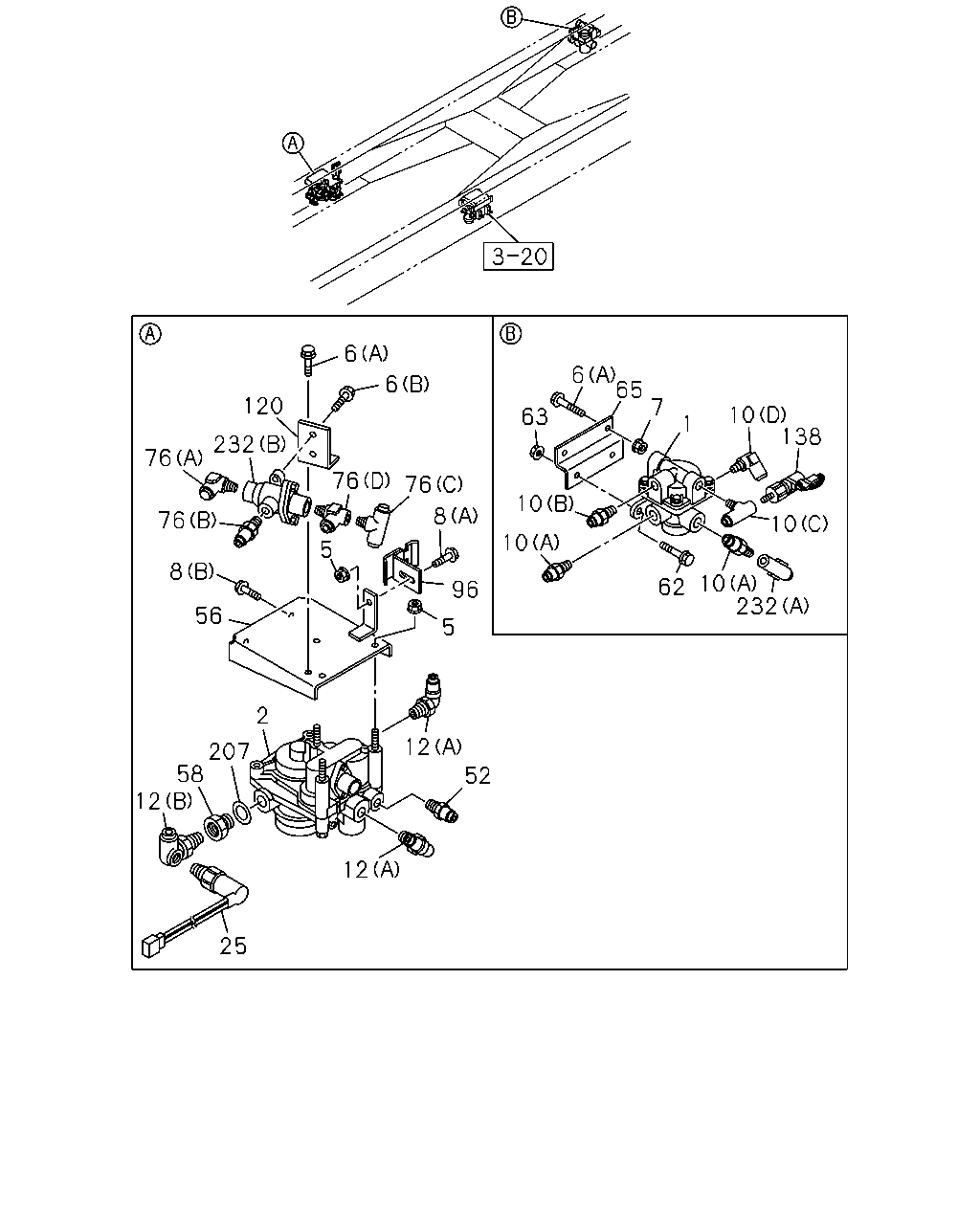

çizim 193008
6 6 120 232 76 76 8 56 76 76 8 5 5 96 2 12 52 12 25 207 58 12 10 10 63 6 65 7 1 10 138 10 10 62 232
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48240-041-1 01 1 0710-
2 VALVE; RELAY 1-48240-245-1 01 1 0710-
5 NUT
M8 FLANGE 		0-91180-108-0 04 1 0710-
6 BOLT; VLV
(B) M8X12 FLANGE 		0-28050-812-0 02 1 0710-
6 BOLT; VLV
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0710-
6 BOLT; VLV
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
7 NUT; RELAY VLV
M8 FLANGE 		0-91180-108-0 02 1 0710-
8 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-
8 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0710-
10 CONNECTOR
(D) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-
10 CONNECTOR
(B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0710-
10 CONNECTOR
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0710-
10 CONNECTOR
(C) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 01 1 0710-
12 CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW 		1-09661-233-0 01 1 0710-
12 CONNECTOR; RELAY VLV
(A) DIN12 & M22 ELBOW 		1-09661-497-0 02 1 0710-
25 SWITCH; PRESSURE
GREEN 		1-82410-176-1 01 1 0710-
52 CONNECTOR; RELAY VLV
DIN8 & M16 STRAIGHT 		1-09661-530-0 01 1 0710-
56 BRACKET; RELAY VLV 1-48495-246-0 01 1 0710-
58 ADAPTER
INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 0710-
62 BOLT; BRKT FIX
M10X35 FLANGE 		0-28651-035-0 02 1 0710-
63 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 02 1 0710-
65 BRACKET; RELAY VLV RR 1-47479-328-0 01 1 0710-
76 CONNECTOR; CONT VLV
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710-
76 CONNECTOR; CONT VLV
(B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0710-
76 CONNECTOR; CONT VLV
(C) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0710-
76 CONNECTOR; CONT VLV
(D) DIN8 & R3/8 & RC3/8 3WAY 		1-09661-271-0 01 1 0710-
96 BRACKET 1-47479-693-0 01 1 0710-
120 BRACKET; VLV 1-47479-362-0 01 1 0710-
138 SWITCH; RELAY VALVE 1-48340-067-0 01 1 0710-
207 GASKET; ADAPTER
ID=22.5 		9-09571-422-0 01 1 0710-
232 VALVE; CHECK
(B) 		1-48410-531-1 01 1 0710-
232 VALVE; CHECK
(A) 		1-48320-031-1 01 1 0710-
