Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11115 - EXZ NZ JAPAN NEW SHORT TERM 2004
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶

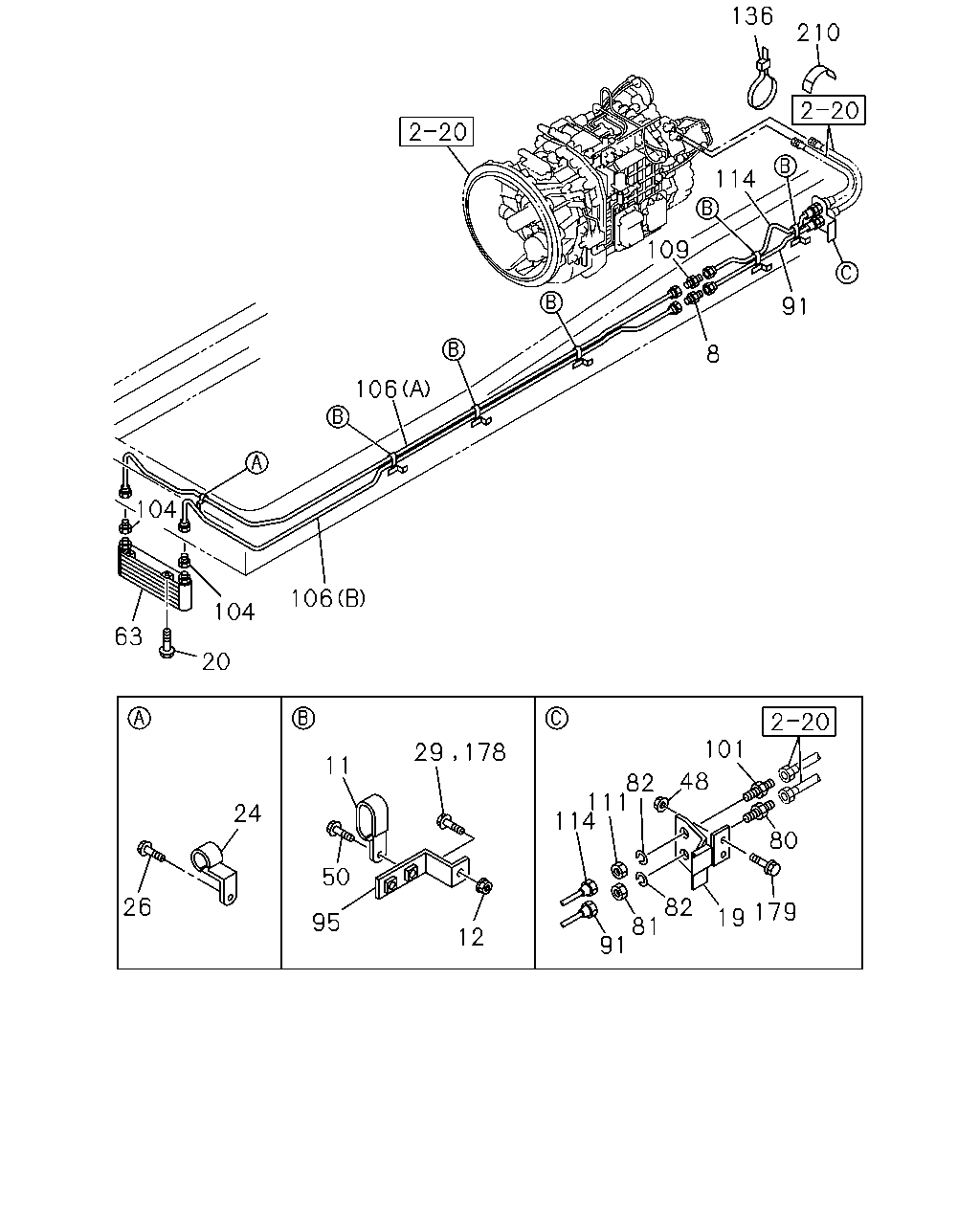

2-53 — TRANSMISSION OIL COOLER SYSTEM
(#67279) — 32 parça
136
210
114
91
8
109
106
106
104
63
20
104
26
24
29
178
11
12
50
95
114
101
48
82
111
179
80
19
82
81
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
UNION
M22 L=51
0-92123-015-0
01
1
0710-
11
CLIP; PIPE
ID=16X2 L=20
0-95325-535-0
05
1
0710-
12
NUT; BRKT
M8 FLANGE
0-91180-108-0
05
1
0710-
19
BRACKET; FLEX HOSE
1-47479-613-1
01
1
0710-
20
BOLT; COOLER TO BRKT
M10X20 FLANGE
0-28051-020-0
02
1
0710-
24
CLIP; OIL PIPE
ID=15 H=24 L=20
1-09700-606-0
01
1
0710-
26
BOLT; PIPE CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0710-
29
BOLT; FILTER TO BRKT
M8X30 FLANGE
0-28650-830-0
04
1
0710-
48
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0710-
50
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
05
1
0710-
63
COOLER; OIL
1-21700-395-1
01
1
0710-
80
UNION; FLEX HOSE
1-09654-261-1
01
1
0710-
81
NUT; UNION
M22
0-91111-522-0
01
1
0710-
82
WASHER; LK,UNION
ID=22.5
0-91510-522-0
02
1
0710-
91
PIPE; OIL,FLEX HOSE TO UNION
L=810
8-98047-556-0
01
1
0710-0804
91
PIPE; OIL,FLEX HOSE TO UNION
L=908
8-98117-673-0
01
1
0805-
95
BRACKET; CLIP
1-47479-482-0
05
1
0710-
101
UNION; FLEX HOSE
1-09654-261-1
01
1
0710-
104
CONNECTOR; COOLER
1-09654-398-0
02
1
0710-0804
106
PIPE ASM; OIL,COOLER TO UNION
(B)
1-49167-821-0
01
1
0710-0804
106
PIPE ASM; OIL,COOLER TO UNION
(B)
8-98117-602-0
01
1
0805-
106
PIPE ASM; OIL,COOLER TO UNION
(A)
1-49167-822-0
01
1
0710-0804
106
PIPE ASM; OIL,COOLER TO UNION
(A)
8-98117-603-0
01
1
0805-
109
UNION
M22 L=51
0-92123-015-0
01
1
0710-
111
NUT; UNION
M22
0-91111-522-0
01
1
0710-
114
PIPE; OIL,UNION TO FLEX HOSE
L=869
8-98047-557-0
01
1
0710-0804
114
PIPE; OIL,UNION TO FLEX HOSE
L=828
8-98117-674-0
01
1
0805-0805
114
PIPE; OIL,UNION TO FLEX HOSE
L=827
8-98123-938-0
01
1
0806-
136
CLIP; FLEX HOSE
L=350
1-09707-183-0
01
1
0710-
178
BOLT; BRKT,CLIP
M8X30 FLANGE
0-28650-830-0
01
1
0710-
179
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0710-
210
BAND; FLEX HOSE
L=175
1-09707-178-0
01
1
0710-
