◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11115 - EXZ NZ JAPAN NEW SHORT TERM 2004 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#67277) — 166 parça

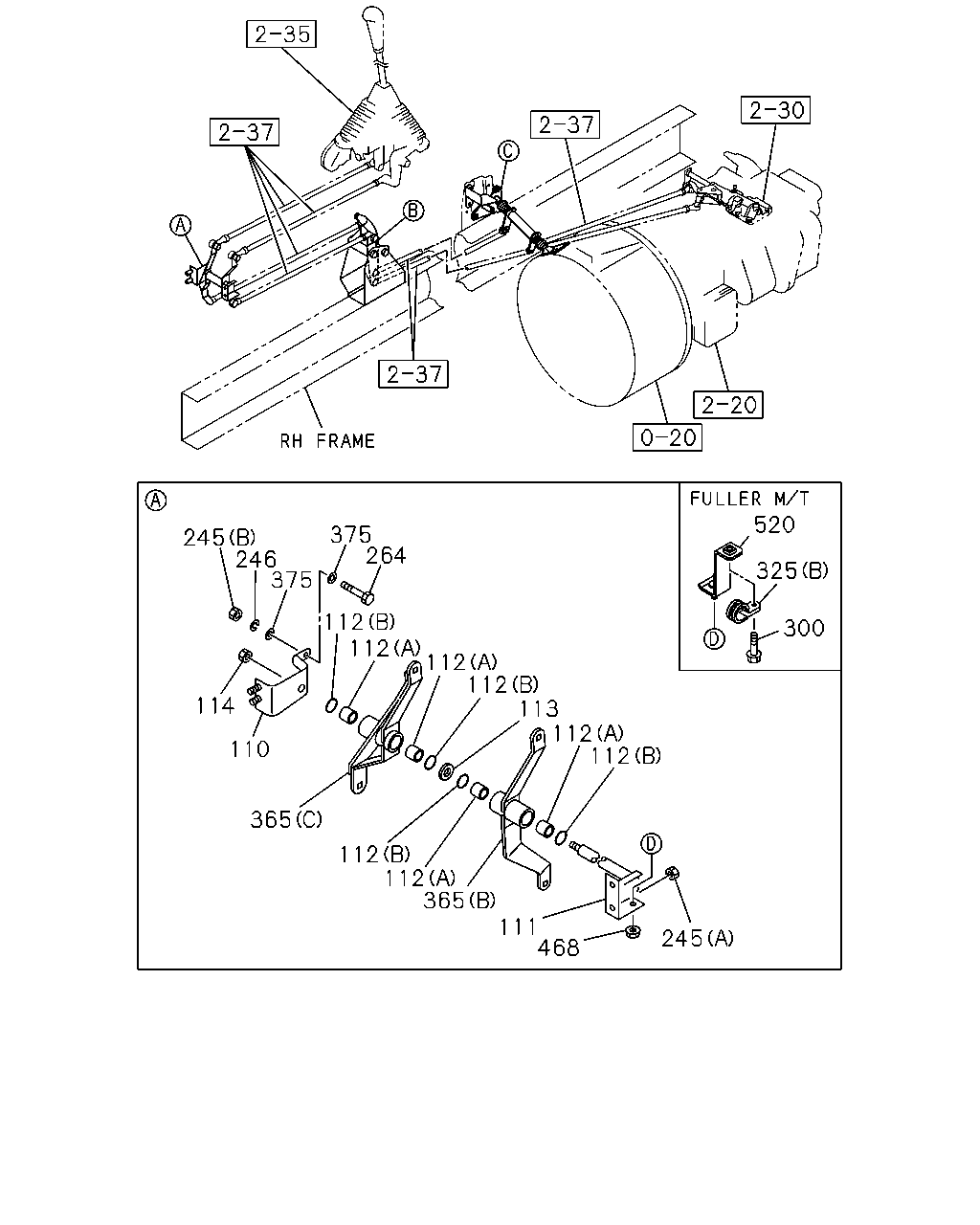

çizim 113792
245 375 246 264 375 112 112 112 112 113 112 112 520 300 325 245 468 111 365 112 112 365 110 114
BalonParca AdiParca NoAdetTipApplied Date
110 BRACKET; RELAY LEVER,1ST 1-33657-839-1 01 1 0710-
111 SHAFT; RELAY LEVER,1ST 1-33619-777-2 01 1 0710-
112 BUSHING; RELAY LEVER
(A) 		1-09330-119-0 04 1 0710-
112 BUSHING; RELAY LEVER
(B) 		1-09623-594-0 04 1 0710-
113 WASHER; RELAY LEVER
ID=17 OD=30 		0-91610-516-0 01 1 0710-
114 NUT; RELAY LEVER
M10 FLANGE 		0-91180-110-0 01 1 0710-
245 NUT; BRKT,RELAY LEVER
(A) M10 FLANGE 		0-91180-210-0 02 1 0710-1304
245 NUT; BRKT,RELAY LEVER
(A) M10 FLANGE 		0-91180-110-0 02 1 1305-
245 NUT; BRKT,RELAY LEVER
(B) M10 		1-09984-142-0 01 1 0710-
246 WASHER; LK,BRKT,RELAY LEVER
ID=10 		1-09985-185-0 01 1 0710-
264 BOLT; BRKT,RELAY LEVER
M10X105 		1-79198-008-1 01 1 0710-
300 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0802-
300 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0710-0904
300 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
325 CLIP; NYLON TUBE
(B) ID=19 L=28 		0-95235-856-0 01 1 0710-
325 CLIP; NYLON TUBE
(A) ID=9.5 		5-09709-020-0 06 1 0710-0801
325 CLIP; NYLON TUBE
(C) ID=35 L=33 		1-09700-945-0 01 1 0802-
365 LEVER; RELAY,SELECT
(A) 		1-33651-771-1 01 1 0710-
365 LEVER; RELAY,SELECT
(B) 		1-33651-822-3 01 1 0710-
365 LEVER; RELAY,SELECT
(C) 		1-33651-823-3 01 1 0710-
375 WASHER; PL,BRKT,RELAY LEVER
ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0710-
468 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 0710-
520 BRACKET; NYLON TUBE 1-79996-628-0 01 1 0710-

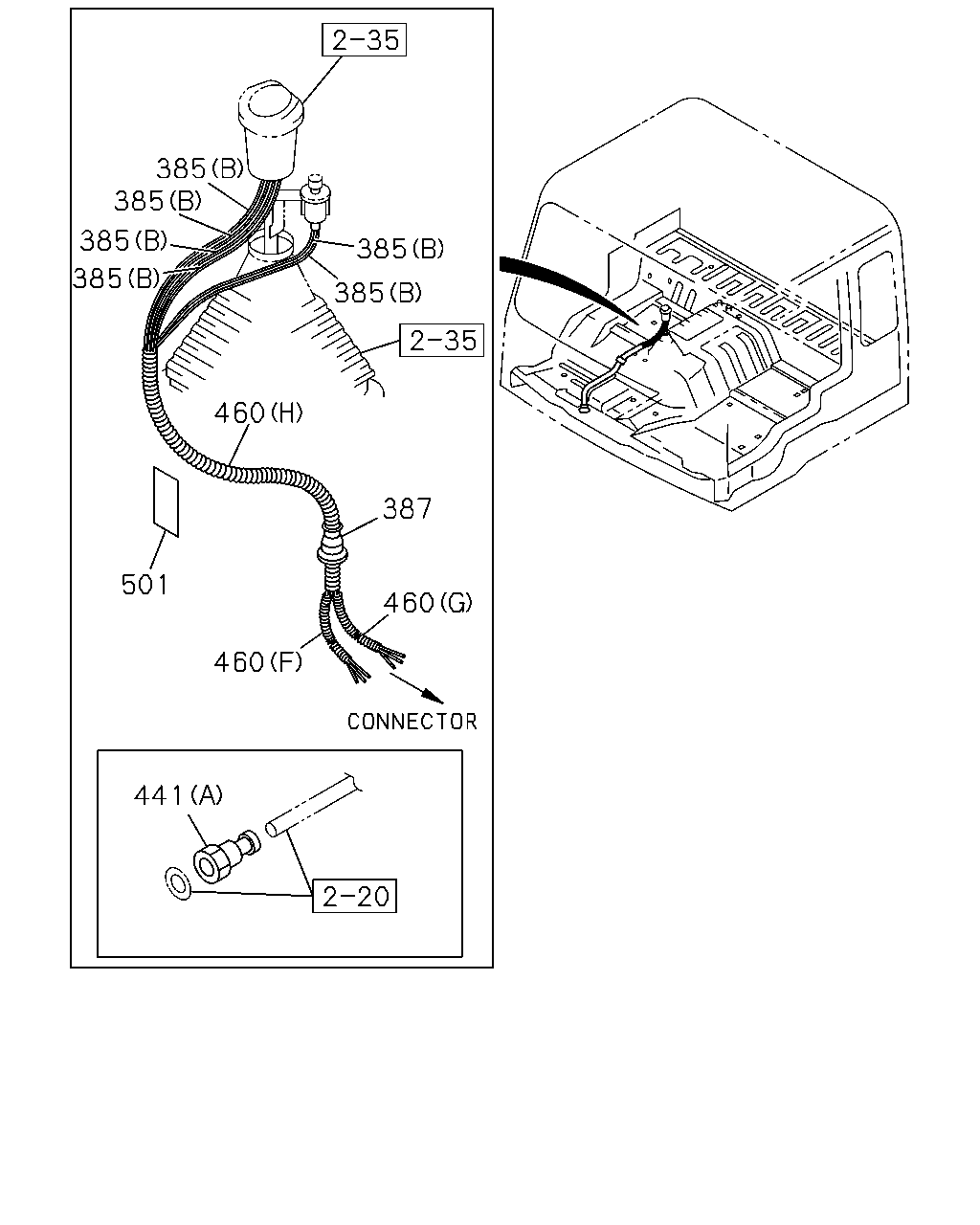

çizim 114107
385 385 385 385 385 460 501 387 385 460 441 460
BalonParca AdiParca NoAdetTipApplied Date
385 TUBE; NYLON
(A) L=3130 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0710-
385 TUBE; NYLON
(B) L=1820 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0710-
385 TUBE; NYLON
(A) L=3220 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0710-
385 TUBE; NYLON
(B) L=1820 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0710-
385 TUBE; NYLON
(A) L=3650 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0710-
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0710-
385 TUBE; NYLON
(A) L=3235 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0710-
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0710-
385 TUBE; NYLON
(A) L=2750 SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0710-0805
385 TUBE; NYLON
(A) SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0806-0806
385 TUBE; NYLON
(A) SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0806-
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0710-
385 TUBE; NYLON
(A) L=3450 SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 0710-
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 0710-
387 GROMMET; CONT TUBE,FULLER 1-09332-135-0 01 1 0710-
441 CONNECTOR; NYLON TUBE
(A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 0710-
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-975-0 06 1 0710-0804
441 CONNECTOR; NYLON TUBE
(B) 		8-98120-561-0 06 1 0805-
460 TUBE; CORRUGATE
(E) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0710-
460 TUBE; CORRUGATE
(F) L=400 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0710-0803
460 TUBE; CORRUGATE
(F) ID=10 L=400 SERVICED BY L=6000 		1-83129-337-0 01 1 0804-
460 TUBE; CORRUGATE
(C) L=150 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0710-0805
460 TUBE; CORRUGATE
(C) L=110 SERVICED BY L=2000 ID=7 		1-83129-335-0 01 1 0806-
460 TUBE; CORRUGATE
(D) L=600 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0710-
460 TUBE; CORRUGATE
(F) L=50 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0710-
460 TUBE; CORRUGATE
(G) L=370 SERVICED BY L=6000 		1-83129-337-0 01 1 0710-
460 TUBE; CORRUGATE
(B) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0710-
460 TUBE; CORRUGATE
(H) SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0710-
460 TUBE; CORRUGATE
(A) L=2500 SERVICED BY L=4000 ID=13 		1-87411-023-0 01 1 0710-
501 SEAL; HARNESS PROTECTOR
180X40 		1-72498-019-1 04 1 0710-

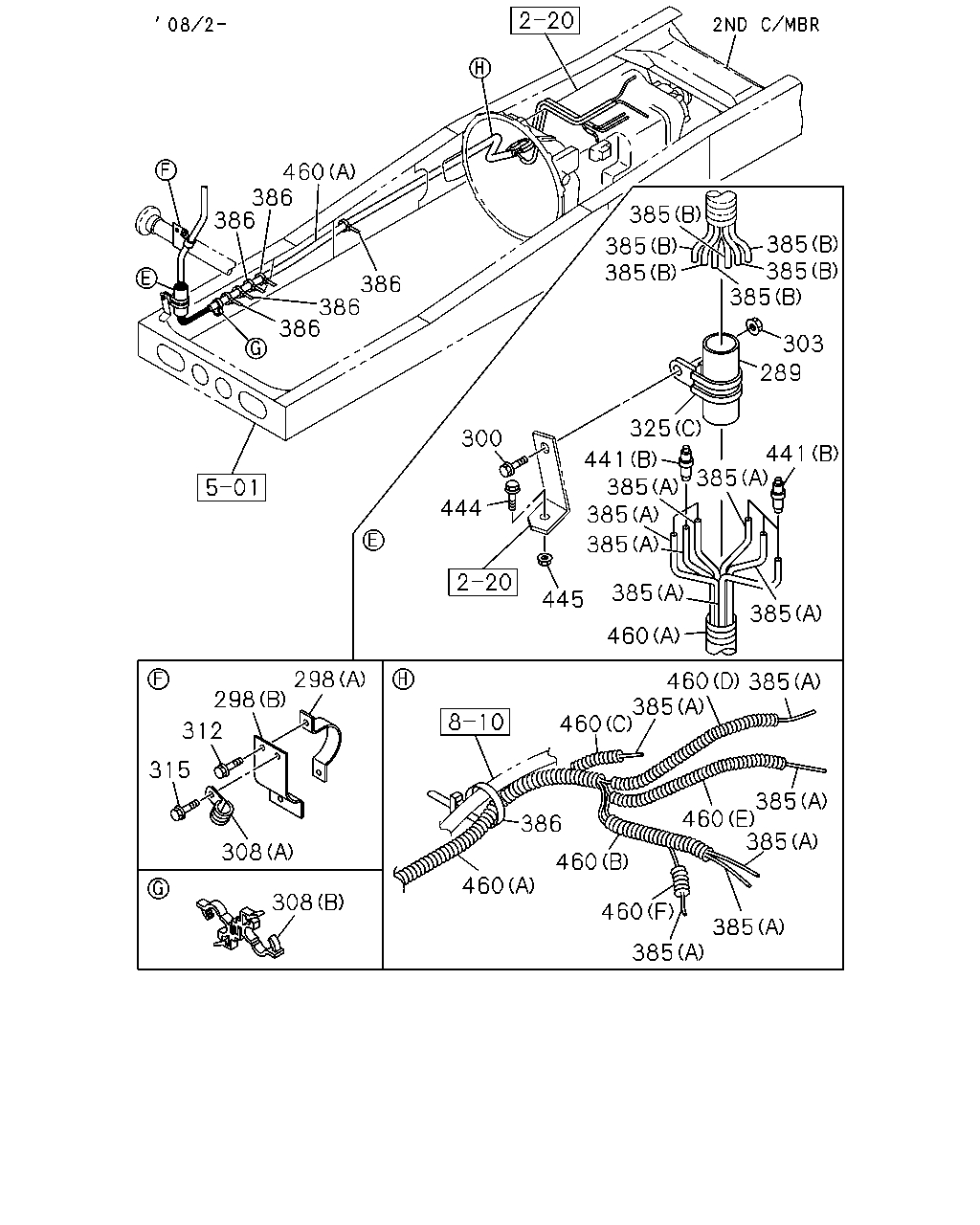

çizim 192959
460 386 386 385 385 385 385 385 385 386 386 386 303 289 325 300 441 441 385 385 385 444 385 385 445 385 460 298 298 385 460 312 315 385 460 385 386 308 460 460 308 460 385 385 460 385
BalonParca AdiParca NoAdetTipApplied Date
289 SLEEVE; RUBBER
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0802-
298 BRACKET
(B) 		1-47471-478-0 01 1 0710-
298 BRACKET
(A) 		1-47471-479-0 01 1 0710-
300 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0802-
300 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0710-0904
300 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
303 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0802-
308 CLIP; PIPE
(B) ID=19 L=28 		0-95235-856-0 01 1 0710-
308 CLIP; PIPE
(A) ID=12-16 & 12-16 		1-09709-191-0 01 1 0710-
312 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0710-
315 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0710-
325 CLIP; NYLON TUBE
(B) ID=19 L=28 		0-95235-856-0 01 1 0710-
325 CLIP; NYLON TUBE
(A) ID=9.5 		5-09709-020-0 06 1 0710-0801
325 CLIP; NYLON TUBE
(C) ID=35 L=33 		1-09700-945-0 01 1 0802-
385 TUBE; NYLON
(A) L=3130 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0710-
385 TUBE; NYLON
(B) L=1820 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0710-
385 TUBE; NYLON
(A) L=3220 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0710-
385 TUBE; NYLON
(B) L=1820 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0710-
385 TUBE; NYLON
(A) L=3650 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0710-
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0710-
385 TUBE; NYLON
(A) L=3235 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0710-
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0710-
385 TUBE; NYLON
(A) L=2750 SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0710-0805
385 TUBE; NYLON
(A) SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0806-0806
385 TUBE; NYLON
(A) SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0806-
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0710-
385 TUBE; NYLON
(A) L=3450 SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 0710-
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 0710-
386 CLIP; CONT CABLE & TUBE
L=350 		1-09707-183-0 08 1 0710-
441 CONNECTOR; NYLON TUBE
(A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 0710-
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-975-0 06 1 0710-0804
441 CONNECTOR; NYLON TUBE
(B) 		8-98120-561-0 06 1 0805-
444 BOLT; BRKT,NIPPLE
M8X25 FLANGE 		0-28650-825-0 01 1 0710-
445 NUT; BRKT,NIPPLE
M8 FLANGE 		0-91180-108-0 01 1 0710-
460 TUBE; CORRUGATE
(E) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0710-
460 TUBE; CORRUGATE
(F) L=400 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0710-0803
460 TUBE; CORRUGATE
(F) ID=10 L=400 SERVICED BY L=6000 		1-83129-337-0 01 1 0804-
460 TUBE; CORRUGATE
(C) L=150 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0710-0805
460 TUBE; CORRUGATE
(C) L=110 SERVICED BY L=2000 ID=7 		1-83129-335-0 01 1 0806-
460 TUBE; CORRUGATE
(D) L=600 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0710-
460 TUBE; CORRUGATE
(F) L=50 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0710-
460 TUBE; CORRUGATE
(G) L=370 SERVICED BY L=6000 		1-83129-337-0 01 1 0710-
460 TUBE; CORRUGATE
(B) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0710-
460 TUBE; CORRUGATE
(H) SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0710-
460 TUBE; CORRUGATE
(A) L=2500 SERVICED BY L=4000 ID=13 		1-87411-023-0 01 1 0710-

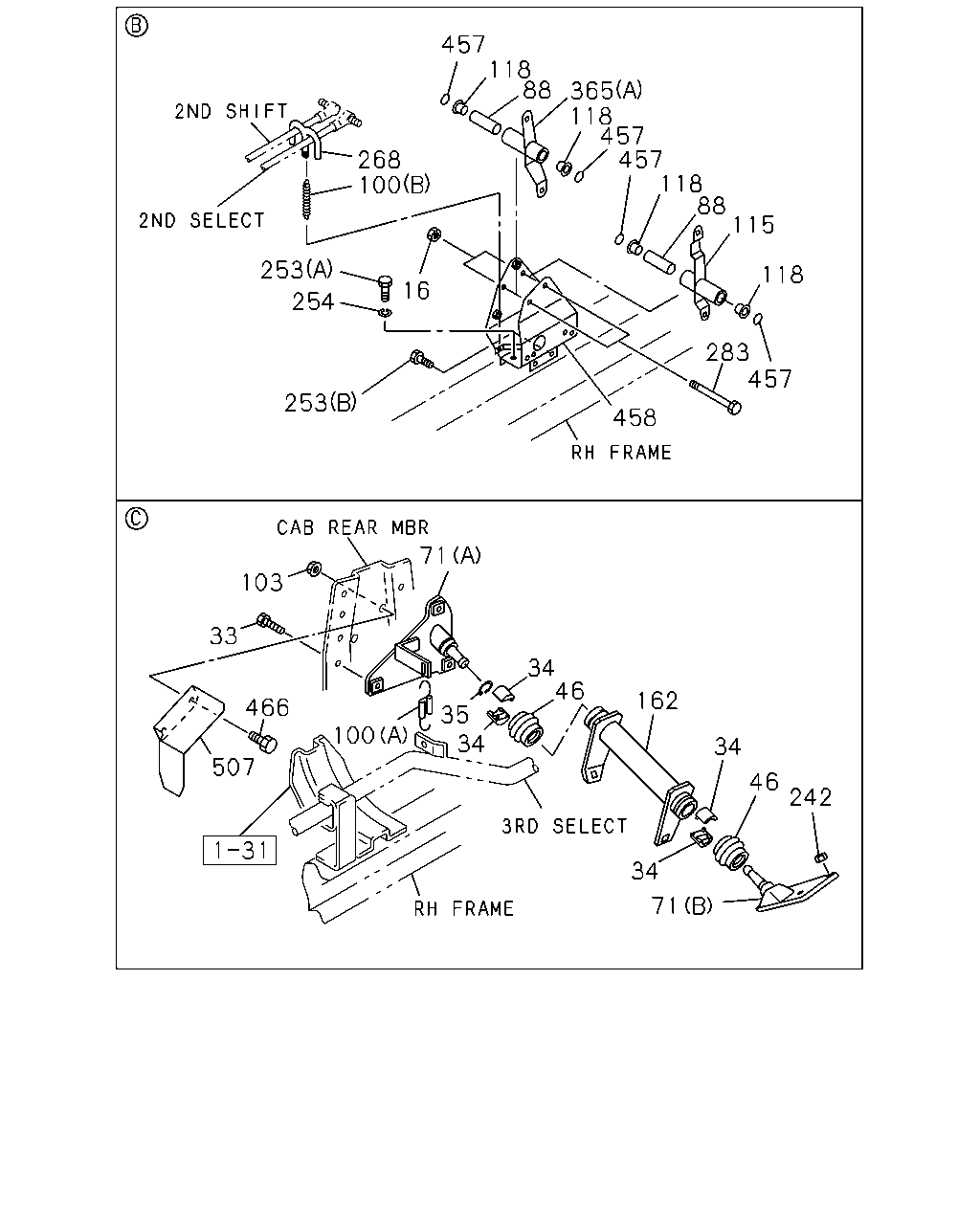

çizim 192991
268 457 365 118 88 457 457 118 118 118 115 88 283 457 458 100 16 253 254 253 103 33 466 507 35 34 34 71 162 46 34 46 242 34 71 100
BalonParca AdiParca NoAdetTipApplied Date
16 NUT; RELAY LEVER
M10 FLANGE 		0-91180-110-0 02 1 0710-
33 BOLT; BRKT,3RD RELAY LEVER
M10X30 FLANGE 		0-28651-030-0 03 1 0710-1003
33 BOLT; BRKT,3RD RELAY LEVER
M10X35 FLANGE 		0-28651-035-0 03 1 1004-
34 SEAT; BALL,RELAY LEVER 1-33659-165-0 04 1 0710-
35 RING; SNAP,RELAY LEVER
OD=34.4 		9-09180-132-0 01 1 0710-
46 SEAL; DUST,RELAY LEVER 1-33659-248-0 02 1 0710-
71 BRACKET; 3RD RELAY LEVER,FRAME
(B) 		1-33657-481-0 01 1 0710-
71 BRACKET; 3RD RELAY LEVER,FRAME
(A) 		1-33657-706-0 01 1 0710-
88 COLLAR; RELAY LEVER 1-33659-191-1 02 1 0710-
100 SPRING
(A) 		1-09583-319-0 01 1 0710-
100 SPRING
(B) 		1-09583-351-0 01 1 0710-
103 NUT
M8 FLANGE 		0-91180-108-0 01 1 0710-
115 LEVER; RELAY,2ND SHIFT 1-33651-769-1 01 1 0710-
118 BUSHING; RELAY LEVER 1-09330-119-0 04 1 0710-
162 LEVER; RELAY 1-33651-625-1 01 1 0710-
242 NUT; FLANGE 3RD RELAY LEVER
M12 FLANGE 		0-91180-212-0 03 1 0710-
253 BOLT; BRKT,2ND RELAY LEVER
(A) M14X45 		0-20801-445-0 02 1 0710-
253 BOLT; BRKT,2ND RELAY LEVER
(B) M10X25 FLANGE 		0-28051-025-0 02 1 0710-
254 WASHER; LK,RELAY LEVER
ID=14.2 		0-91510-614-0 02 1 0710-
268 BRACKET; LINK ROD 1-33657-216-0 01 1 0710-
283 BOLT; RELAY LEVER
M10X110 		9-09801-316-1 02 1 0710-
365 LEVER; RELAY,SELECT
(A) 		1-33651-771-1 01 1 0710-
365 LEVER; RELAY,SELECT
(B) 		1-33651-822-3 01 1 0710-
365 LEVER; RELAY,SELECT
(C) 		1-33651-823-3 01 1 0710-
457 GASKET 1-09623-594-0 04 1 0710-
458 BRACKET; 2ND RELAY LEVER 1-33657-664-1 01 1 0710-
466 BOLT; FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0710-
507 PROTECTOR; HEAT 1-14181-287-1 01 1 0710-

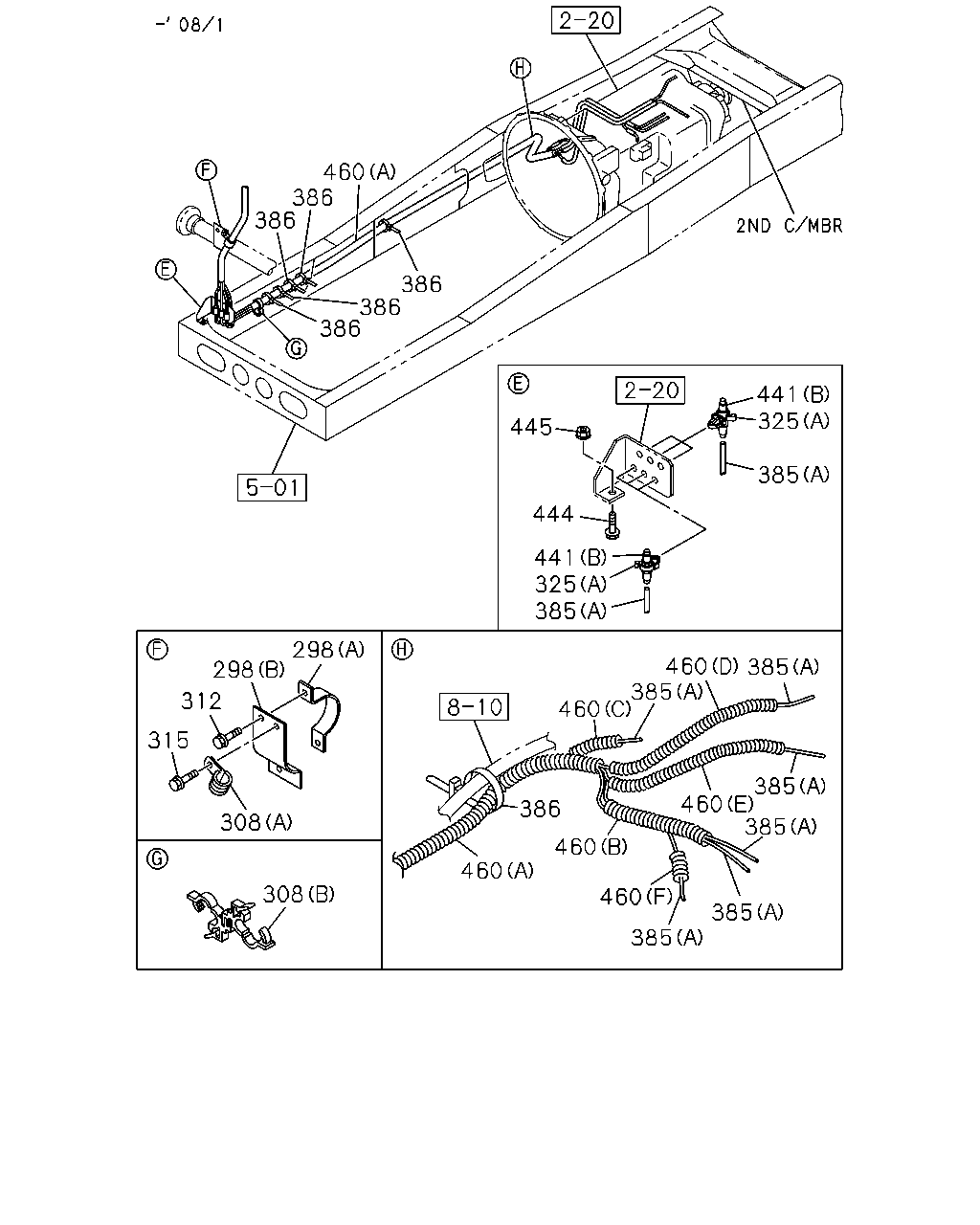

çizim 192995
460 386 386 386 386 386 441 325 445 385 444 441 325 385 298 298 385 460 312 315 385 460 385 386 308 460 460 308 460 385 385 460 385
BalonParca AdiParca NoAdetTipApplied Date
298 BRACKET
(B) 		1-47471-478-0 01 1 0710-
298 BRACKET
(A) 		1-47471-479-0 01 1 0710-
308 CLIP; PIPE
(B) ID=19 L=28 		0-95235-856-0 01 1 0710-
308 CLIP; PIPE
(A) ID=12-16 & 12-16 		1-09709-191-0 01 1 0710-
312 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0710-
315 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0710-
325 CLIP; NYLON TUBE
(B) ID=19 L=28 		0-95235-856-0 01 1 0710-
325 CLIP; NYLON TUBE
(A) ID=9.5 		5-09709-020-0 06 1 0710-0801
325 CLIP; NYLON TUBE
(C) ID=35 L=33 		1-09700-945-0 01 1 0802-
385 TUBE; NYLON
(A) L=3130 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0710-
385 TUBE; NYLON
(B) L=1820 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0710-
385 TUBE; NYLON
(A) L=3220 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0710-
385 TUBE; NYLON
(B) L=1820 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0710-
385 TUBE; NYLON
(A) L=3650 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0710-
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0710-
385 TUBE; NYLON
(A) L=3235 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0710-
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0710-
385 TUBE; NYLON
(A) L=2750 SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0710-0805
385 TUBE; NYLON
(A) SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0806-0806
385 TUBE; NYLON
(A) SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0806-
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0710-
385 TUBE; NYLON
(A) L=3450 SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 0710-
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 0710-
386 CLIP; CONT CABLE & TUBE
L=350 		1-09707-183-0 08 1 0710-
441 CONNECTOR; NYLON TUBE
(A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 0710-
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-975-0 06 1 0710-0804
441 CONNECTOR; NYLON TUBE
(B) 		8-98120-561-0 06 1 0805-
444 BOLT; BRKT,NIPPLE
M8X25 FLANGE 		0-28650-825-0 01 1 0710-
445 NUT; BRKT,NIPPLE
M8 FLANGE 		0-91180-108-0 01 1 0710-
460 TUBE; CORRUGATE
(E) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0710-
460 TUBE; CORRUGATE
(F) L=400 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0710-0803
460 TUBE; CORRUGATE
(F) ID=10 L=400 SERVICED BY L=6000 		1-83129-337-0 01 1 0804-
460 TUBE; CORRUGATE
(C) L=150 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0710-0805
460 TUBE; CORRUGATE
(C) L=110 SERVICED BY L=2000 ID=7 		1-83129-335-0 01 1 0806-
460 TUBE; CORRUGATE
(D) L=600 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0710-
460 TUBE; CORRUGATE
(F) L=50 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0710-
460 TUBE; CORRUGATE
(G) L=370 SERVICED BY L=6000 		1-83129-337-0 01 1 0710-
460 TUBE; CORRUGATE
(B) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0710-
460 TUBE; CORRUGATE
(H) SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0710-
460 TUBE; CORRUGATE
(A) L=2500 SERVICED BY L=4000 ID=13 		1-87411-023-0 01 1 0710-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
