◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11115 - EXZ NZ JAPAN NEW SHORT TERM 2004 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#67276) — 38 parça

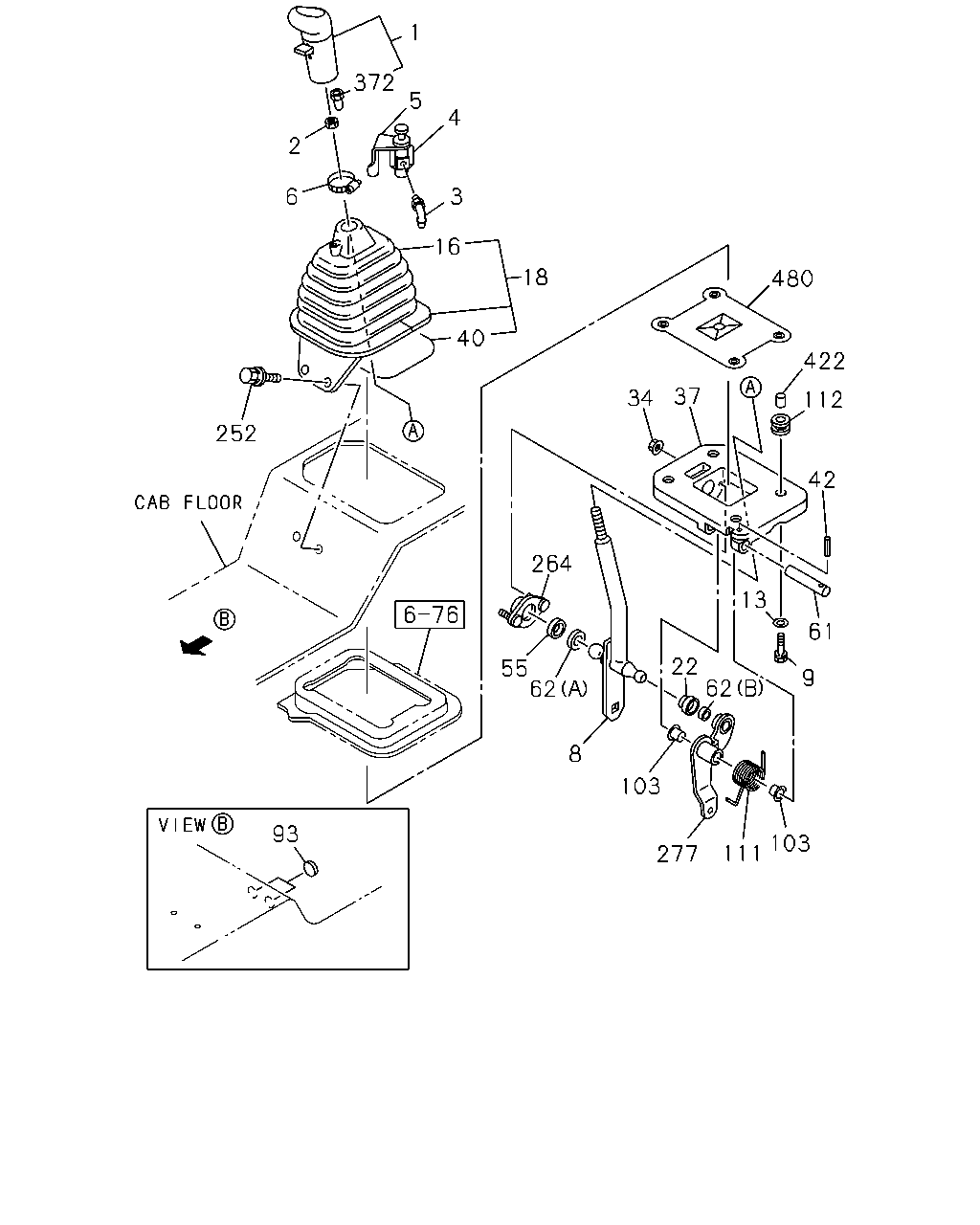

çizim 113970
1 2 6 5 4 3 16 372 18 40 252 93 264 55 62 8 103 277 111 103 62 22 9 13 61 42 112 37 34 480 422
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER 1-33611-116-0 01 1 0710-0804
1 KNOB; CHANGE LEVER 8-98120-384-0 01 1 0805-1401
1 KNOB; CHANGE LEVER 8-98224-285-0 01 1 1402-
2 NUT; KNOB
1/2-13UNC 		1-33619-033-0 01 1 0710-
3 CONNECTOR; CONT TUBE 1-33619-533-0 02 1 0710-0804
3 CONNECTOR; CONT TUBE 8-98114-398-0 02 1 0805-
4 VALVE; ACTUATOR 1-33712-003-0 01 1 0710-
5 BRACKET; ACTUATOR VLV 1-33719-078-0 01 1 0710-
6 CLAMP; BRKT 1-33719-079-0 01 1 0710-
8 LEVER; CHANGE 1-33613-349-0 01 1 0710-
9 BOLT; CHANGE LEVER
M8X25 FLANGE 		0-28650-825-0 04 1 0710-
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		0-91610-708-0 04 1 0710-
16 BOOT; CHANGE LEVER 1-79996-367-1 01 1 0710-
18 BOOT; CHANGE LEVER 1-79996-435-2 01 1 0710-
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 0710-
34 NUT
M6 FLANGE 		0-91180-106-0 02 1 0710-
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 0710-0802
37 BRACKET; CHANGE LEVER SUPPORT 8-98100-876-1 01 1 0803-
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 0710-
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 0710-
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 0710-0802
61 PIN; SELECT LEVER 1-33619-470-0 01 1 0710-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0710-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0710-
93 SEAL; HOLE COVER,GEAR CONT
OD=25 BLACK 		1-76798-019-0 03 1 0710-1009
93 SEAL; HOLE COVER,GEAR CONT
OD=25 BLACK 		1-76798-019-0 02 1 1010-
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0710-
111 SPRING 1-09585-133-1 01 1 0710-
112 RUBBER; CUSHION 8-97091-426-0 04 1 0710-0810
252 BOLT; COVER,CHANGE LEVER
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0710-0904
252 BOLT; COVER,CHANGE LEVER
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
264 PLATE; COVER 1-33619-469-0 01 1 0710-
277 LEVER; RELAY 1-33651-636-1 01 1 0710-
372 CONNECTOR; CHANGE LEVER 8-97500-148-0 04 1 0710-0804
372 CONNECTOR; CHANGE LEVER 8-98114-396-0 04 1 0805-
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 0710-
480 RUBBER; COVER 1-33619-554-0 01 1 0710-0810
480 RUBBER; COVER 8-98119-365-0 01 1 0811-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
