2-05 — CLUTCH PIPING
(#67269) — 85 parça
◀

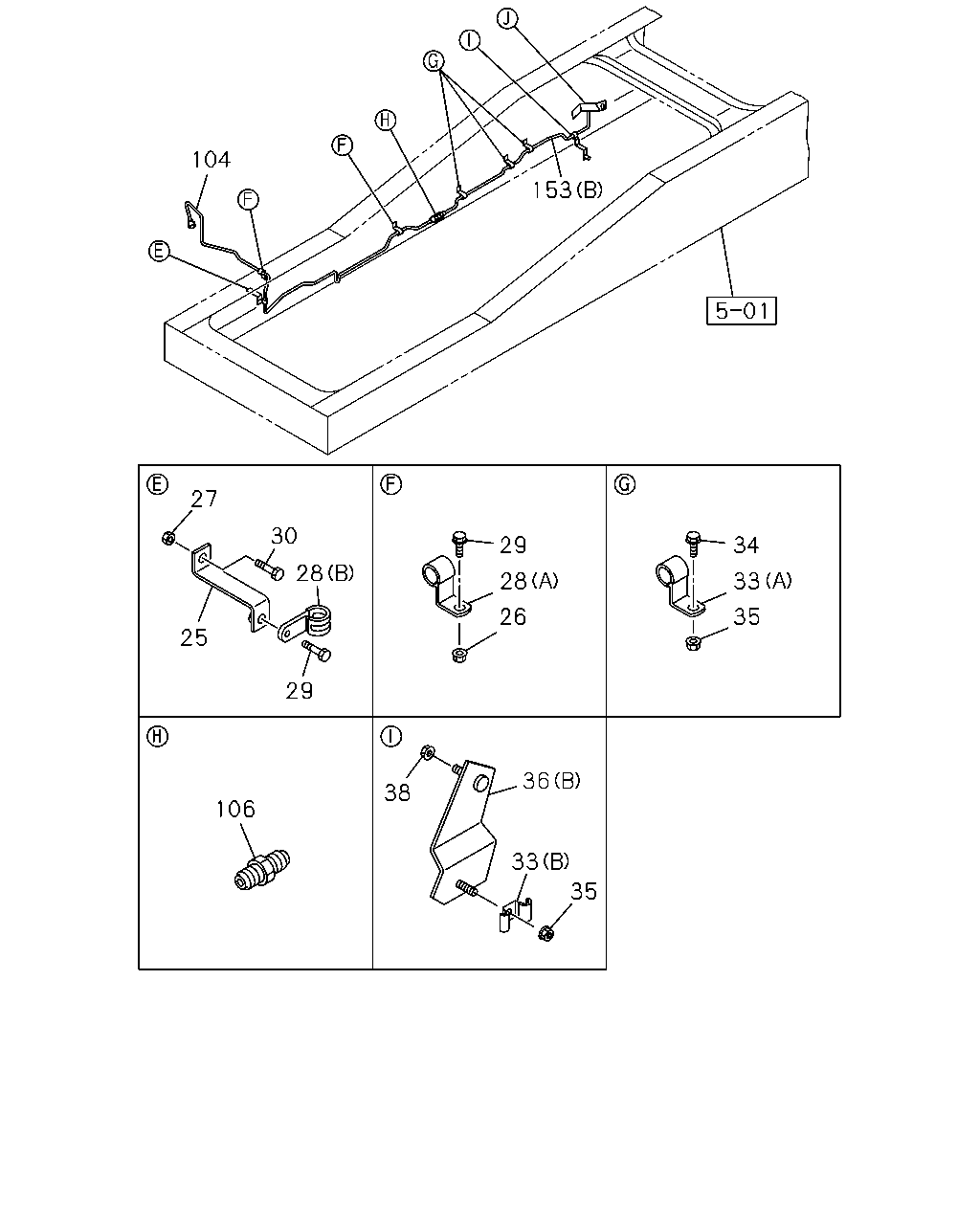

[205A] FRAME SIDE NO.1 (24 parça)

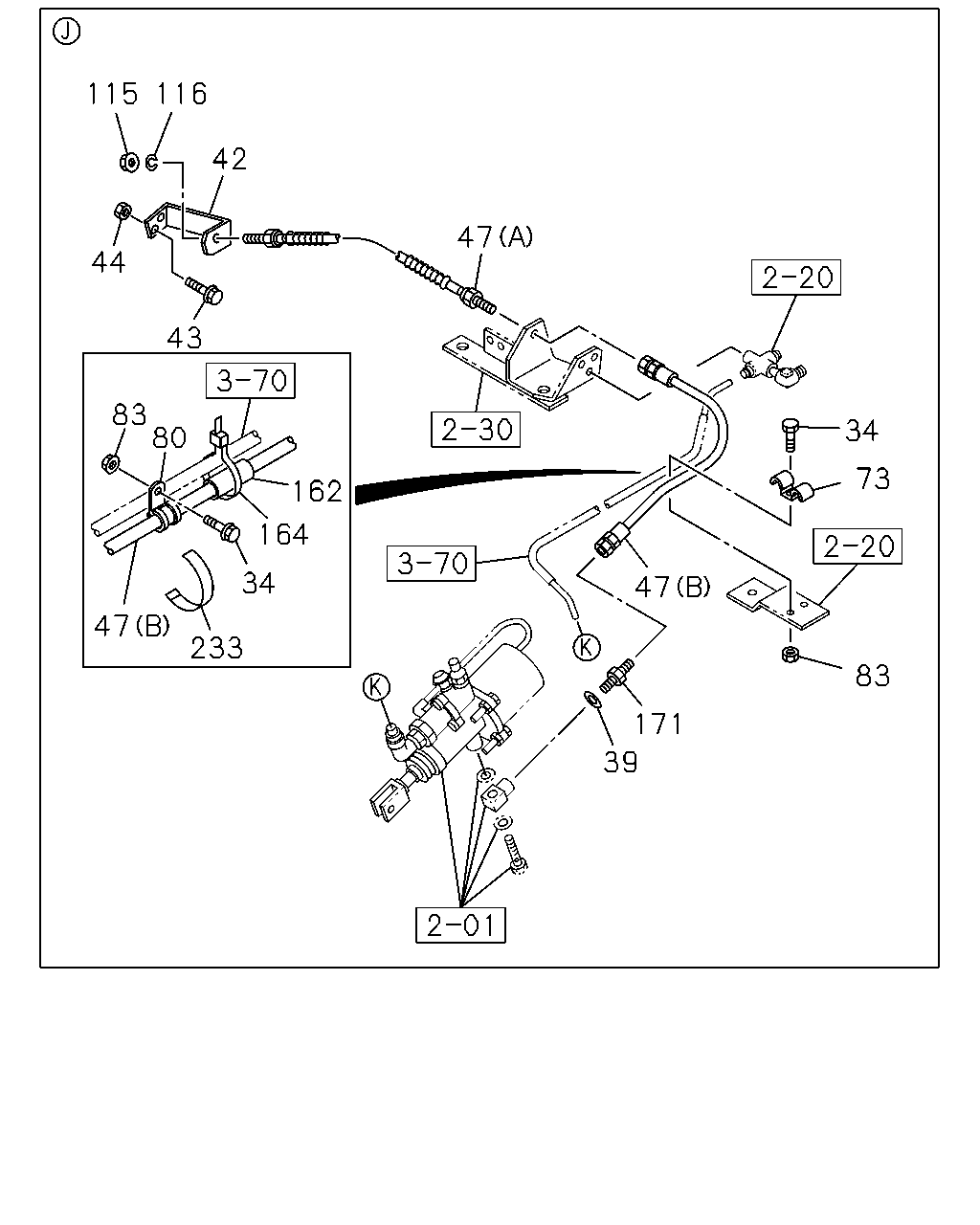

[205A] FRAME SIDE NO.2 (17 parça)

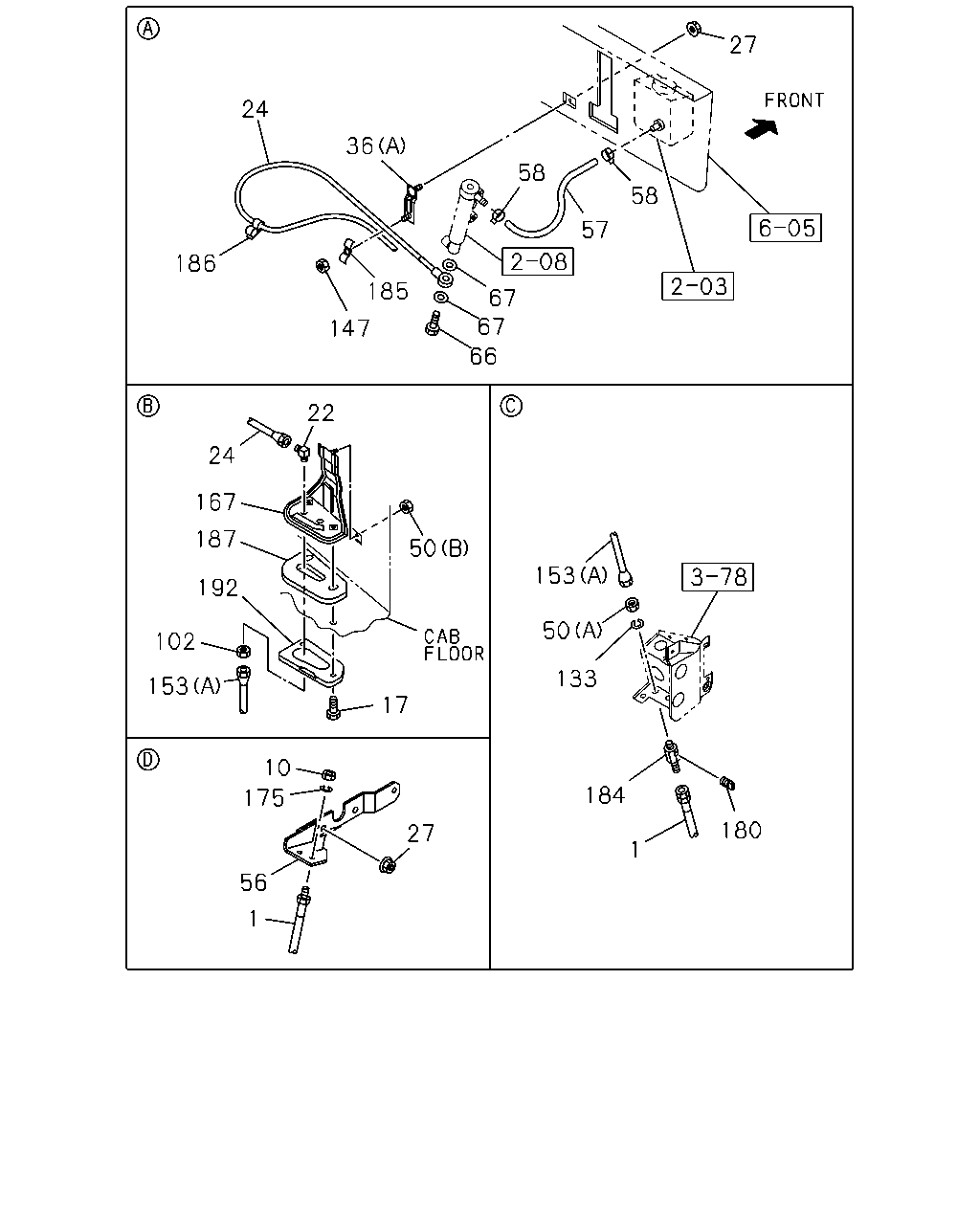

[205A] CAB SIDE NO.2 (36 parça)
[205A] CAB SIDE NO.1 (8 parça)
▶
153
104
27
25
29
30
28
29
28
26
34
33
35
38
106
33
35
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
BRACKET; OIL PIPE
1-46147-101-0
01
1
0710-
26
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91180-108-0
02
1
0710-
27
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0710-
27
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0710-
27
NUT; BRKT
M6 FLANGE W/RUBBER
1-09984-180-0
01
1
0710-
28
CLIP; OIL PIPE
(B) ID=9 L=20
0-95234-835-0
01
1
0710-
28
CLIP; OIL PIPE
(A) ID=8 H=20 L=20
1-09700-604-0
02
1
0710-
29
BOLT; CLIP,OIL PIPE
M8X20 FLANGE
0-28650-820-0
02
1
0710-
29
BOLT; CLIP,OIL PIPE
M8X30 FLANGE
0-28650-830-0
01
1
0710-
30
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
01
1
0710-
33
CLIP; OIL PIPE
(A) ID=8 H=20 L=20
1-09700-604-0
02
1
0710-
33
CLIP; OIL PIPE
(B) ID=19 & 9 L=22 & 18
1-09701-298-0
01
1
0710-
34
BOLT; PIPE CLIP
M8X20 FLANGE
0-28050-820-0
02
1
0710-
34
BOLT; PIPE CLIP
M8X30 FLANGE
0-28650-830-0
02
1
0710-
35
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
03
1
0710-
36
BRACKET; CLIP
(B)
1-47471-358-0
01
1
0710-0805
36
BRACKET; CLIP
(B)
8-98060-696-0
01
1
0806-
36
BRACKET; CLIP
(A)
1-71117-191-1
01
1
0710-
38
NUT; CLIP BRKT
M8 FLANGE
0-91180-108-0
01
1
0710-
104
PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1412 SERVICED BY L=1550
1-47428-766-0
01
1
0710-
106
UNION; OIL PIPE
M14 STRAIGHT
0-92113-008-0
01
1
0710-
153
PIPE ASM; CLU,UNION TO FLEX
(B) L=1744 SERVICED BY L=1800
1-47428-768-0
01
1
0710-0805
153
PIPE ASM; CLU,UNION TO FLEX
(B) L=1731 SERVICED BY L=1800
1-47428-768-0
01
1
0806-
153
PIPE ASM; CLU,UNION TO FLEX
(A) L=537
8-98085-164-0
01
1
0710-
115
116
42
44
43
47
34
73
47
83
171
39
162
164
34
233
47
83
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
34
BOLT; PIPE CLIP
M8X20 FLANGE
0-28050-820-0
02
1
0710-
34
BOLT; PIPE CLIP
M8X30 FLANGE
0-28650-830-0
02
1
0710-
39
GASKET; CONNECTOR
ID=10.2 OD=16.0
9-09571-410-0
01
1
0710-
42
BRACKET; FLEX HOSE,CLU CONT
1-47471-359-0
01
1
0710-
43
BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE
0-28650-830-0
02
1
0710-
44
NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE
0-91180-108-0
02
1
0710-
47
HOSE; FLEX,CLU CONT
(A) L=445
1-09364-478-0
01
1
0710-
47
HOSE; FLEX,CLU CONT
(B) L=550
1-09365-377-1
01
1
0710-
73
CLIP; OIL PIPE
ID=16 & 9 L=21 & 18
1-09700-676-0
01
1
0710-
80
CLIP; HOSE
ID=16 L=50
1-09701-158-0
01
1
0710-
83
NUT; PIPE CLIP
M8
0-91110-508-0
02
1
0710-
115
NUT; FLEX HOSE,CLU CONT
M14
0-91111-514-0
01
1
0710-
116
WASHER; FLEX HOSE,CLU CONT
ID=14.2
0-91510-514-0
01
1
0710-
162
COVER; RUBBER,FLEX HOSE
ID=14 OD=18 L=60
1-09337-030-0
01
1
0710-
164
CLIP; BAND,FLEX HOSE
L=250
5-09707-030-1
01
1
0710-
171
CONNECTOR; CLU BOOSTER
1-09650-256-2
01
1
0710-
233
BAND; FLEX HOSE
L=175
1-09707-178-0
01
1
0710-
27
24
36
58
58
57
186
185
67
67
147
66
22
24
167
187
50
153
192
50
102
133
153
17
10
184
175
180
27
1
56
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,CLU CONT
L=620
8-98072-333-0
01
1
0710-
10
NUT; FLEX HOSE,CLU CONT
M14
0-91111-514-0
01
1
0710-
17
BOLT; BRKT
M8X20 W/LK&PL WASHER
8-94279-216-0
02
1
0710-
22
UNION; CLU PIPE
M14 ELBOW
0-92125-208-0
01
1
0710-
24
PIPE ASM; CLU,M/CYL TO UNION
L=643
1-47424-529-2
01
1
0710-
27
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0710-
27
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0710-
27
NUT; BRKT
M6 FLANGE W/RUBBER
1-09984-180-0
01
1
0710-
36
BRACKET; CLIP
(B)
1-47471-358-0
01
1
0710-0805
36
BRACKET; CLIP
(B)
8-98060-696-0
01
1
0806-
36
BRACKET; CLIP
(A)
1-71117-191-1
01
1
0710-
50
NUT; UNION
(A) M14
0-91111-514-0
01
1
0710-
50
NUT; UNION
(B) M6 FLANGE W/RUBBER
1-09984-180-0
02
1
0710-
56
BRACKET; FLEX HOSE
1-47478-300-1
01
1
0710-
57
HOSE; CLU M/CYL TO OIL TANK
1-47424-533-0
01
1
0710-
58
CLIP; RUBBER HOSE TO M/CYL
ID=14
8-94238-572-0
02
1
0710-
66
BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT
1-09675-146-0
01
1
0710-0805
66
BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT
8-98037-827-0
01
1
0806-
67
GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2
1-09630-085-0
02
1
0710-1312
67
GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
102
NUT; FLEX HOSE,CLU CONT
M14
0-91111-514-0
01
1
0710-
133
WASHER; LK,UNION
ID=14.2
0-91510-514-0
01
1
0710-
147
NUT; CLIP FIX
M8 CUTTING NUT W/FLANGE
1-09985-340-0
01
1
0710-
153
PIPE ASM; CLU,UNION TO FLEX
(B) L=1744 SERVICED BY L=1800
1-47428-768-0
01
1
0710-0805
153
PIPE ASM; CLU,UNION TO FLEX
(B) L=1731 SERVICED BY L=1800
1-47428-768-0
01
1
0806-
153
PIPE ASM; CLU,UNION TO FLEX
(A) L=537
8-98085-164-0
01
1
0710-
167
BRACKET; UNION
1-71117-183-3
01
1
0710-
175
WASER; LK,FLEX HOSE,CLU CONT
ID=14.2
0-91510-514-0
01
1
0710-
180
PLUG; PIPE
9-09204-510-0
01
1
0710-0804
184
UNION; FLEX HOSE
STRAIGHT
1-09656-679-0
01
1
0710-0804
184
UNION; FLEX HOSE
STRAIGHT
1-09654-435-0
01
1
0805-
185
CLIP; BRKT
ID=9 L=20
0-95405-308-0
01
1
0710-
186
HOLDER; CLIP
8-94107-710-0
02
1
0710-1109
186
HOLDER; CLIP
DRIVER ISRINGHAUSEN SEAT(SJA)
8-94107-710-0
02
1
1110-
187
SEAL; BRKT
1-71117-222-0
01
1
0710-
192
PLATE
1-71117-221-0
01
1
0710-
24
167
153
56
104
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,CLU CONT
L=620
8-98072-333-0
01
1
0710-
24
PIPE ASM; CLU,M/CYL TO UNION
L=643
1-47424-529-2
01
1
0710-
56
BRACKET; FLEX HOSE
1-47478-300-1
01
1
0710-
104
PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1412 SERVICED BY L=1550
1-47428-766-0
01
1
0710-
153
PIPE ASM; CLU,UNION TO FLEX
(B) L=1744 SERVICED BY L=1800
1-47428-768-0
01
1
0710-0805
153
PIPE ASM; CLU,UNION TO FLEX
(B) L=1731 SERVICED BY L=1800
1-47428-768-0
01
1
0806-
153
PIPE ASM; CLU,UNION TO FLEX
(A) L=537
8-98085-164-0
01
1
0710-
167
BRACKET; UNION
1-71117-183-3
01
1
0710-
