Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11115 - EXZ NZ JAPAN NEW SHORT TERM 2004
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-50 - EXHAUST PIPE AND SILENCER
▶
1-50 — EXHAUST PIPE AND SILENCER
(#67264) — 51 parça
◀

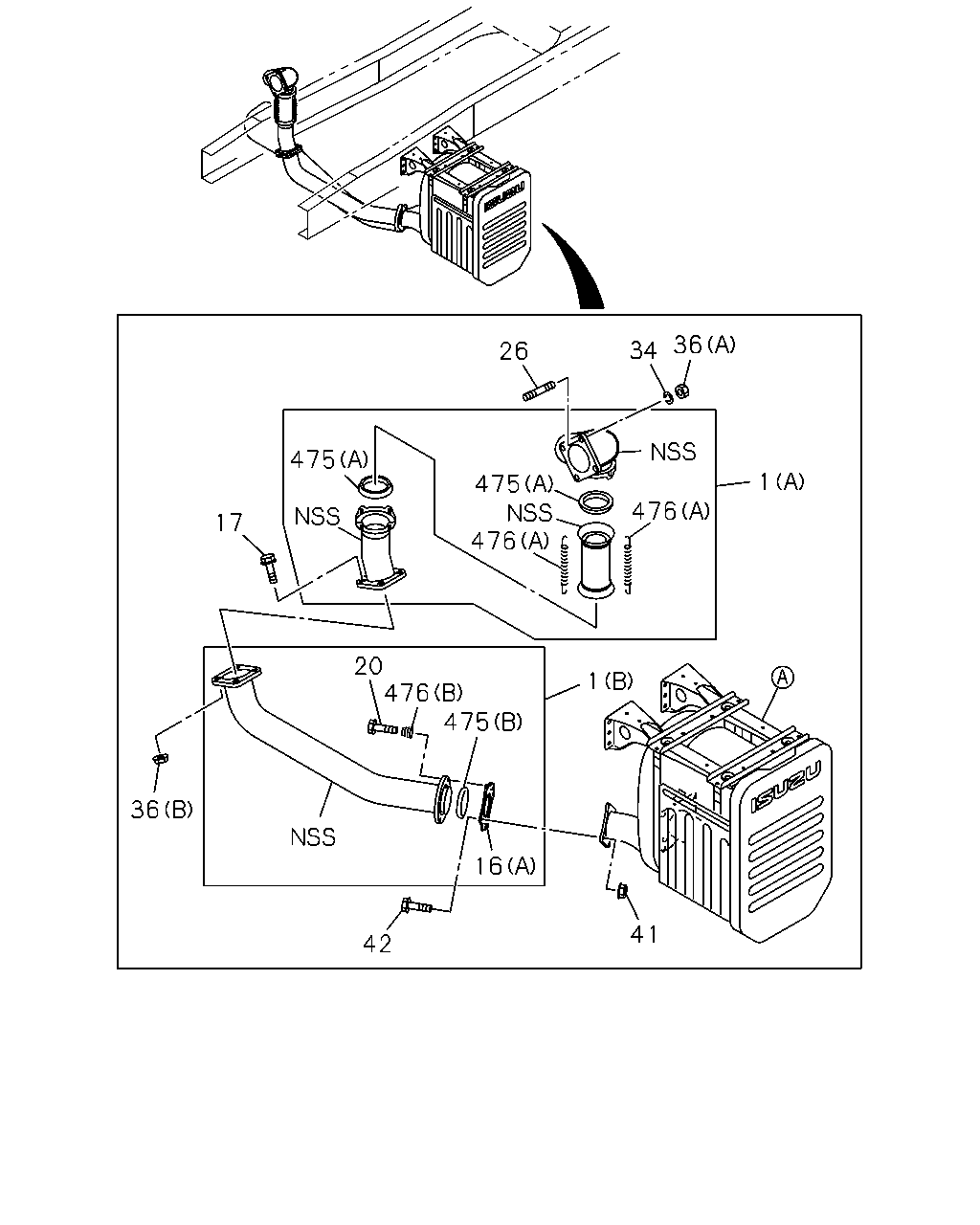

[150A] FRONT (16 parça)

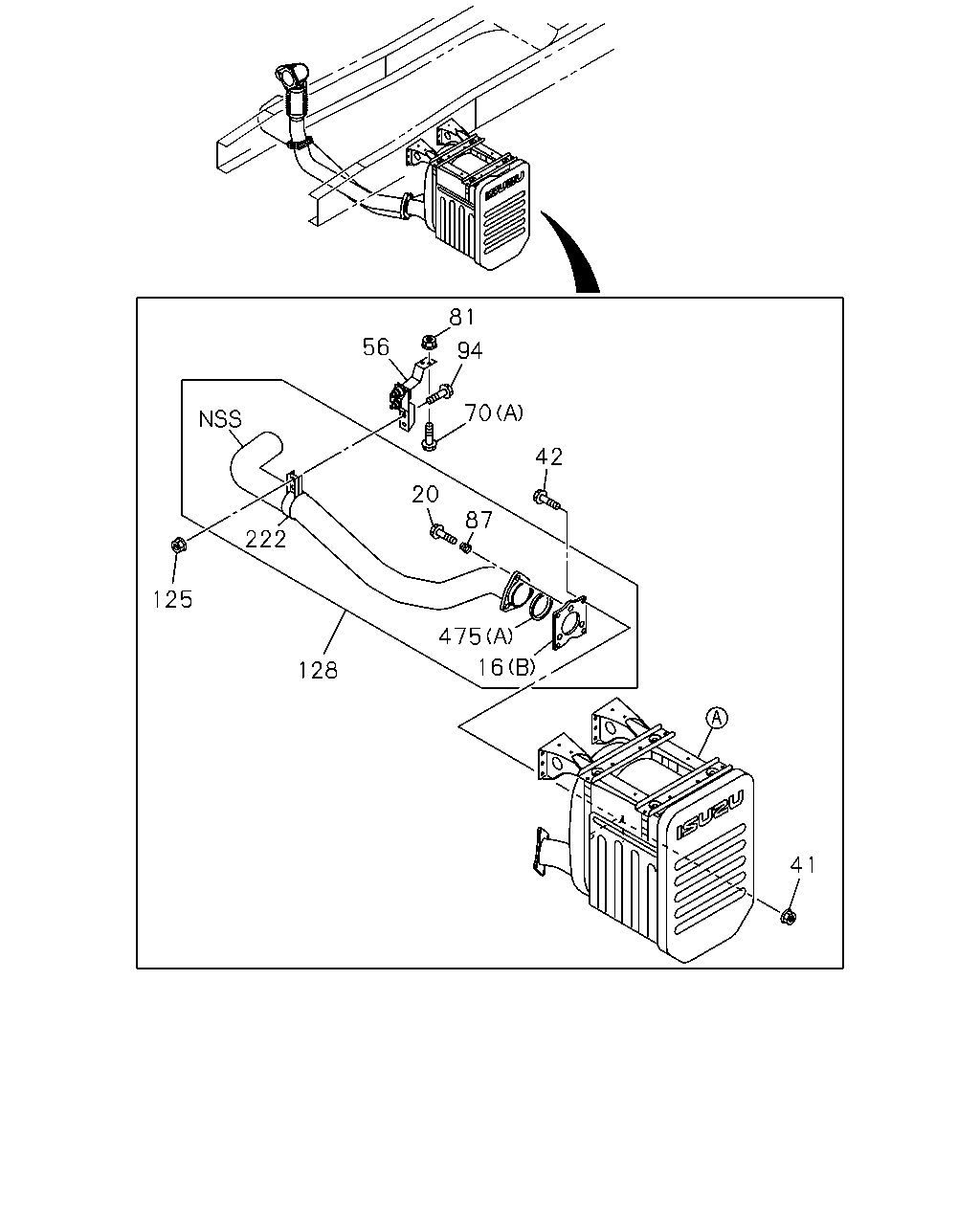

[150A] REAR (17 parça)

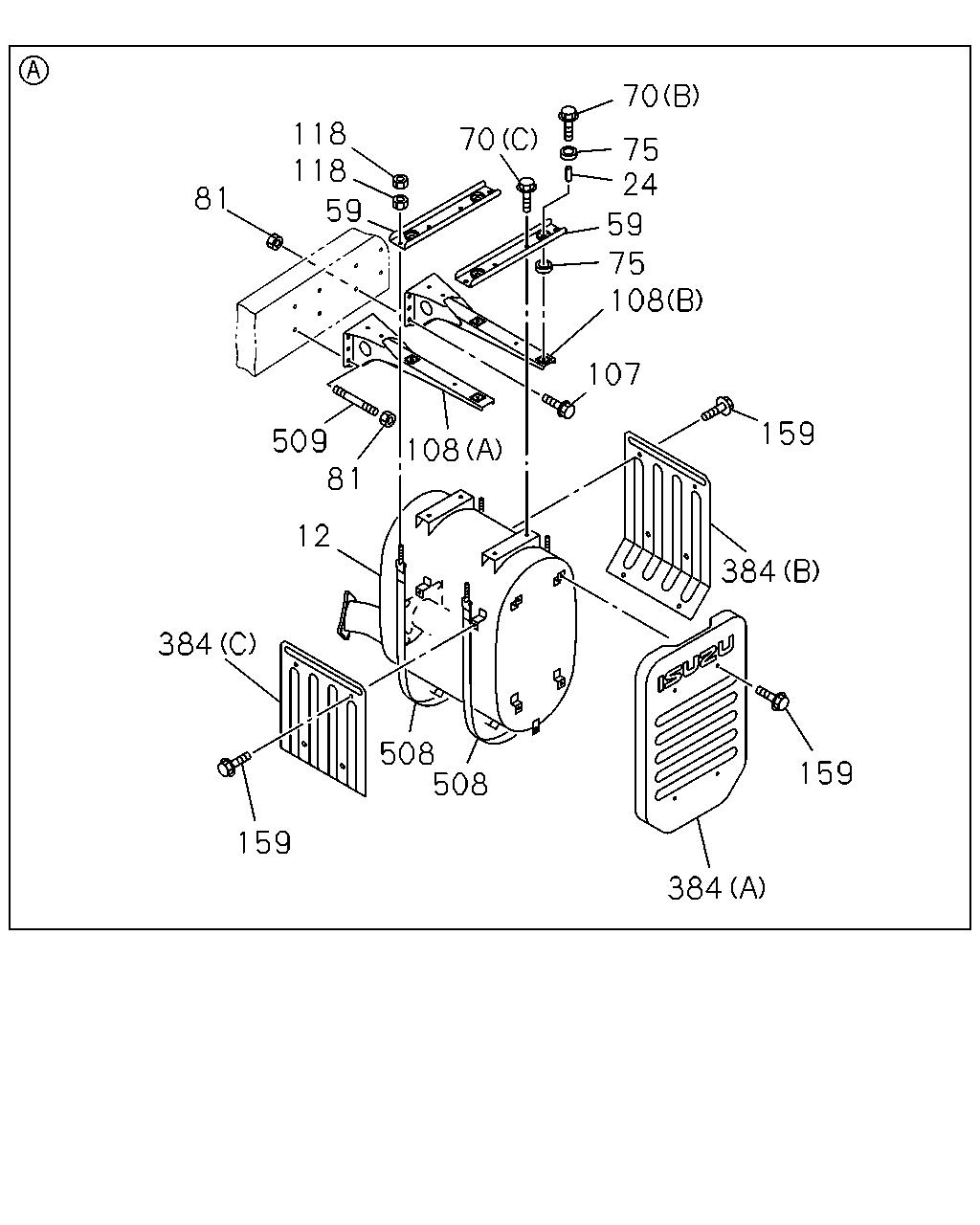

[150A] SILENCER (18 parça)
▶
26
34
36
1
476
475
476
475
17
20
476
475
16
36
42
41
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; EXH
(B)
1-22123-573-1
01
1
0710-
1
PIPE; EXH
(A)
1-22124-029-0
01
1
0710-
16
FLANGE; EXH PIPE
(B)
1-22115-229-0
01
1
0710-
16
FLANGE; EXH PIPE
(A)
1-22115-217-0
01
1
0710-
17
BOLT; EXH PIPE
M12X25 FLANGE
1-09000-604-0
04
1
0710-
20
BOLT; FLANGE,EXH PIPE
M10X51.4
8-94436-943-0
05
1
0710-
26
STUD; EXH MANIF
M12X140 L=160
1-09302-163-0
04
1
0710-
34
WASHER; EXH PIPE
ID=13 OD=26
1-09556-020-0
04
1
0710-
36
NUT; EXH PIPE
(B) M12
0-91110-512-0
04
1
0710-
36
NUT; EXH PIPE
(A) M12
1-09400-131-0
04
1
0710-
41
NUT; EXH PIPE TO EXH SILENCER
M12
0-91110-512-0
08
1
0710-
42
BOLT; EXH PIPE TO EXH SILENCER
M12X25 FLANGE
1-09000-604-0
08
1
0710-
475
BEARING; SEAL,VIBNON,EXH PIPE
(B) OD=112
1-22119-294-1
01
1
0710-
475
BEARING; SEAL,VIBNON,EXH PIPE
(A) OD=122
1-22119-297-1
01
1
0710-
476
SPRING; VIBNON,EXH PIPE
(B)
8-94141-851-0
02
1
0710-
476
SPRING; VIBNON,EXH PIPE
(A)
1-09583-248-0
04
1
0710-
56
81
94
70
42
20
87
475
16
128
125
222
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
FLANGE; EXH PIPE
(B)
1-22115-229-0
01
1
0710-
16
FLANGE; EXH PIPE
(A)
1-22115-217-0
01
1
0710-
20
BOLT; FLANGE,EXH PIPE
M10X51.4
8-94436-943-0
05
1
0710-
41
NUT; EXH PIPE TO EXH SILENCER
M12
0-91110-512-0
08
1
0710-
42
BOLT; EXH PIPE TO EXH SILENCER
M12X25 FLANGE
1-09000-604-0
08
1
0710-
56
BRACKET; CLAMP,EXH PIPE
1-22151-976-2
01
1
0710-
70
BOLT; BRKT
(B) M10X50 FLANGE
0-28051-050-0
04
1
0710-
70
BOLT; BRKT
(C) M10X20 FLANGE
0-28651-020-0
04
1
0710-
70
BOLT; BRKT
(A) M10X30 FLANGE
0-28651-030-0
02
1
0710-
81
NUT; BRKT
M12 FLANGE
0-91180-212-0
08
1
0710-
87
SPRING; PRE SILENCER
8-94141-851-0
03
1
0710-
94
BOLT; CLAMP
M8X40 FLANGE
0-28650-840-0
02
1
0710-
125
NUT; CLAMP
M8 FLANGE
0-91180-108-0
02
1
0710-
128
PIPE; EXH,RR
1-22126-399-1
01
1
0710-
222
CLAMP; EXH PIPE
1-22133-276-0
01
1
0710-
475
BEARING; SEAL,VIBNON,EXH PIPE
(B) OD=112
1-22119-294-1
01
1
0710-
475
BEARING; SEAL,VIBNON,EXH PIPE
(A) OD=122
1-22119-297-1
01
1
0710-
118
118
70
70
75
24
59
75
108
107
159
384
159
384
508
508
159
384
12
81
108
509
59
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
SILENCER ASM; EXH
1-22141-156-0
01
1
0710-
24
COLLAR; DIST,CLAMP
L=22
9-22159-024-0
04
1
0710-
59
BRACKET; EXH SILENCER,FRT
1-22151-710-1
02
1
0710-
70
BOLT; BRKT
(B) M10X50 FLANGE
0-28051-050-0
04
1
0710-
70
BOLT; BRKT
(C) M10X20 FLANGE
0-28651-020-0
04
1
0710-
70
BOLT; BRKT
(A) M10X30 FLANGE
0-28651-030-0
02
1
0710-
75
RUBBER; SUPPORT,BRKT
OD=40
1-22159-094-0
08
1
0710-
81
NUT; BRKT
M12 FLANGE
0-91180-212-0
08
1
0710-
107
BOLT; BRKT
M12X35 FLANGE
0-28651-235-0
04
1
0710-
108
BRACKET; BRKT TO FRAME,EXH SILENCER,FR
(A)
1-22131-774-3
01
1
0710-
108
BRACKET; BRKT TO FRAME,EXH SILENCER,FR
(B)
1-22131-775-3
01
1
0710-
118
NUT; SILENCER MTG BRKT
M10
0-91110-510-0
08
1
0710-
159
BOLT; HEAT PROTECTOR
M8X22 W/LK&PL WASHER
1-09030-042-0
12
1
0710-
384
PROTECTOR; HEAT SILENCER MTG
(B)
1-22119-341-3
01
1
0710-
384
PROTECTOR; HEAT SILENCER MTG
(A)
1-22119-378-4
01
1
0710-
384
PROTECTOR; HEAT SILENCER MTG
(C)
1-22119-527-0
01
1
0710-
508
BAND; EXHAUST SILENCER
1-22159-382-0
02
1
0710-
509
STUD; BRKT
M12X40 L=56
1-09300-123-0
04
1
0710-
