0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#67241) — 115 parça

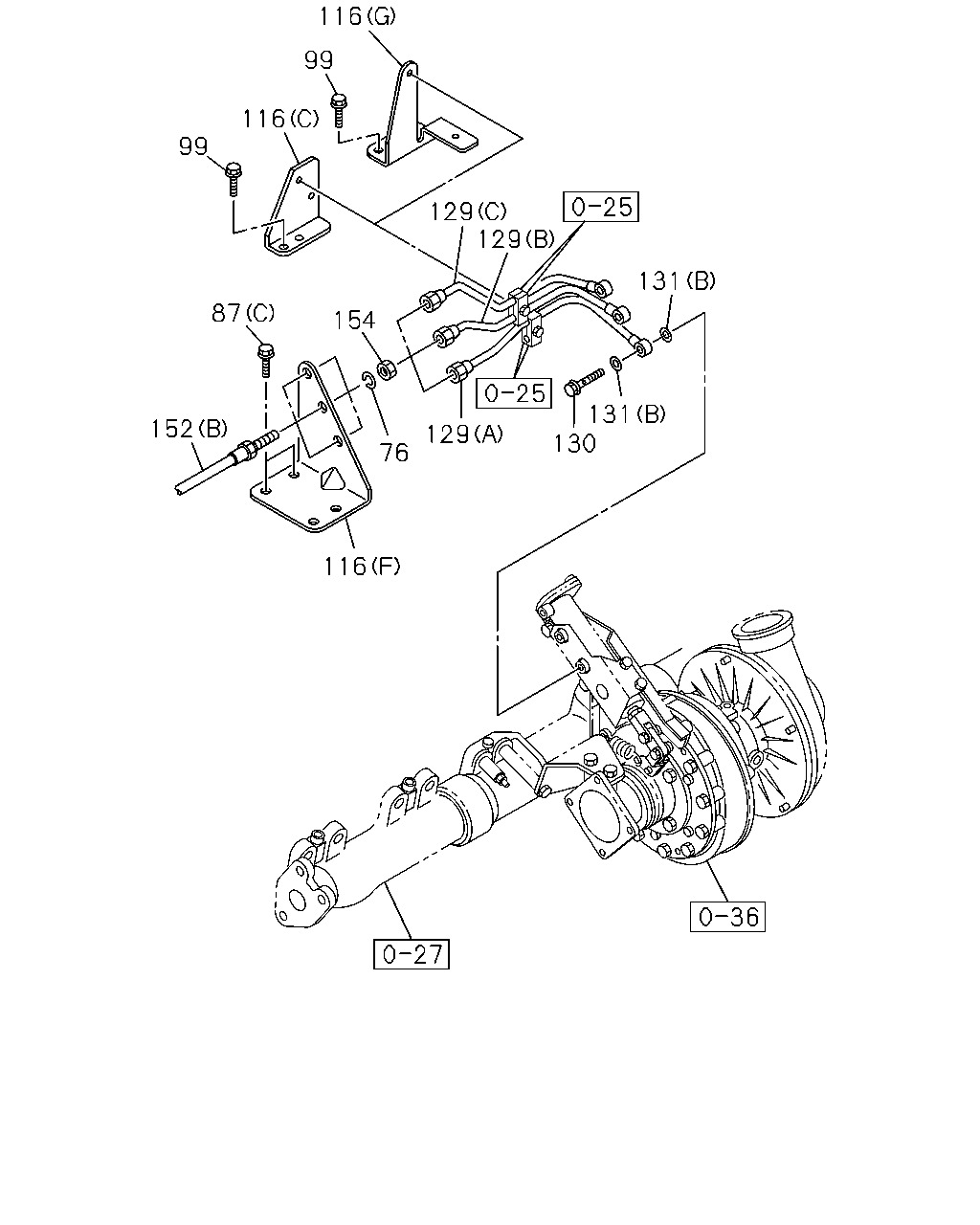

116 99 116 99 87 152 154 129 76 116 129 131 130 131 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
76	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	05	1	0710-
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28050-612-0	02	1	0710-
87	BOLT; BRKT FIX (C) M8X16 FLANGE	0-28050-816-0	02	1	0710-
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0710-
99	BOLT; BRKT AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0710-
116	BRACKET; AIR PIPE (A)	1-19199-221-0	01	1	0710-
116	BRACKET; AIR PIPE (C)	1-19199-402-0	01	1	0710-1506
116	BRACKET; AIR PIPE (G)	8-97614-120-0	01	1	1507-
116	BRACKET; AIR PIPE (F)	1-19199-406-0	01	1	0710-
116	BRACKET; AIR PIPE (D)	1-19199-411-0	01	1	0710-
116	BRACKET; AIR PIPE (B)	1-19199-412-0	01	1	0710-
116	BRACKET; AIR PIPE (E)	8-97603-639-1	01	1	0710-1205
116	BRACKET; AIR PIPE (E)	8-98157-648-0	01	1	1206-
129	PIPE; AIR,VGS (A)	1-19193-431-0	01	1	0710-1506
129	PIPE; AIR,VGS (A)	8-97614-121-1	01	1	1507-
129	PIPE; AIR,VGS (B)	1-19193-432-0	01	1	0710-1506
129	PIPE; AIR,VGS (B)	8-97614-122-1	01	1	1507-
129	PIPE; AIR,VGS (C)	1-19193-433-0	01	1	0710-1506
129	PIPE; AIR,VGS (C)	8-97614-123-1	01	1	1507-
130	BOLT; EYE,AIR PIPE M10X21 FLANGE	8-94396-711-0	03	1	0710-
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=26.8	1-09623-415-0	02	1	0710-
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2	8-97365-390-0	06	1	0710-
152	HOSE; FLEX (A) L=280	1-09363-610-0	02	1	0710-
152	HOSE; FLEX (B) L=340	1-09363-622-0	03	1	0710-
154	NUT; FLEX HOSE FIX M12	9-09840-280-0	03	1	0710-

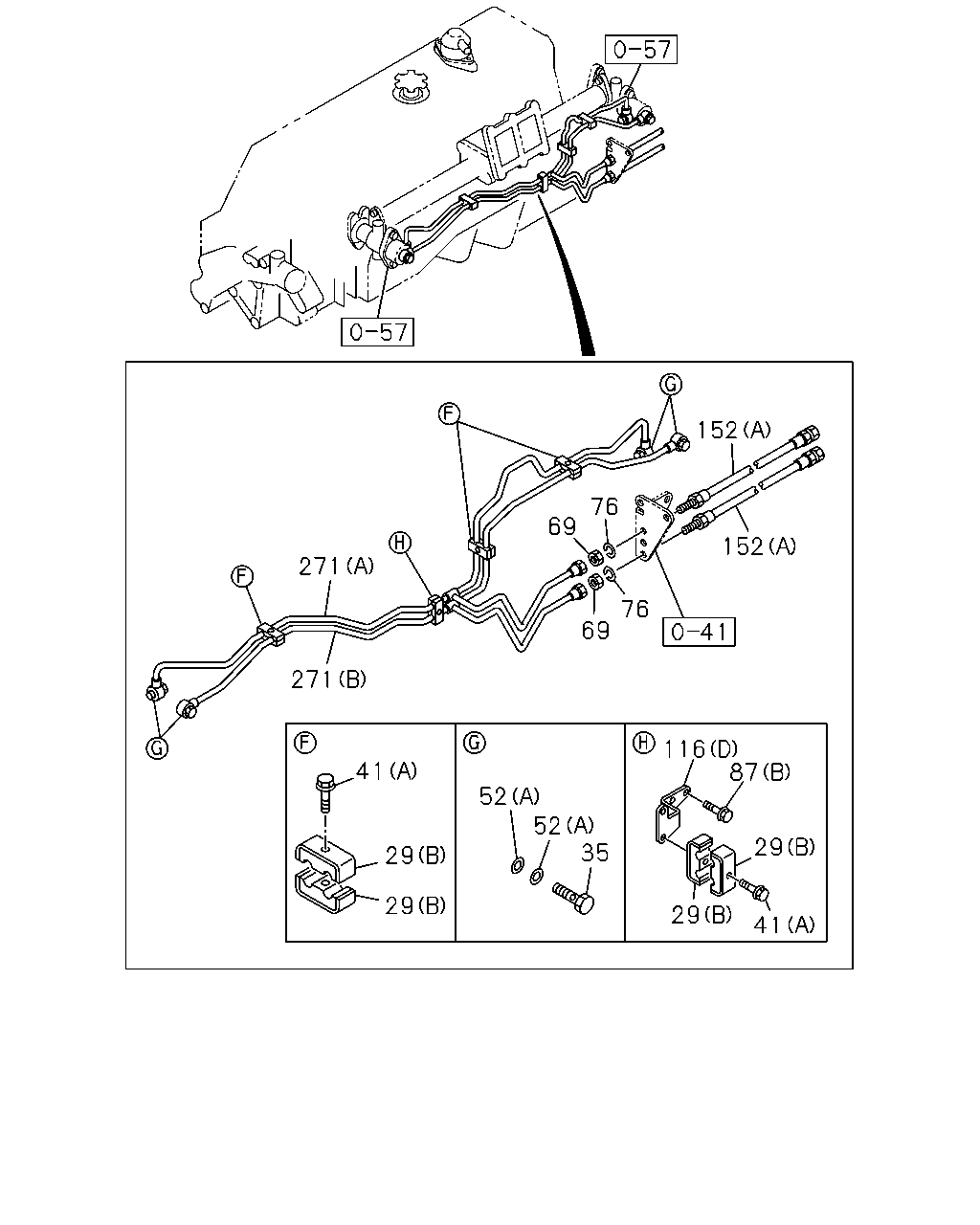

152 76 69 152 271 76 69 271 116 87 41 52 52 35 29 29 29 29 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	CLIP; AIR PIPE (B)	1-09701-132-1	08	1	0710-1210
29	CLIP; AIR PIPE (B)	1-09701-240-0	08	1	1211-
29	CLIP; AIR PIPE (A)	1-09701-210-0	04	1	0710-
35	BOLT; EYE,AIR PIPE M10X21 FLANGE	8-94396-711-0	04	1	0710-
41	BOLT; CLIP (A) M6X30 FLANGE	0-28050-630-0	04	1	0710-
41	BOLT; CLIP (C) M6X40 FLANGE	0-28050-640-0	02	1	0710-
41	BOLT; CLIP (B) M8X40 FLANGE	0-28050-840-0	02	1	0710-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	08	1	0710-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	04	1	0710-
69	NUT; FLEX HOSE M12	9-09840-280-0	02	1	0710-
76	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	05	1	0710-
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28050-612-0	02	1	0710-
87	BOLT; BRKT FIX (C) M8X16 FLANGE	0-28050-816-0	02	1	0710-
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0710-
116	BRACKET; AIR PIPE (A)	1-19199-221-0	01	1	0710-
116	BRACKET; AIR PIPE (C)	1-19199-402-0	01	1	0710-1506
116	BRACKET; AIR PIPE (G)	8-97614-120-0	01	1	1507-
116	BRACKET; AIR PIPE (F)	1-19199-406-0	01	1	0710-
116	BRACKET; AIR PIPE (D)	1-19199-411-0	01	1	0710-
116	BRACKET; AIR PIPE (B)	1-19199-412-0	01	1	0710-
116	BRACKET; AIR PIPE (E)	8-97603-639-1	01	1	0710-1205
116	BRACKET; AIR PIPE (E)	8-98157-648-0	01	1	1206-
152	HOSE; FLEX (A) L=280	1-09363-610-0	02	1	0710-
152	HOSE; FLEX (B) L=340	1-09363-622-0	03	1	0710-
271	PIPE; AIR,EGR CONT (A)	1-19193-236-0	01	1	0710-
271	PIPE; AIR,EGR CONT (B)	1-19193-237-0	01	1	0710-

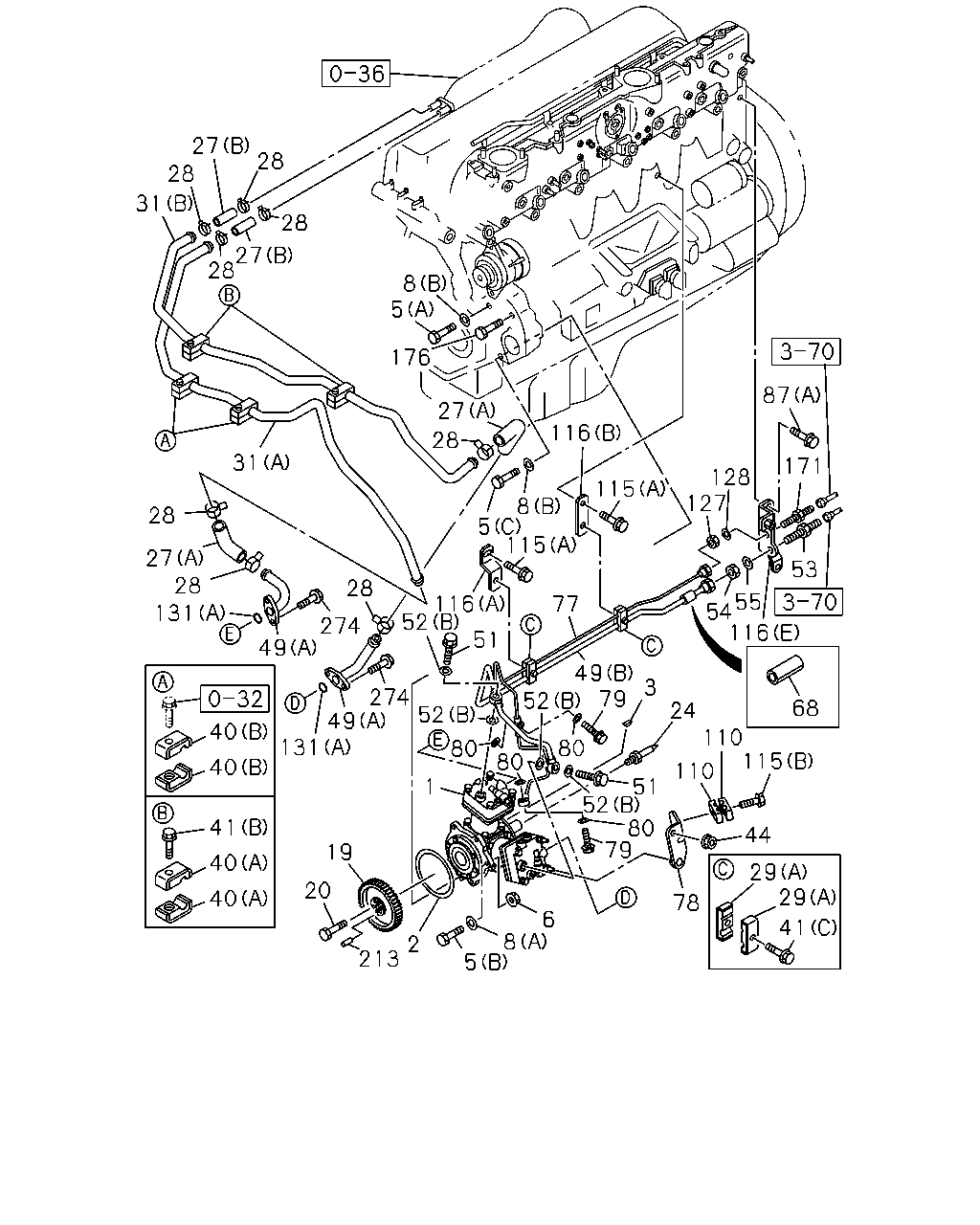

27 28 28 31 28 27 28 8 5 176 87 27 116 28 31 171 128 127 115 8 5 115 28 27 28 131 53 28 55 54 116 116 52 77 274 51 49 49 52 79 274 52 49 131 80 3 68 24 110 115 40 80 80 40 110 51 52 80 79 1 41 44 19 40 29 29 20 40 78 6 41 8 5 2 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-334-4	01	1	0710-1112
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98203-544-1	01	1	1201-1406
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98277-236-0	01	1	1407-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0710-
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	0710-
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0710-
5	BOLT; AIR CMPR FIX (C) M14X150	1-09029-027-1	01	1	0710-
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0710-
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0710-
8	WASHER; PL,AIR CMPR (A) ID=14.2	1-09503-050-0	01	1	0710-
8	WASHER; PL,AIR CMPR (B) ID=15 OD=26	9-09164-514-0	02	1	0710-
19	GEAR; INJ PUMP Z=54	1-12524-164-1	01	1	0710-
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0710-
24	POINTER; AIR CMPR	1-11327-017-1	01	1	0710-
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	0710-
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	0710-
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	0710-
29	CLIP; AIR PIPE (B)	1-09701-132-1	08	1	0710-1210
29	CLIP; AIR PIPE (B)	1-09701-240-0	08	1	1211-
29	CLIP; AIR PIPE (A)	1-09701-210-0	04	1	0710-
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19193-403-0	01	1	0710-
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19193-463-0	01	1	0710-
40	CLIP; AIR PIPE (B)	1-09701-210-0	04	1	0710-
40	CLIP; AIR PIPE (A) ID=17 L=17	1-09701-284-0	04	1	0710-
41	BOLT; CLIP (A) M6X30 FLANGE	0-28050-630-0	04	1	0710-
41	BOLT; CLIP (C) M6X40 FLANGE	0-28050-640-0	02	1	0710-
41	BOLT; CLIP (B) M8X40 FLANGE	0-28050-840-0	02	1	0710-
44	NUT M8 FLANGE	0-91180-208-0	02	1	0710-
49	PIPE; AIR,CHARGE (A)	1-19193-402-0	02	1	0710-
49	PIPE; AIR,CHARGE (B)	1-19193-459-0	01	1	0710-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	02	1	0710-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	08	1	0710-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	04	1	0710-
53	UNION; CHARGE PIPE M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0710-
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	0710-
55	WASHER; LK,PIPE UNION ID=22.5	0-91510-522-0	01	1	0710-
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0710-
77	PIPE; AIR,GOV	1-19193-460-0	01	1	0710-
78	BRACKET; PIPE,AIR GOV	1-13729-095-0	01	1	0710-
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	0710-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	04	1	0710-
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28050-612-0	02	1	0710-
87	BOLT; BRKT FIX (C) M8X16 FLANGE	0-28050-816-0	02	1	0710-
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0710-
110	CLIP; AIR PIPE	1-09701-132-1	02	1	0710-1210
110	CLIP; AIR PIPE	1-09701-240-0	02	1	1211-
115	BOLT; AIR PIPE (B) M6X30 FLANGE	0-28050-630-0	01	1	0710-
115	BOLT; AIR PIPE (A) M10X20 FLANGE	0-28151-020-0	02	1	0710-
116	BRACKET; AIR PIPE (A)	1-19199-221-0	01	1	0710-
116	BRACKET; AIR PIPE (C)	1-19199-402-0	01	1	0710-1506
116	BRACKET; AIR PIPE (G)	8-97614-120-0	01	1	1507-
116	BRACKET; AIR PIPE (F)	1-19199-406-0	01	1	0710-
116	BRACKET; AIR PIPE (D)	1-19199-411-0	01	1	0710-
116	BRACKET; AIR PIPE (B)	1-19199-412-0	01	1	0710-
116	BRACKET; AIR PIPE (E)	8-97603-639-1	01	1	0710-1205
116	BRACKET; AIR PIPE (E)	8-98157-648-0	01	1	1206-
127	NUT; UNION M12	9-09840-280-0	01	1	0710-
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0710-
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=26.8	1-09623-415-0	02	1	0710-
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2	8-97365-390-0	06	1	0710-
171	UNION M12 L=62.5	0-92113-206-0	01	1	0710-
176	BOLT; BRKT FIX M10X130 FLANGE	0-28166-013-0	01	1	0710-
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0710-
274	BOLT; PIPE M8X20 FLANGE	0-28050-820-0	04	1	0710-
