0-05 — ENGINE GASKET KIT (#67224) — 17 parça

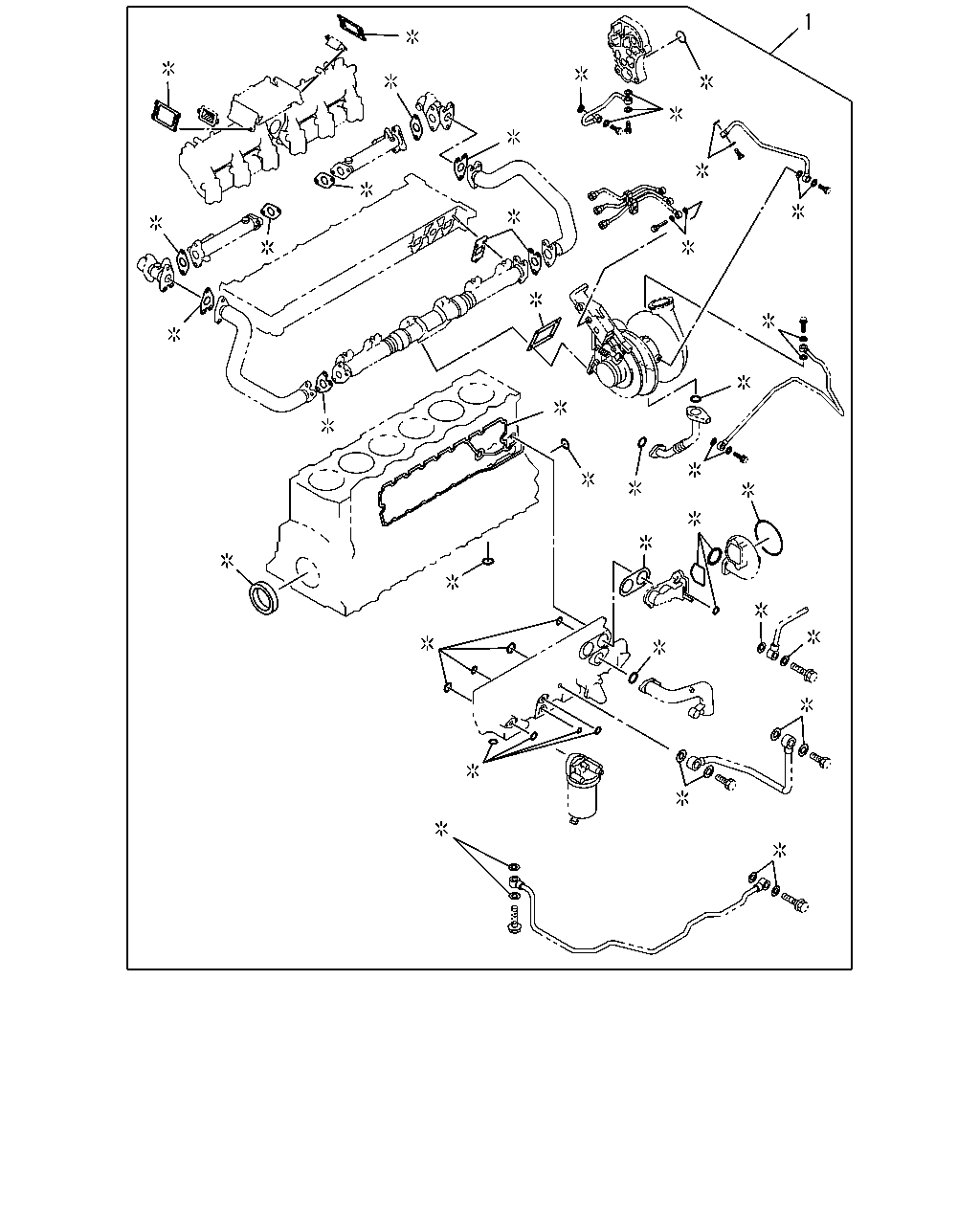

çizim 14987
1
BalonParca AdiParca NoAdetTipApplied Date
1 GASKET SET; ENG OVERHAUL 1-87813-223-0 01 1 0710-0804
1 GASKET SET; ENG OVERHAUL 1-87813-400-2 01 1 0805-1001
1 GASKET SET; ENG OVERHAUL 1-87813-592-3 01 1 1002-1111
1 GASKET SET; ENG OVERHAUL 1-87813-924-0 01 1 1112-1312
1 GASKET SET; ENG OVERHAUL 1-87814-659-0 01 1 1401-1502
1 GASKET SET; ENG OVERHAUL 1-87815-548-0 01 1 1503-

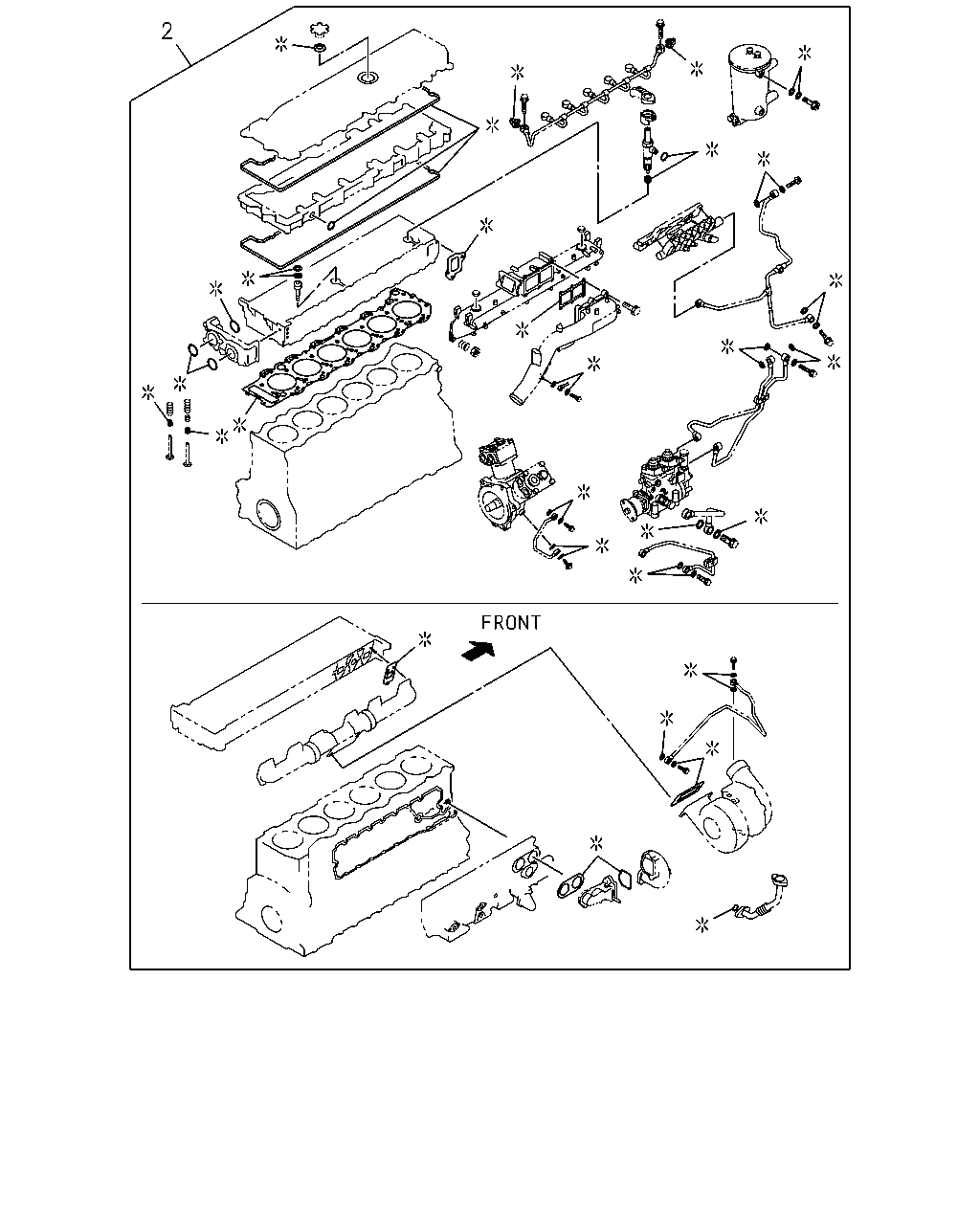

çizim 192963
2
BalonParca AdiParca NoAdetTipApplied Date
2 GASKET SET; ENG HD OVERHAUL 1-87813-194-0 01 1 0710-0804
2 GASKET SET; ENG HD OVERHAUL 1-87813-401-2 01 1 0805-1001
2 GASKET SET; ENG HD OVERHAUL 1-87813-593-2 01 1 1002-1111
2 GASKET SET; ENG HD OVERHAUL 1-87813-933-0 01 1 1112-1312
2 GASKET SET; ENG HD OVERHAUL 1-87814-660-0 01 1 1401-

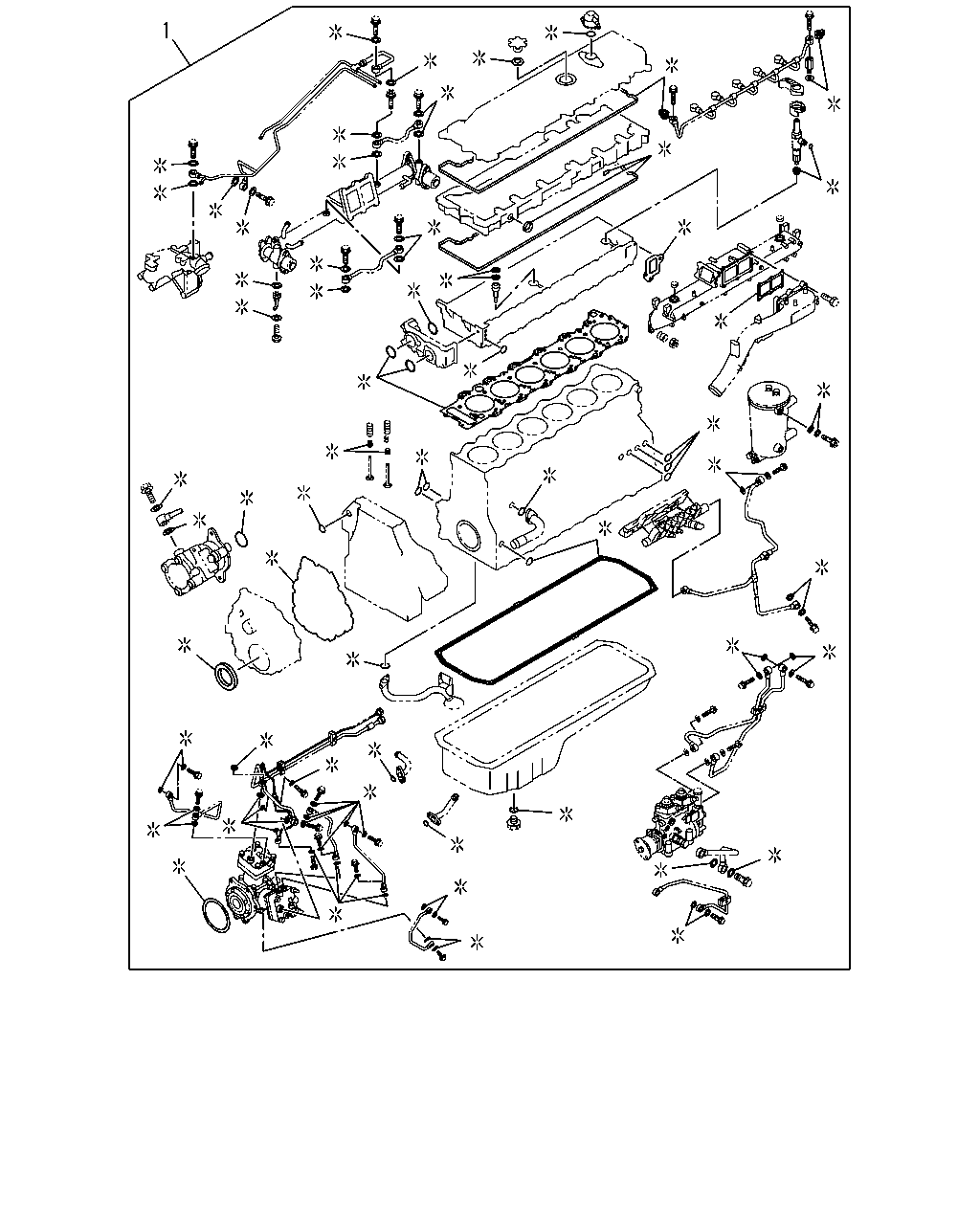

çizim 192965
1
BalonParca AdiParca NoAdetTipApplied Date
1 GASKET SET; ENG OVERHAUL 1-87813-223-0 01 1 0710-0804
1 GASKET SET; ENG OVERHAUL 1-87813-400-2 01 1 0805-1001
1 GASKET SET; ENG OVERHAUL 1-87813-592-3 01 1 1002-1111
1 GASKET SET; ENG OVERHAUL 1-87813-924-0 01 1 1112-1312
1 GASKET SET; ENG OVERHAUL 1-87814-659-0 01 1 1401-1502
1 GASKET SET; ENG OVERHAUL 1-87815-548-0 01 1 1503-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
