Isuzu WW
▶
TRUCKS
▶
FTR
▶
10781 - FTR(THAI)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-01 - FRONT BUMPER
▶

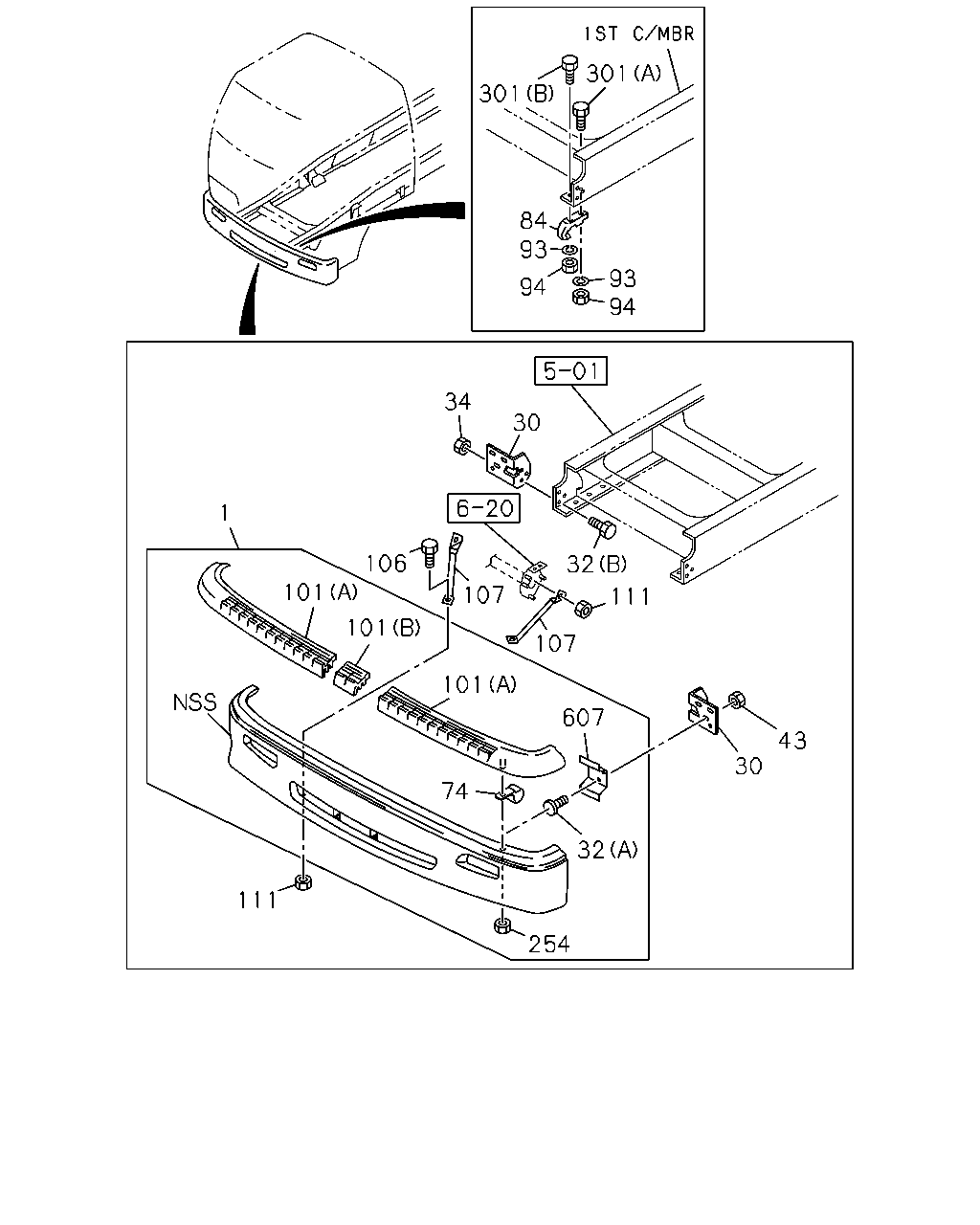

6-01 — FRONT BUMPER
(#6722) — 23 parça
Tümü
A - FTR5MC
B - FTR5MF
301
301
84
93
93
94
94
34
30
1
106
32
107
101
111
101
107
101
607
43
30
74
32
111
254
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BUMPER ASM; FRT
THA
8-97910-521-0
01
1
0011-
●
●
30
BRACKET; FRT BUMPER
THA
1-71230-208-3
01
1
0011-
●
●
30
BRACKET; FRT BUMPER
THA
1-71230-207-3
01
1
0011-0111
●
●
30
BRACKET; FRT BUMPER
THA
1-71230-568-0
01
1
0112-
●
●
32
BOLT; BRKT,BUMPER
(B) M10X30 FLANGE
0-28681-030-0
06
1
0011-
●
●
32
BOLT; BRKT,BUMPER
(A)
9-04901-022-0
06
1
0011-
●
●
34
NUT; BRKT,BUMPER
M10 FLANGE
0-91150-210-0
06
1
0011-
●
●
43
NUT; BRKT TO BUMPER
M10 FLANGE
0-91150-210-0
06
1
0011-
●
●
74
CLIP; FOG LAMP HARNESS
THA
1-09701-203-0
05
1
0011-
●
●
84
HOOK
THA
8-97917-059-0
01
1
0011-
●
●
93
WASHER; LK,HOOK
ID=16.2
9-09150-516-0
02
1
0011-
●
●
94
NUT; HOOK
M16
9-99110-416-0
02
1
0011-
●
●
101
STEP; BUMPER
(B) THA
1-71260-082-1
01
1
0011-
●
●
101
STEP; BUMPER
(A) THA
1-71260-081-1
01
1
0011-
●
●
101
STEP; BUMPER
(A) THA
1-71260-080-1
01
1
0011-
●
●
106
BOLT; AIR DAM
M10X25 FLANGE
0-28681-025-0
02
1
0011-
●
●
107
STAY; AIR DAM
1-71260-130-1
01
1
0011-
●
●
107
STAY; AIR DAM
1-71260-129-1
01
1
0011-
●
●
111
NUT; STAY
M10 FLANGE
0-91150-210-0
04
1
0011-
●
●
254
NUT; STEP
M8 FLANGE
0-91150-108-0
11
1
0011-
●
●
301
BOLT; HOOK TO FRAME
(A) M16X60
0-10811-660-0
01
1
0011-
●
●
301
BOLT; HOOK TO FRAME
(B) M16X70
0-10811-670-0
01
1
0011-
●
●
607
BRACKET
THA
8-97916-690-0
02
1
0011-
●
●
