8-75 — CONDENSER (#67219) — 31 parça

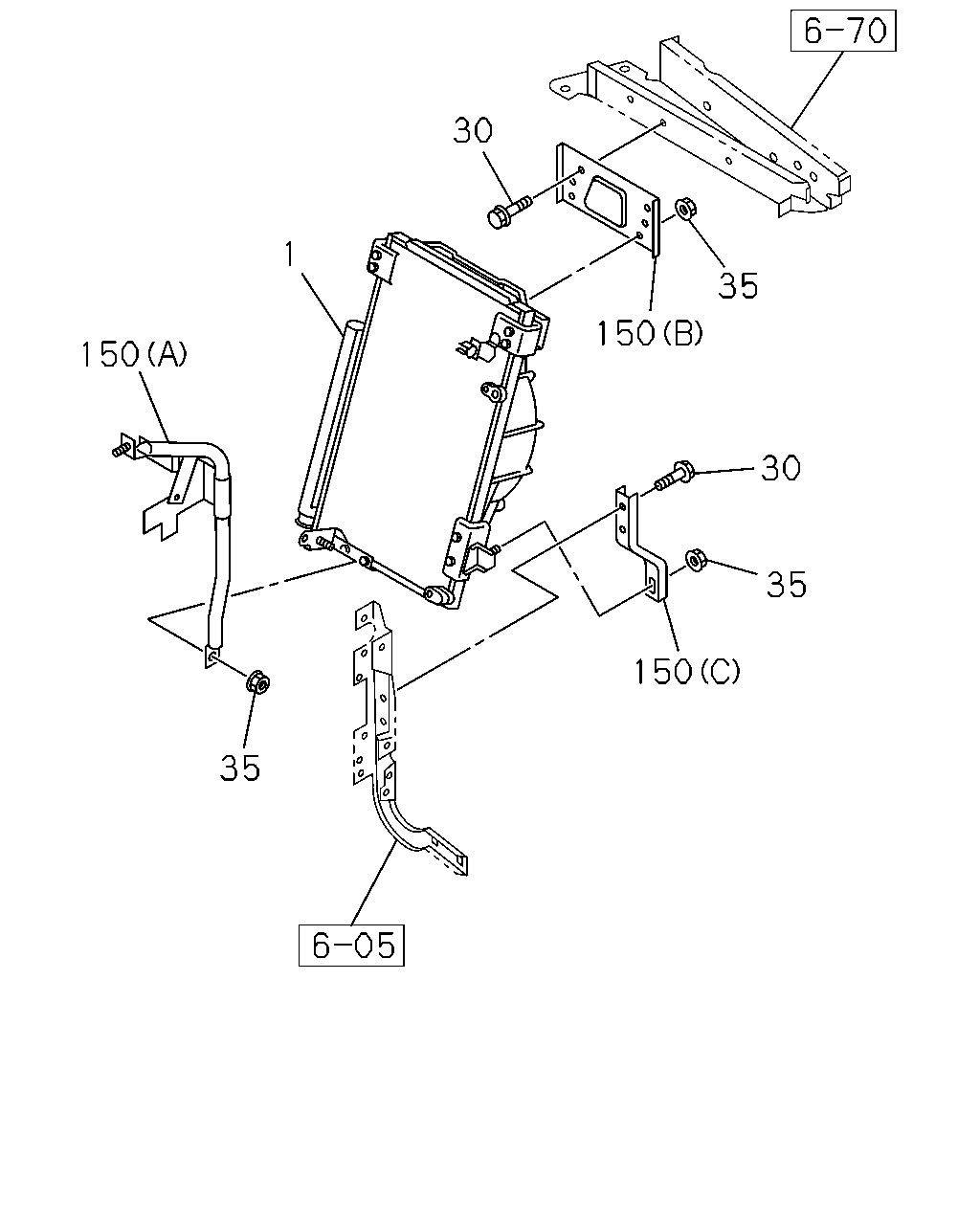

çizim 141416
30 1 150 150 35 30 35 35 150
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONDENSER; A/C 8-98076-087-2 01 1 0710- ● ●
30 BOLT; CONDENSER,A/C
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0710-0904 ● ●
30 BOLT; CONDENSER,A/C
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ● ●
35 NUT; CONDENSER,A/C
M8 FLANGE 		0-91180-108-0 05 1 0710- ● ●
150 BRACKET; CONDENSER,MTG
(B) 		1-83571-984-0 01 1 0710- ● ●
150 BRACKET; CONDENSER,MTG
(C) 		1-83571-985-0 01 1 0710- ● ●
150 BRACKET; CONDENSER,MTG
(A) 		1-83573-242-1 01 1 0710- ● ●

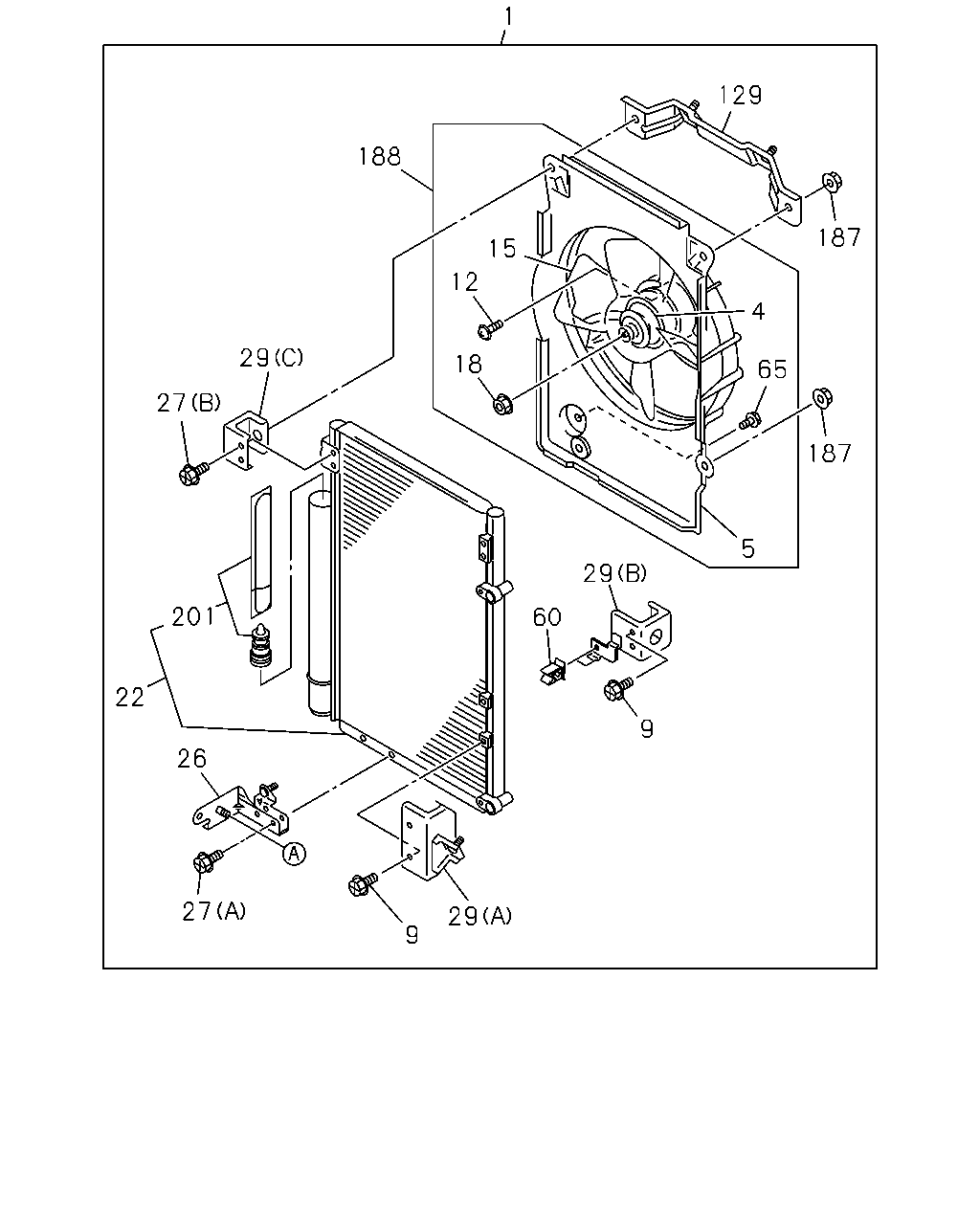

çizim 158239
1 129 187 188 29 27 15 12 4 65 187 5 18 29 60 9 201 22 26 27 9 29
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONDENSER; A/C 8-98076-087-2 01 1 0710- ● ●
4 MOTOR ASM; FAN 8-98078-763-0 01 1 0710- ● ●
5 SHROUD; FAN MOTOR 8-98076-093-0 01 1 0710- ● ●
9 BOLT; BRKT
M6X14 		1-83539-382-0 04 1 0710- ● ●
12 BOLT; FAN MOTOR 8-98290-384-0 03 1 0710-1201 ● ●
12 BOLT; FAN MOTOR 8-98290-384-0 01 1 1202-1409 ● ●
12 BOLT; FAN MOTOR 8-98290-384-0 03 1 1410- ● ●
15 FAN; MOTOR 8-98076-092-0 01 1 0710- ● ●
18 NUT; FAN,CENTER 1-83539-313-0 01 1 0710- ● ●
22 CONDENSER ASM; A/C 1-83534-261-0 01 1 0710-1409 ● ●
22 CONDENSER ASM; A/C 8-98275-189-0 01 1 1410- ● ●
26 BRACKET; LOW 1-83573-281-0 01 1 0710- ● ●
27 BOLT; BRKT,LOW SIDE
(B) M6X14 		1-83539-382-0 02 1 0710- ● ●
27 BOLT; BRKT,LOW SIDE
(A) M5X25 		8-97178-770-0 02 1 0710- ● ●
29 BRACKET; SIDE
(C) 		1-83573-278-0 01 1 0710- ● ●
29 BRACKET; SIDE
(B) 		1-83573-279-0 01 1 0710- ● ●
29 BRACKET; SIDE
(A) 		1-83573-280-0 01 1 0710- ● ●
60 CLIP; PIPE 1-83574-266-0 01 1 0710- ● ●
65 BOLT; SHROUD
M6X16 		8-97096-525-0 01 1 0710- ● ●
129 BRACKET; UPR 1-83573-129-0 01 1 0710- ● ●
187 NUT; SHROUD
M6 		1-83539-354-0 04 1 0710- ● ●
188 BLOWER ASM; SHROUD 8-98078-760-1 01 1 0710- ● ●
201 DRYER ASM; CONDENSER 1-83535-097-0 01 1 0710-1409 ● ●
201 DRYER ASM; CONDENSER 8-98282-482-0 01 1 1410- ● ●
