8-60 — HEATER UNIT; FRONT (#67215) — 66 parça

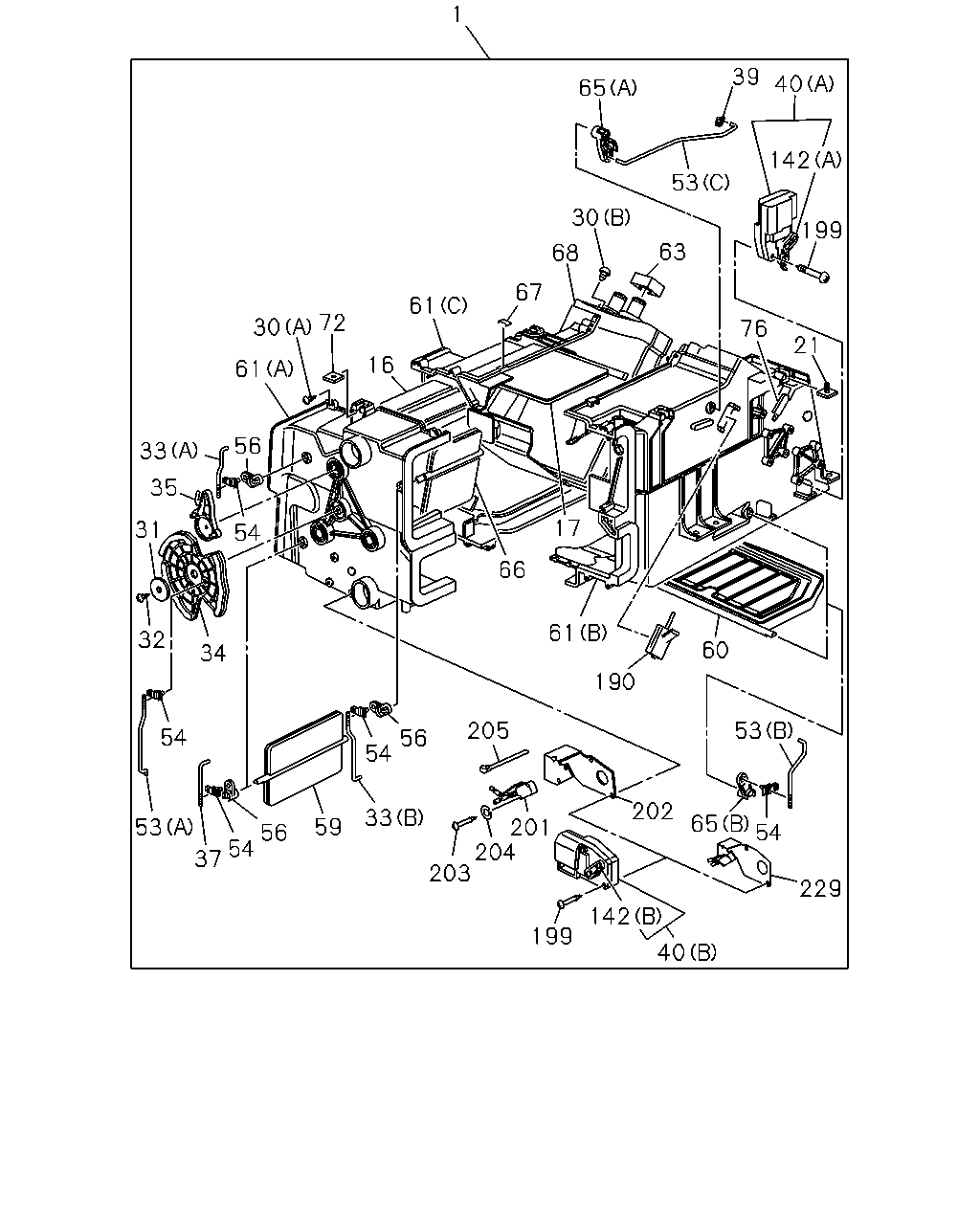

çizim 192882
229 40 142 54 65 53 40 142 199 76 21 60 190 202 201 204 203 33 59 37 54 56 53 54 34 32 31 54 35 33 56 61 30 72 16 61 66 61 205 17 67 68 30 63 53 39 65 1 54 56 199
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83511-182-1 01 1 0710-1409 ●
1 HEATER UNIT 1-83511-182-1 01 1 0710-1409 ●
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		8-98238-480-0 01 1 1410- ●
1 HEATER UNIT 8-98238-480-0 01 1 1410- ●
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83511-184-1 01 1 0710-1409 ●
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-98238-482-0 01 1 1410- ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 0710- ● ●
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 0710- ● ●
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 0710- ● ●
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 0710- ● ●
30 SCREW; HTR UNIT
(B) M5X20 		9-09829-324-1 01 1 0710-1409 ● ●
30 SCREW; HTR UNIT
(B) M5X16 		8-94248-820-0 01 1 1410- ● ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 0710- ● ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 0710-1409 ● ●
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1410- ● ●
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 0710- ● ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 0710- ● ●
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 0710- ● ●
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 0710- ● ●
37 ROD; LEVER 1-83579-620-1 01 1 0710- ● ●
39 CLIP; HTR UNIT 1-83574-136-0 01 1 0710- ● ●
40 ACTUATOR; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83579-676-2 01 1 0710- ●
40 ACTUATOR; HTR UNIT
(B) 		1-83579-676-2 01 1 0710- ●
40 ACTUATOR; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83579-649-2 01 1 0710- ●
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 0710- ● ●
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 0710- ● ●
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 0710- ● ●
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 0710- ● ●
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 0710- ● ●
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 0710- ● ●
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 0710- ● ●
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 0710- ● ●
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83564-323-5 01 1 0710- ●
61 CASE; HTR UNIT
(B) 		1-83564-323-5 01 1 0710- ●
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83564-347-3 01 1 0710- ●
61 CASE; HTR UNIT
(A) 		1-83564-347-3 01 1 0710- ●
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83564-401-0 01 1 0710- ●
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83564-402-0 01 1 0710- ●
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 0710- ● ●
63 LINING; HTR UNIT 1-83579-557-0 02 1 0710- ● ●
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 0710- ● ●
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 0710- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-680-0 01 1 0710- ● ●
67 CLIP; HTR UNIT 1-83574-148-0 01 1 0710- ● ●
68 CORE; HTR UNIT 1-83562-078-1 01 1 0710-1409 ● ●
68 CORE; HTR UNIT 8-98238-475-0 01 1 1410- ● ●
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 0710- ● ●
76 BRACKET; HTR UNIT 1-83571-874-0 01 1 0710- ● ●
142 LEVER; ACTUATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83564-409-0 01 1 0710- ●
142 LEVER; ACTUATOR
(B) 		1-83564-409-0 01 1 0710- ●
142 LEVER; ACTUATOR
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83564-345-1 01 1 0710- ●
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 0710- ● ●
190 SENSOR; HEATER UNIT 1-83579-658-1 01 1 0710- ● ●
199 SCREW; ACTUATOR 8-94348-809-0 04 1 0710- ● ●
201 SWITCH; MICRO,HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83579-679-1 01 1 1410- ●
201 SWITCH; MICRO,HEATER UNIT 1-83579-679-1 01 1 1410- ●
202 BRACKET; MICRO SWITCH
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83571-907-1 01 1 1410- ●
202 BRACKET; MICRO SWITCH 1-83571-907-1 01 1 1410- ●
203 SCREW; MICRO SWITCH
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		5-83569-141-0 02 1 1410- ●
203 SCREW; MICRO SWITCH 5-83569-141-0 02 1 1410- ●
204 WASHER; LK,MICRO SWITCH
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) ID=3.1 		9-09150-503-0 02 1 1410- ●
204 WASHER; LK,MICRO SWITCH
ID=3.1 		9-09150-503-0 02 1 1410- ●
205 CLIP; HARNESS
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) L=92 		1-83574-159-0 01 1 1410- ●
205 CLIP; HARNESS
L=92 		1-83574-159-0 01 1 1410- ●
229 SWITCH ASM; MICRO,HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83579-688-2 01 1 0710-1409 ●
229 SWITCH ASM; MICRO,HEATER UNIT 1-83579-688-2 01 1 0710-1409 ●
