8-52 — PIPING; AIR CONDITIONING (#67214) — 79 parça

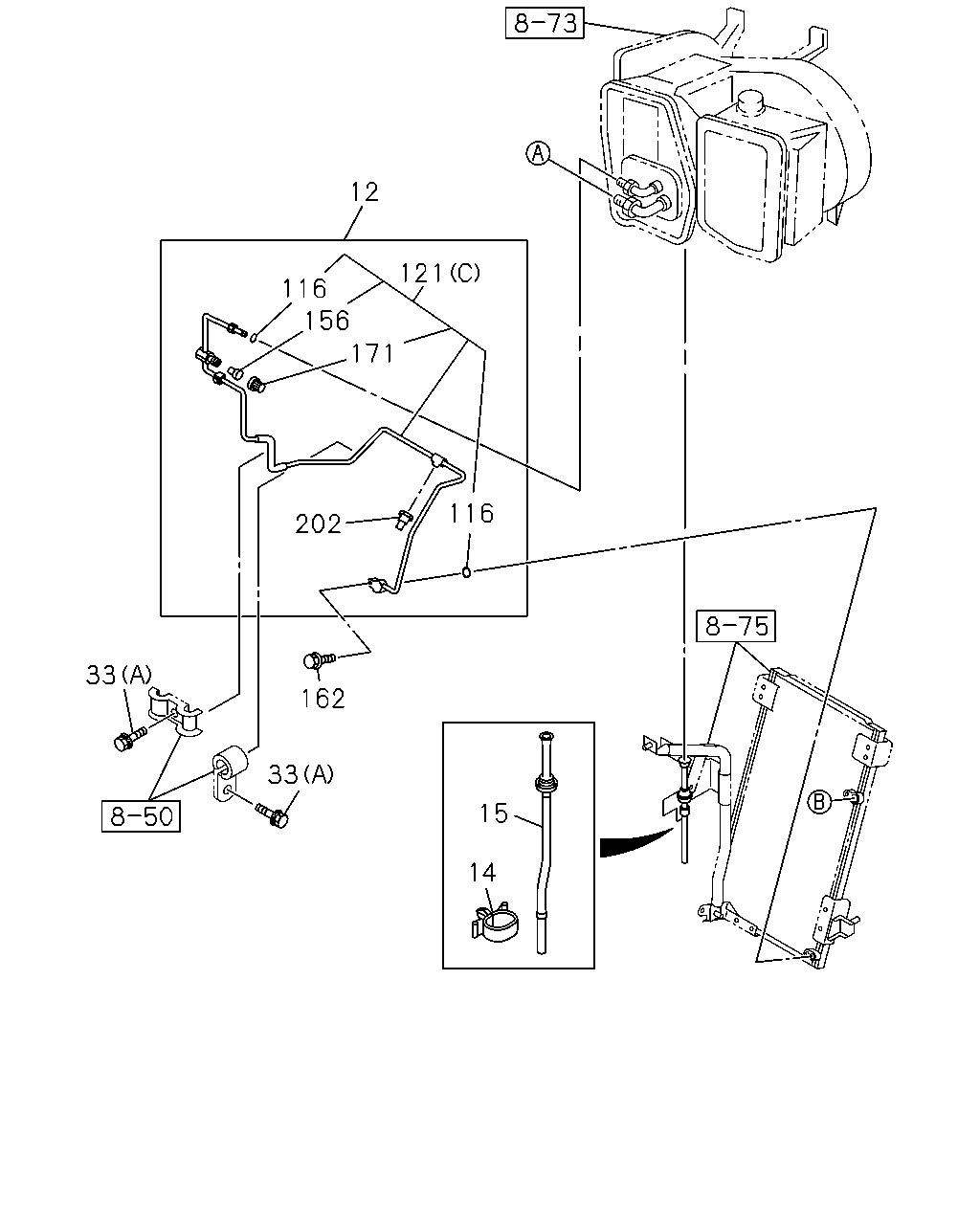

çizim 141050
12 121 116 156 171 116 202 33 162 33 15 14
BalonParca AdiParca NoAdetTipApplied Date A B
12 PIPE; COOLER,EVAP TO TANK 1-83567-877-1 01 1 0710- ● ●
14 CLIP; BAND,EVAP DRAIN HOSE
ID=20 		8-94410-200-0 01 1 0710- ● ●
15 HOSE; DRAIN 1-83572-635-0 01 1 0710- ● ●
33 BOLT; CLIP
6WG1 TC-C(72L) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0710- ●
33 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0710- ●
33 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0710-0904 ● ●
33 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ●
116 GASKET; PIPE
ID=7.4 		8-97095-906-0 02 1 0710- ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8) (A) 		1-83577-115-0 01 1 0710- ●
121 HOSE; COOLER
6WF1 TC-C(1B8) (B) 		1-83577-116-0 01 1 0710- ●
121 HOSE; COOLER
6WG1 TC-C(72L) (A) 		1-83577-070-0 01 1 0710- ●
121 HOSE; COOLER
(A) 		1-83577-070-0 01 1 0710- ●
121 HOSE; COOLER
6WG1 TC-C(72L) (B) 		1-83577-071-0 01 1 0710- ●
121 HOSE; COOLER
(B) 		1-83577-071-0 01 1 0710- ●
121 HOSE; COOLER
(C) 		1-83577-054-0 01 1 0710- ● ●
121 HOSE; COOLER
(D) 		1-83577-055-0 01 1 0710- ● ●
121 HOSE; COOLER
(E) 		1-83577-086-0 01 1 0710- ● ●
156 VALVE; PIPE 8-97095-909-0 01 1 0710- ● ●
162 BOLT; FLEX HOSE
M6X25 FLANGE 		0-28050-625-0 02 1 0710- ● ●
171 CAP; PIPE
CAP MARK H 		8-97095-911-0 01 1 0710- ● ●
202 SWITCH; PRESSURE 1-83564-392-1 01 1 0710- ● ●

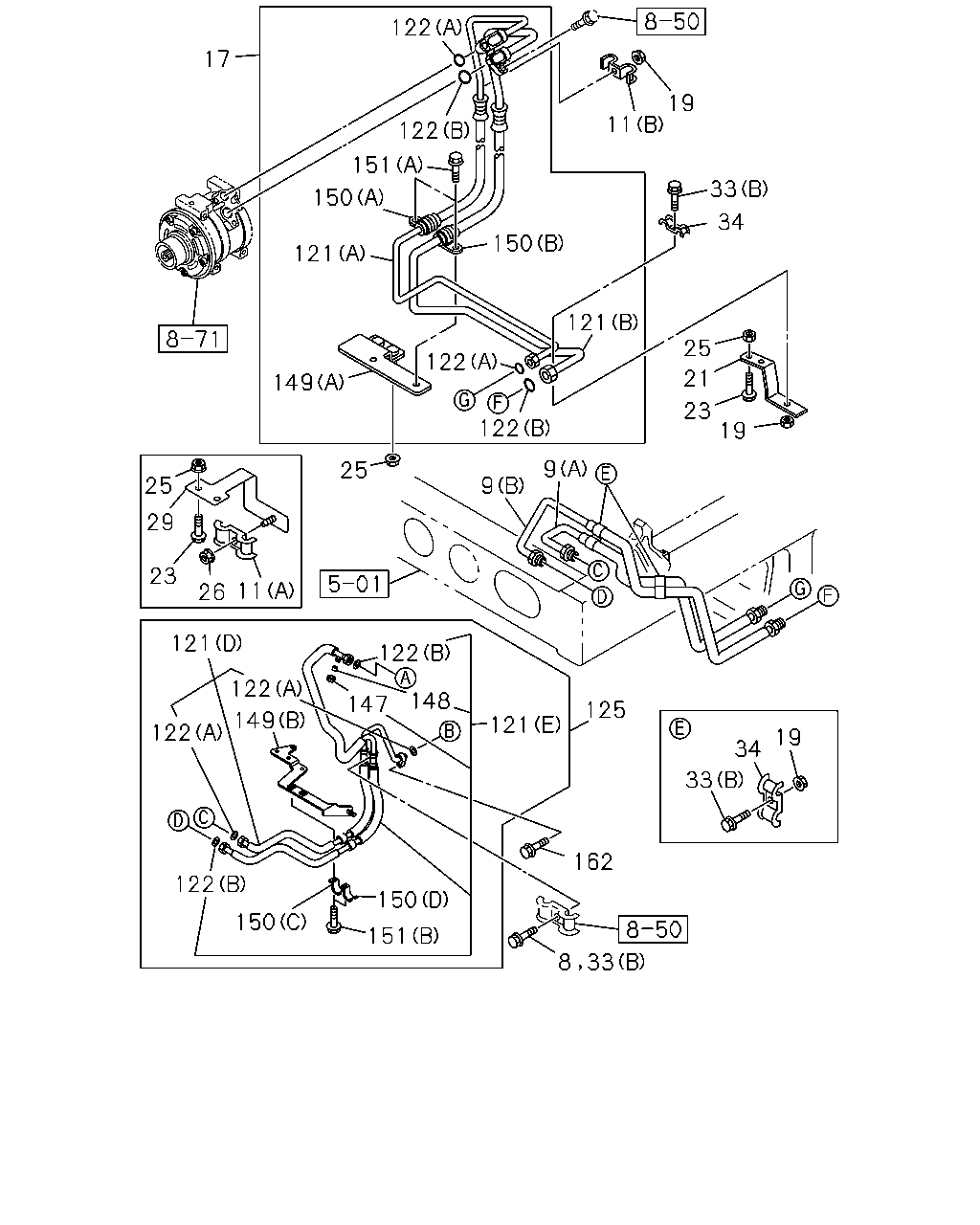

çizim 192879
17 122 122 19 11 151 150 121 150 33 34 121 122 149 25 21 23 19 122 9 9 25 25 29 23 26 121 122 122 149 122 150 151 150 147 122 148 121 8 33 162 125 33 34 19 11
BalonParca AdiParca NoAdetTipApplied Date A B
8 BOLT; CLIP
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28650-820-0 02 1 0710- ●
8 BOLT; CLIP
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28650-820-0 02 1 0710- ●
9 PIPE; COOLER,HOSE TO HOSE
6WF1 TC-C(1B8) (A) 		1-83567-892-0 01 1 0710- ●
9 PIPE; COOLER,HOSE TO HOSE
6WF1 TC-C(1B8) (B) 		1-83567-893-0 01 1 0710- ●
9 PIPE; COOLER,HOSE TO HOSE
6WG1 TC-C(72L) (A) 		1-83567-888-0 01 1 0710- ●
9 PIPE; COOLER,HOSE TO HOSE
(A) 		1-83567-888-0 01 1 0710- ●
9 PIPE; COOLER,HOSE TO HOSE
6WG1 TC-C(72L) (B) 		1-83567-889-1 01 1 0710- ●
9 PIPE; COOLER,HOSE TO HOSE
(B) 		1-83567-889-1 01 1 0710- ●
11 CLIP; COOLER PIPE
6WF1 TC-C(1B8) (A) ID=20 & 20 		1-83574-195-1 02 1 0710- ●
11 CLIP; COOLER PIPE
(B) ID=12 & 14.5 		1-83574-257-0 01 1 0710- ● ●
17 HOSE; FLEX,CMPR TO PIPE
6WF1 TC-C(1B8) 		1-83577-114-0 01 1 0710- ●
17 HOSE; FLEX,CMPR TO PIPE
6WG1 TC-C(72L) 		1-83577-062-1 01 1 0710- ●
17 HOSE; FLEX,CMPR TO PIPE 1-83577-062-1 01 1 0710- ●
19 NUT; CLIP FIX
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 01 1 0710- ●
19 NUT; CLIP FIX
6WG1 TC-C(72L) M8 FLANGE 		0-91180-108-0 03 1 0710- ●
19 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 03 1 0710- ●
21 BRACKET; COOLER HOSE 1-83573-297-0 01 1 0710- ● ●
23 BOLT; BRKT
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28050-820-0 04 1 0710- ●
23 BOLT; BRKT
6WG1 TC-C(72L) M8X20 FLANGE 		0-28050-820-0 02 1 0710- ●
23 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 02 1 0710- ●
25 NUT; BRKT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 01 1 0710- ●
25 NUT; BRKT
6WG1 TC-C(72L) M8 FLANGE 		0-91180-108-0 03 1 0710- ●
25 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0710- ●
26 NUT; PIPE CLIP
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 02 1 0710- ●
26 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
26 NUT; PIPE CLIP
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 01 1 0710- ●
29 BRACKET; COOLER PIPE
6WF1 TC-C(1B8) 		1-83573-282-1 01 1 0710- ●
33 BOLT; CLIP
6WG1 TC-C(72L) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0710- ●
33 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0710- ●
33 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0710-0904 ● ●
33 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ●
34 CLIP; COOLER PIPE
6WG1 TC-C(72L) ID=20 & 20 		1-83574-195-1 03 1 0710- ●
34 CLIP; COOLER PIPE
ID=20 & 20 		1-83574-195-1 03 1 0710- ●
121 HOSE; COOLER
6WF1 TC-C(1B8) (A) 		1-83577-115-0 01 1 0710- ●
121 HOSE; COOLER
6WF1 TC-C(1B8) (B) 		1-83577-116-0 01 1 0710- ●
121 HOSE; COOLER
6WG1 TC-C(72L) (A) 		1-83577-070-0 01 1 0710- ●
121 HOSE; COOLER
(A) 		1-83577-070-0 01 1 0710- ●
121 HOSE; COOLER
6WG1 TC-C(72L) (B) 		1-83577-071-0 01 1 0710- ●
121 HOSE; COOLER
(B) 		1-83577-071-0 01 1 0710- ●
121 HOSE; COOLER
(C) 		1-83577-054-0 01 1 0710- ● ●
121 HOSE; COOLER
(D) 		1-83577-055-0 01 1 0710- ● ●
121 HOSE; COOLER
(E) 		1-83577-086-0 01 1 0710- ● ●
122 GASKET
(A) ID=11.7 		8-97095-907-0 02 1 0710- ● ●
122 GASKET
(A) ID=11.7 		8-97095-907-0 02 1 0710- ● ●
122 GASKET
(B) ID=14.5 		8-97095-908-0 02 1 0710- ● ●
122 GASKET
(B) ID=14.5 		8-97095-908-0 02 1 0710- ● ●
125 HOSE; FLEX,UNIT TO CMPR 1-83577-026-1 01 1 0710- ● ●
147 CAP; FLEX HOSE
CAP MARK L 		8-97095-910-0 01 1 0710- ● ●
148 VALVE; FLEX HOSE 8-97095-909-0 01 1 0710- ● ●
149 BRACKET; COOLER HOSE
(A) 		1-83573-255-0 01 1 0710- ● ●
149 BRACKET; COOLER HOSE
(B) 		1-83573-265-0 01 1 0710- ● ●
150 CLIP; HOSE
(A) 		1-83574-249-0 01 1 0710- ● ●
150 CLIP; HOSE
(C) 		1-83574-262-0 01 1 0710- ● ●
150 CLIP; HOSE
(D) 		1-83574-263-0 01 1 0710- ● ●
150 CLIP; HOSE
(B) 		1-83574-264-0 01 1 0710- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
(B) 		1-83539-336-0 02 1 0710- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
(A) 		1-83578-098-0 02 1 0710- ● ●
162 BOLT; FLEX HOSE
M6X25 FLANGE 		0-28050-625-0 02 1 0710- ● ●
