8-50 — AIR CONDITIONING SYSTEM; FRONT (#67213) — 25 parça

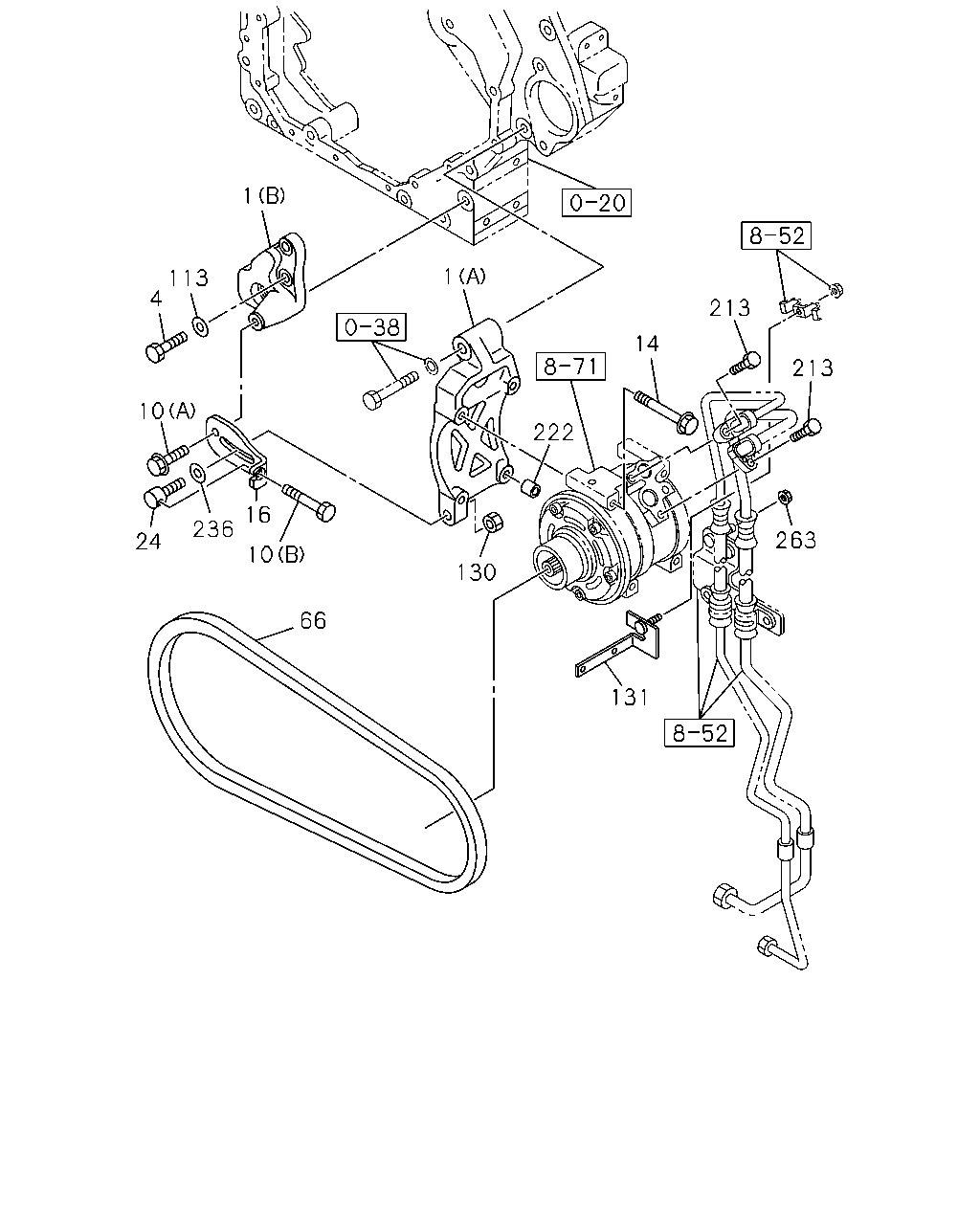

çizim 140951
1 113 4 10 24 236 16 10 66 130 222 14 213 213 263 131 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; A/C
(A) 		1-83573-095-3 01 1 0710- ● ●
1 BRACKET; A/C
(B) 		1-83573-119-0 01 1 0710- ● ●
4 BOLT; A/C CMPR BRKT
M14X135 		1-09020-055-0 03 1 0710- ● ●
10 BOLT; ADJ PLATE
(A) M12X40 FLANGE 		0-28181-240-0 01 1 0710-0804 ● ●
10 BOLT; ADJ PLATE
(A) M12X40 FLANGE 		0-28151-240-0 01 1 0805- ● ●
10 BOLT; ADJ PLATE
(B) M10X90 		1-09009-151-0 01 1 0710- ● ●
14 BOLT; CMPR
M8X80 FLANGE 		0-28050-880-0 04 1 0710- ● ●
16 PLATE; ADJ,CMPR 1-13674-293-2 01 1 0710- ● ●
24 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 0710- ● ●
66 BELT; A/C CMPR
L=1196 		1-13671-464-1 01 1 0710-0910 ● ●
66 BELT; A/C CMPR
L=1189 		8-97604-138-1 01 1 0911- ● ●
66 BELT; A/C CMPR
BEST VALUE PARTS 		1-87610-103-0 01 1 0911- ● ●
113 WASHER; PL,BRKT
ID=15 OD=26 		9-09164-514-0 03 1 0710- ● ●
130 NUT; ADJ BRKT
M12 FLANGE 		0-91180-112-0 01 1 0710- ● ●
131 STAY; CMPR BRKT 1-83573-244-0 01 1 0710- ● ●
213 BOLT; FLEX HOSE TO CMPR
M6X25 FLANGE 		0-28050-625-0 02 1 0710- ● ●
222 GASKET; CONNECTOR
ID=8.4 OD=19 		5-11779-001-0 02 1 0710- ● ●
236 WASHER; PL,ADJ BOLT
ID=12.5 OD=32 		9-09160-712-0 01 1 0710- ● ●
263 NUT; FLEX HOSE
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●

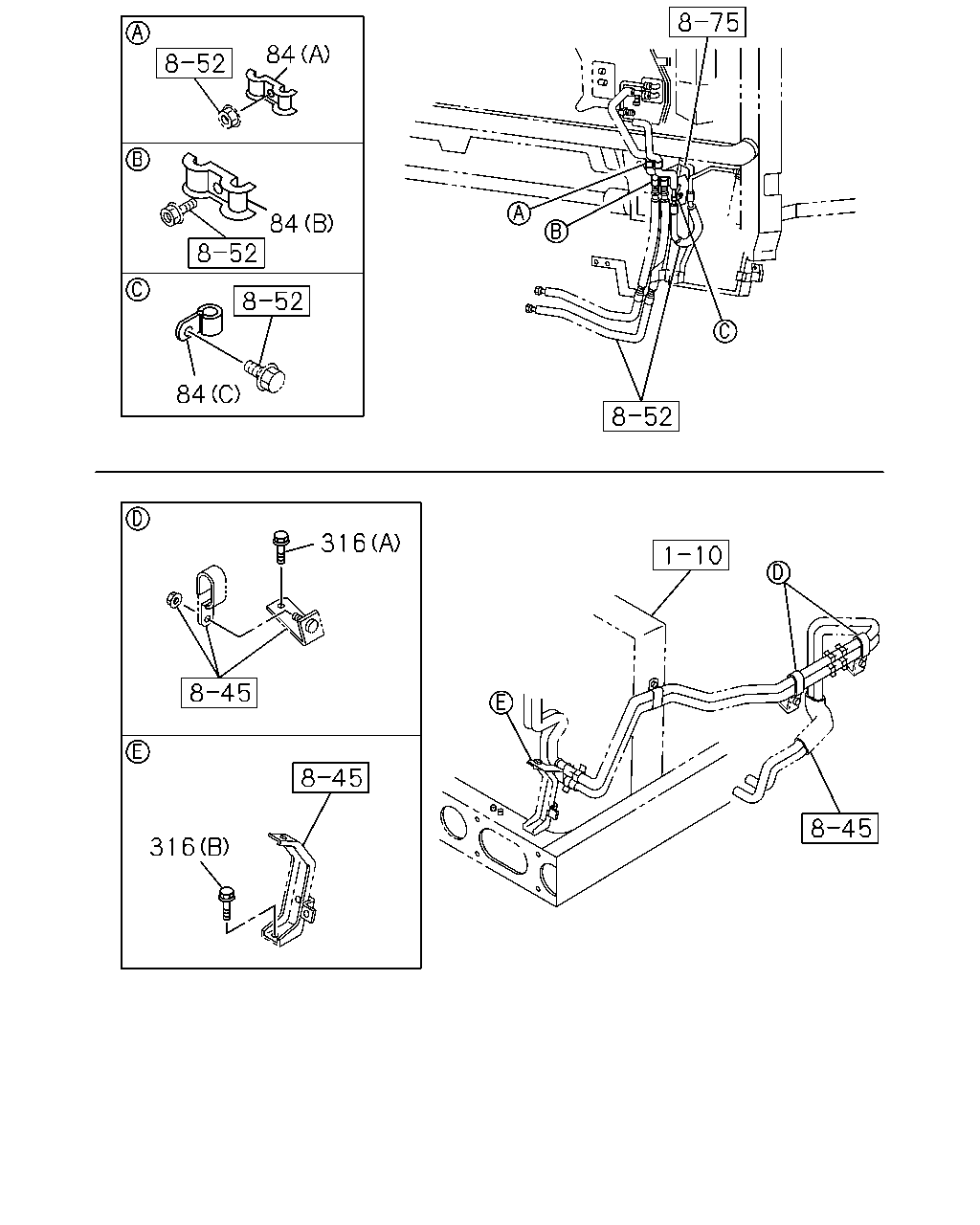

çizim 141298
84 84 84 316 316
BalonParca AdiParca NoAdetTipApplied Date A B
84 CLIP; PIPE
(C) ID=9 L=20 		0-95234-835-0 01 1 0710- ● ●
84 CLIP; PIPE
(A) ID=12.2 & 16.2 		1-83574-190-0 01 1 0710- ● ●
84 CLIP; PIPE
(B) ID=20 & 20 		1-83574-195-1 01 1 0710- ● ●
316 BOLT; BRKT FIX
6WF1 TC-C(1B8) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0710- ●
316 BOLT; BRKT FIX
6WG1 TC-C(72L) (B) M8X18 FLANGE 		0-28080-818-0 01 1 0710- ●
316 BOLT; BRKT FIX
(B) M8X18 FLANGE 		0-28080-818-0 01 1 0710- ●
