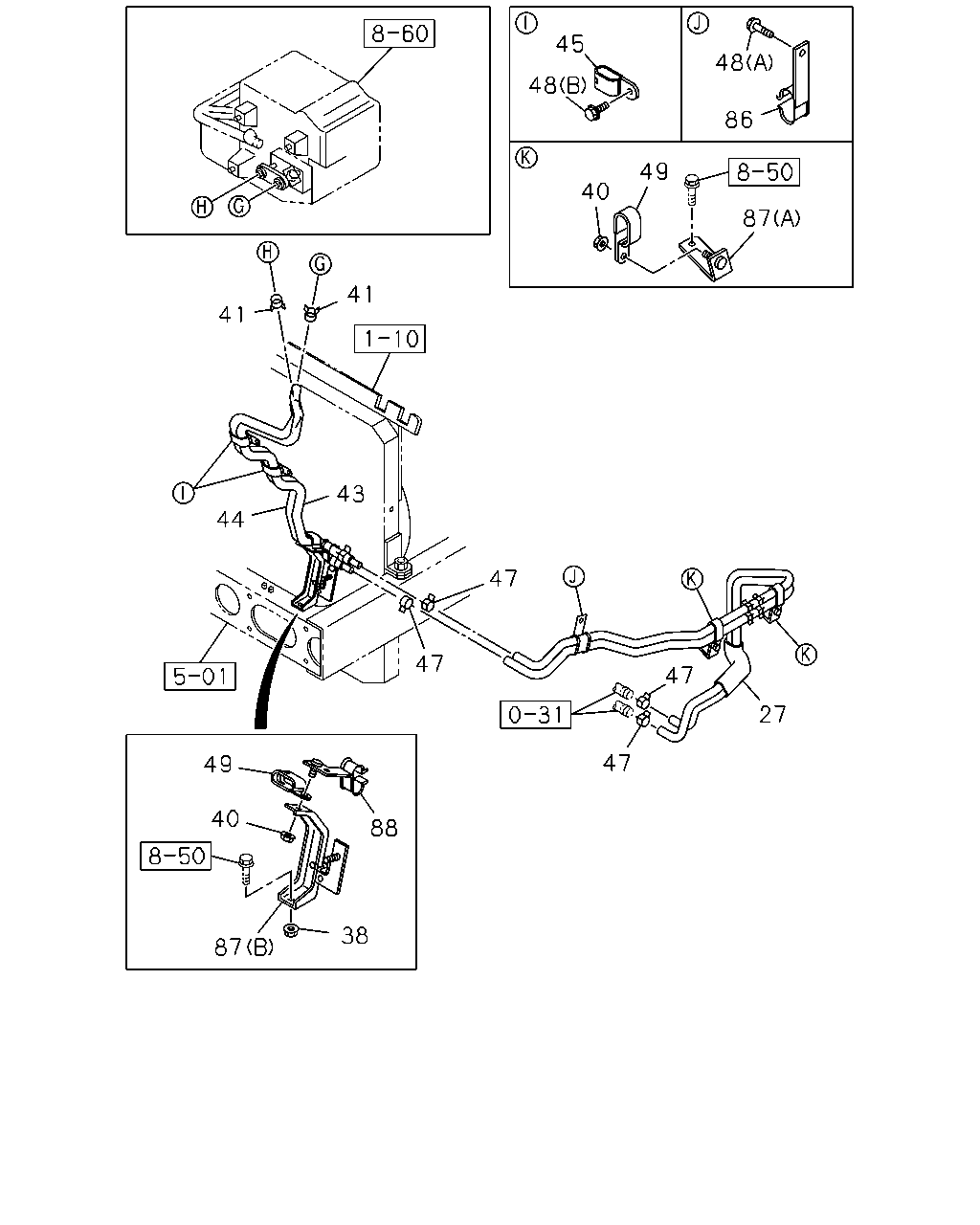

8-45 — HEATER PIPING (#67212) — 41 parça

45 48 49 48 40 40 49 48 86 87 41 41 43 47 47 44 47 47 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WF1 TC-C(1B8)	1-83565-802-3	01	1	0710-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WG1 TC-C(72L)	1-83565-839-1	01	1	0710-	●	●
40	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0710-	●	●
41	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	02	1	0710-	●	●
43	HOSE; WATER,OUTLET,HTR 6WF1 TC-C(1B8)	1-83565-570-3	01	1	0710-	●
43	HOSE; WATER,OUTLET,HTR 6WG1 TC-C(72L)	1-83565-828-1	01	1	0710-	●	●
44	HOSE; WATER,HTR,INL 6WF1 TC-C(1B8)	1-83565-569-4	01	1	0710-	●
44	HOSE; WATER,HTR,INL 6WG1 TC-C(72L)	1-83565-826-1	01	1	0710-	●	●
45	CLIP; WATER PIPE	1-09701-238-0	02	1	0710-	●	●
47	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	04	1	0710-	●	●
48	BOLT; CLIP FIX 6WF1 TC-C(1B8) (A) M8X25 FLANGE	0-28650-825-0	01	1	0710-	●
48	BOLT; CLIP FIX 6WG1 TC-C(72L) (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●
48	BOLT; CLIP FIX (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-		●
48	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
48	BOLT; CLIP FIX (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0710-	●	●
49	CLIP; WATER HOSE,HTR ID=24X2 L=25	1-09700-710-0	03	1	0710-	●	●
86	CLIP; HTR HOSE	1-83573-076-0	01	1	0710-	●	●
87	BRACKET; HTR HOSE CLIP (A)	1-83573-251-1	02	1	0710-	●	●
87	BRACKET; HTR HOSE CLIP 6WG1 TC-C(72L) (B)	1-83573-316-0	01	1	0710-	●	●

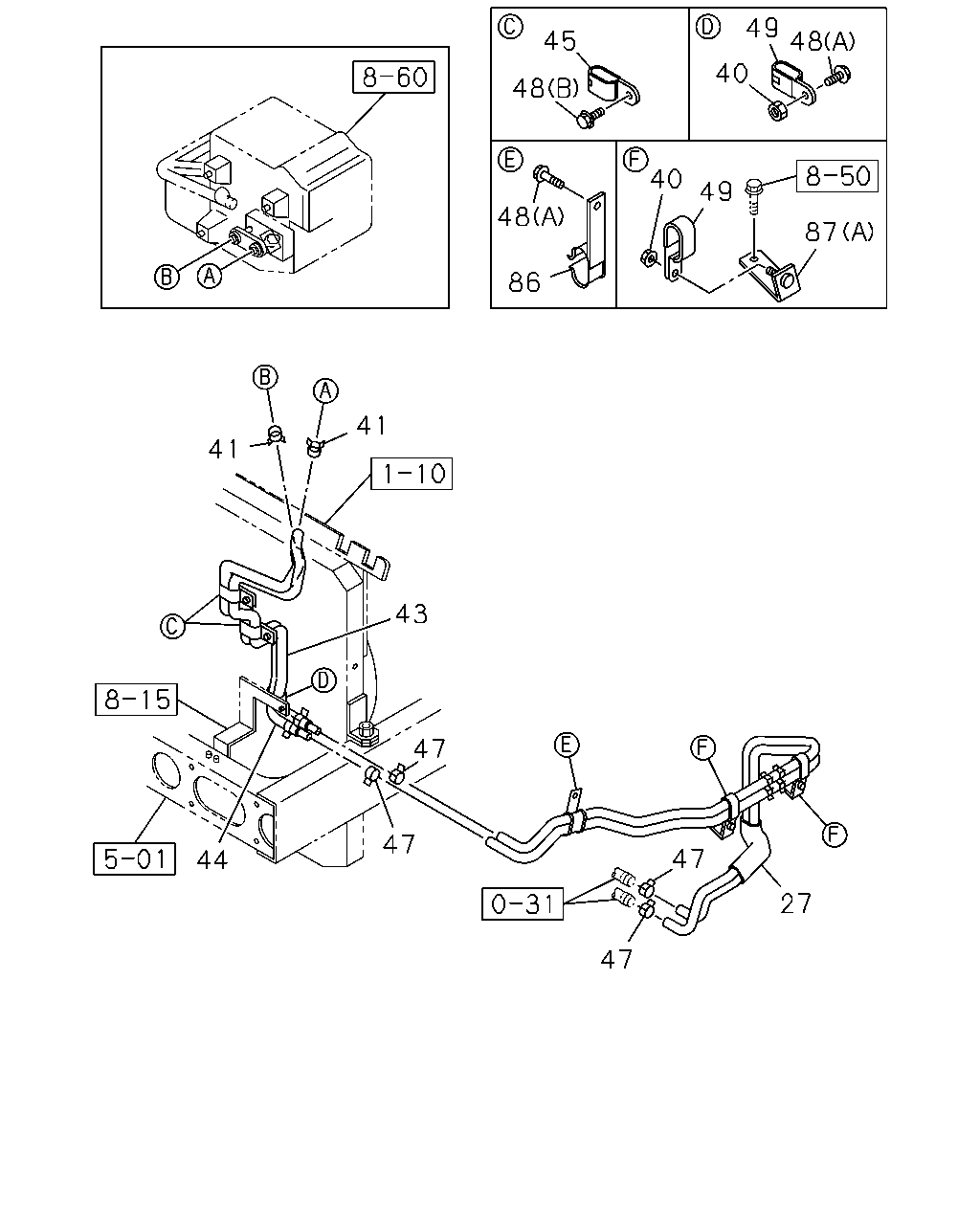

45 48 48 86 49 40 87 41 41 44 43 47 47 47 47 27 49 40 88 87 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WF1 TC-C(1B8)	1-83565-802-3	01	1	0710-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WG1 TC-C(72L)	1-83565-839-1	01	1	0710-	●	●
38	NUT; BRKT 6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	01	1	0710-	●
38	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0710-		●
40	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0710-	●	●
41	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	02	1	0710-	●	●
43	HOSE; WATER,OUTLET,HTR 6WF1 TC-C(1B8)	1-83565-570-3	01	1	0710-	●
43	HOSE; WATER,OUTLET,HTR 6WG1 TC-C(72L)	1-83565-828-1	01	1	0710-	●	●
44	HOSE; WATER,HTR,INL 6WF1 TC-C(1B8)	1-83565-569-4	01	1	0710-	●
44	HOSE; WATER,HTR,INL 6WG1 TC-C(72L)	1-83565-826-1	01	1	0710-	●	●
45	CLIP; WATER PIPE	1-09701-238-0	02	1	0710-	●	●
47	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	04	1	0710-	●	●
48	BOLT; CLIP FIX 6WF1 TC-C(1B8) (A) M8X25 FLANGE	0-28650-825-0	01	1	0710-	●
48	BOLT; CLIP FIX 6WG1 TC-C(72L) (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●
48	BOLT; CLIP FIX (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-		●
48	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
48	BOLT; CLIP FIX (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0710-	●	●
49	CLIP; WATER HOSE,HTR ID=24X2 L=25	1-09700-710-0	03	1	0710-	●	●
86	CLIP; HTR HOSE	1-83573-076-0	01	1	0710-	●	●
87	BRACKET; HTR HOSE CLIP (A)	1-83573-251-1	02	1	0710-	●	●
87	BRACKET; HTR HOSE CLIP 6WG1 TC-C(72L) (B)	1-83573-316-0	01	1	0710-	●	●
88	STAY; WATER HOSE 6WG1 TC-C(72L)	1-83573-291-1	01	1	0710-	●	●
