◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11111 - CYZ NZ EURO3/JAPAN NEW SHORT TERM 2004 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#67211) — 100 parça

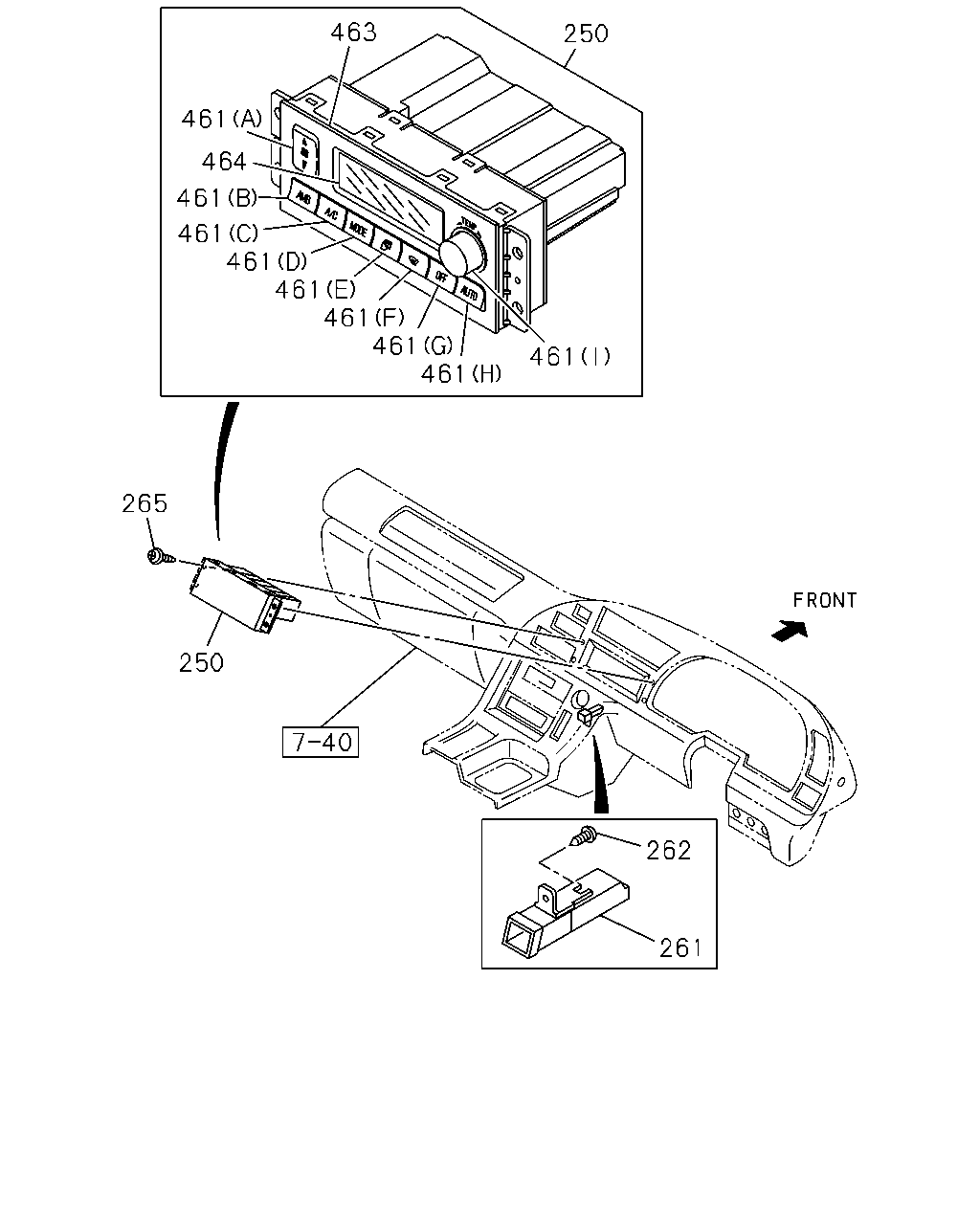

çizim 5686
250 463 461 464 461 461 461 461 461 461 461 461 265 250 262 261
BalonParca AdiParca NoAdetTipApplied Date A B
250 CONTROL ASM; A/C 1-83543-038-1 01 1 0710- ● ●
261 SENSOR; IN CAR 1-83544-023-1 01 1 0710- ● ●
262 SCREW; IN CAR SENSOR
M5X14 		8-94279-325-0 01 1 0710- ● ●
265 SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 01 1 0710- ● ●
461 KNOB; CONTROL ASM,A/C
(A) FAN 		1-83549-018-0 01 1 0710- ● ●
461 KNOB; CONTROL ASM,A/C
(B) AMB 		1-83549-019-0 01 1 0710- ● ●
461 KNOB; CONTROL ASM,A/C
(C) A/C 		1-83549-020-0 01 1 0710- ● ●
461 KNOB; CONTROL ASM,A/C
(D) MODE 		1-83549-021-0 01 1 0710- ● ●
461 KNOB; CONTROL ASM,A/C
(E) REC 		1-83549-022-0 01 1 0710- ● ●
461 KNOB; CONTROL ASM,A/C
(F) DEF 		1-83549-023-0 01 1 0710- ● ●
461 KNOB; CONTROL ASM,A/C
(G) OFF 		1-83549-024-0 01 1 0710- ● ●
461 KNOB; CONTROL ASM,A/C
(H) AUTO 		1-83549-025-0 01 1 0710- ● ●
461 KNOB; CONTROL ASM,A/C
(I) TEMP 		1-83549-026-0 01 1 0710- ● ●
463 BEZEL; CONTROL PANEL 1-83549-027-0 01 1 0710- ● ●
464 PLATE; CONTROL PANEL 1-83549-028-0 01 1 0710- ● ●

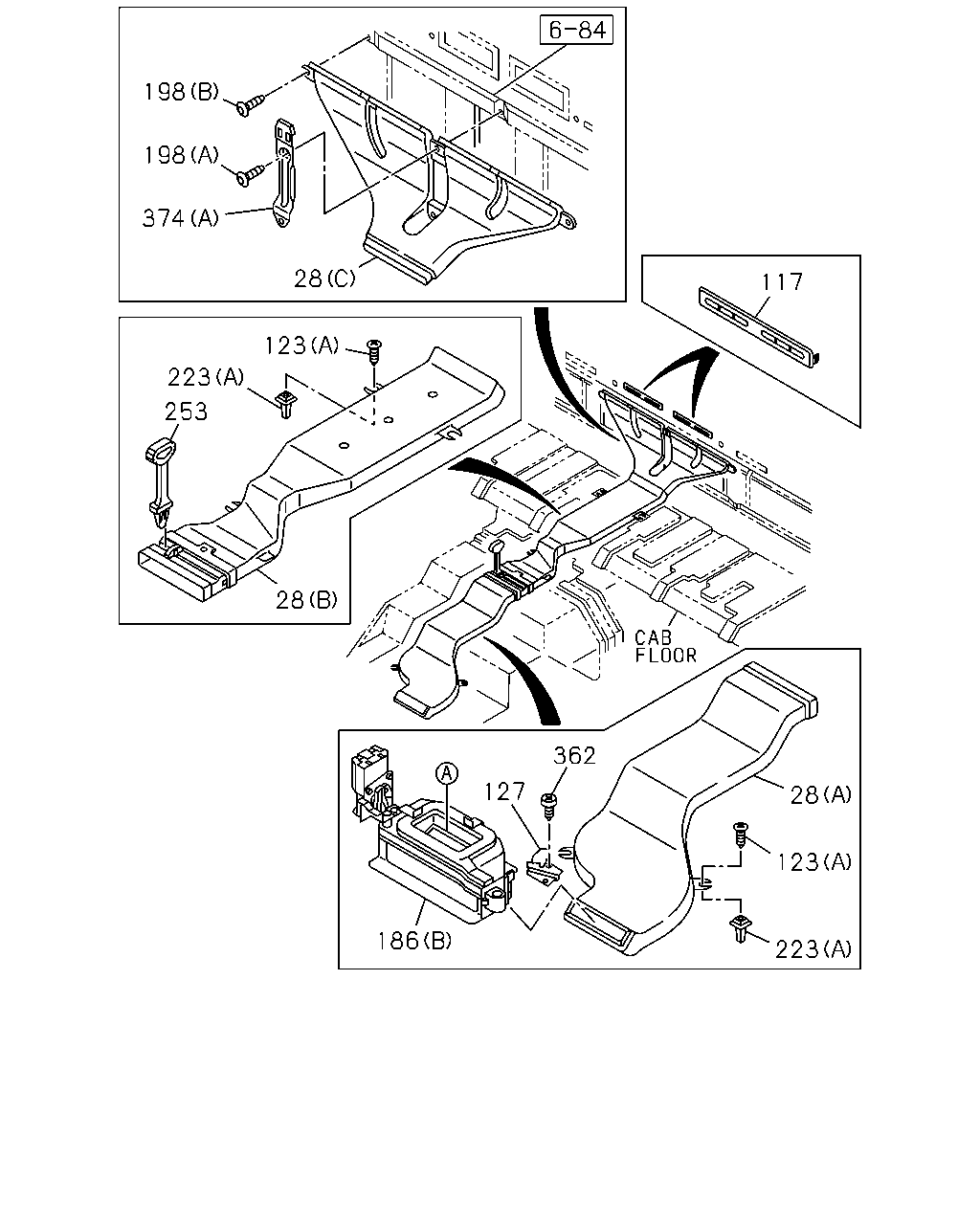

çizim 7589
198 198 374 28 117 123 223 253 28 362 127 186 28 123 223
BalonParca AdiParca NoAdetTipApplied Date A B
28 DUCT; AIR,VENTILATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C) 		1-76377-186-1 01 1 0710- ●
28 DUCT; AIR,VENTILATOR
(C) 		1-76377-186-1 01 1 0710- ●
28 DUCT; AIR,VENTILATOR
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-76377-180-2 01 1 0710- ●
28 DUCT; AIR,VENTILATOR
(B) 		1-76377-180-2 01 1 0710- ●
28 DUCT; AIR,VENTILATOR
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-76377-203-0 01 1 0710- ●
28 DUCT; AIR,VENTILATOR
(A) 		1-76377-203-0 01 1 0710- ●
117 GRILLE; VENTILATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-76377-188-5 01 1 0710- ●
117 GRILLE; VENTILATOR 1-76377-188-5 01 1 0710- ●
117 GRILLE; VENTILATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-76377-187-5 01 1 0710- ●
117 GRILLE; VENTILATOR 1-76377-187-5 01 1 0710- ●
123 SCREW; DUCT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0710- ●
123 SCREW; DUCT
(A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0710- ●
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 12 1 0710- ● ●
127 BRACKET; VENT DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-76397-019-0 01 1 0710- ●
127 BRACKET; VENT DUCT 1-76397-019-0 01 1 0710- ●
186 DUCT; VENTILATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83542-107-3 01 1 0710- ●
186 DUCT; VENTILATOR
(B) 		1-83542-107-3 01 1 0710- ●
186 DUCT; VENTILATOR
(A) 		1-76377-243-1 01 1 0710- ● ●
186 DUCT; VENTILATOR
(A) 		1-76377-173-6 01 1 0710-0710 ● ●
186 DUCT; VENTILATOR
(A) 		1-76377-246-0 01 1 0711- ● ●
198 CLIP; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) D6X23 BLACK 		1-09987-114-0 02 1 0710-1204 ●
198 CLIP; DUCT
(A) D6X23 BLACK 		1-09987-114-0 02 1 0710-1204 ●
198 CLIP; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) D6X23 LIGHT GRAY 		1-73318-629-0 02 1 1205- ●
198 CLIP; DUCT
(A) D6X23 LIGHT GRAY 		1-73318-629-0 02 1 1205- ●
198 CLIP; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) OD=6 L=17 DARK GRAY 		1-73996-364-0 02 1 0710- ●
198 CLIP; DUCT
(B) OD=6 L=17 DARK GRAY 		1-73996-364-0 02 1 0710- ●
223 GROMMET; SCREW
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 05 1 0710- ● ●
223 GROMMET; SCREW
(B) D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0710- ● ●
253 KNOB; CONT LEVER
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-76377-185-1 01 1 0710- ●
253 KNOB; CONT LEVER 1-76377-185-1 01 1 0710- ●
362 SCREW; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M5X14 		8-94279-325-0 02 1 0710- ●
362 SCREW; DUCT
M5X14 		8-94279-325-0 02 1 0710- ●
374 HOLDER; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-76377-189-3 01 1 0710- ●
374 HOLDER; DUCT
(A) 		1-76377-189-3 01 1 0710- ●
374 HOLDER; DUCT
(B) 		1-76398-012-1 01 1 0710- ● ●

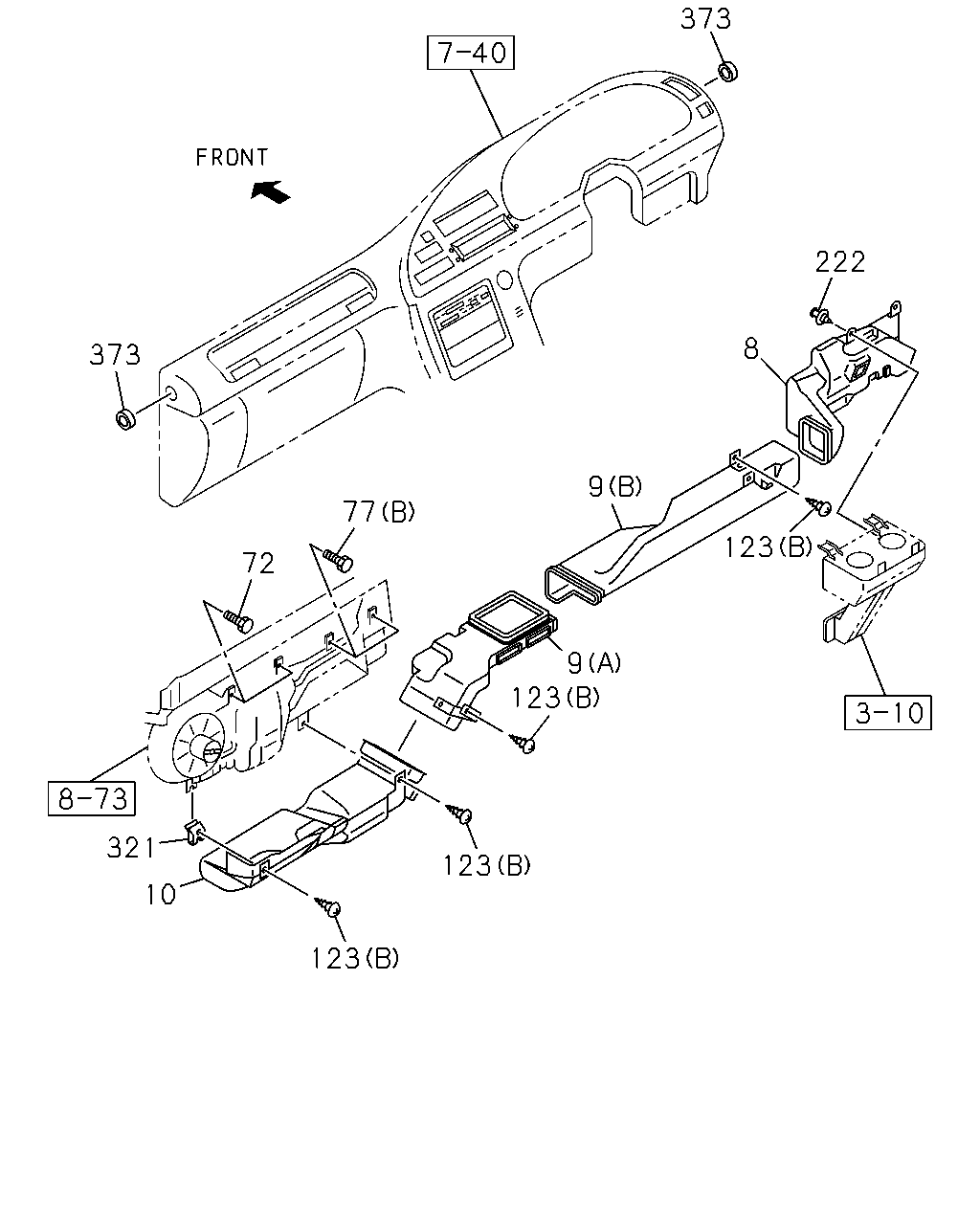

çizim 140853
373 222 373 8 77 9 72 321 10 123 123
BalonParca AdiParca NoAdetTipApplied Date A B
8 DUCT; HTR AIR,DRIVER FOOT 1-76377-208-0 01 1 0710- ● ●
9 DUCT; HTR AIR,FOOT CENTER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-76377-227-2 01 1 0710- ●
9 DUCT; HTR AIR,FOOT CENTER
(A) 		1-76377-227-2 01 1 0710- ●
9 DUCT; HTR AIR,FOOT CENTER
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-76377-226-2 01 1 0710- ●
9 DUCT; HTR AIR,FOOT CENTER
(B) 		1-76377-210-1 01 1 0710- ● ●
10 DUCT; HTR AIR,ASSIST FOOT 1-76377-204-2 01 1 0710- ● ●
72 BOLT; BLOWER UNIT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710- ● ●
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 0710- ● ●
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710- ● ●
123 SCREW; DUCT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0710- ●
123 SCREW; DUCT
(A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0710- ●
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 12 1 0710- ● ●
222 FASTENER; DUCT
D6X12.5 		8-94146-425-0 02 1 0710- ● ●
321 NUT; DUCT FIX
M5 		1-09984-196-0 01 1 0710- ● ●
373 RUBBER; JOINT 1-76378-291-0 02 1 0710- ● ●

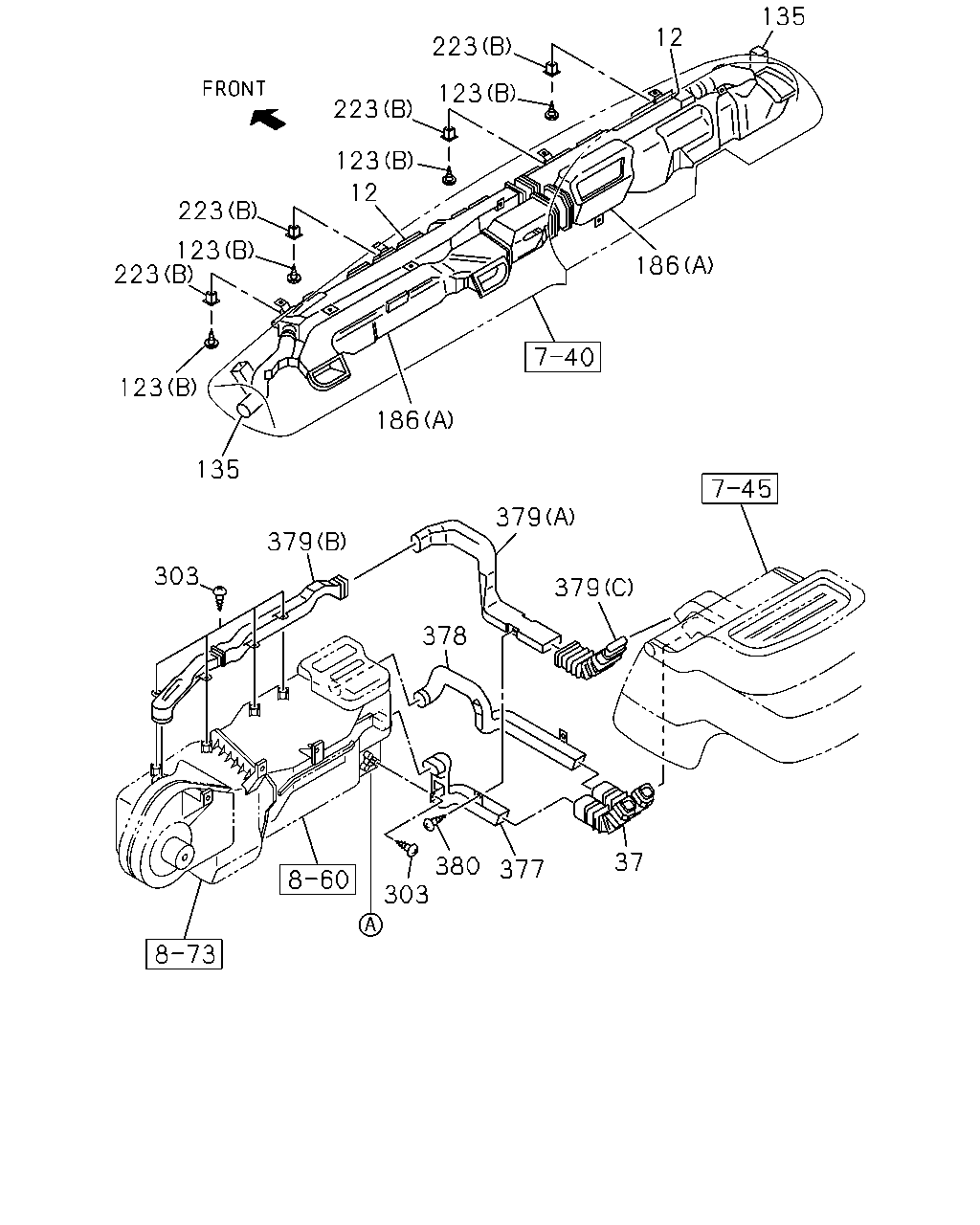

çizim 147981
135 12 223 123 223 123 12 223 123 223 123 186 186 135 303 379 379 379 378 303 380 377 37
BalonParca AdiParca NoAdetTipApplied Date A B
12 NOZZLE; DEFROSTER 1-76377-153-5 01 1 0710- ● ●
12 NOZZLE; DEFROSTER 1-76377-172-7 01 1 0710- ● ●
37 HOSE; AIR,HTR 1-76377-193-3 01 1 0710- ● ●
123 SCREW; DUCT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0710- ●
123 SCREW; DUCT
(A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0710- ●
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 12 1 0710- ● ●
135 HOSE; DEFROSTER 1-76378-253-4 01 1 0710- ● ●
135 HOSE; DEFROSTER 1-76378-252-7 01 1 0710- ● ●
186 DUCT; VENTILATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83542-107-3 01 1 0710- ●
186 DUCT; VENTILATOR
(B) 		1-83542-107-3 01 1 0710- ●
186 DUCT; VENTILATOR
(A) 		1-76377-243-1 01 1 0710- ● ●
186 DUCT; VENTILATOR
(A) 		1-76377-173-6 01 1 0710-0710 ● ●
186 DUCT; VENTILATOR
(A) 		1-76377-246-0 01 1 0711- ● ●
223 GROMMET; SCREW
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 05 1 0710- ● ●
223 GROMMET; SCREW
(B) D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0710- ● ●
303 SCREW; HOSE
M5X14 		8-94279-325-0 05 1 0710- ● ●
377 HOSE; BOX,INLET,COOL 1-76377-159-5 01 1 0710- ● ●
378 HOSE; BOX,INLET,HOT 1-76377-161-6 01 1 0710- ● ●
379 HOSE; BOX,OUTLET
(A) 		1-76377-163-5 01 1 0710- ● ●
379 HOSE; BOX,OUTLET
(B) 		1-76377-164-3 01 1 0710- ● ●
379 HOSE; BOX,OUTLET
(C) 		1-76377-192-4 01 1 0710- ● ●
380 FASTENER; HOSE
D4.6X14.7 BLACK 		1-09983-104-0 03 1 0710- ● ●

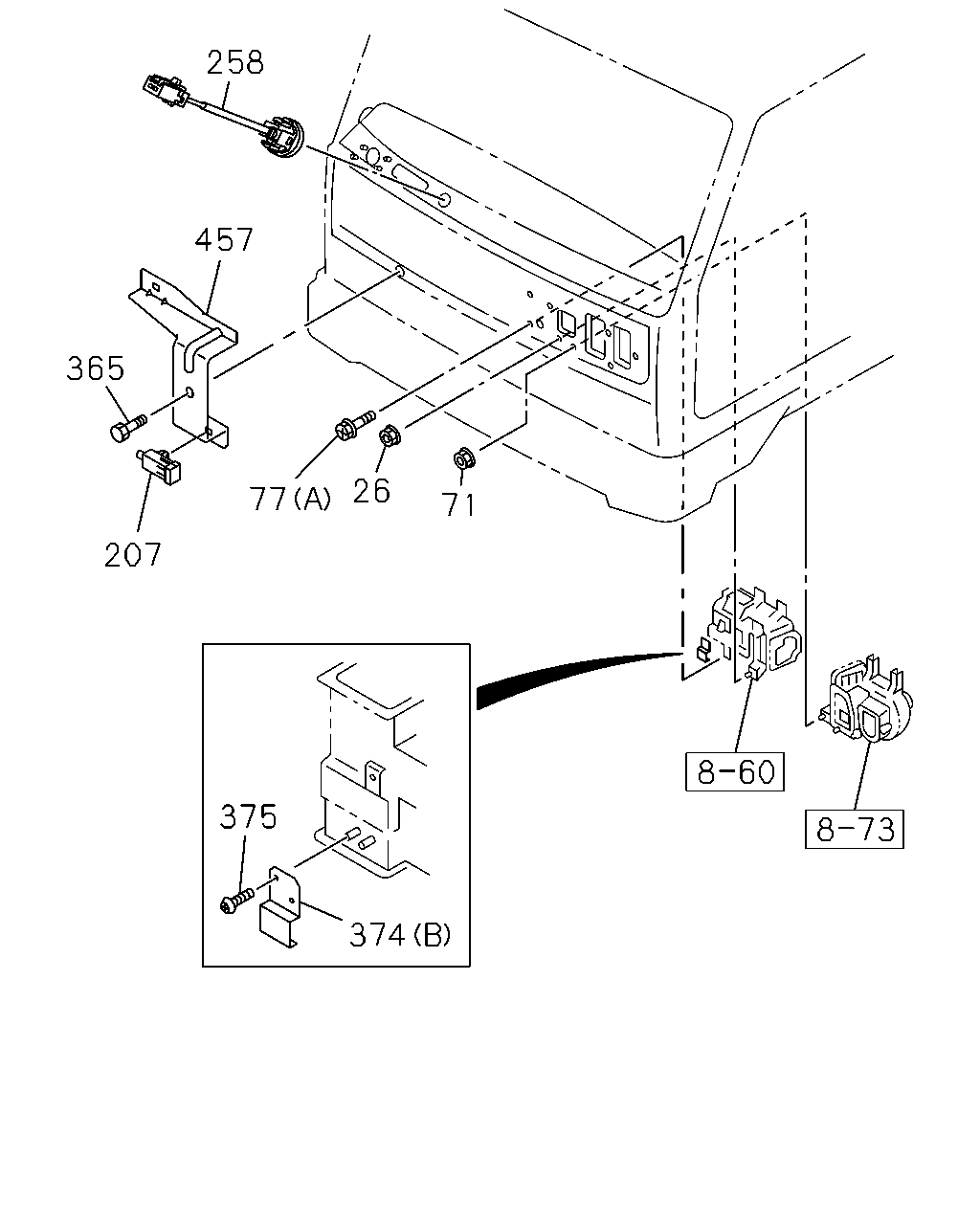

çizim 192877
258 457 365 207 77 26 71 375 374
BalonParca AdiParca NoAdetTipApplied Date A B
26 NUT; HTR
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0710- ● ●
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0710- ● ●
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 0710- ● ●
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710- ● ●
207 SENSOR; AMBIENT 8-97177-549-0 01 1 0710-1204 ● ●
207 SENSOR; AMBIENT 8-98214-375-0 01 1 1205- ● ●
258 SENSOR; SUN 8-94472-043-2 01 1 0710- ● ●
365 BOLT; SENSOR
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0710- ● ●
374 HOLDER; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-76377-189-3 01 1 0710- ●
374 HOLDER; DUCT
(A) 		1-76377-189-3 01 1 0710- ●
374 HOLDER; DUCT
(B) 		1-76398-012-1 01 1 0710- ● ●
375 SCREW; HOLDER
M5X14 		8-94279-325-0 02 1 0710- ● ●
457 BRACKET; SENSOR 1-71907-603-1 01 1 0710- ● ●
