Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#67210) — 640 parça

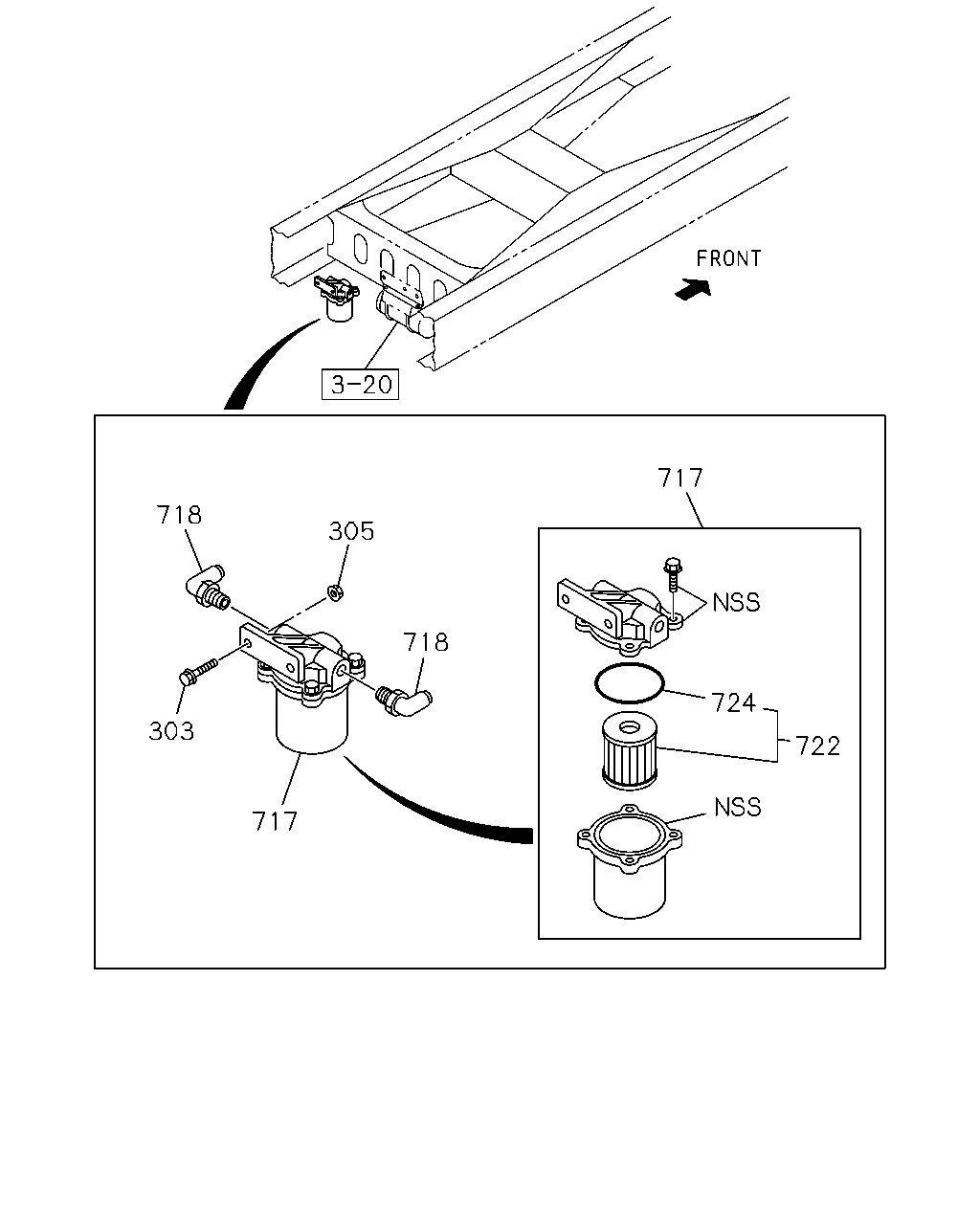

717 718 305 718 724 303 722 717

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
303	BOLT; FILTER SMOOTHER-G(C1W) M8X35 FLANGE	0-28650-835-0	02	1	0710-	●
303	BOLT; FILTER M8X35 FLANGE	0-28650-835-0	02	1	0710-		●
305	NUT; FILTER SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	02	1	0710-	●
305	NUT; FILTER M8 FLANGE	0-91180-108-0	02	1	0710-		●
717	FILTER; MAG VLV SMOOTHER-G(C1W)	8-98092-703-0	01	1	0710-	●
717	FILTER; MAG VLV	8-98092-703-0	01	1	0710-		●
718	CONNECTOR; FILTER SMOOTHER-G(C1W) DIN8 & M16 ELBOW	1-09661-531-0	02	1	0710-	●
718	CONNECTOR; FILTER DIN8 & M16 ELBOW	1-09661-531-0	02	1	0710-		●
722	ELEMENT; AIR FILTER SMOOTHER-G(C1W)	1-33779-040-0	01	1	0710-	●
722	ELEMENT; AIR FILTER	1-33779-040-0	01	1	0710-		●
724	GASKET; AIR FILTER SMOOTHER-G(C1W)	5-09623-075-0	01	1	0710-	●
724	GASKET; AIR FILTER	5-09623-075-0	01	1	0710-		●

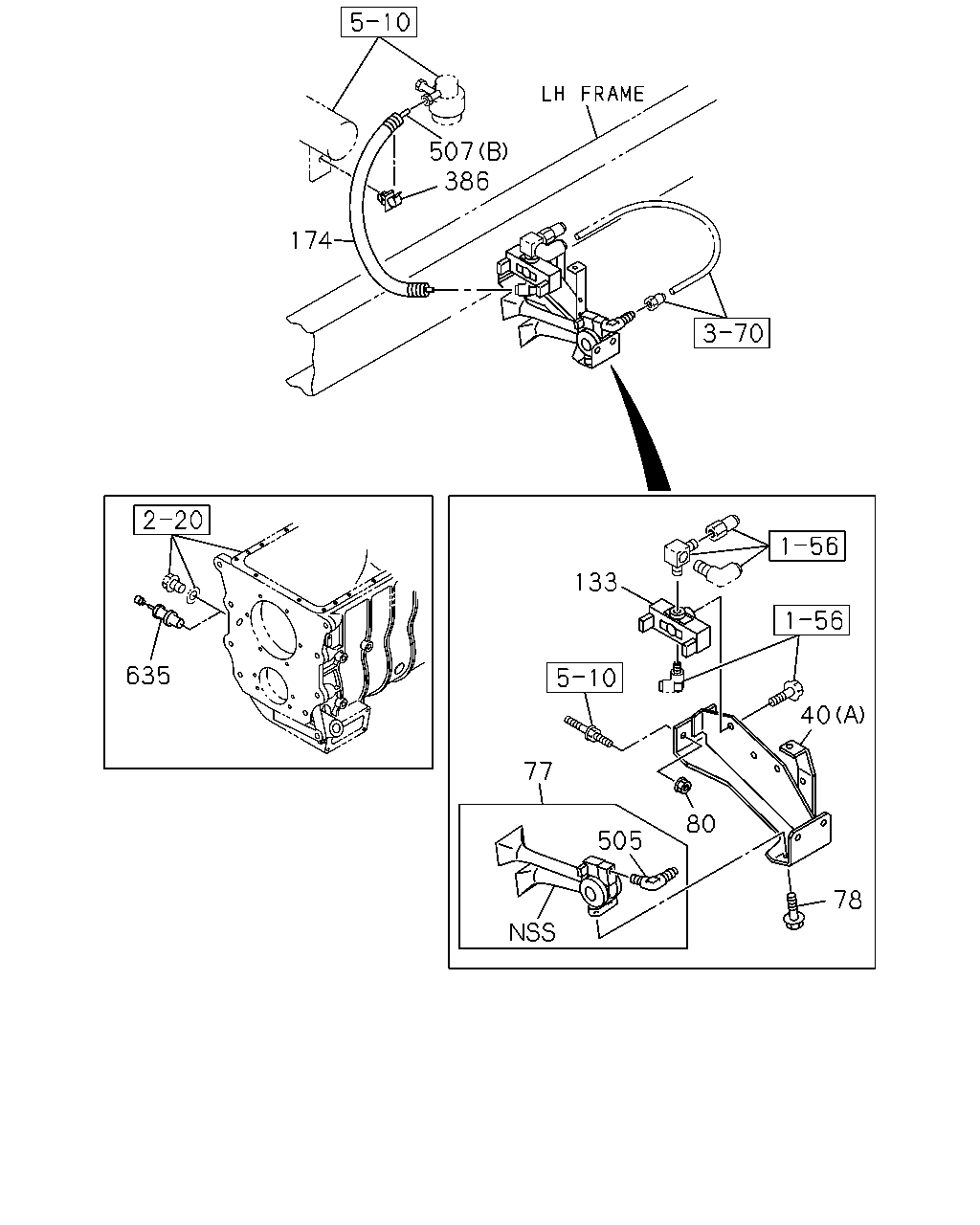

507 174 386 635 133 40 78 80 77 505

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	BRACKET; MAG VLV CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-53457-117-0	01	1	0710-	●
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0710-	●
40	BRACKET; MAG VLV (B)	1-53458-380-0	01	1	0710-		●
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53457-180-0	01	1	0710-	●
40	BRACKET; MAG VLV (A)	1-53457-180-0	01	1	0710-		●
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (D)	1-47471-170-0	01	1	0710-	●
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (E)	8-97609-263-0	01	1	0710-	●
40	BRACKET; MAG VLV (C)	1-82569-423-0	01	1	0710-		●
77	HORN ASM	1-83430-041-2	01	1	0710-	●	●
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
80	NUT; MAG VLV CAB SUSPENSION-FULL FLOATING(SMK),FULL FLOATING CAB(W16) M12 FLANGE	0-91180-212-0	02	1	0710-	●
80	NUT; MAG VLV M12 FLANGE	0-91180-212-0	02	1	0710-		●
133	VALVE; MAG,AIR HORN FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0710-	●
133	VALVE; MAG,AIR HORN	1-53458-378-2	01	1	0710-		●
174	COVER FULL FLOATING CAB(W16) L=800	1-83129-031-1	01	1	0710-	●
174	COVER L=800	1-83129-031-1	01	1	0710-		●
386	CLIP; HARNESS FULL FLOATING CAB(W16) ID=9.5	5-09709-020-0	01	1	0710-	●
386	CLIP; HARNESS ID=9.5	5-09709-020-0	01	1	0710-		●
505	JOINT; AIR HORN	1-83439-006-0	01	1	0710-	●	●
507	TUBE; NYLON FULL FLOATING CAB(W16) (B) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0710-	●
507	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0710-		●
507	TUBE; NYLON SMOOTHER-G(C1W) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0710-	●
507	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	05	1	0710-		●
635	SENSOR; PICK UP,INPUT SHAFT MJX16P M/T(Y3Z)	1-81510-736-1	01	1	0710-	●
635	SENSOR; PICK UP,INPUT SHAFT	1-81510-736-1	01	1	0710-		●

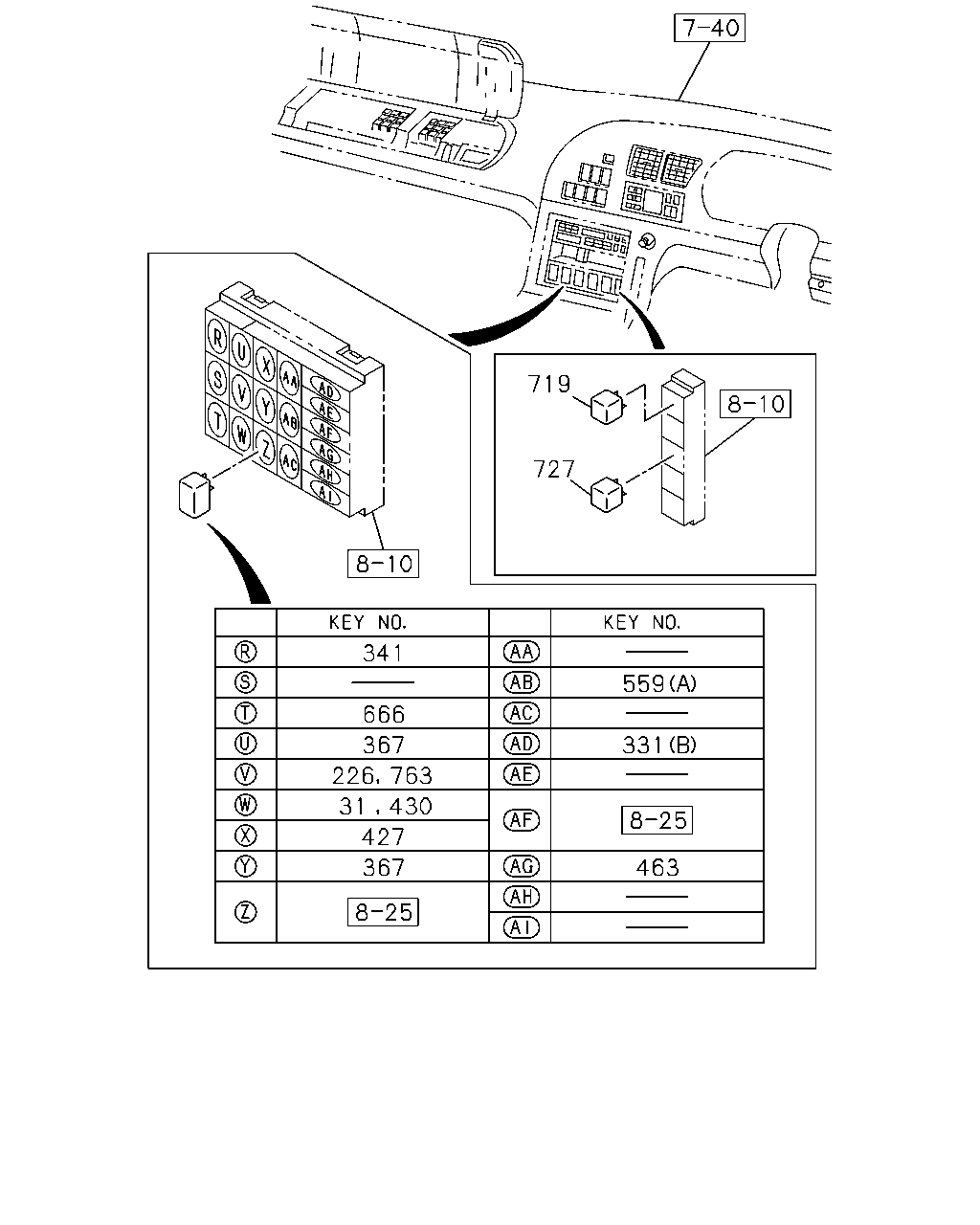

719 727 341 559 666 367 331 31 430 427 367 463 226 763

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	RELAY; PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●	●
226	RELAY; EXH BRK 6WF1 TC-C(1B8) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●
331	RELAY; A/C 6WF1 TC-C(1B8) (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●
331	RELAY; A/C (A) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0710-	●	●
331	RELAY; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0710-	●
331	RELAY; A/C (A) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0710-		●
341	RELAY FULL FLOATING CAB(W16) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●
341	RELAY 24V 10A PANASONIC	8-97173-035-1	01	1	0710-		●
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●	●
367	RELAY; NEUTRAL MJX M/T<Y9N> SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0710-		●
427	RELAY; RETARDER 6WF1 TC-C(1B8) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 24V 10A PANASONIC	8-97173-035-1	02	1	0710-	●
430	RELAY; RANGE 6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●
463	RELAY; ABS SIGNAL 6WF1 TC-C(1B8) 24V 10A PANASONIC	8-97173-035-1	01	1	0712-	●
559	RELAY; MAG VLV MJX M/T<Y9N> SMOOTHER-G(C1W) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●
559	RELAY; MAG VLV (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-		●
559	RELAY; MAG VLV MJX M/T<Y9N> SMOOTHER-G(C1W) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-	●
559	RELAY; MAG VLV (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-		●
666	RELAY; STARTER MJX M/T<Y9N> SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●
666	RELAY; STARTER 24V 10A PANASONIC	8-97173-035-1	01	1	0710-		●
719	RELAY; EMERGENCY,GEAR SHIFT UNIT 6WF1 TC-C(1B8) SMOOTHER-G(C1W) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-	●
727	RELAY; START CUT 6WG1 TC-C(72L) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-	●
727	RELAY; START CUT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-		●
763	RELAY; EGRTTERY 6WG1 TC-C(72L) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●
763	RELAY; EGRTTERY 24V 10A PANASONIC	8-97173-035-1	01	1	0710-		●

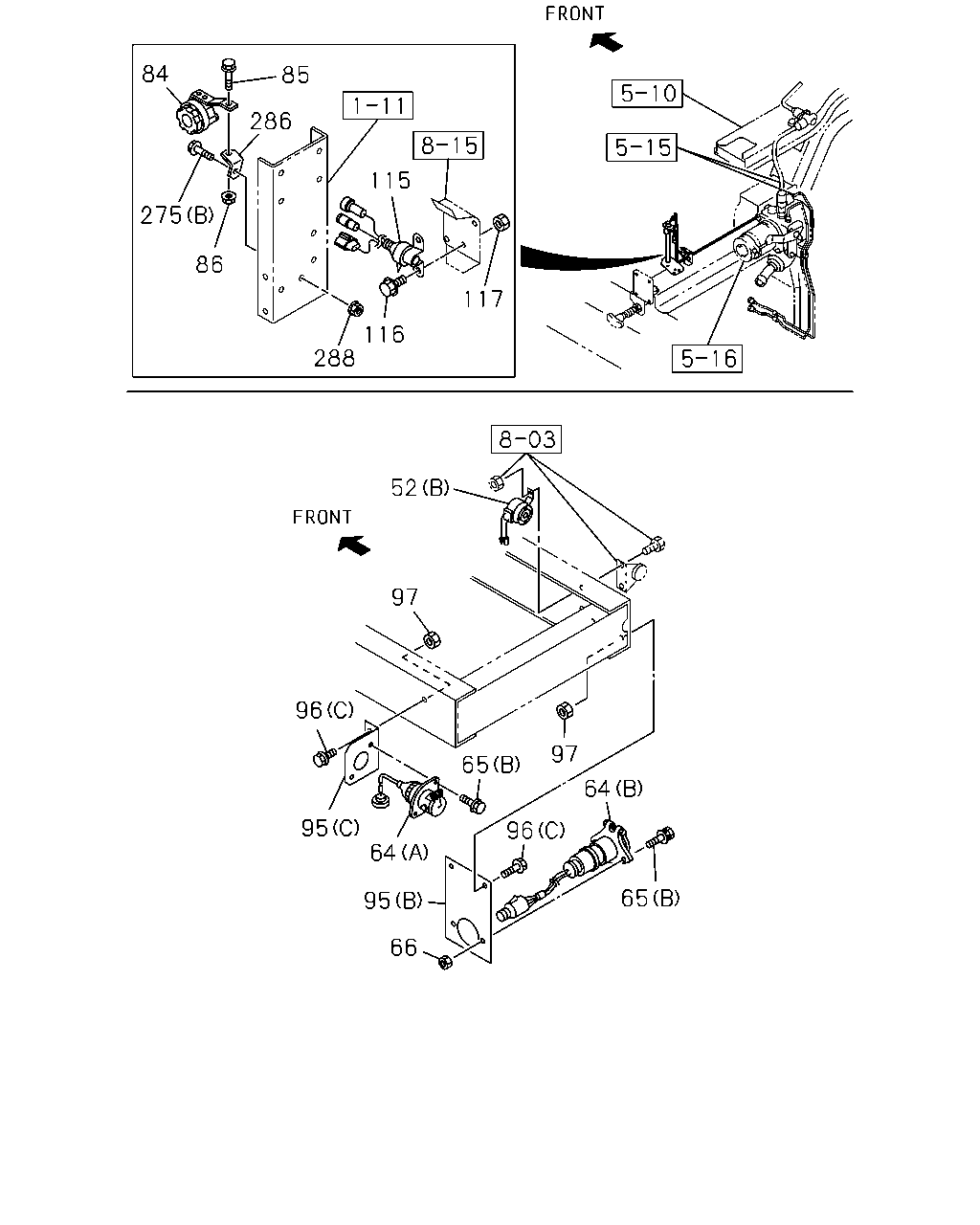

84 85 286 275 86 115 117 116 288 52 97 96 95 64 95 66 65 64 96 97 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	BUZZER; BACK 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A)	1-83460-040-0	01	1	0710-	●
52	BUZZER; BACK (B) METRO DENSO	8-98069-861-0	01	1	0710-	●	●
64	SOCKET; TRAILER (B) 7P	1-82523-014-0	01	1	0710-	●	●
64	SOCKET; TRAILER (A) L=940	1-82698-297-0	01	1	0710-1008	●	●
64	SOCKET; TRAILER (A) L=940	8-98172-009-0	01	1	1009-	●	●
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28050-616-0	02	1	0710-	●
65	BOLT; SOCKET FIX (A) M6X16 FLANGE	0-28050-616-0	02	1	0710-		●
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	04	1	0710-	●	●
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	0710-	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
95	BRACKET; SOCKET,TRAILER (B)	1-82699-387-0	01	1	0710-	●
95	BRACKET; SOCKET,TRAILER (C)	1-82699-979-0	01	1	0710-1008	●
95	BRACKET; SOCKET,TRAILER (C)	8-97985-137-0	01	1	1009-	●
95	BRACKET; SOCKET,TRAILER (A)	1-82699-429-0	01	1	0710-1008		●
95	BRACKET; SOCKET,TRAILER (A)	8-98173-095-0	01	1	1009-		●
96	BOLT; BRKT FIX (C) M8X25 FLANGE	0-28650-825-0	04	1	0710-	●
96	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	05	1	0710-	●	●
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28651-025-0	01	1	0710-	●	●
96	BOLT; BRKT FIX (C) M8X25 FLANGE	0-28650-825-0	02	1	0710-		●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	04	1	0710-	●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	05	1	0710-	●	●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0710-		●
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	0710-	●	●
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0710-	●	●
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0710-	●
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	0710-		●
275	BOLT; BRKT 6WG1 TC-C(72L) (B) M8X25 FLANGE	0-28650-825-0	01	1	0710-	●
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0710-		●
286	BRACKET 6WG1 TC-C(72L)	1-82699-199-0	01	1	0710-	●
286	BRACKET	1-82699-199-0	01	1	0710-		●
288	NUT; BRKT FIX 6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	01	1	0710-	●
288	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	0710-		●

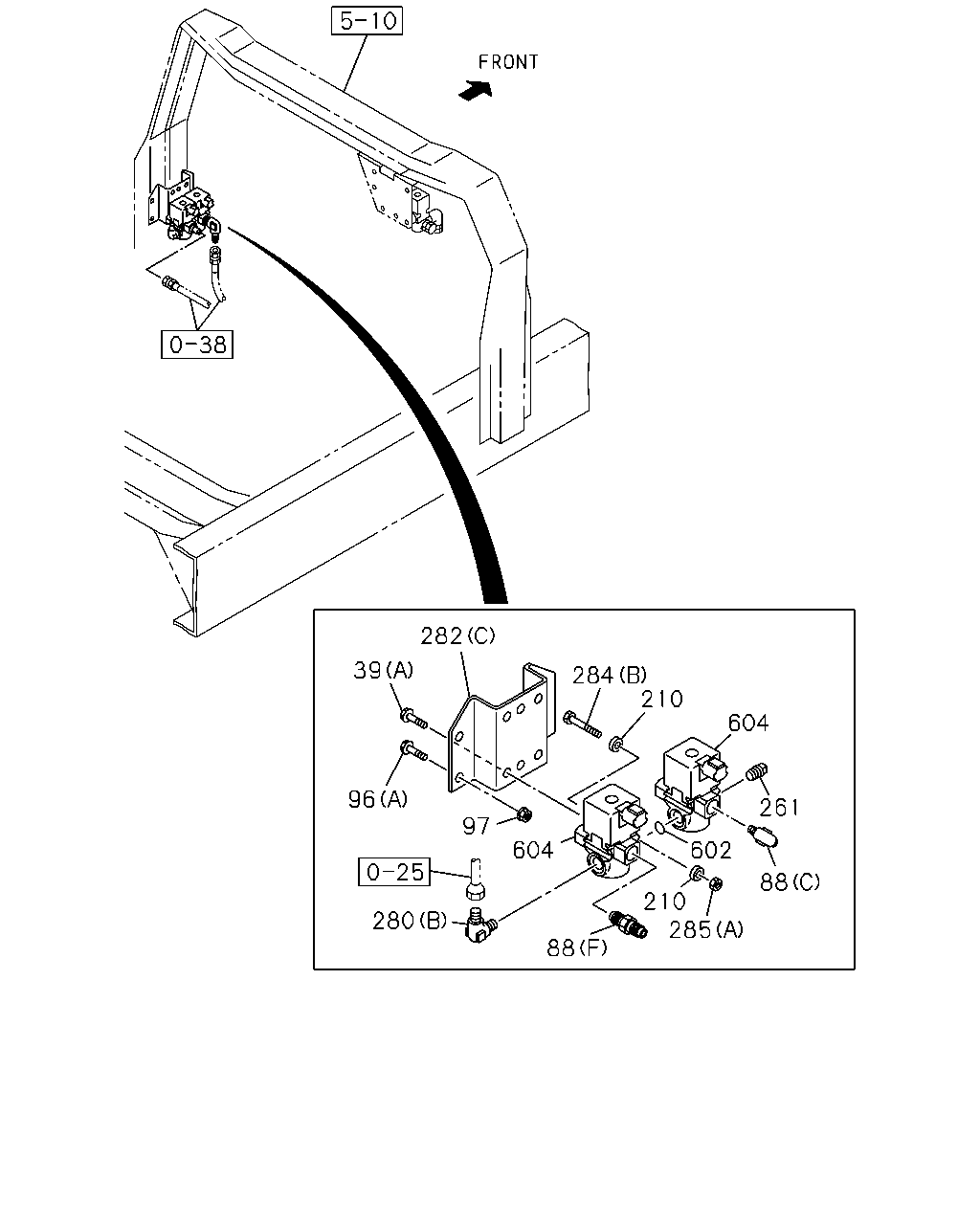

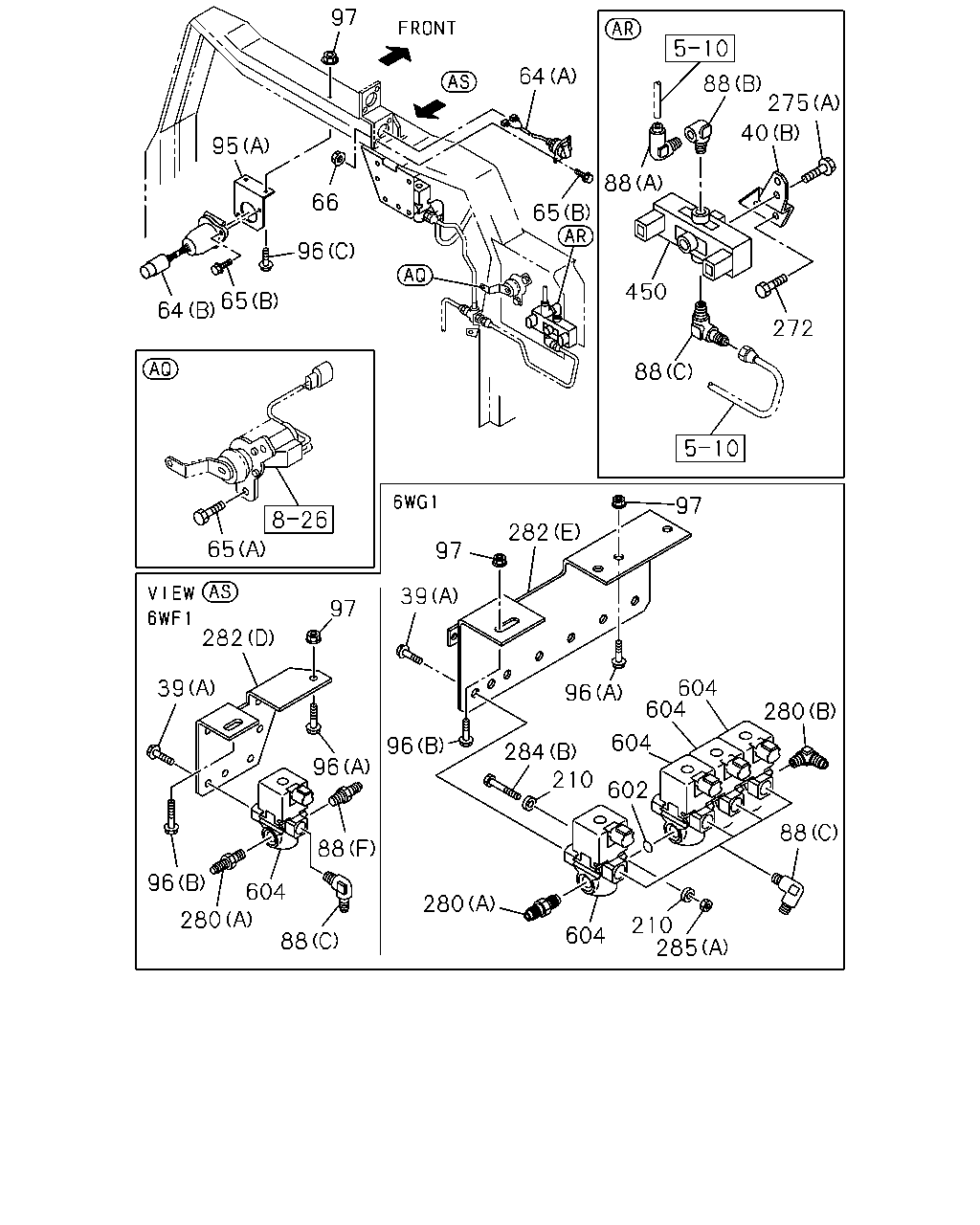

282 39 96 97 284 210 604 261 88 602 210 285 88 604 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	BOLT; BRKT,MAG VLV 6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28650-820-0	04	1	0710-	●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	04	1	0710-		●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
39	BOLT; BRKT,MAG VLV 6WF1 TC-C(1B8) (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0710-		●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	0710-	●
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0710-		●
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-		●
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (L) DIN8 & M12 STRAIGHT	1-09660-873-0	02	1	0710-	●
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-		●
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (J) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0710-	●
88	CONNECTOR; MAG VLV (J) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0710-		●
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-		●
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (K) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (K) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-		●
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (I) PT3/8 3WAY	1-09661-300-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (I) PT3/8 3WAY	1-09661-300-0	01	1	0710-		●
88	CONNECTOR; MAG VLV 6WG1 TC-C(72L) (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0710-	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0710-		●
88	CONNECTOR; MAG VLV (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0710-	●	●
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0710-	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-	●
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-		●
88	CONNECTOR; MAG VLV (H)	1-09661-065-0	02	1	0710-		●
96	BOLT; BRKT FIX (C) M8X25 FLANGE	0-28650-825-0	04	1	0710-	●
96	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	05	1	0710-	●	●
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28651-025-0	01	1	0710-	●	●
96	BOLT; BRKT FIX (C) M8X25 FLANGE	0-28650-825-0	02	1	0710-		●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	04	1	0710-	●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	05	1	0710-	●	●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0710-		●
210	WASHER; PL,BRKT SMOOTHER-G(C1W)	1-82569-266-0	04	1	0710-	●
210	WASHER; PL,BRKT	1-82569-266-0	04	1	0710-		●
210	WASHER; PL,BRKT 6WG1 TC-C(72L)	1-82569-266-0	06	1	0710-	●
210	WASHER; PL,BRKT	1-82569-266-0	06	1	0710-		●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0710-	●	●
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0710-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0710-	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	0710-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0710-	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4	9-99204-513-0	01	1	0710-	●	●
261	PLUG; MAG VLV SMOOTHER-G(C1W) PT1/4	9-99204-513-0	01	1	0710-	●
280	CONNECTOR; IN,MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0710-	●	●
280	CONNECTOR; IN,MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-	●	●
280	CONNECTOR; IN,MAG VLV 6WG1 TC-C(72L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-	●	●
282	BRACKET; MAG VLV 6WF1 TC-C(1B8) (D)	1-82569-277-2	01	1	0710-	●
282	BRACKET; MAG VLV 6WG1 TC-C(72L) (E)	1-82569-298-0	01	1	0710-	●
282	BRACKET; MAG VLV (E)	1-82569-298-0	01	1	0710-		●
282	BRACKET; MAG VLV (C)	1-82569-290-0	01	1	0710-	●	●
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82569-358-0	01	1	0710-	●	●
282	BRACKET; MAG VLV (B)	1-82569-358-0	01	1	0710-		●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A)	1-47471-175-0	01	1	0710-	●	●
284	BOLT; MAG VLV SMOOTHER-G(C1W) (B) M6X50 FLANGE	0-28050-650-0	04	1	0710-	●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	04	1	0710-		●
284	BOLT; MAG VLV SMOOTHER-G(C1W) (C) M8X14 FLANGE	0-28080-814-0	02	1	0710-	●
284	BOLT; MAG VLV (C) M8X14 FLANGE	0-28080-814-0	02	1	0710-		●
284	BOLT; MAG VLV SMOOTHER-G(C1W) (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-	●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-		●
284	BOLT; MAG VLV 6WG1 TC-C(72L) (B) M6X50 FLANGE	0-28050-650-0	03	1	0710-	●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0710-		●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-	●	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-	●	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-		●
285	NUT; MAG VLV SMOOTHER-G(C1W) (B) M5	0-91110-505-0	03	1	0710-	●
285	NUT; MAG VLV (B) M5	0-91110-505-0	03	1	0710-		●
285	NUT; MAG VLV SMOOTHER-G(C1W) (A) M6 FLANGE	0-91180-106-0	04	1	0710-	●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	04	1	0710-		●
285	NUT; MAG VLV 6WG1 TC-C(72L) (A) M6 FLANGE	0-91180-106-0	03	1	0710-	●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	03	1	0710-		●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
602	GASKET; MAG VLV SMOOTHER-G(C1W) ID=16.8	9-09565-117-0	02	1	0710-	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	0710-		●
602	GASKET; MAG VLV 6WG1 TC-C(72L) ID=16.8	9-09565-117-0	03	1	0710-	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	03	1	0710-		●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0710-	●	●
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0710-	●	●
604	VALVE; MAG,ENG CONT 6WF1 TC-C(1B8)	1-82563-871-2	01	1	0710-	●
604	VALVE; MAG,ENG CONT 6WG1 TC-C(72L)	1-82563-871-2	04	1	0710-	●
604	VALVE; MAG,ENG CONT	1-82563-871-2	04	1	0710-		●
604	VALVE; MAG,ENG CONT	1-82563-871-2	02	1	0710-	●	●

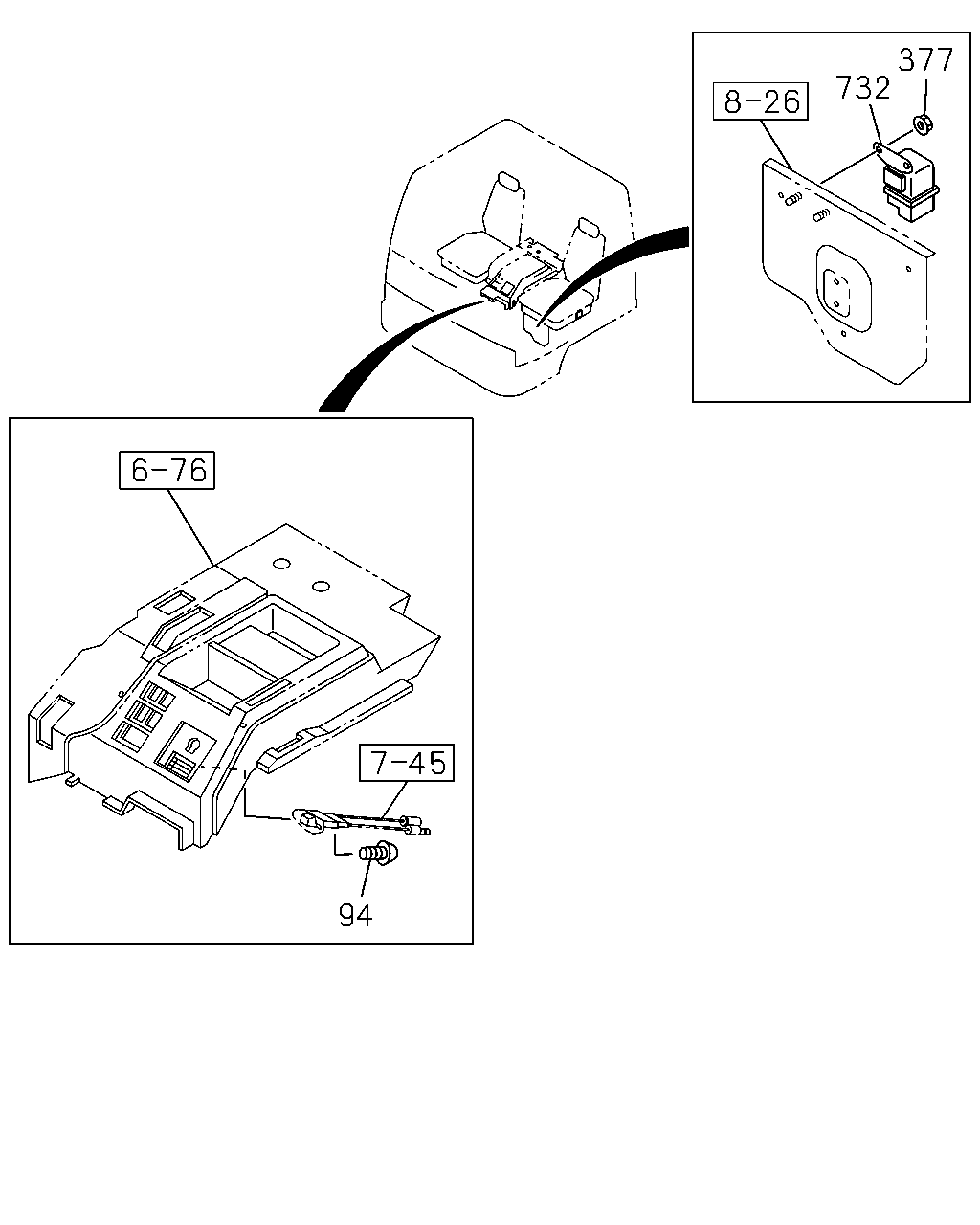

732 377 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0710-	●	●
377	NUT; RELAY 6WG1 TC-C(72L) SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	0710-	●
377	NUT; RELAY M6 FLANGE	0-91180-106-0	02	1	0710-		●
377	NUT; RELAY AIR BAG(TFQ) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
732	RELAY; EDS 6WG1 TC-C(72L) SMOOTHER-G(C1W)	1-82550-337-1	01	1	0710-	●
732	RELAY; EDS	1-82550-337-1	01	1	0710-		●

661 4 468 440 180 1 197 731 312 734 377 8 59 58 59 52 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	1-83470-062-1	01	1	0710-	●	●
4	SCREW; FLASHER UNIT M5X14	8-94279-325-0	01	1	0710-	●	●
8	RELAY; WIPER AIR BAG(TFQ)	1-83316-002-4	01	1	0710-	●	●
52	BUZZER; BACK 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A)	1-83460-040-0	01	1	0710-	●
52	BUZZER; BACK (B) METRO DENSO	8-98069-861-0	01	1	0710-	●	●
58	BUZZER; AIR PRESSURE WARNING 6WF1 TC-C(1B8) METRO DENSO	8-98069-859-0	01	1	0710-	●
59	SCREW; BUZZER 6WF1 TC-C(1B8) (A) M5X14	8-94279-325-0	01	1	0710-	●
59	SCREW; BUZZER 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (B) M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0710-	●
60	GROMMET; SCREW,BUZZER 6WF1 TC-C(1B8) SMOOTHER-G(C1W) D=8.6X7.7 L=7.5	8-94279-078-0	01	1	0710-	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
197	BUZZER; WARNING,AIR HEAT OIL BRK 6WF1 TC-C(1B8)	1-83460-051-1	01	1	0710-	●
312	BOLT; BUZZER 6WG1 TC-C(72L) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0710-	●
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0710-		●
377	NUT; RELAY 6WG1 TC-C(72L) SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	0710-	●
377	NUT; RELAY M6 FLANGE	0-91180-106-0	02	1	0710-		●
377	NUT; RELAY AIR BAG(TFQ) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
440	MODULE; INFORMATION,ABS	1-81510-701-0	01	1	0710-	●	●
468	NUT; MODULE M6 FLANGE	0-91180-106-0	02	1	0710-	●	●
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	0710-	●	●
731	ALARM; INFORMATION 6WG1 TC-C(72L) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A)	1-83460-051-1	01	1	0710-	●
731	ALARM; INFORMATION 6WG1 TC-C(72L)	1-83460-051-1	01	1	0710-		●
734	ALARM; MULTI 6WG1 TC-C(72L)	1-83460-106-0	01	1	0710-	●
734	ALARM; MULTI	1-83460-106-0	01	1	0710-		●

284 91 34 282 34 261 89 89 261 285 210 89 284 273 282 602 34 34 34 89 34 210 284 261 603 282 39 33 34 284 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-82563-871-2	01	1	0710-	●	●
34	CONNECTOR; MAG VLV,INL PORT SMOOTHER-G(C1W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-		●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0710-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0710-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) R1/4 & RC1/4	1-09664-211-0	02	1	0710-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0710-	●	●
39	BOLT; BRKT,MAG VLV 6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28650-820-0	04	1	0710-	●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	04	1	0710-		●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
39	BOLT; BRKT,MAG VLV 6WF1 TC-C(1B8) (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
89	VALVE; MAG,DIFF LOCK (F)	8-97641-594-0	01	1	1206-	●	●
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (C)	1-82564-095-1	02	1	0710-	●
89	VALVE; MAG,DIFF LOCK (C)	1-82564-095-1	02	1	0710-		●
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (B)	1-82564-354-1	01	1	0710-	●
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (D)	1-82564-407-1	01	1	0710-	●
89	VALVE; MAG,DIFF LOCK (D)	1-82564-407-1	01	1	0710-		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0710-1205	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0710-1205	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	1206-	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E)	1-82563-872-1	01	1	0710-	●	●
89	VALVE; MAG,DIFF LOCK (B)	1-82564-094-2	01	1	0710-		●
91	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	0710-		●
210	WASHER; PL,BRKT SMOOTHER-G(C1W)	1-82569-266-0	04	1	0710-	●
210	WASHER; PL,BRKT	1-82569-266-0	04	1	0710-		●
210	WASHER; PL,BRKT 6WG1 TC-C(72L)	1-82569-266-0	06	1	0710-	●
210	WASHER; PL,BRKT	1-82569-266-0	06	1	0710-		●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0710-	●	●
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0710-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0710-	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	0710-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0710-	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4	9-99204-513-0	01	1	0710-	●	●
261	PLUG; MAG VLV SMOOTHER-G(C1W) PT1/4	9-99204-513-0	01	1	0710-	●
273	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
282	BRACKET; MAG VLV 6WF1 TC-C(1B8) (D)	1-82569-277-2	01	1	0710-	●
282	BRACKET; MAG VLV 6WG1 TC-C(72L) (E)	1-82569-298-0	01	1	0710-	●
282	BRACKET; MAG VLV (E)	1-82569-298-0	01	1	0710-		●
282	BRACKET; MAG VLV (C)	1-82569-290-0	01	1	0710-	●	●
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82569-358-0	01	1	0710-	●	●
282	BRACKET; MAG VLV (B)	1-82569-358-0	01	1	0710-		●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A)	1-47471-175-0	01	1	0710-	●	●
284	BOLT; MAG VLV SMOOTHER-G(C1W) (B) M6X50 FLANGE	0-28050-650-0	04	1	0710-	●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	04	1	0710-		●
284	BOLT; MAG VLV SMOOTHER-G(C1W) (C) M8X14 FLANGE	0-28080-814-0	02	1	0710-	●
284	BOLT; MAG VLV (C) M8X14 FLANGE	0-28080-814-0	02	1	0710-		●
284	BOLT; MAG VLV SMOOTHER-G(C1W) (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-	●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-		●
284	BOLT; MAG VLV 6WG1 TC-C(72L) (B) M6X50 FLANGE	0-28050-650-0	03	1	0710-	●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0710-		●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-	●	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-	●	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-		●
285	NUT; MAG VLV SMOOTHER-G(C1W) (B) M5	0-91110-505-0	03	1	0710-	●
285	NUT; MAG VLV (B) M5	0-91110-505-0	03	1	0710-		●
285	NUT; MAG VLV SMOOTHER-G(C1W) (A) M6 FLANGE	0-91180-106-0	04	1	0710-	●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	04	1	0710-		●
285	NUT; MAG VLV 6WG1 TC-C(72L) (A) M6 FLANGE	0-91180-106-0	03	1	0710-	●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	03	1	0710-		●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
602	GASKET; MAG VLV SMOOTHER-G(C1W) ID=16.8	9-09565-117-0	02	1	0710-	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	0710-		●
602	GASKET; MAG VLV 6WG1 TC-C(72L) ID=16.8	9-09565-117-0	03	1	0710-	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	03	1	0710-		●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0710-	●	●
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0710-	●	●
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-47471-046-0	01	1	0710-	●	●

22 24 25 24 331 22 26 331 331 615 331 559

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	02	1	0710-	●	●
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0710-	●	●
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-	●	●
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-	●	●
331	RELAY; A/C 6WF1 TC-C(1B8) (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●
331	RELAY; A/C (A) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0710-	●	●
331	RELAY; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0710-	●
331	RELAY; A/C (A) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0710-		●
559	RELAY; MAG VLV MJX M/T<Y9N> SMOOTHER-G(C1W) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●
559	RELAY; MAG VLV (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-		●
559	RELAY; MAG VLV MJX M/T<Y9N> SMOOTHER-G(C1W) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-	●
559	RELAY; MAG VLV (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-		●
615	RELAY; TRAILER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-	●	●

97 95 64 65 96 66 64 65 65 282 39 97 96 96 280 88 604 88 97 282 97 39 96 280 284 210 96 604 604 604 602 280 88 210 285 604 88 450 88 88 275 40 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	BOLT; BRKT,MAG VLV 6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28650-820-0	04	1	0710-	●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	04	1	0710-		●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
39	BOLT; BRKT,MAG VLV 6WF1 TC-C(1B8) (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
40	BRACKET; MAG VLV CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-53457-117-0	01	1	0710-	●
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0710-	●
40	BRACKET; MAG VLV (B)	1-53458-380-0	01	1	0710-		●
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53457-180-0	01	1	0710-	●
40	BRACKET; MAG VLV (A)	1-53457-180-0	01	1	0710-		●
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (D)	1-47471-170-0	01	1	0710-	●
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (E)	8-97609-263-0	01	1	0710-	●
40	BRACKET; MAG VLV (C)	1-82569-423-0	01	1	0710-		●
64	SOCKET; TRAILER (B) 7P	1-82523-014-0	01	1	0710-	●	●
64	SOCKET; TRAILER (A) L=940	1-82698-297-0	01	1	0710-1008	●	●
64	SOCKET; TRAILER (A) L=940	8-98172-009-0	01	1	1009-	●	●
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28050-616-0	02	1	0710-	●
65	BOLT; SOCKET FIX (A) M6X16 FLANGE	0-28050-616-0	02	1	0710-		●
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	04	1	0710-	●	●
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0710-		●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	0710-	●
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0710-		●
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-		●
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (L) DIN8 & M12 STRAIGHT	1-09660-873-0	02	1	0710-	●
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-		●
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (J) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0710-	●
88	CONNECTOR; MAG VLV (J) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0710-		●
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-		●
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (K) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (K) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-		●
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (I) PT3/8 3WAY	1-09661-300-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (I) PT3/8 3WAY	1-09661-300-0	01	1	0710-		●
88	CONNECTOR; MAG VLV 6WG1 TC-C(72L) (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0710-	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0710-		●
88	CONNECTOR; MAG VLV (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0710-	●	●
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0710-	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-	●
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-		●
88	CONNECTOR; MAG VLV (H)	1-09661-065-0	02	1	0710-		●
95	BRACKET; SOCKET,TRAILER (B)	1-82699-387-0	01	1	0710-	●
95	BRACKET; SOCKET,TRAILER (C)	1-82699-979-0	01	1	0710-1008	●
95	BRACKET; SOCKET,TRAILER (C)	8-97985-137-0	01	1	1009-	●
95	BRACKET; SOCKET,TRAILER (A)	1-82699-429-0	01	1	0710-1008		●
95	BRACKET; SOCKET,TRAILER (A)	8-98173-095-0	01	1	1009-		●
96	BOLT; BRKT FIX (C) M8X25 FLANGE	0-28650-825-0	04	1	0710-	●
96	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	05	1	0710-	●	●
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28651-025-0	01	1	0710-	●	●
96	BOLT; BRKT FIX (C) M8X25 FLANGE	0-28650-825-0	02	1	0710-		●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	04	1	0710-	●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	05	1	0710-	●	●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0710-		●
210	WASHER; PL,BRKT SMOOTHER-G(C1W)	1-82569-266-0	04	1	0710-	●
210	WASHER; PL,BRKT	1-82569-266-0	04	1	0710-		●
210	WASHER; PL,BRKT 6WG1 TC-C(72L)	1-82569-266-0	06	1	0710-	●
210	WASHER; PL,BRKT	1-82569-266-0	06	1	0710-		●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0710-	●	●
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0710-	●	●
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X20 FLANGE	0-28651-020-0	02	1	0710-1208	●
272	BOLT; MAG VLV M10X20 FLANGE	0-28651-020-0	02	1	0710-1208		●
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X25 FLANGE	0-28651-025-0	02	1	1209-	●
272	BOLT; MAG VLV M10X25 FLANGE	0-28651-025-0	02	1	1209-		●
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0710-	●
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	0710-		●
275	BOLT; BRKT 6WG1 TC-C(72L) (B) M8X25 FLANGE	0-28650-825-0	01	1	0710-	●
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0710-		●
280	CONNECTOR; IN,MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0710-	●	●
280	CONNECTOR; IN,MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-	●	●
280	CONNECTOR; IN,MAG VLV 6WG1 TC-C(72L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-	●	●
282	BRACKET; MAG VLV 6WF1 TC-C(1B8) (D)	1-82569-277-2	01	1	0710-	●
282	BRACKET; MAG VLV 6WG1 TC-C(72L) (E)	1-82569-298-0	01	1	0710-	●
282	BRACKET; MAG VLV (E)	1-82569-298-0	01	1	0710-		●
282	BRACKET; MAG VLV (C)	1-82569-290-0	01	1	0710-	●	●
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82569-358-0	01	1	0710-	●	●
282	BRACKET; MAG VLV (B)	1-82569-358-0	01	1	0710-		●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A)	1-47471-175-0	01	1	0710-	●	●
284	BOLT; MAG VLV SMOOTHER-G(C1W) (B) M6X50 FLANGE	0-28050-650-0	04	1	0710-	●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	04	1	0710-		●
284	BOLT; MAG VLV SMOOTHER-G(C1W) (C) M8X14 FLANGE	0-28080-814-0	02	1	0710-	●
284	BOLT; MAG VLV (C) M8X14 FLANGE	0-28080-814-0	02	1	0710-		●
284	BOLT; MAG VLV SMOOTHER-G(C1W) (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-	●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-		●
284	BOLT; MAG VLV 6WG1 TC-C(72L) (B) M6X50 FLANGE	0-28050-650-0	03	1	0710-	●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0710-		●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-	●	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-	●	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-		●
285	NUT; MAG VLV SMOOTHER-G(C1W) (B) M5	0-91110-505-0	03	1	0710-	●
285	NUT; MAG VLV (B) M5	0-91110-505-0	03	1	0710-		●
285	NUT; MAG VLV SMOOTHER-G(C1W) (A) M6 FLANGE	0-91180-106-0	04	1	0710-	●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	04	1	0710-		●
285	NUT; MAG VLV 6WG1 TC-C(72L) (A) M6 FLANGE	0-91180-106-0	03	1	0710-	●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	03	1	0710-		●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0710-	●
450	VALVE; MAG	1-53458-378-2	01	1	0710-		●
602	GASKET; MAG VLV SMOOTHER-G(C1W) ID=16.8	9-09565-117-0	02	1	0710-	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	0710-		●
602	GASKET; MAG VLV 6WG1 TC-C(72L) ID=16.8	9-09565-117-0	03	1	0710-	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	03	1	0710-		●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0710-	●	●
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0710-	●	●
604	VALVE; MAG,ENG CONT 6WF1 TC-C(1B8)	1-82563-871-2	01	1	0710-	●
604	VALVE; MAG,ENG CONT 6WG1 TC-C(72L)	1-82563-871-2	04	1	0710-	●
604	VALVE; MAG,ENG CONT	1-82563-871-2	04	1	0710-		●
604	VALVE; MAG,ENG CONT	1-82563-871-2	02	1	0710-	●	●

88 88 89 424 88 721 667 88 88 88 88 88 88 284 284 285 88 285 528 284 387 507 507 132 34 90 89 40 88 510 88 507 285 298 602 210 89 89 210 284 132 132 507 507

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT SMOOTHER-G(C1W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-		●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0710-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0710-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) R1/4 & RC1/4	1-09664-211-0	02	1	0710-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0710-	●	●
40	BRACKET; MAG VLV CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-53457-117-0	01	1	0710-	●
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0710-	●
40	BRACKET; MAG VLV (B)	1-53458-380-0	01	1	0710-		●
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53457-180-0	01	1	0710-	●
40	BRACKET; MAG VLV (A)	1-53457-180-0	01	1	0710-		●
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (D)	1-47471-170-0	01	1	0710-	●
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (E)	8-97609-263-0	01	1	0710-	●
40	BRACKET; MAG VLV (C)	1-82569-423-0	01	1	0710-		●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0710-		●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	0710-	●
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0710-		●
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-		●
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (L) DIN8 & M12 STRAIGHT	1-09660-873-0	02	1	0710-	●
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-		●
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (J) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0710-	●
88	CONNECTOR; MAG VLV (J) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0710-		●
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-		●
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (K) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (K) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-		●
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (I) PT3/8 3WAY	1-09661-300-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (I) PT3/8 3WAY	1-09661-300-0	01	1	0710-		●
88	CONNECTOR; MAG VLV 6WG1 TC-C(72L) (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0710-	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0710-		●
88	CONNECTOR; MAG VLV (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0710-	●	●
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0710-	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-	●
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-		●
88	CONNECTOR; MAG VLV (H)	1-09661-065-0	02	1	0710-		●
89	VALVE; MAG,DIFF LOCK (F)	8-97641-594-0	01	1	1206-	●	●
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (C)	1-82564-095-1	02	1	0710-	●
89	VALVE; MAG,DIFF LOCK (C)	1-82564-095-1	02	1	0710-		●
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (B)	1-82564-354-1	01	1	0710-	●
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (D)	1-82564-407-1	01	1	0710-	●
89	VALVE; MAG,DIFF LOCK (D)	1-82564-407-1	01	1	0710-		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0710-1205	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0710-1205	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	1206-	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E)	1-82563-872-1	01	1	0710-	●	●
89	VALVE; MAG,DIFF LOCK (B)	1-82564-094-2	01	1	0710-		●
90	BOLT; MAG VLV SMOOTHER-G(C1W) M8X30 FLANGE	0-28650-830-0	04	1	0710-	●
90	BOLT; MAG VLV M8X30 FLANGE	0-28650-830-0	02	1	0710-		●
132	CONNECTOR; OUTLET,MAG VLV SMOOTHER-G(C1W) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0710-	●
132	CONNECTOR; OUTLET,MAG VLV DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0710-		●
210	WASHER; PL,BRKT SMOOTHER-G(C1W)	1-82569-266-0	04	1	0710-	●
210	WASHER; PL,BRKT	1-82569-266-0	04	1	0710-		●
210	WASHER; PL,BRKT 6WG1 TC-C(72L)	1-82569-266-0	06	1	0710-	●
210	WASHER; PL,BRKT	1-82569-266-0	06	1	0710-		●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0710-	●	●
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0710-	●	●
284	BOLT; MAG VLV SMOOTHER-G(C1W) (B) M6X50 FLANGE	0-28050-650-0	04	1	0710-	●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	04	1	0710-		●
284	BOLT; MAG VLV SMOOTHER-G(C1W) (C) M8X14 FLANGE	0-28080-814-0	02	1	0710-	●
284	BOLT; MAG VLV (C) M8X14 FLANGE	0-28080-814-0	02	1	0710-		●
284	BOLT; MAG VLV SMOOTHER-G(C1W) (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-	●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-		●
284	BOLT; MAG VLV 6WG1 TC-C(72L) (B) M6X50 FLANGE	0-28050-650-0	03	1	0710-	●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0710-		●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-	●	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-	●	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-		●
285	NUT; MAG VLV SMOOTHER-G(C1W) (B) M5	0-91110-505-0	03	1	0710-	●
285	NUT; MAG VLV (B) M5	0-91110-505-0	03	1	0710-		●
285	NUT; MAG VLV SMOOTHER-G(C1W) (A) M6 FLANGE	0-91180-106-0	04	1	0710-	●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	04	1	0710-		●
285	NUT; MAG VLV 6WG1 TC-C(72L) (A) M6 FLANGE	0-91180-106-0	03	1	0710-	●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	03	1	0710-		●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
298	NUT; MAG VLV SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	06	1	0710-	●
298	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	0710-		●
387	CLIP; BAND L=350	1-09707-183-0	01	1	0710-		●
424	ADAPTER SMOOTHER-G(C1W) (A) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0710-	●
424	ADAPTER SMOOTHER-G(C1W) (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0710-	●
424	ADAPTER SMOOTHER-G(C1W) (C) PT3/8	1-09664-210-0	02	1	0710-	●
424	ADAPTER (C) PT3/8	1-09664-210-0	01	1	0710-		●
507	TUBE; NYLON FULL FLOATING CAB(W16) (B) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0710-	●
507	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0710-		●
507	TUBE; NYLON SMOOTHER-G(C1W) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0710-	●
507	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	05	1	0710-		●
510	VALVE; CHECK SMOOTHER-G(C1W)	1-48410-531-1	01	1	0710-	●
510	VALVE; CHECK	1-48410-531-1	01	1	0710-		●
528	VALVE; PRESSURE REDUCING SMOOTHER-G(C1W)	1-48410-744-0	01	1	0710-	●
528	VALVE; PRESSURE REDUCING	1-48410-744-0	01	1	0710-		●
602	GASKET; MAG VLV SMOOTHER-G(C1W) ID=16.8	9-09565-117-0	02	1	0710-	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	0710-		●
602	GASKET; MAG VLV 6WG1 TC-C(72L) ID=16.8	9-09565-117-0	03	1	0710-	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	03	1	0710-		●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0710-	●	●
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0710-	●	●
667	LUBRICATION SMOOTHER-G(C1W)	8-98063-001-0	01	1	0710-	●
667	LUBRICATION	8-98063-001-0	01	1	0710-		●
721	ELEMENT; LUBRICATION SMOOTHER-G(C1W)	1-33779-028-0	01	1	0710-	●
721	ELEMENT; LUBRICATION	1-33779-028-0	01	1	0710-		●

424 88 88 34 285 424 88 528 89 284 89 210 261 210 285 602 132 132 89 88 507 90 40 284 284 298 507 88 88 510 88 88 721 667 88 298 284 424 424 88 89 88 88 40 285

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT SMOOTHER-G(C1W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-		●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0710-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0710-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) R1/4 & RC1/4	1-09664-211-0	02	1	0710-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0710-	●	●
40	BRACKET; MAG VLV CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-53457-117-0	01	1	0710-	●
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0710-	●
40	BRACKET; MAG VLV (B)	1-53458-380-0	01	1	0710-		●
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53457-180-0	01	1	0710-	●
40	BRACKET; MAG VLV (A)	1-53457-180-0	01	1	0710-		●
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (D)	1-47471-170-0	01	1	0710-	●
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (E)	8-97609-263-0	01	1	0710-	●
40	BRACKET; MAG VLV (C)	1-82569-423-0	01	1	0710-		●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0710-		●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	0710-	●
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0710-		●
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-		●
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (L) DIN8 & M12 STRAIGHT	1-09660-873-0	02	1	0710-	●
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-		●
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (J) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0710-	●
88	CONNECTOR; MAG VLV (J) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0710-		●
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-		●
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (K) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (K) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-		●
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (I) PT3/8 3WAY	1-09661-300-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (I) PT3/8 3WAY	1-09661-300-0	01	1	0710-		●
88	CONNECTOR; MAG VLV 6WG1 TC-C(72L) (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0710-	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0710-		●
88	CONNECTOR; MAG VLV (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0710-	●	●
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0710-	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-	●
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-		●
88	CONNECTOR; MAG VLV (H)	1-09661-065-0	02	1	0710-		●
89	VALVE; MAG,DIFF LOCK (F)	8-97641-594-0	01	1	1206-	●	●
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (C)	1-82564-095-1	02	1	0710-	●
89	VALVE; MAG,DIFF LOCK (C)	1-82564-095-1	02	1	0710-		●
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (B)	1-82564-354-1	01	1	0710-	●
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (D)	1-82564-407-1	01	1	0710-	●
89	VALVE; MAG,DIFF LOCK (D)	1-82564-407-1	01	1	0710-		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0710-1205	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0710-1205	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	1206-	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E)	1-82563-872-1	01	1	0710-	●	●
89	VALVE; MAG,DIFF LOCK (B)	1-82564-094-2	01	1	0710-		●
90	BOLT; MAG VLV SMOOTHER-G(C1W) M8X30 FLANGE	0-28650-830-0	04	1	0710-	●
90	BOLT; MAG VLV M8X30 FLANGE	0-28650-830-0	02	1	0710-		●
132	CONNECTOR; OUTLET,MAG VLV SMOOTHER-G(C1W) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0710-	●
132	CONNECTOR; OUTLET,MAG VLV DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0710-		●
210	WASHER; PL,BRKT SMOOTHER-G(C1W)	1-82569-266-0	04	1	0710-	●
210	WASHER; PL,BRKT	1-82569-266-0	04	1	0710-		●
210	WASHER; PL,BRKT 6WG1 TC-C(72L)	1-82569-266-0	06	1	0710-	●
210	WASHER; PL,BRKT	1-82569-266-0	06	1	0710-		●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0710-	●	●
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0710-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0710-	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	0710-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0710-	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4	9-99204-513-0	01	1	0710-	●	●
261	PLUG; MAG VLV SMOOTHER-G(C1W) PT1/4	9-99204-513-0	01	1	0710-	●
284	BOLT; MAG VLV SMOOTHER-G(C1W) (B) M6X50 FLANGE	0-28050-650-0	04	1	0710-	●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	04	1	0710-		●
284	BOLT; MAG VLV SMOOTHER-G(C1W) (C) M8X14 FLANGE	0-28080-814-0	02	1	0710-	●
284	BOLT; MAG VLV (C) M8X14 FLANGE	0-28080-814-0	02	1	0710-		●
284	BOLT; MAG VLV SMOOTHER-G(C1W) (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-	●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-		●
284	BOLT; MAG VLV 6WG1 TC-C(72L) (B) M6X50 FLANGE	0-28050-650-0	03	1	0710-	●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0710-		●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-	●	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-	●	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-		●
285	NUT; MAG VLV SMOOTHER-G(C1W) (B) M5	0-91110-505-0	03	1	0710-	●
285	NUT; MAG VLV (B) M5	0-91110-505-0	03	1	0710-		●
285	NUT; MAG VLV SMOOTHER-G(C1W) (A) M6 FLANGE	0-91180-106-0	04	1	0710-	●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	04	1	0710-		●
285	NUT; MAG VLV 6WG1 TC-C(72L) (A) M6 FLANGE	0-91180-106-0	03	1	0710-	●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	03	1	0710-		●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
298	NUT; MAG VLV SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	06	1	0710-	●
298	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	0710-		●
424	ADAPTER SMOOTHER-G(C1W) (A) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0710-	●
424	ADAPTER SMOOTHER-G(C1W) (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0710-	●
424	ADAPTER SMOOTHER-G(C1W) (C) PT3/8	1-09664-210-0	02	1	0710-	●
424	ADAPTER (C) PT3/8	1-09664-210-0	01	1	0710-		●
507	TUBE; NYLON FULL FLOATING CAB(W16) (B) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0710-	●
507	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0710-		●
507	TUBE; NYLON SMOOTHER-G(C1W) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0710-	●
507	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	05	1	0710-		●
510	VALVE; CHECK SMOOTHER-G(C1W)	1-48410-531-1	01	1	0710-	●
510	VALVE; CHECK	1-48410-531-1	01	1	0710-		●
528	VALVE; PRESSURE REDUCING SMOOTHER-G(C1W)	1-48410-744-0	01	1	0710-	●
528	VALVE; PRESSURE REDUCING	1-48410-744-0	01	1	0710-		●
602	GASKET; MAG VLV SMOOTHER-G(C1W) ID=16.8	9-09565-117-0	02	1	0710-	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	0710-		●
602	GASKET; MAG VLV 6WG1 TC-C(72L) ID=16.8	9-09565-117-0	03	1	0710-	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	03	1	0710-		●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0710-	●	●
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0710-	●	●
667	LUBRICATION SMOOTHER-G(C1W)	8-98063-001-0	01	1	0710-	●
667	LUBRICATION	8-98063-001-0	01	1	0710-		●
721	ELEMENT; LUBRICATION SMOOTHER-G(C1W)	1-33779-028-0	01	1	0710-	●
721	ELEMENT; LUBRICATION	1-33779-028-0	01	1	0710-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
