5-30 — SPARE TIRE CARRIER AND COVER (#6721) — 10 parça

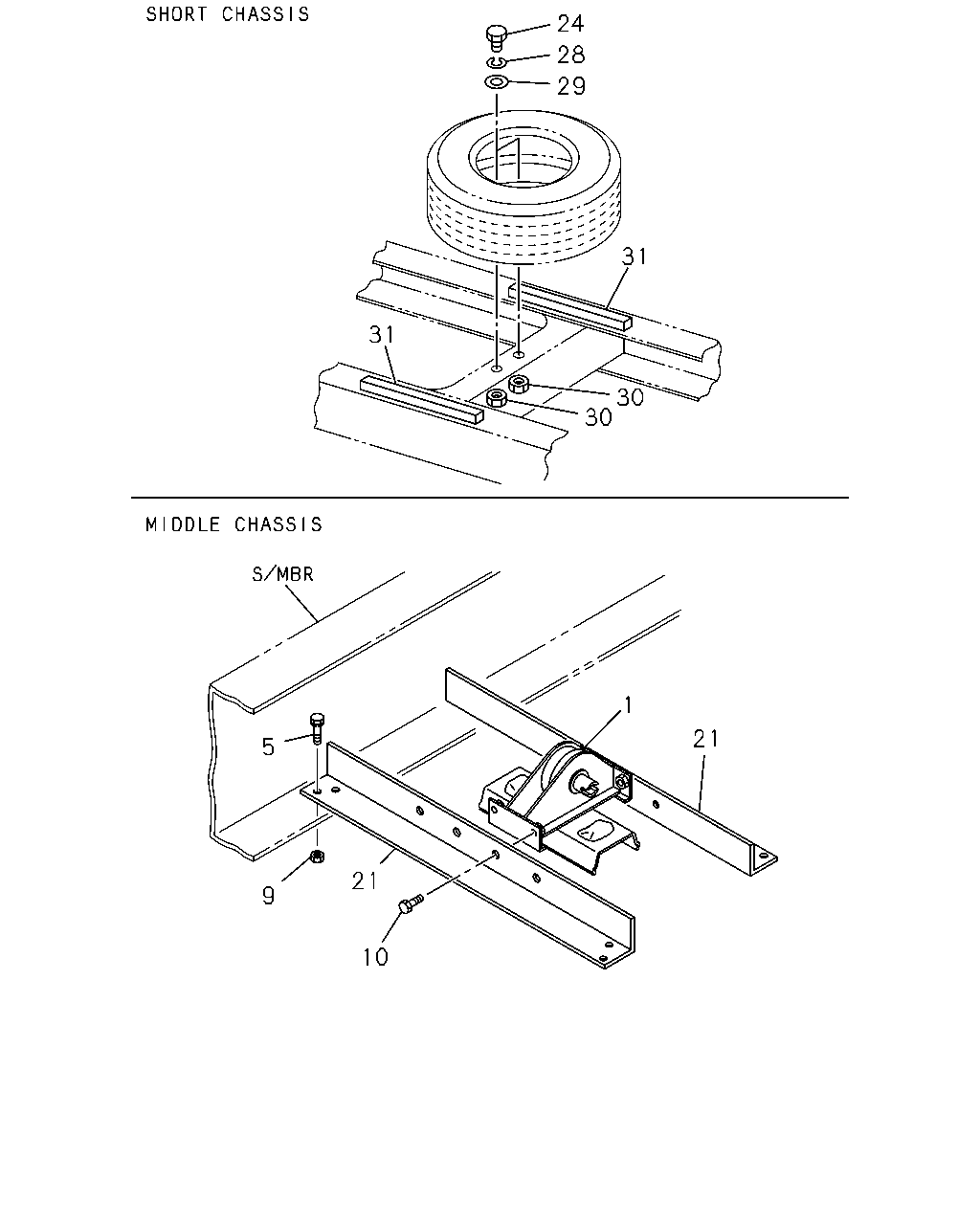

çizim 42008
24 28 29 31 31 30 30 1 21 5 21 9 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10> THA 		1-53630-208-1 01 1 0011- ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE 		0-28081-025-0 08 1 0011- ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10 		9-09110-410-0 08 1 0011- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE 		0-28681-230-0 04 1 0011- ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> THA 		8-97913-545-1 02 1 0011- ●
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> M12X80 		0-20801-280-0 02 1 0011- ●
28 WASHER; LK,SPARE TIRE
SPARE TIRE FIXING<RE3> ID=14.2 		9-09150-614-0 02 1 0011- ●
29 WASHER; PL,BRKT,HANGER
SPARE TIRE FIXING<RE3> ID=15 OD=52 		9-09164-814-0 02 1 0011- ●
30 NUT; SPARE TIRE
SPARE TIRE FIXING<RE3> M12 FLANGE 		0-91150-212-0 02 1 0011- ●
31 SPACER; HANGER BRKT
SPARE TIRE FIXING<RE3> 		1-53637-007-0 02 1 0011- ●
