8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#67208) — 134 parça

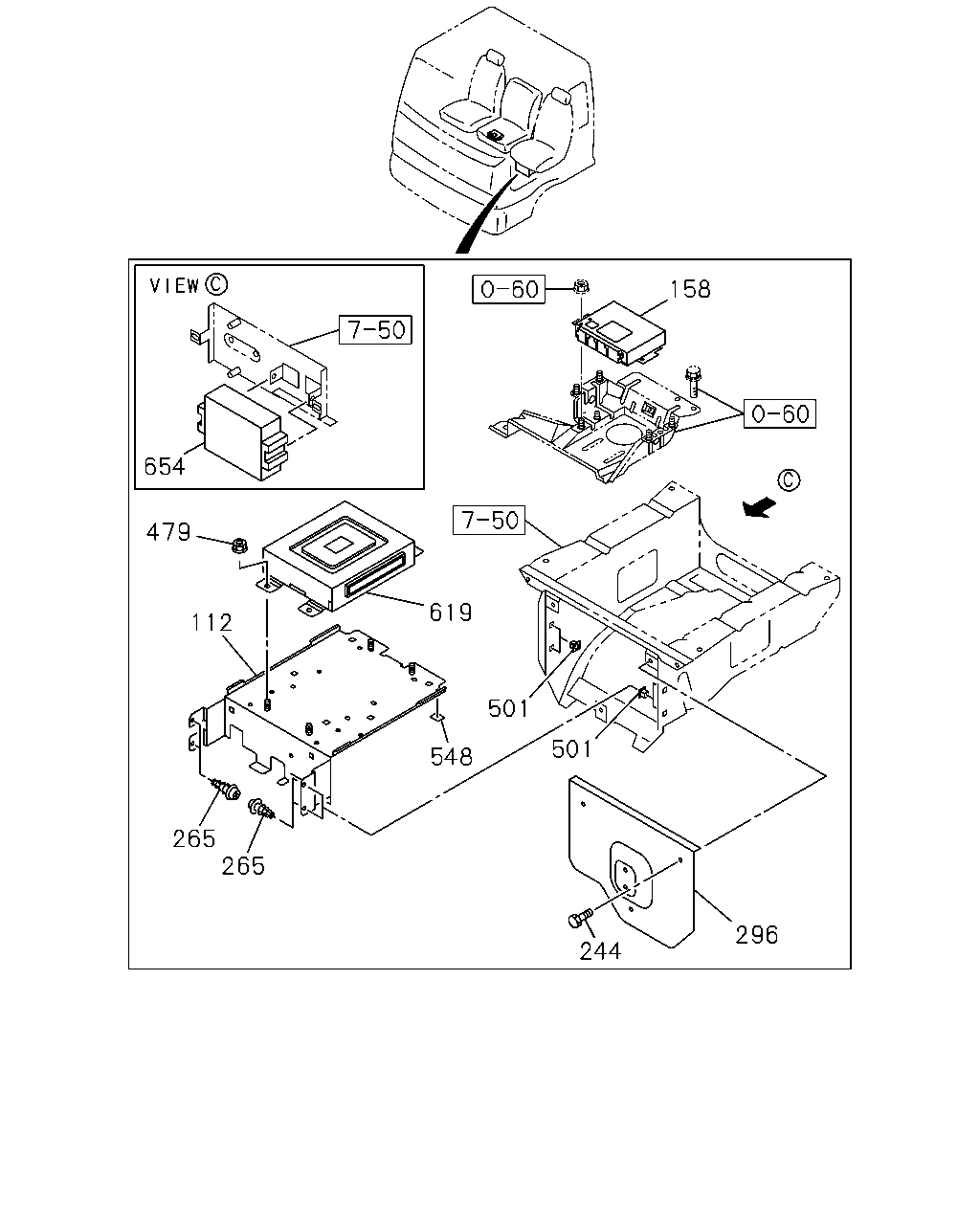

çizim 138065
654 479 112 619 265 265 548 501 501 158 244 296
BalonParca AdiParca NoAdetTipApplied Date A B
112 BRACKET; CONT UNIT
SMOOTHER-G(C1W) 		8-97589-714-2 01 1 0710- ●
112 BRACKET; CONT UNIT 8-97589-714-2 01 1 0710- ●
158 CONTROLLER; ABS
TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X) 		1-80119-261-0 01 1 0712-1201 ● ●
158 CONTROLLER; ABS
TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X) 		8-98170-648-0 01 1 1202- ● ●
158 CONTROLLER; ABS
TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N) 		1-80119-229-2 01 1 0710-1201 ● ●
158 CONTROLLER; ABS
TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N) 		8-98170-647-0 01 1 1202- ● ●
244 BOLT; COVER
M6X16 		0-52000-616-0 03 1 0710- ● ●
265 SCREW; BRKT,CONT UNIT
SMOOTHER-G(C1W) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0710- ●
265 SCREW; BRKT,CONT UNIT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0710- ●
296 COVER; CONT UNIT 8-97388-687-0 01 1 0710- ● ●
479 NUT; CONTROLLER
SMOOTHER-G(C1W) M6 FLANGE 		0-91180-106-0 04 1 0710- ●
479 NUT; CONTROLLER
M6 FLANGE 		0-91180-106-0 04 1 0710- ●
501 GROMMET; SCREW
SMOOTHER-G(C1W) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0710- ●
501 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0710- ●
548 SEAL; NOISE
SMOOTHER-G(C1W) 30X30 		1-74998-128-1 03 1 0710-0908 ●
548 SEAL; NOISE
30X30 		1-74998-128-1 03 1 0710-0908 ●
548 SEAL; NOISE
SMOOTHER-G(C1W) 30X30 		8-98142-344-0 03 1 0909-1305 ●
548 SEAL; NOISE
30X30 		8-98142-344-0 03 1 0909-1305 ●
548 SEAL; NOISE
SMOOTHER-G(C1W) 30X30 		8-98142-344-0 01 1 1306- ●
548 SEAL; NOISE
30X30 		8-98142-344-0 01 1 1306- ●
619 CONTROL UNIT; T/M
6WG1 TC-C(72L) MJX16P M/T(Y3Z) 		8-98078-916-0 01 1 0710-0804 ●
619 CONTROL UNIT; T/M 8-98078-916-0 01 1 0710-0804 ●
619 CONTROL UNIT; T/M
6WG1 TC-C(72L) MJX16P M/T(Y3Z) 		8-98109-797-0 01 1 0805- ●
619 CONTROL UNIT; T/M 8-98109-797-0 01 1 0805- ●
654 CONTROL UNIT; EXH & RETARDER
6WG1 TC-C(72L) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-80150-117-0 01 1 0710- ● ●
654 CONTROL UNIT; EXH & RETARDER
6WG1 TC-C(72L) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-80150-118-0 01 1 0710- ● ●

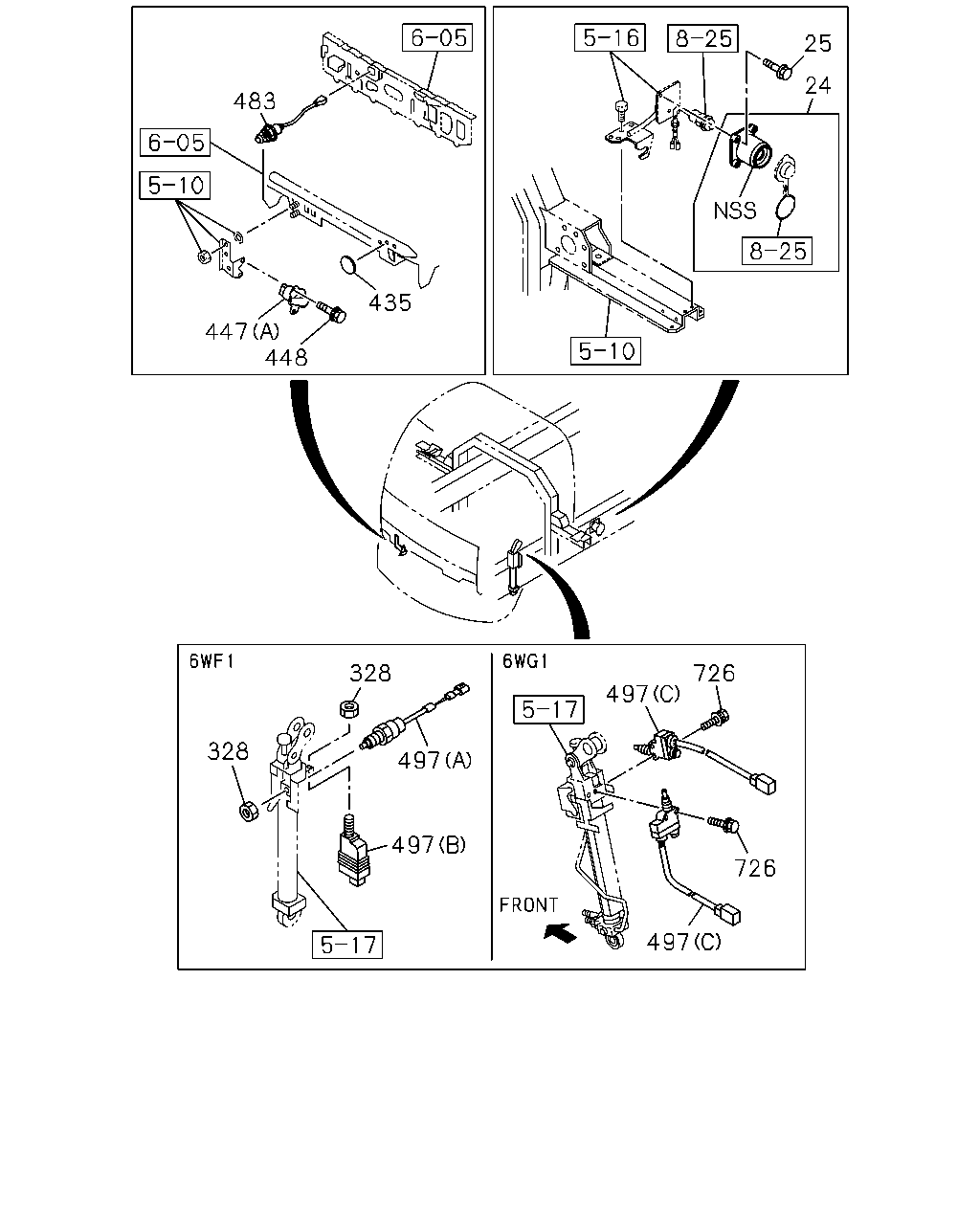

çizim 138132
483 435 447 448 25 24 328 328 497 497 497 726 726 497
BalonParca AdiParca NoAdetTipApplied Date A B
24 BOX; SW,CAB TILT
6WF1 TC-C(1B8) 		1-82389-007-1 01 1 0710- ●
25 BOLT; SW BOX
6WF1 TC-C(1B8) M6X16 FLANGE 		0-28050-616-0 02 1 0710- ●
328 NUT
6WF1 TC-C(1B8) M16 		0-91111-516-0 02 1 0710- ●
435 GROMMET
OD=25 BLACK 		1-76798-019-0 03 1 0710- ● ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A) 		1-80250-010-1 01 1 0710- ●
447 SENSOR; HEIGHT
(A) 		1-80250-010-1 01 1 0710- ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) 		1-80250-011-1 01 1 0710- ●
447 SENSOR; HEIGHT
(B) 		1-80250-011-1 01 1 0710- ●
448 BOLT; SENSOR
FULL FLOATING CAB(W16) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710- ●
448 BOLT; SENSOR
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710- ●
483 SWITCH 1-82440-118-0 01 1 0710- ● ●
497 SWITCH; CAB TILT
6WF1 TC-C(1B8) (A) STAMP NC 		1-82380-125-1 01 1 0710- ●
497 SWITCH; CAB TILT
6WF1 TC-C(1B8) (B) 		1-82380-128-1 01 1 0710- ●
497 SWITCH; CAB TILT
6WG1 TC-C(72L) (C) STAMP NO 		1-82380-172-1 02 1 0710- ● ●
726 BOLT; SW,CAB TILT
6WG1 TC-C(72L) M6X25 FLANGE 		0-28050-625-0 04 1 0710- ● ●

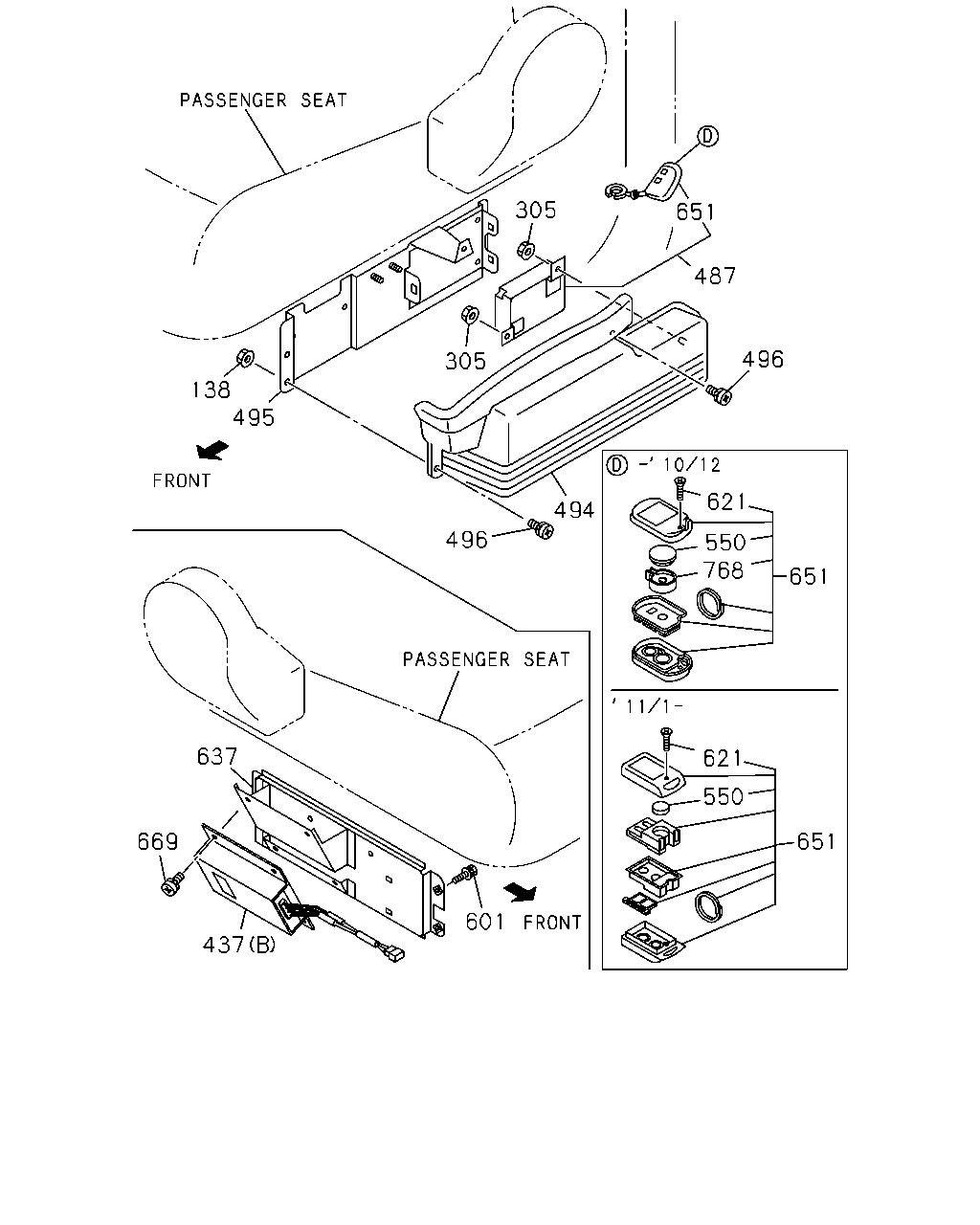

çizim 138185
305 651 487 496 305 138 495 621 494 496 550 768 651 637 621 550 651 669 601 437
BalonParca AdiParca NoAdetTipApplied Date A B
138 NUT; BRKT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91180-106-0 02 1 0710- ●
138 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 0710- ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0710- ● ●
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 0710-0809 ●
305 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91180-106-0 02 1 0710-0809 ●
305 NUT; CONT UNIT
6WG1 TC-C(72L) EXC. FULLER M/T<X9B> M6 FLANGE 		0-91180-106-0 02 1 0710-0809 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0710-0809 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0710-0809 ●
305 NUT; CONT UNIT
6WG1 TC-C(72L) M6 FLANGE 		0-91180-106-0 02 1 0710-0809 ●
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 0810-0810 ●
305 NUT; CONT UNIT
6WG1 TC-C(72L) EXC. FULLER M/T<X9B> M6 FLANGE 		0-91180-106-0 02 1 0810-0810 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0810-0810 ●
305 NUT; CONT UNIT
6WG1 TC-C(72L) M6 FLANGE 		0-91180-106-0 02 1 0810-0810 ●
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 0811- ●
305 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91180-106-0 02 1 0811- ●
305 NUT; CONT UNIT
6WG1 TC-C(72L) EXC. FULLER M/T<X9B> M6 FLANGE 		0-91180-106-0 02 1 0811- ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0811- ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0811- ●
305 NUT; CONT UNIT
6WG1 TC-C(72L) M6 FLANGE 		0-91180-106-0 02 1 0811- ●
437 CONVERTER; DC
(A) KOITO 		8-97359-129-0 01 1 0710- ● ●
437 CONVERTER; DC
(B) METRO DENSO 		8-98046-423-0 01 1 0710- ● ●
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		8-98050-457-1 01 1 0710-1012 ●
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE 8-98050-457-1 01 1 0710-1012 ●
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		8-98181-808-0 01 1 1101-1205 ●
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE 8-98181-808-0 01 1 1101-1205 ●
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		8-98218-230-0 01 1 1206- ●
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE 8-98218-230-0 01 1 1206- ●
494 COVER; ELEC BOX
REMOTE CONT DOOR LOCK<SLG> 		8-97589-725-0 01 1 0710- ●
494 COVER; ELEC BOX 8-97589-725-0 01 1 0710- ●
495 BRACKET; ELEC BOX
REMOTE CONT DOOR LOCK<SLG> 		8-97589-728-0 01 1 0710- ●
495 BRACKET; ELEC BOX 8-97589-728-0 01 1 0710- ●
496 SCREW; COVER
REMOTE CONT DOOR LOCK<SLG> M6X12 W/LK&PL WASHER 		0-36230-612-0 03 1 0710- ●
496 SCREW; COVER
M6X12 W/LK&PL WASHER 		0-36230-612-0 03 1 0710- ●
550 BATTERY; TRANSMITTER
REMOTE CONT DOOR LOCK<SLG> 		8-98078-061-0 01 1 0710- ●
550 BATTERY; TRANSMITTER 8-98078-061-0 01 1 0710- ●
601 BOLT; DC-DC CONVERTER
M6X12 W/LK&PL WASHER 		0-36230-612-0 02 1 0710- ● ●
621 SCREW
REMOTE CONT DOOR LOCK<SLG> M2X5 		8-98078-067-0 01 1 0710-1205 ●
621 SCREW
M2X5 		8-98078-067-0 01 1 0710-1205 ●
621 SCREW
REMOTE CONT DOOR LOCK<SLG> M2X5 		8-98218-239-0 01 1 1206- ●
621 SCREW
M2X5 		8-98218-239-0 01 1 1206- ●
637 BRACKET; DC-DC CONVERTER 1-75557-483-1 01 1 0710- ● ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		8-98048-459-1 01 1 0710-1012 ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE 8-98048-459-1 01 1 0710-1012 ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		8-98180-751-0 01 1 1101-1205 ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE 8-98180-751-0 01 1 1101-1205 ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		8-98218-236-0 01 1 1206- ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE 8-98218-236-0 01 1 1206- ●
669 SCREW; DC-DC CONVERTER
M6X12 W/PL WASHER 		1-09981-380-0 04 1 0710- ● ●
768 HOLDER; BATTERY
REMOTE CONT DOOR LOCK<SLG> 		8-98078-063-0 01 1 0710-1012 ●
768 HOLDER; BATTERY 8-98078-063-0 01 1 0710-1012 ●
çizim 138536
380 509 305 305 657
BalonParca AdiParca NoAdetTipApplied Date A B
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0710- ● ●
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 0710-0809 ●
305 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91180-106-0 02 1 0710-0809 ●
305 NUT; CONT UNIT
6WG1 TC-C(72L) EXC. FULLER M/T<X9B> M6 FLANGE 		0-91180-106-0 02 1 0710-0809 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0710-0809 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0710-0809 ●
305 NUT; CONT UNIT
6WG1 TC-C(72L) M6 FLANGE 		0-91180-106-0 02 1 0710-0809 ●
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 0810-0810 ●
305 NUT; CONT UNIT
6WG1 TC-C(72L) EXC. FULLER M/T<X9B> M6 FLANGE 		0-91180-106-0 02 1 0810-0810 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0810-0810 ●
305 NUT; CONT UNIT
6WG1 TC-C(72L) M6 FLANGE 		0-91180-106-0 02 1 0810-0810 ●
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 0811- ●
305 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91180-106-0 02 1 0811- ●
305 NUT; CONT UNIT
6WG1 TC-C(72L) EXC. FULLER M/T<X9B> M6 FLANGE 		0-91180-106-0 02 1 0811- ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0811- ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0811- ●
305 NUT; CONT UNIT
6WG1 TC-C(72L) M6 FLANGE 		0-91180-106-0 02 1 0811- ●
380 SEAL
450X350 		1-76770-008-0 01 1 0710- ● ●
509 CONTROL UNIT; CAB SUS
FULL FLOATING CAB(W16) 		1-80150-042-1 01 1 0710- ●
509 CONTROL UNIT; CAB SUS 1-80150-042-1 01 1 0710- ●
657 CONTROL UNIT; MIMAMORI
6WG1 TC-C(72L) EXC. FULLER M/T<X9B> 		1-80190-179-0 01 1 0710- ●
657 CONTROL UNIT; MIMAMORI
6WG1 TC-C(72L) 		1-80190-179-0 01 1 0710- ●

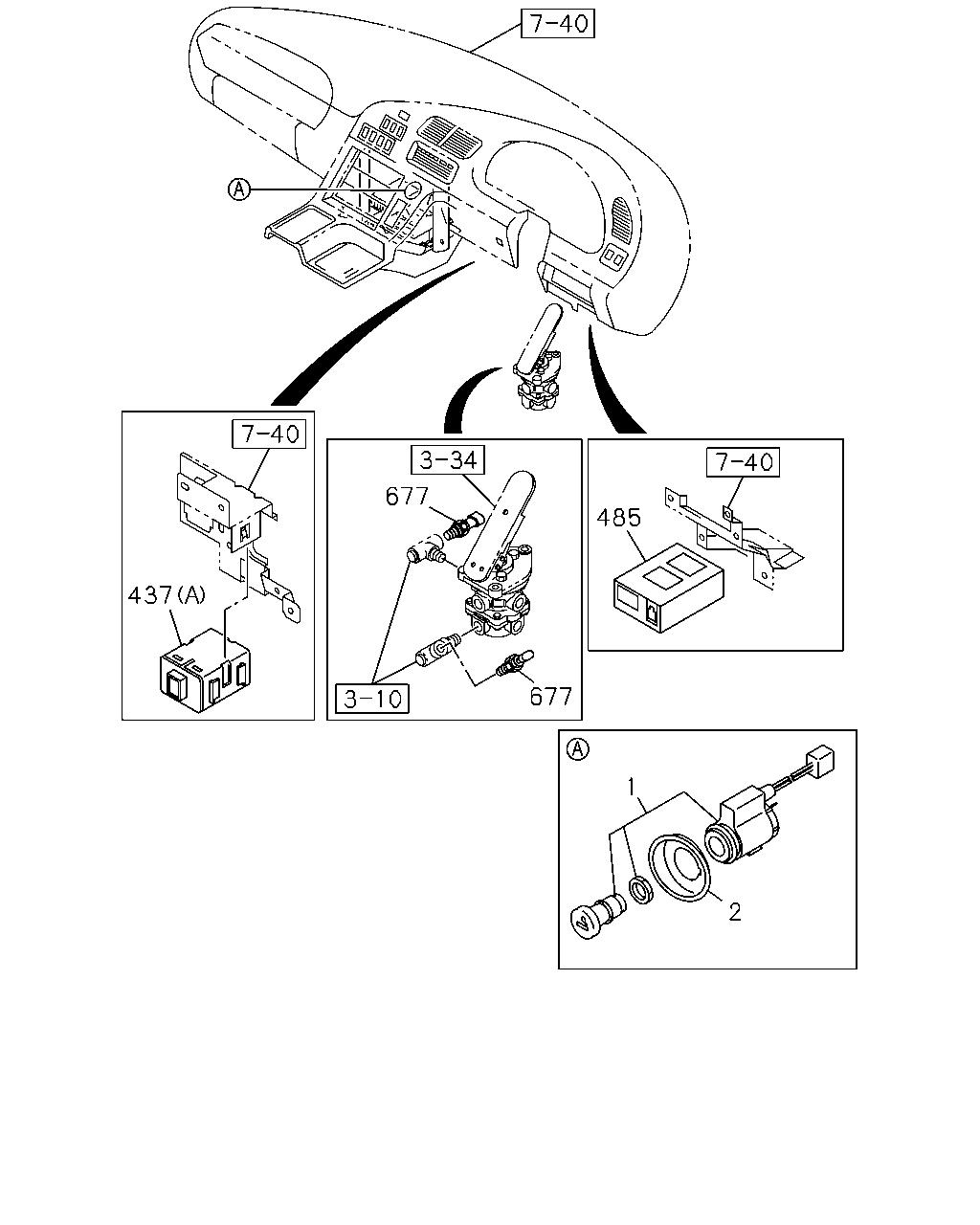

çizim 192807
677 485 437 677 1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0710- ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0710- ● ●
437 CONVERTER; DC
(A) KOITO 		8-97359-129-0 01 1 0710- ● ●
437 CONVERTER; DC
(B) METRO DENSO 		8-98046-423-0 01 1 0710- ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-158-0 01 1 0710-0906 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 0907-1008 ● ●
485 CONTROL UNIT; SPEED SENSOR 8-98140-862-0 01 1 1009-1109 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 1110- ● ●
677 SENSOR; AIR METER
6WG1 TC-C(72L) THREAD R1/4 		1-80220-023-1 02 1 0710- ●
677 SENSOR; AIR METER
THREAD R1/4 		1-80220-023-1 02 1 0710- ●

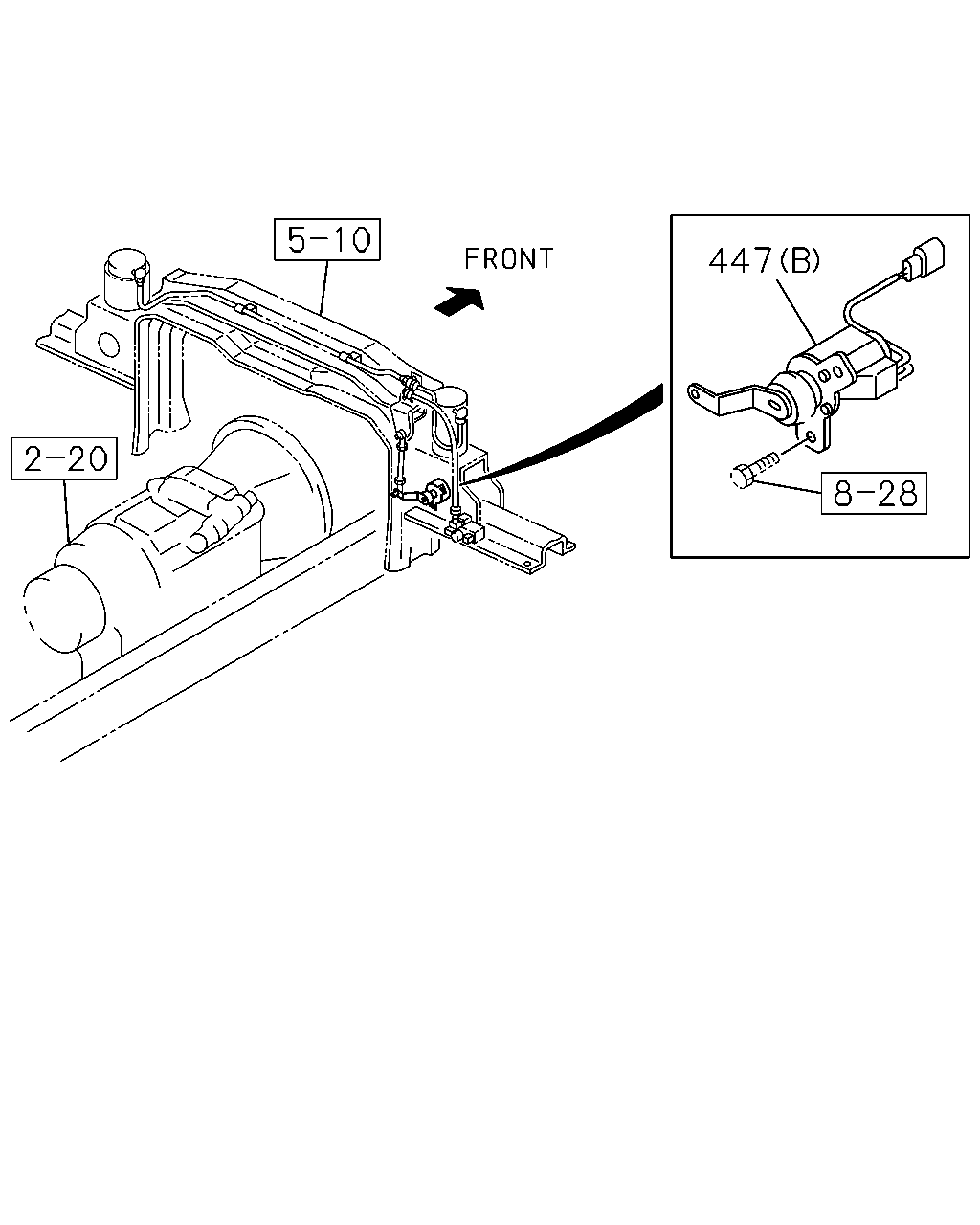

çizim 192808
447
BalonParca AdiParca NoAdetTipApplied Date A B
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A) 		1-80250-010-1 01 1 0710- ●
447 SENSOR; HEIGHT
(A) 		1-80250-010-1 01 1 0710- ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) 		1-80250-011-1 01 1 0710- ●
447 SENSOR; HEIGHT
(B) 		1-80250-011-1 01 1 0710- ●

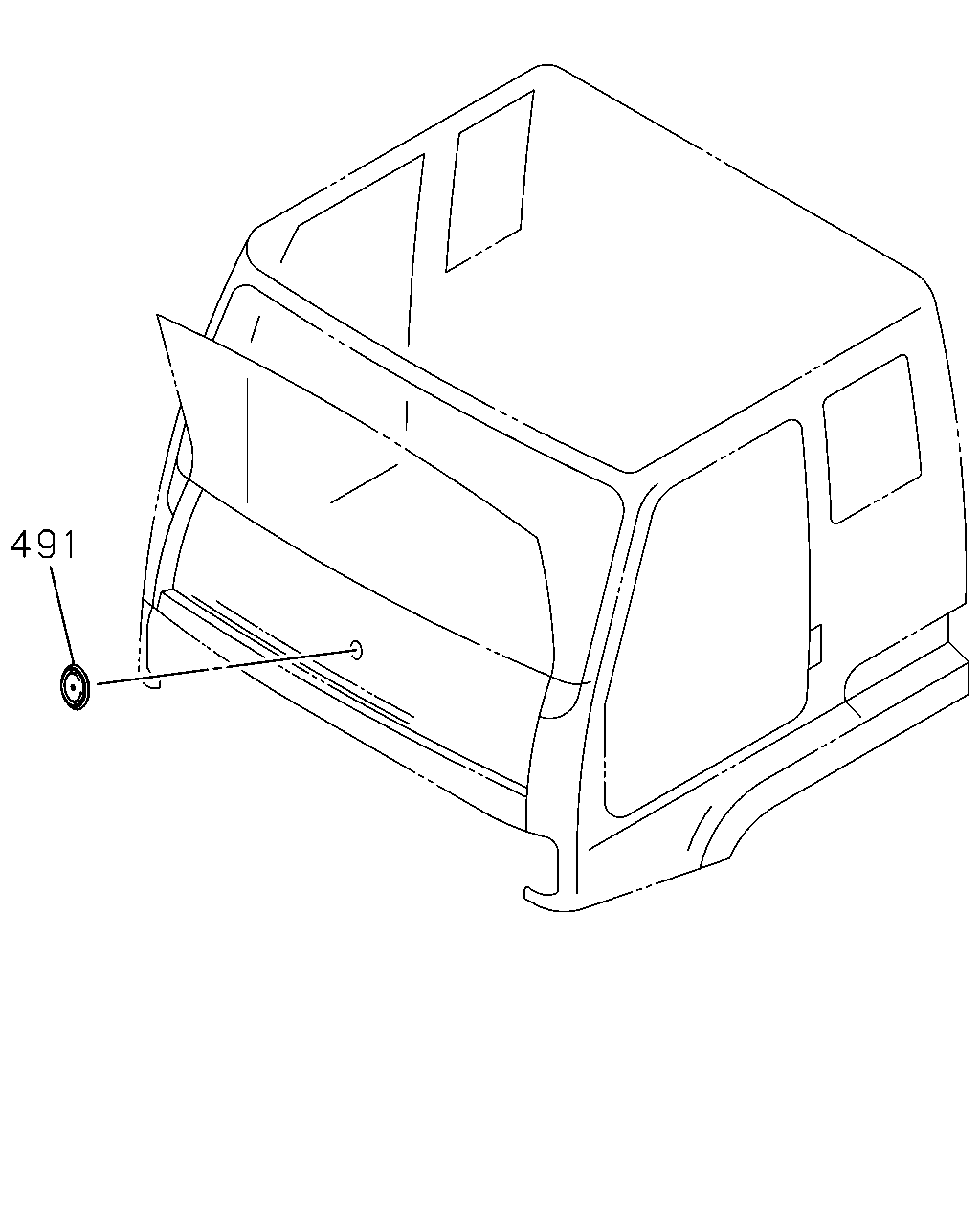

çizim 192810
491
BalonParca AdiParca NoAdetTipApplied Date A B
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0710- ● ●

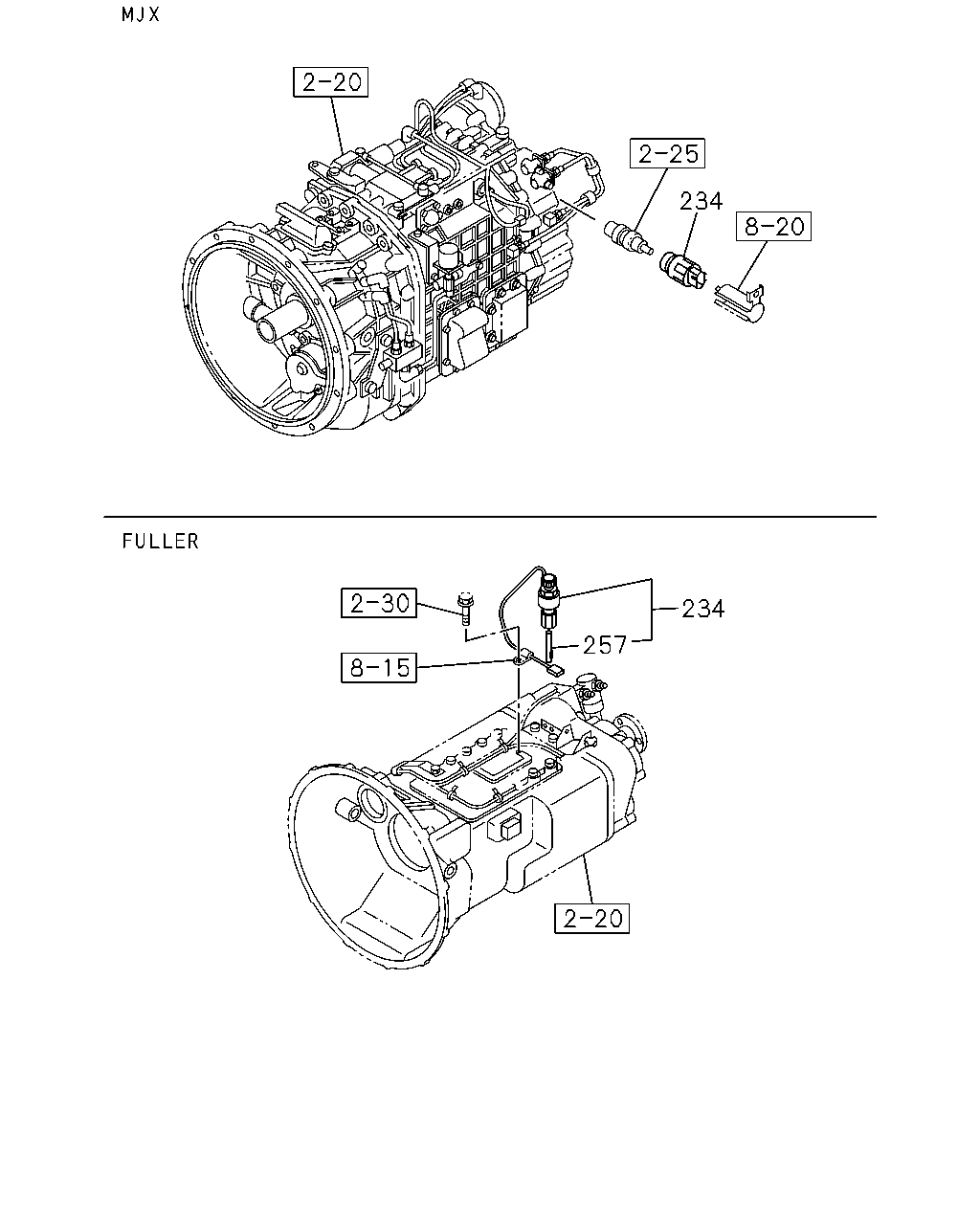

çizim 192880
234 257 234
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
FULLER M/T<X9B> 25 PULSE 		1-83127-414-1 01 1 0710- ●
234 SENSOR; VEHICLE SPD
EXC. FULLER M/T<X9B> 25 PULSE 		1-80240-029-0 01 1 0710-1301 ●
234 SENSOR; VEHICLE SPD
25 PULSE 		1-80240-029-0 01 1 0710-1301 ●
234 SENSOR; VEHICLE SPD
EXC. FULLER M/T<X9B> 25 PULSE 		8-98234-167-0 01 1 1302- ●
234 SENSOR; VEHICLE SPD
25 PULSE 		8-98234-167-0 01 1 1302- ●
257 KEY; SPEED SENSOR
FULLER M/T<X9B> 		1-83129-073-0 01 1 0710- ●
