8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#67207) — 87 parça

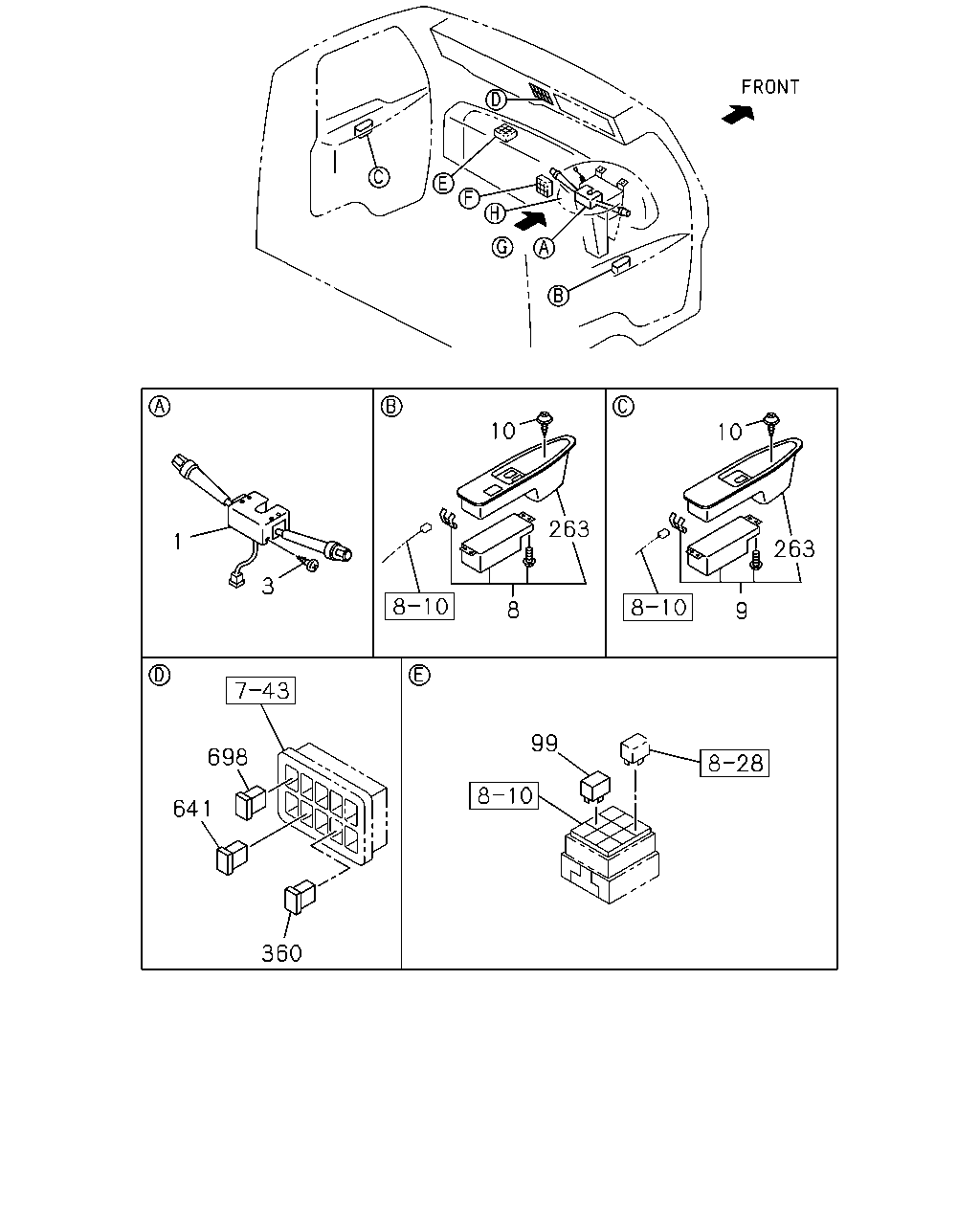

çizim 137721
1 3 10 8 263 263 10 9 99 698 641 360
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. SMOOTHER-G(C1W),AIR BAG(TFQ) 		1-82360-708-1 01 1 1111- ●
1 SWITCH; COMB
EXC. SMOOTHER-G(C1W),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>,AIR BAG(TFQ) 		1-82360-724-1 01 1 1111- ●
1 SWITCH; COMB
AIR BAG(TFQ) EXC. SMOOTHER-G(C1W),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-579-2 01 1 0710- ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> AIR BAG(TFQ) EXC. SMOOTHER-G(C1W) 		1-82360-580-2 01 1 0710- ●
1 SWITCH; COMB
SMOOTHER-G(C1W) AIR BAG(TFQ) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-695-2 01 1 0710- ●
1 SWITCH; COMB
AIR BAG(TFQ) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-695-2 01 1 0710- ●
1 SWITCH; COMB
SMOOTHER-G(C1W) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> AIR BAG(TFQ) 		1-82360-694-2 01 1 0710- ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> AIR BAG(TFQ) 		1-82360-694-2 01 1 0710- ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0710- ● ●
8 SWITCH; POWER WINDOW
DRIVER 		1-82380-166-2 01 1 0710- ● ●
9 SWITCH; POWER WINDOW
PASSENGER 		1-82380-167-1 01 1 0710- ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0710- ● ●
99 RELAY; FOG LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710- ● ●
263 COVER; SW
DRIVER 		1-82385-005-2 01 1 0710- ● ●
263 COVER; SW
PASSENGER 		1-82385-006-3 01 1 0710- ● ●
360 SWITCH ASM; DIFF LK
6WF1 TC-C(1B8) 		1-82340-404-0 01 1 0710- ●
360 SWITCH ASM; DIFF LK
6WG1 TC-C(72L) 		1-82340-677-0 01 1 0710- ● ●
641 SWITCH; MAP
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82350-362-1 01 1 0710- ●
641 SWITCH; MAP
6WG1 TC-C(72L) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		8-97615-637-0 01 1 0710- ●
641 SWITCH; MAP
6WG1 TC-C(72L) 		8-97615-637-0 01 1 0710- ●
698 SWITCH; EDS
SMOOTHER-G(C1W) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82340-698-0 01 1 0710- ●
698 SWITCH; EDS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82340-698-0 01 1 0710- ●

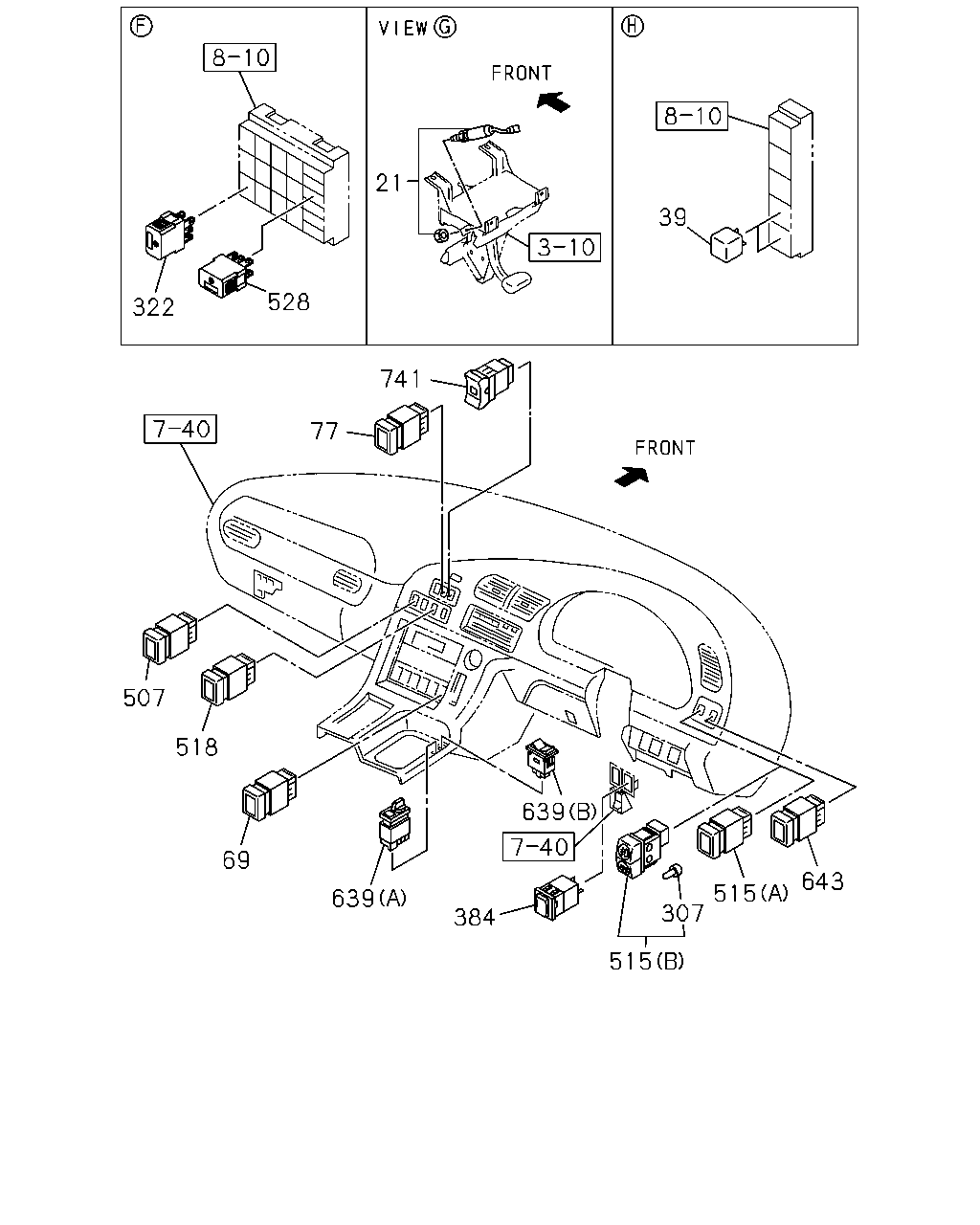

çizim 137822
21 39 528 322 741 77 507 518 639 69 643 515 307 639 384 515
BalonParca AdiParca NoAdetTipApplied Date A B
21 SWITCH; CLU
EXC. SMOOTHER-G(C1W) 		1-82380-114-3 01 1 0710- ●
39 RELAY; DOOR LK
REMOTE CONT DOOR LOCK<SLG> 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0710- ●
39 RELAY; DOOR LK
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0710- ●
69 SWITCH; AUTO CRUISE
6WF1 TC-C(1B8) 		1-82340-682-0 01 1 0710- ●
69 SWITCH; AUTO CRUISE
6WG1 TC-C(72L) 		8-97610-834-0 01 1 0710- ● ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-82340-413-0 01 1 0710- ● ●
307 BULB ASM; SW
6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) 28V 40MA 		8-97116-331-0 01 1 0710-0710 ●
307 BULB ASM; SW
6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) HIGH ROOF<S2F> 28V 40MA 		8-97116-331-0 01 1 0711-0711 ●
307 BULB ASM; SW
6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) 28V 40MA 		8-97116-331-0 01 1 0712- ●
322 RELAY; SPLITTER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) 24V 10A PANASONIC 		8-97173-035-1 01 1 0710- ●
384 SWITCH; IDLING CONT,ELEC 1-82350-213-1 01 1 0710- ● ●
507 SWITCH; MIRROR HEATER 1-82340-423-0 01 1 0710- ● ●
515 SWITCH; FLUORESCENT LAMP
6WF1 TC-C(1B8) (A) 		1-82350-230-0 01 1 0710-0710 ●
515 SWITCH; FLUORESCENT LAMP
6WF1 TC-C(1B8) (A) 		1-82350-365-0 01 1 0711- ●
515 SWITCH; FLUORESCENT LAMP
6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		8-97363-946-1 01 1 0710-0710 ●
515 SWITCH; FLUORESCENT LAMP
6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) HIGH ROOF<S2F> (B) 		8-97363-946-1 01 1 0711-0711 ●
515 SWITCH; FLUORESCENT LAMP
6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		8-97363-946-1 01 1 0712- ●
518 SWITCH; RADIO TUNE 1-82350-231-0 01 1 0710- ● ●
528 RELAY; BUZZER
24V 10A PANASONIC 		8-97173-035-1 01 1 0710- ● ●
639 SWITCH; EMERGENCY
MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-82330-068-0 01 1 0710- ●
639 SWITCH; EMERGENCY
(A) 		1-82330-068-0 01 1 0710- ●
639 SWITCH; EMERGENCY
MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-82350-363-0 01 1 0710- ●
639 SWITCH; EMERGENCY
(B) 		1-82350-363-0 01 1 0710- ●
643 SWITCH; SKIP SHIFT
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82340-689-0 01 1 0710- ●
643 SWITCH; SKIP SHIFT
6WG1 TC-C(72L) SMOOTHER-G(C1W) HIGH ROOF<S2F> 		8-97381-249-0 01 1 0710-0711 ●
643 SWITCH; SKIP SHIFT
6WG1 TC-C(72L) HIGH ROOF<S2F> 		8-97381-249-0 01 1 0710-0711 ●
643 SWITCH; SKIP SHIFT
6WG1 TC-C(72L) SMOOTHER-G(C1W) 		8-97381-249-0 01 1 0712- ●
643 SWITCH; SKIP SHIFT
6WG1 TC-C(72L) 		8-97381-249-0 01 1 0712- ●
643 SWITCH; SKIP SHIFT
6WG1 TC-C(72L) SMOOTHER-G(C1W) EXC. HIGH ROOF<S2F> 		8-97381-251-0 01 1 0710-0711 ●
643 SWITCH; SKIP SHIFT
6WG1 TC-C(72L) EXC. HIGH ROOF<S2F> 		8-97381-251-0 01 1 0710-0711 ●
741 SWITCH; TRAILER
6WG1 TC-C(72L) 		8-98147-983-0 01 1 0908- ● ●

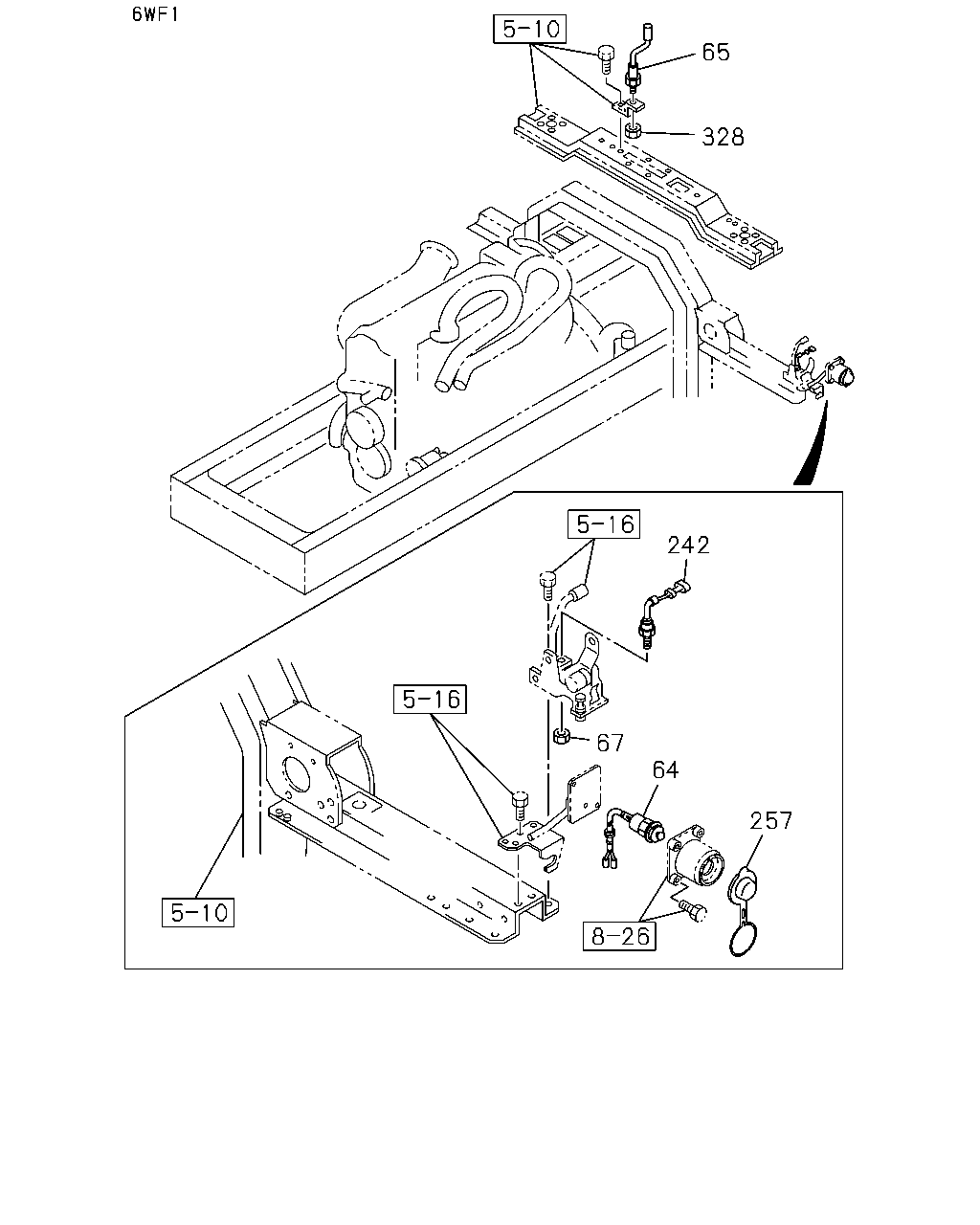

çizim 138264
65 328 242 67 64 257
BalonParca AdiParca NoAdetTipApplied Date A B
64 SWITCH; CAB TILT MAIN
6WF1 TC-C(1B8) 		1-82380-108-0 01 1 0710- ●
64 SWITCH; CAB TILT MAIN
6WG1 TC-C(72L) 		1-82380-173-2 01 1 0710- ● ●
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 0710- ● ●
67 NUT; SW,CAB TILT
6WF1 TC-C(1B8) M16 H=18.5 		1-09409-013-0 01 1 0710- ●
242 SWITCH
6WF1 TC-C(1B8) STAMP NO 		1-82380-126-0 01 1 0710- ●
242 SWITCH
6WG1 TC-C(72L) STAMP NO 		1-82380-172-1 01 1 0710- ● ●
257 COVER; HOLE,SW
6WF1 TC-C(1B8) 		1-82389-008-0 01 1 0710- ●
328 NUT; SW
M16 		0-91110-516-0 01 1 0710- ● ●

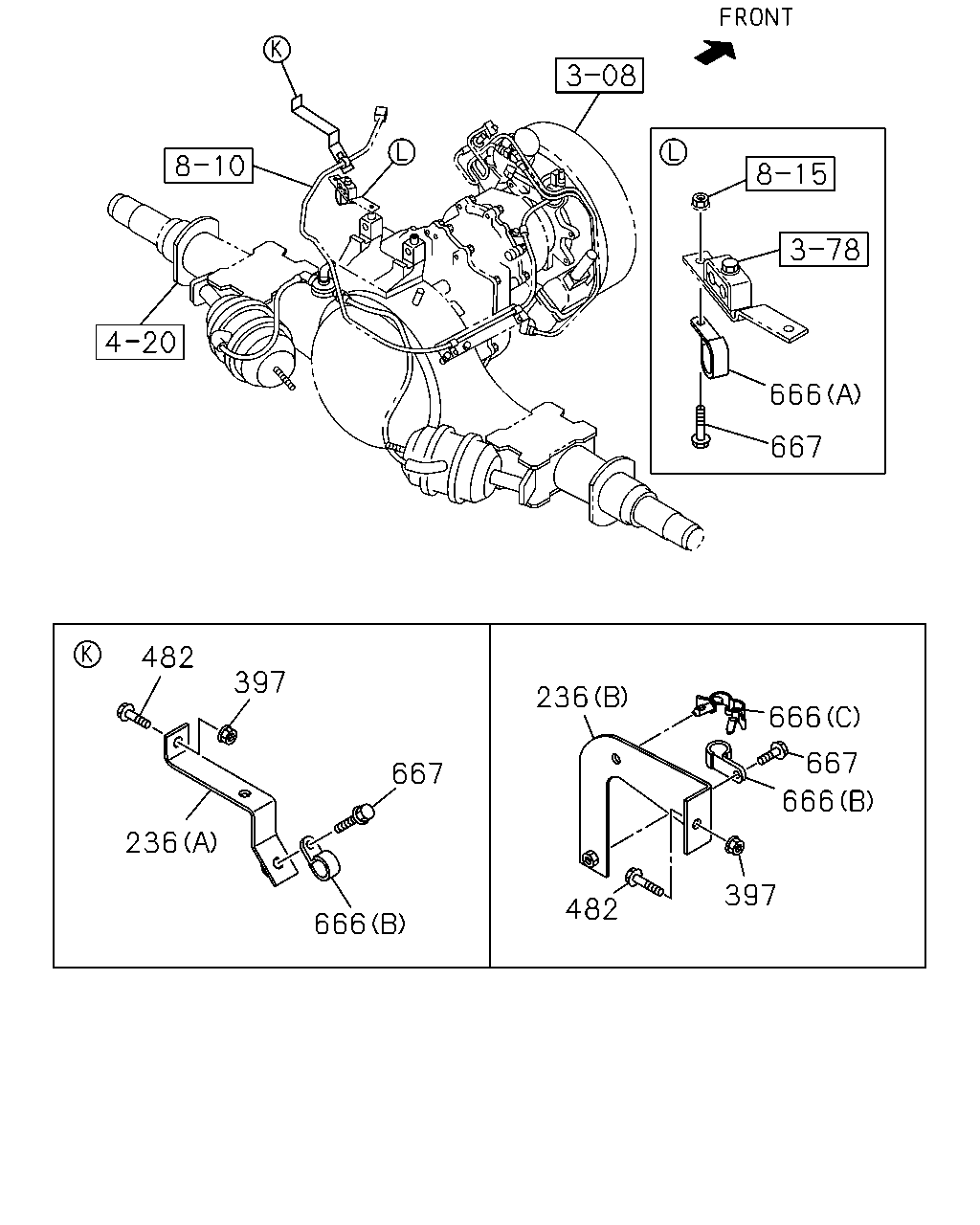

çizim 138505
666 667 666 667 666 397 236 482 666 236 482 397 667
BalonParca AdiParca NoAdetTipApplied Date A B
236 BRACKET; AXLE HARNESS,RR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-82698-595-0 01 1 0710- ●
236 BRACKET; AXLE HARNESS,RR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-82699-996-1 01 1 0710- ●
397 NUT; BRKT FIX
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
482 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE 		0-28650-830-0 01 1 0710- ● ●
666 CLIP; AXLE HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=24 		0-95235-045-0 01 1 0801- ●
666 CLIP; AXLE HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=5-12 L=18 		1-09709-287-0 01 1 0710- ●
666 CLIP; AXLE HARNESS
(A) ID=11X2 L=20 		1-09700-871-0 03 1 0710- ● ●
666 CLIP; AXLE HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16 		0-95235-025-0 01 1 0710-0712 ● ●
666 CLIP; AXLE HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16 		0-95235-025-0 01 1 0801- ●
667 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0710- ● ●
667 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●

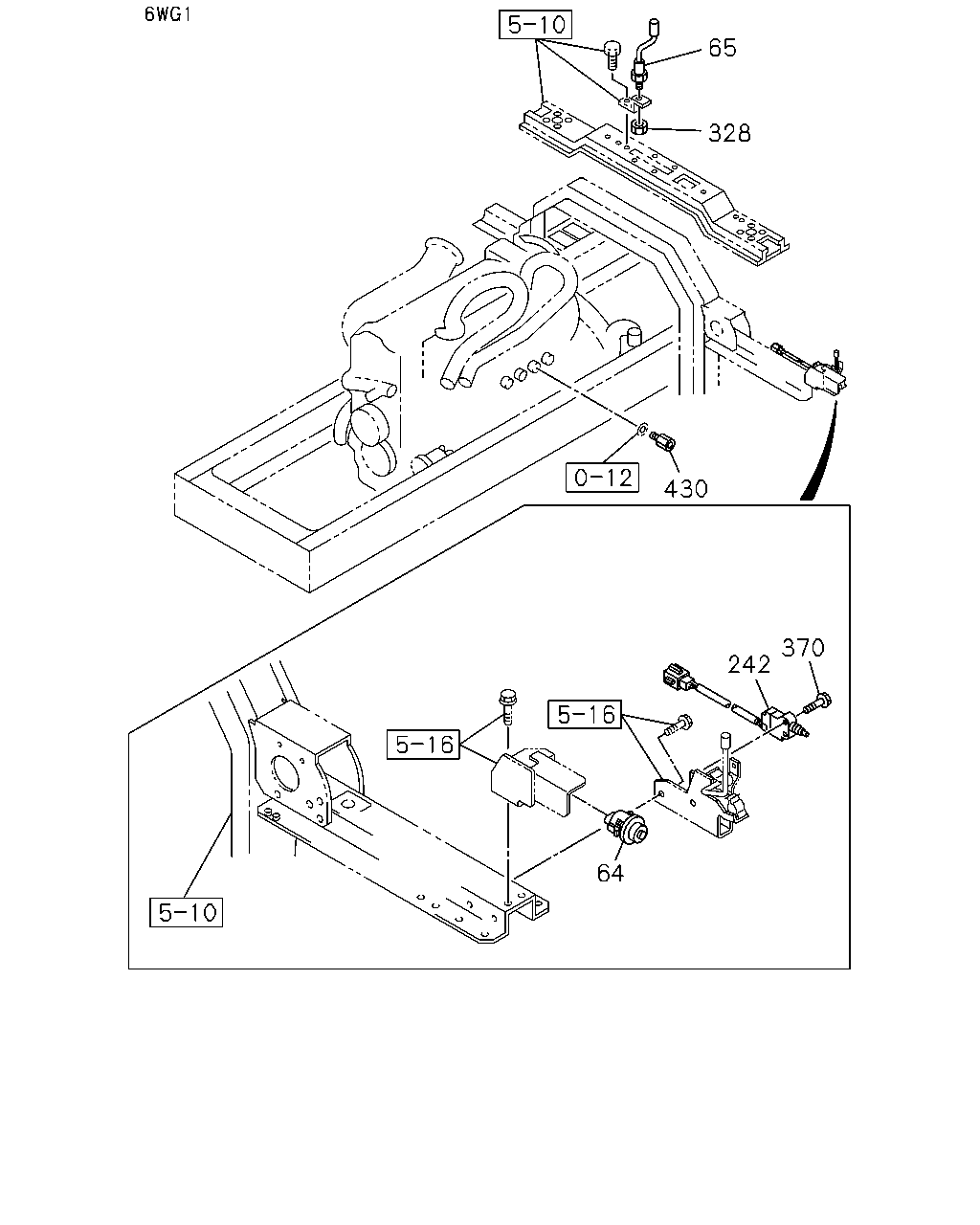

çizim 138520
65 328 430 370 242 64
BalonParca AdiParca NoAdetTipApplied Date A B
64 SWITCH; CAB TILT MAIN
6WF1 TC-C(1B8) 		1-82380-108-0 01 1 0710- ●
64 SWITCH; CAB TILT MAIN
6WG1 TC-C(72L) 		1-82380-173-2 01 1 0710- ● ●
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 0710- ● ●
242 SWITCH
6WF1 TC-C(1B8) STAMP NO 		1-82380-126-0 01 1 0710- ●
242 SWITCH
6WG1 TC-C(72L) STAMP NO 		1-82380-172-1 01 1 0710- ● ●
328 NUT; SW
M16 		0-91110-516-0 01 1 0710- ● ●
370 BOLT; SW
6WG1 TC-C(72L) M6X30 FLANGE 		0-28650-630-0 02 1 0710- ● ●
430 ADAPTER; SW
6WG1 TC-C(72L) M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0710- ● ●

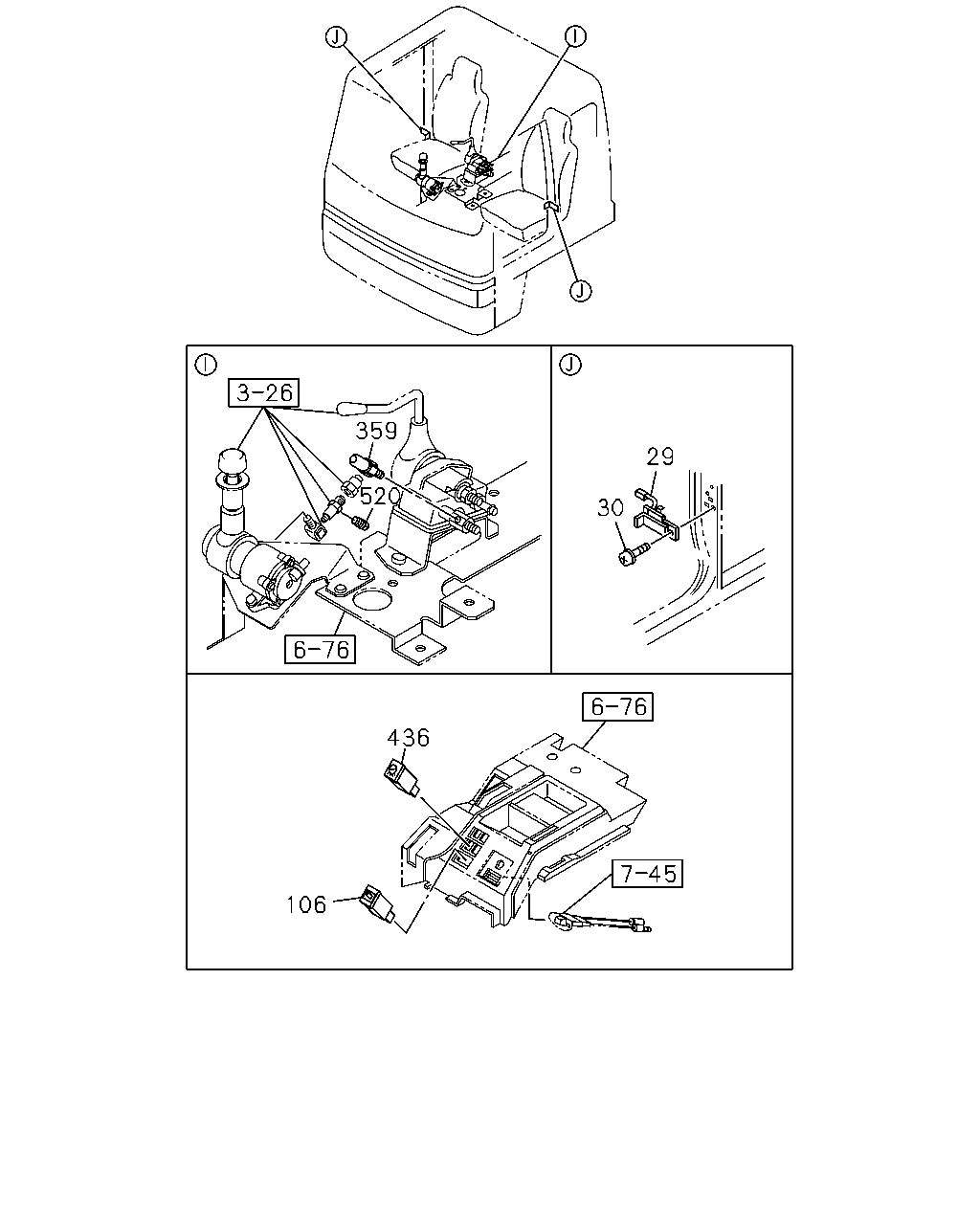

çizim 192809
359 29 520 30 436 106
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR 8-97855-032-3 02 1 0710- ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 02 1 0710- ● ●
106 SWITCH; REMOTE CONT MIRROR 1-82350-223-0 02 1 0710-0710 ● ●
106 SWITCH; REMOTE CONT MIRROR 1-82350-223-0 02 1 0711- ● ●
359 SWITCH; TRAILER BRAKE
GREEN 		1-82410-176-1 01 1 0710- ● ●
436 SWITCH; HEADLAMP LEVELING 1-82330-043-0 01 1 0710- ● ●
520 PLUG; CONNECTOR
FULLER M/T<X9B> PT1/4 		9-99204-513-0 01 1 0801- ●
