◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11111 - CYZ NZ EURO3/JAPAN NEW SHORT TERM 2004 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#67205) — 17 parça

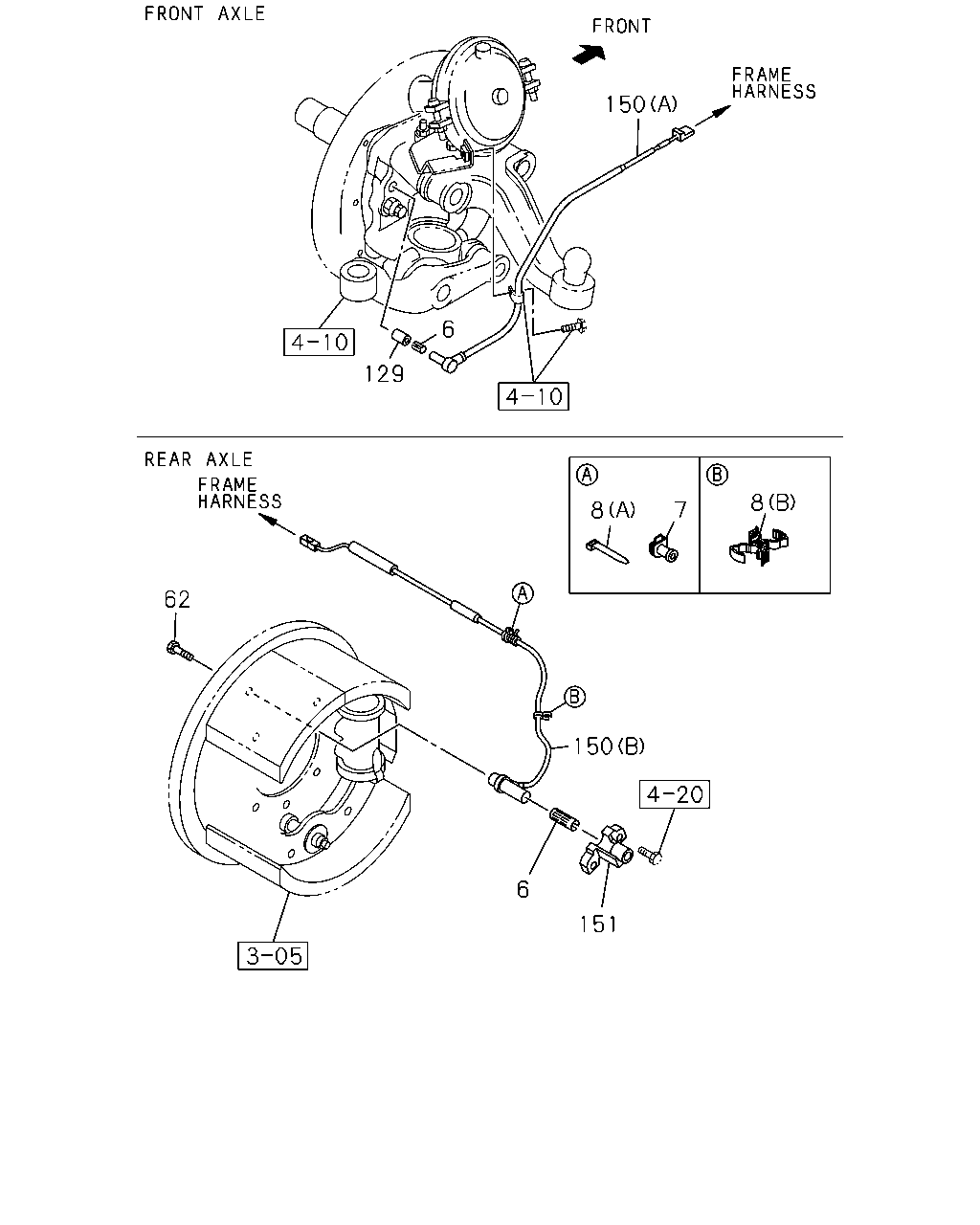

çizim 137792
150 6 129 62 8 7 8 150 6 151
BalonParca AdiParca NoAdetTipApplied Date A B
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0710- ● ●
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0710- ● ●
7 GROMMET; SPD SENSOR
ID=8 		1-82699-740-1 01 1 0710- ● ●
8 CLIP; HARNESS
(B) ID=6-10 & 6-10 		1-09709-192-1 01 1 0710- ● ●
8 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0710- ● ●
62 BOLT; SENSOR
M8X16 		9-05820-816-0 02 1 0710- ● ●
129 COLLAR 1-83129-471-0 02 1 0710- ● ●
150 SENSOR; SPEED,ABS
(A) 		1-83127-853-3 02 1 0710- ● ●
150 SENSOR; SPEED,ABS
(B) 		1-83127-857-3 01 1 0710- ● ●
150 SENSOR; SPEED,ABS
(B) 		1-83127-932-2 01 1 0710- ● ●
151 BRACKET; SPD SENSOR 1-83129-405-0 01 1 0710- ● ●
151 BRACKET; SPD SENSOR 1-83129-406-0 01 1 0710- ● ●

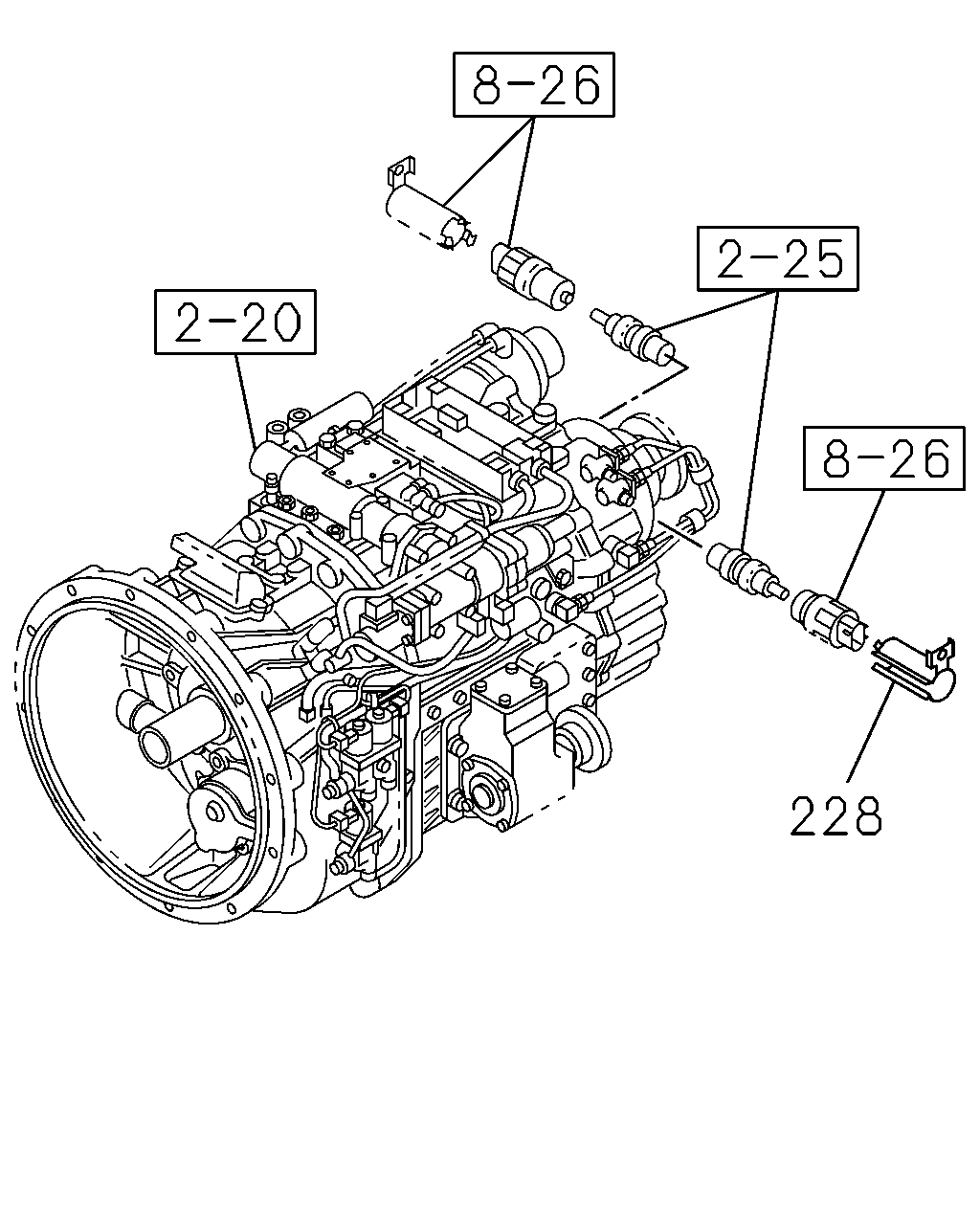

çizim 192805
228
BalonParca AdiParca NoAdetTipApplied Date A B
228 PROTECTOR; SENSOR 8-97168-308-0 01 1 0710-0801 ● ●
228 PROTECTOR; SENSOR
EXC. FULLER M/T<X9B> 		8-97168-308-0 01 1 0802-0808 ●
228 PROTECTOR; SENSOR 8-97168-308-0 01 1 0802-0808 ●
228 PROTECTOR; SENSOR
EXC. FULLER M/T<X9B> 		8-98119-901-0 01 1 0809- ●
228 PROTECTOR; SENSOR 8-98119-901-0 01 1 0809- ●
