◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11111 - CYZ NZ EURO3/JAPAN NEW SHORT TERM 2004 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#67204) — 693 parça

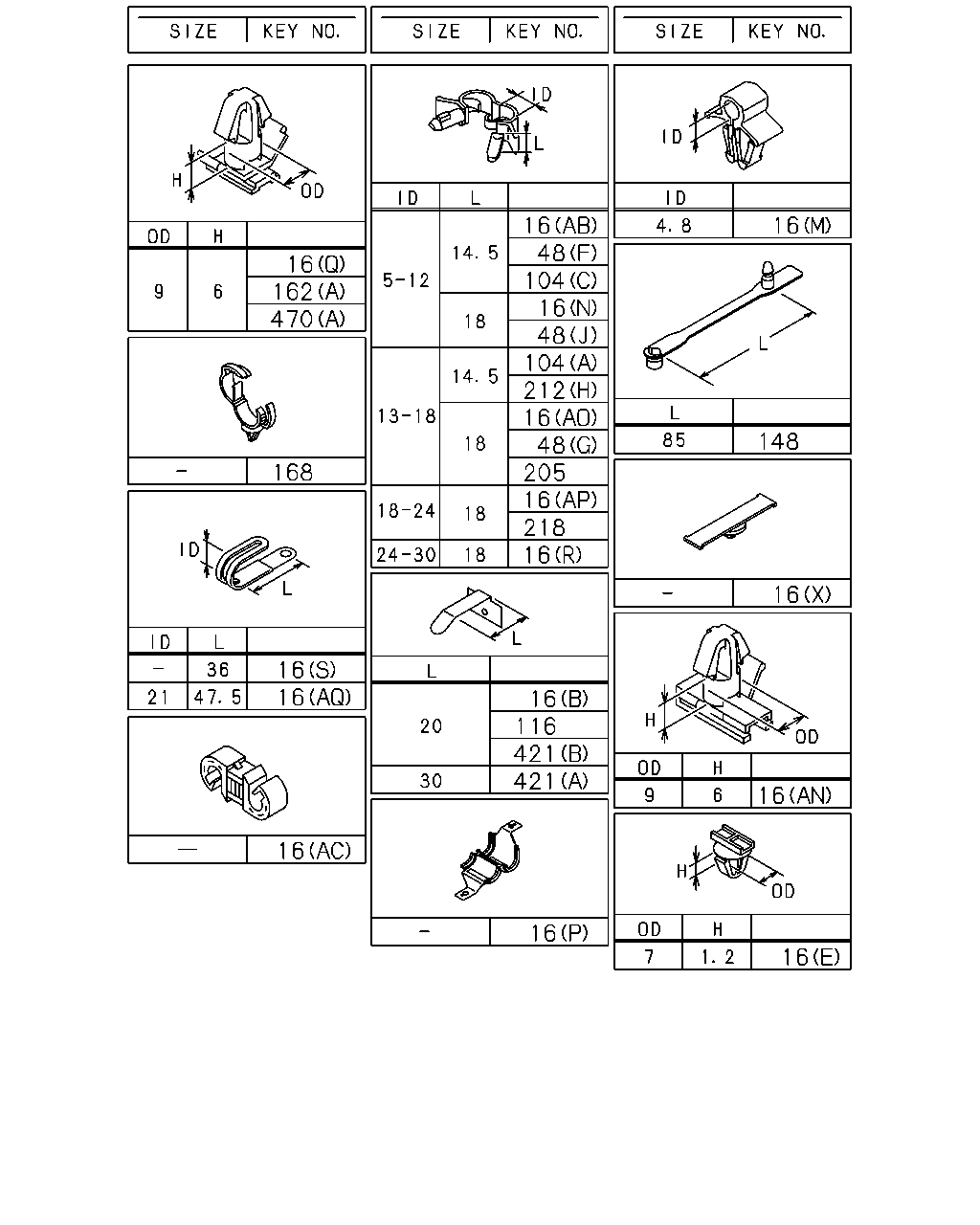

çizim 136752
16 48 104 16 48 104 212 16 48 205 16 218 16 16 16 162 470 148 168 16 16 16 16 116 421 421 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
6WG1 TC-C(72L) (D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209- ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 0801-0806 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (Z) ID=14 L=44 		9-09917-427-0 03 1 0801-0806 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (Z) ID=14 L=44 		9-09917-427-0 02 1 0807- ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 02 1 0807- ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0710- ● ●
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 05 1 0710- ●
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (O) L=180 		1-09707-162-1 01 1 0710- ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0710- ●
16 CLIP; HARNESS
FULLER M/T<X9B> (AF) ID=16 L=20 		0-95235-535-0 02 1 0710- ●
16 CLIP; HARNESS
FULLER M/T<X9B> (AG) ID=16 L=40 		0-95235-576-0 01 1 0710- ●
16 CLIP; HARNESS
FULLER M/T<X9B> (Q) OD=9 H=6 		1-09709-178-0 02 1 0710- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (Q) OD=9 H=6 		1-09709-178-0 07 1 0710- ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 07 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AD) ID=19 L=20 		0-95235-832-0 01 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AI) ID=31 L=35 		1-09700-329-1 01 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AJ) ID=28 L=58 		1-09700-400-0 03 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AK) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (J) ID=42.7 L=38 		1-09701-313-0 01 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (O) L=180 		1-09707-162-1 09 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Q) OD=9 H=6 		1-09709-178-0 01 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (U) L=250 		5-09707-030-1 02 1 0710- ●
16 CLIP; HARNESS
FULLER M/T<X9B> (U) L=250 		5-09707-030-1 02 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AQ) ID=21 L=47.5 		8-94178-108-0 02 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AH) ID=19 H=70 L=25 		8-97360-209-0 01 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AA) ID=20 L=50 		9-09917-430-0 06 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) FULLER M/T<X9B> (AC) ID=15 & 15 		1-09709-282-1 01 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710- ●
16 CLIP; HARNESS
(AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710- ●
16 CLIP; HARNESS
(AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (O) L=180 		1-09707-162-1 08 1 0710- ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 08 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AB) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0906 ●
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0906 ●
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 02 1 0907- ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AB) ID=5-12 L=14.5 		1-09987-221-0 02 1 0907- ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AN) OD=9 H=6 		8-97368-793-0 03 1 0710- ●
16 CLIP; HARNESS
(AN) OD=9 H=6 		8-97368-793-0 03 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AA) ID=20 L=50 		9-09917-430-0 07 1 0710- ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 07 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) MJX16P M/T(Y3Z) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0710-0711 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) MJX16P M/T(Y3Z) (AK) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0712- ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) SMOOTHER-G(C1W) (AM) ID=28+34 L=44 		1-09701-311-0 01 1 0710- ●
16 CLIP; HARNESS
(AM) ID=28+34 L=44 		1-09701-311-0 01 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) SMOOTHER-G(C1W) (O) L=180 		1-09707-162-1 04 1 0710- ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 04 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) SMOOTHER-G(C1W) (R) ID=24-30 L=18 		1-09709-297-0 01 1 0710- ●
16 CLIP; HARNESS
(R) ID=24-30 L=18 		1-09709-297-0 01 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) SMOOTHER-G(C1W) (AE) ID=22 L=52 		9-09917-431-0 01 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AE) ID=22 L=52 		9-09917-431-0 01 1 0710- ●
16 CLIP; HARNESS
(AE) ID=22 L=52 		9-09917-431-0 01 1 0710- ●
16 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 0710- ● ●
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 0710- ● ●
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 0710-1208 ● ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1209- ● ●
16 CLIP; HARNESS
(L) ID=22 L=32 		1-09700-126-1 01 1 0710- ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 0710- ● ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (H) ID=11 L=41 		1-09700-403-0 02 1 0710- ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 0710- ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 07 1 0710-0806 ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 09 1 0807- ● ●
16 CLIP; HARNESS
(I) ID=15 L=65 		1-09700-466-0 01 1 0710- ● ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		1-09700-679-1 01 1 0710- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 02 1 0710- ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0710-1002 ● ●
16 CLIP; HARNESS
(W) ID=15 L=28 		1-09701-216-0 01 1 0710- ● ●
16 CLIP; HARNESS
(W) ID=15 L=28 		1-09701-216-0 01 1 0710- ● ●
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0710- ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 02 1 0710- ● ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 02 1 0710- ● ●
16 CLIP; HARNESS
(P) W/SPONGE RUBBER 		1-09709-150-0 01 1 0710- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 05 1 0710- ● ●
16 CLIP; HARNESS
(N) ID=5-12 L=18 		1-09709-287-0 01 1 0710- ● ●
16 CLIP; HARNESS
(N) ID=5-12 L=18 		1-09709-287-0 02 1 0710- ● ●
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 02 1 0710-1002 ● ●
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 03 1 1003- ● ●
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0906 ● ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0906 ●
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0906 ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0907- ●
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0907- ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 0710- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (U) L=250 		5-09707-030-1 01 1 0710- ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 05 1 0710- ● ●
16 CLIP; HARNESS
(V) L=140 		5-09707-031-1 01 1 0710- ● ●
16 CLIP; HARNESS
(V) L=140 		5-09707-031-1 01 1 0710- ●
16 CLIP; HARNESS
(AN) OD=9 H=6 		8-97368-793-0 01 1 0710- ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 0710-0712 ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 0710-0712 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (Z) ID=14 L=44 		9-09917-427-0 03 1 0710-0712 ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 01 1 0801-0806 ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 01 1 0807-1002 ● ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=14 L=44 		9-09917-427-0 01 1 0807-1002 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (Z) ID=14 L=44 		9-09917-427-0 01 1 0807-1002 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=14 L=44 		9-09917-427-0 01 1 1003- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (Z) ID=14 L=44 		9-09917-427-0 01 1 1003- ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 01 1 0710- ● ●
16 CLIP; HARNESS
(E) OD=7 H=1.2 		8-94364-750-0 02 1 0710- ● ●
16 CLIP; HARNESS
(X) L=55 		8-94432-655-0 02 1 0710- ● ●
16 CLIP; HARNESS
(Y) L=175 		8-97110-167-0 02 1 0710- ● ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16 		0-95235-025-0 01 1 0710- ● ●
16 CLIP; HARNESS
HIGH ROOF<S2F> (B) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0710- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (C) ID=10 H=25 L=20 		1-09700-519-0 01 1 0710- ● ●
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (C) ID=10 H=25 L=20 		1-09700-519-0 01 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (G) ID=19 L=20 		0-95235-836-0 01 1 0710- ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AJ) ID=28 L=58 		1-09700-400-0 04 1 0710- ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (H) ID=11 L=41 		1-09700-403-0 04 1 0710- ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AQ) ID=21 L=47.5 		8-94178-108-0 04 1 0710- ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (S) L=36 		8-94224-891-1 01 1 0710- ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AN) OD=9 H=6 		8-97368-793-0 02 1 0710- ● ●
16 CLIP; HARNESS
(AP) ID=18-24 L=18 		1-09709-294-0 04 1 0710- ●
16 CLIP; HARNESS
(AP) ID=18-24 L=18 		1-09709-294-0 04 1 0710- ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 03 1 0710- ●
48 CLIP; FRAME HARNESS
(J) ID=5-12 L=18 		1-09709-287-0 01 1 0801- ● ●
48 CLIP; FRAME HARNESS
EXC. SMOOTHER-G(C1W) (C) ID=26 L=26 		1-09701-236-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
6WG1 TC-C(72L) SMOOTHER-G(C1W) (I) ID=39 H=28 L=32 		1-09701-263-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
(I) ID=39 H=28 L=32 		1-09701-263-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
(A) ID=20 H=18 L=82 		1-09701-288-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 15 1 0710-0805 ● ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 17 1 0806- ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 06 1 0710- ● ●
48 CLIP; FRAME HARNESS
(G) ID=13-18 L=18 		1-09709-291-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0712 ●
48 CLIP; FRAME HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 01 1 0801- ● ●
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 0710- ●
104 CLIP; HEADLAMP HARNESS
(A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0710- ● ●
104 CLIP; HEADLAMP HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 04 1 0710- ● ●
104 CLIP; HEADLAMP HARNESS
(D) L=250 		5-09707-030-1 02 1 0710- ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=140 		5-09707-031-1 02 1 0710- ● ●
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 07 1 1410- ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 0710-1409 ● ●
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 08 1 1410- ● ●
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 07 1 0710-1409 ● ●
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0710- ● ●
162 CLIP; SW HARNESS
6WF1 TC-C(1B8) (B) L=180 		1-09707-162-1 01 1 0710- ●
162 CLIP; SW HARNESS
6WG1 TC-C(72L) (A) OD=9 H=6 		1-09709-178-0 01 1 0710- ●
162 CLIP; SW HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0710- ●
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 0710- ● ●
205 CLIP; BACK LAMP HARNESS
ID=13-18 L=18 		1-09709-291-0 01 1 0710- ●
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (K) ID=18 H=23 L=28 		1-09700-860-0 01 1 0710- ●
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (G) L=350 		1-09707-183-0 01 1 0710- ●
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (D) ID=21 L=24 		8-94176-807-1 01 1 0710- ●
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (B) ID=20 L=50 		9-09917-430-0 02 1 0710- ●
212 CLIP; HORN HARNESS
6WG1 TC-C(72L) (I) ID=19 L=28 		0-95235-856-0 01 1 0710- ●
212 CLIP; HORN HARNESS
(I) ID=19 L=28 		0-95235-856-0 01 1 0710- ●
212 CLIP; HORN HARNESS
6WG1 TC-C(72L) (H) ID=13-18 L=14.5 		1-09709-290-0 01 1 0710- ●
212 CLIP; HORN HARNESS
(H) ID=13-18 L=14.5 		1-09709-290-0 01 1 0710- ●
212 CLIP; HORN HARNESS
6WG1 TC-C(72L) SMOOTHER-G(C1W) (J) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0710- ●
212 CLIP; HORN HARNESS
(J) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0710- ●
212 CLIP; HORN HARNESS
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (K) ID=18 H=23 L=28 		1-09700-860-0 03 1 0710- ●
212 CLIP; HORN HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0710- ● ●
212 CLIP; HORN HARNESS
(C) L=300 		1-09707-001-1 01 1 0710- ● ●
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 02 1 0710- ● ●
212 CLIP; HORN HARNESS
(E) L=250 		5-09707-030-1 02 1 0710- ● ●
212 CLIP; HORN HARNESS
(F) L=140 		5-09707-031-1 01 1 0710-0904 ● ●
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (F) L=140 		5-09707-031-1 01 1 0905- ●
218 CLIP; BAND,RR COMB
ID=18-24 L=18 		1-09709-294-0 04 1 0801- ●
218 CLIP; BAND,RR COMB
ID=18-24 L=18 		1-09709-294-0 04 1 0710-0712 ● ●
218 CLIP; BAND,RR COMB
ID=18-24 L=18 		1-09709-294-0 03 1 0801- ●
421 CLIP; FLOOR HARNESS
SMOOTHER-G(C1W) (A) L=30 SET=10 PIECE 		1-09987-265-0 05 1 0710- ●
421 CLIP; FLOOR HARNESS
(A) L=30 SET=10 PIECE 		1-09987-265-0 05 1 0710- ●
421 CLIP; FLOOR HARNESS
EXC. SMOOTHER-G(C1W) (B) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0710- ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0710- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0710- ● ●
çizim 137139
224 224 1 1 178 178 178 178 178 530 530 5 292
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0710- ● ●
1 SLEEVE; RUBBER
(A) ID=38.1 L=25 		1-09337-052-0 01 1 0710- ● ●
5 GUIDE; HARNESS
6WF1 TC-C(1B8) L=360 		1-82699-476-1 01 1 0710- ●
178 GROMMET; HARNESS
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (E) 		1-82698-551-0 01 1 0710- ●
178 GROMMET; HARNESS
(D) ID=39 OD=45 T=13 		1-09332-076-0 02 1 0710- ● ●
178 GROMMET; HARNESS
(B) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 01 1 0710- ● ●
178 GROMMET; HARNESS
(B) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 01 1 0710- ● ●
178 GROMMET; HARNESS
(C) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0710- ● ●
178 GROMMET; HARNESS
(B) W0/SLIT ID=24 OD=30 T=22 		1-09332-126-0 02 1 0710- ● ●
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0710- ● ●
224 SLEEVE; RUBBER,HARNESS
(A) ID=6 L=30 		5-09360-352-0 01 1 0710-0904 ● ●
224 SLEEVE; RUBBER,HARNESS
6WF1 TC-C(1B8) (A) ID=6 L=30 		5-09360-352-0 01 1 0905- ●
224 SLEEVE; RUBBER,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=32 OD=36 L=50 		1-09337-023-0 01 1 0710- ● ●
292 CAP; RUBBER
6WG1 TC-C(72L) 		1-82690-667-0 01 1 0710- ● ●
292 CAP; RUBBER
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) 		1-82690-667-0 01 1 0710- ●
530 SEAL; HARNESS
(A) 180X40 		1-72498-019-1 16 1 0710- ● ●
530 SEAL; HARNESS
(A) 100X40 		1-72498-022-1 02 1 0710- ● ●
530 SEAL; HARNESS
(B) OD=25 BLACK 		1-76798-019-0 01 1 0710- ● ●
530 SEAL; HARNESS
LOW ROOF<6XQ> (A) 100X40 		1-72498-022-1 01 1 0710- ● ●

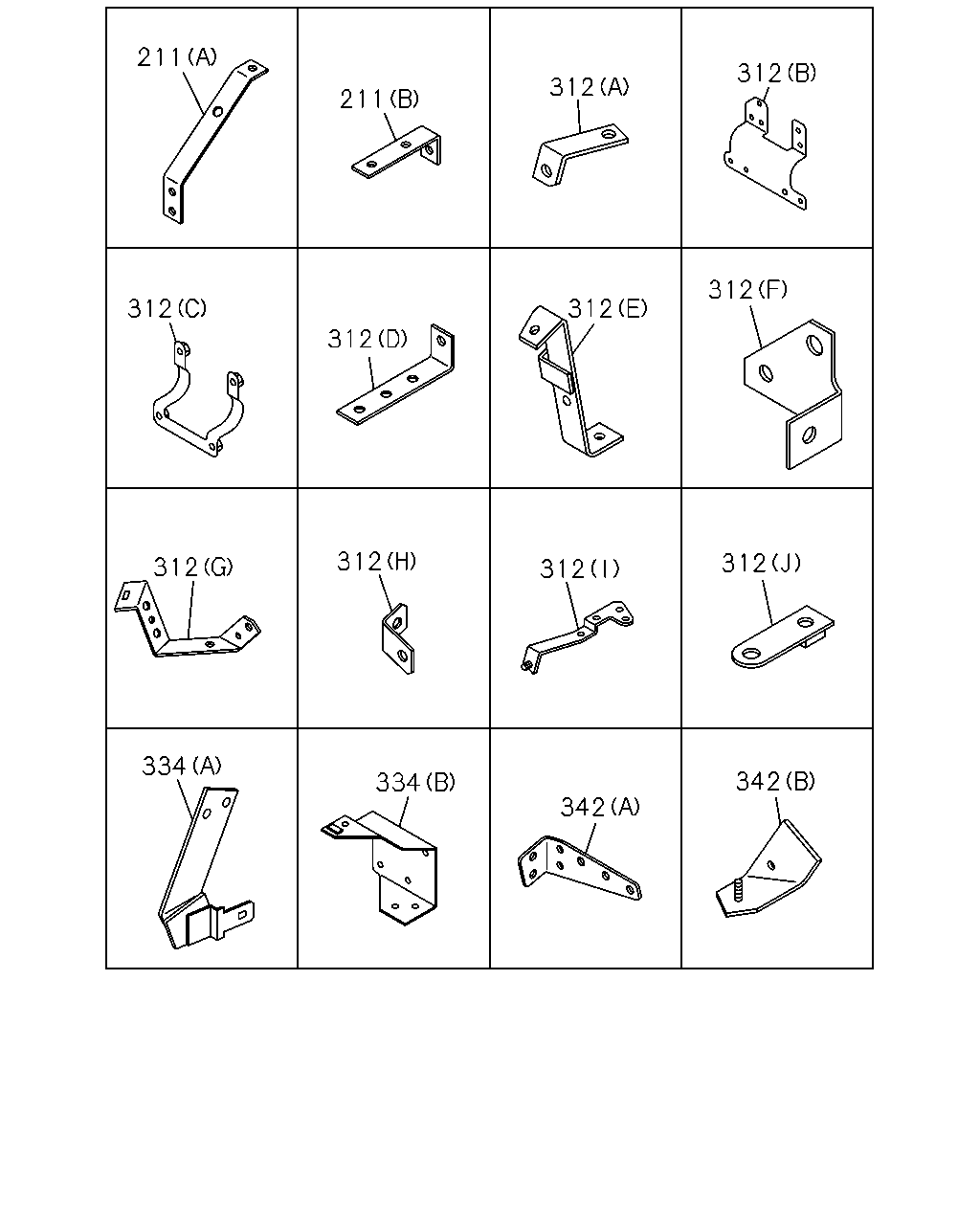

çizim 137697
211 211 312 312 312 312 312 312 312 312 312 312 342 342 334 334
BalonParca AdiParca NoAdetTipApplied Date A B
211 BRACKET; AXLE HARNESS
6WF1 TC-C(1B8) (B) 		1-82698-588-0 02 1 0710- ●
211 BRACKET; AXLE HARNESS
(A) 		1-47479-430-0 02 1 0710- ● ●
211 BRACKET; AXLE HARNESS
6WG1 TC-C(72L) (B) 		1-82698-588-0 01 1 0710- ● ●
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (I) 		1-82698-443-0 01 1 0710- ●
312 BRACKET; CLIP HARNESS
FULLER M/T<X9B> (D) L=120 H=35 		1-82698-088-0 01 1 0710- ●
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) (A) 		1-82698-440-0 01 1 0710- ●
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L) (G) 		1-82698-556-0 01 1 0710- ●
312 BRACKET; CLIP HARNESS
(G) 		1-82698-556-0 01 1 0710- ●
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L) (H) 		1-82699-199-0 01 1 0710- ●
312 BRACKET; CLIP HARNESS
(H) 		1-82699-199-0 01 1 0710- ●
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L) SMOOTHER-G(C1W) (F) 		1-82698-570-0 01 1 0710- ●
312 BRACKET; CLIP HARNESS
(F) 		1-82698-570-0 01 1 0710- ●
312 BRACKET; CLIP HARNESS
(B) 		1-82698-474-1 01 1 0710- ● ●
312 BRACKET; CLIP HARNESS
(C) 		1-82698-476-0 01 1 0710- ● ●
312 BRACKET; CLIP HARNESS
(E) L=195.5 		1-82698-502-0 01 1 0710- ● ●
312 BRACKET; CLIP HARNESS
(J) 		1-82699-182-0 01 1 0710- ●
334 BRACKET
SMOOTHER-G(C1W) (A) 		1-82698-650-0 01 1 0710- ●
334 BRACKET
(A) 		1-82698-650-0 01 1 0710- ●
334 BRACKET
6WF1 TC-C(1B8) (B) 		1-53458-362-0 01 1 0710- ●
334 BRACKET
6WG1 TC-C(72L) (C) 		1-53457-153-2 01 1 0710- ●
334 BRACKET
(C) 		1-53457-153-2 01 1 0710- ●
342 BRACKET; HARNESS CAB MTG
EXC. FULLER M/T<X9B> (B) 		1-47479-974-0 01 1 0710-0906 ●
342 BRACKET; HARNESS CAB MTG
(B) 		1-47479-974-0 01 1 0710-0906 ●
342 BRACKET; HARNESS CAB MTG
(A) 		1-82699-625-0 01 1 0710- ● ●
çizim 137780
119 524 219 294 340 515 515 55 423 82
BalonParca AdiParca NoAdetTipApplied Date A B
55 WASHER; PL,CLIP
ID=8.4 		1-09503-264-0 01 1 0710- ●
82 WASHER; PL BRKT,HARNESS
ID=10.5 OD=22 		0-91614-610-0 02 1 0710- ● ●
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 0710- ● ●
219 NUT
EXC. FULLER M/T<X9B> M8 FLANGE 		0-91180-108-0 01 1 0710-0906 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0710-0906 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0710-0906 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0907- ●
219 NUT
6WG1 TC-C(72L) MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 03 1 0710- ● ●
219 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 03 1 0710- ●
219 NUT
M8 FLANGE 		0-91180-108-0 04 1 0710- ● ●
219 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 04 1 0710- ●
219 NUT
M8 FLANGE 		0-91180-108-0 11 1 0710- ● ●
219 NUT
6WG1 TC-C(72L) M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
219 NUT
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 02 1 0710- ●
219 NUT
FULLER M/T<X9B> M8 FLANGE 		0-91180-108-0 02 1 0710- ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0710- ●
294 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 06 1 0710- ●
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
294 NUT
FULLER M/T<X9B> M8 FLANGE 		0-91180-108-0 01 1 0710- ●
294 NUT
6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 0710- ●
294 NUT
6WG1 TC-C(72L) M8 FLANGE 		0-91180-108-0 01 1 0710- ●
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
294 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 02 1 0710- ●
294 NUT
6WG1 TC-C(72L) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 02 1 0710- ●
294 NUT
6WG1 TC-C(72L) M8 FLANGE 		0-91180-108-0 02 1 0710- ●
294 NUT
6WG1 TC-C(72L) M8 FLANGE 		0-91180-108-0 05 1 0710- ● ●
340 NUT; HARNESS CAB TO FRAME
6WG1 TC-C(72L) M8 FLANGE 		0-91180-108-0 01 1 0710- ●
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0710- ●
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
423 WASHER; HARNESS,EARTH
SMOOTHER-G(C1W) ID=8.4 		1-09503-264-0 04 1 0710- ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 04 1 0710- ●
423 WASHER; HARNESS,EARTH
EXC. SMOOTHER-G(C1W) ID=8.4 		1-09503-264-0 03 1 0710- ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 0710- ● ●
515 NUT; BRKT
6WF1 TC-C(1B8) (A) M8 FLANGE 		0-91180-108-0 04 1 0710- ●
515 NUT; BRKT
6WG1 TC-C(72L) (A) M8 FLANGE 		0-91180-108-0 03 1 0710- ●
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 0710- ●
515 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0710- ● ●

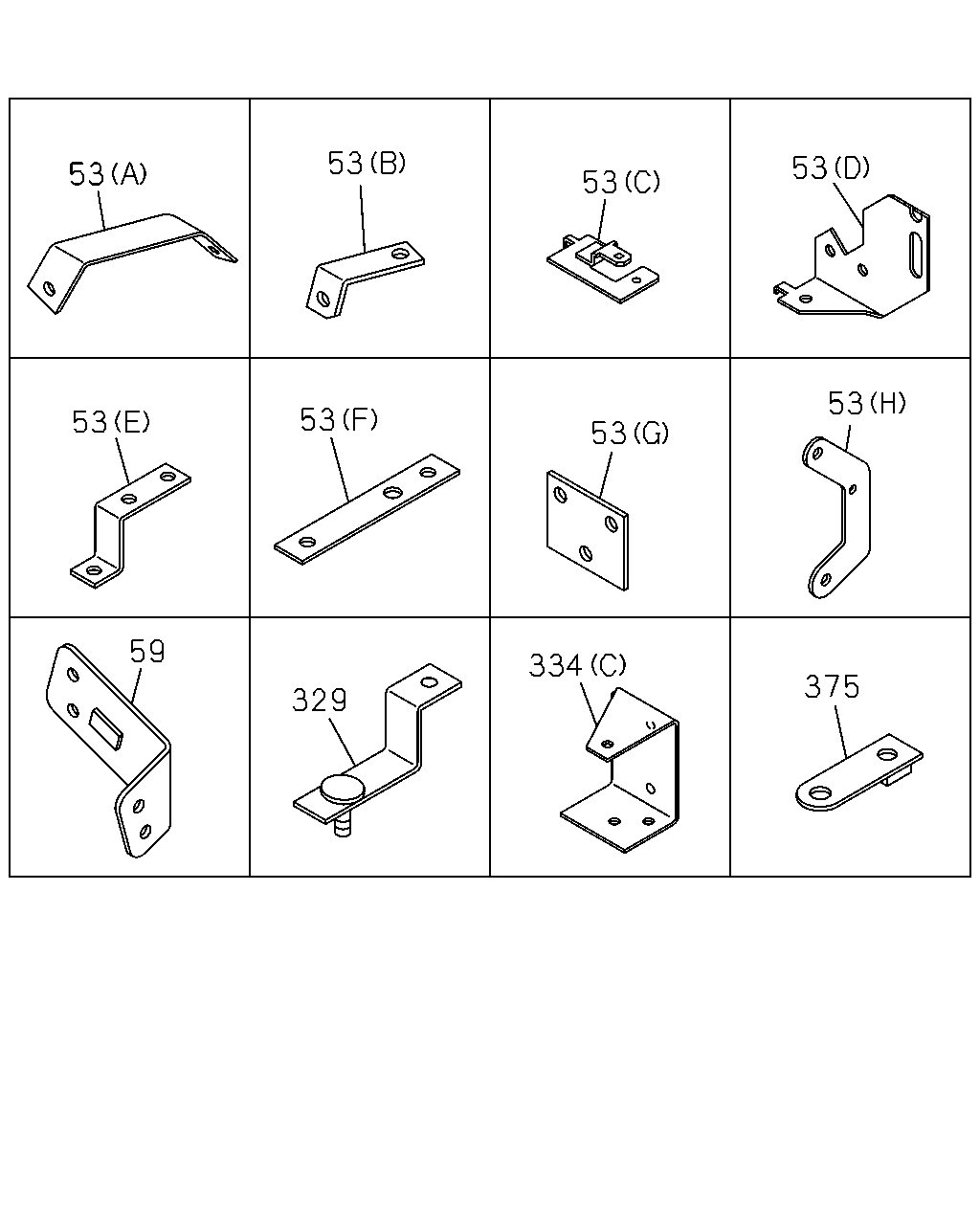

çizim 137932
53 53 53 53 53 53 53 53 59 329 334 375
BalonParca AdiParca NoAdetTipApplied Date A B
53 BRACKET; HARNESS
6WF1 TC-C(1B8) (B) 		1-82698-440-0 01 1 0710- ●
53 BRACKET; HARNESS
6WF1 TC-C(1B8) (G) 		1-82698-469-0 02 1 0710- ●
53 BRACKET; HARNESS
6WG1 TC-C(72L) (C) 		1-82698-495-2 01 1 0710- ●
53 BRACKET; HARNESS
(C) 		1-82698-495-2 01 1 0710- ●
53 BRACKET; HARNESS
6WG1 TC-C(72L) (D) 		8-97610-991-0 01 1 0710- ●
53 BRACKET; HARNESS
(D) 		8-97610-991-0 01 1 0710- ●
53 BRACKET; HARNESS
(F) L=130 		1-47478-959-0 02 1 0710- ● ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 04 1 0710- ● ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 05 1 0710- ● ●
53 BRACKET; HARNESS
(E) 		1-82698-382-0 01 1 0710- ● ●
53 BRACKET; HARNESS
6WG1 TC-C(72L) (H) 		1-83129-472-1 01 1 0710- ● ●
59 BRACKET; FRAME HARNESS 1-82698-531-0 01 1 0710- ● ●
329 BRACKET; CLIP,CABLE 1-47477-669-1 01 1 0710- ● ●
334 BRACKET
SMOOTHER-G(C1W) (A) 		1-82698-650-0 01 1 0710- ●
334 BRACKET
(A) 		1-82698-650-0 01 1 0710- ●
334 BRACKET
6WF1 TC-C(1B8) (B) 		1-53458-362-0 01 1 0710- ●
334 BRACKET
6WG1 TC-C(72L) (C) 		1-53457-153-2 01 1 0710- ●
334 BRACKET
(C) 		1-53457-153-2 01 1 0710- ●
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0710- ● ●

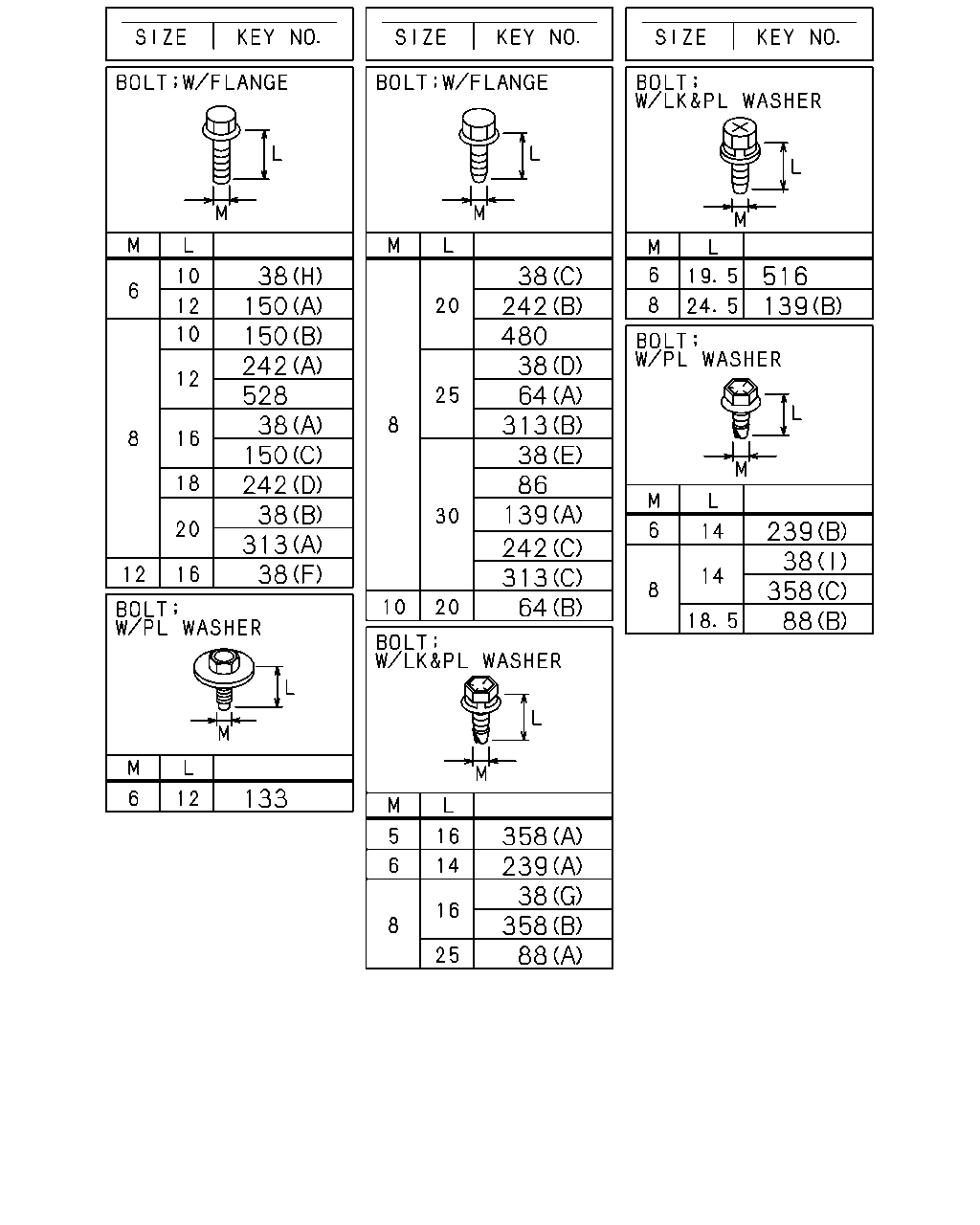

çizim 192799
38 150 150 242 528 38 150 242 38 313 38 38 242 480 38 64 313 38 86 139 516 139 239 38 358 88 242 313 64 133 358 239 38 358 88
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> (C) M8X20 FLANGE 		0-28650-820-0 03 1 0710- ●
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (D) M8X25 FLANGE 		0-28650-825-0 02 1 0710- ●
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 02 1 0710- ●
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (G) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0710-1201 ●
38 BOLT; CLIP,HARNESS
(G) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0710-1201 ●
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (I) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202- ●
38 BOLT; CLIP,HARNESS
(I) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202- ●
38 BOLT; CLIP,HARNESS
EXC. SMOOTHER-G(C1W) (G) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0710-1201 ●
38 BOLT; CLIP,HARNESS
EXC. SMOOTHER-G(C1W) (I) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1202- ●
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (B) M8X20 FLANGE 		0-28050-820-0 03 1 0710- ●
38 BOLT; CLIP,HARNESS
6WG1 TC-C(72L) (B) M8X20 FLANGE 		0-28050-820-0 01 1 0710- ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0710- ●
38 BOLT; CLIP,HARNESS
6WG1 TC-C(72L) MJX16P M/T(Y3Z) (E) M8X30 FLANGE 		0-28650-830-0 02 1 0710- ● ●
38 BOLT; CLIP,HARNESS
(H) M6X10 FLANGE 		0-28050-610-0 01 1 0710- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0906 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> (C) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0906 ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0906 ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0907- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0907- ● ●
38 BOLT; CLIP,HARNESS
6WG1 TC-C(72L) (C) M8X20 FLANGE 		0-28650-820-0 01 1 0907- ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 05 1 0710- ● ●
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (C) M8X20 FLANGE 		0-28650-820-0 05 1 0710- ●
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ●
38 BOLT; CLIP,HARNESS
6WG1 TC-C(72L) MJX16P M/T(Y3Z) (D) M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 01 1 0710- ●
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		1-09044-079-0 01 1 0710-1105 ● ●
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		0-28051-216-0 01 1 1106- ● ●
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X16 FLANGE 		0-28050-816-0 02 1 0710- ● ●
38 BOLT; CLIP,HARNESS
6WG1 TC-C(72L) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
64 SCREW; CLIP
SMOOTHER-G(C1W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0711 ●
64 SCREW; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0711 ●
64 SCREW; CLIP
SMOOTHER-G(C1W) (B) M10X20 FLANGE 		0-28751-020-0 01 1 0710- ●
64 SCREW; CLIP
(B) M10X20 FLANGE 		0-28751-020-0 01 1 0710- ●
86 BOLT; CLIP BRKT
FULLER M/T<X9B> M8X30 FLANGE 		0-28650-830-0 01 1 0710- ●
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0710- ●
86 BOLT; CLIP BRKT
6WG1 TC-C(72L) SMOOTHER-G(C1W) M8X30 FLANGE 		0-28650-830-0 02 1 0710- ●
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0710- ●
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0710-1007 ● ●
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008- ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0710- ● ●
139 BOLT; BRKT
6WF1 TC-C(1B8) (A) M8X30 FLANGE 		0-28650-830-0 06 1 0710- ●
139 BOLT; BRKT
6WG1 TC-C(72L) (A) M8X30 FLANGE 		0-28650-830-0 04 1 0710- ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 04 1 0710- ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 05 1 0710- ● ●
139 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0710-0904 ● ●
139 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ●
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0710- ● ●
150 BOLT; CLIP
(C) M8X16 FLANGE 		0-28050-816-0 03 1 0710-1208 ● ●
150 BOLT; CLIP
6WF1 TC-C(1B8) (C) M8X16 FLANGE 		0-28050-816-0 02 1 1209- ● ●
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X10 FLANGE 		0-28050-810-0 01 1 0710- ● ●
150 BOLT; CLIP
6WG1 TC-C(72L) (C) M8X16 FLANGE 		0-28050-816-0 03 1 1209- ● ●
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0710-1007 ● ●
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008- ● ●
242 BOLT; BRKT,HARNESS
EXC. FULLER M/T<X9B> (C) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0906 ●
242 BOLT; BRKT,HARNESS
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0906 ●
242 BOLT; BRKT,HARNESS
6WF1 TC-C(1B8) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0710- ●
242 BOLT; BRKT,HARNESS
6WG1 TC-C(72L) (D) M8X18 FLANGE 		0-28080-818-0 01 1 0710- ●
242 BOLT; BRKT,HARNESS
(D) M8X18 FLANGE 		0-28080-818-0 01 1 0710- ●
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0710- ● ●
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 04 1 0710- ● ●
313 BOLT; BRKT
6WF1 TC-C(1B8) (A) M8X20 FLANGE 		0-28050-820-0 01 1 0710- ●
313 BOLT; BRKT
6WG1 TC-C(72L) (A) M8X20 FLANGE 		0-28050-820-0 02 1 0710- ●
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 0710- ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 05 1 0710- ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 11 1 0710- ● ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0710- ● ●
358 BOLT; EARTH
(A) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0710- ● ●
358 BOLT; EARTH
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0710-1201 ● ●
358 BOLT; EARTH
(C) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202- ● ●
480 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0710- ● ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710- ● ●
528 BOLT; CONNECTOR
SMOOTHER-G(C1W) M8X12 FLANGE 		0-28050-812-0 01 1 0710- ●
528 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 01 1 0710- ●

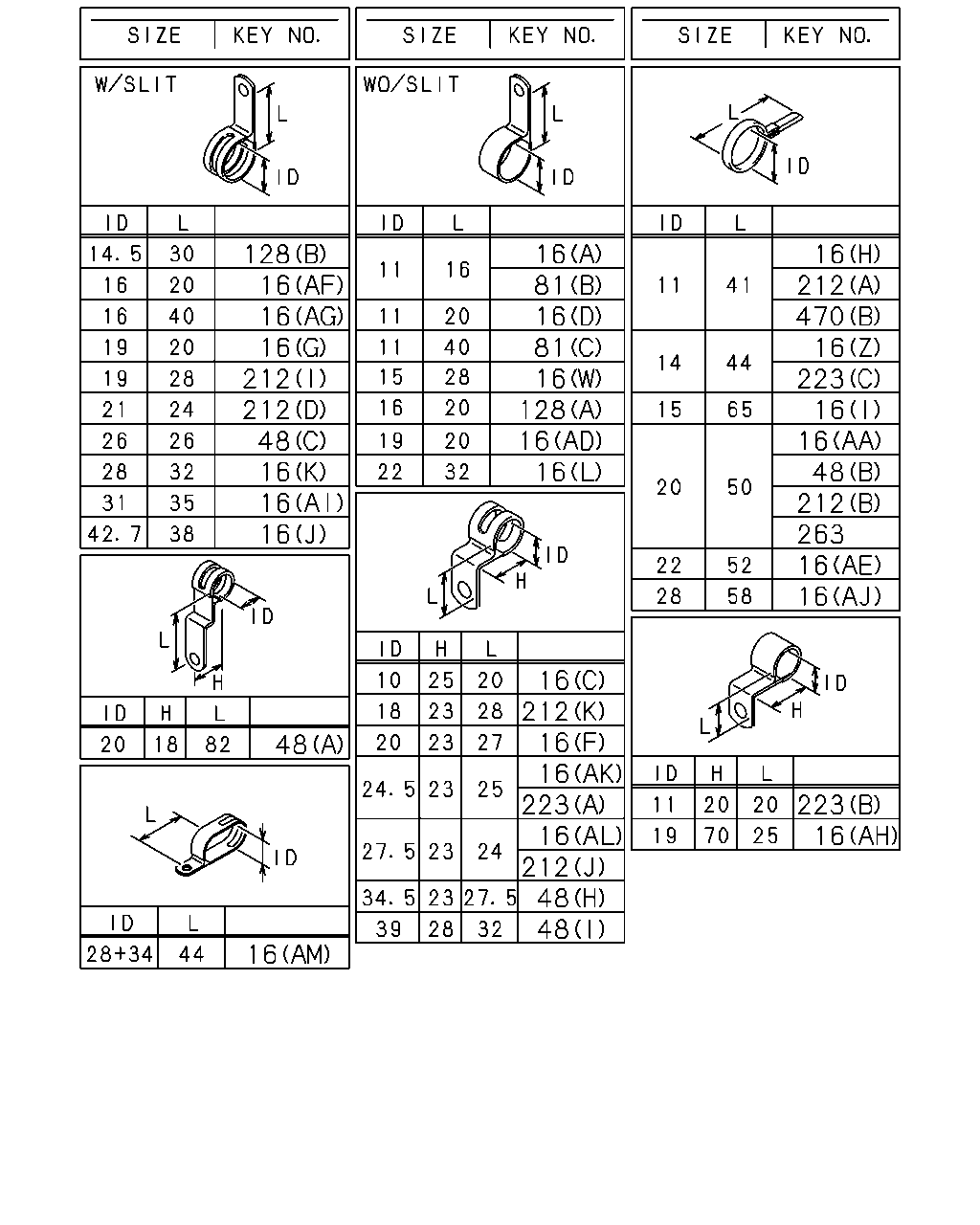

çizim 192802
14 16 67 81 104 111 171 194 206 212 305 369 14 16 48 102 104 121 171 194 212 369 380 16 14 194 212 14 16 48 194 212 16 33 51 142 162 194 369
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
SMOOTHER-G(C1W) (D) L=350 		1-09707-183-0 01 1 0710- ●
14 CLIP; BAND,HARNESS
(D) L=350 		1-09707-183-0 01 1 0710- ●
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 0710- ● ●
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=250 		5-09707-030-1 02 1 0710- ● ●
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) L=140 		5-09707-031-1 01 1 0710- ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209- ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 0801-0806 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (Z) ID=14 L=44 		9-09917-427-0 03 1 0801-0806 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (Z) ID=14 L=44 		9-09917-427-0 02 1 0807- ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 02 1 0807- ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0710- ● ●
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 05 1 0710- ●
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (O) L=180 		1-09707-162-1 01 1 0710- ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0710- ●
16 CLIP; HARNESS
FULLER M/T<X9B> (AF) ID=16 L=20 		0-95235-535-0 02 1 0710- ●
16 CLIP; HARNESS
FULLER M/T<X9B> (AG) ID=16 L=40 		0-95235-576-0 01 1 0710- ●
16 CLIP; HARNESS
FULLER M/T<X9B> (Q) OD=9 H=6 		1-09709-178-0 02 1 0710- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (Q) OD=9 H=6 		1-09709-178-0 07 1 0710- ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 07 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AD) ID=19 L=20 		0-95235-832-0 01 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AI) ID=31 L=35 		1-09700-329-1 01 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AJ) ID=28 L=58 		1-09700-400-0 03 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AK) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (J) ID=42.7 L=38 		1-09701-313-0 01 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (O) L=180 		1-09707-162-1 09 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Q) OD=9 H=6 		1-09709-178-0 01 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (U) L=250 		5-09707-030-1 02 1 0710- ●
16 CLIP; HARNESS
FULLER M/T<X9B> (U) L=250 		5-09707-030-1 02 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AQ) ID=21 L=47.5 		8-94178-108-0 02 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AH) ID=19 H=70 L=25 		8-97360-209-0 01 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AA) ID=20 L=50 		9-09917-430-0 06 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) FULLER M/T<X9B> (AC) ID=15 & 15 		1-09709-282-1 01 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710- ●
16 CLIP; HARNESS
(AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710- ●
16 CLIP; HARNESS
(AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (O) L=180 		1-09707-162-1 08 1 0710- ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 08 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AB) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0906 ●
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0906 ●
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 02 1 0907- ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AB) ID=5-12 L=14.5 		1-09987-221-0 02 1 0907- ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AN) OD=9 H=6 		8-97368-793-0 03 1 0710- ●
16 CLIP; HARNESS
(AN) OD=9 H=6 		8-97368-793-0 03 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AA) ID=20 L=50 		9-09917-430-0 07 1 0710- ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 07 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) MJX16P M/T(Y3Z) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0710-0711 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) MJX16P M/T(Y3Z) (AK) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0712- ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) SMOOTHER-G(C1W) (AM) ID=28+34 L=44 		1-09701-311-0 01 1 0710- ●
16 CLIP; HARNESS
(AM) ID=28+34 L=44 		1-09701-311-0 01 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) SMOOTHER-G(C1W) (O) L=180 		1-09707-162-1 04 1 0710- ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 04 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) SMOOTHER-G(C1W) (R) ID=24-30 L=18 		1-09709-297-0 01 1 0710- ●
16 CLIP; HARNESS
(R) ID=24-30 L=18 		1-09709-297-0 01 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) SMOOTHER-G(C1W) (AE) ID=22 L=52 		9-09917-431-0 01 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AE) ID=22 L=52 		9-09917-431-0 01 1 0710- ●
16 CLIP; HARNESS
(AE) ID=22 L=52 		9-09917-431-0 01 1 0710- ●
16 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 0710- ● ●
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 0710- ● ●
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 0710-1208 ● ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1209- ● ●
16 CLIP; HARNESS
(L) ID=22 L=32 		1-09700-126-1 01 1 0710- ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 0710- ● ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (H) ID=11 L=41 		1-09700-403-0 02 1 0710- ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 0710- ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 07 1 0710-0806 ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 09 1 0807- ● ●
16 CLIP; HARNESS
(I) ID=15 L=65 		1-09700-466-0 01 1 0710- ● ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		1-09700-679-1 01 1 0710- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 02 1 0710- ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0710-1002 ● ●
16 CLIP; HARNESS
(W) ID=15 L=28 		1-09701-216-0 01 1 0710- ● ●
16 CLIP; HARNESS
(W) ID=15 L=28 		1-09701-216-0 01 1 0710- ● ●
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0710- ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 02 1 0710- ● ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 02 1 0710- ● ●
16 CLIP; HARNESS
(P) W/SPONGE RUBBER 		1-09709-150-0 01 1 0710- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 05 1 0710- ● ●
16 CLIP; HARNESS
(N) ID=5-12 L=18 		1-09709-287-0 01 1 0710- ● ●
16 CLIP; HARNESS
(N) ID=5-12 L=18 		1-09709-287-0 02 1 0710- ● ●
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 02 1 0710-1002 ● ●
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 03 1 1003- ● ●
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0906 ● ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0906 ●
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0906 ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0907- ●
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0907- ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 0710- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (U) L=250 		5-09707-030-1 01 1 0710- ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 05 1 0710- ● ●
16 CLIP; HARNESS
(V) L=140 		5-09707-031-1 01 1 0710- ● ●
16 CLIP; HARNESS
(V) L=140 		5-09707-031-1 01 1 0710- ●
16 CLIP; HARNESS
(AN) OD=9 H=6 		8-97368-793-0 01 1 0710- ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 0710-0712 ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 0710-0712 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (Z) ID=14 L=44 		9-09917-427-0 03 1 0710-0712 ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 01 1 0801-0806 ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 01 1 0807-1002 ● ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=14 L=44 		9-09917-427-0 01 1 0807-1002 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (Z) ID=14 L=44 		9-09917-427-0 01 1 0807-1002 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=14 L=44 		9-09917-427-0 01 1 1003- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (Z) ID=14 L=44 		9-09917-427-0 01 1 1003- ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 01 1 0710- ● ●
16 CLIP; HARNESS
(E) OD=7 H=1.2 		8-94364-750-0 02 1 0710- ● ●
16 CLIP; HARNESS
(X) L=55 		8-94432-655-0 02 1 0710- ● ●
16 CLIP; HARNESS
(Y) L=175 		8-97110-167-0 02 1 0710- ● ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16 		0-95235-025-0 01 1 0710- ● ●
16 CLIP; HARNESS
HIGH ROOF<S2F> (B) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0710- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (C) ID=10 H=25 L=20 		1-09700-519-0 01 1 0710- ● ●
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (C) ID=10 H=25 L=20 		1-09700-519-0 01 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (G) ID=19 L=20 		0-95235-836-0 01 1 0710- ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AJ) ID=28 L=58 		1-09700-400-0 04 1 0710- ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (H) ID=11 L=41 		1-09700-403-0 04 1 0710- ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AQ) ID=21 L=47.5 		8-94178-108-0 04 1 0710- ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (S) L=36 		8-94224-891-1 01 1 0710- ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AN) OD=9 H=6 		8-97368-793-0 02 1 0710- ● ●
16 CLIP; HARNESS
(AP) ID=18-24 L=18 		1-09709-294-0 04 1 0710- ●
16 CLIP; HARNESS
(AP) ID=18-24 L=18 		1-09709-294-0 04 1 0710- ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 03 1 0710- ●
33 CLIP; HARNESS,VLV
SMOOTHER-G(C1W) L=180 		1-09707-162-1 01 1 0710- ●
33 CLIP; HARNESS,VLV
L=180 		1-09707-162-1 01 1 0710- ●
48 CLIP; FRAME HARNESS
(J) ID=5-12 L=18 		1-09709-287-0 01 1 0801- ● ●
48 CLIP; FRAME HARNESS
EXC. SMOOTHER-G(C1W) (C) ID=26 L=26 		1-09701-236-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
6WG1 TC-C(72L) SMOOTHER-G(C1W) (I) ID=39 H=28 L=32 		1-09701-263-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
(I) ID=39 H=28 L=32 		1-09701-263-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
(A) ID=20 H=18 L=82 		1-09701-288-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 15 1 0710-0805 ● ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 17 1 0806- ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 06 1 0710- ● ●
48 CLIP; FRAME HARNESS
(G) ID=13-18 L=18 		1-09709-291-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0712 ●
48 CLIP; FRAME HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 01 1 0801- ● ●
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 0710- ●
51 CLIP; COOLER CMPR
L=180 		1-09707-162-1 01 1 0710- ● ●
67 CLIP; BAND,HARNESS,CLU SW
MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) L=140 		5-09707-031-1 01 1 0710- ●
81 CLIP; HARNESS
6WF1 TC-C(1B8) (A) L=140 		5-09707-031-1 02 1 0710- ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16 		0-95235-025-0 01 1 0710- ● ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=11 L=40 		0-95235-075-0 01 1 0710- ● ●
102 CLIP; BAND
SMOOTHER-G(C1W) L=250 		5-09707-030-1 01 1 0710- ●
102 CLIP; BAND
L=250 		5-09707-030-1 01 1 0710- ●
104 CLIP; HEADLAMP HARNESS
(A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0710- ● ●
104 CLIP; HEADLAMP HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 04 1 0710- ● ●
104 CLIP; HEADLAMP HARNESS
(D) L=250 		5-09707-030-1 02 1 0710- ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=140 		5-09707-031-1 02 1 0710- ● ●
111 CLIP; STOP LAMP SW HARNESS
L=140 		5-09707-031-1 01 1 0710- ● ●
121 CLIP; FACIA HARNESS
L=250 		5-09707-030-1 02 1 0710- ● ●
142 CLIP; HARNESS,ENG
L=180 		1-09707-162-1 01 1 0710-1207 ● ●
142 CLIP; HARNESS,ENG
L=180 		8-98216-427-0 01 1 1208- ● ●
162 CLIP; SW HARNESS
6WF1 TC-C(1B8) (B) L=180 		1-09707-162-1 01 1 0710- ●
162 CLIP; SW HARNESS
6WG1 TC-C(72L) (A) OD=9 H=6 		1-09709-178-0 01 1 0710- ●
162 CLIP; SW HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0710- ●
171 CLIP; STARTER HARNESS
6WF1 TC-C(1B8) (A) L=250 		5-09707-030-1 02 1 0710- ●
171 CLIP; STARTER HARNESS
6WG1 TC-C(72L) (A) L=250 		5-09707-030-1 03 1 0710- ●
171 CLIP; STARTER HARNESS
(A) L=250 		5-09707-030-1 03 1 0710- ●
171 CLIP; STARTER HARNESS
(B) L=140 		5-09707-031-1 06 1 0710- ●
194 CLIP; BAND
SMOOTHER-G(C1W) (D) L=250 		5-09707-030-1 06 1 0710- ●
194 CLIP; BAND
(D) L=250 		5-09707-030-1 06 1 0710- ●
194 CLIP; BAND
6WF1 TC-C(1B8) (B) L=350 		1-09707-183-0 01 1 0710- ●
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 0710- ● ●
194 CLIP; BAND
(C) L=180 		1-09707-162-1 01 1 0710- ● ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 03 1 0710-1002 ● ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 04 1 1003-1112 ● ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 03 1 1201-1202 ● ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 04 1 1203- ● ●
194 CLIP; BAND
(E) L=140 		5-09707-031-1 01 1 0710- ● ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0710- ● ●
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (K) ID=18 H=23 L=28 		1-09700-860-0 01 1 0710- ●
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (G) L=350 		1-09707-183-0 01 1 0710- ●
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (D) ID=21 L=24 		8-94176-807-1 01 1 0710- ●
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (B) ID=20 L=50 		9-09917-430-0 02 1 0710- ●
212 CLIP; HORN HARNESS
6WG1 TC-C(72L) (I) ID=19 L=28 		0-95235-856-0 01 1 0710- ●
212 CLIP; HORN HARNESS
(I) ID=19 L=28 		0-95235-856-0 01 1 0710- ●
212 CLIP; HORN HARNESS
6WG1 TC-C(72L) (H) ID=13-18 L=14.5 		1-09709-290-0 01 1 0710- ●
212 CLIP; HORN HARNESS
(H) ID=13-18 L=14.5 		1-09709-290-0 01 1 0710- ●
212 CLIP; HORN HARNESS
6WG1 TC-C(72L) SMOOTHER-G(C1W) (J) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0710- ●
212 CLIP; HORN HARNESS
(J) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0710- ●
212 CLIP; HORN HARNESS
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (K) ID=18 H=23 L=28 		1-09700-860-0 03 1 0710- ●
212 CLIP; HORN HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0710- ● ●
212 CLIP; HORN HARNESS
(C) L=300 		1-09707-001-1 01 1 0710- ● ●
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 02 1 0710- ● ●
212 CLIP; HORN HARNESS
(E) L=250 		5-09707-030-1 02 1 0710- ● ●
212 CLIP; HORN HARNESS
(F) L=140 		5-09707-031-1 01 1 0710-0904 ● ●
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (F) L=140 		5-09707-031-1 01 1 0905- ●
305 CLIP; ENG HARNESS
6WF1 TC-C(1B8) L=140 		5-09707-031-1 01 1 0710- ●
305 CLIP; ENG HARNESS
6WG1 TC-C(72L) L=140 		5-09707-031-1 03 1 0710- ●
305 CLIP; ENG HARNESS
L=140 		5-09707-031-1 03 1 0710- ●
369 CLIP; BAND EDS HARNESS
(C) L=180 		1-09707-162-1 01 1 0907- ● ●
369 CLIP; BAND EDS HARNESS
6WF1 TC-C(1B8) (A) L=250 		5-09707-030-1 02 1 0710- ●
369 CLIP; BAND EDS HARNESS
6WG1 TC-C(72L) (B) L=140 		5-09707-031-1 02 1 0710- ●
369 CLIP; BAND EDS HARNESS
(B) L=140 		5-09707-031-1 02 1 0710- ●
380 CLIP; EARTH HARNESS
L=250 		5-09707-030-1 01 1 0710- ● ●
çizim 192803
128 16 16 16 212 212 48 16 16 16 48 16 16 212 16 16 223 16 212 48 48 223 16 16 16 263 212 48 16 16 223 16 470 212 16 16 81 16 81 16 128 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
6WG1 TC-C(72L) (D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209- ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 0801-0806 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (Z) ID=14 L=44 		9-09917-427-0 03 1 0801-0806 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (Z) ID=14 L=44 		9-09917-427-0 02 1 0807- ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 02 1 0807- ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0710- ● ●
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 05 1 0710- ●
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (O) L=180 		1-09707-162-1 01 1 0710- ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0710- ●
16 CLIP; HARNESS
FULLER M/T<X9B> (AF) ID=16 L=20 		0-95235-535-0 02 1 0710- ●
16 CLIP; HARNESS
FULLER M/T<X9B> (AG) ID=16 L=40 		0-95235-576-0 01 1 0710- ●
16 CLIP; HARNESS
FULLER M/T<X9B> (Q) OD=9 H=6 		1-09709-178-0 02 1 0710- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (Q) OD=9 H=6 		1-09709-178-0 07 1 0710- ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 07 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AD) ID=19 L=20 		0-95235-832-0 01 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AI) ID=31 L=35 		1-09700-329-1 01 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AJ) ID=28 L=58 		1-09700-400-0 03 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AK) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (J) ID=42.7 L=38 		1-09701-313-0 01 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (O) L=180 		1-09707-162-1 09 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Q) OD=9 H=6 		1-09709-178-0 01 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (U) L=250 		5-09707-030-1 02 1 0710- ●
16 CLIP; HARNESS
FULLER M/T<X9B> (U) L=250 		5-09707-030-1 02 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AQ) ID=21 L=47.5 		8-94178-108-0 02 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AH) ID=19 H=70 L=25 		8-97360-209-0 01 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AA) ID=20 L=50 		9-09917-430-0 06 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) FULLER M/T<X9B> (AC) ID=15 & 15 		1-09709-282-1 01 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710- ●
16 CLIP; HARNESS
(AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710- ●
16 CLIP; HARNESS
(AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (O) L=180 		1-09707-162-1 08 1 0710- ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 08 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AB) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0906 ●
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0906 ●
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 02 1 0907- ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AB) ID=5-12 L=14.5 		1-09987-221-0 02 1 0907- ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AN) OD=9 H=6 		8-97368-793-0 03 1 0710- ●
16 CLIP; HARNESS
(AN) OD=9 H=6 		8-97368-793-0 03 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AA) ID=20 L=50 		9-09917-430-0 07 1 0710- ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 07 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) MJX16P M/T(Y3Z) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0710-0711 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) MJX16P M/T(Y3Z) (AK) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0712- ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) SMOOTHER-G(C1W) (AM) ID=28+34 L=44 		1-09701-311-0 01 1 0710- ●
16 CLIP; HARNESS
(AM) ID=28+34 L=44 		1-09701-311-0 01 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) SMOOTHER-G(C1W) (O) L=180 		1-09707-162-1 04 1 0710- ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 04 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) SMOOTHER-G(C1W) (R) ID=24-30 L=18 		1-09709-297-0 01 1 0710- ●
16 CLIP; HARNESS
(R) ID=24-30 L=18 		1-09709-297-0 01 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) SMOOTHER-G(C1W) (AE) ID=22 L=52 		9-09917-431-0 01 1 0710- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AE) ID=22 L=52 		9-09917-431-0 01 1 0710- ●
16 CLIP; HARNESS
(AE) ID=22 L=52 		9-09917-431-0 01 1 0710- ●
16 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 0710- ● ●
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 0710- ● ●
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 0710-1208 ● ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1209- ● ●
16 CLIP; HARNESS
(L) ID=22 L=32 		1-09700-126-1 01 1 0710- ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 0710- ● ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (H) ID=11 L=41 		1-09700-403-0 02 1 0710- ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 0710- ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 07 1 0710-0806 ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 09 1 0807- ● ●
16 CLIP; HARNESS
(I) ID=15 L=65 		1-09700-466-0 01 1 0710- ● ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		1-09700-679-1 01 1 0710- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 02 1 0710- ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0710-1002 ● ●
16 CLIP; HARNESS
(W) ID=15 L=28 		1-09701-216-0 01 1 0710- ● ●
16 CLIP; HARNESS
(W) ID=15 L=28 		1-09701-216-0 01 1 0710- ● ●
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0710- ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 02 1 0710- ● ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 02 1 0710- ● ●
16 CLIP; HARNESS
(P) W/SPONGE RUBBER 		1-09709-150-0 01 1 0710- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 05 1 0710- ● ●
16 CLIP; HARNESS
(N) ID=5-12 L=18 		1-09709-287-0 01 1 0710- ● ●
16 CLIP; HARNESS
(N) ID=5-12 L=18 		1-09709-287-0 02 1 0710- ● ●
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 02 1 0710-1002 ● ●
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 03 1 1003- ● ●
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0906 ● ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0906 ●
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0906 ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0907- ●
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0907- ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 0710- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (U) L=250 		5-09707-030-1 01 1 0710- ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 05 1 0710- ● ●
16 CLIP; HARNESS
(V) L=140 		5-09707-031-1 01 1 0710- ● ●
16 CLIP; HARNESS
(V) L=140 		5-09707-031-1 01 1 0710- ●
16 CLIP; HARNESS
(AN) OD=9 H=6 		8-97368-793-0 01 1 0710- ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 0710-0712 ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 0710-0712 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (Z) ID=14 L=44 		9-09917-427-0 03 1 0710-0712 ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 01 1 0801-0806 ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 01 1 0807-1002 ● ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=14 L=44 		9-09917-427-0 01 1 0807-1002 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (Z) ID=14 L=44 		9-09917-427-0 01 1 0807-1002 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=14 L=44 		9-09917-427-0 01 1 1003- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (Z) ID=14 L=44 		9-09917-427-0 01 1 1003- ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 01 1 0710- ● ●
16 CLIP; HARNESS
(E) OD=7 H=1.2 		8-94364-750-0 02 1 0710- ● ●
16 CLIP; HARNESS
(X) L=55 		8-94432-655-0 02 1 0710- ● ●
16 CLIP; HARNESS
(Y) L=175 		8-97110-167-0 02 1 0710- ● ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16 		0-95235-025-0 01 1 0710- ● ●
16 CLIP; HARNESS
HIGH ROOF<S2F> (B) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0710- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (C) ID=10 H=25 L=20 		1-09700-519-0 01 1 0710- ● ●
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (C) ID=10 H=25 L=20 		1-09700-519-0 01 1 0710- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (G) ID=19 L=20 		0-95235-836-0 01 1 0710- ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AJ) ID=28 L=58 		1-09700-400-0 04 1 0710- ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (H) ID=11 L=41 		1-09700-403-0 04 1 0710- ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AQ) ID=21 L=47.5 		8-94178-108-0 04 1 0710- ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (S) L=36 		8-94224-891-1 01 1 0710- ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AN) OD=9 H=6 		8-97368-793-0 02 1 0710- ● ●
16 CLIP; HARNESS
(AP) ID=18-24 L=18 		1-09709-294-0 04 1 0710- ●
16 CLIP; HARNESS
(AP) ID=18-24 L=18 		1-09709-294-0 04 1 0710- ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 03 1 0710- ●
48 CLIP; FRAME HARNESS
(J) ID=5-12 L=18 		1-09709-287-0 01 1 0801- ● ●
48 CLIP; FRAME HARNESS
EXC. SMOOTHER-G(C1W) (C) ID=26 L=26 		1-09701-236-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
6WG1 TC-C(72L) SMOOTHER-G(C1W) (I) ID=39 H=28 L=32 		1-09701-263-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
(I) ID=39 H=28 L=32 		1-09701-263-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
(A) ID=20 H=18 L=82 		1-09701-288-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 15 1 0710-0805 ● ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 17 1 0806- ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 06 1 0710- ● ●
48 CLIP; FRAME HARNESS
(G) ID=13-18 L=18 		1-09709-291-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0712 ●
48 CLIP; FRAME HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 01 1 0801- ● ●
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 0710- ●
81 CLIP; HARNESS
6WF1 TC-C(1B8) (A) L=140 		5-09707-031-1 02 1 0710- ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16 		0-95235-025-0 01 1 0710- ● ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=11 L=40 		0-95235-075-0 01 1 0710- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0710- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0710- ● ●
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (K) ID=18 H=23 L=28 		1-09700-860-0 01 1 0710- ●
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (G) L=350 		1-09707-183-0 01 1 0710- ●
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (D) ID=21 L=24 		8-94176-807-1 01 1 0710- ●
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (B) ID=20 L=50 		9-09917-430-0 02 1 0710- ●
212 CLIP; HORN HARNESS
6WG1 TC-C(72L) (I) ID=19 L=28 		0-95235-856-0 01 1 0710- ●
212 CLIP; HORN HARNESS
(I) ID=19 L=28 		0-95235-856-0 01 1 0710- ●
212 CLIP; HORN HARNESS
6WG1 TC-C(72L) (H) ID=13-18 L=14.5 		1-09709-290-0 01 1 0710- ●
212 CLIP; HORN HARNESS
(H) ID=13-18 L=14.5 		1-09709-290-0 01 1 0710- ●
212 CLIP; HORN HARNESS
6WG1 TC-C(72L) SMOOTHER-G(C1W) (J) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0710- ●
212 CLIP; HORN HARNESS
(J) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0710- ●
212 CLIP; HORN HARNESS
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (K) ID=18 H=23 L=28 		1-09700-860-0 03 1 0710- ●
212 CLIP; HORN HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0710- ● ●
212 CLIP; HORN HARNESS
(C) L=300 		1-09707-001-1 01 1 0710- ● ●
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 02 1 0710- ● ●
212 CLIP; HORN HARNESS
(E) L=250 		5-09707-030-1 02 1 0710- ● ●
212 CLIP; HORN HARNESS
(F) L=140 		5-09707-031-1 01 1 0710-0904 ● ●
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (F) L=140 		5-09707-031-1 01 1 0905- ●
223 CLIP; AIR TANK HARNESS
6WF1 TC-C(1B8) (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0710- ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 03 1 0710- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 0710- ● ●
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 02 1 0710- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0710- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
