◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11111 - CYZ NZ EURO3/JAPAN NEW SHORT TERM 2004 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#67203) — 277 parça

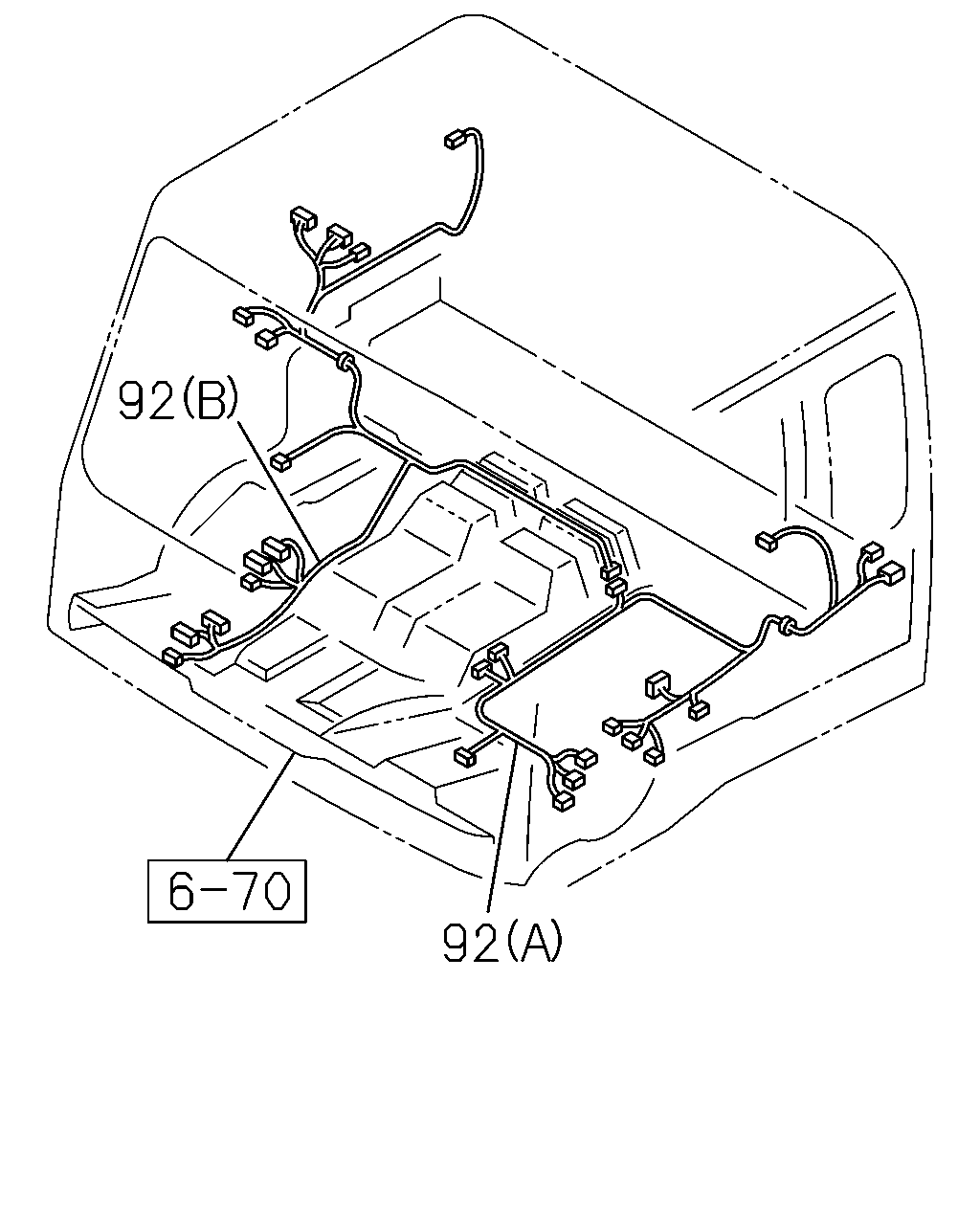

çizim 136387
92 92
BalonParca AdiParca NoAdetTipApplied Date A B
92 HARNESS; FLOOR
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A) 		1-82662-901-0 01 1 0710-0802 ●
92 HARNESS; FLOOR
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A) 		8-97625-969-0 01 1 0803- ●
92 HARNESS; FLOOR
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (B) 		8-97622-970-1 01 1 0710- ●
92 HARNESS; FLOOR
6WG1 TC-C(72L) SMOOTHER-G(C1W) (A) 		8-97619-669-1 01 1 0710-1210 ●
92 HARNESS; FLOOR
(A) 		8-97619-669-1 01 1 0710-1210 ●
92 HARNESS; FLOOR
6WG1 TC-C(72L) SMOOTHER-G(C1W) (A) 		8-98229-074-0 01 1 1211- ●
92 HARNESS; FLOOR
(A) 		8-98229-074-0 01 1 1211- ●
92 HARNESS; FLOOR
6WG1 TC-C(72L) SMOOTHER-G(C1W) (B) 		8-97622-972-1 01 1 0710- ●
92 HARNESS; FLOOR
(B) 		8-97622-972-1 01 1 0710- ●
92 HARNESS; FLOOR
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (A) 		8-97619-667-1 01 1 0710- ●
92 HARNESS; FLOOR
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (B) 		8-97622-971-1 01 1 0710-1110 ●
92 HARNESS; FLOOR
6WG1 TC-C(72L) AIR BAG(TFQ) EXC. SMOOTHER-G(C1W) (B) 		8-97622-971-1 01 1 1111- ●

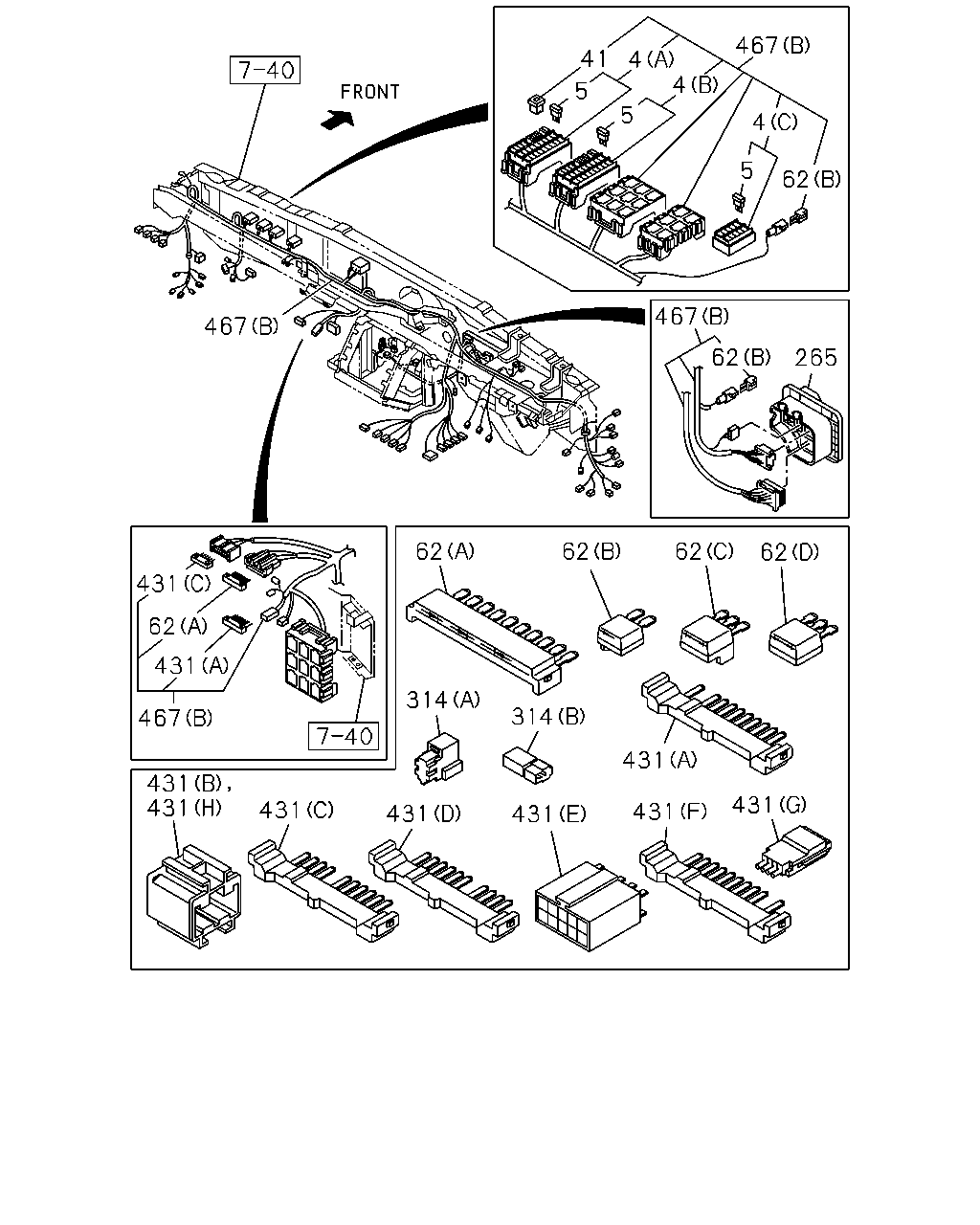

çizim 136567
41 5 4 467 4 5 4 5 62 467 265 62 62 62 62 62 467 431 62 431 467 431 431 431 431 314 314 431 431 431 431
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOX ASM; FUSE,HARNESS
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A) 7.5AX23 10AX4 		1-82510-479-0 01 1 0710- ●
4 BOX ASM; FUSE,HARNESS
6WG1 TC-C(72L) (A) 7.5AX22 10AX4 		1-82510-455-0 01 1 0710- ● ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX25 25AX2 		1-82510-602-0 01 1 0710- ● ●
4 BOX ASM; FUSE,HARNESS
(C) 15AX3 		1-82510-638-0 01 1 0710- ● ●
5 FUSE; FACIA HARNESS
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) 7.5A BROWN 		8-94159-007-0 23 1 0710- ●
5 FUSE; FACIA HARNESS
10A RED 		5-82516-002-0 04 1 0710- ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 28 1 0710- ● ●
5 FUSE; FACIA HARNESS
25A CLEAR 		5-82516-005-0 02 1 0710- ● ●
5 FUSE; FACIA HARNESS
6WG1 TC-C(72L) 7.5A BROWN 		8-94159-007-0 22 1 0710- ● ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0710- ● ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 AR 1 0710- ● ●
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 AR 1 0710- ● ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0710- ● ●
62 DIODE; HARNESS
(D) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0710- ● ●
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 0710- ● ●
314 RESISTOR; HARNESS
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A) BLUE 		1-82691-204-0 02 1 0710- ●
314 RESISTOR; HARNESS
6WG1 TC-C(72L) (B) RESISTANCE NO.5 2K OHM 		1-81515-025-0 01 1 0710- ● ●
431 CONNECTOR; JOINT
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (H) 3P & 3P 		1-82698-170-0 04 1 0710- ●
431 CONNECTOR; JOINT
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (C) 10P BLUE 		1-82699-598-0 09 1 0710- ●
431 CONNECTOR; JOINT
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (D) 10P GREEN 		1-82699-599-0 04 1 0710- ●
431 CONNECTOR; JOINT
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A) 10P BROWN 		1-82699-601-0 13 1 0710- ●
431 CONNECTOR; JOINT
6WG1 TC-C(72L) (B) 6P 		1-82691-206-0 01 1 0710- ● ●
431 CONNECTOR; JOINT
6WG1 TC-C(72L) (F) 10P GREEN 		1-82698-579-0 03 1 0710- ● ●
431 CONNECTOR; JOINT
6WG1 TC-C(72L) (C) 10P BLUE 		1-82699-598-0 13 1 0710- ● ●
431 CONNECTOR; JOINT
6WG1 TC-C(72L) (D) 10P GREEN 		1-82699-599-0 03 1 0710- ● ●
431 CONNECTOR; JOINT
6WG1 TC-C(72L) (A) 10P BROWN 		1-82699-601-0 08 1 0710- ● ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 01 1 0710- ● ●
431 CONNECTOR; JOINT
6WG1 TC-C(72L) (G) 4P 		8-97376-776-0 13 1 0710- ● ●
467 HARNESS; FACIA
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A) 		1-82662-793-0 01 1 0710- ●
467 HARNESS; FACIA
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A) 		1-82662-768-0 01 1 0710- ●
467 HARNESS; FACIA
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (B) 		8-97622-964-1 01 1 0710- ●
467 HARNESS; FACIA
6WG1 TC-C(72L) SMOOTHER-G(C1W) (B) 		8-97622-965-3 01 1 0710-0907 ●
467 HARNESS; FACIA
(B) 		8-97622-965-3 01 1 0710-0907 ●
467 HARNESS; FACIA
6WG1 TC-C(72L) SMOOTHER-G(C1W) (B) 		8-97634-129-0 01 1 0908- ●
467 HARNESS; FACIA
(B) 		8-97634-129-0 01 1 0908- ●
467 HARNESS; FACIA
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (B) 		8-97622-967-3 01 1 0710-0907 ●
467 HARNESS; FACIA
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (B) 		8-97634-131-0 01 1 0908- ●
467 HARNESS; FACIA
6WG1 TC-C(72L) (A) 		8-97618-829-2 01 1 0710- ● ●

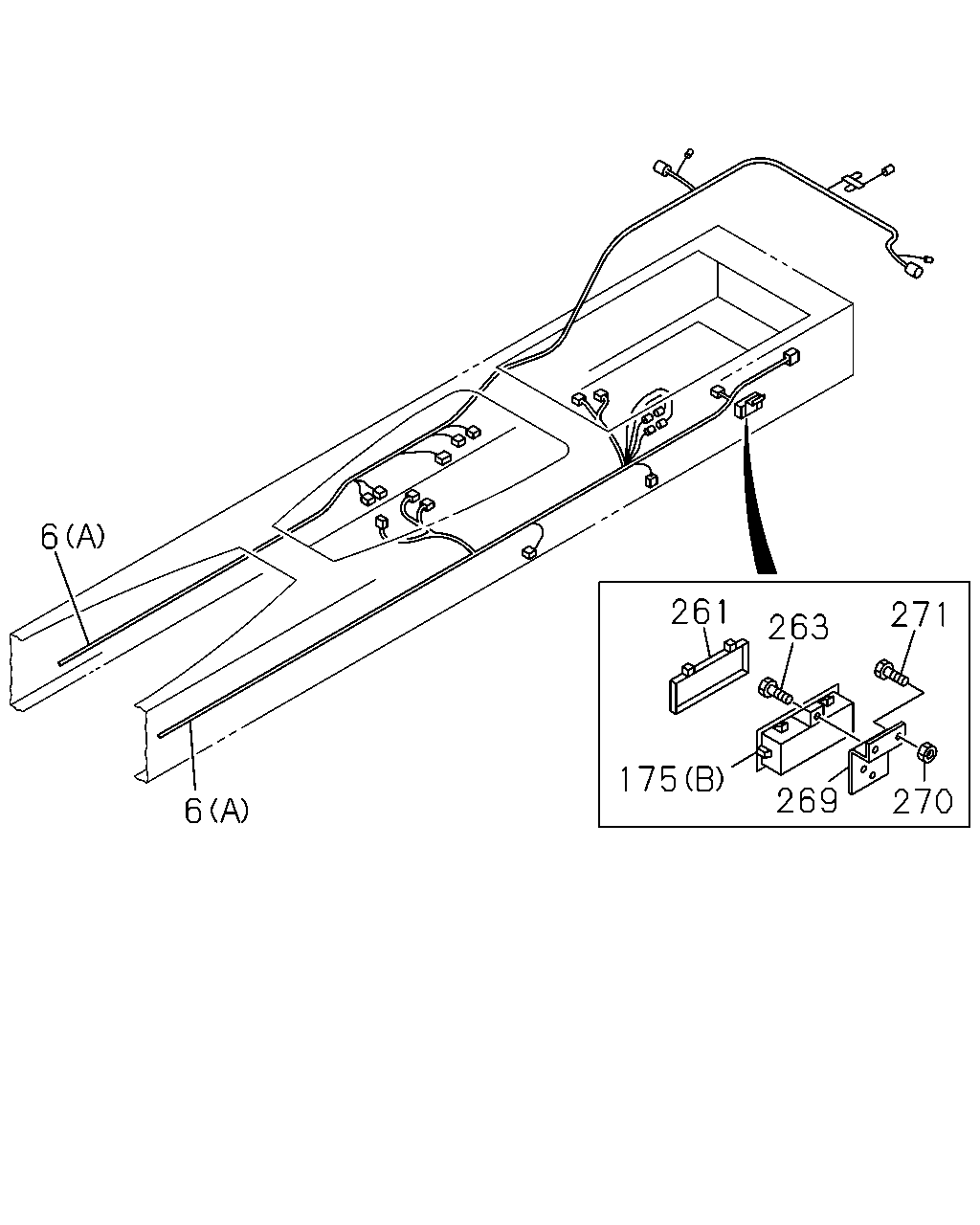

çizim 136646
6 6 261 175 263 271 269 270
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
6WF1 TC-C(1B8) (A) 		1-82678-188-2 01 1 0710- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (B) 		1-82678-117-1 01 1 0710-0806 ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (B) 		8-98122-932-0 01 1 0807- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) EXC. FULL FLOATING CAB(W16) (B) 		1-82678-193-0 01 1 0710- ●
6 HARNESS; FRAME
6WG1 TC-C(72L) FULL FLOATING CAB(W16) (B) 		8-97607-307-1 01 1 0710-0806 ●
6 HARNESS; FRAME
6WG1 TC-C(72L) (B) 		8-97607-307-1 01 1 0710-0806 ●
6 HARNESS; FRAME
6WG1 TC-C(72L) FULL FLOATING CAB(W16) (B) 		8-98122-928-0 01 1 0807- ●
6 HARNESS; FRAME
6WG1 TC-C(72L) (B) 		8-98122-928-0 01 1 0807- ●
6 HARNESS; FRAME
6WG1 TC-C(72L) SMOOTHER-G(C1W) (A) 		8-97610-483-3 01 1 0710- ●
6 HARNESS; FRAME
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (A) 		8-97622-976-1 01 1 0710- ●
6 HARNESS; FRAME
(A) 		8-97610-482-2 01 1 0710- ●
175 BOX; CONNECTOR
SMOOTHER-G(C1W) (A) 		1-82569-435-1 01 1 0710- ●
175 BOX; CONNECTOR
(A) 		1-82569-435-1 01 1 0710- ●
175 BOX; CONNECTOR
(B) 		1-82699-467-0 01 1 0710- ● ●
261 COVER; CONNECTOR BOX 1-82699-320-0 01 1 0710- ● ●
263 BOLT; CONNECTOR BOX
M8X30 W/LK&PL WASHER 		8-94279-144-0 01 1 0710- ● ●
269 BRACKET; CONNECTOR BOX 1-82698-424-0 01 1 0710- ● ●
270 NUT; BRKT,CONNECTOR BOX
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
271 BOLT; BRKT CONNECTOR BOX
M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ●

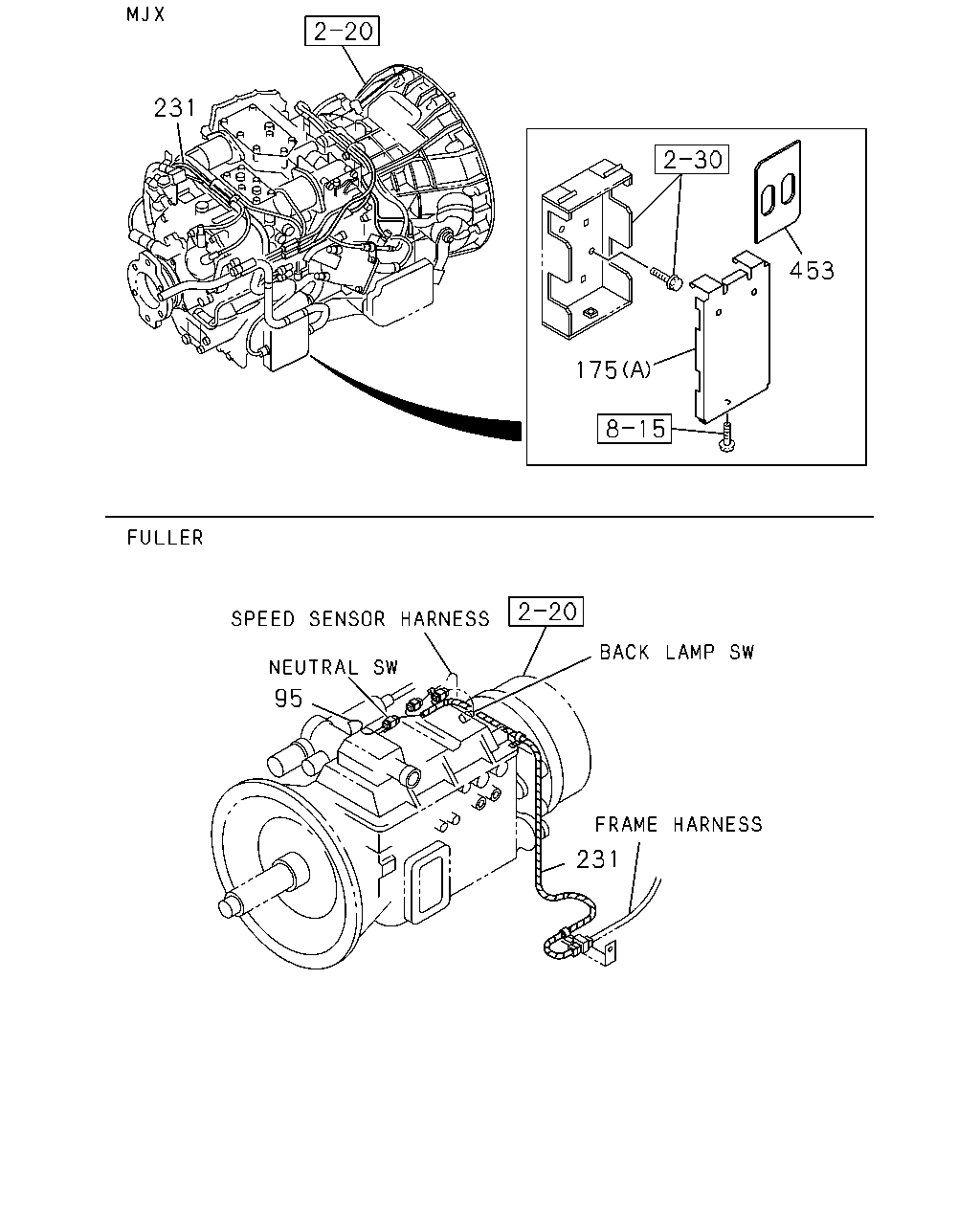

çizim 136696
231 175 453 95 231
BalonParca AdiParca NoAdetTipApplied Date A B
95 HARNESS; NEUTRAL SW
TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-82639-626-0 01 1 0710- ●
175 BOX; CONNECTOR
SMOOTHER-G(C1W) (A) 		1-82569-435-1 01 1 0710- ●
175 BOX; CONNECTOR
(A) 		1-82569-435-1 01 1 0710- ●
175 BOX; CONNECTOR
(B) 		1-82699-467-0 01 1 0710- ● ●
231 HARNESS; TRANS
6WG1 TC-C(72L) MJX16P M/T(Y3Z) 		8-97624-216-0 01 1 0710-0802 ● ●
231 HARNESS; TRANS
6WG1 TC-C(72L) MJX16P M/T(Y3Z) 		8-97627-039-1 01 1 0803- ● ●
231 HARNESS; TRANS
6WF1 TC-C(1B8) FULLER M/T<X9B> 		1-82677-185-0 01 1 0710- ●
231 HARNESS; TRANS
6WG1 TC-C(72L) FULLER M/T<X9B> 		8-97620-988-0 01 1 0710- ●
453 PROTECTOR; HARNESS 8-98213-847-1 01 1 1207- ● ●

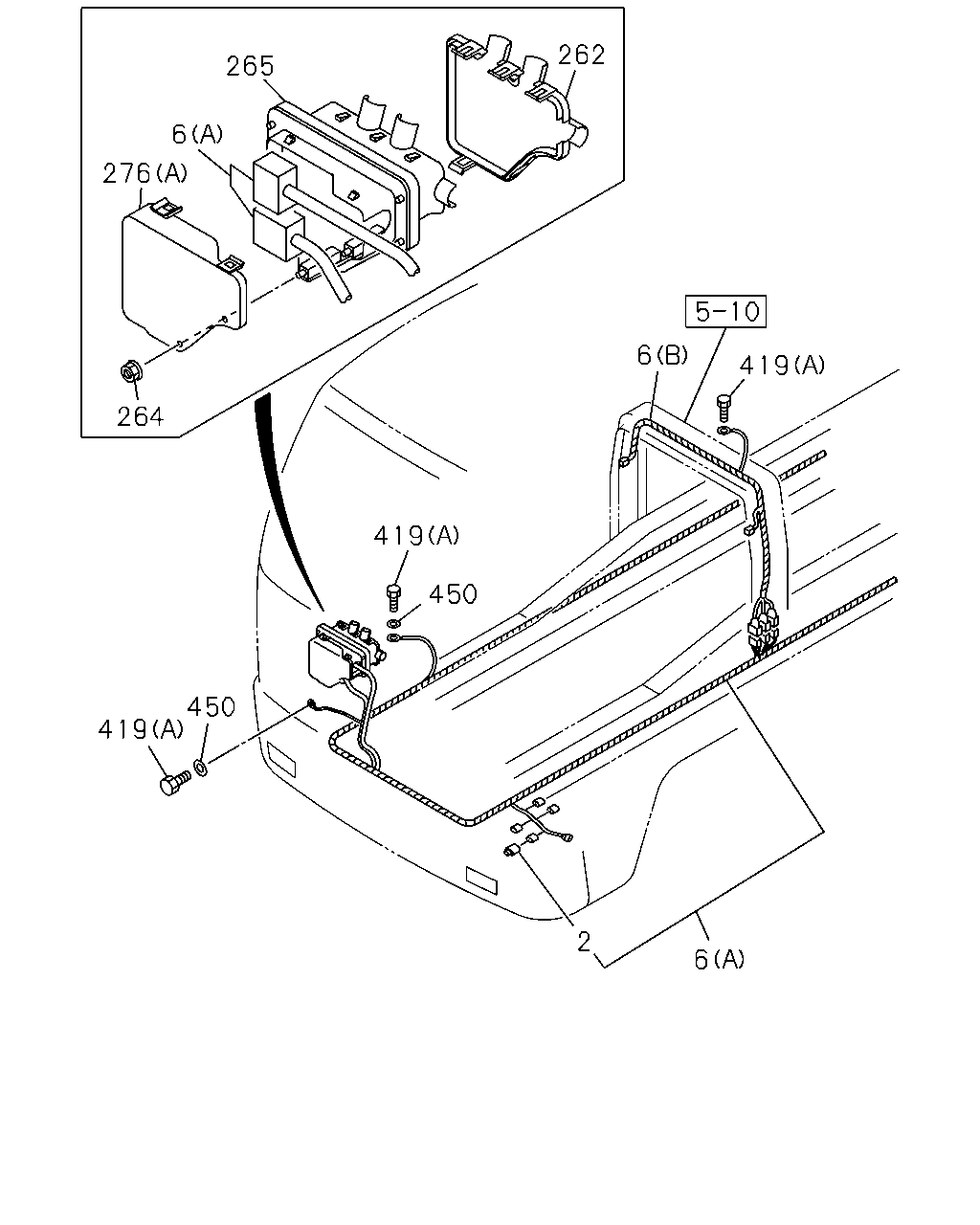

çizim 136916
265 6 276 264 419 450 419 450 6 419 6 2 262
BalonParca AdiParca NoAdetTipApplied Date A B
2 DIODE; CABLE HARNESS
GRAY 2P-1.3A 		1-81514-015-0 AR 1 0710- ● ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) (A) 		1-82678-188-2 01 1 0710- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (B) 		1-82678-117-1 01 1 0710-0806 ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (B) 		8-98122-932-0 01 1 0807- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) EXC. FULL FLOATING CAB(W16) (B) 		1-82678-193-0 01 1 0710- ●
6 HARNESS; FRAME
6WG1 TC-C(72L) FULL FLOATING CAB(W16) (B) 		8-97607-307-1 01 1 0710-0806 ●
6 HARNESS; FRAME
6WG1 TC-C(72L) (B) 		8-97607-307-1 01 1 0710-0806 ●
6 HARNESS; FRAME
6WG1 TC-C(72L) FULL FLOATING CAB(W16) (B) 		8-98122-928-0 01 1 0807- ●
6 HARNESS; FRAME
6WG1 TC-C(72L) (B) 		8-98122-928-0 01 1 0807- ●
6 HARNESS; FRAME
6WG1 TC-C(72L) SMOOTHER-G(C1W) (A) 		8-97610-483-3 01 1 0710- ●
6 HARNESS; FRAME
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (A) 		8-97622-976-1 01 1 0710- ●
6 HARNESS; FRAME
(A) 		8-97610-482-2 01 1 0710- ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-582-1 01 1 0710- ● ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0710- ● ●
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 0710- ● ●
276 COVER; BOX,FRAME HARNESS
6WF1 TC-C(1B8) (B) 		1-82699-475-2 01 1 0710- ●
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-585-2 01 1 0710- ● ●
419 BOLT; CAB EARTH
6WF1 TC-C(1B8) (A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0810-1201 ●
419 BOLT; CAB EARTH
6WF1 TC-C(1B8) (A) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202- ●
419 BOLT; CAB EARTH
6WF1 TC-C(1B8) (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 05 1 0710-0809 ●
419 BOLT; CAB EARTH
6WF1 TC-C(1B8) (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0810-1201 ●
419 BOLT; CAB EARTH
(A) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202- ● ●
419 BOLT; CAB EARTH
6WG1 TC-C(72L) (A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0710-0809 ●
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0710-0809 ●
419 BOLT; CAB EARTH
6WG1 TC-C(72L) (A) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0810-1201 ●
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0810-1201 ●
419 BOLT; CAB EARTH
6WG1 TC-C(72L) (A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202- ●
419 BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202- ●
419 BOLT; CAB EARTH
6WG1 TC-C(72L) (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0710-0809 ●
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0710-0809 ●
419 BOLT; CAB EARTH
6WG1 TC-C(72L) (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0810-1201 ●
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0810-1201 ●
419 BOLT; CAB EARTH
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0710-1201 ● ●
419 BOLT; CAB EARTH
(B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202- ● ●
450 WASHER; PL,CAB EARTH
6WF1 TC-C(1B8) ID=8.4 		1-09503-264-0 03 1 0710- ●
450 WASHER; PL,CAB EARTH
6WG1 TC-C(72L) ID=8.4 		1-09503-264-0 04 1 0710- ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 04 1 0710- ●
çizim 137030
467 467 14
BalonParca AdiParca NoAdetTipApplied Date A B
14 HARNESS; HEADLAMP 1-82677-628-3 02 1 0710- ● ●
467 HARNESS; FACIA
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A) 		1-82662-793-0 01 1 0710- ●
467 HARNESS; FACIA
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A) 		1-82662-768-0 01 1 0710- ●
467 HARNESS; FACIA
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (B) 		8-97622-964-1 01 1 0710- ●
467 HARNESS; FACIA
6WG1 TC-C(72L) SMOOTHER-G(C1W) (B) 		8-97622-965-3 01 1 0710-0907 ●
467 HARNESS; FACIA
(B) 		8-97622-965-3 01 1 0710-0907 ●
467 HARNESS; FACIA
6WG1 TC-C(72L) SMOOTHER-G(C1W) (B) 		8-97634-129-0 01 1 0908- ●
467 HARNESS; FACIA
(B) 		8-97634-129-0 01 1 0908- ●
467 HARNESS; FACIA
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (B) 		8-97622-967-3 01 1 0710-0907 ●
467 HARNESS; FACIA
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (B) 		8-97634-131-0 01 1 0908- ●
467 HARNESS; FACIA
6WG1 TC-C(72L) (A) 		8-97618-829-2 01 1 0710- ● ●

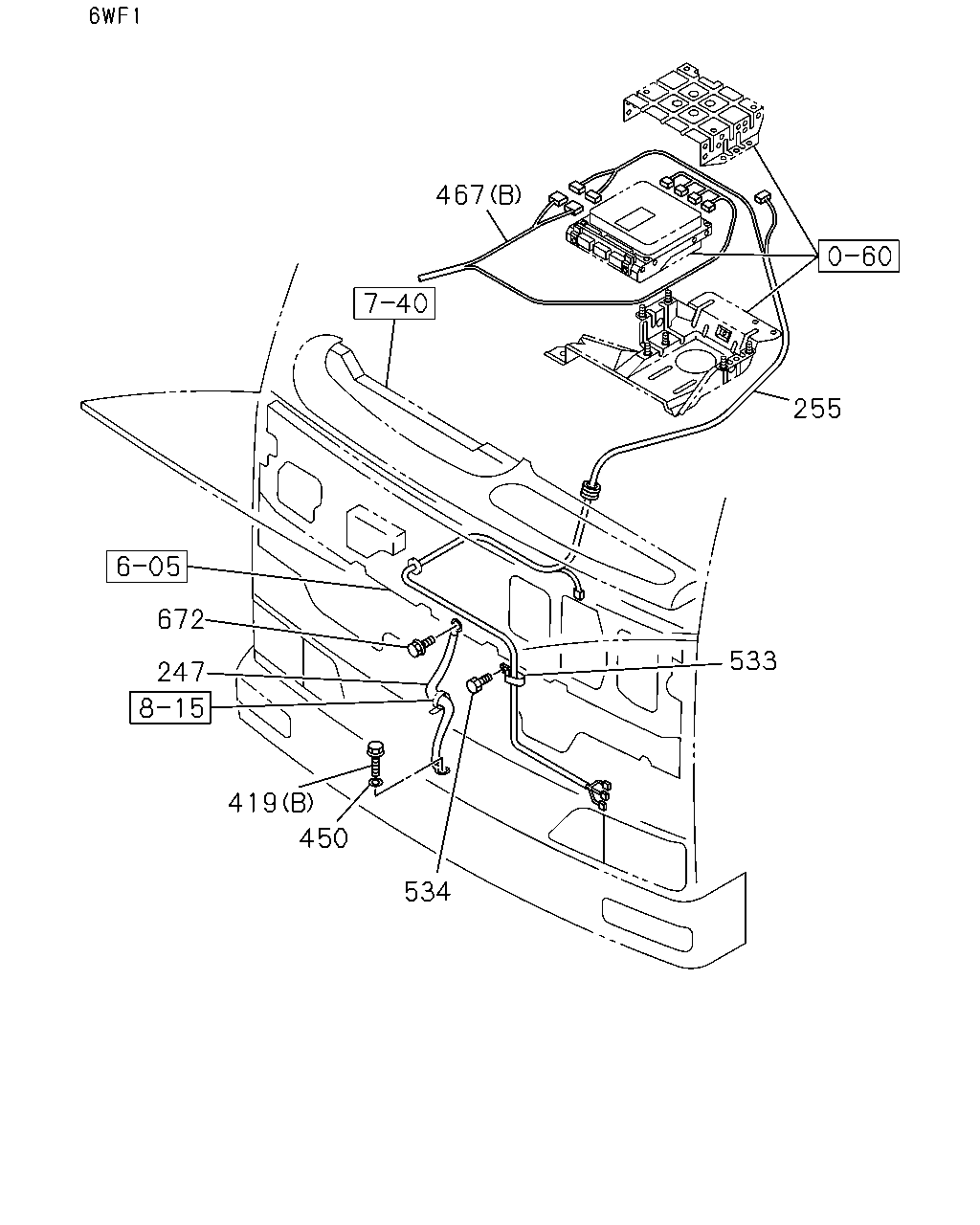

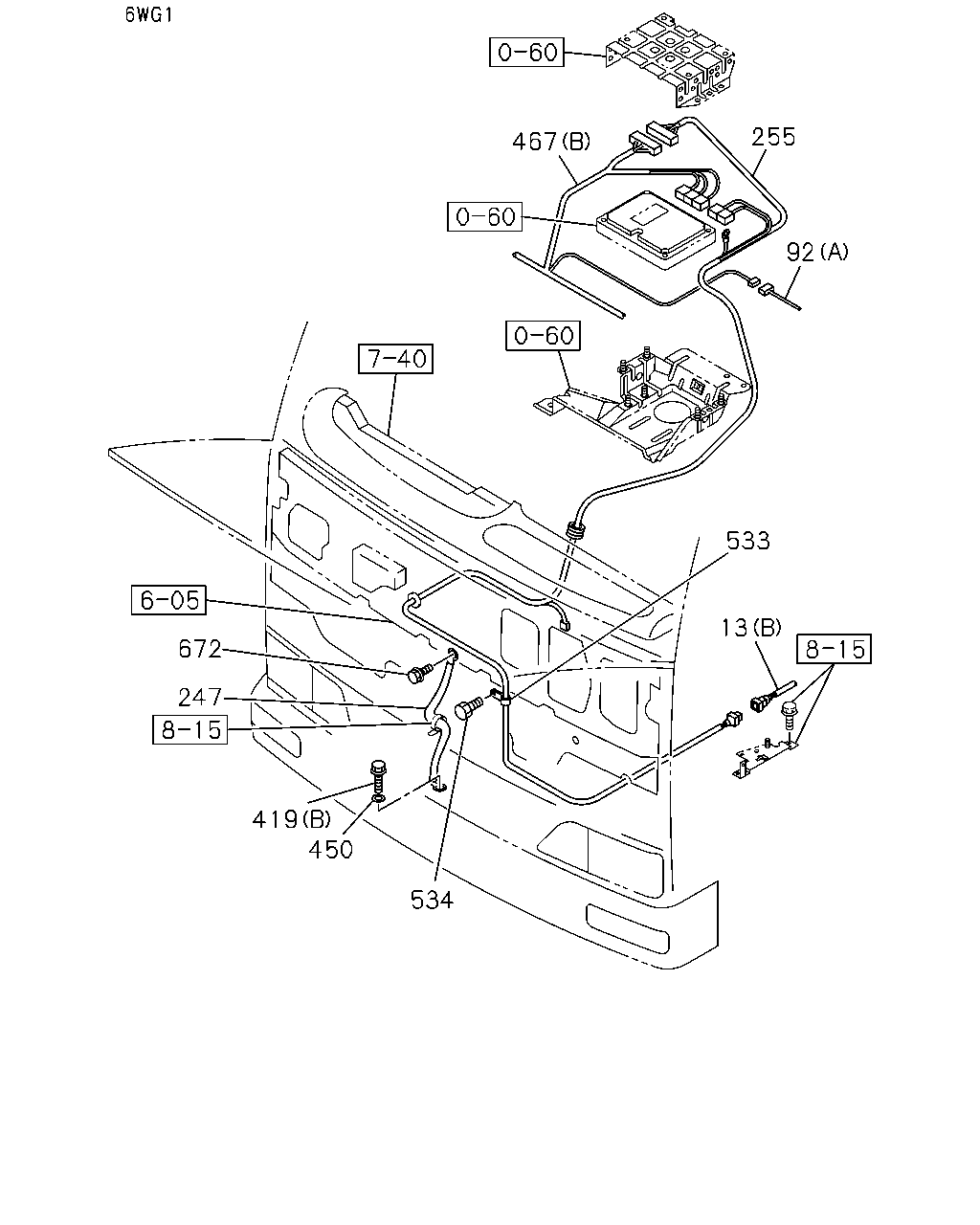

çizim 137084
467 92 255 533 672 247 13 534 450 419
BalonParca AdiParca NoAdetTipApplied Date A B

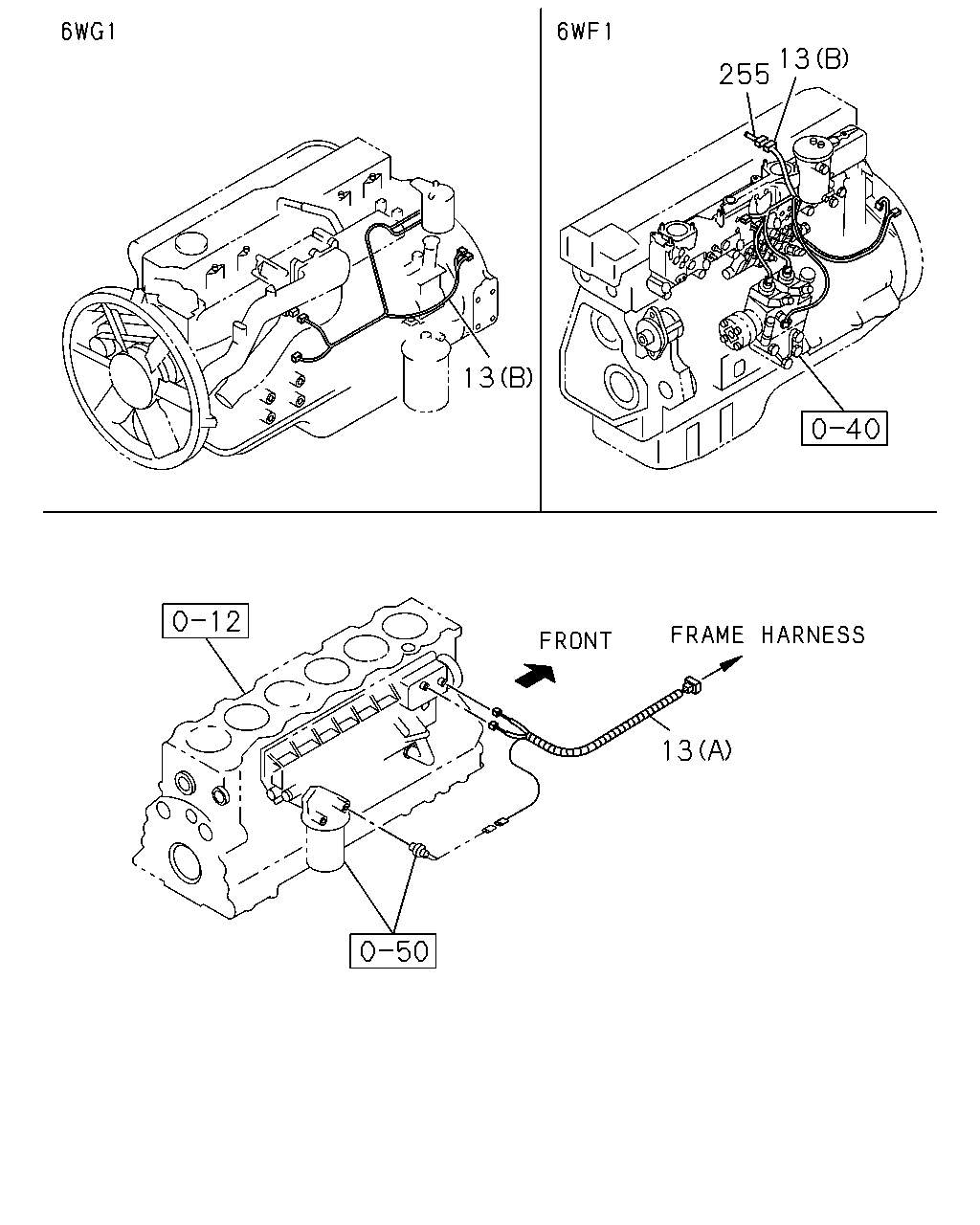

13 HARNESS; ENG
6WG1 TC-C(72L) (B) 		8-97617-391-0 01 1 0710- ● ●
13 HARNESS; ENG
6WF1 TC-C(1B8) (B) 		8-97617-395-0 01 1 0710-1004 ● ●
13 HARNESS; ENG
6WF1 TC-C(1B8) (B) 		8-98169-641-0 01 1 1005- ● ●
13 HARNESS; ENG
(A) 		1-82640-553-4 01 1 0710- ● ●
92 HARNESS; FLOOR
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A) 		1-82662-901-0 01 1 0710-0802 ●
92 HARNESS; FLOOR
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A) 		8-97625-969-0 01 1 0803- ●
92 HARNESS; FLOOR
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (B) 		8-97622-970-1 01 1 0710- ●
92 HARNESS; FLOOR
6WG1 TC-C(72L) SMOOTHER-G(C1W) (A) 		8-97619-669-1 01 1 0710-1210 ●
92 HARNESS; FLOOR
(A) 		8-97619-669-1 01 1 0710-1210 ●
92 HARNESS; FLOOR
6WG1 TC-C(72L) SMOOTHER-G(C1W) (A) 		8-98229-074-0 01 1 1211- ●
92 HARNESS; FLOOR
(A) 		8-98229-074-0 01 1 1211- ●
92 HARNESS; FLOOR
6WG1 TC-C(72L) SMOOTHER-G(C1W) (B) 		8-97622-972-1 01 1 0710- ●
92 HARNESS; FLOOR
(B) 		8-97622-972-1 01 1 0710- ●
92 HARNESS; FLOOR
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (A) 		8-97619-667-1 01 1 0710- ●
92 HARNESS; FLOOR
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (B) 		8-97622-971-1 01 1 0710-1110 ●
92 HARNESS; FLOOR
6WG1 TC-C(72L) AIR BAG(TFQ) EXC. SMOOTHER-G(C1W) (B) 		8-97622-971-1 01 1 1111- ●
247 CABLE; BONDING,CAB
L=570 		1-82662-390-1 01 1 0710- ● ●
255 HARNESS; ELEC GOV
6WF1 TC-C(1B8) 		1-82662-719-0 01 1 0710- ●
255 HARNESS; ELEC GOV
6WG1 TC-C(72L) 		1-82662-307-3 01 1 0710-1210 ● ●
255 HARNESS; ELEC GOV
6WG1 TC-C(72L) 		8-98229-084-0 01 1 1211- ●
255 HARNESS; ELEC GOV 8-98229-084-0 01 1 1211- ●
419 BOLT; CAB EARTH
6WF1 TC-C(1B8) (A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0810-1201 ●
419 BOLT; CAB EARTH
6WF1 TC-C(1B8) (A) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202- ●
419 BOLT; CAB EARTH
6WF1 TC-C(1B8) (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 05 1 0710-0809 ●
419 BOLT; CAB EARTH
6WF1 TC-C(1B8) (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0810-1201 ●
419 BOLT; CAB EARTH
(A) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202- ● ●
419 BOLT; CAB EARTH
6WG1 TC-C(72L) (A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0710-0809 ●
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0710-0809 ●
419 BOLT; CAB EARTH
6WG1 TC-C(72L) (A) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0810-1201 ●
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0810-1201 ●
419 BOLT; CAB EARTH
6WG1 TC-C(72L) (A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202- ●
419 BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202- ●
419 BOLT; CAB EARTH
6WG1 TC-C(72L) (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0710-0809 ●
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0710-0809 ●
419 BOLT; CAB EARTH
6WG1 TC-C(72L) (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0810-1201 ●
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0810-1201 ●
419 BOLT; CAB EARTH
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0710-1201 ● ●
419 BOLT; CAB EARTH
(B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202- ● ●
450 WASHER; PL,CAB EARTH
6WF1 TC-C(1B8) ID=8.4 		1-09503-264-0 03 1 0710- ●
450 WASHER; PL,CAB EARTH
6WG1 TC-C(72L) ID=8.4 		1-09503-264-0 04 1 0710- ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 04 1 0710- ●
467 HARNESS; FACIA
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A) 		1-82662-793-0 01 1 0710- ●
467 HARNESS; FACIA
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A) 		1-82662-768-0 01 1 0710- ●
467 HARNESS; FACIA
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (B) 		8-97622-964-1 01 1 0710- ●
467 HARNESS; FACIA
6WG1 TC-C(72L) SMOOTHER-G(C1W) (B) 		8-97622-965-3 01 1 0710-0907 ●
467 HARNESS; FACIA
(B) 		8-97622-965-3 01 1 0710-0907 ●
467 HARNESS; FACIA
6WG1 TC-C(72L) SMOOTHER-G(C1W) (B) 		8-97634-129-0 01 1 0908- ●
467 HARNESS; FACIA
(B) 		8-97634-129-0 01 1 0908- ●
467 HARNESS; FACIA
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (B) 		8-97622-967-3 01 1 0710-0907 ●
467 HARNESS; FACIA
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (B) 		8-97634-131-0 01 1 0908- ●
467 HARNESS; FACIA
6WG1 TC-C(72L) (A) 		8-97618-829-2 01 1 0710- ● ●
533 CLIP
6WF1 TC-C(1B8) ID=31 L=35 		1-09700-329-1 01 1 0710- ●
533 CLIP
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) ID=31 L=35 		1-09700-329-1 01 1 0710- ●
533 CLIP
6WG1 TC-C(72L) SMOOTHER-G(C1W) ID=28 & 34 L=63 		1-09701-310-0 01 1 0710- ●
533 CLIP
ID=28 & 34 L=63 		1-09701-310-0 01 1 0710- ●
534 BOLT
M8X16 FLANGE 		0-28050-816-0 01 1 0710- ● ●
672 BOLT; BONDING
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0710-1309 ● ●
672 BOLT; BONDING
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1310- ● ●
çizim 137124
467 255 533 672 247 419 450 534
BalonParca AdiParca NoAdetTipApplied Date A B
247 CABLE; BONDING,CAB
L=570 		1-82662-390-1 01 1 0710- ● ●
255 HARNESS; ELEC GOV
6WF1 TC-C(1B8) 		1-82662-719-0 01 1 0710- ●
255 HARNESS; ELEC GOV
6WG1 TC-C(72L) 		1-82662-307-3 01 1 0710-1210 ● ●
255 HARNESS; ELEC GOV
6WG1 TC-C(72L) 		8-98229-084-0 01 1 1211- ●
255 HARNESS; ELEC GOV 8-98229-084-0 01 1 1211- ●
419 BOLT; CAB EARTH
6WF1 TC-C(1B8) (A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0810-1201 ●
419 BOLT; CAB EARTH
6WF1 TC-C(1B8) (A) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202- ●
419 BOLT; CAB EARTH
6WF1 TC-C(1B8) (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 05 1 0710-0809 ●
419 BOLT; CAB EARTH
6WF1 TC-C(1B8) (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0810-1201 ●
419 BOLT; CAB EARTH
(A) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202- ● ●
419 BOLT; CAB EARTH
6WG1 TC-C(72L) (A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0710-0809 ●
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0710-0809 ●
419 BOLT; CAB EARTH
6WG1 TC-C(72L) (A) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0810-1201 ●
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0810-1201 ●
419 BOLT; CAB EARTH
6WG1 TC-C(72L) (A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202- ●
419 BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202- ●
419 BOLT; CAB EARTH
6WG1 TC-C(72L) (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0710-0809 ●
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0710-0809 ●
419 BOLT; CAB EARTH
6WG1 TC-C(72L) (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0810-1201 ●
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0810-1201 ●
419 BOLT; CAB EARTH
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0710-1201 ● ●
419 BOLT; CAB EARTH
(B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202- ● ●
450 WASHER; PL,CAB EARTH
6WF1 TC-C(1B8) ID=8.4 		1-09503-264-0 03 1 0710- ●
450 WASHER; PL,CAB EARTH
6WG1 TC-C(72L) ID=8.4 		1-09503-264-0 04 1 0710- ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 04 1 0710- ●
467 HARNESS; FACIA
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A) 		1-82662-793-0 01 1 0710- ●
467 HARNESS; FACIA
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A) 		1-82662-768-0 01 1 0710- ●
467 HARNESS; FACIA
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (B) 		8-97622-964-1 01 1 0710- ●
467 HARNESS; FACIA
6WG1 TC-C(72L) SMOOTHER-G(C1W) (B) 		8-97622-965-3 01 1 0710-0907 ●
467 HARNESS; FACIA
(B) 		8-97622-965-3 01 1 0710-0907 ●
467 HARNESS; FACIA
6WG1 TC-C(72L) SMOOTHER-G(C1W) (B) 		8-97634-129-0 01 1 0908- ●
467 HARNESS; FACIA
(B) 		8-97634-129-0 01 1 0908- ●
467 HARNESS; FACIA
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (B) 		8-97622-967-3 01 1 0710-0907 ●
467 HARNESS; FACIA
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (B) 		8-97634-131-0 01 1 0908- ●
467 HARNESS; FACIA
6WG1 TC-C(72L) (A) 		8-97618-829-2 01 1 0710- ● ●
533 CLIP
6WF1 TC-C(1B8) ID=31 L=35 		1-09700-329-1 01 1 0710- ●
533 CLIP
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) ID=31 L=35 		1-09700-329-1 01 1 0710- ●
533 CLIP
6WG1 TC-C(72L) SMOOTHER-G(C1W) ID=28 & 34 L=63 		1-09701-310-0 01 1 0710- ●
533 CLIP
ID=28 & 34 L=63 		1-09701-310-0 01 1 0710- ●
534 BOLT
M8X16 FLANGE 		0-28050-816-0 01 1 0710- ● ●
672 BOLT; BONDING
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0710-1309 ● ●
672 BOLT; BONDING
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1310- ● ●
çizim 137263
13 13 13 255
BalonParca AdiParca NoAdetTipApplied Date A B
13 HARNESS; ENG
6WG1 TC-C(72L) (B) 		8-97617-391-0 01 1 0710- ● ●
13 HARNESS; ENG
6WF1 TC-C(1B8) (B) 		8-97617-395-0 01 1 0710-1004 ● ●
13 HARNESS; ENG
6WF1 TC-C(1B8) (B) 		8-98169-641-0 01 1 1005- ● ●
13 HARNESS; ENG
(A) 		1-82640-553-4 01 1 0710- ● ●
255 HARNESS; ELEC GOV
6WF1 TC-C(1B8) 		1-82662-719-0 01 1 0710- ●
255 HARNESS; ELEC GOV
6WG1 TC-C(72L) 		1-82662-307-3 01 1 0710-1210 ● ●
255 HARNESS; ELEC GOV
6WG1 TC-C(72L) 		8-98229-084-0 01 1 1211- ●
255 HARNESS; ELEC GOV 8-98229-084-0 01 1 1211- ●

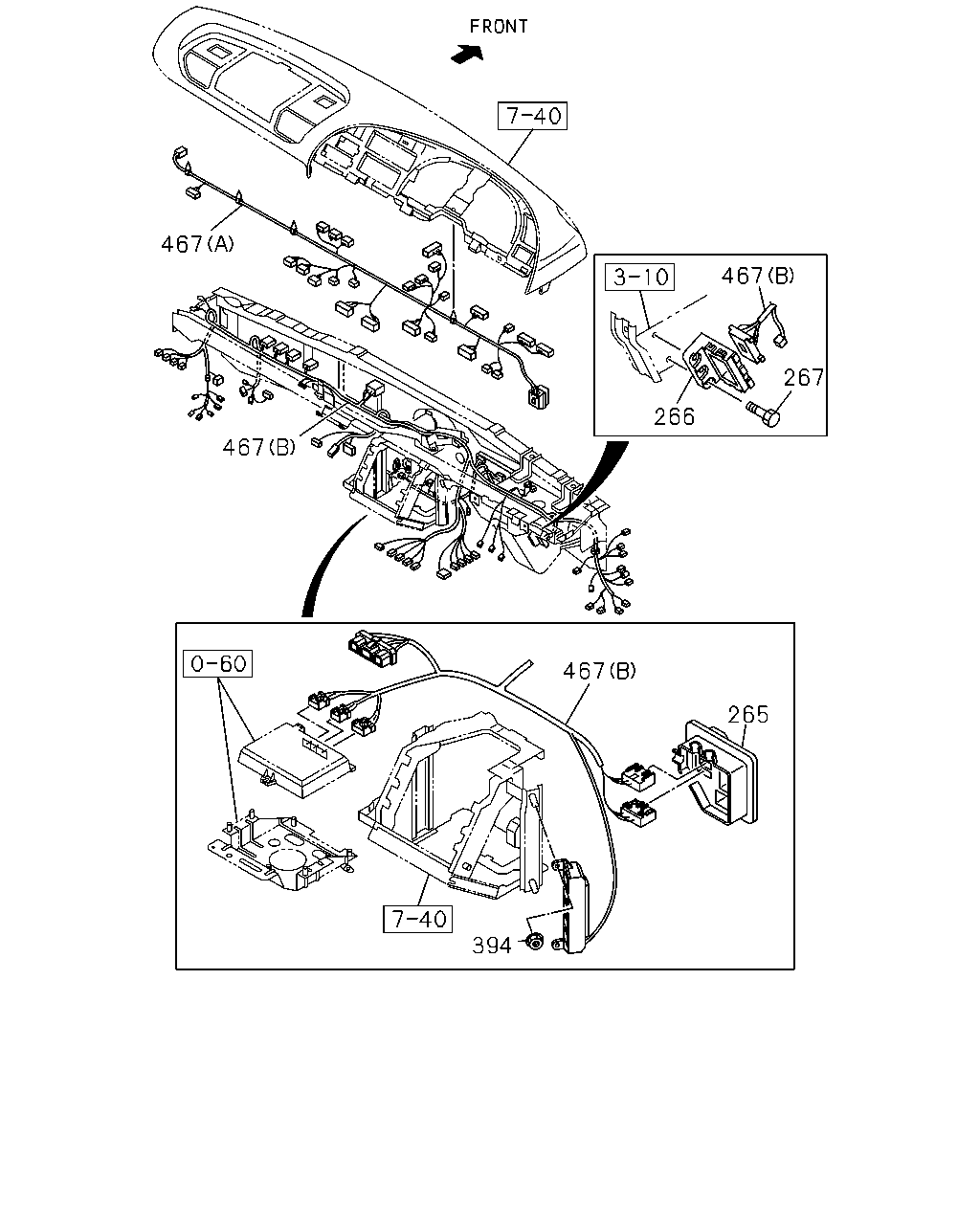

çizim 192796
467 467 467 266 267 467 265 394
BalonParca AdiParca NoAdetTipApplied Date A B
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 0710- ● ●
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0710- ● ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0710- ● ●
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91180-106-0 01 1 0710- ● ●
467 HARNESS; FACIA
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A) 		1-82662-793-0 01 1 0710- ●
467 HARNESS; FACIA
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A) 		1-82662-768-0 01 1 0710- ●
467 HARNESS; FACIA
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (B) 		8-97622-964-1 01 1 0710- ●
467 HARNESS; FACIA
6WG1 TC-C(72L) SMOOTHER-G(C1W) (B) 		8-97622-965-3 01 1 0710-0907 ●
467 HARNESS; FACIA
(B) 		8-97622-965-3 01 1 0710-0907 ●
467 HARNESS; FACIA
6WG1 TC-C(72L) SMOOTHER-G(C1W) (B) 		8-97634-129-0 01 1 0908- ●
467 HARNESS; FACIA
(B) 		8-97634-129-0 01 1 0908- ●
467 HARNESS; FACIA
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (B) 		8-97622-967-3 01 1 0710-0907 ●
467 HARNESS; FACIA
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (B) 		8-97634-131-0 01 1 0908- ●
467 HARNESS; FACIA
6WG1 TC-C(72L) (A) 		8-97618-829-2 01 1 0710- ● ●

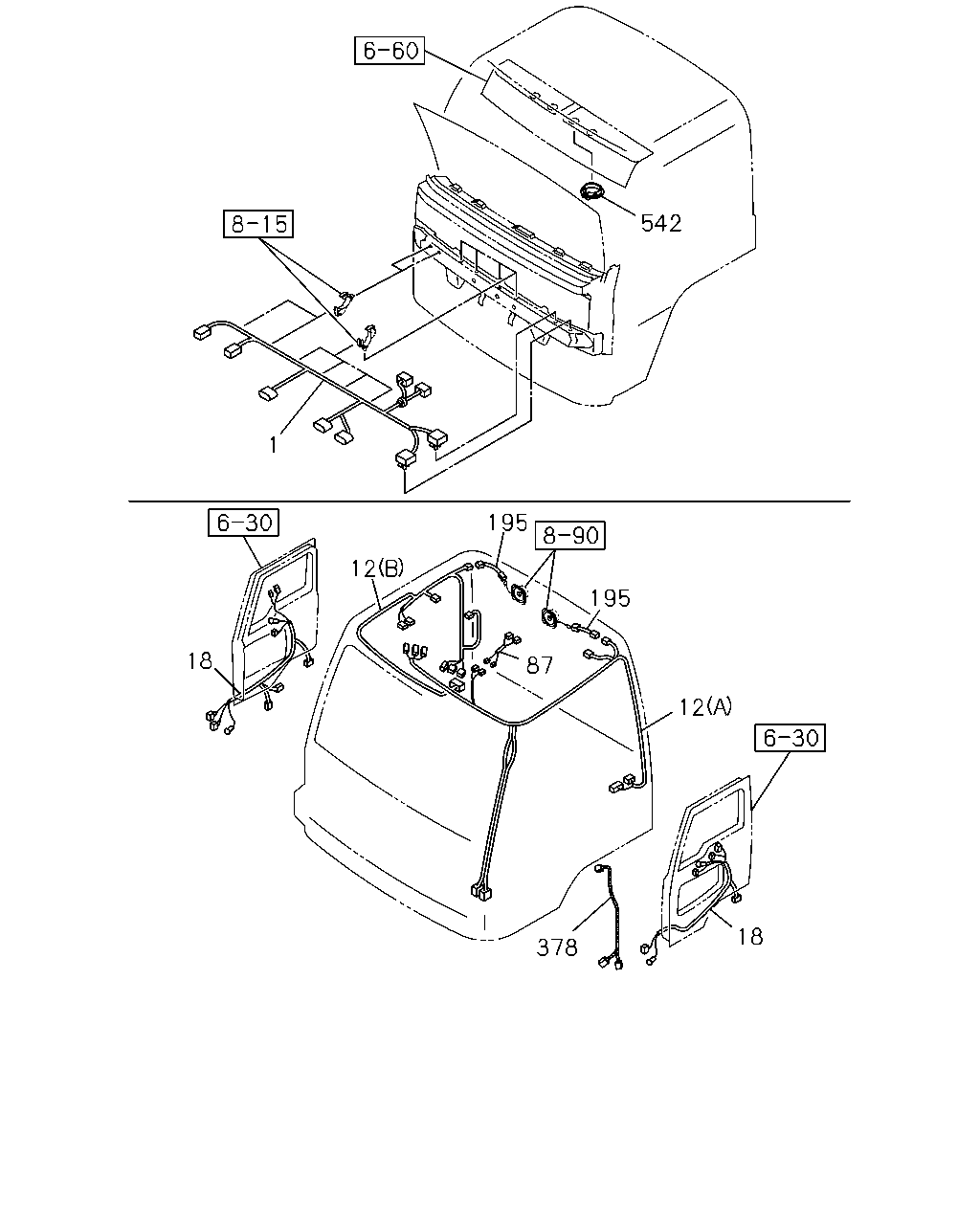

çizim 192797
542 195 12 1 18 87 195 12 18 378
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB 1-82629-234-1 01 1 0710- ● ●
12 HARNESS; ROOF
6WF1 TC-C(1B8) (B) 		1-82662-588-0 01 1 0710- ●
12 HARNESS; ROOF
6WF1 TC-C(1B8) HIGH ROOF<S2F> (A) 		1-82662-253-2 01 1 0710- ●
12 HARNESS; ROOF
6WF1 TC-C(1B8) EXC. HIGH ROOF<S2F> (A) 		1-82662-252-2 01 1 0710- ●
12 HARNESS; ROOF
6WG1 TC-C(72L) (B) 		8-97611-862-0 01 1 0710- ●
12 HARNESS; ROOF
(B) 		8-97611-862-0 01 1 0710- ●
12 HARNESS; ROOF
6WG1 TC-C(72L) HIGH ROOF<S2F> (A) 		8-97622-963-1 01 1 0710- ● ●
12 HARNESS; ROOF
6WG1 TC-C(72L) EXC. HIGH ROOF<S2F> (A) 		8-97611-861-1 01 1 0710-0802 ● ●
12 HARNESS; ROOF
6WG1 TC-C(72L) EXC. HIGH ROOF<S2F> (A) 		8-97625-970-0 01 1 0803- ● ●
18 HARNESS; DOOR
EXC. REMOTE CONT DOOR LOCK<SLG> 		8-97625-320-0 01 1 0710- ●
18 HARNESS; DOOR
REMOTE CONT DOOR LOCK<SLG> 		8-97618-825-1 01 1 0710- ●
18 HARNESS; DOOR 8-97618-825-1 01 1 0710- ●
18 HARNESS; DOOR 8-97618-824-1 01 1 0710- ● ●
87 HARNESS; EXT,ROOM LAMP
HIGH ROOF<S2F> 		1-82661-333-0 01 1 0710- ● ●
195 HARNESS; EXT
HIGH ROOF<S2F> 		1-82625-300-1 02 1 0710- ● ●
378 HARNESS; EXT,MIRROR 8-97621-787-0 02 1 0710- ● ●
542 GROMMET; HARNESS
HIGH ROOF<S2F> ID=36 		8-94178-685-0 01 1 0710-0712 ● ●
542 GROMMET; HARNESS
HIGH ROOF<S2F> ID=36 		8-94178-685-0 03 1 0801- ● ●

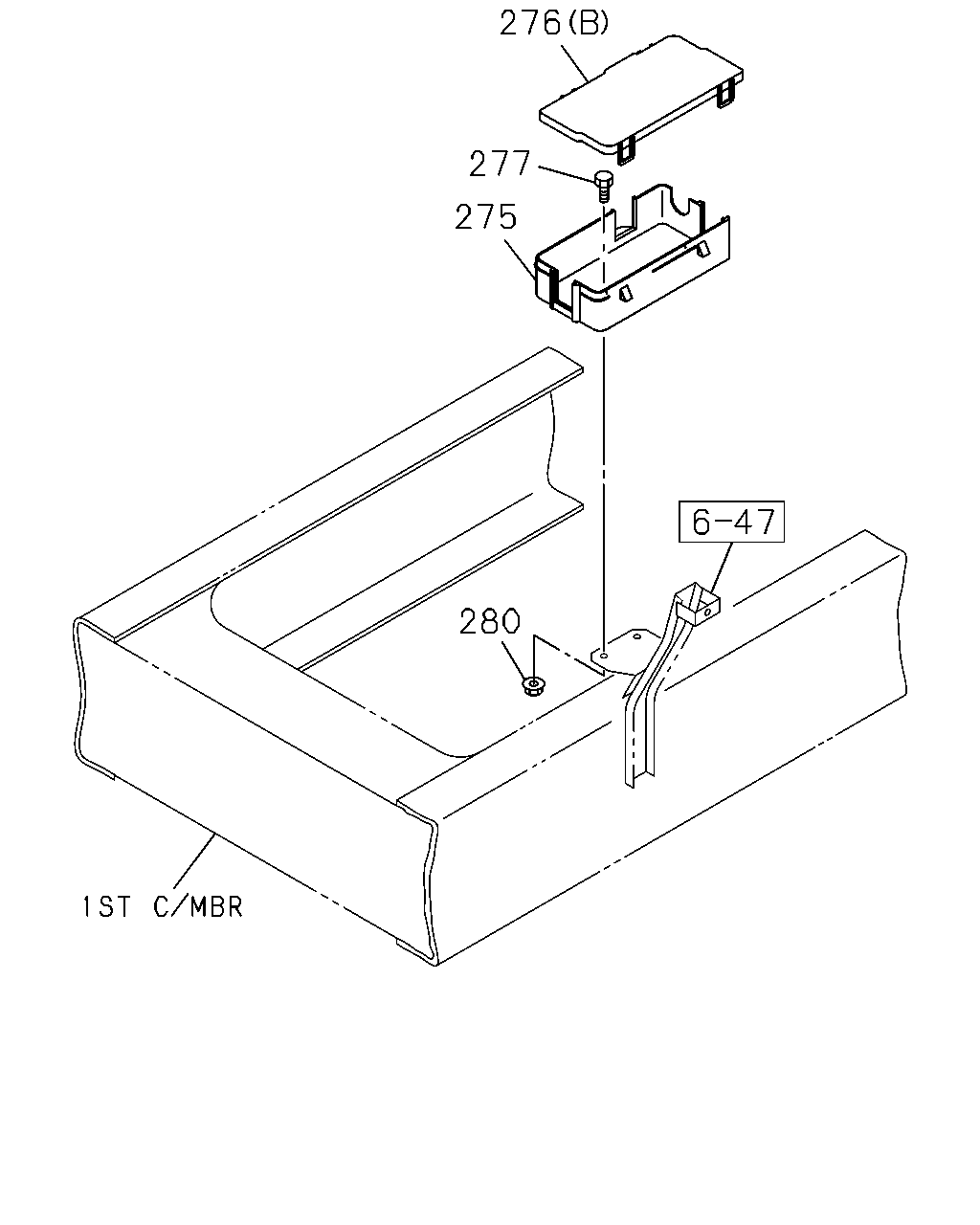

çizim 192800
276 277 275 280
BalonParca AdiParca NoAdetTipApplied Date A B
275 BOX ASM; FRAME HARNESS
6WF1 TC-C(1B8) 		1-82699-474-2 01 1 0710- ●
276 COVER; BOX,FRAME HARNESS
6WF1 TC-C(1B8) (B) 		1-82699-475-2 01 1 0710- ●
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-585-2 01 1 0710- ● ●
277 BOLT; BOX ASM FIX
6WF1 TC-C(1B8) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0710- ●
280 NUT; BOX ASM FIX
6WF1 TC-C(1B8) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0710- ●

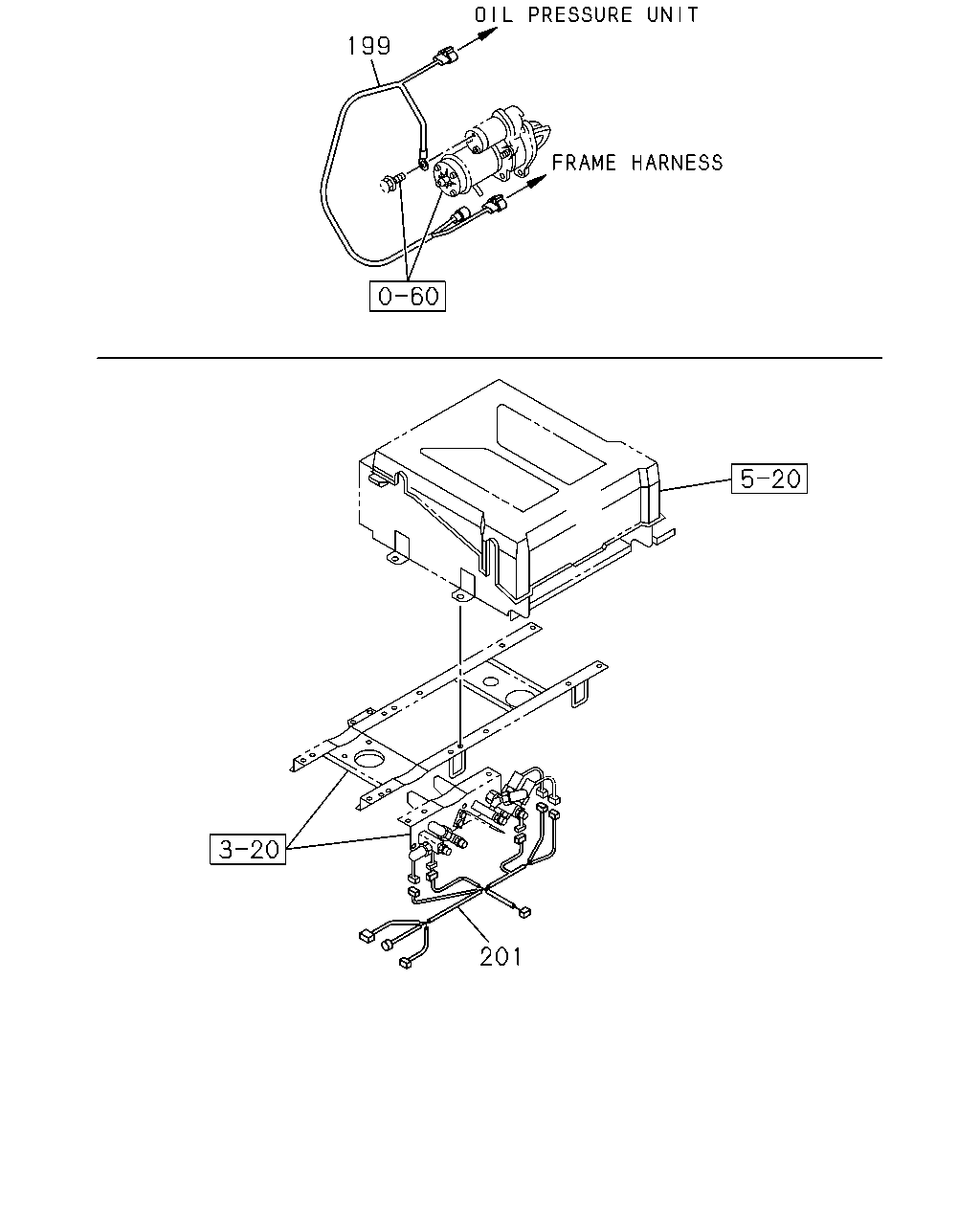

çizim 192801
199 201
BalonParca AdiParca NoAdetTipApplied Date A B
199 HARNESS; STARTER
6WF1 TC-C(1B8) 		1-82641-329-3 01 1 0710- ●
199 HARNESS; STARTER
6WG1 TC-C(72L) 		1-82641-368-2 01 1 0710- ●
199 HARNESS; STARTER 1-82641-368-2 01 1 0710- ●
201 HARNESS; AIR TANK 1-82678-176-1 01 1 0710-1112 ● ●
201 HARNESS; AIR TANK 8-98191-795-0 01 1 1201- ● ●

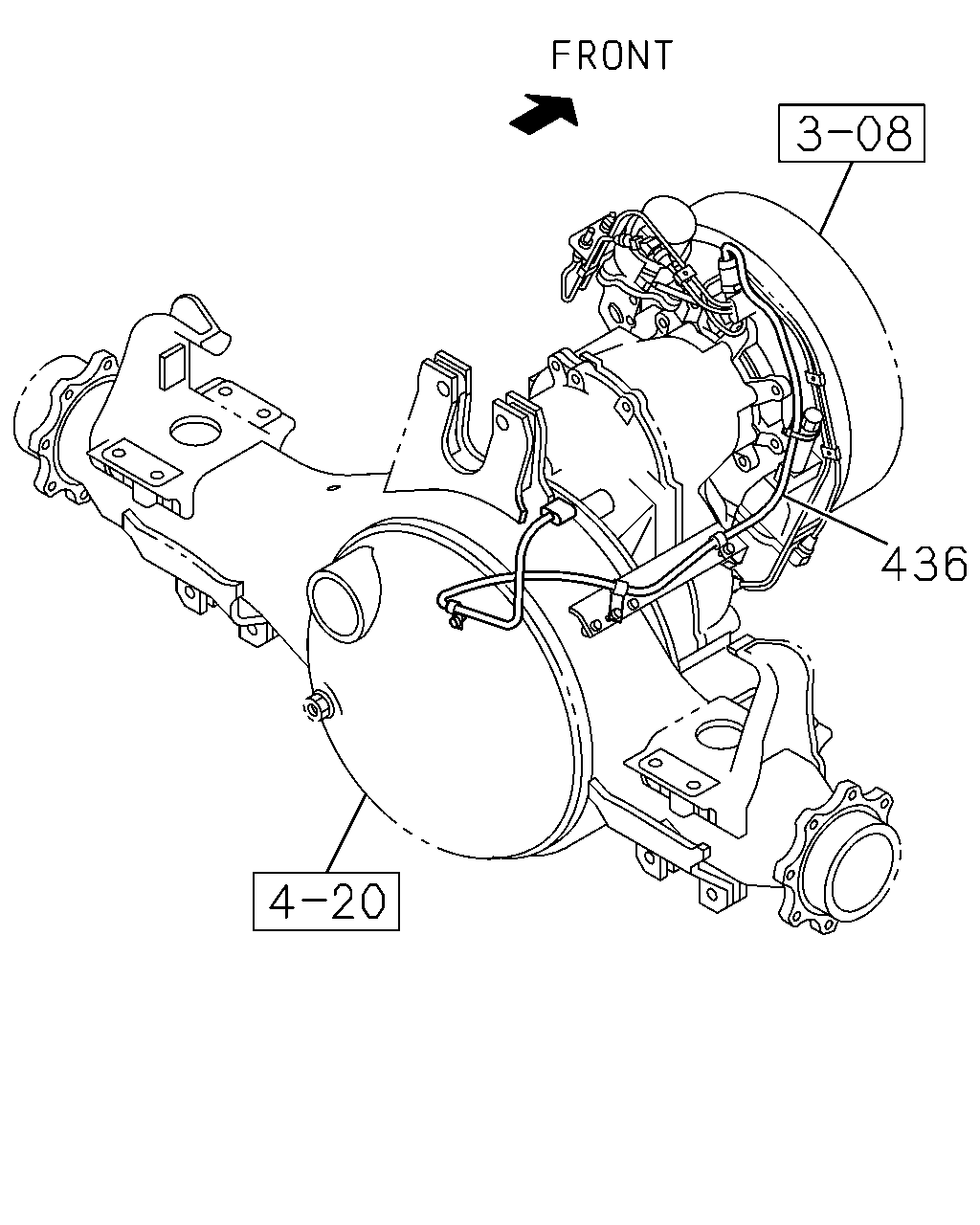

çizim 192804
436
BalonParca AdiParca NoAdetTipApplied Date A B
436 HARNESS; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82677-629-0 01 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
