◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11111 - CYZ NZ EURO3/JAPAN NEW SHORT TERM 2004 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#67201) — 26 parça

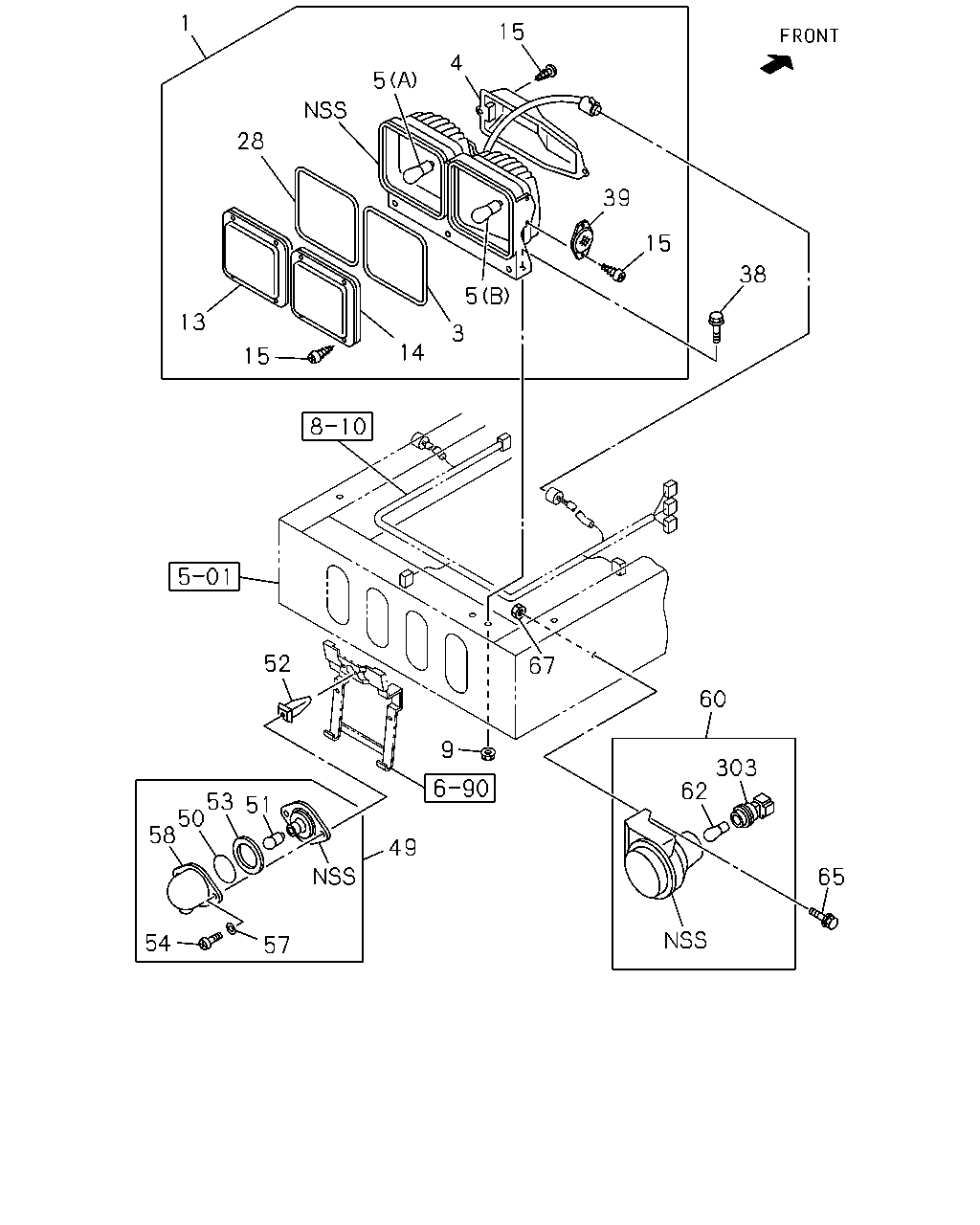

çizim 136443
1 15 4 5 28 13 15 14 3 5 39 15 38 52 9 67 60 62 303 65 49 51 53 50 58 54 57
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; RR COMB 1-82230-203-6 01 1 0710- ● ●
1 LAMP ASM; RR COMB 1-82230-204-5 01 1 0710- ● ●
3 GASKET; RR COMB LAMP 1-82236-008-0 02 1 0710- ● ●
4 COVER; RR,RR COMB LAMP 1-82239-011-0 02 1 0710- ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-108-0 02 1 0710- ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-109-0 02 1 0710- ● ●
9 NUT; LAMP,RR COMB
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
13 LENS; TURN SIGNAL 1-82235-036-0 02 1 0710- ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 1-82235-035-0 02 1 0710- ● ●
15 SCREW; RR COMB LAMP 1-82239-012-0 26 1 0710- ● ●
28 GASKET; TURN,LAMP 1-82236-008-0 02 1 0710- ● ●
38 BOLT; LAMP,RR COMB
M8X35 W/LK&PL WASHER 		1-09030-073-0 02 1 0710- ● ●
39 REFLECTOR; REFLEX RH 8-97608-772-0 02 1 0710- ● ●
49 LAMP; LICENSE PLATE
24V 10W 		1-82120-024-1 01 1 0710- ● ●
50 LENS; LICENSE PLATE LAMP 1-82235-006-0 01 1 0710- ● ●
51 BULB; LICENSE PLATE LAMP
24V 10W 		1-82194-037-0 01 1 0710- ● ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 0710- ● ●
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 0710- ● ●
54 SCREW; LICENSE PLATE LAMP
M5X20 		1-82129-007-0 02 1 0710- ● ●
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 0710- ● ●
58 COVER; LICENSE PLATE LAMP 1-82129-005-0 01 1 0710- ● ●
60 LAMP; BACKUP 1-82130-025-0 01 1 0710- ● ●
62 BULB; BACKUP LAMP
24V 21W 		1-82194-104-0 01 1 0710- ● ●
65 BOLT; LAMP,BACKUP
M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 0710- ● ●
67 NUT; FLANGE
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
303 SOCKET ASM; BACKUP LAMP 1-82135-006-0 01 1 0710- ● ●
