8-01 — LAMP; FRONT AND FRONT SIDE (#67200) — 118 parça

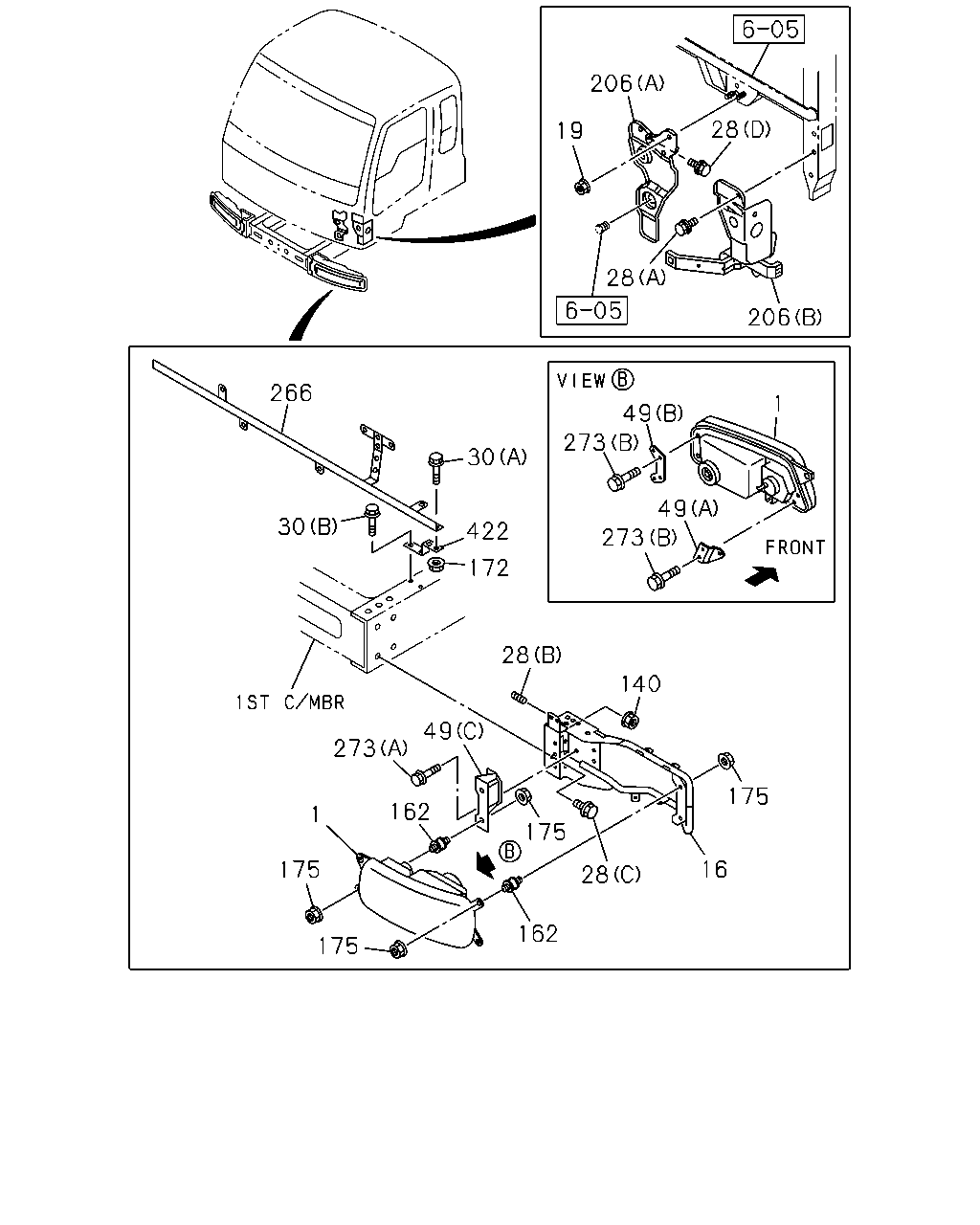

çizim 135734
206 19 28 28 206 1 49 273 49 273 140 28 422 30 172 266 30 273 1 175 175 162 49 175 162 28 16 175
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 1-82110-461-1 01 1 0710-0711 ● ●
1 LAMP ASM; HEAD 8-98097-188-0 01 1 0712- ● ●
1 LAMP ASM; HEAD 1-82110-462-1 01 1 0710-0711 ● ●
1 LAMP ASM; HEAD 8-98097-189-0 01 1 0712- ● ●
16 BRACKET; HEADLAMP 8-97608-505-1 01 1 0710- ● ●
16 BRACKET; HEADLAMP 8-97608-506-2 01 1 0710- ● ●
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0710- ● ●
28 BOLT; HEADLAMP
(C) M10X30 FLANGE 		0-28651-030-0 06 1 0710- ● ●
28 BOLT; HEADLAMP
(B) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0710- ● ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0710- ● ●
28 BOLT; HEADLAMP
(D) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0710- ● ●
30 BOLT; STAY
6WF1 TC-C(1B8) (A) M8X25 FLANGE 		0-28650-825-0 02 1 0710- ●
30 BOLT; STAY
6WF1 TC-C(1B8) (B) M10X25 FLANGE 		0-28651-025-0 04 1 0710- ●
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 0710- ● ●
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 0710- ● ●
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 0710- ● ●
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 0710- ● ●
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 0710- ● ●
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 0710- ● ●
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 0710- ● ●
140 NUT
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 0710- ● ●
172 NUT; STAY
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 02 1 0710- ●
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 0710- ● ●
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 0710- ● ●
206 HOLDER; HEADLAMP
(B) 		1-65671-762-3 01 1 0710- ● ●
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 0710- ● ●
206 HOLDER; HEADLAMP
(B) 		1-65671-761-3 01 1 0710- ● ●
266 STAY; BRKT,HEADLAMP
6WF1 TC-C(1B8) 		1-82117-182-0 01 1 0710- ●
273 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 04 1 0710- ● ●
273 BOLT; BRKT
(B) M6X16 FLANGE 		0-28650-616-0 08 1 0710- ● ●
422 BRACKET; HEADLAMP STAY
6WF1 TC-C(1B8) 		1-82698-605-0 02 1 0710- ●

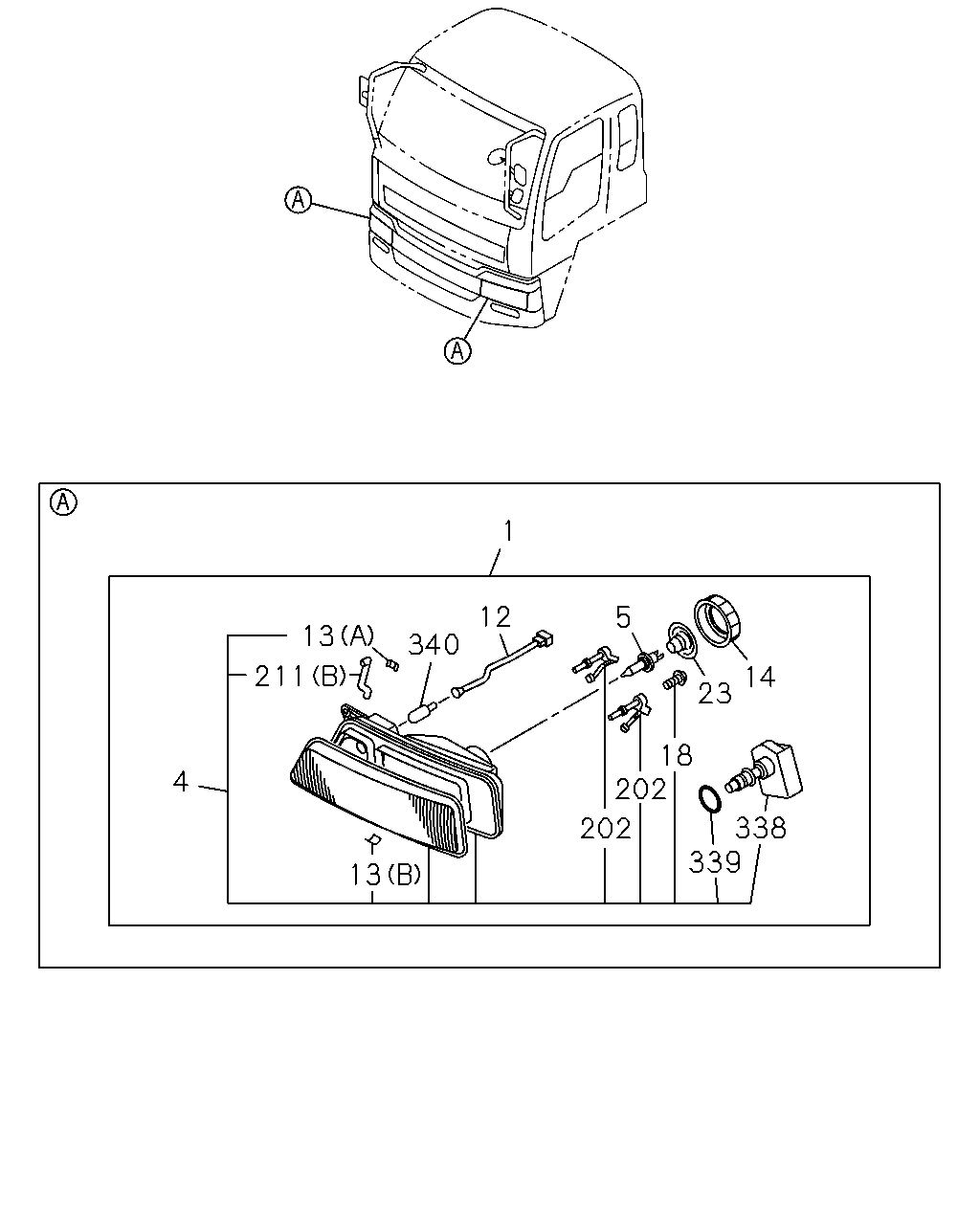

çizim 135858
1 13 211 4 13 340 12 5 14 23 18 202 202 339 338
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 1-82110-461-1 01 1 0710-0711 ● ●
1 LAMP ASM; HEAD 8-98097-188-0 01 1 0712- ● ●
1 LAMP ASM; HEAD 1-82110-462-1 01 1 0710-0711 ● ●
1 LAMP ASM; HEAD 8-98097-189-0 01 1 0712- ● ●
4 HEADLAMP UNIT 1-82119-214-0 01 1 0710- ● ●
4 HEADLAMP UNIT 1-82119-215-0 01 1 0710- ● ●
5 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0710- ● ●
12 HARNESS; HEADLAMP 1-82118-014-0 02 1 0710- ● ●
13 CLIP; HEADLAMP
(A) 		1-82119-084-0 02 1 0710- ● ●
13 CLIP; HEADLAMP
(B) 		8-94381-588-0 14 1 0710- ● ●
14 CAP; BULB,LAMP 1-86830-148-0 02 1 0710- ● ●
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0710- ● ●
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 0710- ● ●
202 GEAR UNIT; HEADLAMP 1-86830-139-0 04 1 0710- ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0710-0711 ● ●
211 TUBE; HEADLAMP
(B) 		8-98101-137-0 01 1 0712- ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0710-0711 ● ●
211 TUBE; HEADLAMP
(B) 		8-98101-138-0 01 1 0712- ● ●
211 TUBE; HEADLAMP
(A) 		8-97025-128-0 02 1 0710-0906 ● ●
338 LEVELING; HEADLAMP 8-98010-256-0 02 1 0710- ● ●
339 GASKET; LEVELING 1-86830-158-0 02 1 0710- ● ●
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0710- ● ●

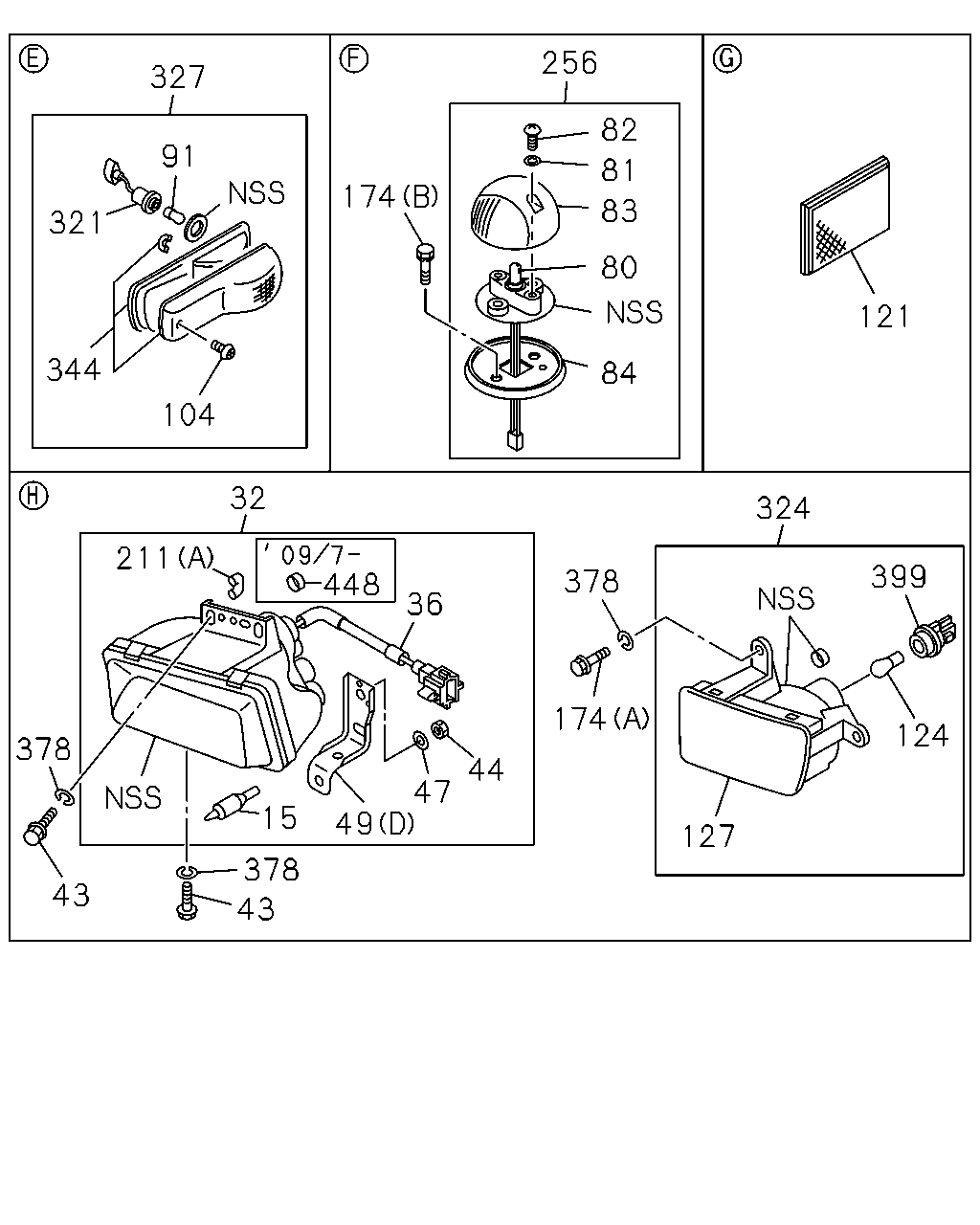

çizim 136288
327 91 321 104 344 174 82 83 80 84 81 256 121 324 378 174 127 124 399 44 47 49 15 378 43 43 378 211 32 36 448
BalonParca AdiParca NoAdetTipApplied Date A B
15 BULB; FOG LAMP
24V 70W 		1-82194-106-0 02 1 0710- ● ●
32 LAMP ASM; FOG 1-82110-454-0 01 1 0710-0712 ● ●
32 LAMP ASM; FOG 1-82110-476-0 01 1 0801-0906 ● ●
32 LAMP ASM; FOG 8-98149-150-1 01 1 0907-1301 ● ●
32 LAMP ASM; FOG 8-98232-065-0 01 1 1302- ● ●
32 LAMP ASM; FOG 1-82110-453-0 01 1 0710-0712 ● ●
32 LAMP ASM; FOG 1-82110-475-0 01 1 0801-0906 ● ●
32 LAMP ASM; FOG 8-98149-149-1 01 1 0907-1301 ● ●
32 LAMP ASM; FOG 8-98232-064-0 01 1 1302- ● ●
36 CORD; FOG LAMP 1-82118-016-0 01 1 0710- ● ●
36 CORD; FOG LAMP 1-82118-015-0 01 1 0710- ● ●
43 BOLT; FOG LAMP
M6X20 FLANGE 		0-28650-620-0 02 1 0710- ●
43 BOLT; FOG LAMP
M6X20 FLANGE 		0-28650-620-0 04 1 0710- ● ●
43 BOLT; FOG LAMP
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ●
44 NUT; FOG LAMP
M6 		8-98217-430-0 02 1 1205- ● ●
47 WASHER; PL,FOG LAMP 8-98217-429-0 02 1 1205- ● ●
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 0710- ● ●
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 0710- ● ●
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 0710- ● ●
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 0710- ● ●
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 0710- ● ●
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 0710- ● ●
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 0710- ● ●
80 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0710- ● ●
81 SEAT; SCREW 1-82219-012-0 04 1 0710- ● ●
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 0710- ● ●
83 LENS; MARKER LAMP 1-82215-046-0 02 1 0710- ● ●
84 GASKET; MARKER LAMP 1-86830-288-0 02 1 0710- ● ●
91 BULB; SIDE TURN SIGNAL
24V 10W 		1-82194-037-0 02 1 0710- ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0710- ● ●
121 REFLECTOR; REFLEX 8-98013-990-1 02 1 0710- ● ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-105-0 02 1 0710- ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-074-0 01 1 0710- ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-073-0 01 1 0710- ● ●
174 BOLT
(A) M6X20 FLANGE 		0-28650-620-0 04 1 0710- ● ●
174 BOLT
(B) M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0710- ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0710-0711 ● ●
211 TUBE; HEADLAMP
(B) 		8-98101-137-0 01 1 0712- ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0710-0711 ● ●
211 TUBE; HEADLAMP
(B) 		8-98101-138-0 01 1 0712- ● ●
211 TUBE; HEADLAMP
(A) 		8-97025-128-0 02 1 0710-0906 ● ●
256 LAMP; MARKER 1-86830-242-3 02 1 0710- ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0710- ● ●
324 LAMP; FRT FLASHER 1-82210-260-1 01 1 0710- ● ●
324 LAMP; FRT FLASHER 1-82210-259-1 01 1 0710- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-98027-364-0 01 1 0710- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-98027-363-0 01 1 0710- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 8-98027-368-0 01 1 0710- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 8-98027-367-0 01 1 0710- ● ●
378 WASHER; PL
ID=6.4 		0-91610-606-0 02 1 0710- ●
378 WASHER; PL
ID=6.4 		0-91610-606-0 08 1 0710- ● ●
399 SOCKET; TURN SIGNAL 1-82219-038-0 02 1 0710- ● ●
448 CAP ASM; LAMP 8-97378-874-0 02 1 0907- ● ●

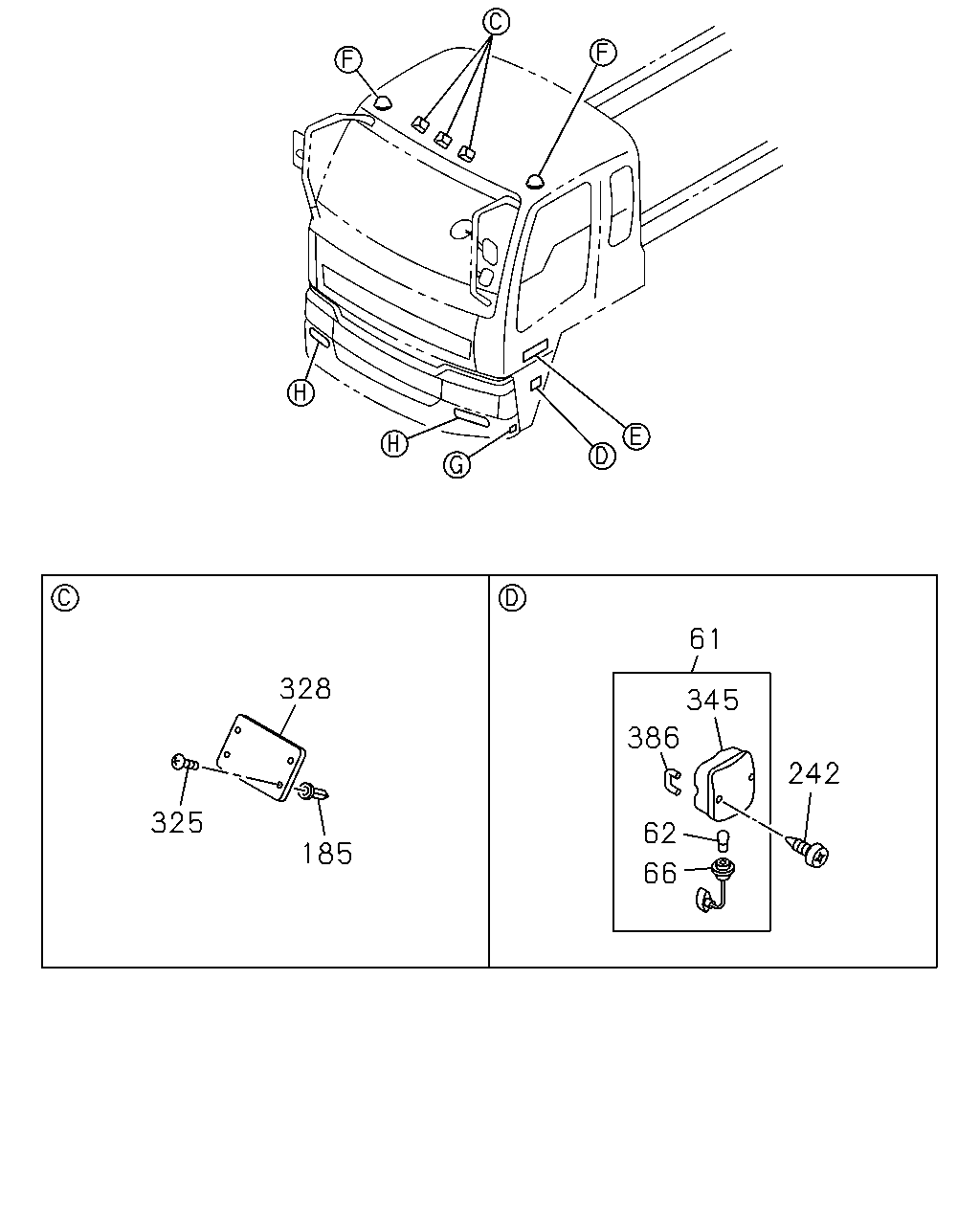

çizim 192794
61 345 386 62 66 242 328 185 325
BalonParca AdiParca NoAdetTipApplied Date A B
61 LAMP ASM; CORNERING 8-98024-495-1 01 1 0710- ● ●
61 LAMP ASM; CORNERING 8-98024-494-1 01 1 0710- ● ●
62 BULB; CORNERING LAMP
24V 21W 		1-82194-036-0 02 1 0710- ● ●
66 HARNESS; CORNERING LAMP 1-86830-146-0 02 1 0710- ● ●
185 GROMMET; SCREW
LOW ROOF<6XQ> M5 SCREW GROMMET 		1-09983-131-0 12 1 0710- ● ●
242 SCREW; CORNERING LAMP
M4X20 TAPPING STAINLESS 		0-71090-420-0 04 1 0710- ● ●
325 SCREW; SPD INDICATOR LAMP
LOW ROOF<6XQ> M5X14 TAPPING 		0-71040-514-0 12 1 0710- ● ●
328 COVER; LAMP
LOW ROOF<6XQ> 		1-76217-122-1 03 1 0710- ● ●
345 LAMP UNIT; CORNERING 8-98004-042-0 01 1 0710- ● ●
345 LAMP UNIT; CORNERING 8-98004-041-0 01 1 0710- ● ●
386 TUBE; CORNERING LAMP 8-94451-175-0 02 1 0710- ● ●
