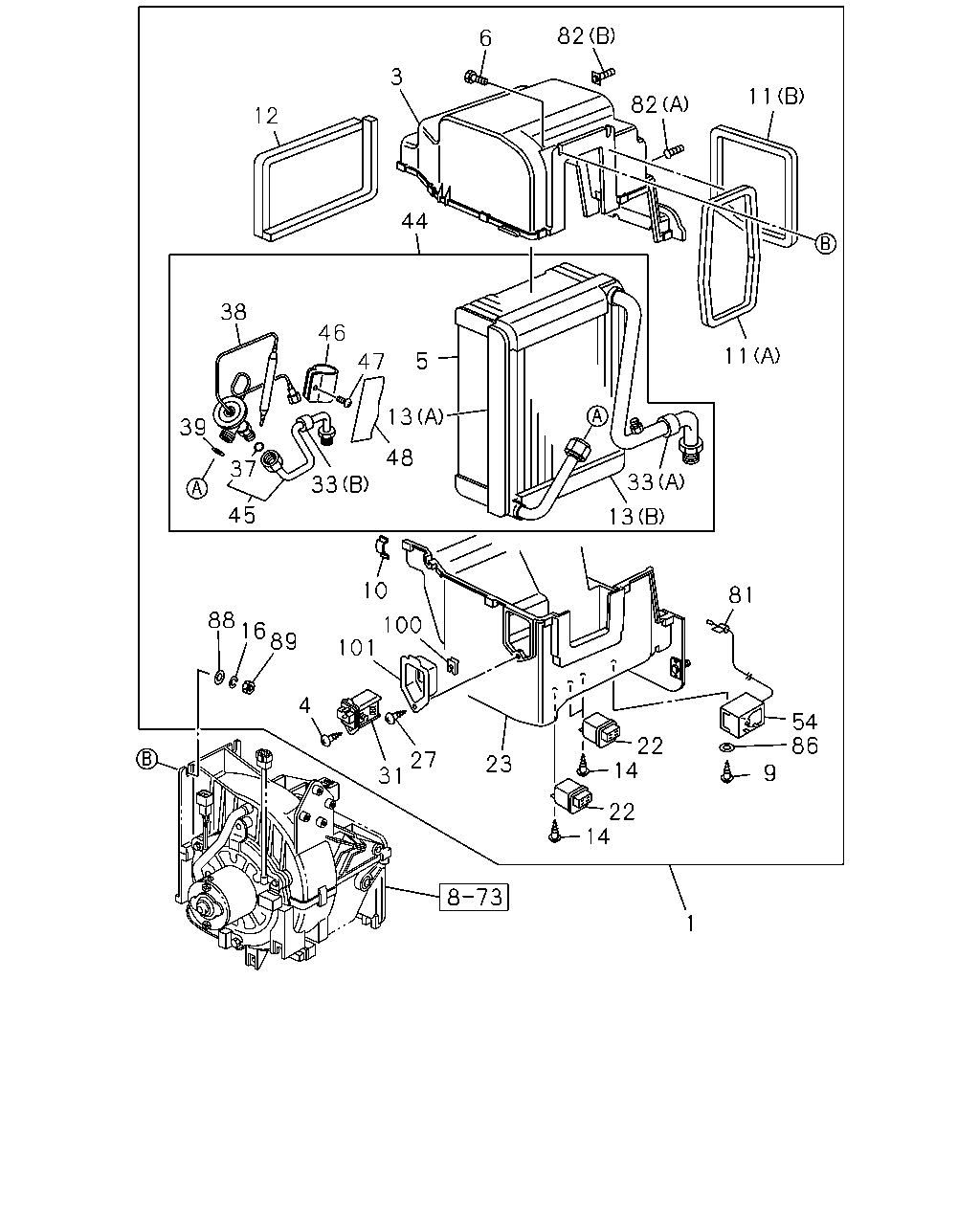

8-74 — EVAPORATOR (#672) — 45 parça

12 44 3 6 82 82 11 11 33 13 5 13 48 33 45 37 39 47 46 38 10 100 101 4 89 16 88 31 27 23 22 14 22 14 1 81 54 86 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	EVAPORATOR ASM AIR CON MANUAL CONTROL(C60)	1-83541-072-4	01	1	9202-9301	●	●
1	EVAPORATOR ASM AIR CON MANUAL CONTROL(C60)	1-83541-110-0	01	1	9302-	●	●
3	CASE; EVAP,UPR AIR CON MANUAL CONTROL(C60)	1-83564-203-0	01	1	9202-	●	●
4	SCREW; RESISTOR TO CASE AIR CON MANUAL CONTROL(C60)	8-94248-807-0	01	1	9202-	●	●
5	EVAPORATOR AIR CON MANUAL CONTROL(C60)	1-83562-045-2	01	1	9202-9301	●	●
5	EVAPORATOR AIR CON MANUAL CONTROL(C60)	1-83562-075-0	01	1	9302-	●	●
6	BOLT; EVAP TO BLOWER UNIT AIR CON MANUAL CONTROL(C60)	9-02046-622-0	02	1	9202-	●	●
9	SCREW; THERMOSTAT TO CASE AIR CON MANUAL CONTROL(C60)	8-94248-807-0	01	1	9202-	●	●
10	CLIP; EVAP CASE AIR CON MANUAL CONTROL(C60)	8-94315-776-0	10	1	9202-9301	●	●
10	CLIP; EVAP CASE AIR CON MANUAL CONTROL(C60)	1-83574-148-0	10	1	9302-	●	●
11	LINING; EVAP A/C AIR CON MANUAL CONTROL(C60) (A)	1-83579-190-0	01	1	9202-	●	●
11	LINING; EVAP A/C AIR CON MANUAL CONTROL(C60) (B)	1-83579-238-0	01	1	9202-	●	●
12	LINING; EVAP AIR CON MANUAL CONTROL(C60)	1-83579-191-0	02	1	9202-	●	●
13	SEAL; EVAP AIR CON MANUAL CONTROL(C60) (A)	1-83579-166-0	02	1	9202-	●	●
13	SEAL; EVAP AIR CON MANUAL CONTROL(C60) (B)	1-83579-187-0	02	1	9202-	●	●
14	SCREW; RELAY TO BRKT AIR CON MANUAL CONTROL(C60)	8-94248-807-0	02	1	9202-	●	●
16	WASHER; LK,EVAP TO BLOWER UNIT AIR CON MANUAL CONTROL(C60) ID=6.1	9-09150-506-0	02	1	9202-	●	●
22	RELAY; A/C AIR CON MANUAL CONTROL(C60) 24V	1-83579-177-0	02	1	9202-	●	●
23	CASE; EVAP,LWR AIR CON MANUAL CONTROL(C60)	1-83564-202-0	01	1	9202-	●	●
27	SCREW; COVER AIR CON MANUAL CONTROL(C60)	8-94248-807-0	01	1	9202-	●	●
31	RESISTOR; POWER EVAP AIR CON MANUAL CONTROL(C60)	1-83519-033-0	01	1	9202-	●	●
33	LINING; EVAP AIR CON MANUAL CONTROL(C60) (A)	1-83579-168-0	01	1	9202-	●	●
33	LINING; EVAP AIR CON MANUAL CONTROL(C60) (B)	1-83579-169-0	01	1	9202-	●	●
37	GASKET; EVAP AIR CON MANUAL CONTROL(C60) ID=7.65	8-94113-332-0	01	1	9202-9301	●	●
37	GASKET; EVAP AIR CON MANUAL CONTROL(C60) ID=6	8-94481-700-0	01	1	9302-	●	●
38	VALVE; EXPANSION AIR CON MANUAL CONTROL(C60)	1-83579-165-0	01	1	9202-9301	●	●
38	VALVE; EXPANSION AIR CON MANUAL CONTROL(C60)	1-83569-157-0	01	1	9302-	●	●
39	GASKET; EVAP AIR CON MANUAL CONTROL(C60)	1-09623-517-0	01	1	9202-9301	●	●
39	GASKET; EVAP AIR CON MANUAL CONTROL(C60)	8-94481-717-0	01	1	9302-	●	●
44	EVAPORATOR ASM; A/C AIR CON MANUAL CONTROL(C60)	1-83562-044-2	01	1	9202-9301	●	●
44	EVAPORATOR ASM; A/C AIR CON MANUAL CONTROL(C60)	1-83562-074-0	01	1	9302-	●	●
45	PIPE; EXPANSION VLV AIR CON MANUAL CONTROL(C60)	1-83567-238-2	01	1	9202-9301	●	●
45	PIPE; EXPANSION VLV AIR CON MANUAL CONTROL(C60)	1-83567-496-0	01	1	9302-	●	●
46	CLIP; EXPANSION VLV AIR CON MANUAL CONTROL(C60)	1-83574-124-0	01	1	9202-	●	●
47	SCREW; EVAP AIR CON MANUAL CONTROL(C60) M5X14	8-94244-002-0	01	1	9202-	●	●
48	INSULATOR; EVAP AIR CON MANUAL CONTROL(C60)	5-83579-024-0	01	1	9202-	●	●
54	THERMOSTAT; A/C AIR CON MANUAL CONTROL(C60)	1-83579-283-0	01	1	9202-	●	●
81	CLIP; THERMOSTAT A/C AIR CON MANUAL CONTROL(C60)	8-94122-018-0	01	1	9202-	●	●
82	BOLT; BRKT AIR CON MANUAL CONTROL(C60) (B)	1-83579-175-0	01	1	9202-	●	●
82	BOLT; BRKT AIR CON MANUAL CONTROL(C60) (A)	1-83579-176-0	01	1	9202-	●	●
86	WASHER; THERMOSTAT AIR CON MANUAL CONTROL(C60)	1-83579-170-0	01	1	9202-	●	●
88	WASHER; PL,EVAP TO BLOWER UNIT AIR CON MANUAL CONTROL(C60) ID=6.4 OD=14	9-09160-606-0	04	1	9202-	●	●
89	NUT; EVAP TO BLOWER UNIT AIR CON MANUAL CONTROL(C60) M6	9-09110-406-0	02	1	9202-	●	●
100	NUT; CASE AIR CON MANUAL CONTROL(C60) M6 FLANGE	1-09466-001-0	01	1	9202-	●	●
101	COVER; RESISTOR AIR CON MANUAL CONTROL(C60)	1-83579-250-0	01	1	9202-	●	●
