Sayfa 7-70 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11111 - CYZ NZ EURO3/JAPAN NEW SHORT TERM 2004 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶

7-70 — SEPARATER AND BED (#67199) — 125 parça

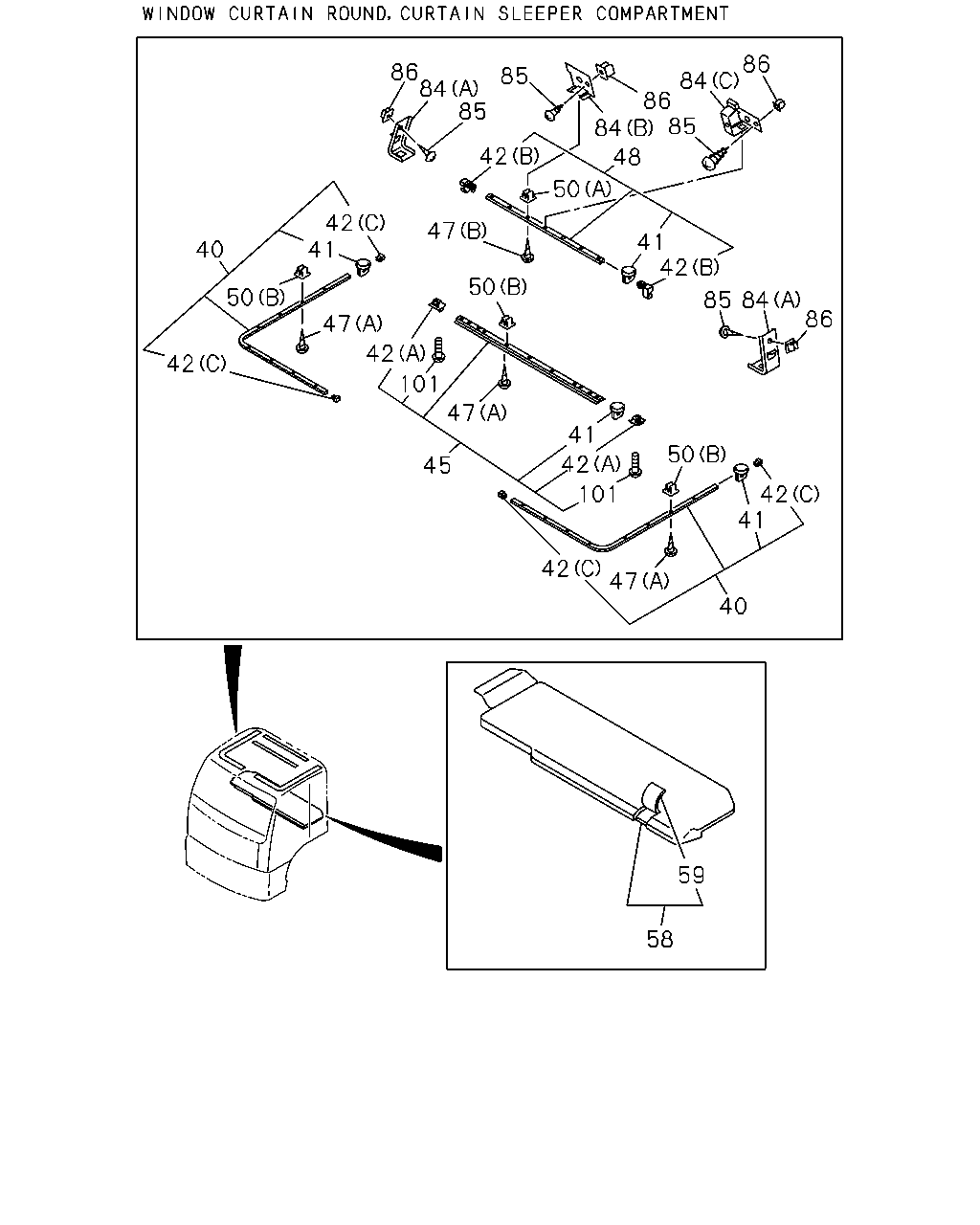

86 85 86 86 84 84 48 85 84 50 47 40 42 45 101 42 47 42 50 50 47 101 42 40 42 50 47 85 84 86 85 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	0710-	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	0710-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	0710-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	0710-	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (A)	1-73907-657-0	02	1	0710-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	04	1	0710-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0710-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	02	1	0710-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0710-	●	●
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-591-2	01	1	0710-	●	●
45	RAIL; CURTAIN,FRT LOW ROOF<6XQ> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-2	01	1	0710-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-592-2	01	1	0710-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ>	1-73907-546-3	01	1	0710-	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0710-	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0710-	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	0710-	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	0710-	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	0710-	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	0710-	●	●
58	BED; MAT	1-75127-018-3	01	1	0710-	●	●
59	COVER ASM; TRIM,BED MAT	1-75127-132-2	01	1	0710-	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0710-	●	●
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (C)	1-73907-661-0	01	1	0710-	●	●
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (B)	1-73998-987-4	06	1	0710-	●	●
84	BRACKET; CURTAIN RAIL LOW ROOF<6XQ> (B)	1-73998-987-4	07	1	0710-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0710-	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0710-	●	●
101	SCREW; STOPPER HIGH ROOF<S2F>	1-73907-400-0	02	1	0710-	●	●

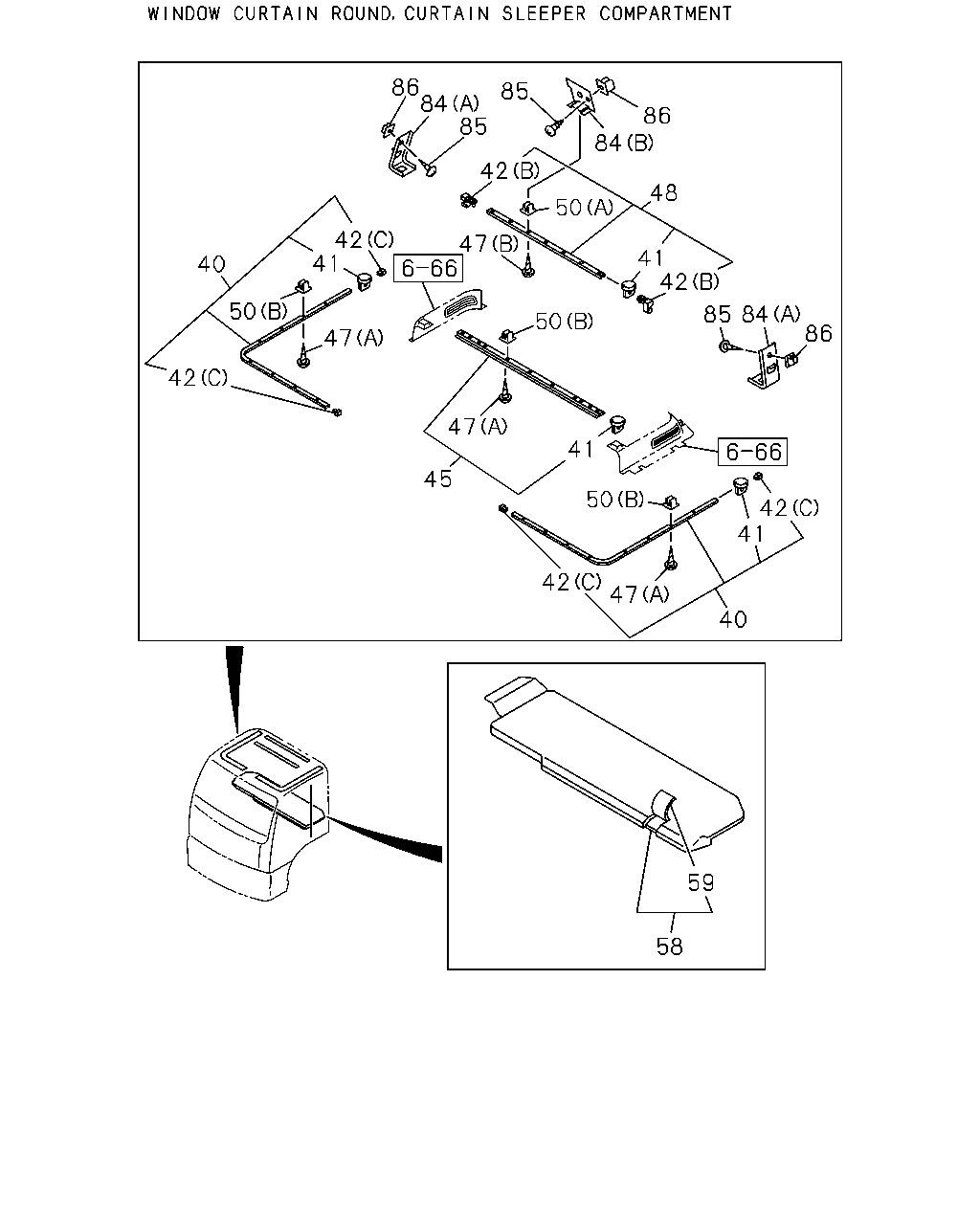

86 85 84 85 84 86 50 42 47 42 41 40 50 42 47 47 45 50 48 41 42 85 84 86 42 41 40 47 42 50 41 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	0710-	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	0710-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	0710-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	0710-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	42	1	0710-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0710-	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (A)	1-73907-657-0	02	1	0710-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	04	1	0710-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0710-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	02	1	0710-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0710-	●	●
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-591-2	01	1	0710-	●	●
45	RAIL; CURTAIN,FRT LOW ROOF<6XQ> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-2	01	1	0710-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-592-2	01	1	0710-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ>	1-73907-546-3	01	1	0710-	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0710-	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0710-	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	0710-	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	0710-	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	0710-	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	0710-	●	●
58	BED; MAT	1-75127-018-3	01	1	0710-	●	●
59	COVER ASM; TRIM,BED MAT	1-75127-132-2	01	1	0710-	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0710-	●	●
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (C)	1-73907-661-0	01	1	0710-	●	●
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (B)	1-73998-987-4	06	1	0710-	●	●
84	BRACKET; CURTAIN RAIL LOW ROOF<6XQ> (B)	1-73998-987-4	07	1	0710-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0710-	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0710-	●	●

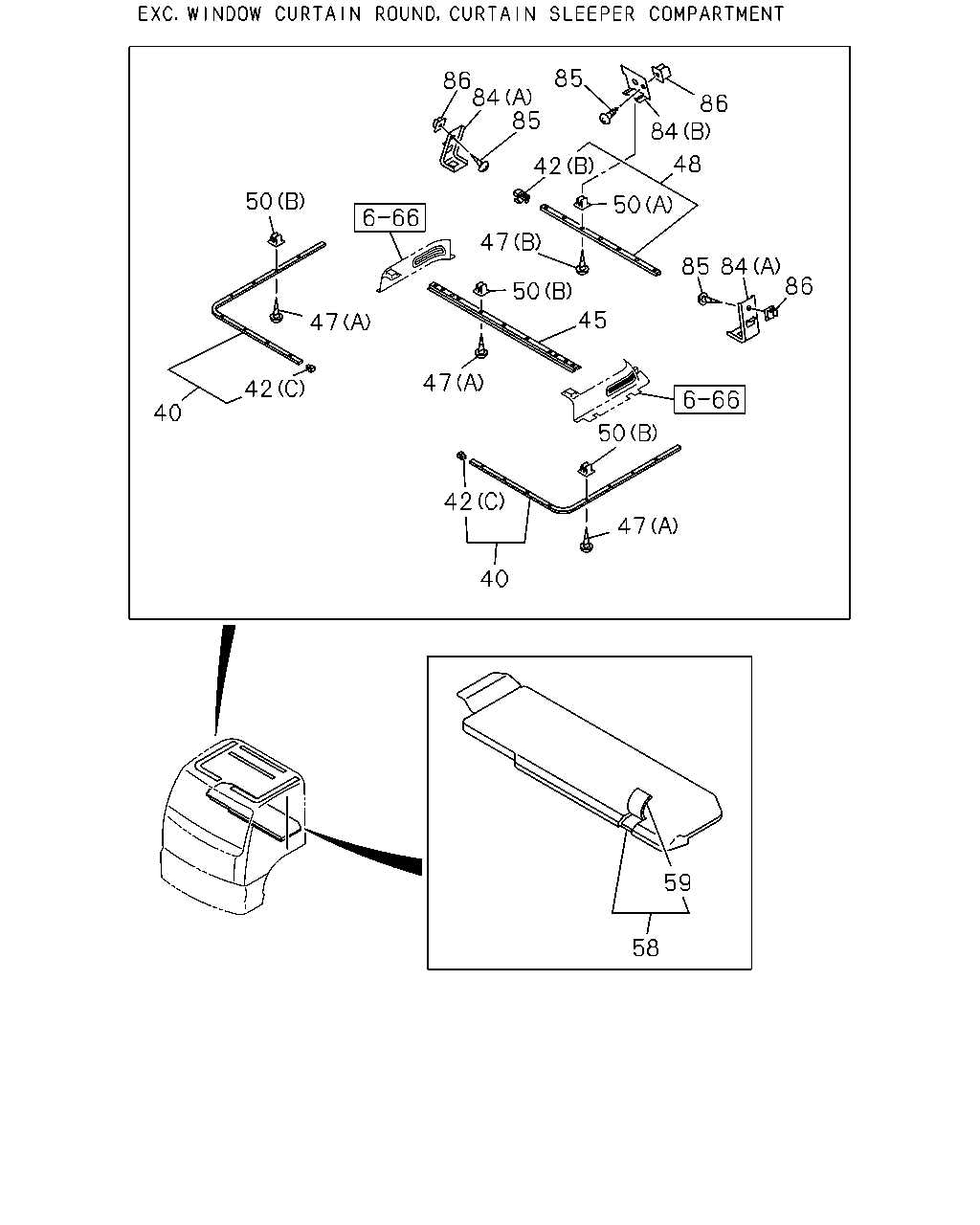

86 85 84 85 86 84 42 50 48 50 47 50 47 42 40 47 42 40 47 50 45 85 84 86 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	0710-	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	0710-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	0710-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	0710-	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (A)	1-73907-657-0	02	1	0710-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	04	1	0710-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0710-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	02	1	0710-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0710-	●	●
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-591-2	01	1	0710-	●	●
45	RAIL; CURTAIN,FRT LOW ROOF<6XQ> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-2	01	1	0710-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-592-2	01	1	0710-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ>	1-73907-546-3	01	1	0710-	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0710-	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0710-	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	0710-	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	0710-	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	0710-	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	0710-	●	●
58	BED; MAT	1-75127-018-3	01	1	0710-	●	●
59	COVER ASM; TRIM,BED MAT	1-75127-132-2	01	1	0710-	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0710-	●	●
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (C)	1-73907-661-0	01	1	0710-	●	●
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (B)	1-73998-987-4	06	1	0710-	●	●
84	BRACKET; CURTAIN RAIL LOW ROOF<6XQ> (B)	1-73998-987-4	07	1	0710-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0710-	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0710-	●	●

64 51 44 44 92 51 92 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (B)	1-73907-504-1	01	1	0710-	●	●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (A)	1-73907-505-1	01	1	0710-	●	●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (B)	1-73907-480-1	01	1	0710-	●	●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A)	1-73907-481-1	01	1	0710-	●	●
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4> LOW ROOF<6XQ>	1-73907-426-0	01	1	0710-	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> (B)	1-73907-482-1	01	1	0710-	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73907-483-1	01	1	0710-	●	●
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F>	1-73907-578-1	01	1	0710-	●	●
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4> LOW ROOF<6XQ>	1-73907-479-1	01	1	0710-	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> (B)	1-73907-484-1	01	1	0710-	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> (A)	1-73907-485-1	01	1	0710-	●	●

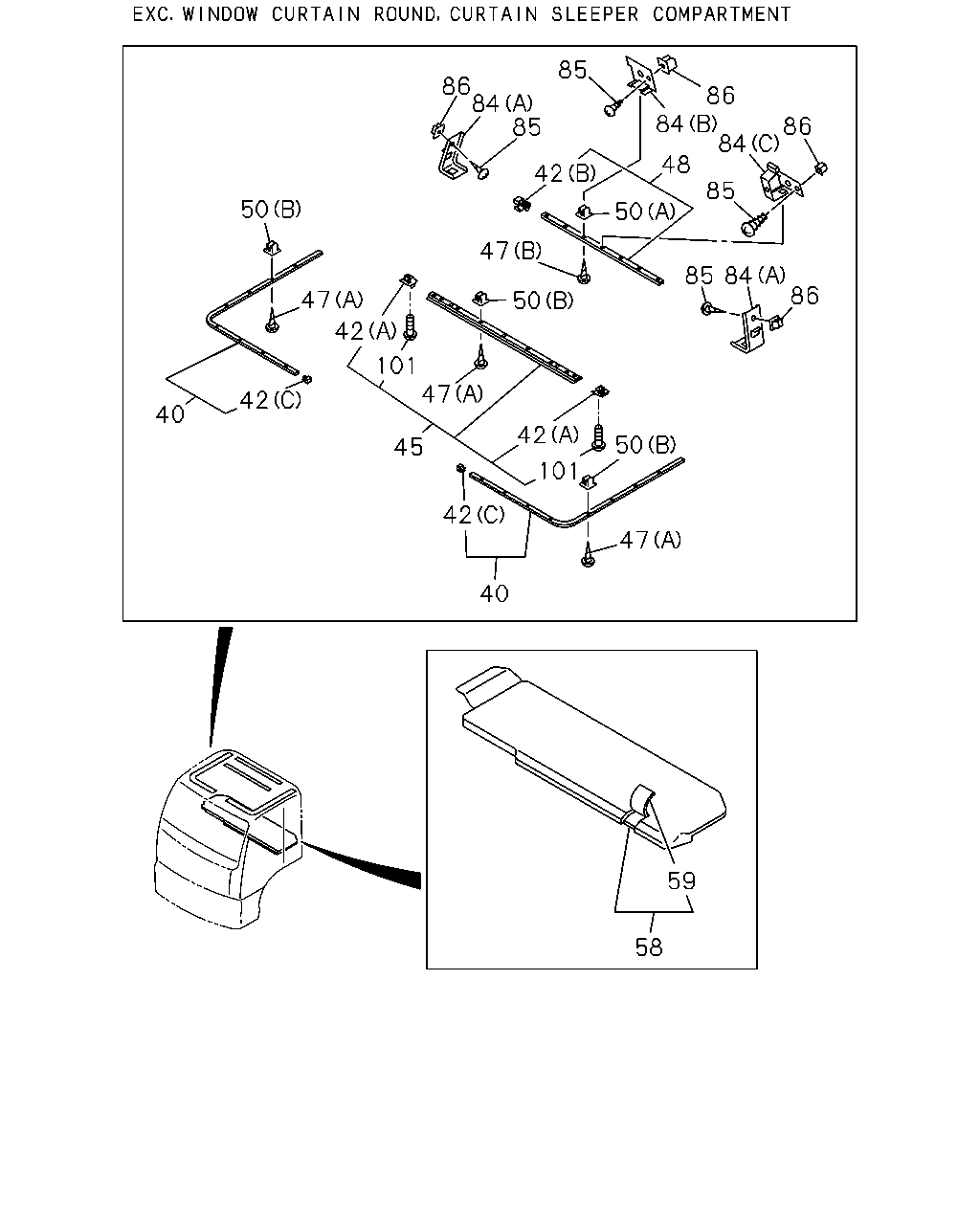

86 85 84 85 42 41 40 50 42 42 47 47 42 50 84 86 84 86 85 48 41 42 85 84 86 50 101 45 47 41 42 101 50 42 41 40 47 42 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	0710-	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	0710-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	0710-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	0710-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	42	1	0710-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0710-	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (A)	1-73907-657-0	02	1	0710-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	04	1	0710-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0710-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	02	1	0710-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0710-	●	●
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-591-2	01	1	0710-	●	●
45	RAIL; CURTAIN,FRT LOW ROOF<6XQ> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-2	01	1	0710-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-592-2	01	1	0710-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ>	1-73907-546-3	01	1	0710-	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0710-	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0710-	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	0710-	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	0710-	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	0710-	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	0710-	●	●
58	BED; MAT	1-75127-018-3	01	1	0710-	●	●
59	COVER ASM; TRIM,BED MAT	1-75127-132-2	01	1	0710-	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0710-	●	●
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (C)	1-73907-661-0	01	1	0710-	●	●
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (B)	1-73998-987-4	06	1	0710-	●	●
84	BRACKET; CURTAIN RAIL LOW ROOF<6XQ> (B)	1-73998-987-4	07	1	0710-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0710-	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0710-	●	●
101	SCREW; STOPPER HIGH ROOF<S2F>	1-73907-400-0	02	1	0710-	●	●
