◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11111 - CYZ NZ EURO3/JAPAN NEW SHORT TERM 2004 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#67198) — 13 parça

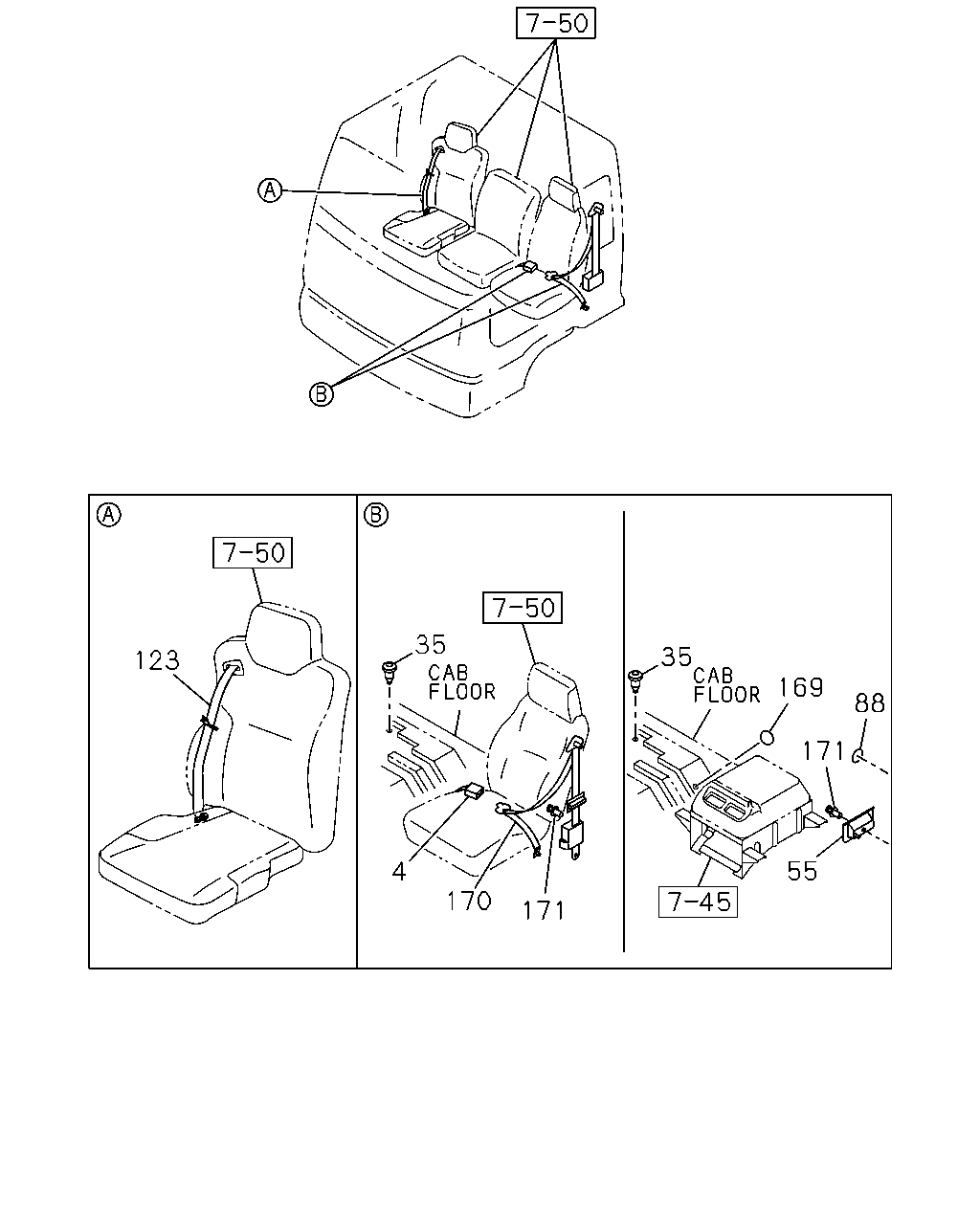

çizim 135864
35 35 123 169 88 171 55 4 170 171
BalonParca AdiParca NoAdetTipApplied Date A B
4 BELT; PASSENGER SEAT,BUCKLE SIDE 1-75617-546-1 01 1 0710- ● ●
35 GROMMET; SEAT BELT ANCHOR
OD=22 		9-61168-535-0 01 1 1006- ● ●
55 GUIDE; SEAT BELT 1-75617-556-0 01 1 0710- ● ●
88 PLUG; HOLE
OD=31.6 		8-94198-177-0 01 1 0710- ● ●
123 BELT ASM; SEAT
AIR BAG(TFQ) 		8-98097-971-0 01 1 0710- ● ●
123 BELT ASM; SEAT
EXC. AIR BAG(TFQ) 		8-98097-969-0 01 1 0710- ● ●
169 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0710-1005 ● ●
169 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1006- ● ●
169 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1006- ● ●
169 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 0710-1005 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75617-588-3 01 1 0710-0805 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98120-820-1 01 1 0806- ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
