◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11111 - CYZ NZ EURO3/JAPAN NEW SHORT TERM 2004 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#67197) — 100 parça

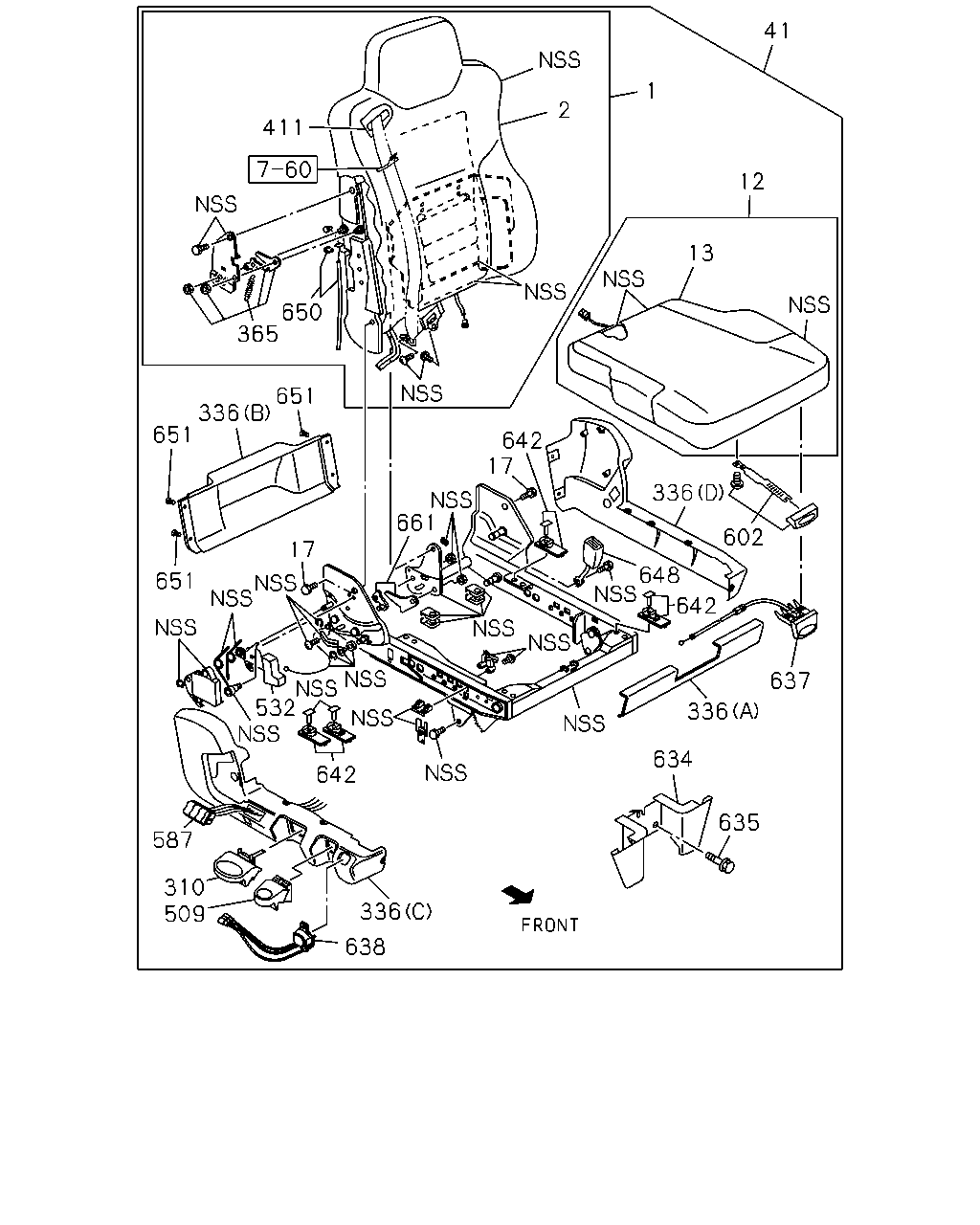

çizim 134279
41 1 2 12 13 411 650 365 651 336 651 17 651 661 642 17 336 602 637 336 634 635 336 638 509 587 310 532 642 648 642
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
AIR BAG(TFQ) 		8-98097-964-0 01 1 0710- ● ●
1 BACK ASM; SEAT
EXC. AIR BAG(TFQ) 		8-98097-963-0 01 1 0710- ● ●
2 COVER; TRIM,FRT SEAT,BACK 8-98097-966-0 01 1 0710-1212 ● ●
2 COVER; TRIM,FRT SEAT,BACK 8-98232-353-0 01 1 1301- ● ●
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 0710- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 0710- ● ●
17 BOLT; RECLINING 8-98097-974-0 02 1 0710- ● ●
41 SEAT ASM; DRIVER
AIR BAG(TFQ) 		8-98036-942-2 01 1 0710-1212 ● ●
41 SEAT ASM; DRIVER
AIR BAG(TFQ) 		8-98195-067-0 01 1 1301- ● ●
41 SEAT ASM; DRIVER
EXC. AIR BAG(TFQ) 		8-98013-721-2 01 1 0710-1212 ● ●
41 SEAT ASM; DRIVER
EXC. AIR BAG(TFQ) 		8-98195-066-0 01 1 1301- ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT 8-98097-992-0 01 1 0710- ● ●
336 COVER; DRIVER SEAT
(D) 		8-98097-978-0 01 1 0710- ● ●
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 0710- ● ●
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 0710- ● ●
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 0710- ● ●
365 LOCK ASM; SEAT 8-98097-972-0 01 1 0710- ● ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 0710- ● ●
509 LEVER; DAMPER 8-98097-988-0 01 1 0710- ● ●
532 LEVER ASM; TILT 8-98097-982-0 01 1 0710- ● ●
587 VALVE; LUMBAR SUPPORT 8-98097-986-0 01 1 0710- ● ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 0710- ● ●
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 0710- ● ●
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 0710- ● ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 0710- ● ●
638 VALVE; LOWERING 8-98097-994-0 01 1 0710- ● ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 0710- ● ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 0710- ● ●
650 CABLE 8-98097-973-0 01 1 0710-1212 ● ●
650 CABLE 8-98232-354-0 01 1 1301- ● ●
651 RIVET 8-98194-075-0 04 1 0710- ● ●
661 LOCK ASM; RECLINING 8-98097-980-0 01 1 0710- ● ●

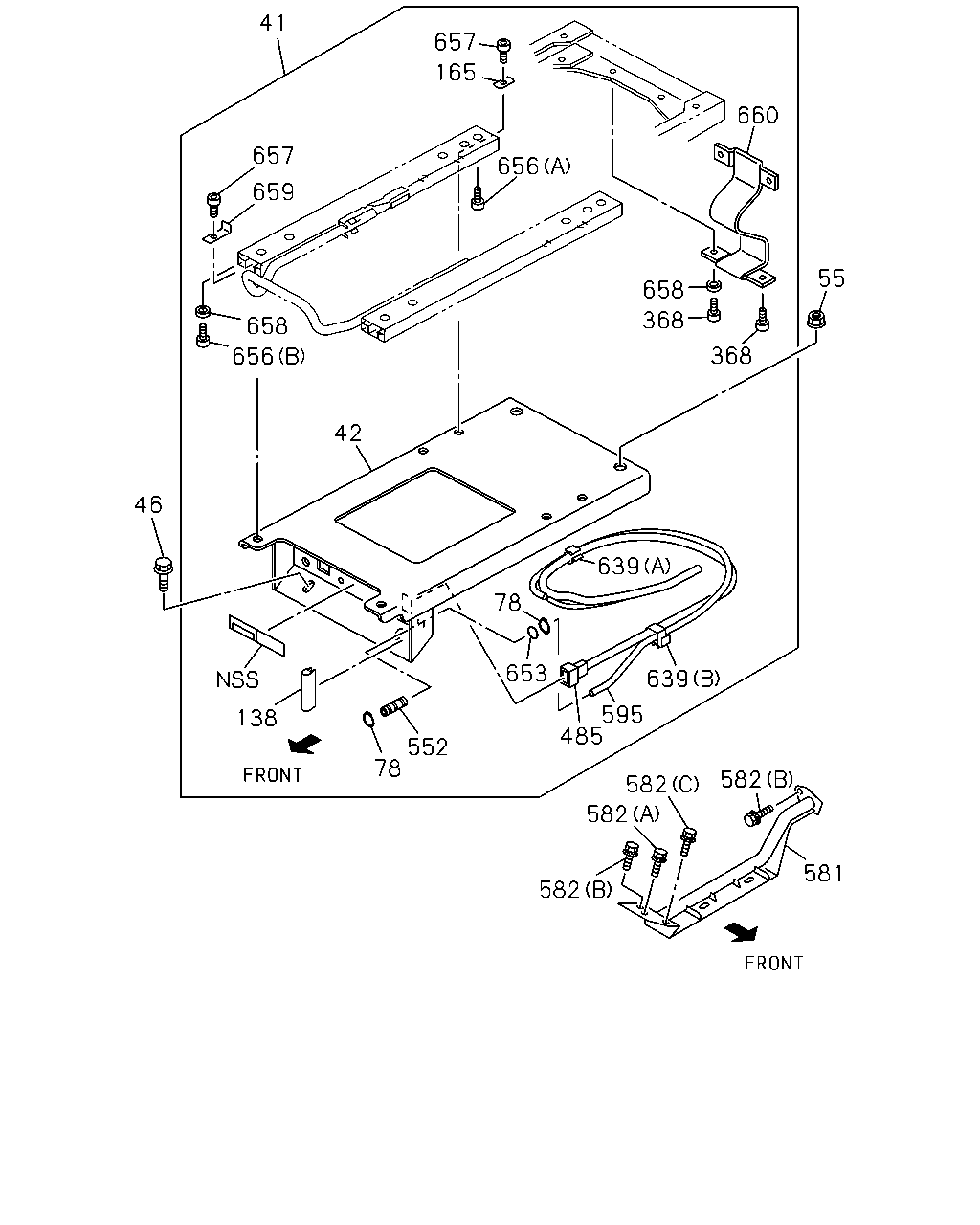

çizim 135112
41 657 659 658 656 46 42 138 78 552 78 653 639 639 595 485 582 582 582 582 581 368 55 368 658 660 657 165 656
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER
AIR BAG(TFQ) 		8-98036-942-2 01 1 0710-1212 ● ●
41 SEAT ASM; DRIVER
AIR BAG(TFQ) 		8-98195-067-0 01 1 1301- ● ●
41 SEAT ASM; DRIVER
EXC. AIR BAG(TFQ) 		8-98013-721-2 01 1 0710-1212 ● ●
41 SEAT ASM; DRIVER
EXC. AIR BAG(TFQ) 		8-98195-066-0 01 1 1301- ● ●
42 STAND; DRIVER SEAT 8-98106-347-0 01 1 0710- ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0710- ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0710- ● ●
78 RING; SNAP 8-98101-900-0 02 1 0710- ● ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 0710- ● ●
165 WASHER; PL 1-75590-086-0 04 1 0710- ● ●
368 BOLT; SEAT 8-98106-353-0 04 1 0710- ● ●
485 HARNESS; FRT SEAT
AIR BAG(TFQ) 		8-98106-360-0 01 1 0710- ● ●
485 HARNESS; FRT SEAT
EXC. AIR BAG(TFQ) 		8-98106-361-0 01 1 0710- ● ●
552 CONNECTOR 8-98101-902-0 01 1 0710- ● ●
581 PIPE; SEAT 1-73907-605-2 01 1 0710- ● ●
582 BOLT; PIPE,SEAT
(B) 		1-09980-619-1 02 1 0710- ● ●
582 BOLT; PIPE,SEAT
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0710-0904 ● ●
582 BOLT; PIPE,SEAT
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ●
582 BOLT; PIPE,SEAT
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0710- ● ●
595 TUBE; NYLON 8-98106-348-0 01 1 0710- ● ●
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 0710- ● ●
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 0710- ● ●
653 GASKET 8-98101-901-0 01 1 0710- ● ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 0710- ● ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 0710- ● ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 0710- ● ●
658 SPACER; BOLT 8-98106-355-0 02 1 0710- ● ●
659 STOPPER 8-98106-356-0 02 1 0710- ● ●
660 BELT; TETHER 8-98106-357-0 01 1 0710- ● ●

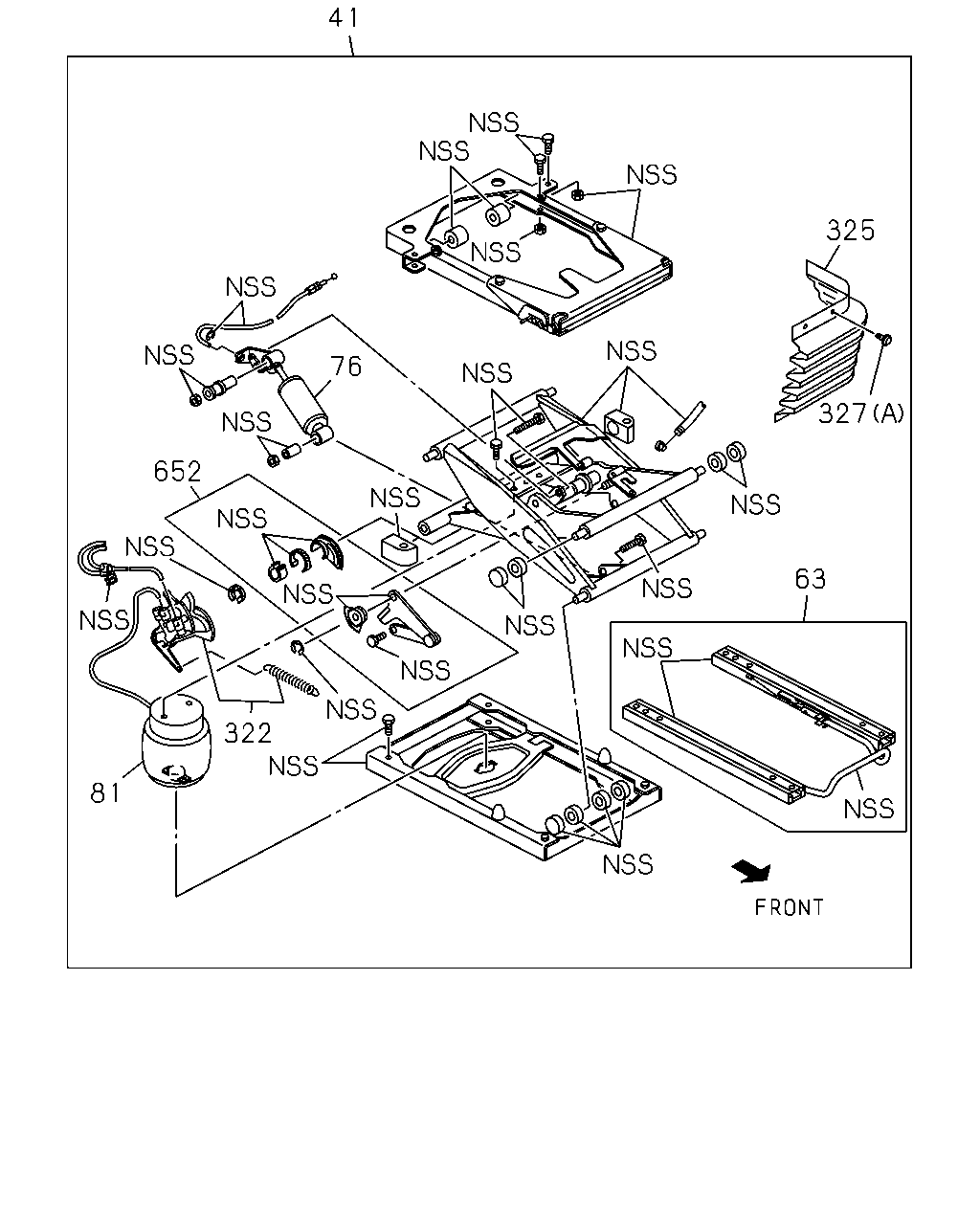

çizim 135226
41 76 652 81 322 63 325 327
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER
AIR BAG(TFQ) 		8-98036-942-2 01 1 0710-1212 ● ●
41 SEAT ASM; DRIVER
AIR BAG(TFQ) 		8-98195-067-0 01 1 1301- ● ●
41 SEAT ASM; DRIVER
EXC. AIR BAG(TFQ) 		8-98013-721-2 01 1 0710-1212 ● ●
41 SEAT ASM; DRIVER
EXC. AIR BAG(TFQ) 		8-98195-066-0 01 1 1301- ● ●
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 0710- ● ●
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 0710- ● ●
81 SPRING; AIR 8-98098-000-0 01 1 0710- ● ●
322 VALVE; AIR SPRING 8-98098-001-0 01 1 0710- ● ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 0710- ● ●
327 CLIP; COVER
(A) 		8-98098-004-0 01 1 0710- ● ●
327 CLIP; COVER
EXC. REMOTE CONT DOOR LOCK<SLG> (B) 		1-09987-273-0 02 1 0710- ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 0710- ● ●

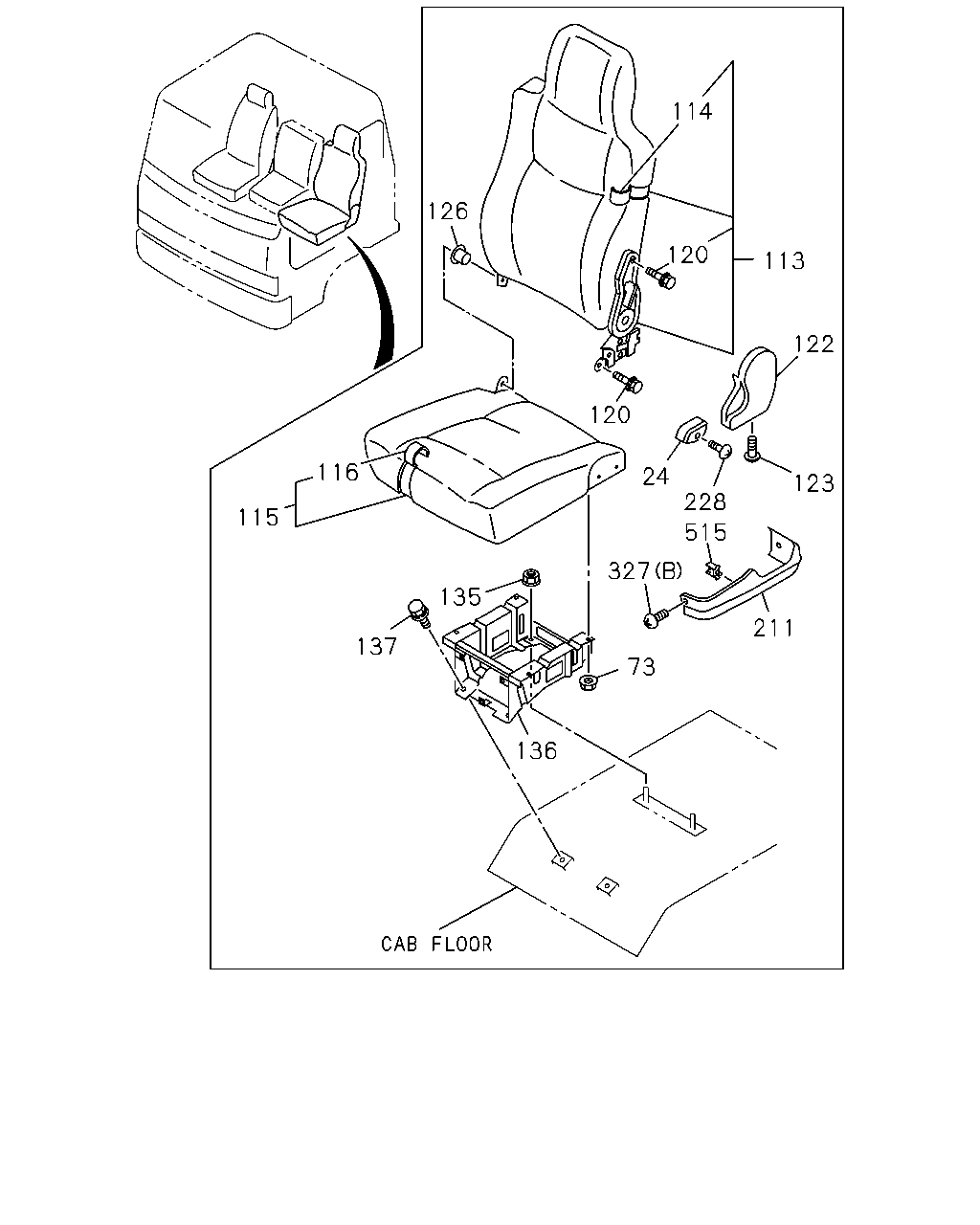

çizim 321756
114 113 122 123 211 515 228 24 327 73 136 135 137 116 115 126 120 120
BalonParca AdiParca NoAdetTipApplied Date A B
24 KNOB; RECLINING,FRT,SEAT 1-75418-067-0 01 1 0710- ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0710- ● ●
113 BACK ASM; SEAT 8-98054-773-0 01 1 0710- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK 8-98054-777-0 01 1 0710- ● ●
115 CUSHION ASM; PASSENGER SEAT
REMOTE CONT DOOR LOCK<SLG> 		8-98054-770-0 01 1 0710- ●
115 CUSHION ASM; PASSENGER SEAT 8-98054-770-0 01 1 0710- ●
115 CUSHION ASM; PASSENGER SEAT
EXC. REMOTE CONT DOOR LOCK<SLG> 		8-98054-771-0 01 1 0710- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
REMOTE CONT DOOR LOCK<SLG> 		8-98054-775-0 01 1 0710- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION 8-98054-775-0 01 1 0710- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. REMOTE CONT DOOR LOCK<SLG> 		8-98054-776-0 01 1 0710- ●
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 02 1 0710- ● ●
122 COVER; ADJ,RECLINING
DARK GRAY 		8-97859-018-0 01 1 0710- ● ●
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0710- ● ●
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 0710- ● ●
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 0710- ● ●
136 STAND; PASSENGER SEAT
REMOTE CONT DOOR LOCK<SLG> 		1-75558-601-3 01 1 0710-1305 ●
136 STAND; PASSENGER SEAT 1-75558-601-3 01 1 0710-1305 ●
136 STAND; PASSENGER SEAT
REMOTE CONT DOOR LOCK<SLG> 		8-98242-298-0 01 1 1306- ●
136 STAND; PASSENGER SEAT 8-98242-298-0 01 1 1306- ●
136 STAND; PASSENGER SEAT
EXC. REMOTE CONT DOOR LOCK<SLG> 		1-75558-550-7 01 1 0710-1305 ●
136 STAND; PASSENGER SEAT
EXC. REMOTE CONT DOOR LOCK<SLG> 		8-98242-292-0 01 1 1306- ●
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0710- ● ●
211 COVER; FRT SEAT
EXC. REMOTE CONT DOOR LOCK<SLG> 		1-72538-274-0 01 1 0710- ●
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 0710- ● ●
327 CLIP; COVER
(A) 		8-98098-004-0 01 1 0710- ● ●
327 CLIP; COVER
EXC. REMOTE CONT DOOR LOCK<SLG> (B) 		1-09987-273-0 02 1 0710- ●
515 CLIP; PIPE
EXC. REMOTE CONT DOOR LOCK<SLG> BLACK 		8-94227-248-1 01 1 0710- ●
