◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11111 - CYZ NZ EURO3/JAPAN NEW SHORT TERM 2004 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#67196) — 50 parça

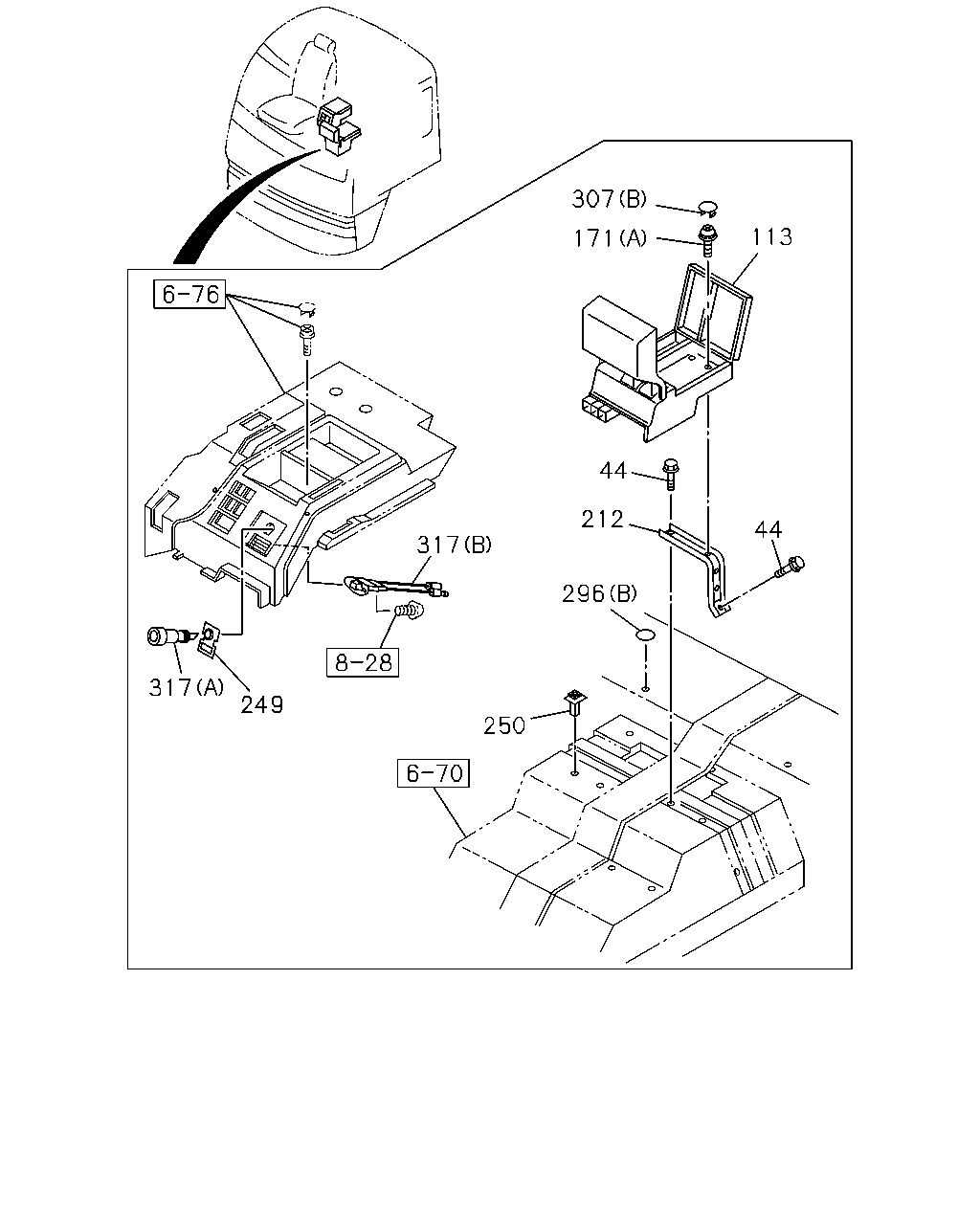

çizim 134090
307 113 171 44 212 296 44 317 317 249 250
BalonParca AdiParca NoAdetTipApplied Date A B
44 BOLT; SUPPORT,CTR CONSOLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0710-0904 ● ●
44 BOLT; SUPPORT,CTR CONSOLE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ●
113 BOX; CONSOLE 1-72537-326-1 01 1 0710- ● ●
171 SCREW; CONSOLE BOX
(B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0710- ● ●
171 SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0710- ● ●
212 SUPPORT; CONSOLE TO COMPT 1-72537-095-1 01 1 0710- ● ●
249 COVER 1-82529-001-0 01 1 0710- ● ●
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0710- ● ●
296 SEAL
(A) 		1-72537-094-1 01 1 0710- ● ●
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0710- ● ●
307 COVER; HOLE,CTR CONSOLE
(A) 		1-72537-188-0 02 1 0710- ● ●
307 COVER; HOLE,CTR CONSOLE
(B) 		1-76337-461-0 04 1 0710- ● ●
317 CONSENT
(B) 		1-82523-020-2 01 1 0710- ● ●
317 CONSENT
(A) 		8-94382-451-1 01 1 0710- ● ●

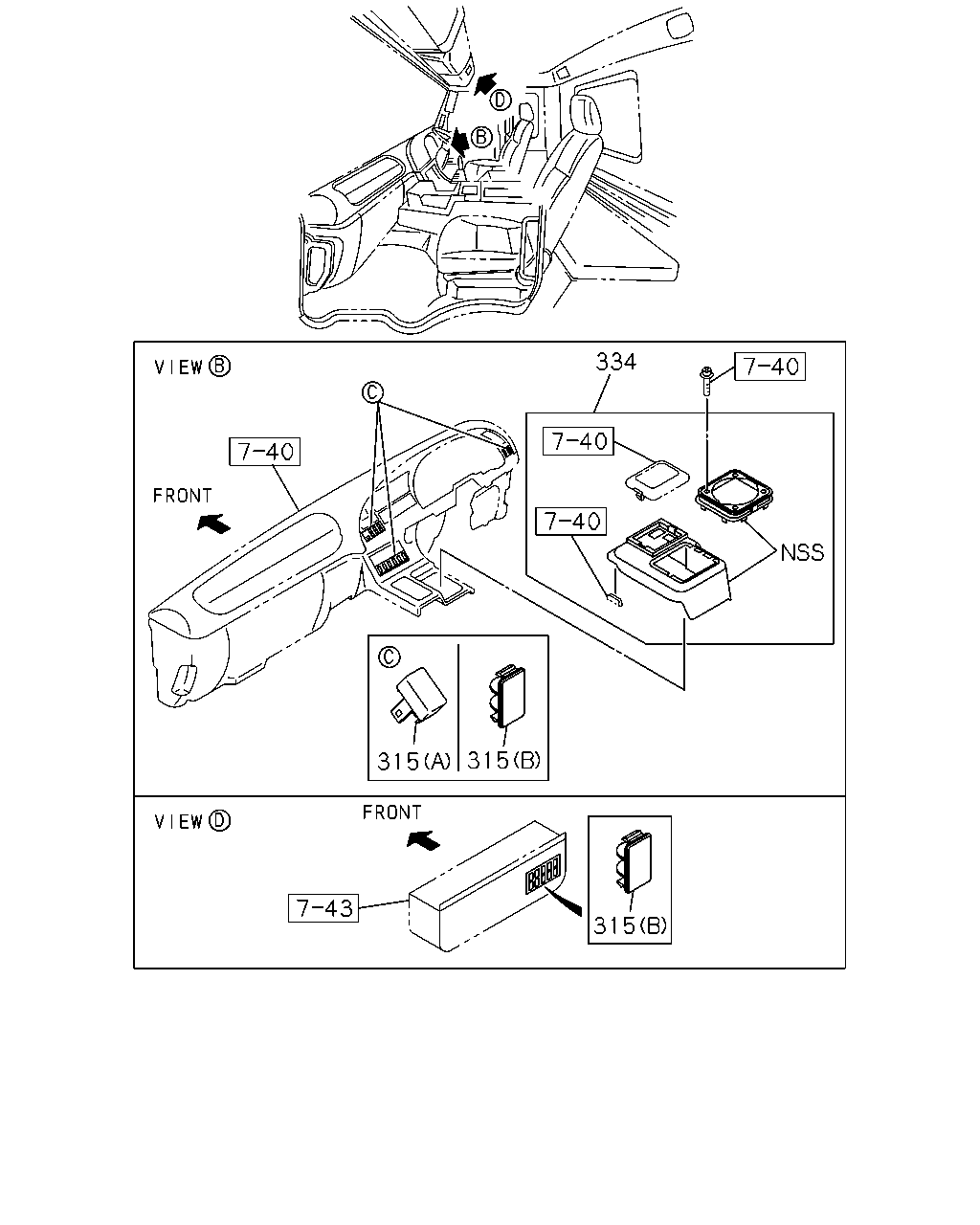

çizim 192787
315 315 334 315
BalonParca AdiParca NoAdetTipApplied Date A B
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 0710- ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 0710- ● ●
334 COVER; CHANGE LEVER
SMOOTHER-G(C1W) 		1-72447-969-1 01 1 0710- ●
334 COVER; CHANGE LEVER 1-72447-969-1 01 1 0710- ●

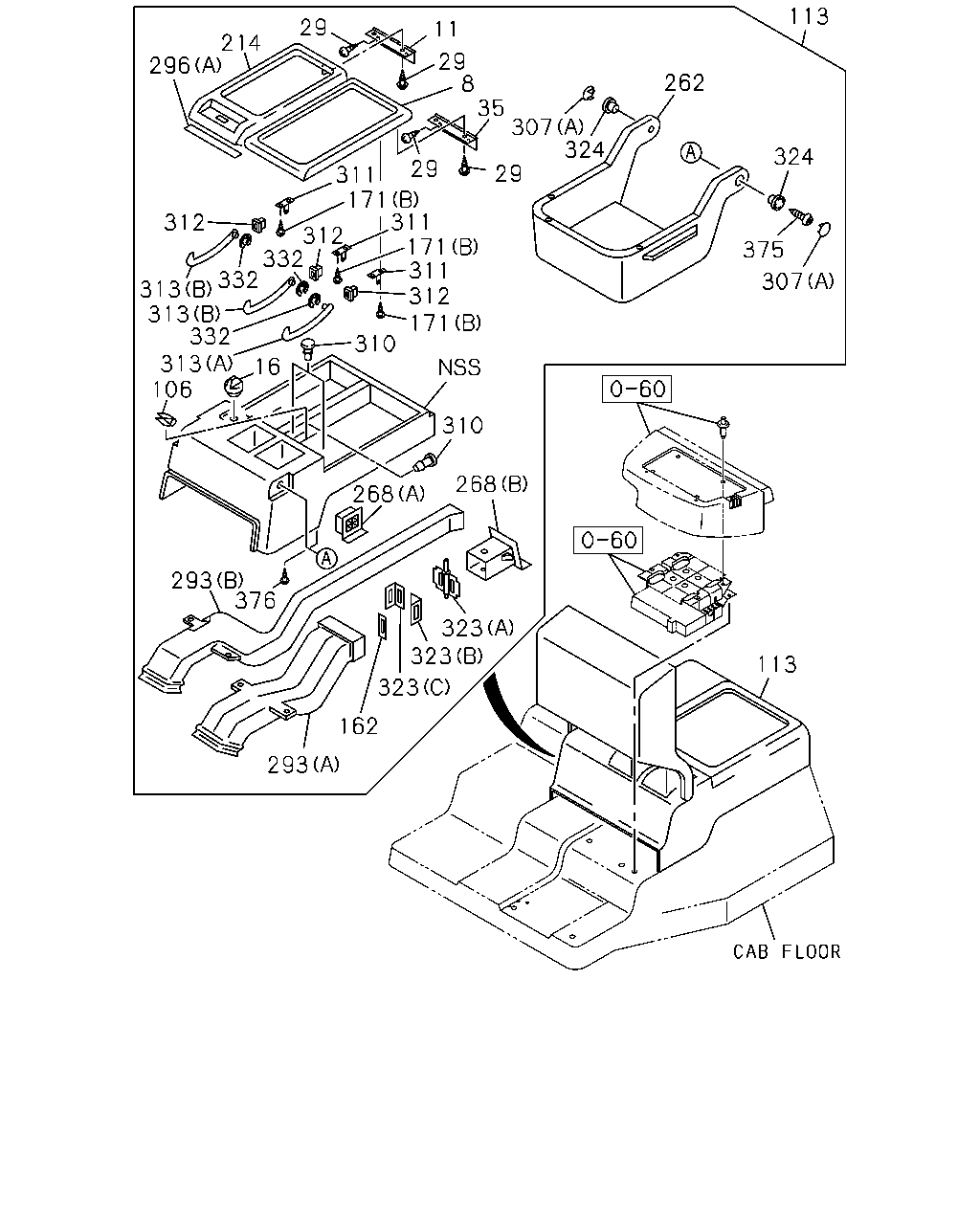

çizim 192791
296 214 29 11 29 8 35 262 113 324 375 307 307 324 29 29 311 171 311 171 311 312 171 312 332 312 332 313 313 332 313 106 16 310 310 268 268 323 323 323 162 293 293 376 113
BalonParca AdiParca NoAdetTipApplied Date A B
8 LID; CENTER CONSOLE 1-72537-332-0 01 1 0710- ● ●
11 HINGE; CONSOLE LID 1-72537-070-2 01 1 0710- ● ●
16 KNOB ASM 1-72537-189-0 01 1 0710- ● ●
29 SCREW; HINGE
M5X14 BINDING HEAD 		1-72537-168-0 08 1 0710- ● ●
35 HINGE; CENTER CONSOLE 1-72538-182-1 01 1 0710- ● ●
106 LOCK; CONSOLE LID 1-72537-079-0 02 1 0710- ● ●
113 BOX; CONSOLE 1-72537-326-1 01 1 0710- ● ●
162 CUSHION; PARCEL BOX 1-72537-128-0 03 1 0710- ● ●
171 SCREW; CONSOLE BOX
(B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0710- ● ●
171 SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0710- ● ●
214 LID; CONSOLE 1-72537-339-0 01 1 0710- ● ●
262 TABLE ASM 1-72537-187-1 01 1 0710- ● ●
268 COVER; DUCT
(B) 		1-72537-183-0 01 1 0710- ● ●
268 COVER; DUCT
(A) 		1-72537-184-0 01 1 0710- ● ●
293 DUCT
(A) 		1-72537-081-3 01 1 0710- ● ●
293 DUCT
(B) 		1-72537-083-2 01 1 0710- ● ●
296 SEAL
(A) 		1-72537-094-1 01 1 0710- ● ●
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0710- ● ●
307 COVER; HOLE,CTR CONSOLE
(A) 		1-72537-188-0 02 1 0710- ● ●
307 COVER; HOLE,CTR CONSOLE
(B) 		1-76337-461-0 04 1 0710- ● ●
310 CUSHION; CTR CONSOLE 1-72538-187-0 02 1 0710- ● ●
311 HOLDER; CONSOLE 1-72538-188-2 03 1 0710- ● ●
312 STOPPER; CONSOLE 1-72538-186-1 03 1 0710- ● ●
313 ARM; CTR CONSOLE
(A) 		1-72538-184-3 01 1 0710- ● ●
313 ARM; CTR CONSOLE
(B) 		1-72538-185-3 02 1 0710- ● ●
323 SHUTTER
(A) 		1-72537-084-1 01 1 0710- ● ●
323 SHUTTER
(B) 		1-72537-126-0 01 1 0710- ● ●
323 SHUTTER
(C) 		1-72537-127-0 01 1 0710- ● ●
324 BUSHING 1-72537-116-0 02 1 0710- ● ●
332 RING; SNAP,CONSOLE BOX 1-72537-170-0 03 1 0710- ● ●
375 SCREW; TAP BUSHING
M6X20 		1-72537-319-0 02 1 0710- ● ●
376 SCREW; TAP DUCT
M4X14 		1-72537-320-0 03 1 0710- ● ●
