◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11111 - CYZ NZ EURO3/JAPAN NEW SHORT TERM 2004 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#67191) — 44 parça

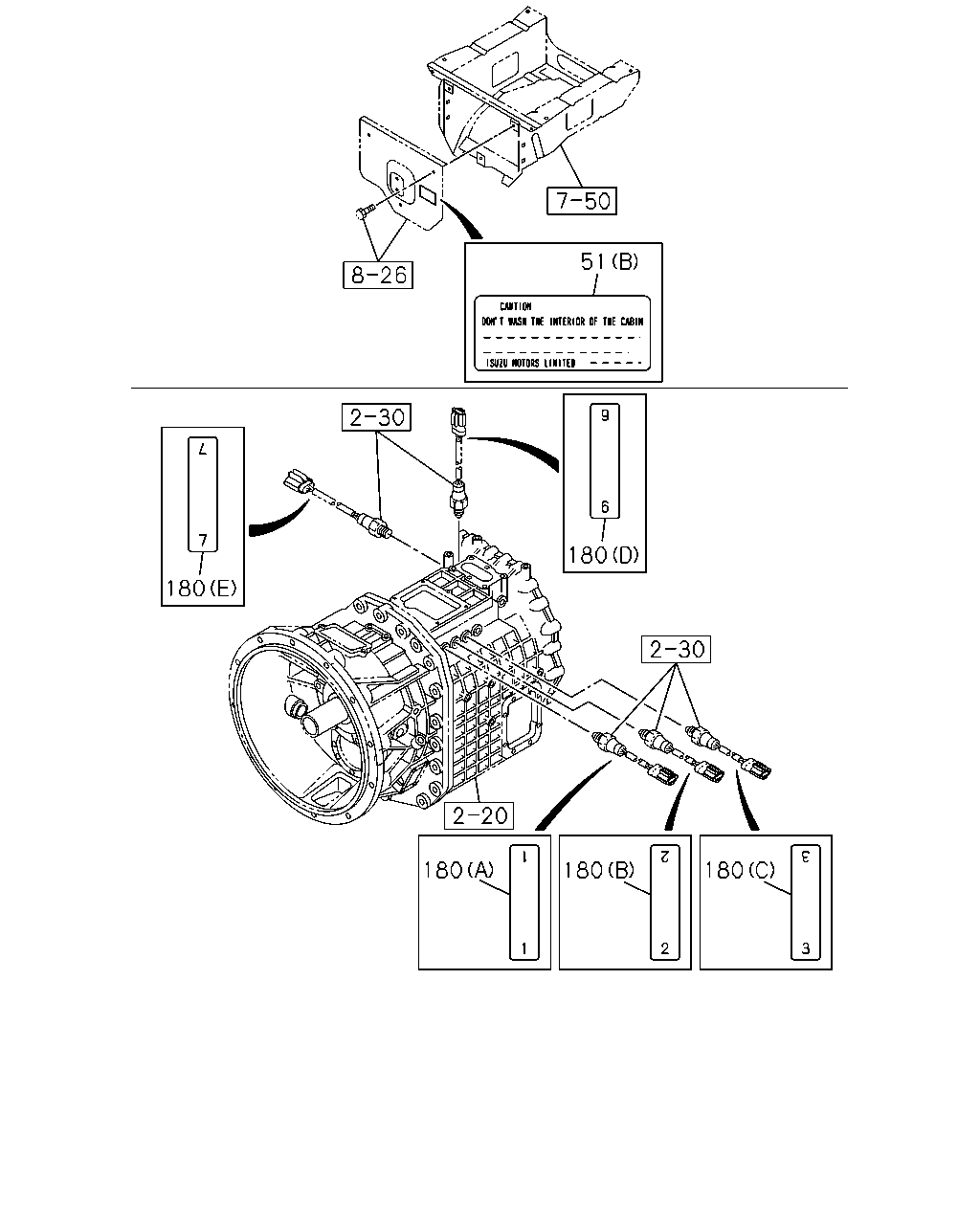

çizim 132729
51 180 180 180 180 180
BalonParca AdiParca NoAdetTipApplied Date A B
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 0710- ● ●
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 0710- ● ●
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) (A) 		1-85881-871-0 01 1 0710- ●
180 PLATE; CAUTION,SWITCH
(A) 		1-85881-871-0 01 1 0710- ●
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) (B) 		1-85881-872-0 01 1 0710- ●
180 PLATE; CAUTION,SWITCH
(B) 		1-85881-872-0 01 1 0710- ●
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) (C) 		1-85881-873-0 01 1 0710- ●
180 PLATE; CAUTION,SWITCH
(C) 		1-85881-873-0 01 1 0710- ●
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) (D) 		1-85881-880-0 01 1 0710- ●
180 PLATE; CAUTION,SWITCH
(D) 		1-85881-880-0 01 1 0710- ●
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) (E) 		1-85881-881-0 01 1 0710- ●
180 PLATE; CAUTION,SWITCH
(E) 		1-85881-881-0 01 1 0710- ●
çizim 132918
181 181
BalonParca AdiParca NoAdetTipApplied Date A B
181 PLATE; CAUTION,AIR CLEANER
(A) 		1-85886-796-1 01 1 0710- ● ●
181 PLATE; CAUTION,AIR CLEANER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		1-85886-813-1 01 1 0710- ● ●

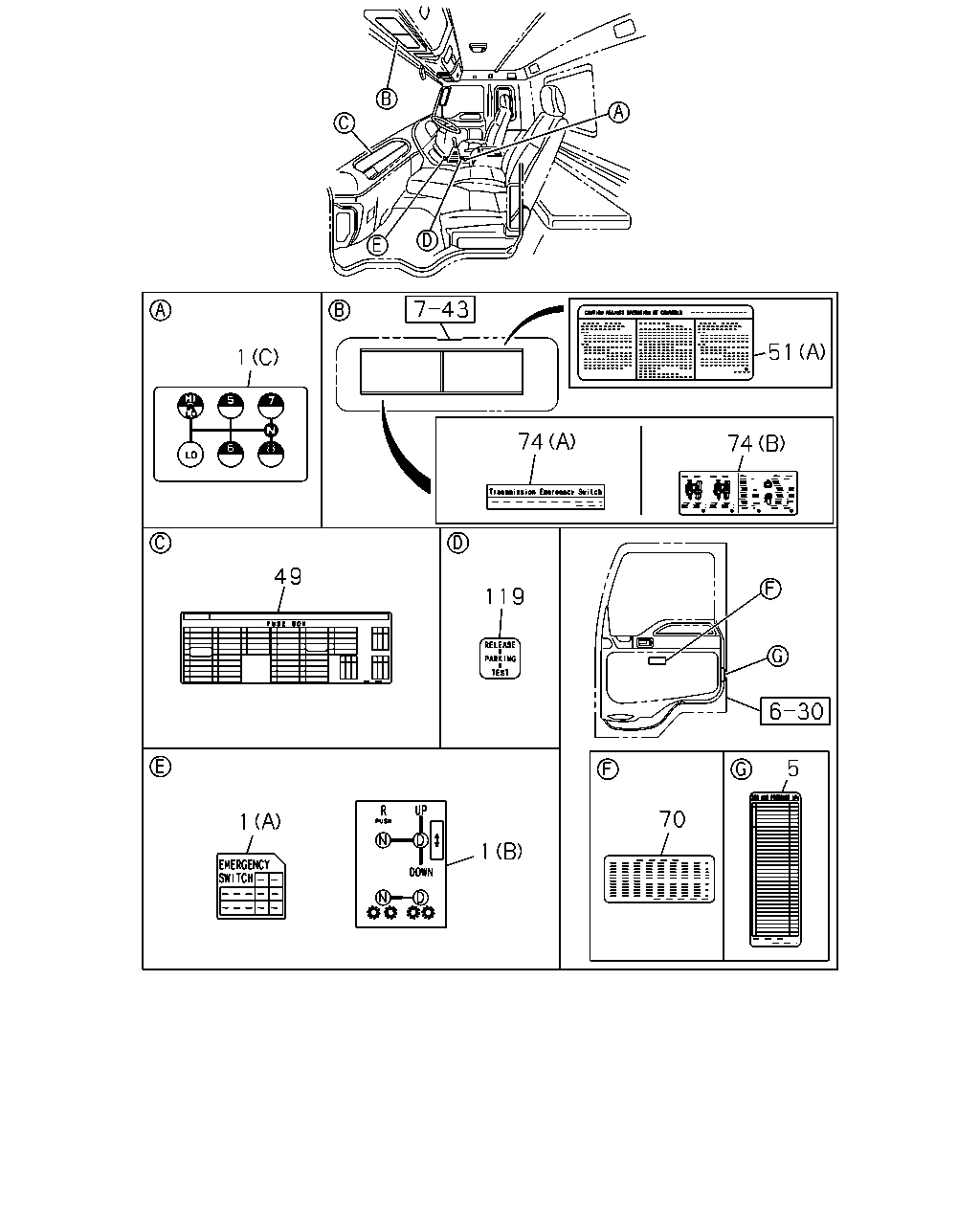

çizim 133089
1 74 51 74 119 49 1 1 70 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 PLATE; CAUTION,SHIFT PATTERN
FULLER M/T<X9B> (C) 		1-85881-519-0 01 1 0710- ●
1 PLATE; CAUTION,SHIFT PATTERN
SMOOTHER-G(C1W) (B) 		1-85881-798-0 01 1 0710- ●
1 PLATE; CAUTION,SHIFT PATTERN
(B) 		1-85881-798-0 01 1 0710- ●
1 PLATE; CAUTION,SHIFT PATTERN
SMOOTHER-G(C1W) (A) 		1-85881-879-1 01 1 0710- ●
1 PLATE; CAUTION,SHIFT PATTERN
(A) 		1-85881-879-1 01 1 0710- ●
5 LABEL; TIRE AIR PRESSURE 1-85880-778-0 01 1 0710- ● ●
49 PLATE; CAUTION,FUSE BOX
6WF1 TC-C(1B8) 		1-85878-550-0 01 1 0710- ●
49 PLATE; CAUTION,FUSE BOX
6WG1 TC-C(72L) 		8-97623-001-0 01 1 0710- ●
49 PLATE; CAUTION,FUSE BOX 8-97623-001-0 01 1 0710- ●
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 0710- ● ●
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 0710- ● ●
70 PLATE; CAUTION,ACT
SMOOTHER-G(C1W) 		1-85878-484-0 01 1 0710- ●
70 PLATE; CAUTION,ACT 1-85878-484-0 01 1 0710- ●
74 PLATE; CAUTION,CHANGE LEV
COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) 		1-85881-786-0 01 1 0710- ●
74 PLATE; CAUTION,CHANGE LEV
SMOOTHER-G(C1W) (B) 		1-85881-869-0 01 1 0710- ●
74 PLATE; CAUTION,CHANGE LEV
(B) 		1-85881-869-0 01 1 0710- ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-791-0 01 1 0710- ● ●

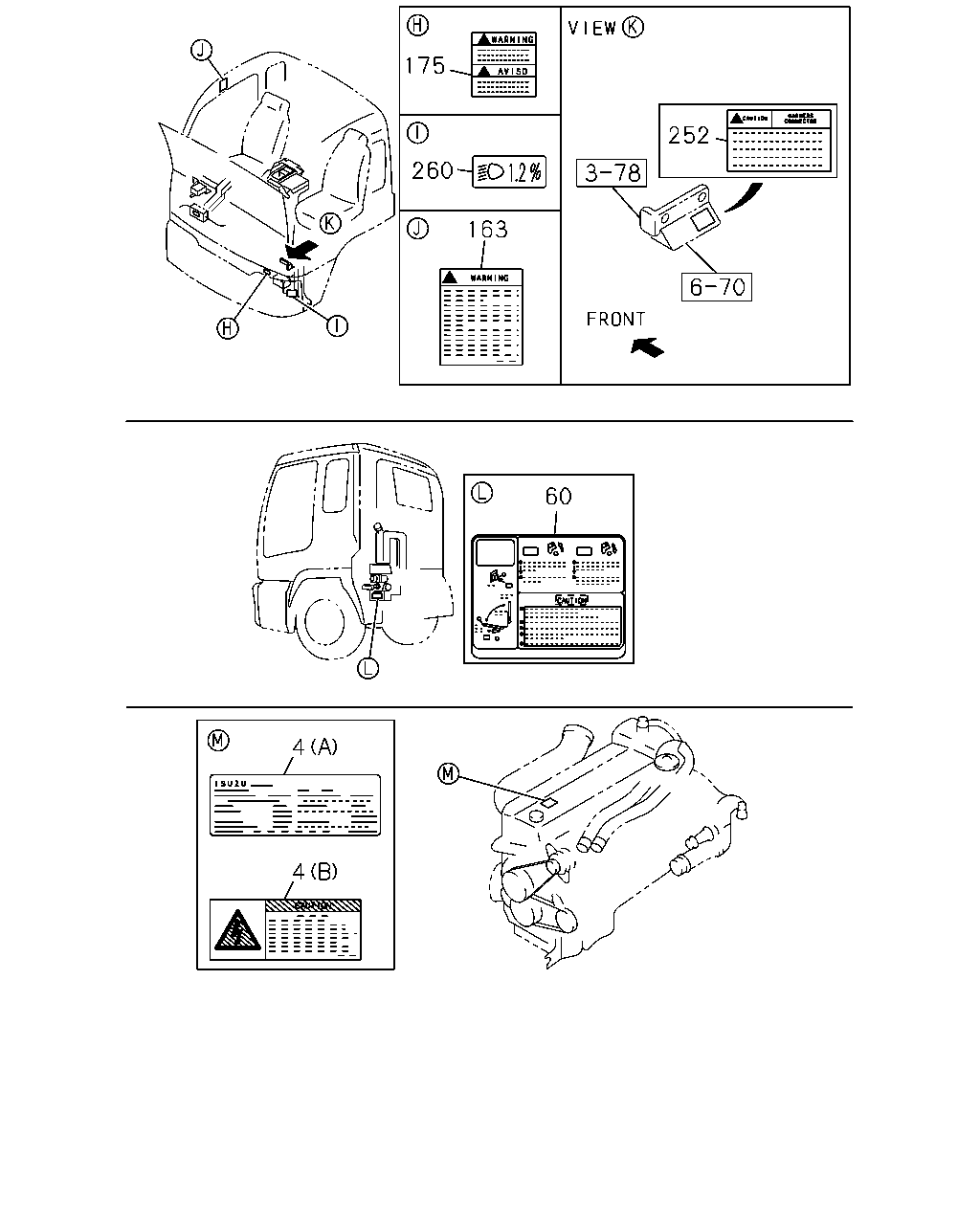

çizim 192786
175 252 260 163 60 4 4
BalonParca AdiParca NoAdetTipApplied Date A B
4 LABEL; ENG MAINTENANCE
6WF1 TC-C(1B8) (A) 		1-85875-462-0 02 1 0710-0902 ● ●
4 LABEL; ENG MAINTENANCE
6WF1 TC-C(1B8) (A) 		1-85875-462-1 01 1 0903- ●
4 LABEL; ENG MAINTENANCE
6WF1 TC-C(1B8) (B) 		8-94391-524-0 02 1 0710-0902 ● ●
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 0903- ● ●
4 LABEL; ENG MAINTENANCE
6WG1 TC-C(72L) (B) 		8-94391-524-0 01 1 0710-0902 ● ●
4 LABEL; ENG MAINTENANCE
6WG1 TC-C(72L) (A) 		1-85875-350-2 01 1 0710- ● ●
60 PLATE; CAUTION,CAB TILT
6WF1 TC-C(1B8) 		1-85883-174-0 01 1 0710- ●
60 PLATE; CAUTION,CAB TILT
6WG1 TC-C(72L) 		1-85883-234-0 01 1 0710- ●
60 PLATE; CAUTION,CAB TILT 1-85883-234-0 01 1 0710- ●
163 PLATE; NAME,AIR BAG 1-85878-485-0 01 1 0710- ● ●
175 LABEL; STRG,AIR BAG 1-85878-116-0 02 1 0710- ● ●
252 PLATE; CAUTION,HARNESS 1-85878-488-1 01 1 0710- ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 0710- ● ●
