6-76 — FLOOR EQUIPMENT AND SEALING (#67183) — 38 parça

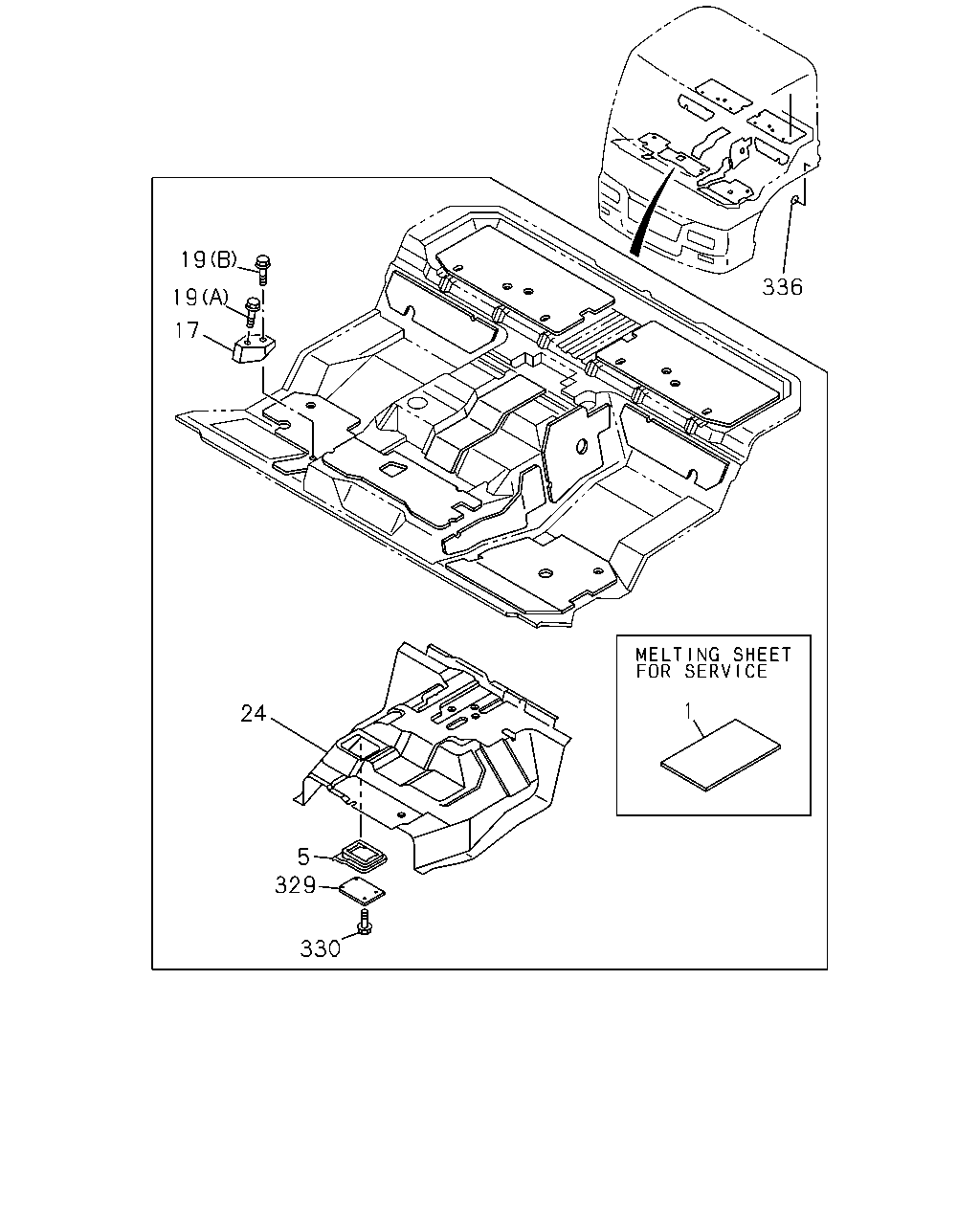

çizim 132127
19 19 17 336 24 5 329 330 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 0710- ● ●
5 COVER; CHANGE LEVER 1-33619-163-0 01 1 0710- ● ●
17 REST; FOOT,DRIVER 1-73907-176-1 01 1 0710- ● ●
19 BOLT; FOOT REST
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0710- ● ●
19 BOLT; FOOT REST
(A) M6X47 		8-94407-876-1 01 1 0710- ● ●
24 INSULATOR; HEAT,FRT 1-71907-676-3 01 1 0710- ● ●
329 BRACKET; PANEL
SMOOTHER-G(C1W) 		1-33619-465-0 01 1 0710- ●
329 BRACKET; PANEL 1-33619-465-0 01 1 0710- ●
330 BOLT; BRKT
SMOOTHER-G(C1W) M8X12 FLANGE 		0-28050-812-0 04 1 0710- ●
330 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 0710- ●
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 02 1 0710- ● ●

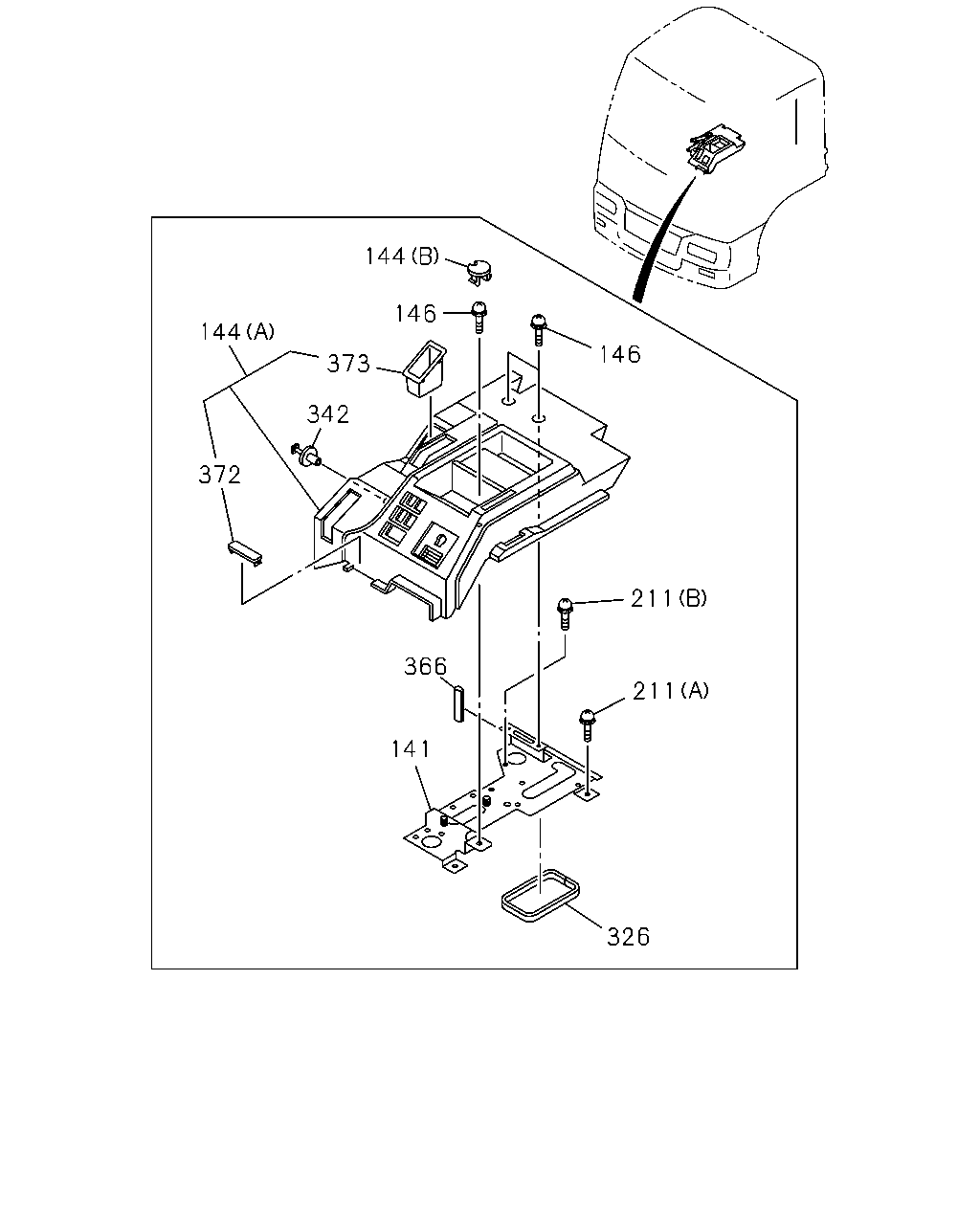

çizim 132132
144 144 372 342 373 146 146 211 211 366 141 326
BalonParca AdiParca NoAdetTipApplied Date A B
141 HOLDER 1-79907-076-2 01 1 0710- ● ●
144 COVER; HAND BRK VLV
FULLER M/T<X9B> (C) 		1-72417-380-1 01 1 0710- ●
144 COVER; HAND BRK VLV
MJX M/T<Y9N> (A) 		1-72417-347-1 01 1 0710- ●
144 COVER; HAND BRK VLV
(A) 		1-72417-347-1 01 1 0710- ●
144 COVER; HAND BRK VLV
(B) 		1-72537-106-0 01 1 0710- ● ●
146 BOLT; COVER BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 0710- ● ●
211 BOLT; COVER
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0710- ● ●
211 BOLT; COVER
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0710- ● ●
326 SEAL; COVER 1-79997-978-1 01 1 0710- ● ●
342 FASTENER
D8X13.5 		1-09987-248-1 01 1 0710- ● ●
366 FINISHER; COVER
L=50 		8-94270-377-1 01 1 0710- ● ●
372 COVER; CONSOLE
MJX M/T<Y9N> 		1-72537-124-0 01 1 0710- ●
372 COVER; CONSOLE 1-72537-124-0 01 1 0710- ●
373 COVER; HOLE
MJX M/T<Y9N> 		1-72537-194-0 01 1 0710- ●
373 COVER; HOLE 1-72537-194-0 01 1 0710- ●

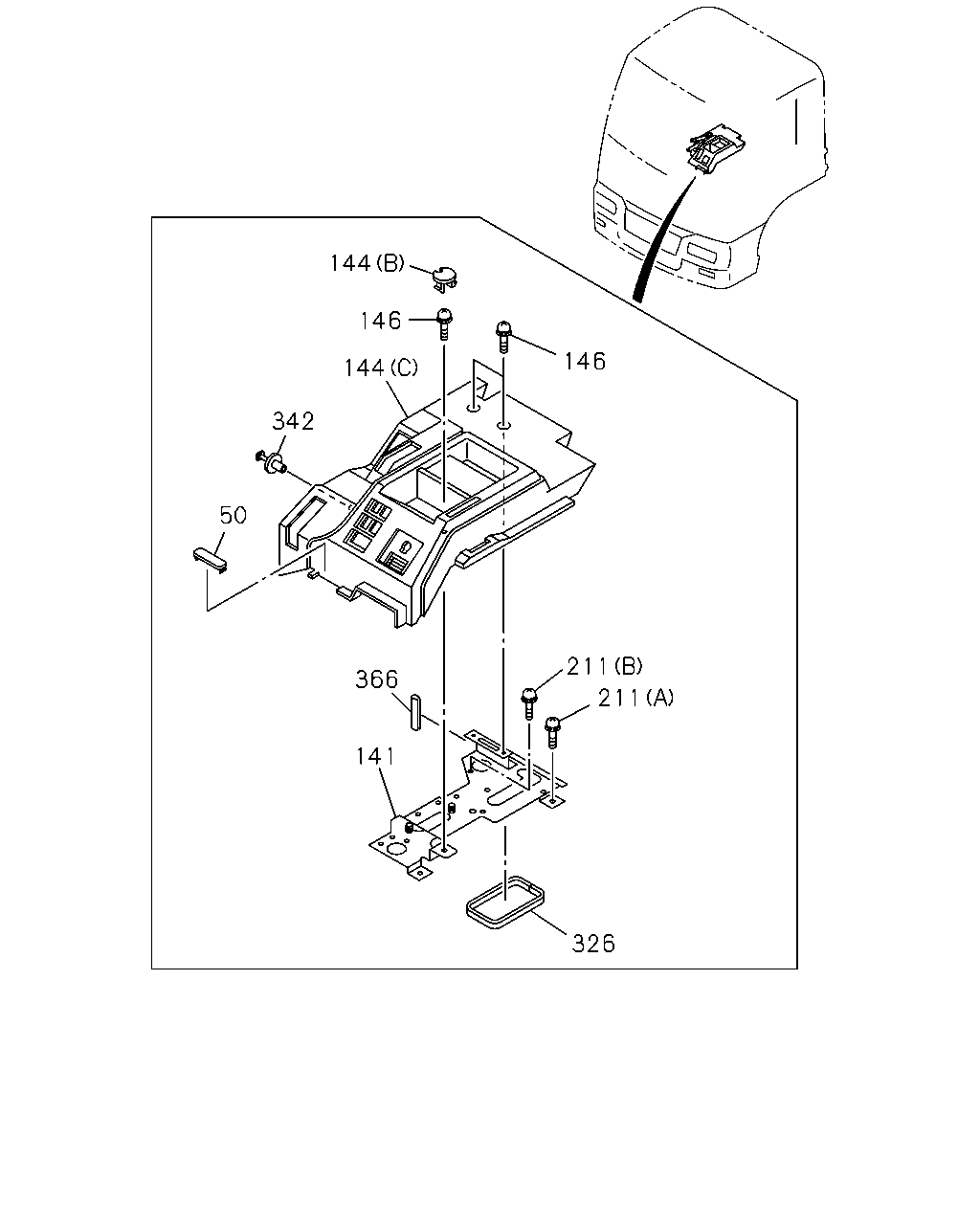

çizim 192780
144 146 146 144 342 50 211 366 211 141 326
BalonParca AdiParca NoAdetTipApplied Date A B
50 COVER ASM; SUPPORT,SIDE
FULLER M/T<X9B> 		1-72537-124-0 01 1 0805- ●
141 HOLDER 1-79907-076-2 01 1 0710- ● ●
144 COVER; HAND BRK VLV
FULLER M/T<X9B> (C) 		1-72417-380-1 01 1 0710- ●
144 COVER; HAND BRK VLV
MJX M/T<Y9N> (A) 		1-72417-347-1 01 1 0710- ●
144 COVER; HAND BRK VLV
(A) 		1-72417-347-1 01 1 0710- ●
144 COVER; HAND BRK VLV
(B) 		1-72537-106-0 01 1 0710- ● ●
146 BOLT; COVER BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 0710- ● ●
211 BOLT; COVER
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0710- ● ●
211 BOLT; COVER
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0710- ● ●
326 SEAL; COVER 1-79997-978-1 01 1 0710- ● ●
342 FASTENER
D8X13.5 		1-09987-248-1 01 1 0710- ● ●
366 FINISHER; COVER
L=50 		8-94270-377-1 01 1 0710- ● ●
