6-70 — FLOOR PANEL (#67181) — 26 parça

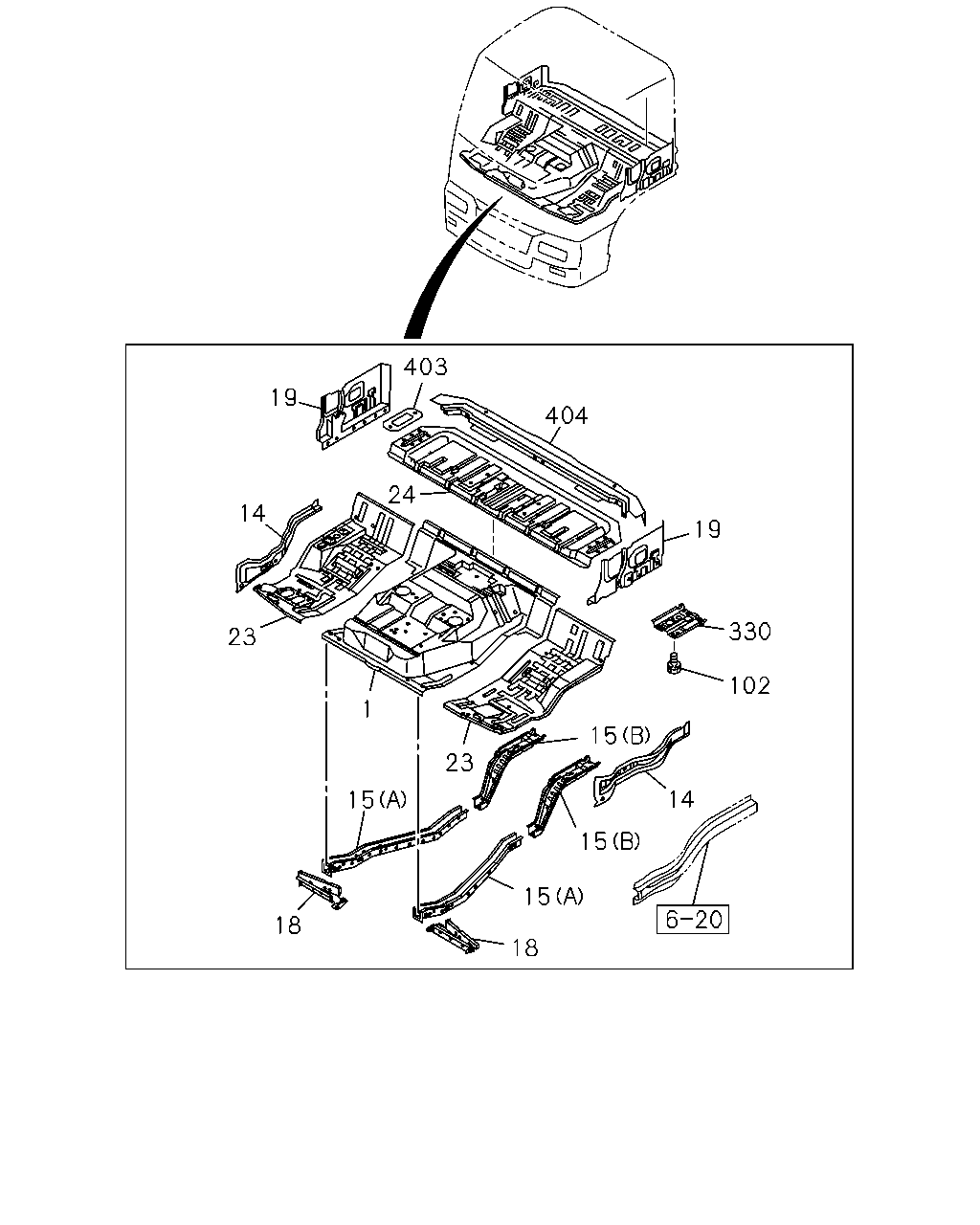

çizim 132069
403 404 24 19 14 23 1 23 19 330 102 15 14 15 15 18 15 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR
SMOOTHER-G(C1W) 		1-62172-885-0 01 1 0710-0805 ●
1 PANEL; FLOOR 1-62172-885-0 01 1 0710-0805 ●
1 PANEL; FLOOR
SMOOTHER-G(C1W) 		8-98097-806-0 01 1 0806- ●
1 PANEL; FLOOR 8-98097-806-0 01 1 0806- ●
1 PANEL; FLOOR
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-62172-892-1 01 1 0710- ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0710- ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0710- ● ●
15 FRAME; UNDER
(B) 		1-62472-598-6 01 1 0710- ● ●
15 FRAME; UNDER
(A) 		1-62472-603-9 01 1 0710- ● ●
15 FRAME; UNDER
(B) 		1-62472-680-1 01 1 0710- ● ●
15 FRAME; UNDER
(A) 		1-62472-766-1 01 1 0710- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-997-6 01 1 0710- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62483-168-3 01 1 0710- ● ●
19 PANEL; FLOOR SIDE,REAR 1-62472-659-2 01 1 0710- ● ●
19 PANEL; FLOOR SIDE,REAR 1-62472-660-2 01 1 0710- ● ●
23 PANEL; FLOOR,SIDE 1-62172-866-0 01 1 0710- ● ●
23 PANEL; FLOOR,SIDE 1-62172-798-0 01 1 0710- ● ●
24 PANEL; BED PAN 1-62172-540-9 01 1 0710- ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62182-926-4 01 1 0710- ● ●
102 BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0710-0904 ● ●
102 BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905- ● ●
330 REINFORCEMENT; FLOOR 1-62172-585-5 01 1 0710- ● ●
374 NUT; FLOOR
M6 		1-09984-110-0 01 1 0710- ● ●
403 PATCH; FIRE EXTINGUSHER 1-62172-569-0 01 1 0710- ● ●
404 RAIL ASM; MTG,RR 1-62472-596-8 01 1 0710- ● ●
553 REINFORCEMENT; SEAT STAND RR 1-62172-795-0 01 1 0710- ● ●
