Isuzu WW
▶
TRUCKS
▶
FTR
▶
10781 - FTR(THAI)
▶
5 - Frame, Cab Mounting
▶

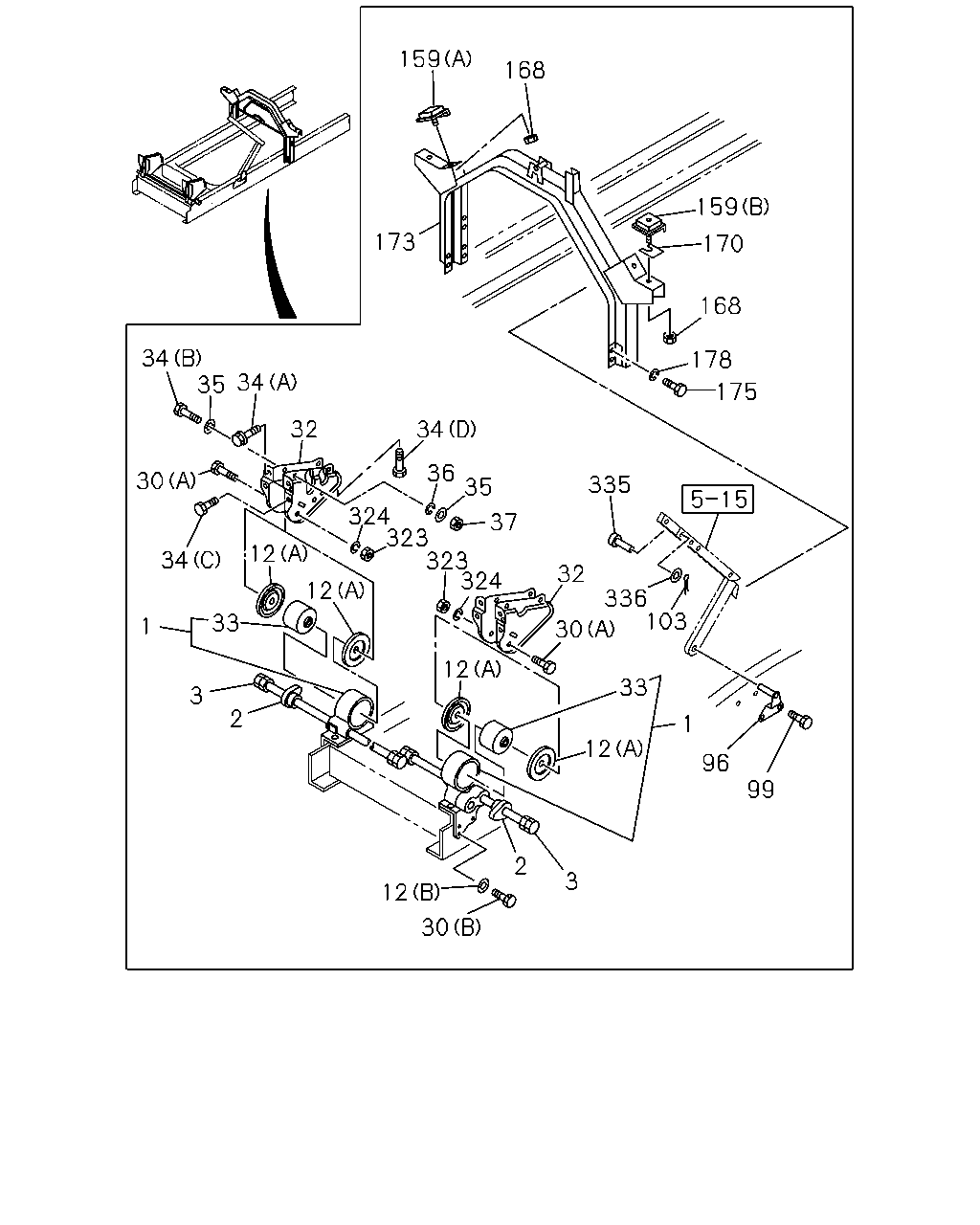

5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#6718) — 33 parça
Tümü
A - FTR5MC
B - FTR5MF
159
168
159
173
170
168
34
35
178
34
175
32
34
36
35
30
335
324
323
323
324
37
12
34
32
12
336
103
33
1
30
12
33
3
2
1
12
96
99
2
3
12
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BRACKET; CAB MTG
1-53453-279-0
01
1
0011-
●
●
1
BRACKET; CAB MTG
1-53453-278-0
01
1
0011-
●
●
2
BUSHING; TORSION BAR
THA
1-53458-282-0
02
1
0011-
●
●
3
TORSION BAR
1-09585-130-0
01
1
0011-
●
●
3
TORSION BAR
1-09585-129-0
01
1
0011-
●
●
12
WASHER; LK,BRKT
(A) ID=34.5
1-53458-281-1
04
1
0011-
●
●
12
WASHER; LK,BRKT
(B) ID=15 THA
9-09651-069-0
10
1
0011-
●
●
30
BOLT; CAB FRT FOOT
(A) M16X115
5-51361-002-1
02
1
0011-
●
●
30
BOLT; CAB FRT FOOT
(B) M14X40 THA
9-92061-440-0
10
1
0011-
●
●
32
BRACKET; CAB FRT MTG,CAB SIDE
THA
8-97515-006-0
01
1
0011-
●
●
32
BRACKET; CAB FRT MTG,CAB SIDE
THA
8-97515-005-0
01
1
0011-
●
●
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
1-53458-636-1
02
1
0011-
●
●
34
BOLT; CAB MTG BRKT,CAB SIDE
(A) M12X25 FLANGE
0-28081-225-0
04
1
0011-
●
●
34
BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X105
1-79198-008-0
04
1
0011-
●
●
34
BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER
8-94279-208-0
03
1
0011-
●
●
34
BOLT; CAB MTG BRKT,CAB SIDE
(D) M10X20 W/LK&PL WASHER
8-94279-219-0
04
1
0011-
●
●
35
WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6
1-09985-184-0
08
1
0011-
●
●
36
WASHER; LK,CAB MTG BRKT
ID=10
1-09985-185-0
04
1
0011-
●
●
37
NUT; CAB MTG BRKT,CAB SIDE
M10
1-09984-142-0
04
1
0011-
●
●
96
BRACKET; CAB STAY
THA
1-62500-628-0
01
1
0011-
●
●
99
BOLT; BRKT
M10X30 FLANGE
0-28691-030-0
02
1
0011-
●
●
103
PIN; SPLIT,CAB STAY
1-09746-021-0
01
1
0011-
●
●
159
RUBBER; CUSHION,CAB MTG
THA
8-97916-019-0
02
1
0011-
●
●
159
RUBBER; CUSHION,CAB MTG
THA
8-97916-020-0
02
1
0011-
●
●
168
NUT; CUSHION RUBBER,BODY MTG
M12 FLANGE
0-91150-212-0
04
1
0011-
●
●
170
SHIM; CUSHION RUBBER
T=1.6
1-53459-621-0
AR
1
0011-
●
●
173
MEMBER; CAB MTG RR
THA
8-97911-079-1
01
1
0011-
●
●
175
BOLT; MEMBER TO FRAME
M12X35
9-92061-235-0
08
1
0011-
●
●
178
WASHER; LK,MEMBER
ID=12.2
9-09150-612-0
08
1
0011-
●
●
323
NUT; CAB FRT FOOT
M16
9-99110-516-0
02
1
0011-
●
●
324
WASHER; LK
ID=16.2
9-09150-816-0
02
1
0011-
●
●
335
PIN; ADJ,STAY LOCK
OD=10 L=48
1-09744-107-0
01
1
0011-
●
●
336
WASHER; PL,STAY LOCK
ID=10.5 T=2.0
1-09985-183-0
01
1
0011-
●
●
