◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11111 - CYZ NZ EURO3/JAPAN NEW SHORT TERM 2004 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#67178) — 159 parça

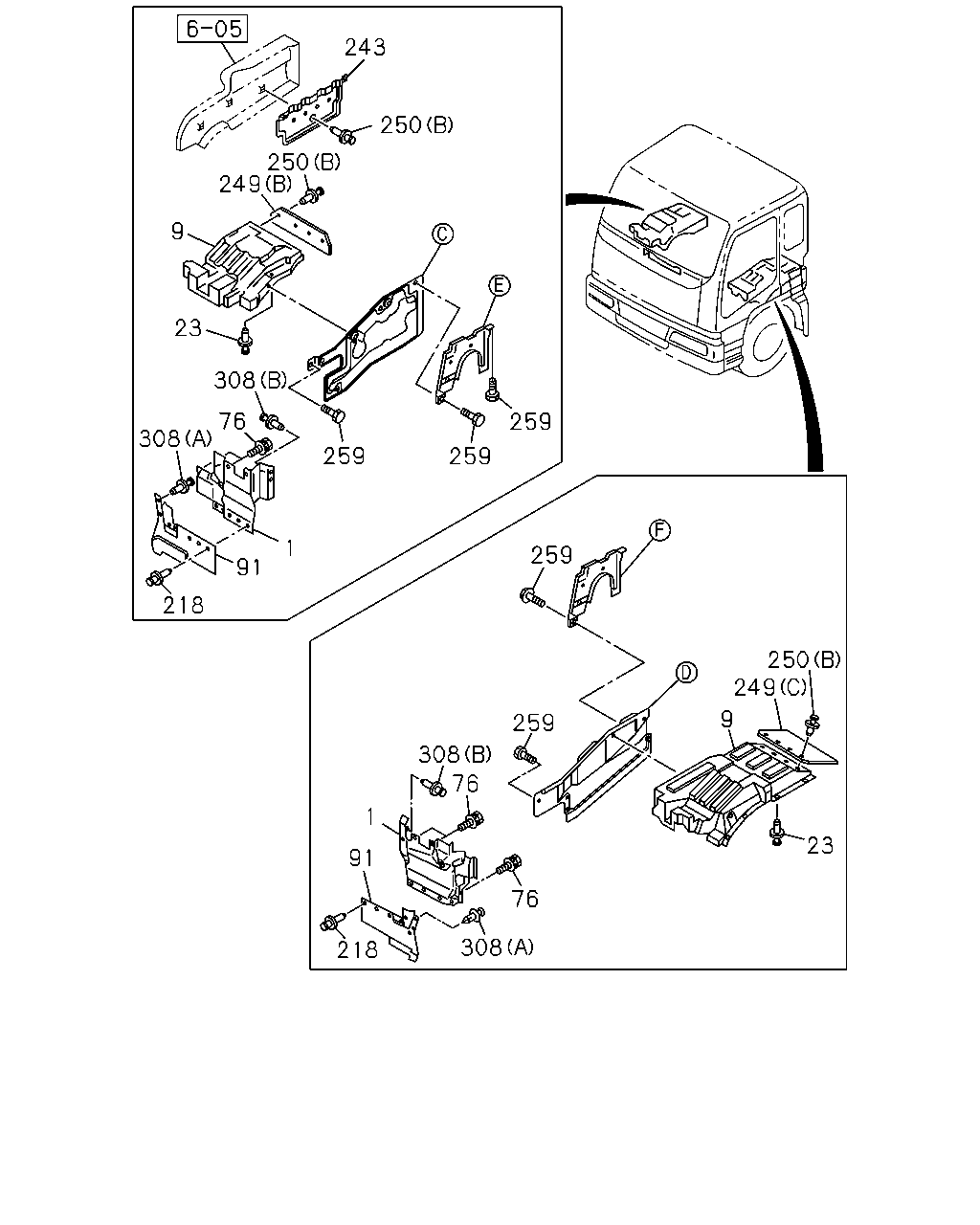

çizim 131283
243 250 250 249 9 23 308 76 308 91 218 1 259 259 259 259 259 308 76 1 91 218 308 76 9 23 249 250
BalonParca AdiParca NoAdetTipApplied Date A B
1 GUARD; MUD,FRT 1-79937-894-6 01 1 0710- ● ●
1 GUARD; MUD,FRT 1-79937-895-5 01 1 0710- ● ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 0710- ● ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 0710- ● ●
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0710- ● ●
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0710-0805 ● ●
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806- ● ●
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0710- ● ●
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0710- ● ●
91 COVER; MUD,FRT 1-79931-204-1 01 1 0710- ● ●
91 COVER; MUD,FRT 1-79931-203-1 01 1 0710- ● ●
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0710- ● ●
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0710- ● ●
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0711- ● ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0710- ● ●
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0710- ● ●
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0710- ● ●
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0710- ● ●
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0710- ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0710- ● ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 0710- ● ●
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 0710-0904 ● ●
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 0905- ● ●
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0710- ● ●
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0710- ● ●

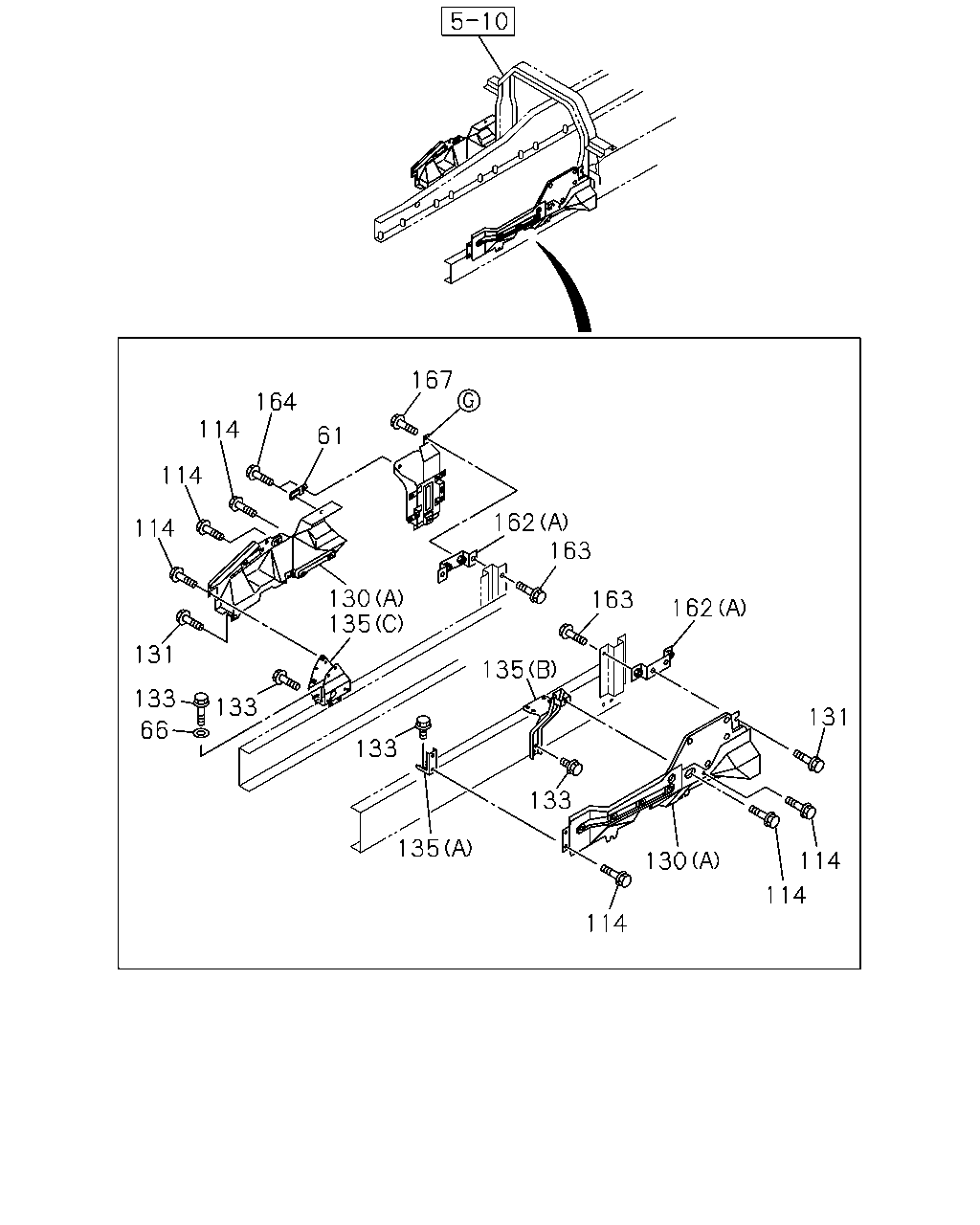

çizim 131368
164 114 114 114 61 167 162 163 163 162 131 114 114 130 114 133 135 133 135 130 135 131 133 133 66
BalonParca AdiParca NoAdetTipApplied Date A B
61 BRACKET; COVER 1-53441-536-1 01 1 0710-0803 ● ●
61 BRACKET; COVER 8-98039-501-1 01 1 0804- ● ●
66 WASHER; LK
SMOOTHER-G(C1W) ID=14.2 		0-91510-614-0 02 1 0710- ●
66 WASHER; LK
ID=14.2 		0-91510-614-0 02 1 0710- ●
114 BOLT
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 0710- ● ●
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0710- ● ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-919-2 01 1 0710-0710 ● ●
130 PANEL; SHUTTER NOISE
(E) 		1-79947-078-1 01 1 0711- ● ●
130 PANEL; SHUTTER NOISE
(C) 		1-79937-960-5 01 1 0710- ● ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 0710- ● ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-890-2 01 1 0710- ● ●
130 PANEL; SHUTTER NOISE
(C) 		1-79937-959-3 01 1 0710- ● ●
131 BOLT; PANEL
6WG1 TC-C(72L) M8X16 FLANGE 		0-28050-816-0 01 1 0809- ●
131 BOLT; PANEL
M8X16 FLANGE 		0-28050-816-0 01 1 0809- ●
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 07 1 0710-0805 ● ●
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 0806- ● ●
133 BOLT; FRAME
SMOOTHER-G(C1W) M14X45 		0-20801-445-0 02 1 0710- ●
133 BOLT; FRAME
M14X45 		0-20801-445-0 02 1 0710- ●
133 BOLT; FRAME
SMOOTHER-G(C1W) M10X35 FLANGE 		0-28651-035-0 02 1 0710- ●
133 BOLT; FRAME
M10X35 FLANGE 		0-28651-035-0 02 1 0710- ●
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 04 1 0710- ● ●
135 BRACKET; SIDE PANEL
SMOOTHER-G(C1W) (C) 		1-33657-840-1 01 1 0710- ●
135 BRACKET; SIDE PANEL
(C) 		1-33657-840-1 01 1 0710- ●
135 BRACKET; SIDE PANEL
6WF1 TC-C(1B8) (B) 		1-53441-598-1 01 1 0710- ●
135 BRACKET; SIDE PANEL
6WG1 TC-C(72L) (B) 		1-53441-508-1 01 1 0710- ●
135 BRACKET; SIDE PANEL
(B) 		1-53441-508-1 01 1 0710- ●
135 BRACKET; SIDE PANEL
(A) 		1-53441-507-0 01 1 0710- ● ●
162 BRACKET
(A) 		1-53441-520-0 02 1 0710- ● ●
162 BRACKET
(D) 		1-71907-815-0 01 1 0710- ● ●
162 BRACKET
(B) 		1-53441-521-2 01 1 0710- ● ●
162 BRACKET
(C) 		1-53441-522-0 01 1 0710- ● ●
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0710- ● ●
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 05 1 0710- ● ●

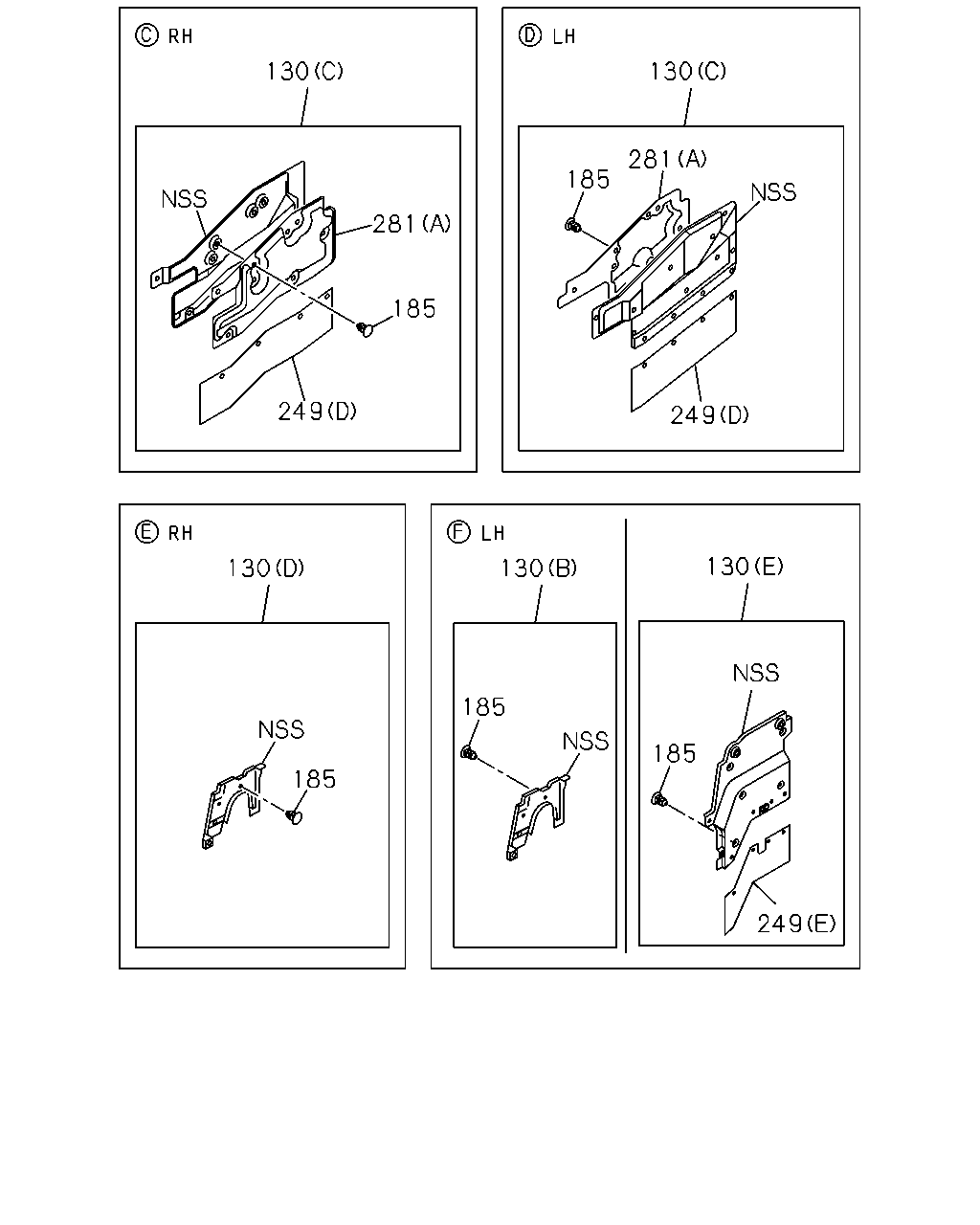

çizim 131641
130 130 281 185 281 185 249 249 130 130 130 185 185 185 249
BalonParca AdiParca NoAdetTipApplied Date A B
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0710- ● ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-919-2 01 1 0710-0710 ● ●
130 PANEL; SHUTTER NOISE
(E) 		1-79947-078-1 01 1 0711- ● ●
130 PANEL; SHUTTER NOISE
(C) 		1-79937-960-5 01 1 0710- ● ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 0710- ● ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-890-2 01 1 0710- ● ●
130 PANEL; SHUTTER NOISE
(C) 		1-79937-959-3 01 1 0710- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 31 1 0710-0710 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 29 1 0711- ● ●
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0711- ● ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0710- ● ●
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0710- ● ●
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0710- ● ●
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0710- ● ●
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0710- ● ●
281 INSULATOR; NOISE
(C) 		1-71907-671-1 01 1 0710-0808 ● ●
281 INSULATOR; NOISE
(C) 		8-98097-796-1 01 1 0809-0912 ● ●
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1001-1010 ● ●
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011- ● ●
281 INSULATOR; NOISE
(B) 		1-73237-445-4 01 1 0710- ● ●
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0710- ● ●
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0710- ● ●
çizim 131803
74 73 168 167 160 122 160 122 162 162 122 167 122 130 130
BalonParca AdiParca NoAdetTipApplied Date A B
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0710-0805 ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806- ● ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0710- ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 08 1 0710- ● ●
122 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0710- ● ●
122 BOLT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0710- ● ●
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0710- ● ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-919-2 01 1 0710-0710 ● ●
130 PANEL; SHUTTER NOISE
(E) 		1-79947-078-1 01 1 0711- ● ●
130 PANEL; SHUTTER NOISE
(C) 		1-79937-960-5 01 1 0710- ● ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 0710- ● ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-890-2 01 1 0710- ● ●
130 PANEL; SHUTTER NOISE
(C) 		1-79937-959-3 01 1 0710- ● ●
160 COVER ASM; EXH
(A) 		1-79931-408-4 01 1 0710-1207 ● ●
160 COVER ASM; EXH
(A) 		1-79931-411-2 01 1 1208- ● ●
160 COVER ASM; EXH
(B) 		1-79931-412-1 01 1 0710- ● ●
162 BRACKET
(A) 		1-53441-520-0 02 1 0710- ● ●
162 BRACKET
(D) 		1-71907-815-0 01 1 0710- ● ●
162 BRACKET
(B) 		1-53441-521-2 01 1 0710- ● ●
162 BRACKET
(C) 		1-53441-522-0 01 1 0710- ● ●
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 05 1 0710- ● ●
168 NUT; EXH COVER
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●

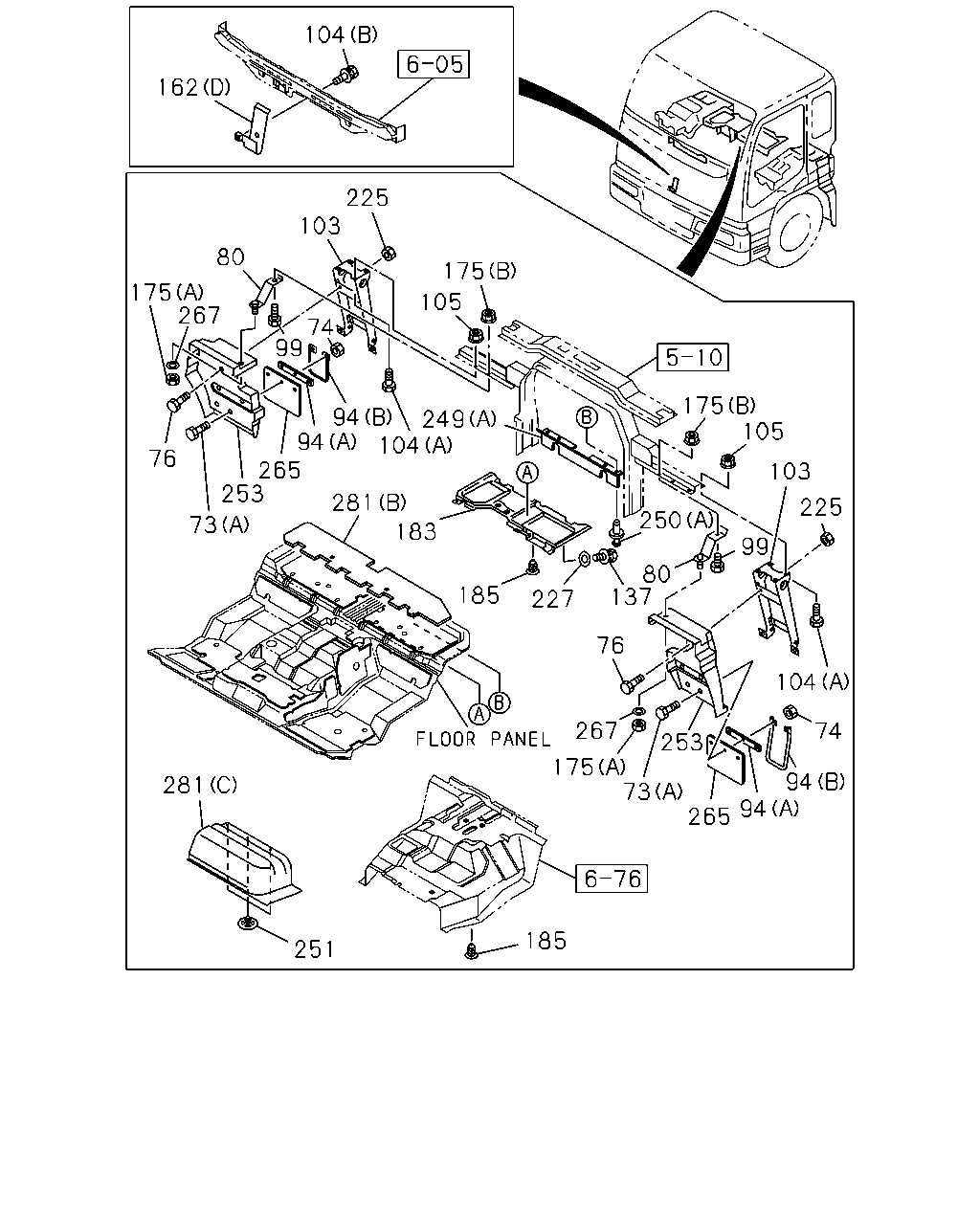

çizim 192781
162 104 225 103 80 175 267 175 105 74 99 76 73 253 265 94 94 249 104 281 183 185 227 281 251 185 175 73 265 267 76 137 80 250 99 104 253 94 94 74 225 103 105 175
BalonParca AdiParca NoAdetTipApplied Date A B
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0710-0805 ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806- ● ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0710- ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 08 1 0710- ● ●
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0710-0805 ● ●
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806- ● ●
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0710- ● ●
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0710- ● ●
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0710- ● ●
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 0710- ● ●
94 RETAINER; FLAP RUBBER
(B) 		1-79931-524-0 01 1 0710- ● ●
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 02 1 0710- ● ●
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 0710- ● ●
103 BRACKET ASM; RR MUD FLAP 1-79931-444-0 02 1 0710- ● ●
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 08 1 0710- ● ●
104 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0710-0808 ● ●
104 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		0-50640-616-0 01 1 0809- ● ●
105 NUT; BRKT
6WF1 TC-C(1B8) M10 FLANGE 		0-91180-210-0 08 1 0710- ●
105 NUT; BRKT
6WG1 TC-C(72L) M10 FLANGE 		0-91180-210-0 07 1 0710- ●
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 0710- ●
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0710-0904 ● ●
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ●
162 BRACKET
(A) 		1-53441-520-0 02 1 0710- ● ●
162 BRACKET
(D) 		1-71907-815-0 01 1 0710- ● ●
162 BRACKET
(B) 		1-53441-521-2 01 1 0710- ● ●
162 BRACKET
(C) 		1-53441-522-0 01 1 0710- ● ●
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 0710- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 31 1 0710-0710 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 29 1 0711- ● ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 0710- ● ●
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0710- ● ●
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0711- ● ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0710- ● ●
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0710- ● ●
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0710- ● ●
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0710- ● ●
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0710- ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0710- ● ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 0710- ● ●
251 CLIP; NOISE INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 04 1 0710- ● ●
253 GUARD; MUD 1-79931-066-7 01 1 0710-0901 ● ●
253 GUARD; MUD 8-98134-766-1 01 1 0902- ● ●
253 GUARD; MUD 1-79931-064-7 01 1 0710-0901 ● ●
253 GUARD; MUD 8-98134-759-0 01 1 0902- ● ●
265 RUBBER; FLAP,REAR 1-79931-460-0 02 1 0710- ● ●
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 0710- ● ●
281 INSULATOR; NOISE
(C) 		1-71907-671-1 01 1 0710-0808 ● ●
281 INSULATOR; NOISE
(C) 		8-98097-796-1 01 1 0809-0912 ● ●
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1001-1010 ● ●
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011- ● ●
281 INSULATOR; NOISE
(B) 		1-73237-445-4 01 1 0710- ● ●
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0710- ● ●
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0710- ● ●
