◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11111 - CYZ NZ EURO3/JAPAN NEW SHORT TERM 2004 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#67169) — 172 parça
çizim 126376
547 544 544 548 560 545 532 548 545 548 545
BalonParca AdiParca NoAdetTipApplied Date A B
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0710- ● ●
532 BOLT; FRT PANEL
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0710- ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0710- ● ●
544 LID; FRT
WHITE 		1-71107-367-2 01 1 0710- ● ●
545 SEAL; FRT LID
(A) 		1-71907-472-0 02 1 0710- ● ●
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 0710- ● ●
545 SEAL; FRT LID
(C) 		1-71907-578-0 02 1 0710- ● ●
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0710- ● ●
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 0710- ● ●
547 RUBBER; CUSHION
(C) L=1825 		1-71907-581-1 01 1 0710- ● ●
547 RUBBER; CUSHION
(B) OD=22 L=29 		8-94324-556-2 02 1 0710- ● ●
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-1 01 1 0710- ● ●
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-1 02 1 0710- ● ●
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0710- ● ●
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0710-1105 ● ●
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0710-1105 ● ●

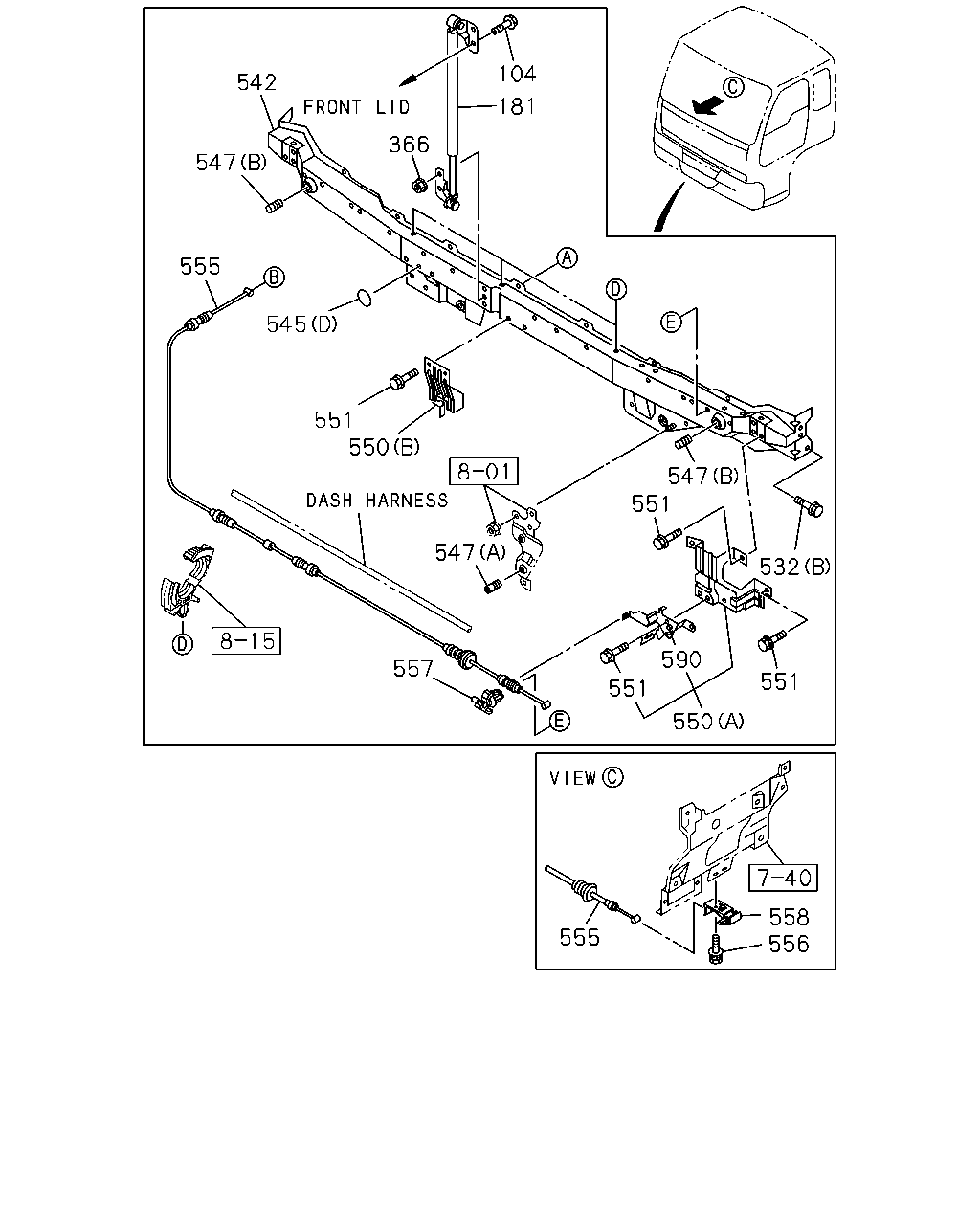

çizim 126571
104 181 542 547 555 366 545 551 550 547 557 551 547 532 590 551 550 551 555 558 556
BalonParca AdiParca NoAdetTipApplied Date A B
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0710- ● ●
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-864-0 01 1 0710- ● ●
366 NUT; SUPPORT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0710- ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0710- ● ●
532 BOLT; FRT PANEL
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0710- ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0710- ● ●
542 RAIL; FRT MOUNTING 1-61470-721-1 01 1 0710- ● ●
545 SEAL; FRT LID
(A) 		1-71907-472-0 02 1 0710- ● ●
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 0710- ● ●
545 SEAL; FRT LID
(C) 		1-71907-578-0 02 1 0710- ● ●
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0710- ● ●
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 0710- ● ●
547 RUBBER; CUSHION
(C) L=1825 		1-71907-581-1 01 1 0710- ● ●
547 RUBBER; CUSHION
(B) OD=22 L=29 		8-94324-556-2 02 1 0710- ● ●
550 LOCK ASM; FRT LID
(B) 		1-79317-013-1 01 1 0710- ● ●
550 LOCK ASM; FRT LID
(A) 		1-79317-012-1 01 1 0710- ● ●
550 LOCK ASM; FRT LID
(A) 		1-79317-011-1 01 1 0710- ● ●
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 10 1 0710- ● ●
555 CABLE; FRT LID
L=2512 		1-79347-007-3 01 1 0710- ● ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0710- ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 01 1 0710- ● ●
558 LEVER; FRT LID 1-79338-007-0 01 1 0710- ● ●
590 LOCK; FRT LID 1-79318-010-2 01 1 0710- ● ●
590 LOCK; FRT LID 1-79318-009-4 01 1 0710- ● ●

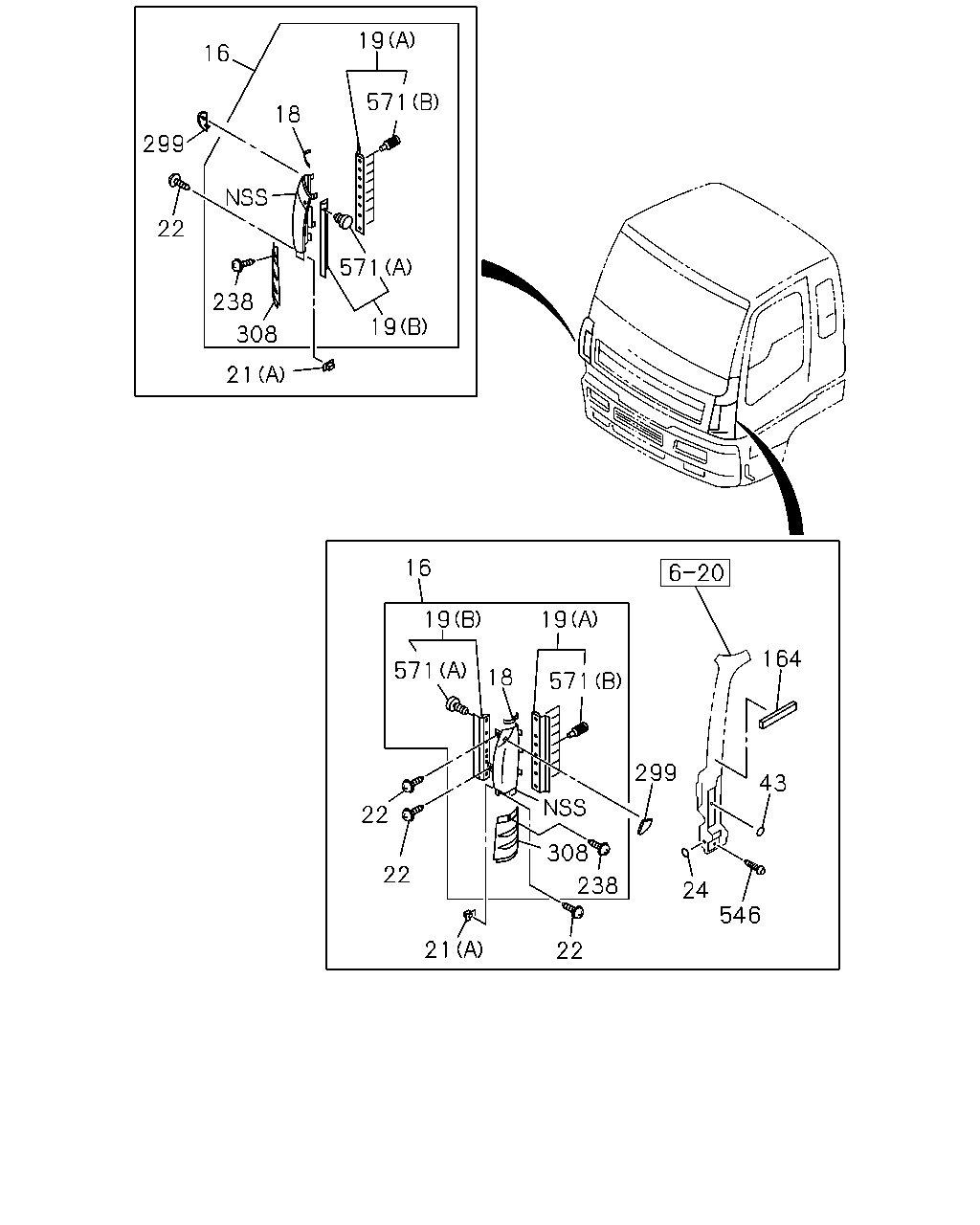

çizim 126578
16 299 22 238 18 19 571 571 19 308 21 16 19 19 571 18 571 22 22 21 22 238 308 299 164 43 546 24
BalonParca AdiParca NoAdetTipApplied Date A B
16 PANEL; FRONT,SIDE
WHITE 		1-65472-649-4 01 1 0710- ● ●
16 PANEL; FRONT,SIDE
WHITE 		1-65472-648-4 01 1 0710- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 0710- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 0710- ● ●
19 SEAL; FRT SIDE PANEL
(C) OD=45 BLACK 		1-76798-017-0 03 1 0710- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-411-0 01 1 0710- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		1-71907-580-1 01 1 0710-1111 ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98208-434-0 01 1 1112- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-410-0 01 1 0710- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		1-71907-579-1 01 1 0710-1111 ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98208-433-0 01 1 1112- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 0710- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0710- ● ●
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 14 1 0710-0810 ● ●
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 14 1 0811-1010 ● ●
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 14 1 1011- ● ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 05 1 0710- ● ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0710- ● ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0710- ● ●
238 SCREW
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 06 1 0710- ● ●
299 COVER; FRT PANEL SIDE 1-71998-996-1 01 1 0710- ● ●
299 COVER; FRT PANEL SIDE 1-71998-995-1 01 1 0710- ● ●
308 PLATE; FRT PANEL 1-65472-569-1 01 1 0710- ● ●
308 PLATE; FRT PANEL 1-65472-568-1 01 1 0710- ● ●
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 01 1 0710- ● ●
571 CLIP; SEAL
(A) 		1-09987-228-0 16 1 0710- ● ●
571 CLIP; SEAL
(B) PINK 		1-09987-256-0 08 1 0710- ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 08 1 0710- ● ●

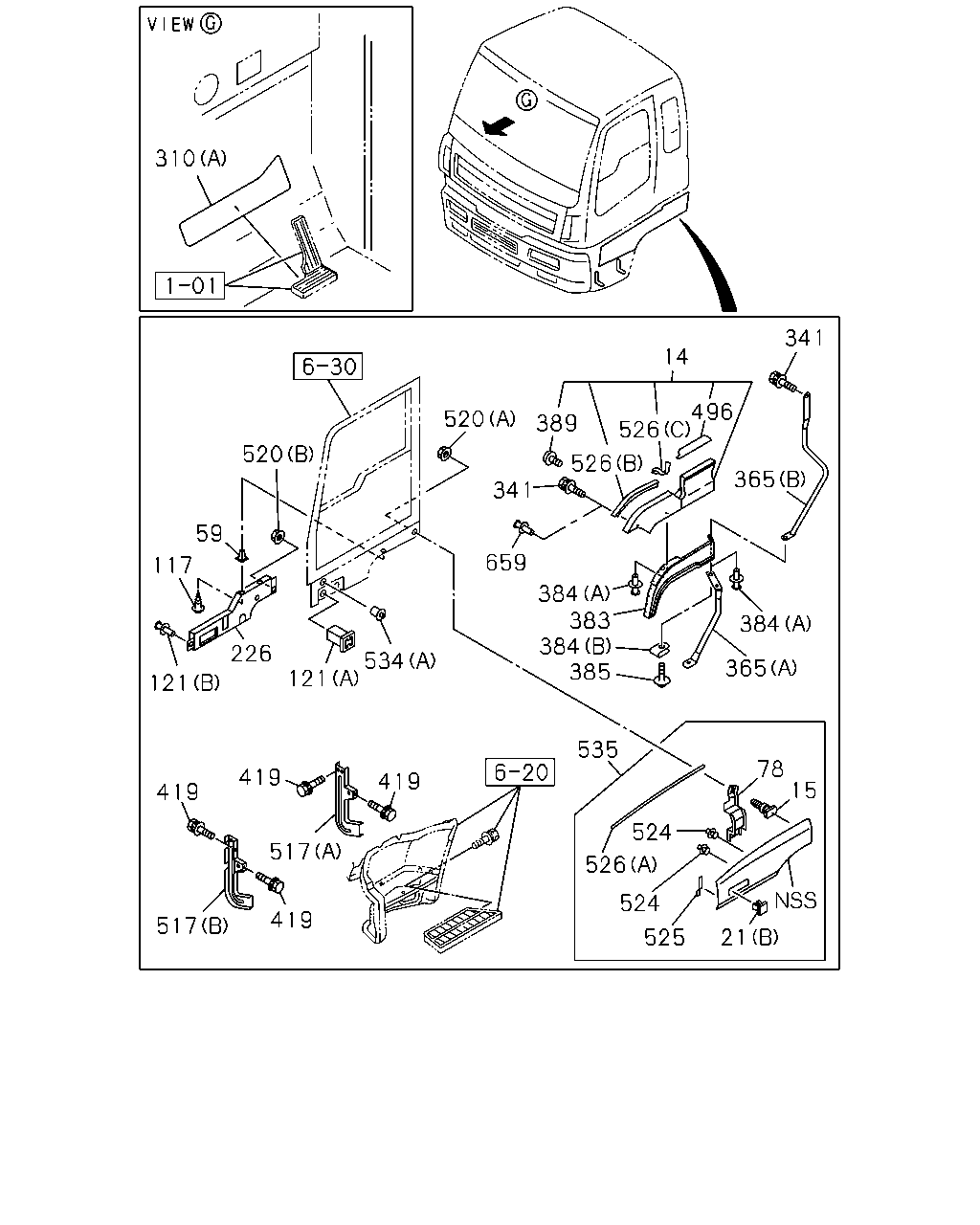

çizim 192771
310 341 14 496 526 520 389 520 526 365 341 59 659 117 384 383 384 385 384 226 534 365 121 121 535 78 15 419 419 419 524 517 526 524 419 517 21 525
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT 1-65472-875-9 01 1 0710-0901 ● ●
14 FENDER; FRT 8-98137-384-0 01 1 0902-0910 ● ●
14 FENDER; FRT 8-98154-745-1 01 1 0911- ● ●
14 FENDER; FRT 1-65472-874-9 01 1 0710-0901 ● ●
14 FENDER; FRT 8-98137-383-0 01 1 0902-0910 ● ●
14 FENDER; FRT 8-98154-744-1 01 1 0911- ● ●
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 0710- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 0710- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0710- ● ●
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 0710- ● ●
78 BRACKET; FENDER 1-71267-215-0 01 1 0710- ● ●
78 BRACKET; FENDER 1-71267-214-0 01 1 0710- ● ●
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 0710- ● ●
121 GROMMET; FENDER
(B) D8X13.5 		1-09987-248-1 08 1 0710- ● ●
121 GROMMET; FENDER
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0710- ● ●
226 PROTECTOR; FRT 1-71267-269-1 01 1 0710- ● ●
226 PROTECTOR; FRT 1-71267-268-1 01 1 0710- ● ●
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 0710- ● ●
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 0710- ● ●
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 16 1 0710-0810 ● ●
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 16 1 0811-0910 ● ●
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 14 1 0911- ● ●
365 SUPPORT; FENDER
(A) 		1-71907-418-1 01 1 0710-0810 ● ●
365 SUPPORT; FENDER
(B) 		8-98120-232-0 01 1 0811- ● ●
365 SUPPORT; FENDER
(A) 		1-71907-417-1 01 1 0710-0810 ● ●
365 SUPPORT; FENDER
(B) 		8-98120-231-0 01 1 0811- ● ●
383 GUARD; MUD,FENDER LWR 1-71907-456-2 01 1 0710- ● ●
383 GUARD; MUD,FENDER LWR 1-71907-457-2 01 1 0710- ● ●
384 CLIP; FENDER LWR
(A) D8X13.5 		1-09987-248-1 09 1 0710-0810 ● ●
384 CLIP; FENDER LWR
(A) D8X13.5 		1-09987-248-1 11 1 0811-0812 ● ●
384 CLIP; FENDER LWR
(A) D8X13.5 		1-09987-248-1 13 1 0901- ● ●
384 CLIP; FENDER LWR
(B) ID=6 		1-09987-266-0 04 1 0710-0812 ● ●
385 SCREW; FENDER LWR
M6X25 		1-65481-736-0 04 1 0710-0810 ● ●
389 SCREW; STAND,FENDER
M6X22 		1-65481-386-0 06 1 0710- ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0710-0904 ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905- ● ●
496 RUBBER; STEP 1-71998-862-2 01 1 0710- ● ●
496 RUBBER; STEP 1-71998-861-2 01 1 0710- ● ●
517 SUPPORT; STEP PANEL
(A) 		1-65671-531-1 01 1 0710- ● ●
517 SUPPORT; STEP PANEL
(B) 		1-65671-774-0 01 1 0710- ● ●
517 SUPPORT; STEP PANEL
(A) 		1-65671-530-1 01 1 0710- ● ●
517 SUPPORT; STEP PANEL
(B) 		1-65671-766-1 01 1 0710- ● ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0710- ● ●
520 NUT; FENDER
(B) M6 		8-94343-366-1 02 1 0710- ● ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0710- ● ●
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0710- ● ●
526 FINISHER; FENDER
(A) 		1-71268-275-1 02 1 0710- ● ●
526 FINISHER; FENDER
(B) 		1-71907-641-0 02 1 0710- ● ●
526 FINISHER; FENDER
(C) 		1-71907-643-0 01 1 0710- ● ●
526 FINISHER; FENDER
(C) 		1-71907-642-0 01 1 0710- ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0710-1302 ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0710- ● ●
535 FENDER; BLISTER 1-71267-294-1 01 1 0710- ● ●
535 FENDER; BLISTER 1-71267-293-1 01 1 0710- ● ●
659 CLIP; FENDER
D8X13.5 		1-09987-248-1 02 1 0911- ● ●

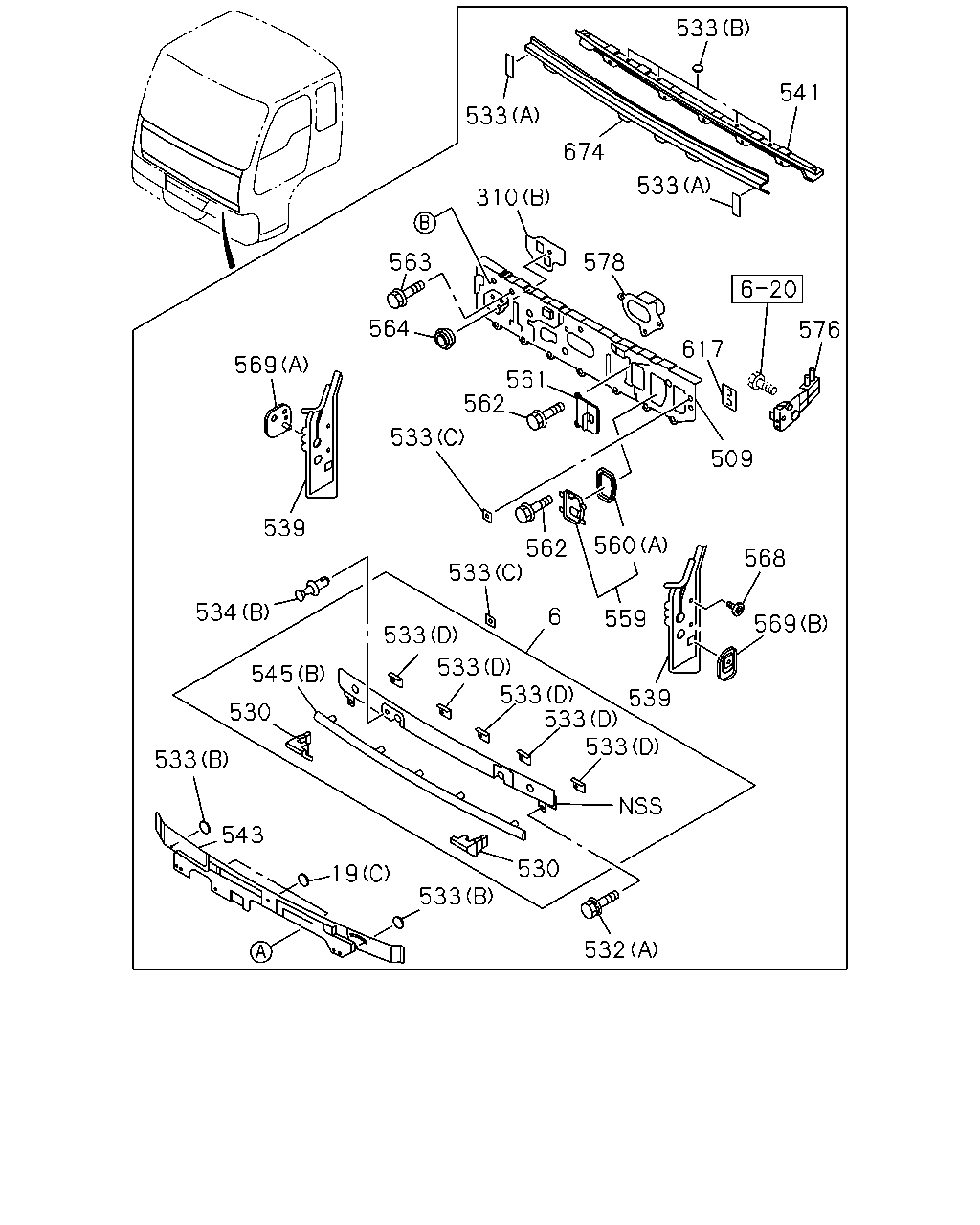

çizim 192775
533 541 533 674 533 310 563 578 564 576 617 569 561 562 533 509 539 560 562 533 568 534 6 559 569 533 533 533 533 533 545 539 530 533 543 530 19 533 532
BalonParca AdiParca NoAdetTipApplied Date A B
6 PANEL; FRONT 1-65472-549-4 01 1 0710- ● ●
19 SEAL; FRT SIDE PANEL
(C) OD=45 BLACK 		1-76798-017-0 03 1 0710- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-411-0 01 1 0710- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		1-71907-580-1 01 1 0710-1111 ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98208-434-0 01 1 1112- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-410-0 01 1 0710- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		1-71907-579-1 01 1 0710-1111 ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98208-433-0 01 1 1112- ● ●
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 0710- ● ●
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 0710- ● ●
509 PANEL; DASH 1-62270-478-6 01 1 0710- ● ●
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 0710- ● ●
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 0710- ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0710- ● ●
532 BOLT; FRT PANEL
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0710- ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0710- ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 07 1 0710- ● ●
533 SEAL; FRT PANEL
(A) 20X65 		1-76778-046-3 02 1 0710- ● ●
533 SEAL; FRT PANEL
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 0710- ● ●
533 SEAL; FRT PANEL
(C) 25X25 		8-94272-533-0 02 1 0710- ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0710-1302 ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0710- ● ●
539 CLOSING; PILLAR 1-61480-673-6 01 1 0710- ● ●
539 CLOSING; PILLAR 1-61480-674-6 01 1 0710- ● ●
541 PANEL; FRONT,INNER 1-61470-690-0 01 1 0710- ● ●
543 CLOSING; FRT MTG RAIL 1-61470-727-0 01 1 0710- ● ●
545 SEAL; FRT LID
(A) 		1-71907-472-0 02 1 0710- ● ●
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 0710- ● ●
545 SEAL; FRT LID
(C) 		1-71907-578-0 02 1 0710- ● ●
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0710- ● ●
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 0710- ● ●
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0710- ● ●
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0710-1105 ● ●
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0710-1105 ● ●
561 COVER; HEATER CORE 1-71998-829-1 01 1 0710- ● ●
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0710- ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 16 1 0710- ● ●
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0710- ● ●
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0710- ● ●
568 PATCH; INST REINF 1-61480-675-2 02 1 0710- ● ●
569 PATCH; LWR GRIP
(A) 		1-61480-689-2 01 1 0710- ● ●
569 PATCH; LWR GRIP
(B) 		1-61480-736-2 01 1 0710- ● ●
576 FRAME; INST SIDE 1-62280-176-6 01 1 0710- ● ●
576 FRAME; INST SIDE 1-62280-177-7 01 1 0710- ● ●
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 0710- ● ●
617 SEAL; DASH 1-61281-497-1 02 1 0710- ● ●
674 PANEL; UPR 1-61470-688-2 01 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
