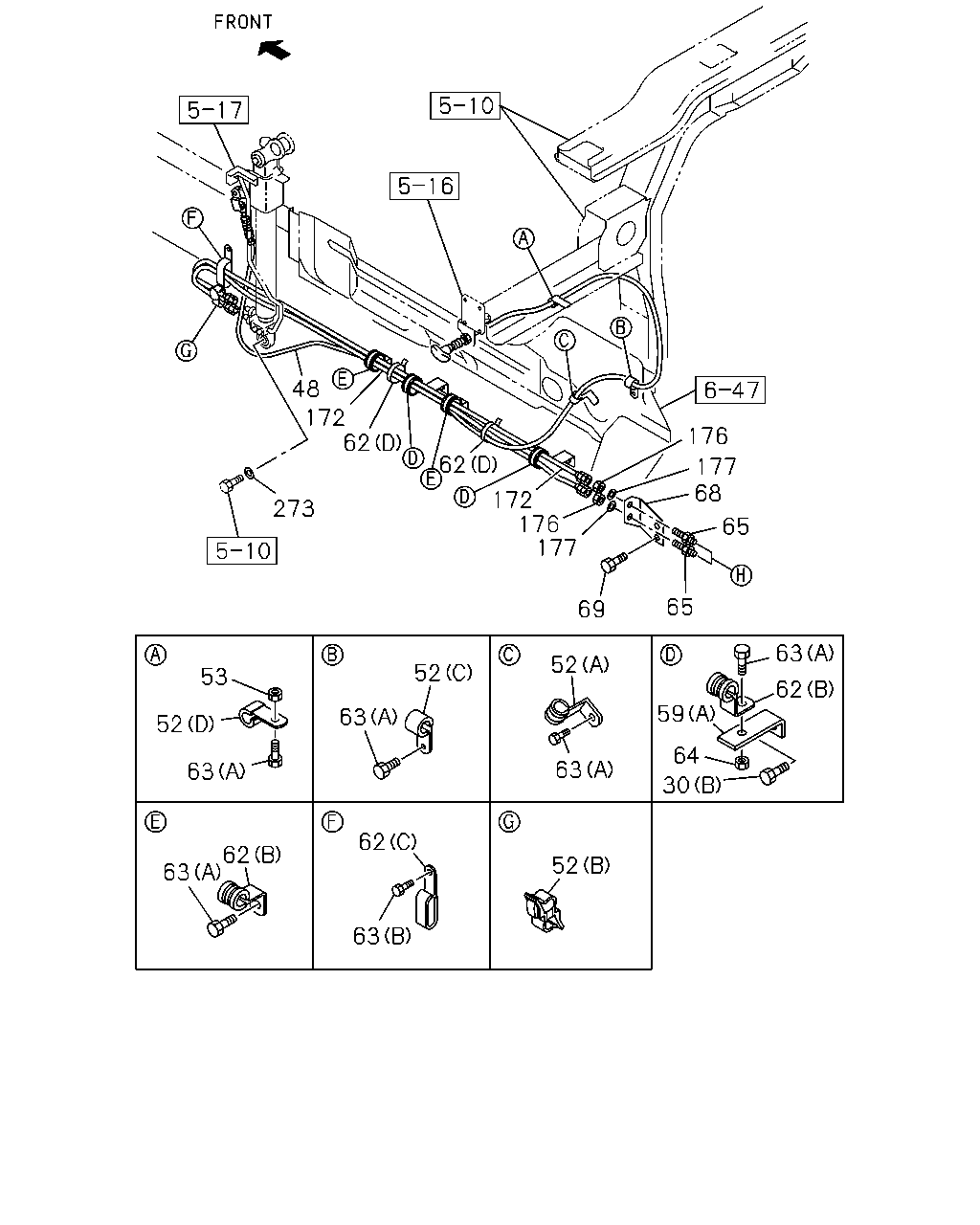

5-15 — CAB MOUNTING; CAB SIDE (#67163) — 82 parça

273 62 62 172 172 177 68 65 65 69 177 176 176 63 62 59 64 30 63 62 63 62 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
30	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
52	CLIP; CONT CABLE 6WF1 TC-C(1B8) (C) ID=7 L=20	0-95234-635-0	01	1	0710-	●
52	CLIP; CONT CABLE 6WF1 TC-C(1B8) (D) ID=7 L=50	0-95234-685-0	01	1	0710-	●
52	CLIP; CONT CABLE 6WF1 TC-C(1B8) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0710-	●
52	CLIP; CONT CABLE (B) ID=6-10 & 10-14	1-09709-201-1	01	1	0710-0905	●	●
52	CLIP; CONT CABLE 6WF1 TC-C(1B8) (B) ID=6-10 & 10-14	1-09709-201-1	01	1	0906-	●
59	BRACKET; CLIP (A) L=115 B=25	1-47476-758-0	01	1	0710-	●	●
59	BRACKET; CLIP (B)	1-47477-317-0	01	1	0710-	●	●
62	CLIP; OIL PIPE (C) ID=9X2 L=16	0-95324-825-0	01	1	0710-	●	●
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0710-	●	●
62	CLIP; OIL PIPE (B) ID=21 L=30 H=40	1-09700-991-1	03	1	0710-	●	●
62	CLIP; OIL PIPE (D) L=140	5-09707-031-1	02	1	0710-	●	●
63	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-	●	●
63	BOLT; CLIP 6WF1 TC-C(1B8) (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-	●
63	BOLT; CLIP (B) M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
65	UNION; OIL PIPE M12 L=66.5	0-92113-306-0	02	1	0710-	●	●
68	BRACKET; UNION	1-47479-724-0	01	1	0710-	●	●
69	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0710-	●	●
172	HOSE; FLEX,OIL TILT L=1570	1-09365-304-0	02	1	0710-	●	●
176	NUT; UNION M12	9-09840-280-0	02	1	0710-	●	●
177	WASHER; LK,UNION ID=12.2	0-91510-512-0	02	1	0710-	●	●
273	WASHER; PL,OIL CYL ID=10.5 OD=32	0-91614-810-0	01	1	0710-	●	●

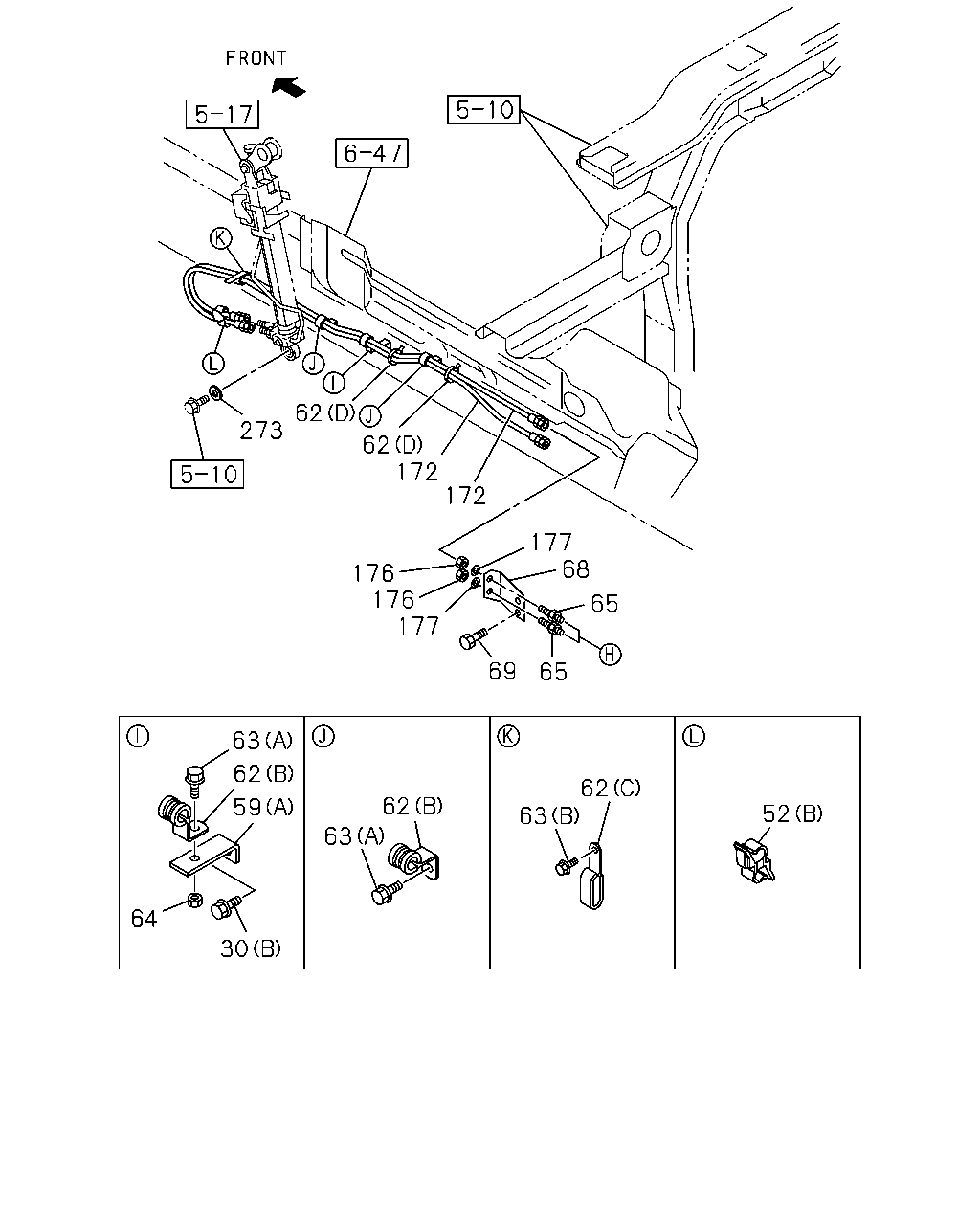

56 58 326 325 62 62 58 35 179 178 59 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
30	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
35	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
56	HOSE; FLEX,OIL PIPE L=750	1-09365-058-0	01	1	0710-	●	●
58	PIPE; OIL,POWER UNIT (A) L=1007 SERVICED BY L=1100	1-47428-731-0	01	1	0710-	●	●
58	PIPE; OIL,POWER UNIT (B) L=1067 SERVICED BY L=1100	1-47428-731-0	01	1	0710-	●	●
59	BRACKET; CLIP (A) L=115 B=25	1-47476-758-0	01	1	0710-	●	●
59	BRACKET; CLIP (B)	1-47477-317-0	01	1	0710-	●	●
62	CLIP; OIL PIPE (C) ID=9X2 L=16	0-95324-825-0	01	1	0710-	●	●
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0710-	●	●
62	CLIP; OIL PIPE (B) ID=21 L=30 H=40	1-09700-991-1	03	1	0710-	●	●
62	CLIP; OIL PIPE (D) L=140	5-09707-031-1	02	1	0710-	●	●
178	CLIP; FLEX HOSE ID=8 H=20 L=20	1-09700-604-0	02	1	0710-	●	●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
325	ADAPTER; PUMP M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0710-	●	●
326	UNION; PUMP M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0710-	●	●

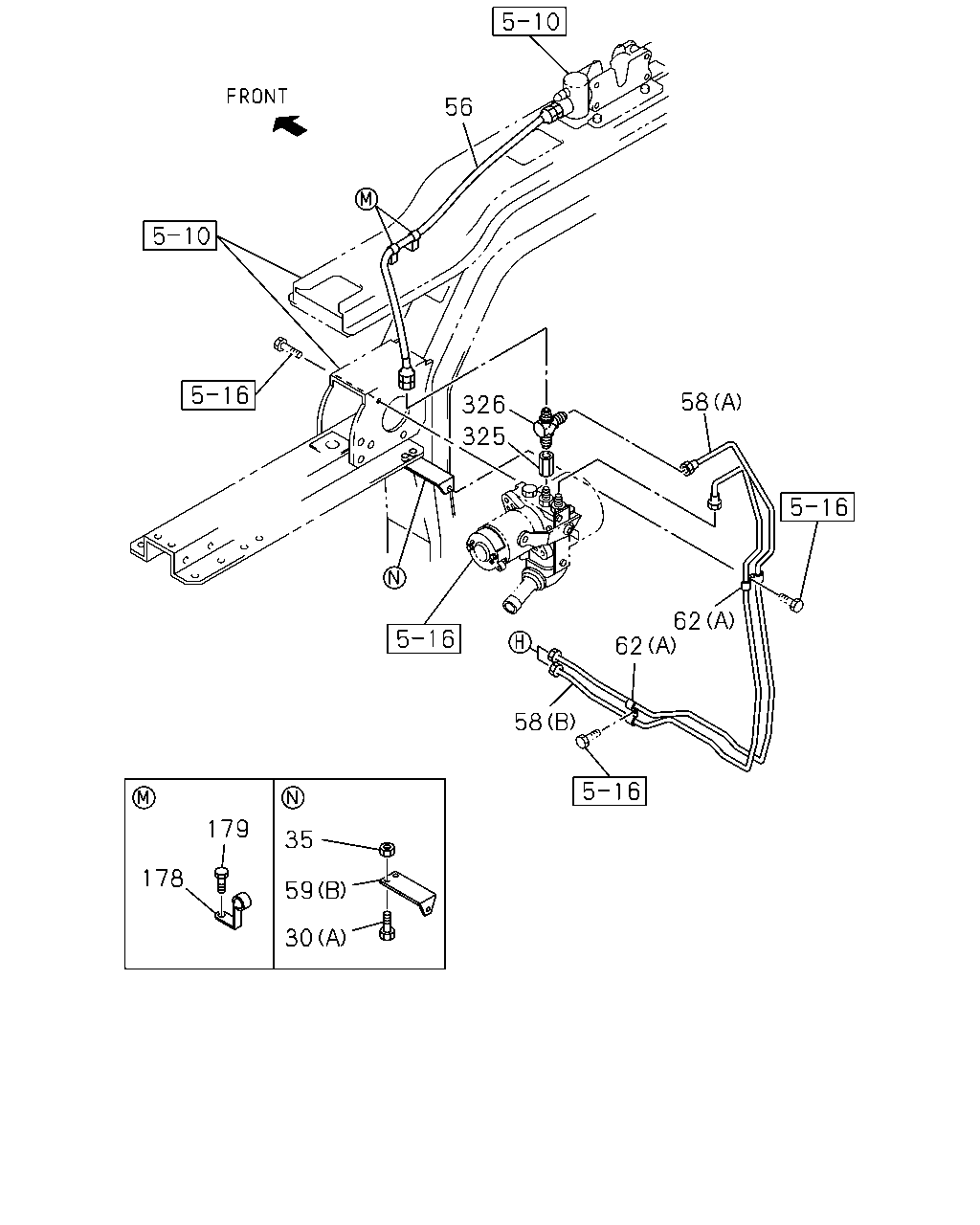

48 273 172 62 62 172 176 177 68 65 65 69 177 176 63 62 52 59 64 30 63 52 52 63 53 52 63 63 62 62 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
30	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
48	CABLE ASM; CONT 6WF1 TC-C(1B8) L=2457	1-62500-730-0	01	1	0710-	●
52	CLIP; CONT CABLE 6WF1 TC-C(1B8) (C) ID=7 L=20	0-95234-635-0	01	1	0710-	●
52	CLIP; CONT CABLE 6WF1 TC-C(1B8) (D) ID=7 L=50	0-95234-685-0	01	1	0710-	●
52	CLIP; CONT CABLE 6WF1 TC-C(1B8) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0710-	●
52	CLIP; CONT CABLE (B) ID=6-10 & 10-14	1-09709-201-1	01	1	0710-0905	●	●
52	CLIP; CONT CABLE 6WF1 TC-C(1B8) (B) ID=6-10 & 10-14	1-09709-201-1	01	1	0906-	●
53	NUT; CLIP 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	01	1	0710-	●
59	BRACKET; CLIP (A) L=115 B=25	1-47476-758-0	01	1	0710-	●	●
59	BRACKET; CLIP (B)	1-47477-317-0	01	1	0710-	●	●
62	CLIP; OIL PIPE (C) ID=9X2 L=16	0-95324-825-0	01	1	0710-	●	●
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0710-	●	●
62	CLIP; OIL PIPE (B) ID=21 L=30 H=40	1-09700-991-1	03	1	0710-	●	●
62	CLIP; OIL PIPE (D) L=140	5-09707-031-1	02	1	0710-	●	●
63	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-	●	●
63	BOLT; CLIP 6WF1 TC-C(1B8) (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-	●
63	BOLT; CLIP (B) M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
65	UNION; OIL PIPE M12 L=66.5	0-92113-306-0	02	1	0710-	●	●
68	BRACKET; UNION	1-47479-724-0	01	1	0710-	●	●
69	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0710-	●	●
172	HOSE; FLEX,OIL TILT L=1570	1-09365-304-0	02	1	0710-	●	●
176	NUT; UNION M12	9-09840-280-0	02	1	0710-	●	●
177	WASHER; LK,UNION ID=12.2	0-91510-512-0	02	1	0710-	●	●
273	WASHER; PL,OIL CYL ID=10.5 OD=32	0-91614-810-0	01	1	0710-	●	●

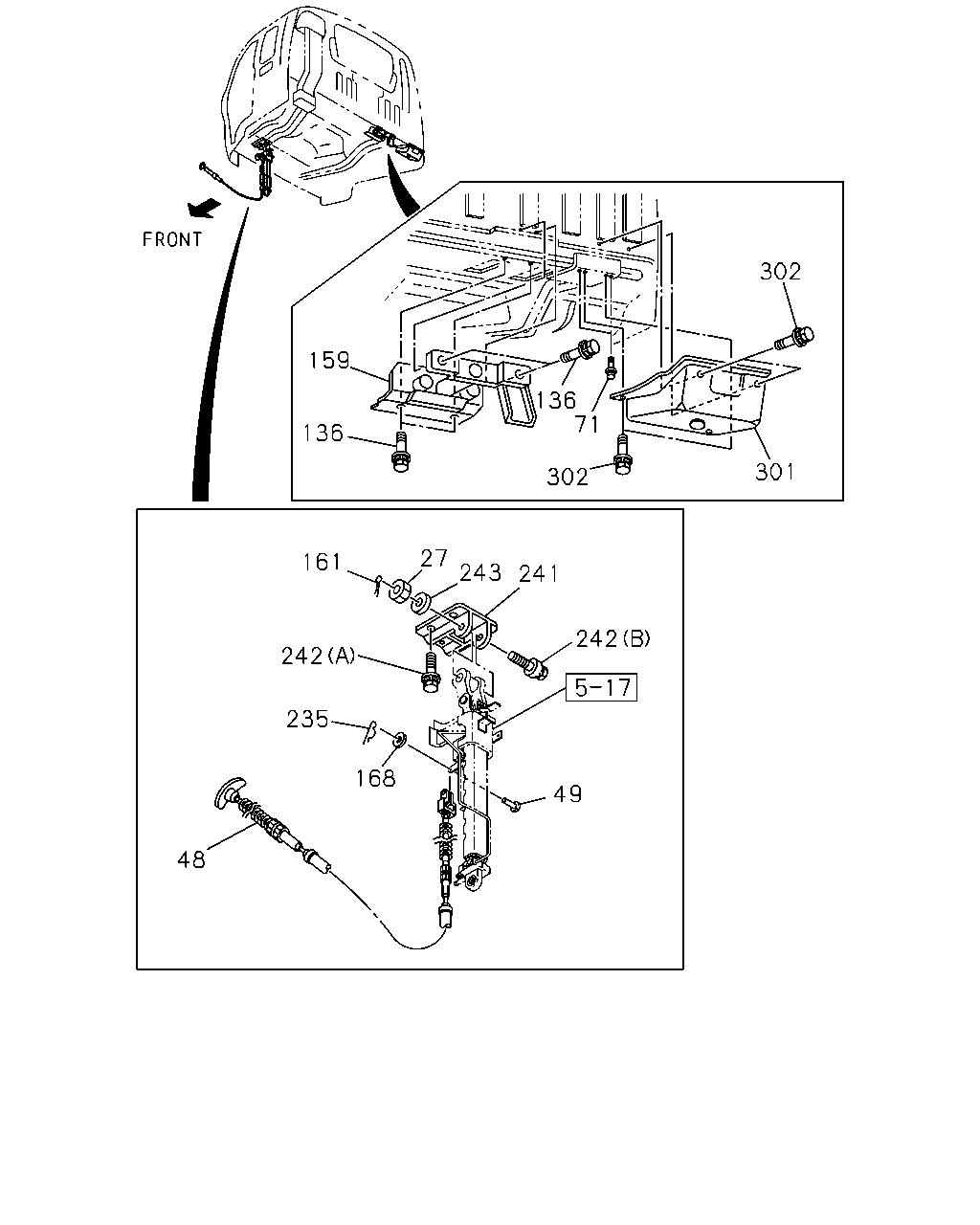

159 136 136 302 301 302 71 161 27 243 241 242 242 235 168 48 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	NUT; OIL CYL M14 SLOTTED	0-91116-514-0	01	1	0710-	●	●
48	CABLE ASM; CONT 6WF1 TC-C(1B8) L=2457	1-62500-730-0	01	1	0710-	●
49	PIN; JAW FIX 6WF1 TC-C(1B8) OD=6 L=17	0-82253-617-0	01	1	0710-	●
71	BOLT M10X25 W/LK&PL WASHER	1-09980-488-0	02	1	0710-	●	●
136	BOLT; CAB LK M8X24.5 W/LK&PL WASHER	8-94279-217-0	04	1	0710-	●	●
159	PIN	1-79717-627-1	01	1	0710-	●	●
161	PIN; SPLIT OD=2.8 L=25	0-81123-025-0	01	1	0710-	●	●
168	WASHER; PL 6WF1 TC-C(1B8) ID=6.4	9-09160-506-0	01	1	0710-	●
235	PIN; SNAP 6WF1 TC-C(1B8) L=21.2	8-94157-840-0	01	1	0710-	●
241	BRACKET; POWER CYL UPR,CAB TILT	1-53458-338-1	01	1	0710-	●	●
242	BOLT; POWER CYL BRKT,CAB TILT (A) M10X30 W/SP WASHER	1-09980-546-0	05	1	0710-	●	●
242	BOLT; POWER CYL BRKT,CAB TILT (B) M14X70	1-53458-633-0	01	1	0710-	●	●
243	WASHER; LK,POWER CYL BRKT ID=14.2	0-91510-514-0	01	1	0710-0805	●	●
243	WASHER; LK,POWER CYL BRKT ID=14.2	0-91510-814-0	01	1	0806-	●	●
301	BRACKET; RR MTG,CAB	1-62570-866-1	02	1	0710-	●	●
302	BOLT; BRKT,CAB M10X25 W/LK&PL WASHER	1-09980-488-0	08	1	0710-	●	●
