11111 - CYZ NZ EURO3/JAPAN NEW SHORT TERM 2004
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#67161) — 72 parça
Tümü
A - WHEEL BASE 4900MM
B - WHEEL BASE 5800MM
◀

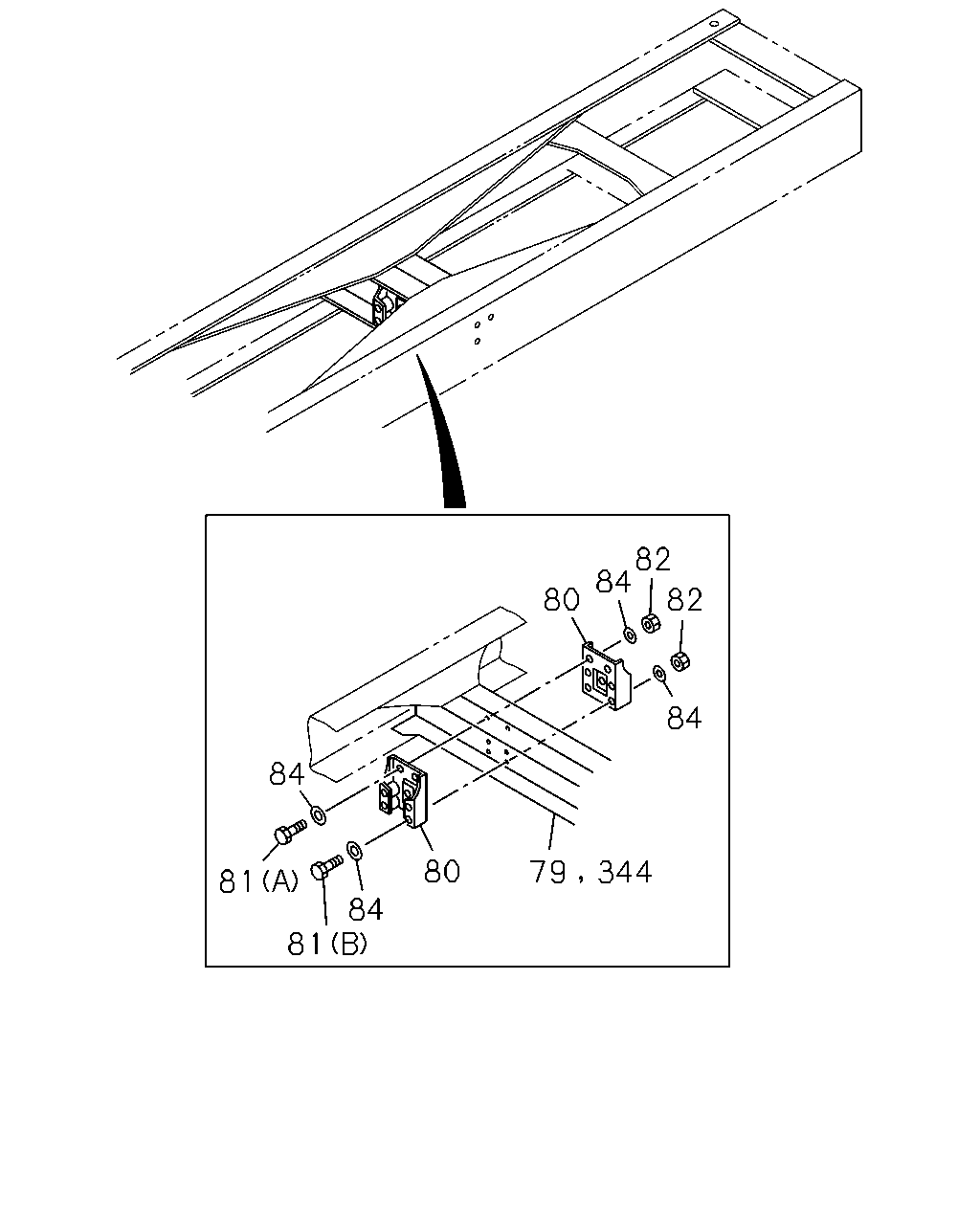

[501A] BRACKET;REAR (8 parça)

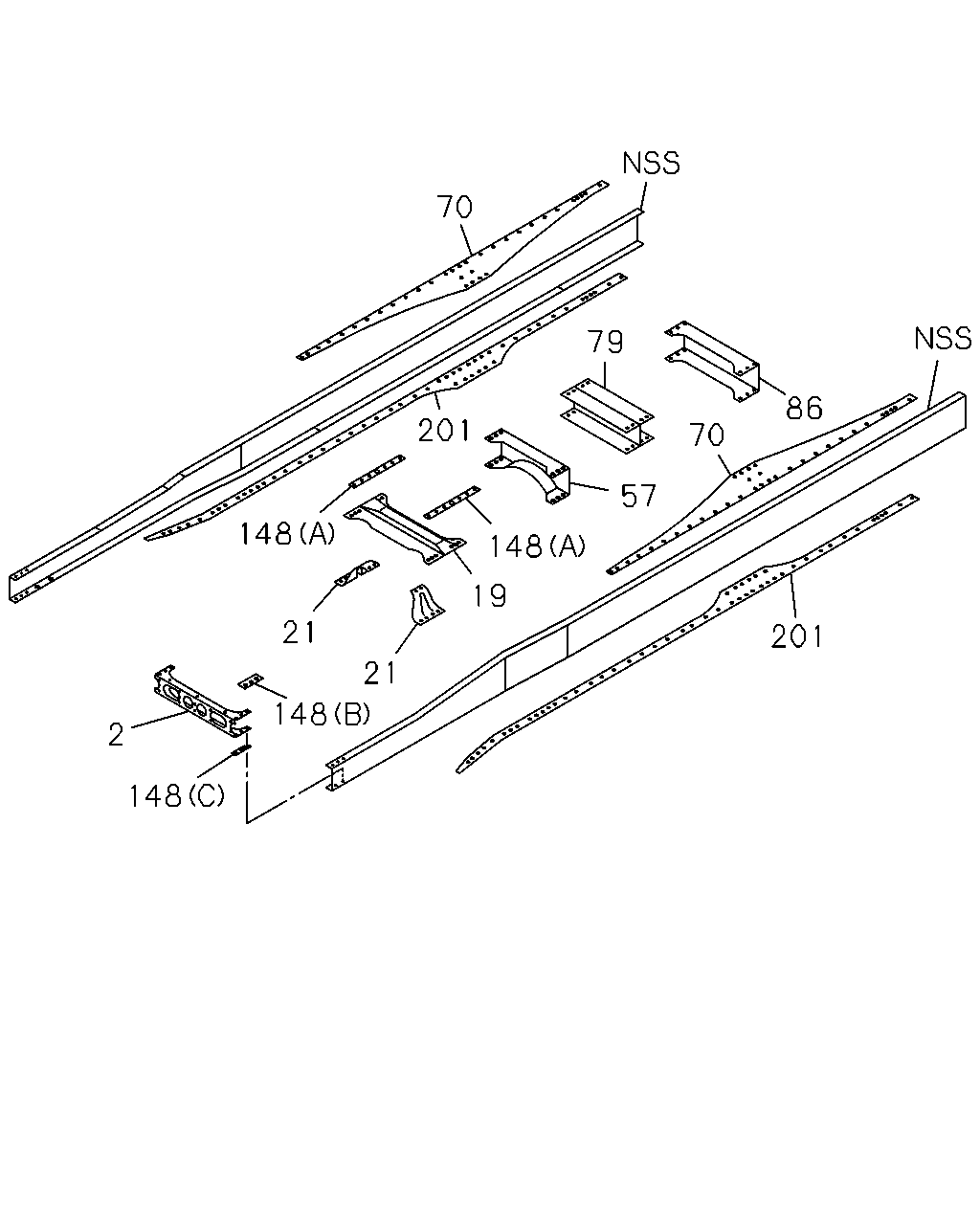

[501A] CROSS MEMBER;WHEEL BASE 4900MM (14 parça)

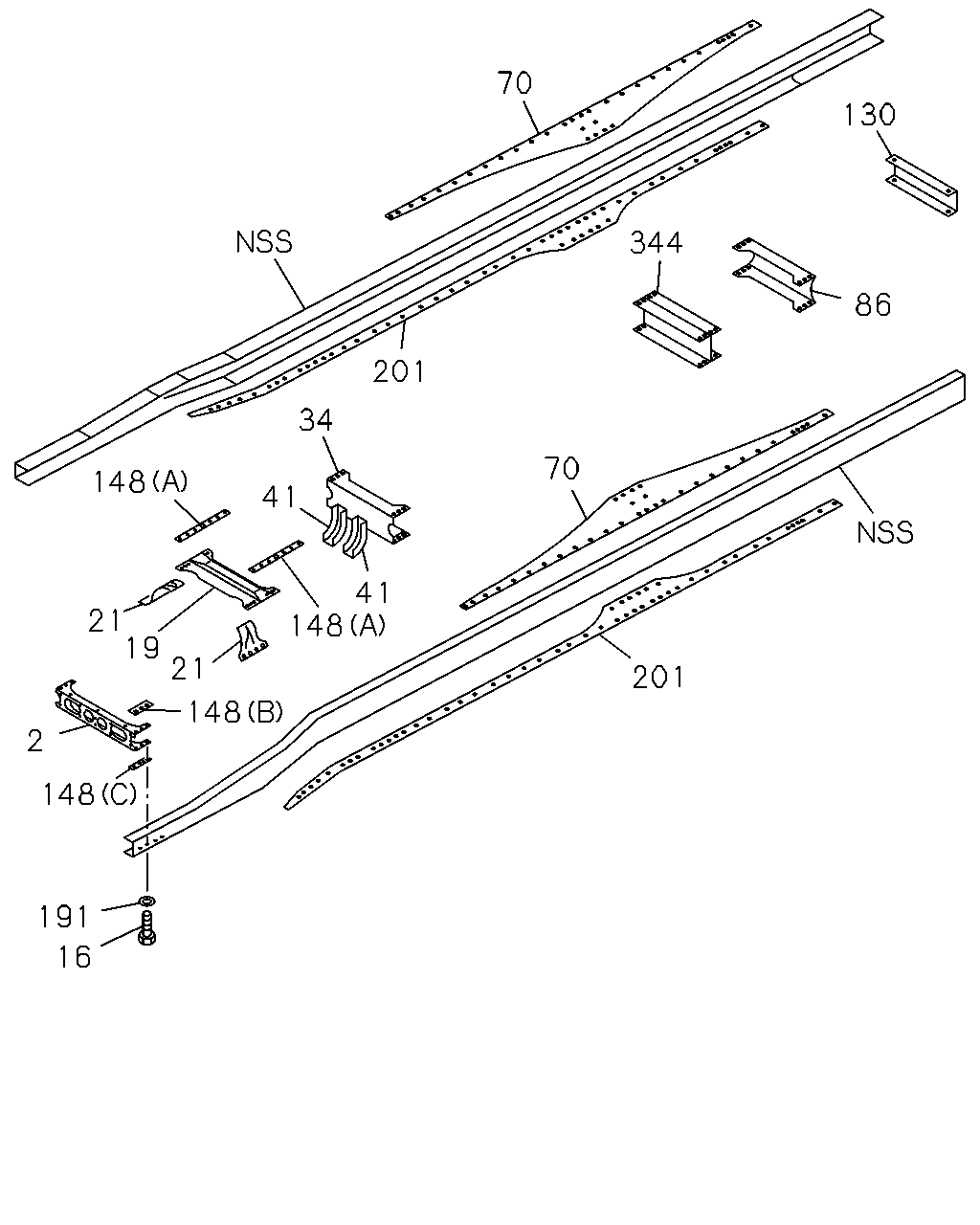

[501A] CROSS MEMBER;WHEEL BASE 5800MM (18 parça)

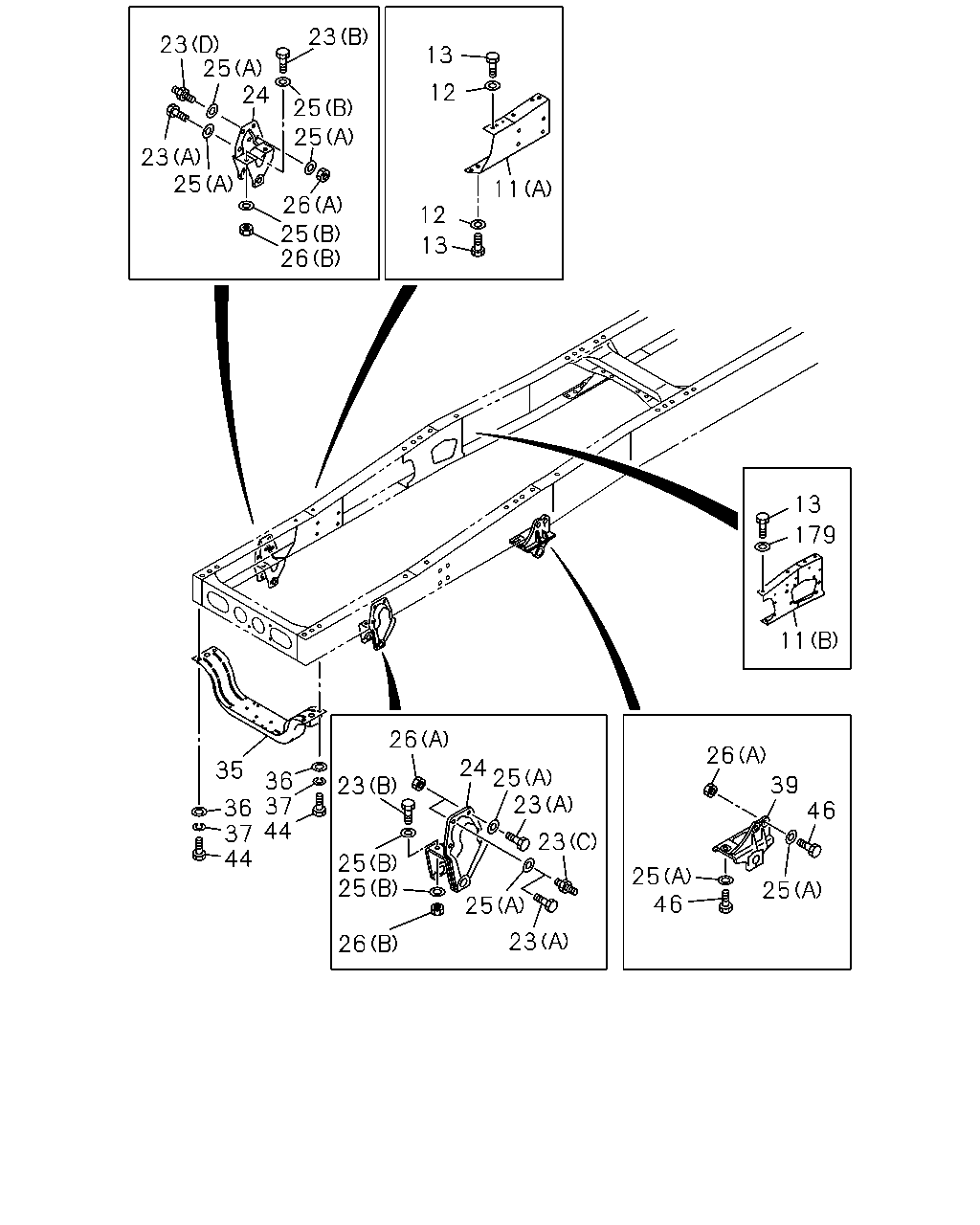

[501A] BRACKET;FRONT AND UNDER MEMBER (32 parça)
▶
82
82
84
80
84
344
79
80
84
81
84
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
79
MEMBER; CROSS,TRUNNION ASM
1-53182-075-0
01
1
0710-
●
80
BRACKET; C/MBR
1-53363-031-2
02
1
0710-
●
●
81
BOLT; BRKT
(A) M14X50
0-20951-450-0
02
1
0710-
●
●
81
BOLT; BRKT
(B) M14X205
1-09000-147-0
02
1
0710-
●
●
82
NUT; BRKT
M14
0-91110-514-0
04
1
0710-
●
●
84
WASHER; PL,BRKT
ID=15
9-09651-069-0
08
1
0710-1201
●
●
84
WASHER; PL,BRKT
ID=15
8-98010-627-1
08
1
1202-
●
●
344
MEMBER; CROSS,4TH
1-53182-075-0
01
1
0710-
●
70
79
86
70
57
201
148
19
201
21
21
148
2
148
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
MEMBER; CROSS,1ST
8-97604-959-3
01
1
0710-
●
●
19
MEMBER; CROSS,2ND
1-53174-221-0
01
1
0710-
●
●
21
GUSSET; 2ND CROSS
1-53164-225-0
02
1
0710-
●
●
57
MEMBER; CROSS,RR SUSP FRT
1-53171-685-3
01
1
0710-
●
70
GUSSET; TRUNNION,UPR
1-53161-936-0
02
1
0710-
●
70
GUSSET; TRUNNION,UPR
1-53161-478-0
02
1
0710-
●
79
MEMBER; CROSS,TRUNNION ASM
1-53182-075-0
01
1
0710-
●
86
MEMBER; CROSS,RR SUSP RR
1-53181-757-3
01
1
0710-
●
●
148
SPACER; C/MBR
(A)
1-53168-443-0
04
1
0710-
●
148
SPACER; C/MBR
(B)
1-53168-400-1
02
1
0710-
●
●
148
SPACER; C/MBR
(C)
1-53168-403-1
02
1
0710-
●
●
148
SPACER; C/MBR
(A)
1-53168-443-0
02
1
0710-
●
201
GUSSET; C/MBR
1-53161-927-0
02
1
0710-
●
201
GUSSET; C/MBR
1-53161-738-0
02
1
0710-
●
70
130
344
86
201
34
70
148
41
41
148
21
19
21
201
148
148
2
191
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
MEMBER; CROSS,1ST
8-97604-959-3
01
1
0710-
●
●
16
BOLT; 1ST C/MBR TO S/MBR
M16X40
0-20951-640-0
02
1
0802-
●
19
MEMBER; CROSS,2ND
1-53174-221-0
01
1
0710-
●
●
21
GUSSET; 2ND CROSS
1-53164-225-0
02
1
0710-
●
●
34
MEMBER; CROSS,3RD
1-53181-639-3
01
1
0710-
●
41
BRACKET; CENTER BRG,FRAME SIDE
L=315
1-53271-377-0
02
1
0710-
●
70
GUSSET; TRUNNION,UPR
1-53161-936-0
02
1
0710-
●
70
GUSSET; TRUNNION,UPR
1-53161-478-0
02
1
0710-
●
86
MEMBER; CROSS,RR SUSP RR
1-53181-757-3
01
1
0710-
●
●
130
MEMBER; CROSS,END
1-53181-450-2
01
1
0710-
●
148
SPACER; C/MBR
(A)
1-53168-443-0
04
1
0710-
●
148
SPACER; C/MBR
(B)
1-53168-400-1
02
1
0710-
●
●
148
SPACER; C/MBR
(C)
1-53168-403-1
02
1
0710-
●
●
148
SPACER; C/MBR
(A)
1-53168-443-0
02
1
0710-
●
191
WASHER; PL,1ST C/MBR TO S/MBR
ID=16.2
1-09503-223-0
02
1
0802-
●
201
GUSSET; C/MBR
1-53161-927-0
02
1
0710-
●
201
GUSSET; C/MBR
1-53161-738-0
02
1
0710-
●
344
MEMBER; CROSS,4TH
1-53182-075-0
01
1
0710-
●
13
12
11
12
13
23
23
25
25
26
25
26
25
24
23
25
13
179
11
26
39
46
25
25
46
25
24
26
23
23
23
25
23
25
25
26
36
37
44
35
36
37
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
11
BRACKET; ENG MTG
(A)
1-53211-367-1
01
1
0710-
●
●
11
BRACKET; ENG MTG
(A)
1-53211-368-1
01
1
0710-
●
●
11
BRACKET; ENG MTG
(B)
1-53221-226-4
01
1
0710-
●
●
11
BRACKET; ENG MTG
(B)
1-53221-227-4
01
1
0710-
●
●
12
WASHER; PL,BRKT,ENG MTG
ID=15
9-09651-069-0
06
1
0710-1201
●
12
WASHER; PL,BRKT,ENG MTG
ID=15
8-98010-627-1
06
1
1202-
●
12
WASHER; PL,BRKT,ENG MTG
ID=15
9-09651-069-0
02
1
0710-1201
●
12
WASHER; PL,BRKT,ENG MTG
ID=15
8-98010-627-1
02
1
1202-
●
13
BOLT; BRKT,ENG MTG
M14X40
0-20951-440-0
06
1
0710-
●
13
BOLT; BRKT,ENG MTG
M14X40
0-20951-440-0
04
1
0710-
●
23
BOLT; BRKT,SPR
(A) M14X40
0-20951-440-0
07
1
0710-
●
23
BOLT; BRKT,SPR
(B) M16X50
0-20951-650-0
04
1
0710-
●
●
23
BOLT; BRKT,SPR
(D) M12X35,M14X45 L=100
1-09029-075-0
01
1
0710-
●
●
23
BOLT; BRKT,SPR
(A) M14X40
0-20951-440-0
05
1
0710-
●
23
BOLT; BRKT,SPR
(C) M12X25,M14X45 L=81
1-09029-103-0
02
1
0710-
●
24
BRACKET; FRT SPR,FRT
1-53351-237-1
01
1
0710-
●
●
24
BRACKET; FRT SPR,FRT
1-53351-238-1
01
1
0710-
●
●
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
08
1
0710-
●
●
25
WASHER; PL,BRKT
(A) ID=15
9-09651-069-0
16
1
0710-1201
●
●
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
16
1
1202-
●
●
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
12
1
0710-
●
●
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
0710-
●
●
35
MEMBER; UNDER
1-53174-263-2
01
1
0710-
●
●
36
WASHER; PL,UNDER MBR
ID=17
9-09164-516-0
04
1
0710-
●
●
37
WASHER; LK,UNDER MBR
ID=16.2
0-91510-816-0
04
1
0710-
●
●
39
BRACKET; FRT SPR,RR
1-53352-179-0
01
1
0710-
●
●
39
BRACKET; FRT SPR,RR
1-53352-180-0
01
1
0710-
●
●
44
BOLT; UNDER MBR
M16X60
0-20951-660-0
04
1
0710-
●
●
46
BOLT; BRKT FIX
M14X40
0-20951-440-0
04
1
0710-
●
●
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
04
1
0710-
●
●
179
WASHER; LK
ID=15
9-09651-069-0
02
1
0710-1201
●
179
WASHER; LK
ID=15
8-98010-627-1
02
1
1202-
●
