◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10781 - FTR(THAI) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#6716) — 18 parça

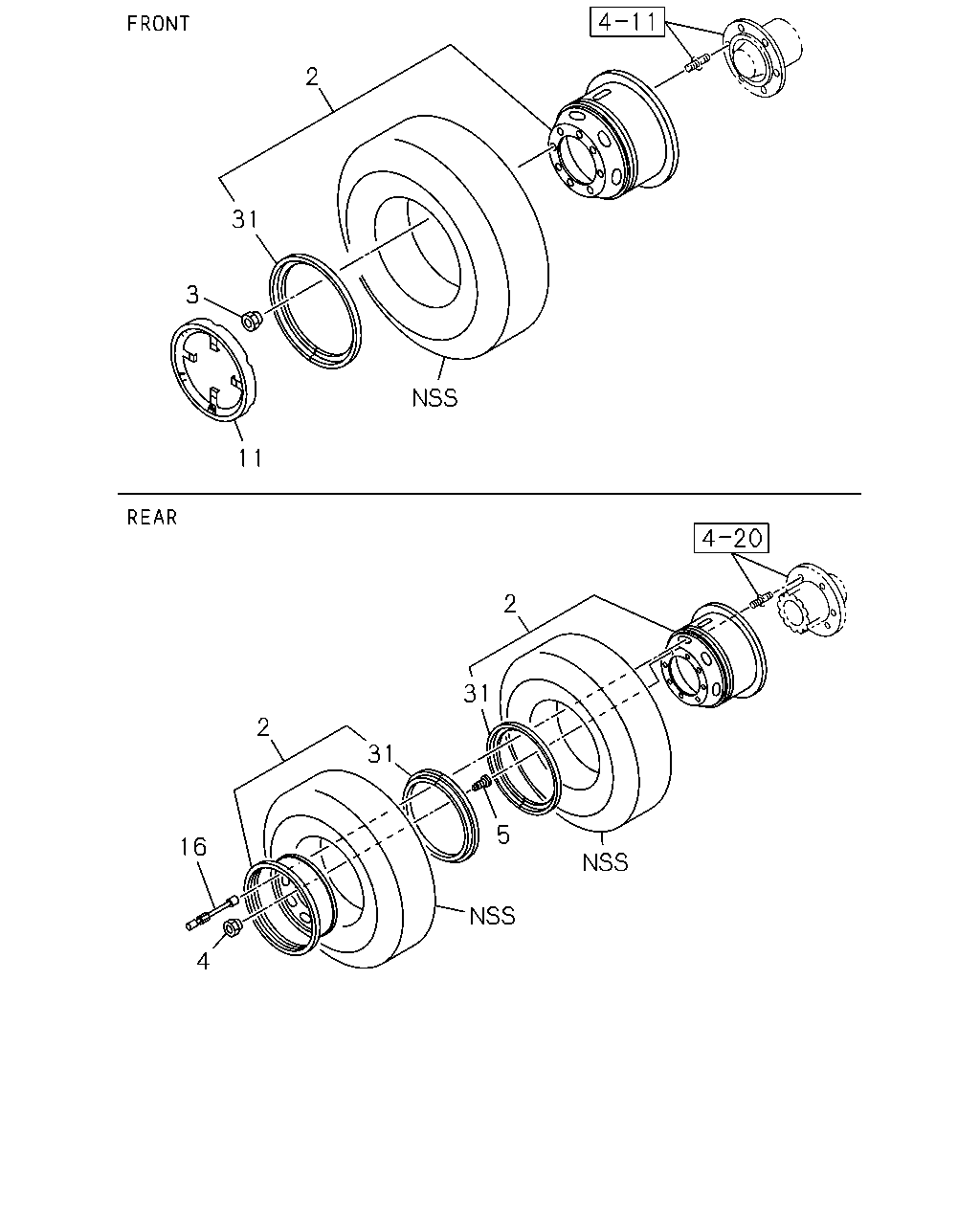

çizim 43500
2 31 3 11 2 31 2 31 5 16 4
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC 1-42350-268-2 02 1 0011- ● ●
2 WHEEL; DISC 1-42350-268-2 04 1 0011- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> 		1-42350-268-2 01 1 0011- ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> 		1-42350-268-2 01 1 0011- ● ●
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD THA 		8-97916-064-0 08 1 0011- ● ●
3 NUT; WHEEL,FRT AXLE
M24 THA 		8-97916-063-0 08 1 0011- ● ●
4 NUT; WHEEL,RR AXLE
M30 LH THREAD THA 		8-97916-121-0 08 1 0011- ● ●
4 NUT; WHEEL,RR AXLE
M30 THA 		8-97916-066-0 08 1 0011- ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD THA 		8-97916-676-0 08 1 0011- ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD THA 		8-97916-065-0 08 1 0011- ● ●
11 STEP; DISC WHEEL SIDE
THA 		8-97916-040-0 02 1 0011- ● ●
13 NUT; STEP DISC
M10 		9-09110-510-0 06 1 0011- ● ●
14 WASHER; LK,STEP DISC
ID=10.2 		9-09150-510-0 06 1 0208- ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		1-42370-024-0 02 1 0011- ● ●
31 RING; SIDE,DISC WHEEL 1-42355-012-1 02 1 0011- ● ●
31 RING; SIDE,DISC WHEEL 1-42355-012-1 04 1 0011- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> 		1-42355-012-1 01 1 0011- ● ●
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> 		1-42355-012-1 01 1 0011- ● ●
