4-42 — POWER STEERING OIL PUMP (#67155) — 88 parça

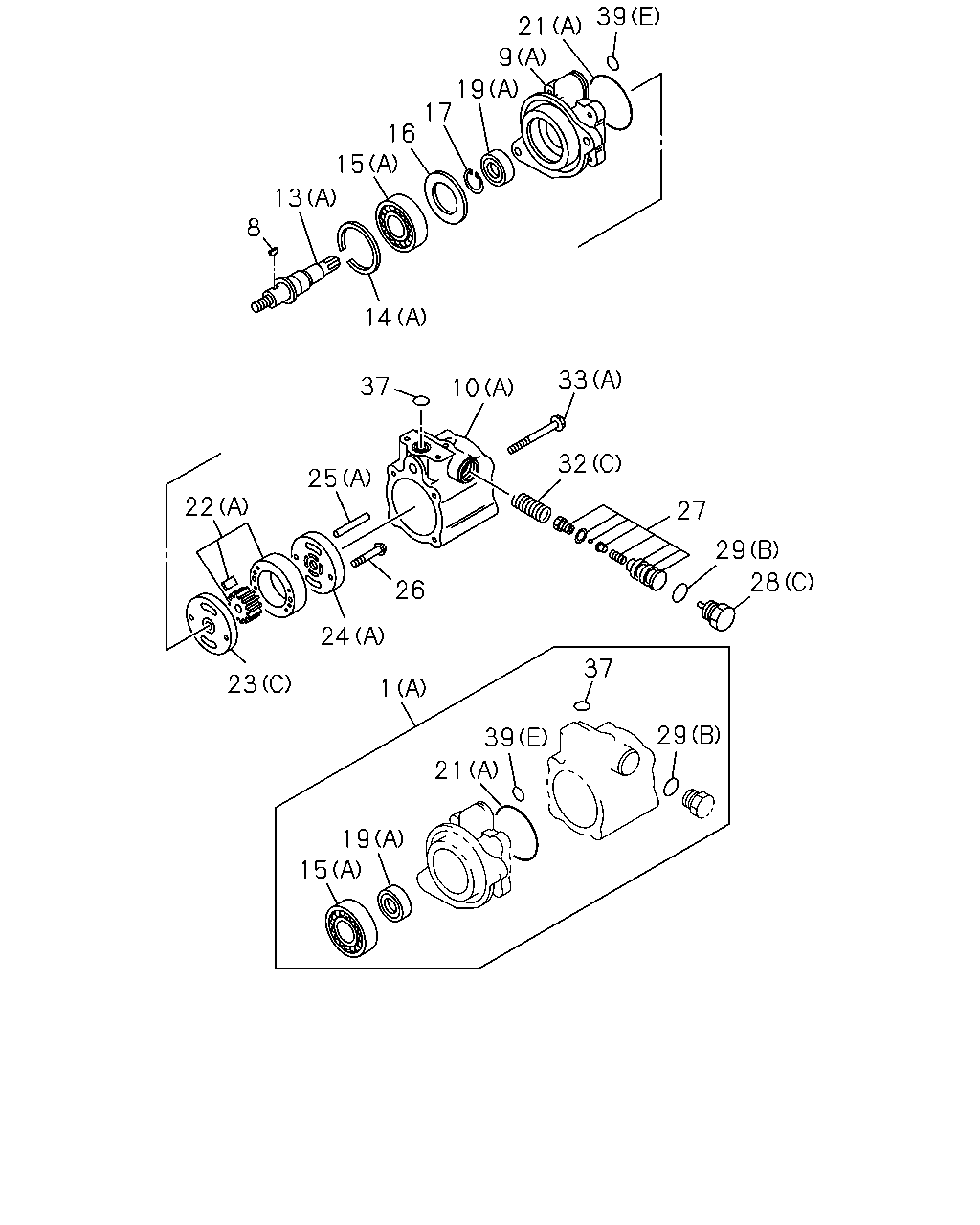

çizim 124132
39 21 9 19 17 16 15 13 8 14 37 10 33 32 27 29 28 25 22 23 24 26 1 37 29 39 21 19 15
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
(A) ASM PART: A = 1-19500-561-3 		1-85574-049-0 01 1 -
1 REPAIR KIT; OIL PUMP
(B) ASM PART: B = 1-19500-616-3 		1-85574-082-0 01 1 -
8 KEY; SHAFT,OIL PUMP
ASM PART: A = 1-19500-561-3, B = 1-19500-616-3 		9-19519-036-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
(A) ASM PART: A = 1-19500-561-3 		1-19511-168-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
(B) ASM PART: B = 1-19500-616-3 		1-19511-196-1 01 1 -
10 BODY ASM; RR,OIL PUMP
(A) ASM PART: A = 1-19500-561-3 		1-19511-171-0 01 1 -
10 BODY ASM; RR,OIL PUMP
(B) ASM PART: B = 1-19500-616-3 		1-19511-198-0 01 1 -
13 SHAFT KIT; RET
(A) ASM PART: A = 1-19500-561-3 		1-19521-018-0 01 1 -
13 SHAFT KIT; RET
(B) ASM PART: B = 1-19500-616-3 		1-19521-041-1 01 1 -
14 RING; RET,OIL PUMP
(A) ASM PART: A = 1-19500-561-3 		1-19519-135-0 01 1 -
14 RING; RET,OIL PUMP
(B) ASM PART: B = 1-19500-616-3 		1-19519-361-0 01 1 -
15 BEARING; BALL,OIL PUMP
(A) ASM PART: A = 1-19500-561-3 		1-19515-004-0 01 1 -
15 BEARING; BALL,OIL PUMP
(B) ASM PART: B = 1-19500-616-3 		1-19515-016-1 01 1 -
16 RING; RET,OIL PUMP
ASM PART: A = 1-19500-561-3 		9-19519-078-0 01 1 -
17 RING; RET
ASM PART: A = 1-19500-561-3 		1-19519-177-0 01 1 -
19 SEAL; OIL,OIL PUMP
(A) ASM PART: A = 1-19500-561-3 		1-19519-252-0 01 1 -
19 SEAL; OIL,OIL PUMP
(B) ASM PART: B = 1-19500-616-3 		1-19519-360-0 01 1 -
21 GASKET; FRT COVER TO BODY
(A) ASM PART: A = 1-19500-561-3 		1-19519-314-0 01 1 -
21 GASKET; FRT COVER TO BODY
(B) ASM PART: B = 1-19500-616-3 		1-19519-367-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
(A) ASM PART: A = 1-19500-561-3 		1-19519-311-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
(B) ASM PART: B = 1-19500-616-3 		1-19519-374-0 01 1 -
23 PLATE; SIDE,OIL PUMP
(C) ASM PART: A = 1-19500-561-3 		1-19519-234-0 01 1 -
23 PLATE; SIDE,OIL PUMP
(B) ASM PART: B = 1-19500-616-3 		1-19519-363-0 01 1 -
23 PLATE; SIDE,OIL PUMP
(A) ASM PART: B = 1-19500-616-3 		1-19519-372-0 01 1 -
24 PLATE ASM; THRUST
(A) ASM PART: A = 1-19500-561-3 		1-19519-312-0 01 1 -
24 PLATE ASM; THRUST
(B) ASM PART: B = 1-19500-616-3 		1-19519-371-0 01 1 -
25 PIN; HSG,P/S
(B) ASM PART: B = 1-19500-616-3 		1-19519-359-0 01 1 -
25 PIN; HSG,P/S
(A) ASM PART: A = 1-19500-561-3 		9-88510-421-0 02 1 -
26 SCREW; PLATE
ASM PART: A = 1-19500-561-3 		1-19519-142-0 02 1 -
27 VALVE ASM; OIL PUMP
ASM PART: A = 1-19500-561-3 		1-19519-347-0 01 1 -
28 PLUG; DRAIN,OIL PUMP
(C) ASM PART: A = 1-19500-561-3 		1-19519-351-0 01 1 -
28 PLUG; DRAIN,OIL PUMP
(B) ASM PART: B = 1-19500-616-3 		1-19519-368-0 01 1 -
28 PLUG; DRAIN,OIL PUMP
(A) ASM PART: B = 1-19500-616-3 		1-19519-369-0 01 1 -
29 GASKET; PLUG TO VLV
(A) ASM PART: B = 1-19500-616-3 		9-44519-087-0 01 1 -
29 GASKET; PLUG TO VLV
(B) ASM PART: A = 1-19500-561-3, B = 1-19500-616-3 		9-88510-248-0 01 1 -
32 SPRING; OIL PUMP
(A) ASM PART: B = 1-19500-616-3 		1-19519-370-0 01 1 -
32 SPRING; OIL PUMP
(B) ASM PART: B = 1-19500-616-3 		8-94475-376-0 01 1 -
32 SPRING; OIL PUMP
(C) ASM PART: A = 1-19500-561-3 		9-19529-013-0 01 1 -
33 BOLT; COVER
(A) ASM PART: A = 1-19500-561-3 		1-19519-245-0 04 1 -
33 BOLT; COVER
(B) ASM PART: B = 1-19500-616-3 		1-19519-346-0 06 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 1-19500-561-3, B = 1-19500-616-3 		1-19519-292-0 01 1 -
39 GASKET; OIL PUMP
(E) ASM PART: A = 1-19500-561-3 		1-19519-313-0 01 1 -
39 GASKET; OIL PUMP
(A) ASM PART: B = 1-19500-616-3 		1-19519-364-0 01 1 -
39 GASKET; OIL PUMP
(B) ASM PART: B = 1-19500-616-3 		1-19519-365-0 01 1 -
39 GASKET; OIL PUMP
(C) ASM PART: B = 1-19500-616-3 		1-19519-366-0 01 1 -
39 GASKET; OIL PUMP
(D) ASM PART: B = 1-19500-616-3 		8-94240-926-0 04 1 -
çizim 192773
9 39 39 39 29 28 37 32 33 21 19 14 15 22 8 28 29 32 39 23 13 24 25 39 39 39 10 37 21 39 39 39 39 39 39 39 29 23 1 15 19 29
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
(A) ASM PART: A = 1-19500-561-3 		1-85574-049-0 01 1 -
1 REPAIR KIT; OIL PUMP
(B) ASM PART: B = 1-19500-616-3 		1-85574-082-0 01 1 -
8 KEY; SHAFT,OIL PUMP
ASM PART: A = 1-19500-561-3, B = 1-19500-616-3 		9-19519-036-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
(A) ASM PART: A = 1-19500-561-3 		1-19511-168-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
(B) ASM PART: B = 1-19500-616-3 		1-19511-196-1 01 1 -
10 BODY ASM; RR,OIL PUMP
(A) ASM PART: A = 1-19500-561-3 		1-19511-171-0 01 1 -
10 BODY ASM; RR,OIL PUMP
(B) ASM PART: B = 1-19500-616-3 		1-19511-198-0 01 1 -
13 SHAFT KIT; RET
(A) ASM PART: A = 1-19500-561-3 		1-19521-018-0 01 1 -
13 SHAFT KIT; RET
(B) ASM PART: B = 1-19500-616-3 		1-19521-041-1 01 1 -
14 RING; RET,OIL PUMP
(A) ASM PART: A = 1-19500-561-3 		1-19519-135-0 01 1 -
14 RING; RET,OIL PUMP
(B) ASM PART: B = 1-19500-616-3 		1-19519-361-0 01 1 -
15 BEARING; BALL,OIL PUMP
(A) ASM PART: A = 1-19500-561-3 		1-19515-004-0 01 1 -
15 BEARING; BALL,OIL PUMP
(B) ASM PART: B = 1-19500-616-3 		1-19515-016-1 01 1 -
19 SEAL; OIL,OIL PUMP
(A) ASM PART: A = 1-19500-561-3 		1-19519-252-0 01 1 -
19 SEAL; OIL,OIL PUMP
(B) ASM PART: B = 1-19500-616-3 		1-19519-360-0 01 1 -
21 GASKET; FRT COVER TO BODY
(A) ASM PART: A = 1-19500-561-3 		1-19519-314-0 01 1 -
21 GASKET; FRT COVER TO BODY
(B) ASM PART: B = 1-19500-616-3 		1-19519-367-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
(A) ASM PART: A = 1-19500-561-3 		1-19519-311-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
(B) ASM PART: B = 1-19500-616-3 		1-19519-374-0 01 1 -
23 PLATE; SIDE,OIL PUMP
(C) ASM PART: A = 1-19500-561-3 		1-19519-234-0 01 1 -
23 PLATE; SIDE,OIL PUMP
(B) ASM PART: B = 1-19500-616-3 		1-19519-363-0 01 1 -
23 PLATE; SIDE,OIL PUMP
(A) ASM PART: B = 1-19500-616-3 		1-19519-372-0 01 1 -
24 PLATE ASM; THRUST
(A) ASM PART: A = 1-19500-561-3 		1-19519-312-0 01 1 -
24 PLATE ASM; THRUST
(B) ASM PART: B = 1-19500-616-3 		1-19519-371-0 01 1 -
25 PIN; HSG,P/S
(B) ASM PART: B = 1-19500-616-3 		1-19519-359-0 01 1 -
25 PIN; HSG,P/S
(A) ASM PART: A = 1-19500-561-3 		9-88510-421-0 02 1 -
28 PLUG; DRAIN,OIL PUMP
(C) ASM PART: A = 1-19500-561-3 		1-19519-351-0 01 1 -
28 PLUG; DRAIN,OIL PUMP
(B) ASM PART: B = 1-19500-616-3 		1-19519-368-0 01 1 -
28 PLUG; DRAIN,OIL PUMP
(A) ASM PART: B = 1-19500-616-3 		1-19519-369-0 01 1 -
29 GASKET; PLUG TO VLV
(A) ASM PART: B = 1-19500-616-3 		9-44519-087-0 01 1 -
29 GASKET; PLUG TO VLV
(B) ASM PART: A = 1-19500-561-3, B = 1-19500-616-3 		9-88510-248-0 01 1 -
32 SPRING; OIL PUMP
(A) ASM PART: B = 1-19500-616-3 		1-19519-370-0 01 1 -
32 SPRING; OIL PUMP
(B) ASM PART: B = 1-19500-616-3 		8-94475-376-0 01 1 -
32 SPRING; OIL PUMP
(C) ASM PART: A = 1-19500-561-3 		9-19529-013-0 01 1 -
33 BOLT; COVER
(A) ASM PART: A = 1-19500-561-3 		1-19519-245-0 04 1 -
33 BOLT; COVER
(B) ASM PART: B = 1-19500-616-3 		1-19519-346-0 06 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 1-19500-561-3, B = 1-19500-616-3 		1-19519-292-0 01 1 -
39 GASKET; OIL PUMP
(E) ASM PART: A = 1-19500-561-3 		1-19519-313-0 01 1 -
39 GASKET; OIL PUMP
(A) ASM PART: B = 1-19500-616-3 		1-19519-364-0 01 1 -
39 GASKET; OIL PUMP
(B) ASM PART: B = 1-19500-616-3 		1-19519-365-0 01 1 -
39 GASKET; OIL PUMP
(C) ASM PART: B = 1-19500-616-3 		1-19519-366-0 01 1 -
39 GASKET; OIL PUMP
(D) ASM PART: B = 1-19500-616-3 		8-94240-926-0 04 1 -
