◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11111 - CYZ NZ EURO3/JAPAN NEW SHORT TERM 2004 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-35 - POWER STEERING CONTROL; CHASSIS SIDE ▶

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#67152) — 166 parça

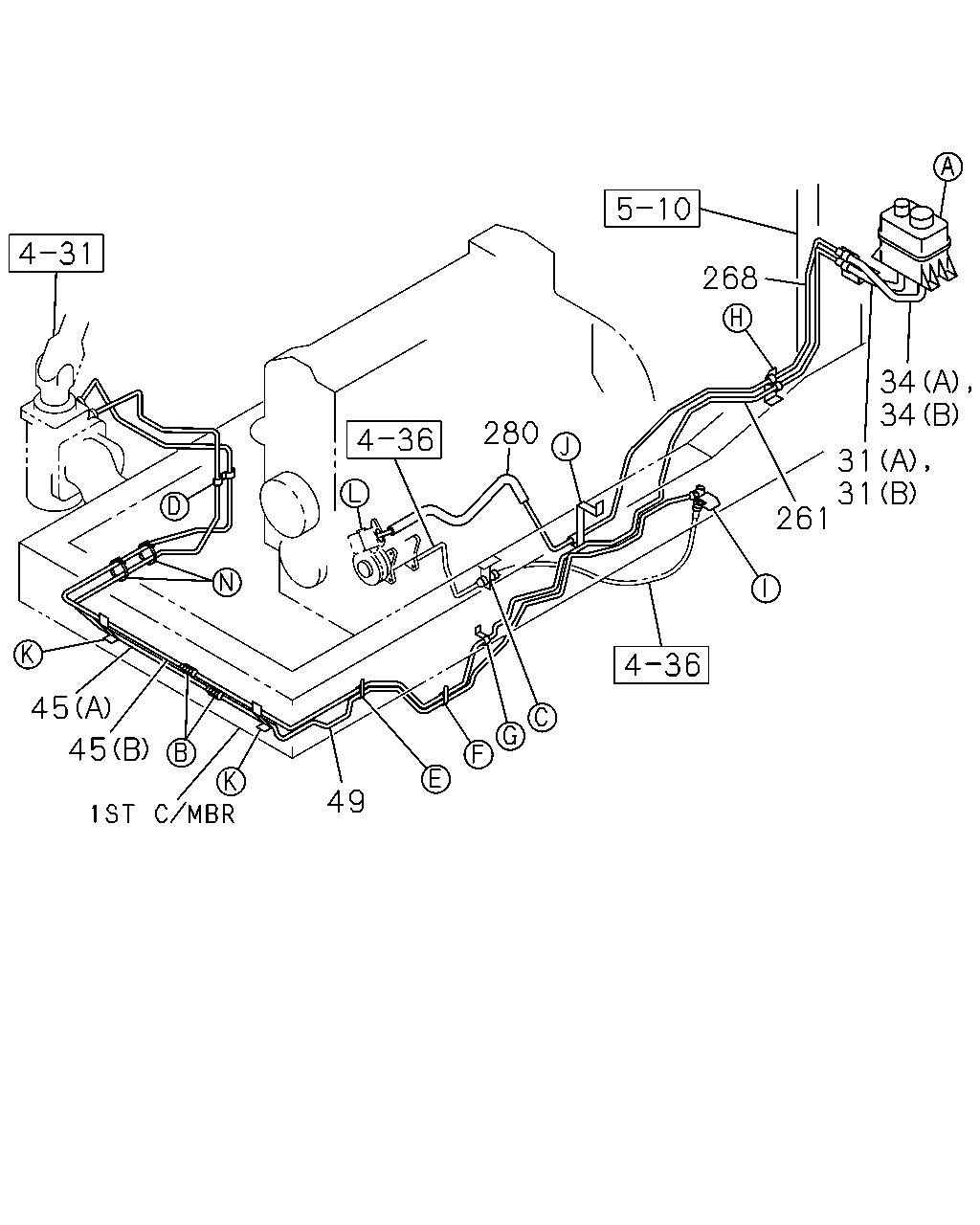

45 45 49 280 261 31 31 34 34 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL 6WF1 TC-C(1B8) (A)	1-21114-284-0	01	1	0710-	●
31	HOSE; P/S OIL TANK,INL 6WG1 TC-C(72L) (B)	1-21117-509-1	01	1	0710-	●
31	HOSE; P/S OIL TANK,INL (B)	1-21117-509-1	01	1	0710-		●
34	HOSE; P/S OIL TANK,OUTLET 6WF1 TC-C(1B8) (A)	1-21114-283-0	01	1	0710-	●
34	HOSE; P/S OIL TANK,OUTLET 6WG1 TC-C(72L) (B)	1-21117-510-1	01	1	0710-	●
34	HOSE; P/S OIL TANK,OUTLET (B)	1-21117-510-1	01	1	0710-		●
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1475	1-21117-916-0	01	1	0710-1309	●	●
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1475	8-98257-624-0	01	1	1310-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (B) L=1404	1-21117-917-0	01	1	0710-1309	●	●
45	PIPE; OIL,P/S UNIT TO UNION (B) L=1404	8-98257-625-0	01	1	1310-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION 6WF1 TC-C(1B8) L=2048	1-21117-741-0	01	1	0710-	●
49	PIPE; OIL,FLEX HOSE TO UNION 6WG1 TC-C(72L) L=2147	1-21117-763-0	01	1	0710-	●
49	PIPE; OIL,FLEX HOSE TO UNION L=2147	1-21117-763-0	01	1	0710-		●
261	PIPE; OIL,UNION TO HOSE 6WF1 TC-C(1B8) L=3322	1-21117-801-0	01	1	0710-1208	●
261	PIPE; OIL,UNION TO HOSE 6WF1 TC-C(1B8) L=3312	8-98219-469-0	01	1	1209-	●
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-C(72L) L=3362	1-21117-802-0	01	1	0710-1208	●
261	PIPE; OIL,UNION TO HOSE L=3362	1-21117-802-0	01	1	0710-1208		●
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-C(72L) L=3351	8-98219-712-0	01	1	1209-	●
261	PIPE; OIL,UNION TO HOSE L=3351	8-98219-712-0	01	1	1209-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WF1 TC-C(1B8) L=1287	1-21116-852-0	01	1	0710-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WG1 TC-C(72L) L=1367	1-21117-813-0	01	1	0710-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1367	1-21117-813-0	01	1	0710-		●
280	HOSE; P/S OIL PUMP,INL 6WF1 TC-C(1B8)	1-21117-831-0	01	1	0710-	●
280	HOSE; P/S OIL PUMP,INL 6WG1 TC-C(72L)	1-21117-301-0	01	1	0710-	●
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0710-		●

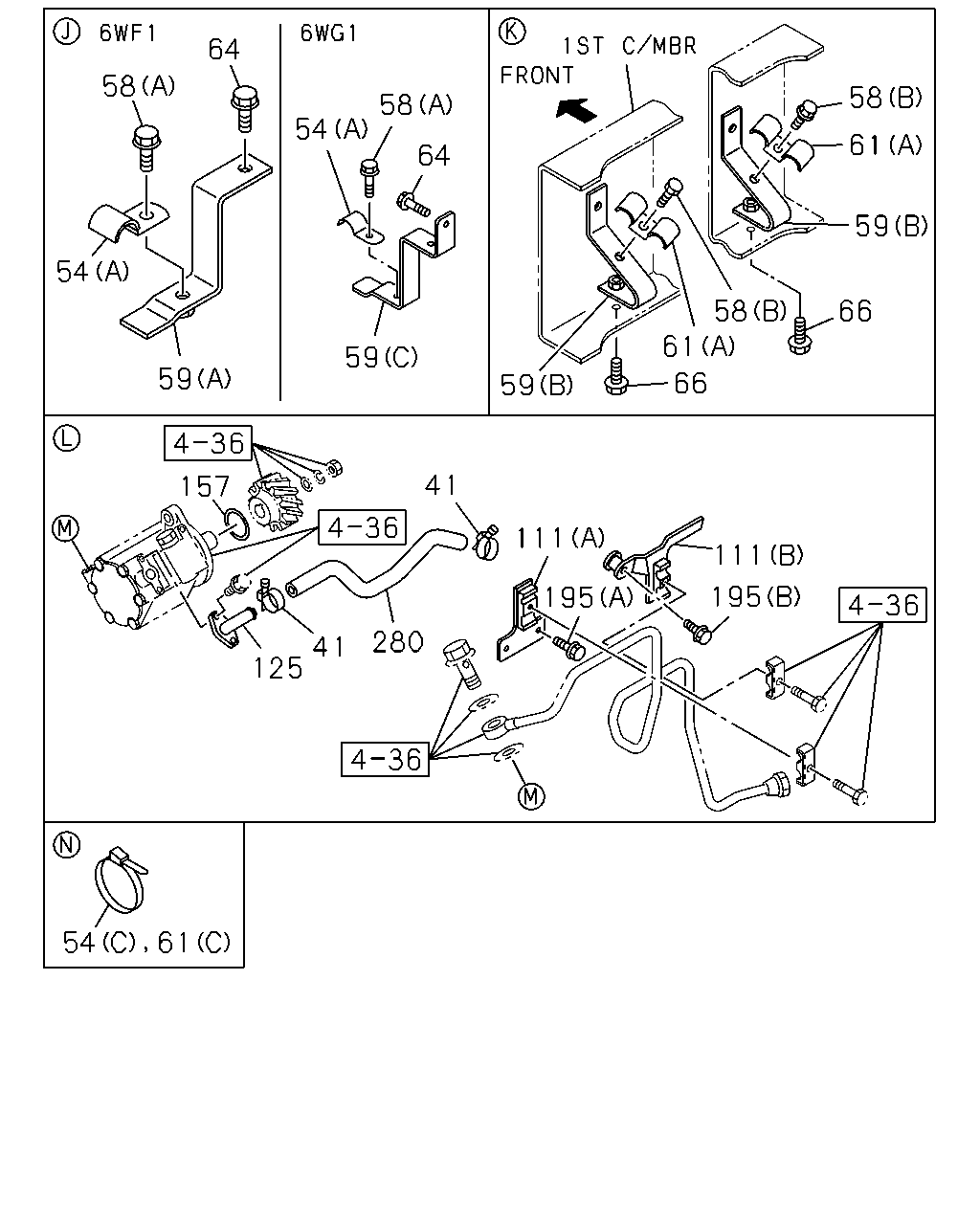

64 58 54 59 54 58 59 64 59 66 61 58 66 59 61 58 157 41 280 41 125 111 195 61 54 111 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0710-	●	●
54	CLIP; OIL PIPE (C) L=350	1-09707-183-0	01	1	1310-	●	●
54	CLIP; OIL PIPE 6WF1 TC-C(1B8) (A) ID=23.6 L=35	1-09700-634-0	02	1	0710-	●
54	CLIP; OIL PIPE 6WG1 TC-C(72L) (A) ID=23.6 L=35	1-09700-634-0	01	1	0710-	●
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	01	1	0710-		●
54	CLIP; OIL PIPE 6WG1 TC-C(72L) (B) ID=26 L=27	1-09701-006-0	01	1	0710-	●
54	CLIP; OIL PIPE (B) ID=26 L=27	1-09701-006-0	01	1	0710-		●
58	BOLT; CLIP 6WF1 TC-C(1B8) (A) M10X20 FLANGE	0-28651-020-0	02	1	0710-	●
58	BOLT; CLIP 6WG1 TC-C(72L) (A) M10X20 FLANGE	0-28651-020-0	03	1	0710-	●
58	BOLT; CLIP (A) M10X20 FLANGE	0-28651-020-0	03	1	0710-		●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	03	1	0710-	●	●
59	BRACKET; CLIP,OIL PIPE 6WF1 TC-C(1B8) (A)	1-47477-145-0	01	1	0710-	●
59	BRACKET; CLIP,OIL PIPE 6WG1 TC-C(72L) (C)	1-47471-183-0	01	1	0710-	●
59	BRACKET; CLIP,OIL PIPE (C)	1-47471-183-0	01	1	0710-		●
59	BRACKET; CLIP,OIL PIPE (B)	1-47479-521-0	02	1	0710-	●	●
61	CLIP; OIL PIPE (C) L=350	1-09707-183-0	01	1	1310-	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	0710-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0710-	●	●
64	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0710-	●	●
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0710-	●	●
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0710-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0710-	●	●
195	BOLT; BRKT 6WG1 TC-C(72L) (C) M8X25 FLANGE	0-28650-825-0	08	1	0710-	●
195	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	08	1	0710-		●
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0710-	●	●
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	0710-	●	●
280	HOSE; P/S OIL PUMP,INL 6WF1 TC-C(1B8)	1-21117-831-0	01	1	0710-	●
280	HOSE; P/S OIL PUMP,INL 6WG1 TC-C(72L)	1-21117-301-0	01	1	0710-	●
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0710-		●

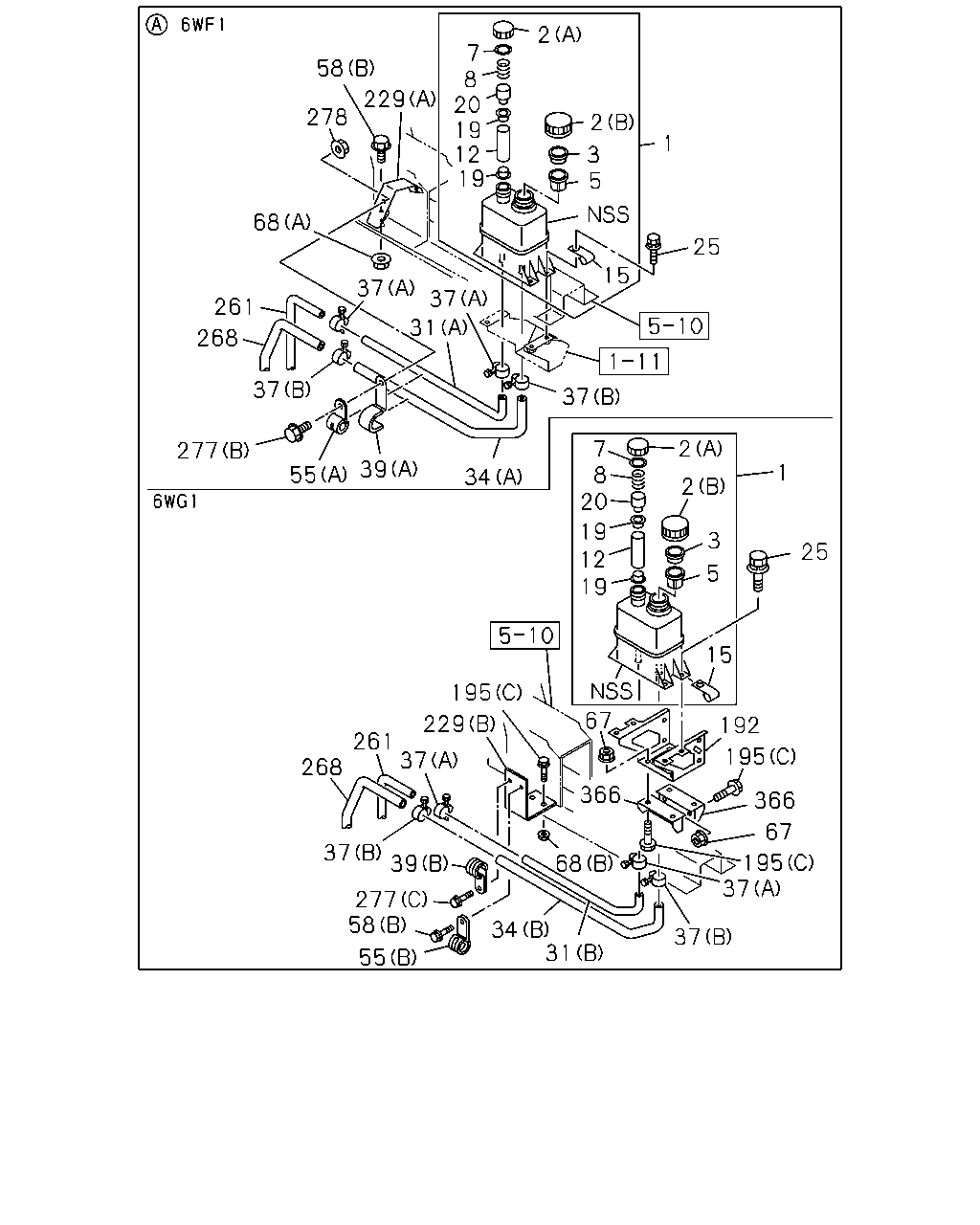

58 278 229 2 7 8 20 19 12 19 3 2 1 5 25 15 37 37 37 31 68 261 268 277 37 55 39 34 7 2 1 2 3 5 25 8 20 19 12 19 15 192 195 366 67 195 37 37 67 366 68 195 229 261 37 268 37 39 277 58 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0710-	●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0710-	●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0710-	●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0710-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0710-	●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0710-	●	●
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0710-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0710-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0710-	●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	0710-	●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0710-	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0710-	●	●
31	HOSE; P/S OIL TANK,INL 6WF1 TC-C(1B8) (A)	1-21114-284-0	01	1	0710-	●
31	HOSE; P/S OIL TANK,INL 6WG1 TC-C(72L) (B)	1-21117-509-1	01	1	0710-	●
31	HOSE; P/S OIL TANK,INL (B)	1-21117-509-1	01	1	0710-		●
34	HOSE; P/S OIL TANK,OUTLET 6WF1 TC-C(1B8) (A)	1-21114-283-0	01	1	0710-	●
34	HOSE; P/S OIL TANK,OUTLET 6WG1 TC-C(72L) (B)	1-21117-510-1	01	1	0710-	●
34	HOSE; P/S OIL TANK,OUTLET (B)	1-21117-510-1	01	1	0710-		●
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	0710-	●	●
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	0710-	●	●
39	CLIP; FLEX HOSE 6WF1 TC-C(1B8) (A) ID=32 L=75	1-09700-702-0	01	1	0710-	●
39	CLIP; FLEX HOSE 6WG1 TC-C(72L) (B) ID=37 L=35	1-09701-109-0	01	1	0710-	●
39	CLIP; FLEX HOSE (B) ID=37 L=35	1-09701-109-0	01	1	0710-		●
55	CLIP; P/S RUBBER HOSE 6WF1 TC-C(1B8) (A) ID=28 L=30	1-09700-607-1	01	1	0710-	●
55	CLIP; P/S RUBBER HOSE 6WG1 TC-C(72L) (B) ID=28 L=32	1-09701-107-1	01	1	0710-	●
55	CLIP; P/S RUBBER HOSE (B) ID=28 L=32	1-09701-107-1	01	1	0710-		●
58	BOLT; CLIP 6WF1 TC-C(1B8) (A) M10X20 FLANGE	0-28651-020-0	02	1	0710-	●
58	BOLT; CLIP 6WG1 TC-C(72L) (A) M10X20 FLANGE	0-28651-020-0	03	1	0710-	●
58	BOLT; CLIP (A) M10X20 FLANGE	0-28651-020-0	03	1	0710-		●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	03	1	0710-	●	●
67	NUT; BRKT 6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	04	1	0710-	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0710-		●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
68	NUT; CLIP,OIL PIPE 6WF1 TC-C(1B8) (A) M8 FLANGE	0-91180-108-0	01	1	0710-	●
68	NUT; CLIP,OIL PIPE 6WG1 TC-C(72L) (B) M10 FLANGE	0-91180-210-0	02	1	0710-	●
68	NUT; CLIP,OIL PIPE (B) M10 FLANGE	0-91180-210-0	02	1	0710-		●
192	BRACKET; P/S OIL TANK 6WG1 TC-C(72L)	1-21489-200-1	01	1	0710-	●
192	BRACKET; P/S OIL TANK	1-21489-200-1	01	1	0710-		●
195	BOLT; BRKT 6WG1 TC-C(72L) (C) M8X25 FLANGE	0-28650-825-0	08	1	0710-	●
195	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	08	1	0710-		●
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0710-	●	●
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	0710-	●	●
229	BRACKET; HOSE,POWER STRG 6WF1 TC-C(1B8) (A)	1-21464-407-1	01	1	0710-	●
229	BRACKET; HOSE,POWER STRG 6WG1 TC-C(72L) (B)	1-21464-780-0	01	1	0710-	●
229	BRACKET; HOSE,POWER STRG (B)	1-21464-780-0	01	1	0710-		●
261	PIPE; OIL,UNION TO HOSE 6WF1 TC-C(1B8) L=3322	1-21117-801-0	01	1	0710-1208	●
261	PIPE; OIL,UNION TO HOSE 6WF1 TC-C(1B8) L=3312	8-98219-469-0	01	1	1209-	●
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-C(72L) L=3362	1-21117-802-0	01	1	0710-1208	●
261	PIPE; OIL,UNION TO HOSE L=3362	1-21117-802-0	01	1	0710-1208		●
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-C(72L) L=3351	8-98219-712-0	01	1	1209-	●
261	PIPE; OIL,UNION TO HOSE L=3351	8-98219-712-0	01	1	1209-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WF1 TC-C(1B8) L=1287	1-21116-852-0	01	1	0710-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WG1 TC-C(72L) L=1367	1-21117-813-0	01	1	0710-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1367	1-21117-813-0	01	1	0710-		●
277	BOLT; HOSE CLIP 6WF1 TC-C(1B8) (B) M10X25 FLANGE	0-28651-025-0	01	1	0710-	●
277	BOLT; HOSE CLIP 6WG1 TC-C(72L) (C) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●
277	BOLT; HOSE CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	0710-		●
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	03	1	0710-	●	●
278	NUT; HOSE CLIP 6WF1 TC-C(1B8) M10 FLANGE	0-91180-210-0	01	1	0710-	●
366	SPACER; BRKT TO MEMBER 6WG1 TC-C(72L)	1-21489-196-1	02	1	0710-	●
366	SPACER; BRKT TO MEMBER	1-21489-196-1	02	1	0710-		●

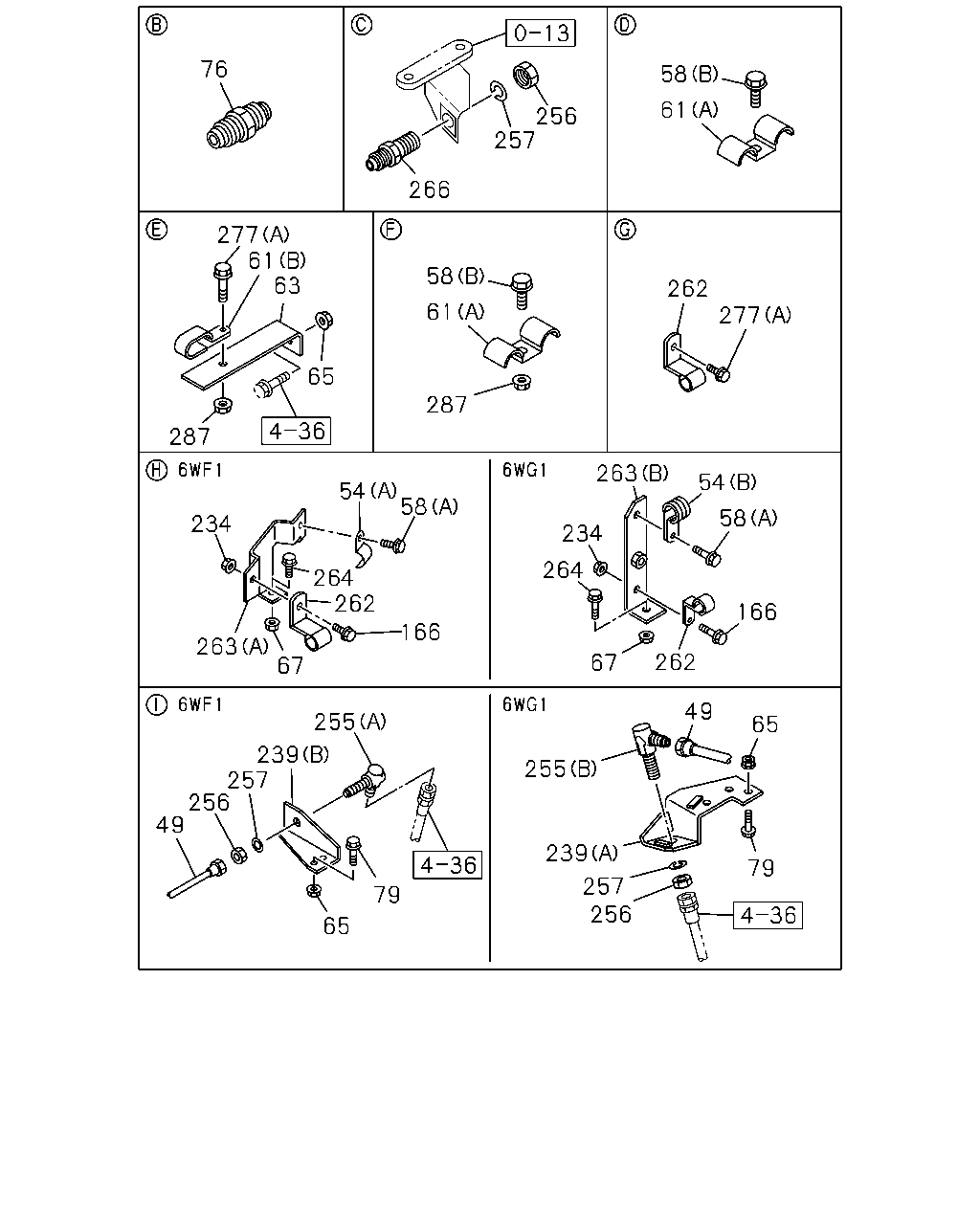

257 266 256 58 61 76 277 61 63 65 287 58 61 287 262 277 263 54 58 234 264 166 262 67 166 262 264 54 58 234 263 67 255 239 257 256 49 79 65 255 239 257 256 79 49 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	PIPE; OIL,FLEX HOSE TO UNION 6WF1 TC-C(1B8) L=2048	1-21117-741-0	01	1	0710-	●
49	PIPE; OIL,FLEX HOSE TO UNION 6WG1 TC-C(72L) L=2147	1-21117-763-0	01	1	0710-	●
49	PIPE; OIL,FLEX HOSE TO UNION L=2147	1-21117-763-0	01	1	0710-		●
54	CLIP; OIL PIPE (C) L=350	1-09707-183-0	01	1	1310-	●	●
54	CLIP; OIL PIPE 6WF1 TC-C(1B8) (A) ID=23.6 L=35	1-09700-634-0	02	1	0710-	●
54	CLIP; OIL PIPE 6WG1 TC-C(72L) (A) ID=23.6 L=35	1-09700-634-0	01	1	0710-	●
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	01	1	0710-		●
54	CLIP; OIL PIPE 6WG1 TC-C(72L) (B) ID=26 L=27	1-09701-006-0	01	1	0710-	●
54	CLIP; OIL PIPE (B) ID=26 L=27	1-09701-006-0	01	1	0710-		●
58	BOLT; CLIP 6WF1 TC-C(1B8) (A) M10X20 FLANGE	0-28651-020-0	02	1	0710-	●
58	BOLT; CLIP 6WG1 TC-C(72L) (A) M10X20 FLANGE	0-28651-020-0	03	1	0710-	●
58	BOLT; CLIP (A) M10X20 FLANGE	0-28651-020-0	03	1	0710-		●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	03	1	0710-	●	●
61	CLIP; OIL PIPE (C) L=350	1-09707-183-0	01	1	1310-	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	0710-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0710-	●	●
63	BRACKET; CLIP,P/S L=115 B=25	1-47476-758-0	01	1	0710-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0710-	●	●
67	NUT; BRKT 6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	04	1	0710-	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0710-		●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	0710-	●	●
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0710-	●	●
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
239	BRACKET; FLEX HOSE 6WF1 TC-C(1B8) (B)	1-47479-664-0	01	1	0710-	●
239	BRACKET; FLEX HOSE 6WG1 TC-C(72L) (A)	1-47471-227-0	01	1	0710-	●
239	BRACKET; FLEX HOSE (A)	1-47471-227-0	01	1	0710-		●
255	UNION; FLEX HOSE 6WF1 TC-C(1B8) (A) M22 & M22 ELBOW	1-09650-375-1	01	1	0710-	●
255	UNION; FLEX HOSE 6WG1 TC-C(72L) (B) M22 & M22 ELBOW	1-09654-163-1	01	1	0710-	●
255	UNION; FLEX HOSE (B) M22 & M22 ELBOW	1-09654-163-1	01	1	0710-		●
256	NUT; UNION M22	0-91111-522-0	01	1	0710-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	0710-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0710-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0710-	●	●
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	02	1	0710-	●	●
263	BRACKET; P/S PIPE 6WF1 TC-C(1B8) (A)	1-47476-483-2	01	1	0710-	●
263	BRACKET; P/S PIPE 6WG1 TC-C(72L) (B)	1-47471-191-1	01	1	0710-	●
263	BRACKET; P/S PIPE (B)	1-47471-191-1	01	1	0710-		●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0710-	●	●
277	BOLT; HOSE CLIP 6WF1 TC-C(1B8) (B) M10X25 FLANGE	0-28651-025-0	01	1	0710-	●
277	BOLT; HOSE CLIP 6WG1 TC-C(72L) (C) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●
277	BOLT; HOSE CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	0710-		●
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	03	1	0710-	●	●
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0710-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
