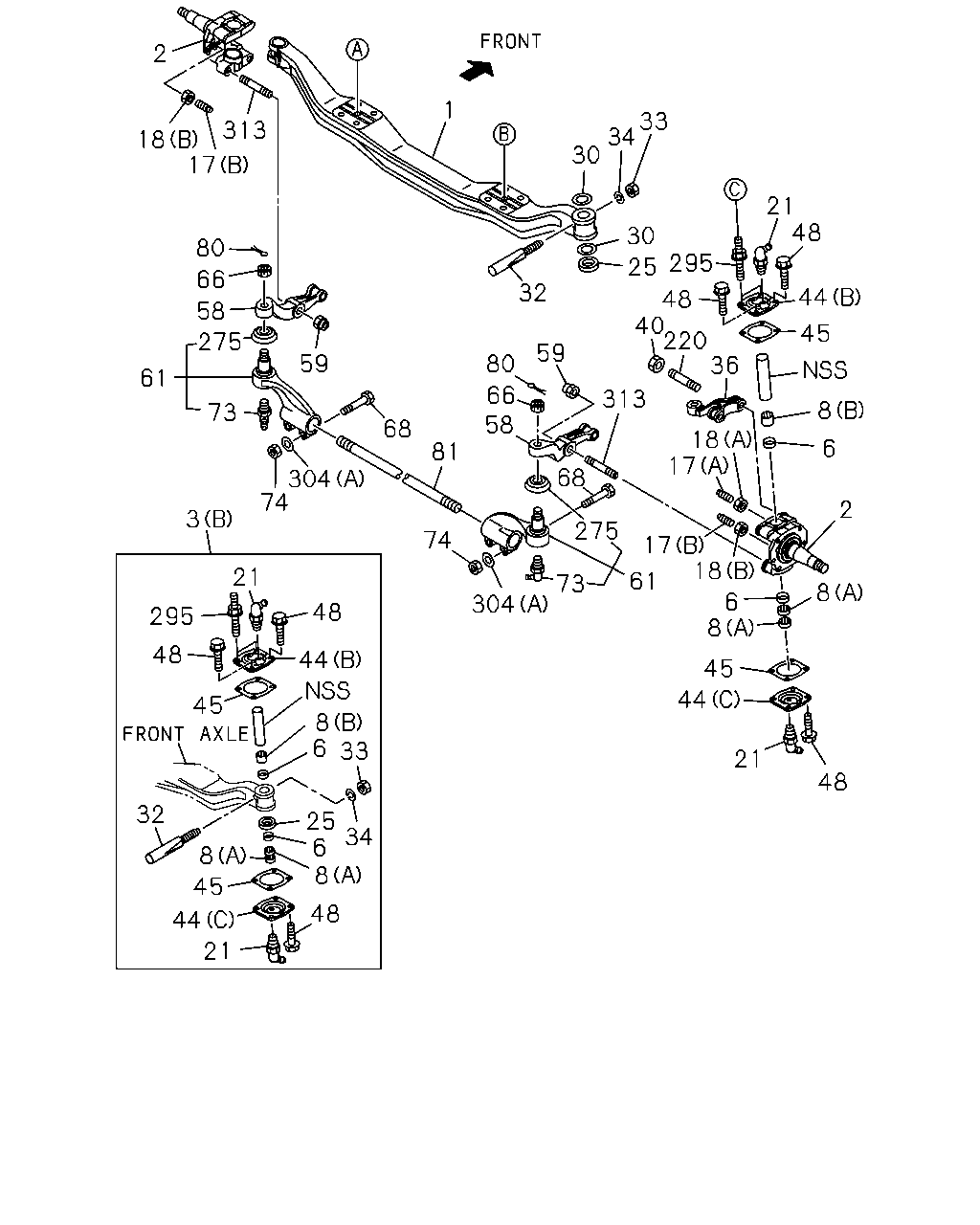

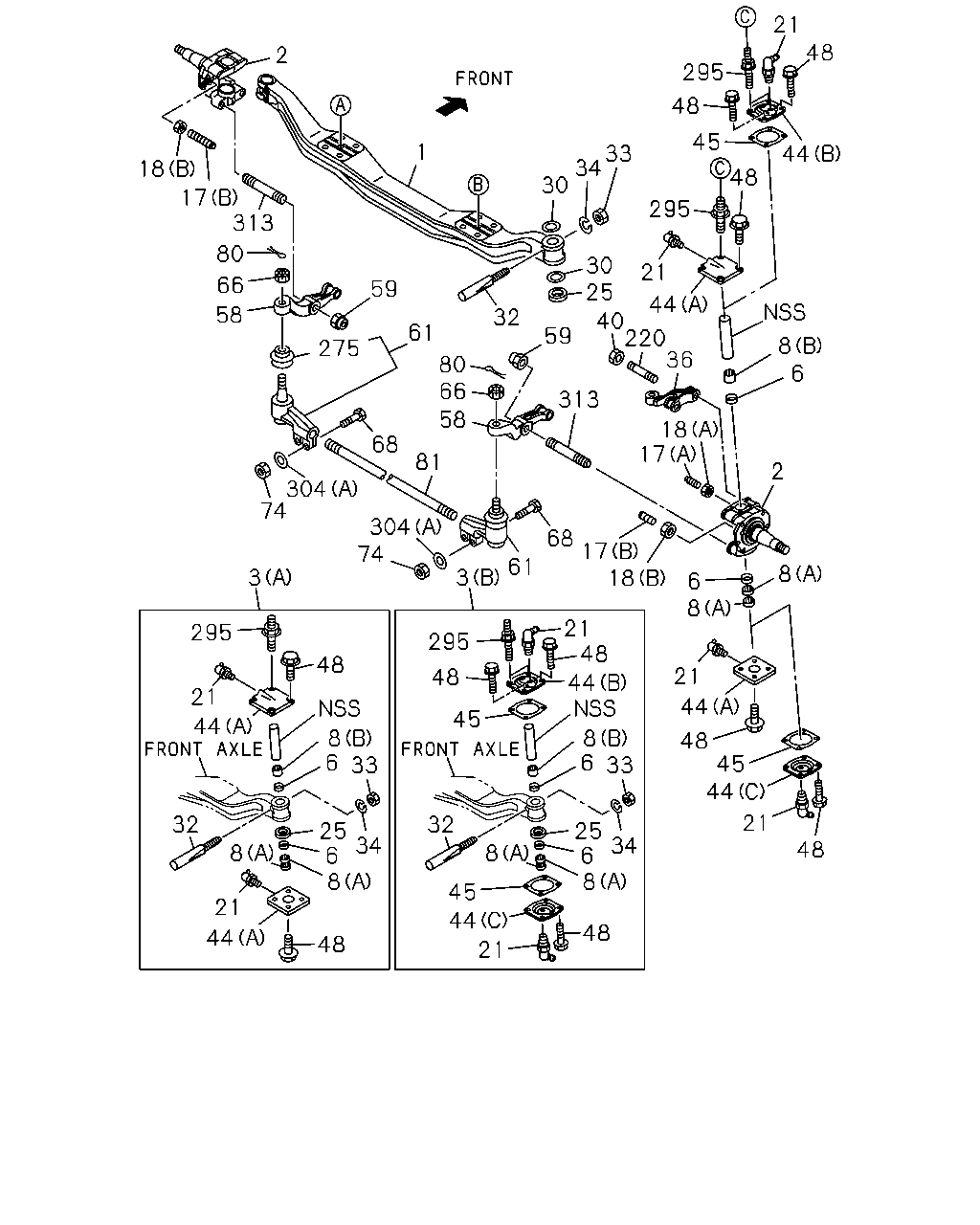

4-10 — FRONT AXLE (#67145) — 209 parça

2 1 33 34 30 313 18 17 21 48 30 80 295 25 66 32 44 48 40 220 36 58 275 45 59 80 59 61 66 58 313 8 73 18 17 68 6 81 68 304 74 2 3 275 74 17 18 21 61 73 8 6 8 304 48 295 48 44 45 44 45 8 6 33 21 48 32 25 34 6 8 8 45 48 44 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	1-43111-170-2	01	1	0710-0805	●
1	AXLE; FRT	8-98116-056-4	01	1	0806-	●
1	AXLE; FRT	1-43111-107-9	01	1	0710-		●
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	0710-	●	●
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	0710-	●	●
3	KING PIN SET (A)	1-87831-111-7	02	1	0710-0801	●	●
3	KING PIN SET (B)	1-87831-349-2	02	1	0802-	●	●
6	SEAL; KING PIN	9-09926-024-0	04	1	0710-	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0710-	●	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0710-	●	●
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	0710-	●	●
17	BOLT; STOPPER KNUCKLE (B) M18X38	1-09009-164-0	02	1	0710-	●	●
18	NUT; STOPPER BOLT,KNUCKLE (B) HEXAGON M18	0-91110-518-0	02	1	0710-	●	●
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	0710-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0710-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0710-	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0710-	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0710-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0710-	●	●
36	ARM; KNUCKLE	1-43133-083-3	01	1	0710-	●	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0710-	●	●
44	COVER; KING PIN (C)	8-98100-655-0	02	1	0802-	●	●
44	COVER; KING PIN (A)	1-43175-025-0	04	1	0710-0801	●	●
44	COVER; KING PIN (B)	8-98100-654-0	02	1	0802-	●	●
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	0802-	●	●
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	12	1	0710-	●	●
58	ARM; TIE ROD	1-43134-049-4	01	1	0710-	●	●
58	ARM; TIE ROD	1-43135-049-4	01	1	0710-	●	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0710-	●	●
61	ROD END; TIE ROD	1-43150-856-0	01	1	0710-1009	●	●
61	ROD END; TIE ROD	8-98105-073-0	01	1	1010-1306	●	●
61	ROD END; TIE ROD	8-98228-100-0	01	1	1307-	●	●
61	ROD END; TIE ROD	1-43150-857-0	01	1	0710-1009	●	●
61	ROD END; TIE ROD	8-98105-074-0	01	1	1010-1306	●	●
61	ROD END; TIE ROD	8-98228-101-0	01	1	1307-	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0710-0805	●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-	●	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0710-	●	●
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1010-	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0710-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0710-	●	●
81	ROD; TIE	1-43151-154-0	01	1	0710-	●	●
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	0710-	●	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0710-1009	●	●
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306	●	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-	●	●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	0710-	●	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0710-	●	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0710-0907	●
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0710-0907		●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	0908-	●
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	0908-		●
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	0710-	●	●

116 116 116 115 112 115 116 115 112 115 115 112 115 114 115 112 115 114 110 128 111 110 127 105 234 128 91 127 91 111 87 82 234 103 234 87 296 93 87 103 87 93 303 304 234 105 237 304 3 303 93 237 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	KING PIN SET (A)	1-87831-111-7	02	1	0710-0801	●	●
3	KING PIN SET (B)	1-87831-349-2	02	1	0802-	●	●

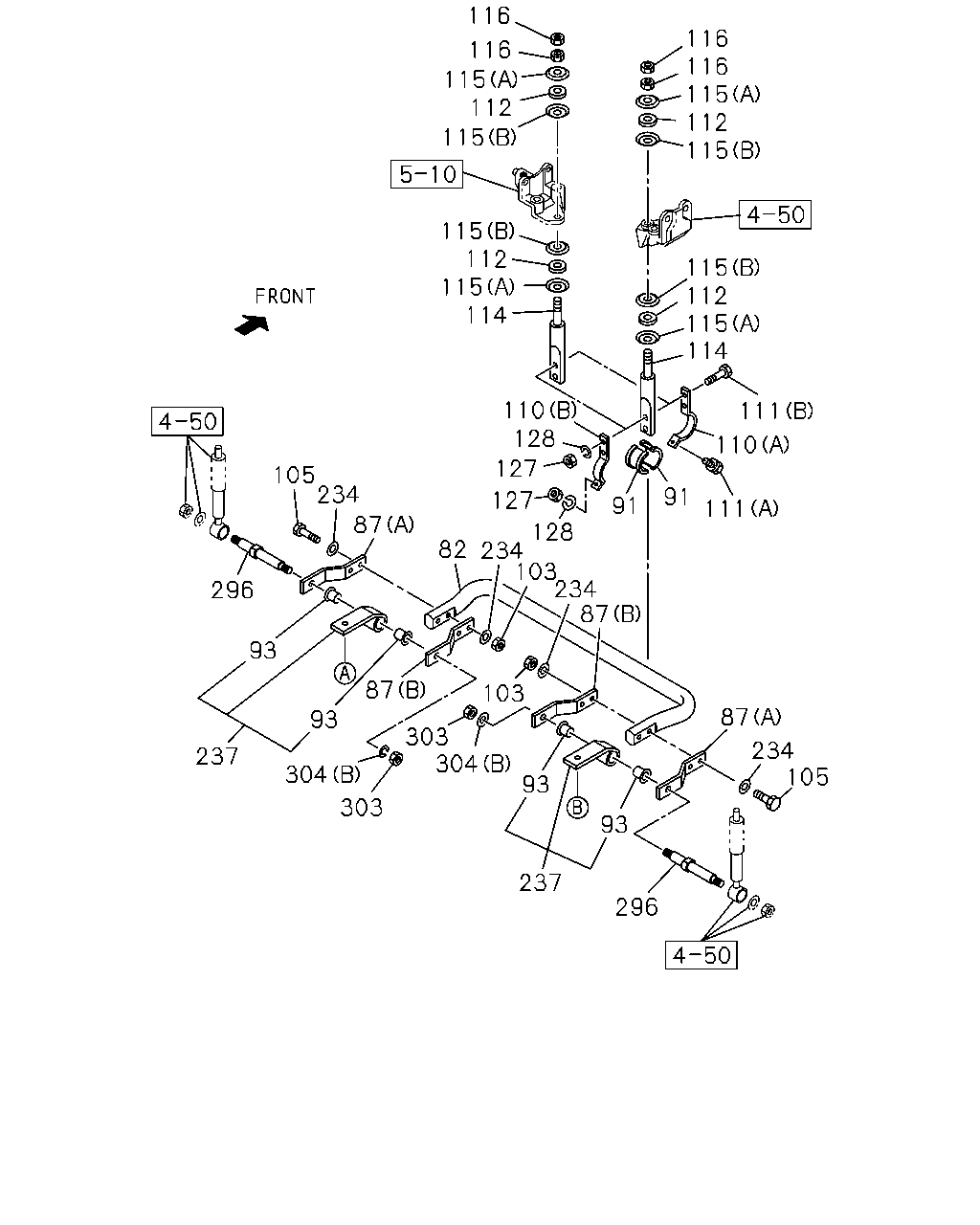

82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-134-1	01	1	0710-	●
82	BAR; STAB,FRT SUSP	1-51771-134-1	01	1	0710-		●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	1-51781-083-1	02	1	0710-0912	●
87	BRACKET; STABILIZER (A)	1-51781-083-1	02	1	0710-0912		●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	1001-	●
87	BRACKET; STABILIZER (A)	8-98012-958-0	02	1	1001-		●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	1-51781-084-1	02	1	0710-0912	●
87	BRACKET; STABILIZER (B)	1-51781-084-1	02	1	0710-0912		●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	1001-	●
87	BRACKET; STABILIZER (B)	8-98012-959-0	02	1	1001-		●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	0710-	●
91	BUSHING; RUBBER,STAB BAR	1-51779-079-1	04	1	0710-		●
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	0710-	●
93	BUSHING; STABILIZER	1-51689-015-3	04	1	0710-		●
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	0710-	●
103	NUT; BRKT FIX M14	0-91110-514-0	04	1	0710-		●
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	9-91066-470-0	04	1	0710-0910	●
105	BOLT; BRKT FIX M14X70	9-91066-470-0	04	1	0710-0910		●
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	0911-	●
105	BOLT; BRKT FIX M14X70	0-10956-470-0	04	1	0911-		●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	0710-	●
110	CLAMP; STAB TO ROD (A)	1-51789-027-2	02	1	0710-		●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	0710-	●
110	CLAMP; STAB TO ROD (B)	1-51789-028-1	02	1	0710-		●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20801-230-0	02	1	0710-0910	●
111	BOLT; CLAMP TO ROD (A) M12X30	0-20801-230-0	02	1	0710-0910		●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	0911-	●
111	BOLT; CLAMP TO ROD (A) M12X30	0-20851-230-0	02	1	0911-		●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20801-250-0	04	1	0710-0910	●
111	BOLT; CLAMP TO ROD (B) M12X50	0-20801-250-0	04	1	0710-0910		●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	0911-	●
111	BOLT; CLAMP TO ROD (B) M12X50	0-20851-250-0	04	1	0911-		●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-039-0	04	1	0710-	●
112	BUSHING; ROD	9-51631-039-0	04	1	0710-		●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-072-2	02	1	0710-	●
114	ROD; STAB BAR	1-51773-072-2	02	1	0710-		●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.5	9-51631-040-0	04	1	0710-	●
115	WASHER; CENTER,STAB TO FRAME (A) ID=16.5	9-51631-040-0	04	1	0710-		●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=20.8	9-51631-041-0	04	1	0710-	●
115	WASHER; CENTER,STAB TO FRAME (B) ID=20.8	9-51631-041-0	04	1	0710-		●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	0710-	●
116	NUT; LK,STAB TO FRAME M14	0-91111-514-0	04	1	0710-		●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	0710-	●
127	NUT; CLAMP M12	0-91110-512-0	06	1	0710-		●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-512-0	06	1	0710-0912	●
128	WASHER; LK,CLAMP ID=12.2	0-91510-512-0	06	1	0710-0912		●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1001-	●
128	WASHER; LK,CLAMP ID=12.2	0-91510-812-0	06	1	1001-		●
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	08	1	0710-0910	●
234	WASHER; STAB ID=15	9-09651-069-0	08	1	0710-0910		●
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	0911-	●
234	WASHER; STAB ID=15	8-98010-627-1	08	1	0911-		●
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	0710-	●
237	SUPPORT; STAB BAR	1-51681-662-0	02	1	0710-		●
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	1-51682-145-2	02	1	0710-0907	●
296	PIN; STAB	1-51682-145-2	02	1	0710-0907		●
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98022-874-1	02	1	0908-	●
296	PIN; STAB	8-98022-874-1	02	1	0908-		●
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	0710-	●
303	NUT; PIN M20	0-91110-520-0	02	1	0710-		●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0710-	●	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0710-0907	●
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0710-0907		●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	0908-	●
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	0908-		●

21 48 2 25 48 45 48 44 1 33 34 30 18 17 313 295 80 30 25 21 66 59 44 58 32 40 220 36 61 59 8 6 275 80 66 313 18 17 58 68 81 2 304 74 304 74 68 17 18 61 3 8 3 6 8 21 48 295 295 48 21 48 44 21 44 45 44 8 6 33 8 6 33 48 45 44 32 32 21 25 34 6 8 25 34 6 8 48 8 8 45 21 44 48 44 48 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	1-43111-170-2	01	1	0710-0805	●
1	AXLE; FRT	8-98116-056-4	01	1	0806-	●
1	AXLE; FRT	1-43111-107-9	01	1	0710-		●
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	0710-	●	●
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	0710-	●	●
3	KING PIN SET (A)	1-87831-111-7	02	1	0710-0801	●	●
3	KING PIN SET (B)	1-87831-349-2	02	1	0802-	●	●
6	SEAL; KING PIN	9-09926-024-0	04	1	0710-	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0710-	●	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0710-	●	●
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	0710-	●	●
17	BOLT; STOPPER KNUCKLE (B) M18X38	1-09009-164-0	02	1	0710-	●	●
18	NUT; STOPPER BOLT,KNUCKLE (B) HEXAGON M18	0-91110-518-0	02	1	0710-	●	●
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	0710-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0710-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0710-	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0710-	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0710-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0710-	●	●
36	ARM; KNUCKLE	1-43133-083-3	01	1	0710-	●	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0710-	●	●
44	COVER; KING PIN (C)	8-98100-655-0	02	1	0802-	●	●
44	COVER; KING PIN (A)	1-43175-025-0	04	1	0710-0801	●	●
44	COVER; KING PIN (B)	8-98100-654-0	02	1	0802-	●	●
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	0802-	●	●
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	12	1	0710-	●	●
58	ARM; TIE ROD	1-43134-049-4	01	1	0710-	●	●
58	ARM; TIE ROD	1-43135-049-4	01	1	0710-	●	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0710-	●	●
61	ROD END; TIE ROD	1-43150-856-0	01	1	0710-1009	●	●
61	ROD END; TIE ROD	8-98105-073-0	01	1	1010-1306	●	●
61	ROD END; TIE ROD	8-98228-100-0	01	1	1307-	●	●
61	ROD END; TIE ROD	1-43150-857-0	01	1	0710-1009	●	●
61	ROD END; TIE ROD	8-98105-074-0	01	1	1010-1306	●	●
61	ROD END; TIE ROD	8-98228-101-0	01	1	1307-	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0710-0805	●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-	●	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0710-	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0710-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0710-	●	●
81	ROD; TIE	1-43151-154-0	01	1	0710-	●	●
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	0710-	●	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0710-1009	●	●
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306	●	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-	●	●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	0710-	●	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0710-	●	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0710-0907	●
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0710-0907		●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	0908-	●
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	0908-		●
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	0710-	●	●

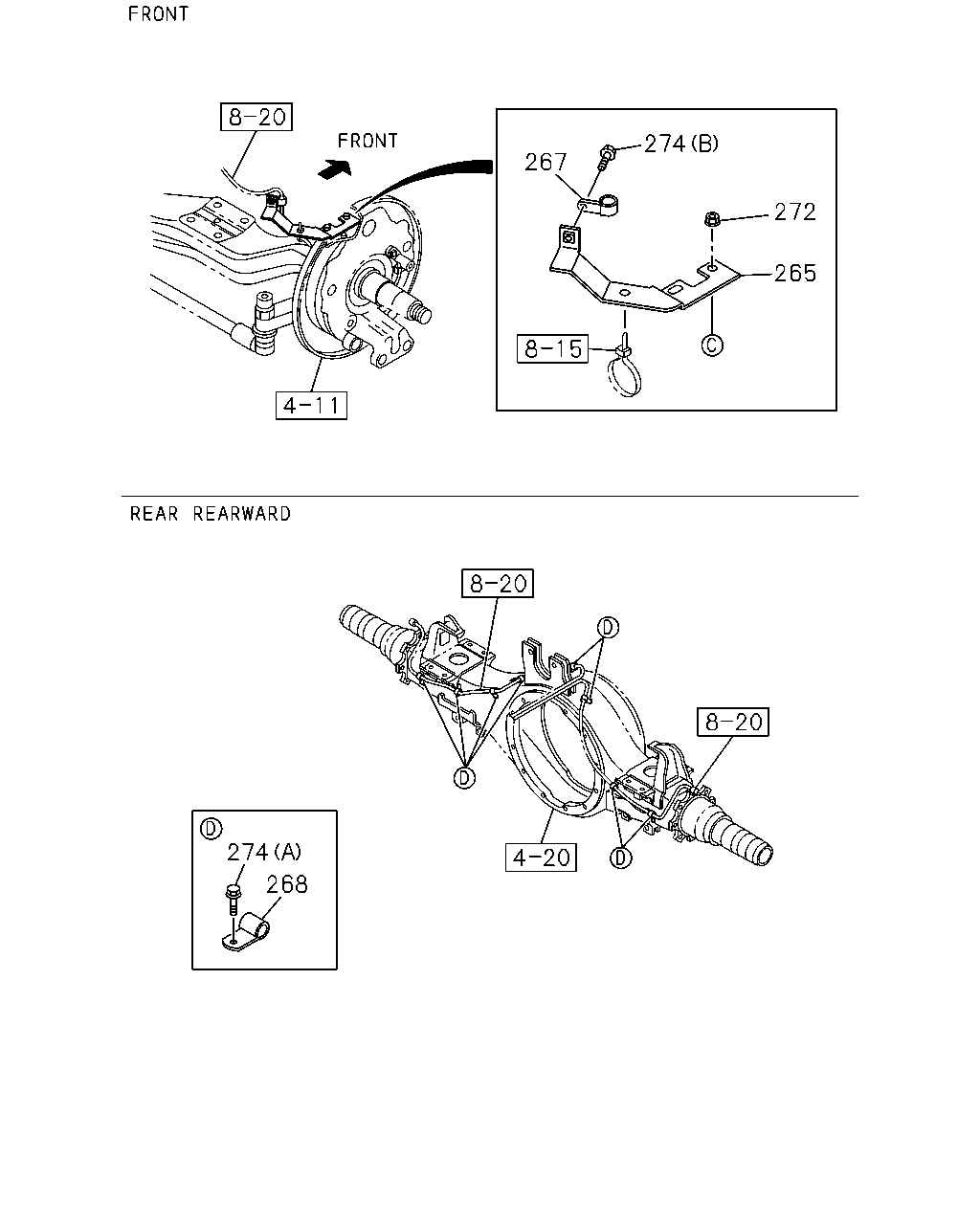

274 267 272 265 274 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
265	BRACKET; CLIP I BEAM	1-82698-426-0	01	1	0710-	●	●
265	BRACKET; CLIP I BEAM	1-82698-427-0	01	1	0710-	●	●
267	CLIP; HARNESS ID=11 L=20	0-95235-035-0	02	1	0710-	●	●
268	CLIP; HARNESS ID=11 L=20	0-95235-035-0	08	1	0710-	●	●
272	NUT; CLIP M10 FLANGE	0-91180-110-0	04	1	0710-	●	●
274	BOLT; CLIP (A) M8X10 FLANGE	0-28050-810-0	08	1	0710-	●	●
274	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
