4-01 — PROPELLER SHAFT (#67143) — 82 parça

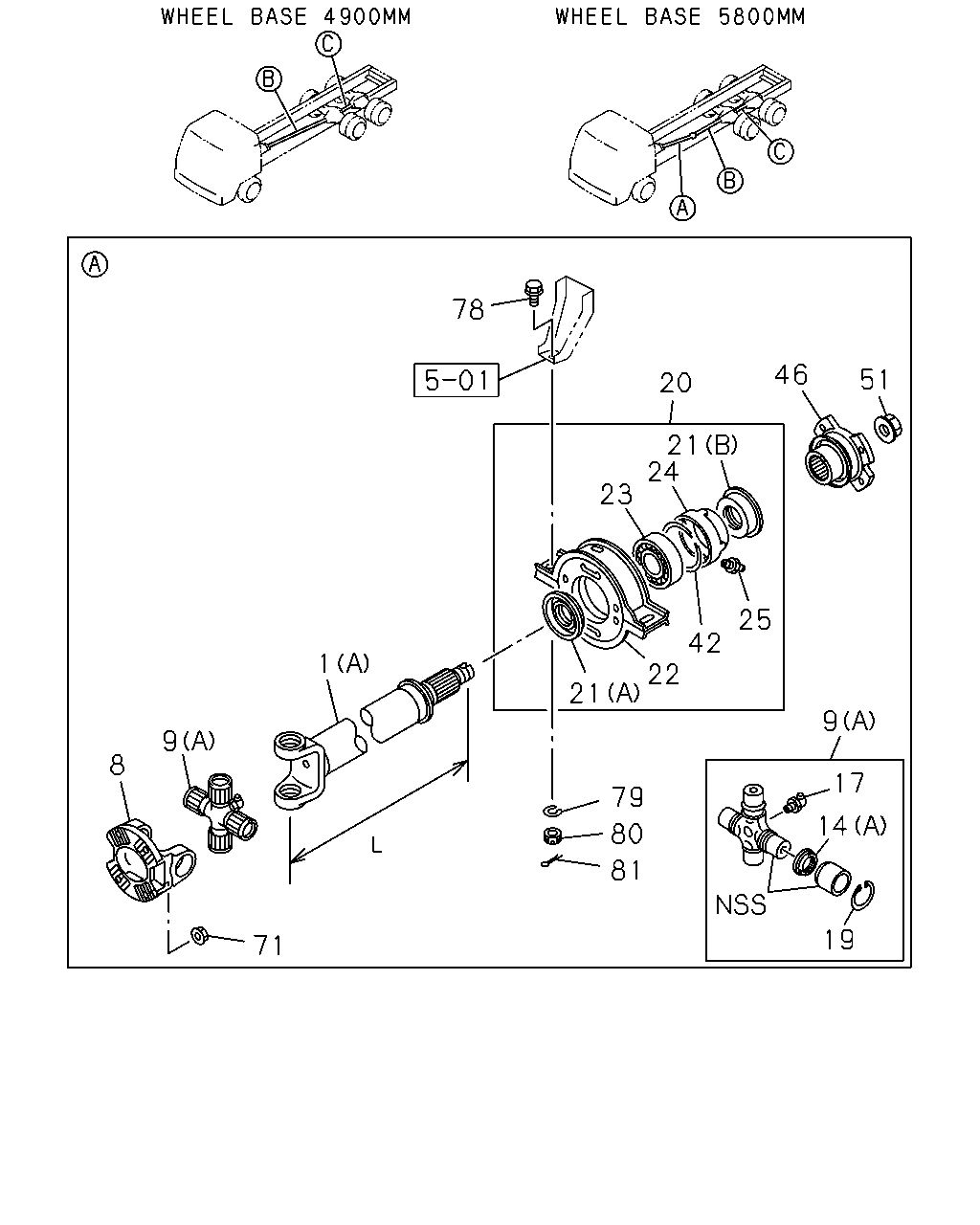

çizim 122484
78 20 46 51 21 25 24 22 42 23 21 1 9 8 71 79 80 81 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
MJX16P M/T(Y3Z) (B) L=995 		8-98020-692-0 01 1 0710- ●
1 SHAFT; PROP
(B) L=995 		8-98020-692-0 01 1 0710- ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1130 		1-37125-398-0 01 1 0710- ●
1 SHAFT; PROP
(A) L=769 		1-37153-587-0 01 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 02 1 0710- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 0710- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 0710- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 0710- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 08 1 0710- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0710- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 0710- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0710- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 0710- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 0710- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 0710- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 0710- ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-0 01 1 0710- ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 0710- ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 0710- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 0710- ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 0710- ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 0710- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0710- ●
42 RING; SNAP,CTR BRG 1-09587-085-0 01 1 0710- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 0710- ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 0710- ●
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0710-0805 ● ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0710- ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0710- ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0710-1204 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0710- ●

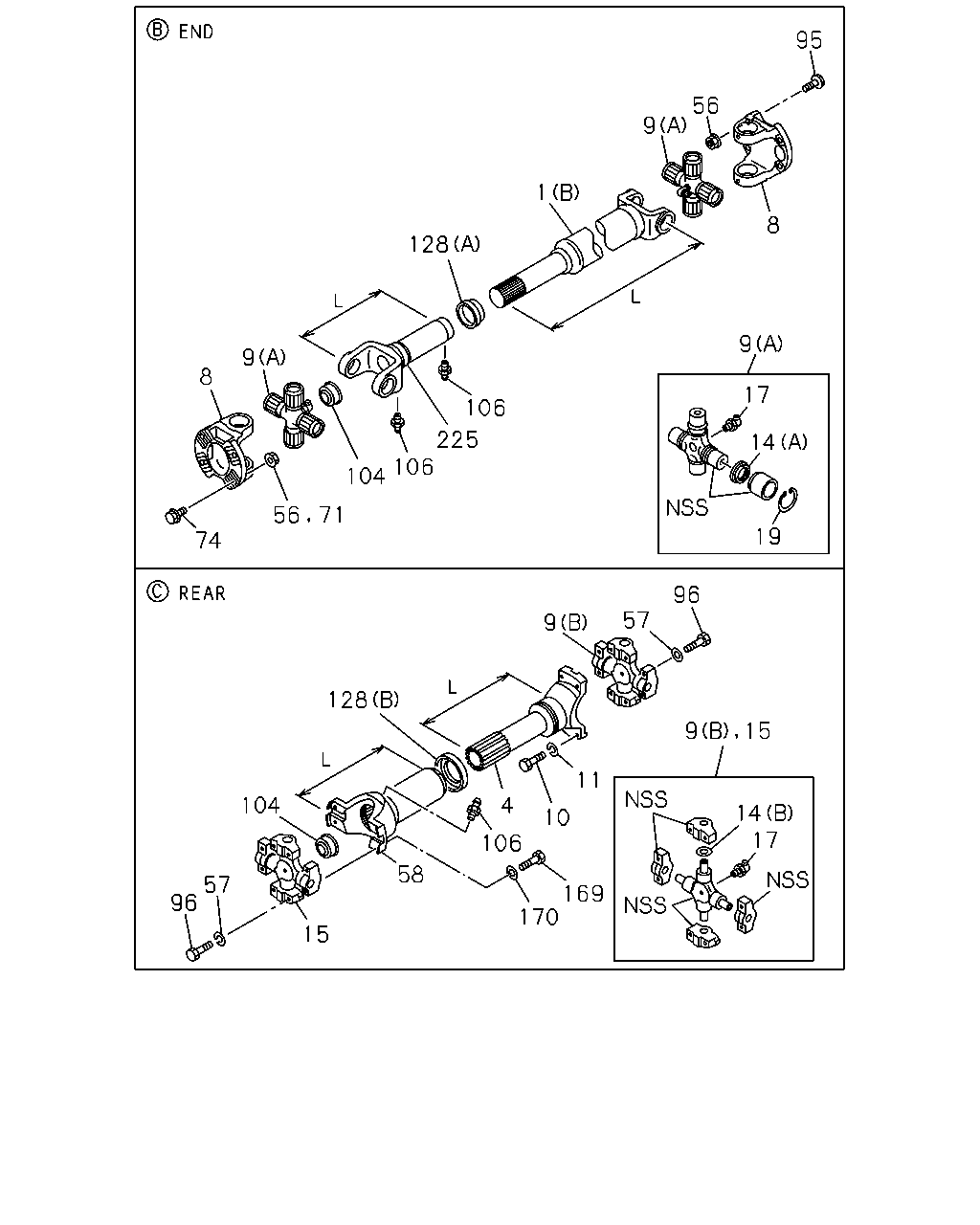

çizim 192747
95 56 8 9 1 106 128 9 8 74 56 71 104 106 225 17 9 14 19 9 96 57 128 104 57 96 15 106 58 170 169 14 17 15 9 11 10 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
MJX16P M/T(Y3Z) (B) L=995 		8-98020-692-0 01 1 0710- ●
1 SHAFT; PROP
(B) L=995 		8-98020-692-0 01 1 0710- ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1130 		1-37125-398-0 01 1 0710- ●
1 SHAFT; PROP
(A) L=769 		1-37153-587-0 01 1 0710- ●
4 SHAFT; PROP
L=348 		1-37171-127-2 01 1 0710- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 02 1 0710- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 0710- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 0710- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 0710- ●
10 BOLT; UJT
M12X45 		9-91066-245-0 04 1 0710-0805 ● ●
10 BOLT; UJT
M12X45 		8-98036-382-0 04 1 0806- ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 0710- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 08 1 0710- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0710- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 0710- ●
15 UNIVERSAL CENTER 1-37300-100-1 01 1 0710- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0710- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 0710- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 0710- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 0710- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 0710- ●
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0710-0805 ● ●
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0710-0805 ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806- ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806- ●
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 0710- ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 0710- ● ●
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0710-0805 ● ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806- ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 0710- ●
95 BOLT; YOKE,FINAL
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14X50 		1-09000-645-0 04 1 0710- ● ●
96 BOLT; PROP SHAFT
M12X45 		9-91066-245-0 08 1 0710-0805 ● ●
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 0806- ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0710- ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0710- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0710- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0710- ● ●
128 SEAL; SLEEVE
(A) 		1-37247-020-0 01 1 0710- ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 0710- ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		9-91066-245-0 04 1 0710-0805 ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 0806- ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 0710- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=339 		1-37241-140-0 01 1 0710- ● ●
