3-78 — FIXING PARTS; AIR PIPING (#67140) — 262 parça

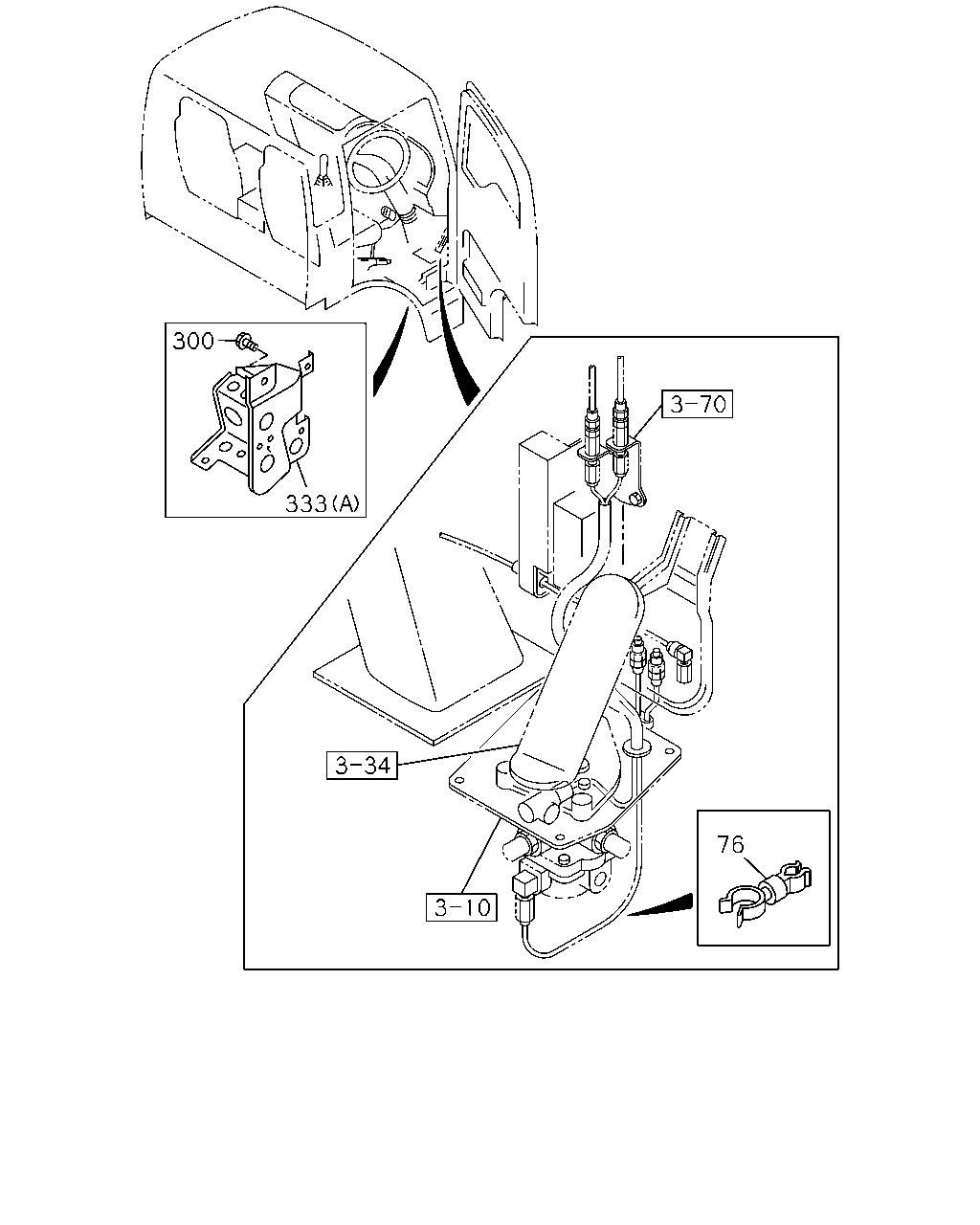

çizim 121743
300 333 76
BalonParca AdiParca NoAdetTipApplied Date A B
76 CLIP; NYLON TUBE
6WF1 TC-C(1B8) ID=6 & 8.3 		8-94167-742-0 02 1 0710- ●
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0710-0904 ● ●
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ●
333 BRACKET; BRK AIR PIPE
(B) 		1-47477-045-0 01 1 0710- ● ●
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-131-0 01 1 0710-0801 ● ●
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 0802- ● ●

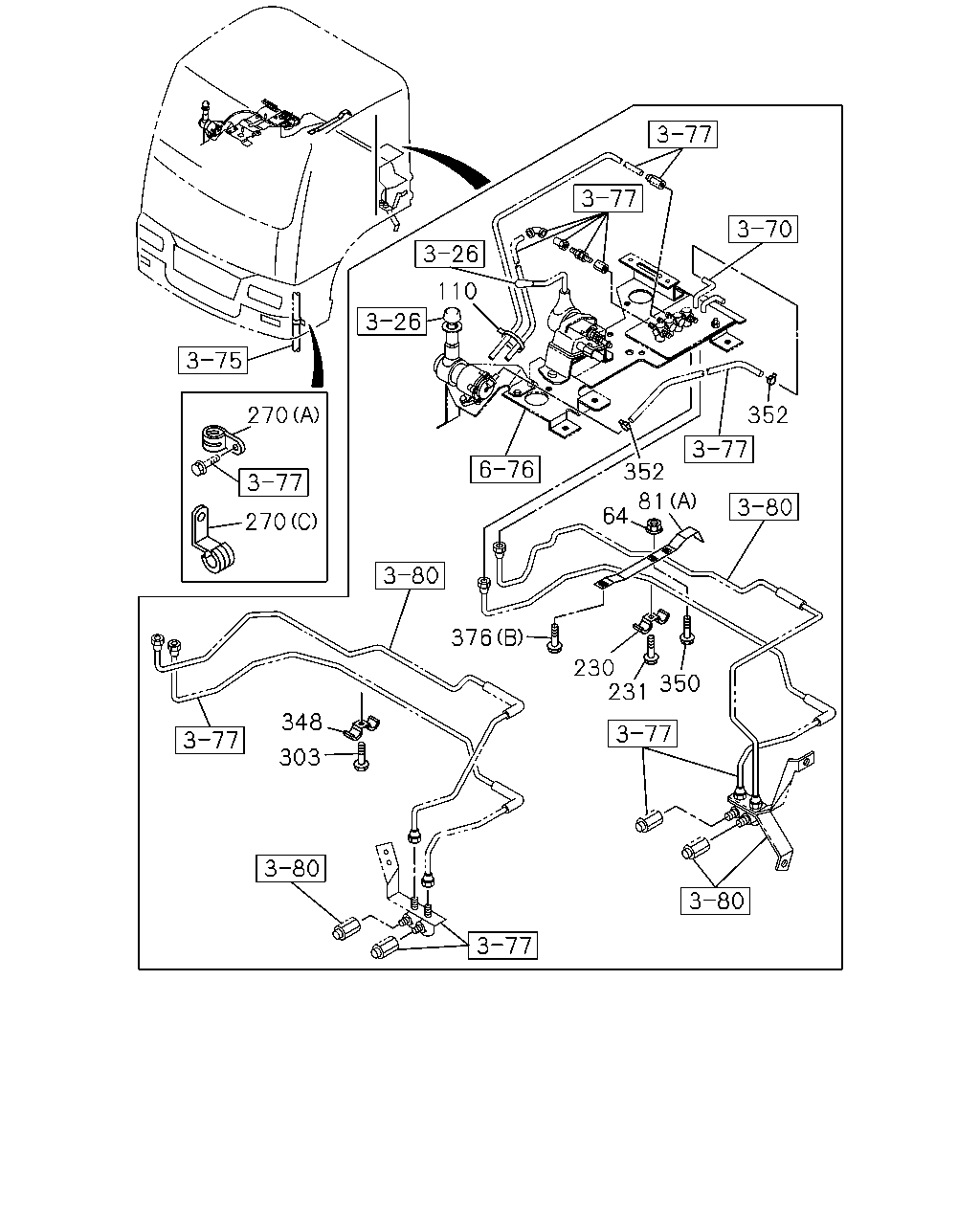

çizim 122193
110 270 270 348 303 376 230 231 350 64 81 352 352
BalonParca AdiParca NoAdetTipApplied Date A B
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
81 BRACKET; CLIP
(E) 		8-98046-950-0 01 1 0806- ● ●
81 BRACKET; CLIP
(E) W/STUD M8X20 		1-47471-209-0 02 1 0710-0805 ● ●
81 BRACKET; CLIP
(F) 		8-98043-314-0 01 1 0806- ● ●
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0710- ● ●
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 03 1 0710-0805 ● ●
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 04 1 0806- ● ●
81 BRACKET; CLIP
(C) 		1-47479-381-2 03 1 0710-0805 ● ●
81 BRACKET; CLIP
(C) 		1-47479-381-2 02 1 0806- ● ●
81 BRACKET; CLIP
(D) L=130 		1-47479-575-0 02 1 0710-0805 ● ●
110 CLIP; BAND,NYLON TUBE
L=140 		5-09707-031-1 01 1 0710- ● ●
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 0710- ● ●
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710- ● ●
270 CLIP; NYLON TUBE
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710- ● ●
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0710- ● ●
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 03 1 0710- ● ●
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710- ● ●
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 02 1 0710- ● ●
350 BOLT; PIPE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0710- ● ●
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 0710- ● ●
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710- ● ●

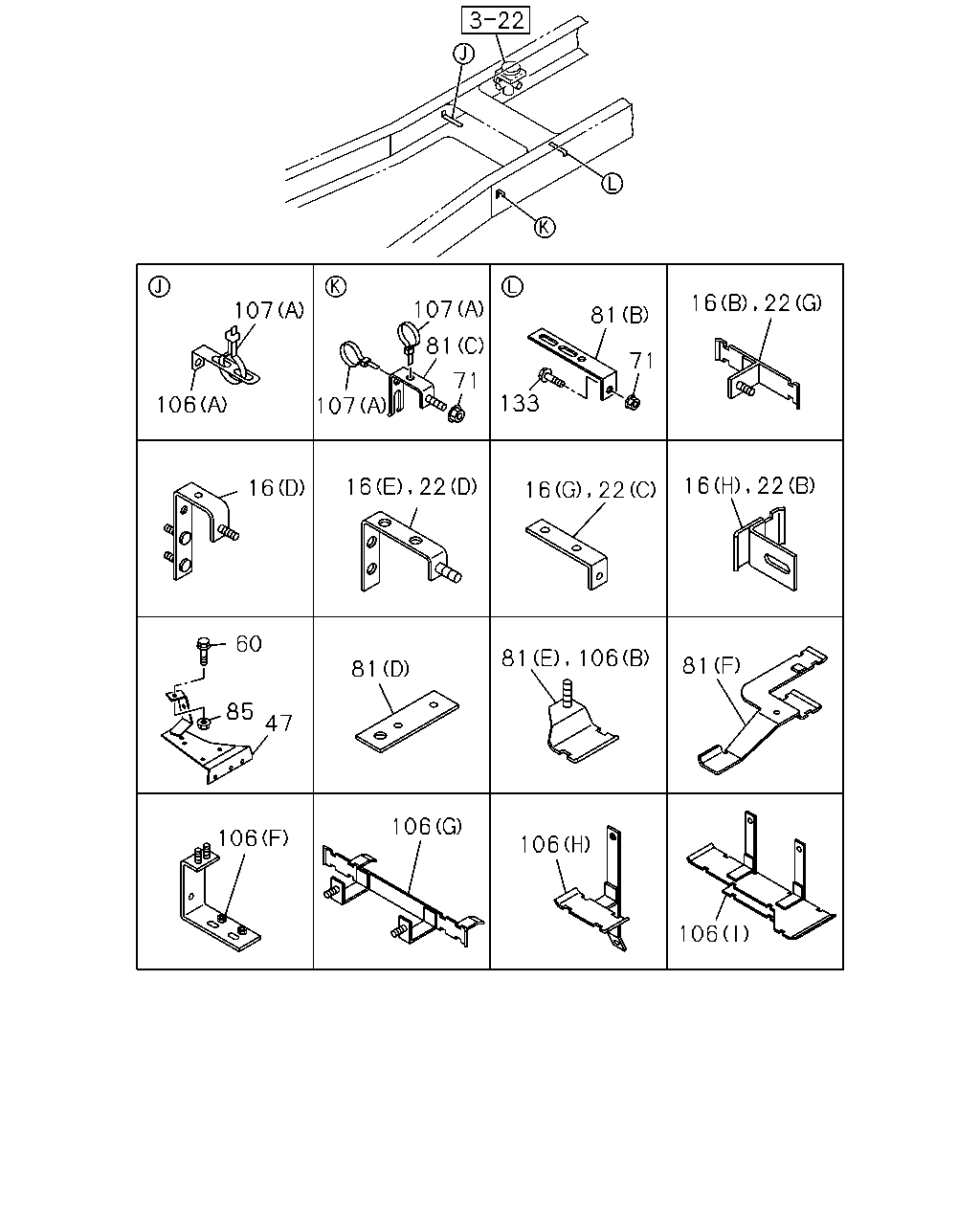

çizim 122564
3 22 107 107 81 81 71 71 133 106 107 16 16 22 60 81 106 81 81 85 47 106 106 106 106
BalonParca AdiParca NoAdetTipApplied Date A B
3 NUT; CLIP,AIR PIPE
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 04 1 0710- ●
16 BRACKET; PIPE CLIP
(D) 		1-47479-329-0 01 1 0710- ● ●
16 BRACKET; PIPE CLIP
(G) L=30 		1-47479-481-0 02 1 0710- ● ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 02 1 0710- ● ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-554-0 01 1 0710- ● ●
16 BRACKET; PIPE CLIP
(H) 		1-47479-693-0 01 1 0710- ● ●
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 02 1 0710- ● ●
16 BRACKET; PIPE CLIP
(J) 		1-47479-721-0 01 1 0710- ● ●
16 BRACKET; PIPE CLIP
(K) 		1-47479-722-1 01 1 0710- ● ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 02 1 0710- ● ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 02 1 0710- ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 08 1 0710- ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-800-0 01 1 0710- ●
22 BRACKET; CLIP
(A) 		1-47479-381-2 07 1 0710- ●
22 BRACKET; CLIP
(B) 		1-47479-693-0 01 1 0710- ●
22 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 02 1 0710- ● ●
22 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 0710- ● ●
22 BRACKET; CLIP
(F) 		1-47479-329-0 01 1 0710- ● ●
22 BRACKET; CLIP
(G) 		1-47479-554-0 01 1 0710- ● ●
22 BRACKET; CLIP
(A) 		1-47479-381-2 13 1 0710- ●
22 BRACKET; CLIP
(B) 		1-47479-693-0 02 1 0710- ●
22 BRACKET; CLIP
(D) 		1-47479-800-0 01 1 0710- ●
47 BRACKET; PIPE CLIP 1-47479-325-0 01 1 0710- ● ●
60 BOLT; CLIP FIX
M8X30 FLANGE 		0-28650-830-0 02 1 0710- ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 10 1 0710-0805 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0806-0806 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 0806- ● ●
81 BRACKET; CLIP
(E) 		8-98046-950-0 01 1 0806- ● ●
81 BRACKET; CLIP
(E) W/STUD M8X20 		1-47471-209-0 02 1 0710-0805 ● ●
81 BRACKET; CLIP
(F) 		8-98043-314-0 01 1 0806- ● ●
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0710- ● ●
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 03 1 0710-0805 ● ●
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 04 1 0806- ● ●
81 BRACKET; CLIP
(C) 		1-47479-381-2 03 1 0710-0805 ● ●
81 BRACKET; CLIP
(C) 		1-47479-381-2 02 1 0806- ● ●
81 BRACKET; CLIP
(D) L=130 		1-47479-575-0 02 1 0710-0805 ● ●
85 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
106 BRACKET; TUBE CLIP
(B) 		8-98046-949-0 01 1 0806- ● ●
106 BRACKET; TUBE CLIP
(H) 		1-47471-060-0 01 1 0710- ●
106 BRACKET; TUBE CLIP
(I) 		8-97609-025-0 01 1 0710- ●
106 BRACKET; TUBE CLIP
(B) W/STUD M8X20 		1-47471-209-0 02 1 0710-0805 ● ●
106 BRACKET; TUBE CLIP
(I) 		8-98043-312-0 01 1 0806- ● ●
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 0710- ● ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 03 1 0710- ● ●
106 BRACKET; TUBE CLIP
(C) 		1-47479-381-2 03 1 0710- ● ●
106 BRACKET; TUBE CLIP
(G) 		1-47479-553-0 01 1 0710- ● ●
106 BRACKET; TUBE CLIP
(F) 		1-47479-754-0 01 1 0710- ● ●
106 BRACKET; TUBE CLIP
(D) L=120 H=35 		1-82699-970-0 01 1 0710-0905 ● ●
106 BRACKET; TUBE CLIP
(D) 		1-82698-358-0 01 1 0906- ● ●
107 CLIP; NYLON TUBE
(C) ID=28 L=40 		1-09700-995-1 01 1 0710- ● ●
107 CLIP; NYLON TUBE
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 0710- ● ●
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 01 1 0710- ● ●
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 02 1 0710- ● ●
107 CLIP; NYLON TUBE
(C) ID=25 L=50 		1-09701-019-0 01 1 0710- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 14 1 0710-0801 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 13 1 0802- ● ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0806- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 07 1 0710- ●
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0710- ● ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 0710-0805 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 05 1 0806- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0710- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0710-0805 ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0806- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0710- ●

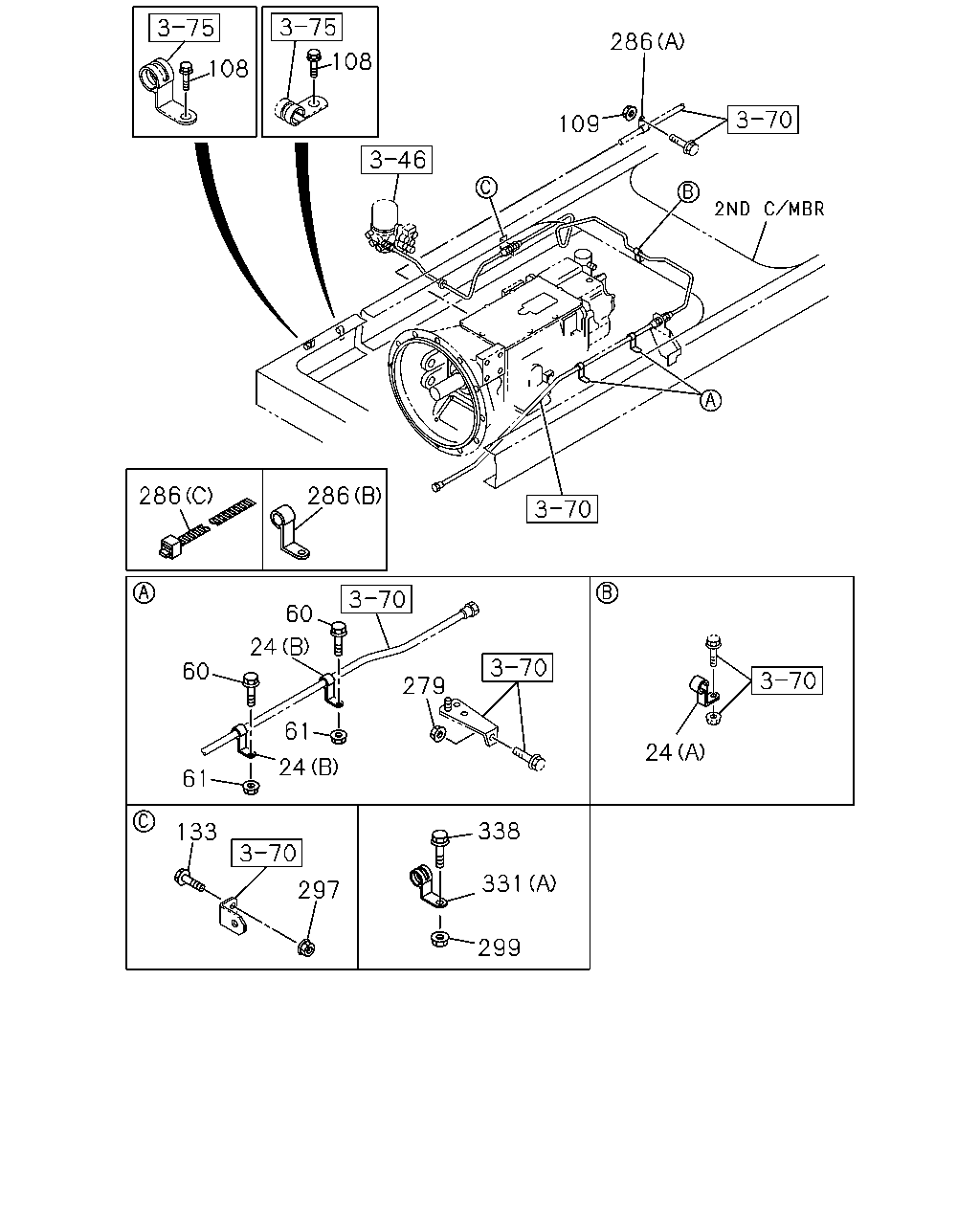

çizim 122718
108 108 109 286 286 286 60 60 61 24 61 24 279 338 331 24 133 297 299
BalonParca AdiParca NoAdetTipApplied Date A B
24 CLIP; PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 0710- ● ●
24 CLIP; PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 0710- ● ●
60 BOLT; CLIP FIX
M8X30 FLANGE 		0-28650-830-0 02 1 0710- ● ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 09 1 0710- ● ●
109 NUT; TUBE CLIP
TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE 		0-91180-108-0 01 1 0710- ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 04 1 0710- ● ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0806- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 07 1 0710- ●
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0710- ● ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 0710-0805 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 05 1 0806- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0710- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0710-0805 ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0806- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0710- ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 17 1 0710-0805 ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 15 1 0806- ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
279 NUT; BRKT
MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 14 1 0710-0805 ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 12 1 0806- ●
286 CLIP; NYLON TUBE
FULLER M/T<X9B> (C) L=250 		1-09707-126-0 02 1 0710- ●
286 CLIP; NYLON TUBE
6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO149 18(Y4C) (B) ID=16 L=50 H=25 		1-09700-838-0 01 1 0710- ●
286 CLIP; NYLON TUBE
6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=18 L=28 		1-09701-067-0 01 1 0710- ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 13 1 0710- ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 0710- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 20 1 0710- ●
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710- ●
331 CLIP; NYLON TUBE
(A) ID=13 H=75 L=25 		1-09700-601-0 01 1 0710- ●
331 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 02 1 0710- ●
338 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0710- ●

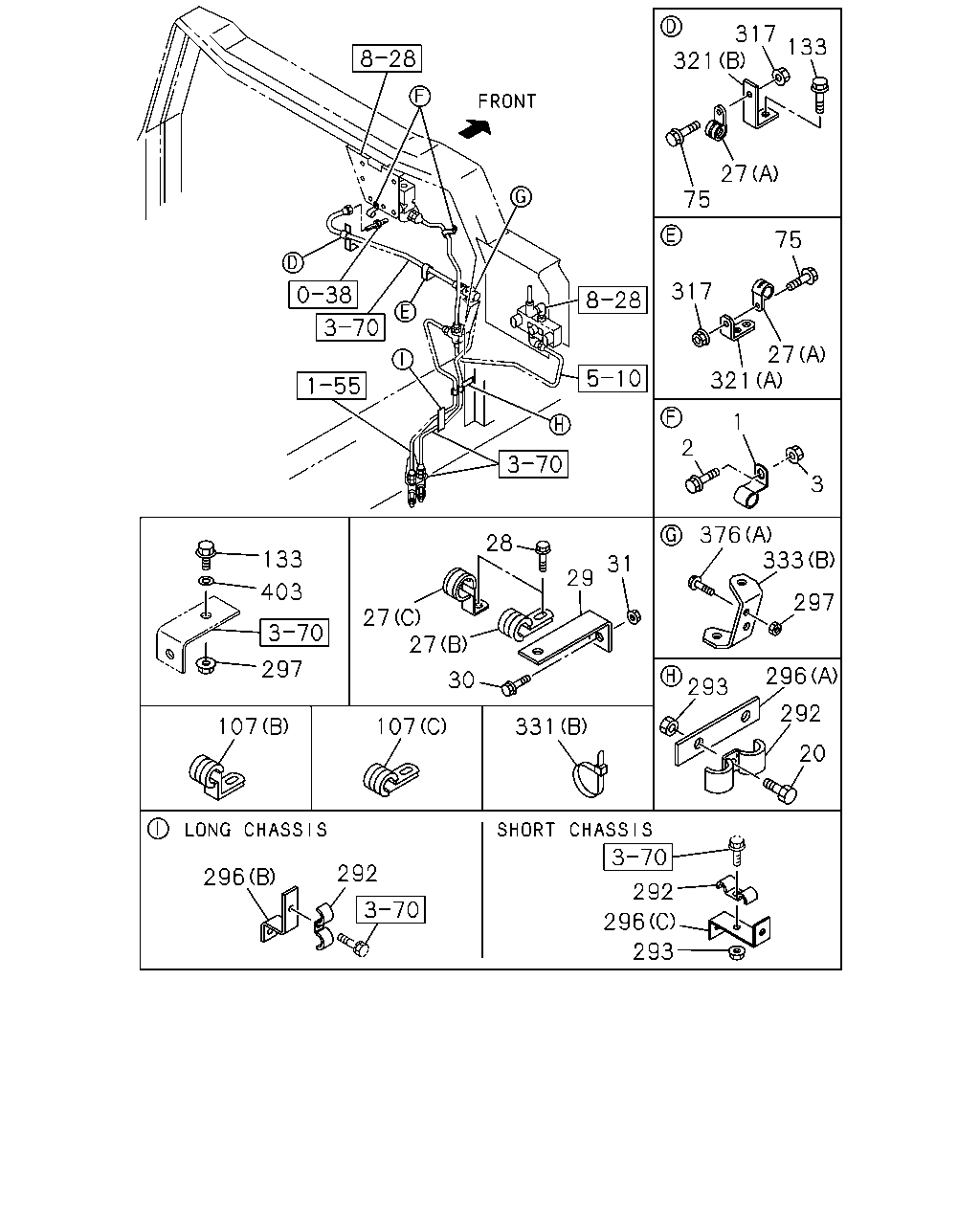

çizim 192759
317 133 27 321 75 317 75 27 321 1 3 2 376 333 297 31 28 27 29 27 30 133 297 403 107 107 331 292 296 292 296 293 20 296 292 293
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLIP; AIR PIPE
6WF1 TC-C(1B8) ID=6 H=20 L=20 		1-09700-603-0 01 1 0710- ●
2 BOLT; CLIP FIX
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28650-820-0 01 1 0710- ●
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
3 NUT; CLIP,AIR PIPE
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 01 1 0710- ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710- ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ●
27 CLIP; FLEX HOSE
(C) ID=25 H=30 L=35 		1-09700-875-0 02 1 0710- ●
27 CLIP; FLEX HOSE
(A) ID=15 L=28 		1-09701-216-0 02 1 0710- ● ●
27 CLIP; FLEX HOSE
(B) ID=26 L=27 		1-09701-006-0 01 1 0710- ●
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ●
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 01 1 0710- ●
29 BRACKET; CLIP,AIR PIPE
L=95 		1-82699-085-0 01 1 0710- ●
30 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0710- ●
31 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710- ●
75 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
107 CLIP; NYLON TUBE
(C) ID=28 L=40 		1-09700-995-1 01 1 0710- ● ●
107 CLIP; NYLON TUBE
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 0710- ● ●
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 01 1 0710- ● ●
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 02 1 0710- ● ●
107 CLIP; NYLON TUBE
(C) ID=25 L=50 		1-09701-019-0 01 1 0710- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 14 1 0710-0801 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 13 1 0802- ● ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0806- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 07 1 0710- ●
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0710- ● ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 0710-0805 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 05 1 0806- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0710- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0710-0805 ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0806- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0710- ●
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0710- ●
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0710- ●
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
296 BRACKET; CLIP
(C) 		1-47479-698-0 01 1 0710- ●
296 BRACKET; CLIP
(A) 		1-47475-648-0 01 1 0710- ●
296 BRACKET; CLIP
(B) L=85 H=40 		1-47476-676-0 01 1 0710- ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 13 1 0710- ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 0710- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 20 1 0710- ●
317 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
321 BRACKET; CLIP
(A) 		1-47477-337-1 01 1 0710- ● ●
321 BRACKET; CLIP
(B) L=75 		1-47478-328-0 01 1 0710- ● ●
331 CLIP; NYLON TUBE
(A) ID=13 H=75 L=25 		1-09700-601-0 01 1 0710- ●
331 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 02 1 0710- ●
333 BRACKET; BRK AIR PIPE
(B) 		1-47477-045-0 01 1 0710- ● ●
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-131-0 01 1 0710-0801 ● ●
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 0802- ● ●
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710- ● ●
403 WASHER; PL
ID=12.5 OD=26 		9-09164-612-0 01 1 0710- ●

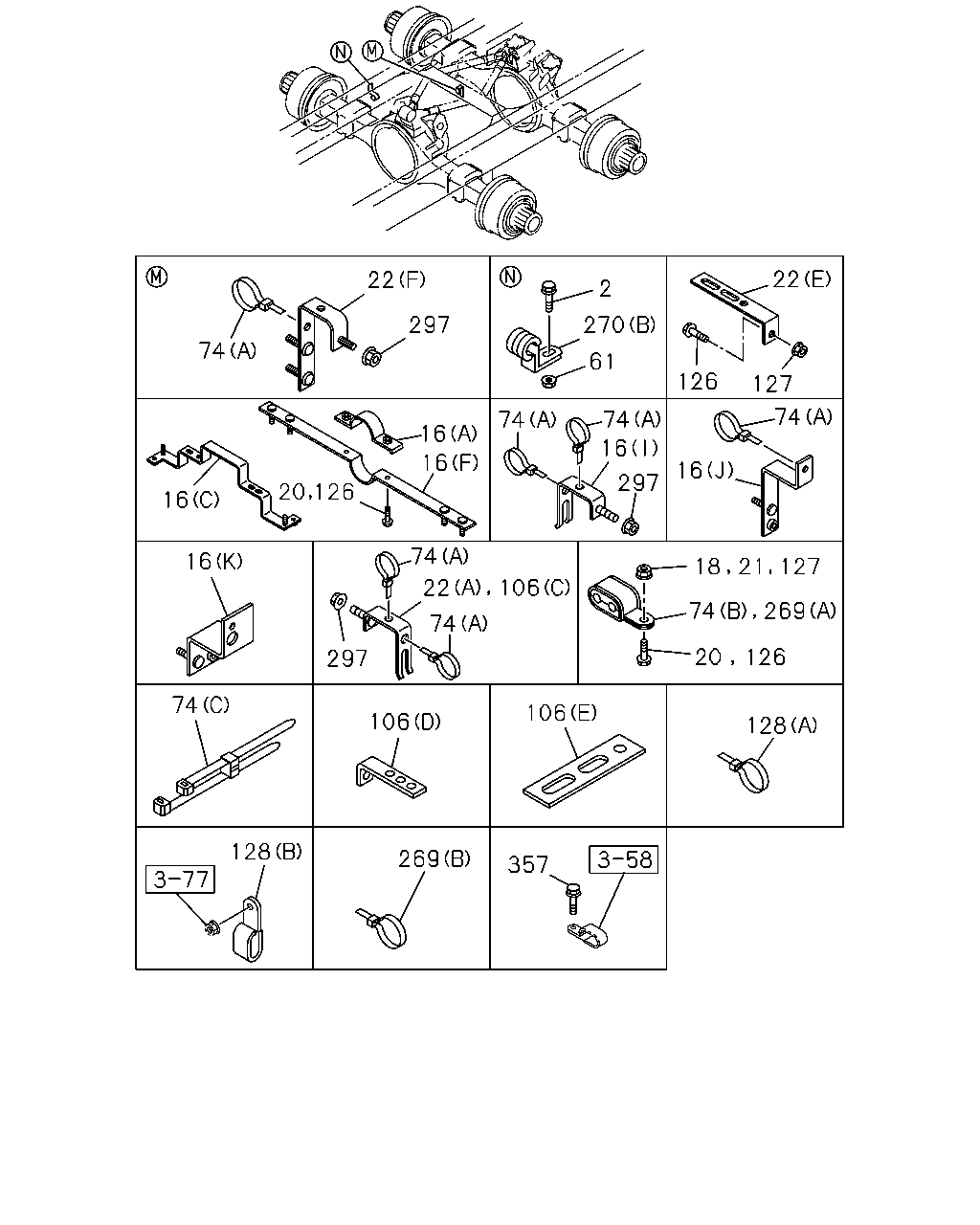

çizim 192761
22 74 297 270 2 61 22 126 127 74 74 74 16 20 16 16 126 16 297 16 74 16 297 18 21 127 20 126 106 74 269 22 74 106 74 106 128 357 269 128
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; CLIP FIX
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28650-820-0 01 1 0710- ●
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 04 1 0710- ●
16 BRACKET; PIPE CLIP
(D) 		1-47479-329-0 01 1 0710- ● ●
16 BRACKET; PIPE CLIP
(G) L=30 		1-47479-481-0 02 1 0710- ● ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 02 1 0710- ● ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-554-0 01 1 0710- ● ●
16 BRACKET; PIPE CLIP
(H) 		1-47479-693-0 01 1 0710- ● ●
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 02 1 0710- ● ●
16 BRACKET; PIPE CLIP
(J) 		1-47479-721-0 01 1 0710- ● ●
16 BRACKET; PIPE CLIP
(K) 		1-47479-722-1 01 1 0710- ● ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 02 1 0710- ● ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 02 1 0710- ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 08 1 0710- ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-800-0 01 1 0710- ●
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0710- ● ●
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0710- ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710- ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0710- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 0710- ● ●
22 BRACKET; CLIP
(A) 		1-47479-381-2 07 1 0710- ●
22 BRACKET; CLIP
(B) 		1-47479-693-0 01 1 0710- ●
22 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 02 1 0710- ● ●
22 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 0710- ● ●
22 BRACKET; CLIP
(F) 		1-47479-329-0 01 1 0710- ● ●
22 BRACKET; CLIP
(G) 		1-47479-554-0 01 1 0710- ● ●
22 BRACKET; CLIP
(A) 		1-47479-381-2 13 1 0710- ●
22 BRACKET; CLIP
(B) 		1-47479-693-0 02 1 0710- ●
22 BRACKET; CLIP
(D) 		1-47479-800-0 01 1 0710- ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 16 1 0710-0801 ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 0802- ●
74 CLIP; NYLON TUBE
(B) ID=11X2 L=42 		1-09701-306-0 03 1 0710- ● ●
74 CLIP; NYLON TUBE
(C) L=256 		1-09707-189-0 02 1 0710- ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 23 1 0710-0801 ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 22 1 0802- ●
106 BRACKET; TUBE CLIP
(B) 		8-98046-949-0 01 1 0806- ● ●
106 BRACKET; TUBE CLIP
(H) 		1-47471-060-0 01 1 0710- ●
106 BRACKET; TUBE CLIP
(I) 		8-97609-025-0 01 1 0710- ●
106 BRACKET; TUBE CLIP
(B) W/STUD M8X20 		1-47471-209-0 02 1 0710-0805 ● ●
106 BRACKET; TUBE CLIP
(I) 		8-98043-312-0 01 1 0806- ● ●
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 0710- ● ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 03 1 0710- ● ●
106 BRACKET; TUBE CLIP
(C) 		1-47479-381-2 03 1 0710- ● ●
106 BRACKET; TUBE CLIP
(G) 		1-47479-553-0 01 1 0710- ● ●
106 BRACKET; TUBE CLIP
(F) 		1-47479-754-0 01 1 0710- ● ●
106 BRACKET; TUBE CLIP
(D) L=120 H=35 		1-82699-970-0 01 1 0710-0905 ● ●
106 BRACKET; TUBE CLIP
(D) 		1-82698-358-0 01 1 0906- ● ●
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 0710- ● ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0710- ● ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0710- ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0710- ● ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0710- ● ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 0710- ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 09 1 0710- ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710- ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 14 1 0710- ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 11 1 0710- ●
128 CLIP; NYLON TUBE
(B) ID=18 L=28 		1-09701-067-0 01 1 0710- ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 18 1 0710- ●
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=42 		1-09701-306-0 03 1 0710- ● ●
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=42 		1-09701-306-0 06 1 0710- ● ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 01 1 0710- ● ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 05 1 0710- ● ●
270 CLIP; NYLON TUBE
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710- ● ●
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0710- ● ●
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 03 1 0710- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 13 1 0710- ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 0710- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 20 1 0710- ●
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28050-810-0 02 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
