4-60 — REAR SUSPENSION (#6714) — 17 parça

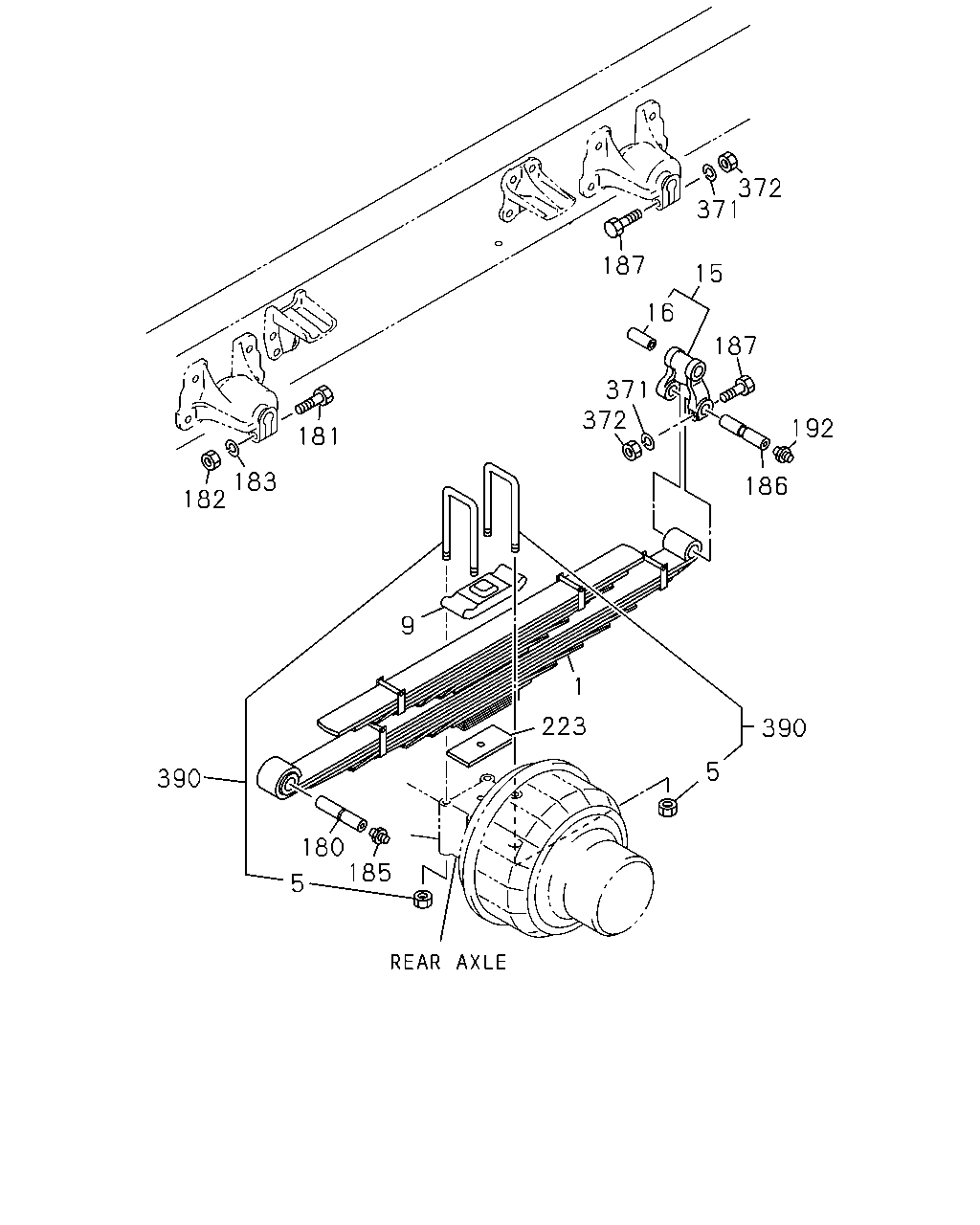

çizim 43961
372 371 187 15 16 187 371 372 181 192 183 182 186 9 1 223 390 5 390 180 185 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA 		8-97914-844-0 02 1 0011- ● ●
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 0011- ● ●
9 PAD; U BOLT,RR SPR
THA 		8-97916-138-0 02 1 0011- ● ●
15 SHACKLE; RR SPR 1-51362-049-1 02 1 0011- ● ●
16 BUSHING; SHACKLE,RR SPR 9-51351-019-2 02 1 0011- ● ●
180 PIN; RR SPR
DO=28 L=131 PT1/8 		1-51361-015-0 02 1 0011- ● ●
181 BOLT; SPR & SHACKLE
M14X65 		0-10811-465-0 02 1 0011- ● ●
182 NUT; PIN,RR SPR
M14 		9-99110-414-0 02 1 0011- ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		9-09150-514-0 02 1 0011- ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0011- ● ●
186 PIN; SHACKLE,RR SPR
DO=28 L=131 PT1/8 		1-51361-015-0 04 1 0011- ● ●
187 BOLT; SPR & SHACKLE
M14X65 		0-10811-465-0 04 1 0011- ● ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		9-09031-010-0 04 1 0011- ● ●
223 SPACER; U BOLT,RR SPR 1-51377-166-0 02 1 0011- ● ●
371 WASHER; LK,SHACKLE
ID=14.2 		9-09150-514-0 04 1 0011- ● ●
372 NUT; SHACKLE
M14 		9-99110-414-0 04 1 0011- ● ●
390 U-BOLT SET; RR SPRING
L=455 		1-87870-268-0 04 1 0011- ● ●
