3-75 — BRAKE PIPING; AIR,FRONT (#67138) — 70 parça

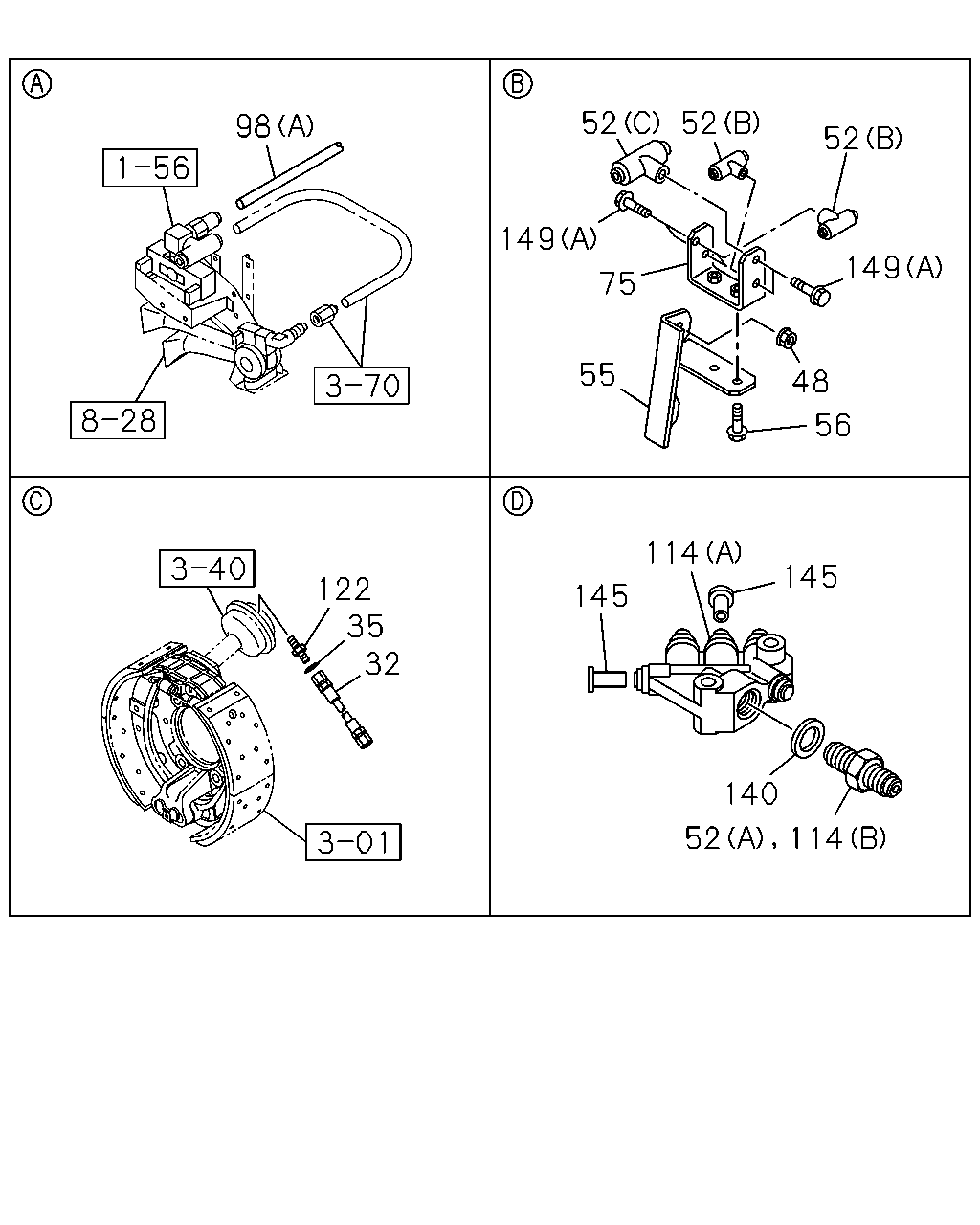

çizim 121754
52 52 98 52 149 149 75 55 48 56 114 145 122 35 32 145 140 52 114
BalonParca AdiParca NoAdetTipApplied Date A B
32 HOSE; FLEX,FRT
L=430 		0-57847-430-1 02 1 0710- ● ●
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 04 1 0710- ● ●
48 NUT; UNION BRKT
M12 FLANGE 		0-91180-212-0 02 1 0710- ● ●
52 CONNECTOR; NYLON TUBE
(C) 		1-09661-128-0 01 1 0710- ● ●
52 CONNECTOR; NYLON TUBE
(B) DIN8X2 & M8 2WAY 		1-09661-133-0 03 1 0710- ● ●
52 CONNECTOR; NYLON TUBE
(A) 		8-97618-539-0 01 1 0710-0803 ● ●
55 BRACKET; TUBE UNION 1-47478-381-1 01 1 0710- ● ●
56 BOLT; UNION BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0710- ● ●
75 BRACKET; UNION 1-47478-382-0 01 1 0710- ● ●
98 TUBE; NYLON
6WG1 TC-C(72L) (B) 		8-98149-527-0 01 1 1003- ●
98 TUBE; NYLON
(B) L=950 OD=12 		1-49219-159-0 01 1 0710-1002 ●
98 TUBE; NYLON
6WF1 TC-C(1B8) (B) L=950 OD=12 		1-49219-159-0 01 1 1003- ●
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0710- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 0710- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0710- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0710- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0710- ● ●
114 UNION; NYLON TUBE
(B) DIN12 M22 STRAIGHT 		8-98107-103-0 01 1 0804- ● ●
114 UNION; NYLON TUBE
(A) 		1-09661-611-0 01 1 0710- ● ●
122 CONNECTOR; FLEX HOSE
M20 & PT3/8 		1-09660-731-1 02 1 0710- ● ●
140 GASKET; CONNECTOR 9-09572-022-0 01 1 0710-0803 ● ●
145 PLUG
OD=12 		1-09661-617-0 01 1 0710- ● ●
149 BOLT; UNION
(A) M8X16 FLANGE 		0-28050-816-0 04 1 0710- ● ●
149 BOLT; UNION
(B) M8X45 FLANGE 		0-28050-845-0 02 1 0710- ● ●

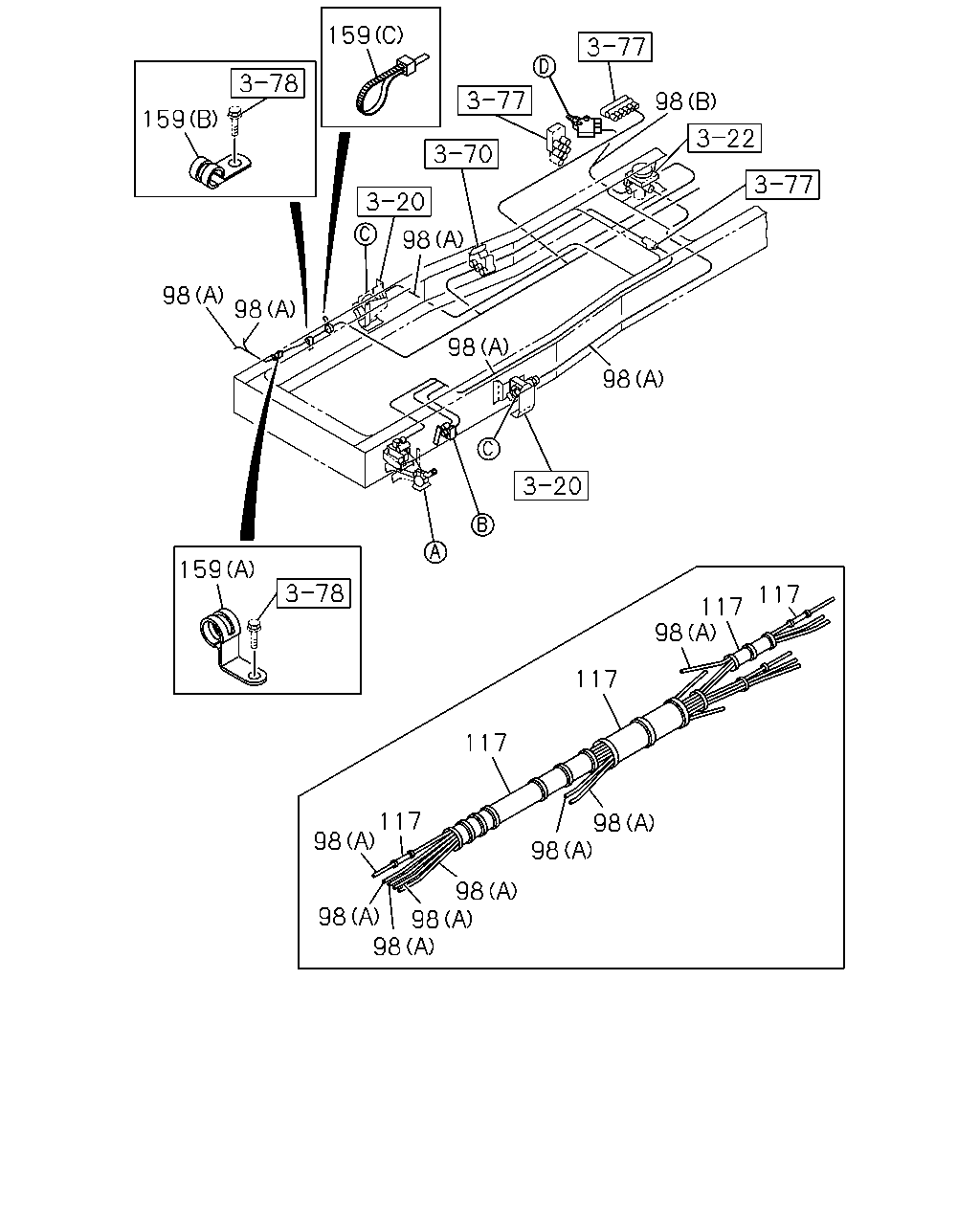

çizim 122271
159 98 159 98 98 98 98 98 159 117 117 98 117 117 117 98 98 98 98 98 98 98
BalonParca AdiParca NoAdetTipApplied Date A B
98 TUBE; NYLON
6WG1 TC-C(72L) (B) 		8-98149-527-0 01 1 1003- ●
98 TUBE; NYLON
(B) L=950 OD=12 		1-49219-159-0 01 1 0710-1002 ●
98 TUBE; NYLON
6WF1 TC-C(1B8) (B) L=950 OD=12 		1-49219-159-0 01 1 1003- ●
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0710- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 0710- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0710- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0710- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0710- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0710- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=22 		1-87411-030-0 AR 1 0710- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0710- ● ●
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 10 1 0710-0801 ●
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 20 1 0802- ●
159 CLIP; NYLON TUBE
TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=350 		1-09707-183-0 01 1 0710- ●
159 CLIP; NYLON TUBE
(A) ID=28 H=45 L=30 		1-09700-948-0 02 1 0710- ● ●
159 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 03 1 0710- ● ●
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 09 1 0710-0801 ●
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 14 1 0802- ●

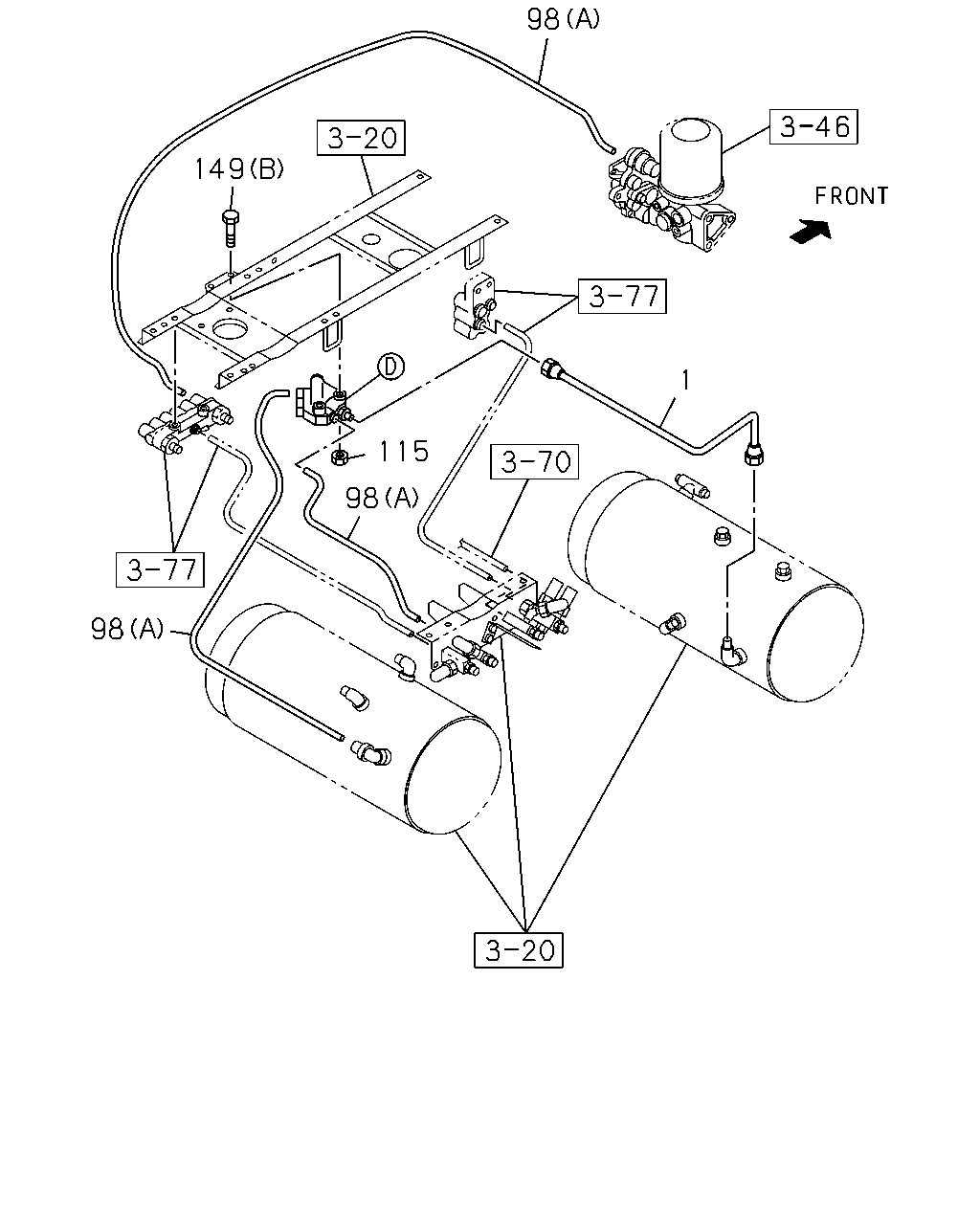

çizim 192742
98 149 1 115 98 98
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION 1-49123-983-0 01 1 0710- ● ●
98 TUBE; NYLON
6WG1 TC-C(72L) (B) 		8-98149-527-0 01 1 1003- ●
98 TUBE; NYLON
(B) L=950 OD=12 		1-49219-159-0 01 1 0710-1002 ●
98 TUBE; NYLON
6WF1 TC-C(1B8) (B) L=950 OD=12 		1-49219-159-0 01 1 1003- ●
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0710- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 0710- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0710- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0710- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0710- ● ●
115 NUT; TUBE UNION
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
149 BOLT; UNION
(A) M8X16 FLANGE 		0-28050-816-0 04 1 0710- ● ●
149 BOLT; UNION
(B) M8X45 FLANGE 		0-28050-845-0 02 1 0710- ● ●
