3-70 — BRAKE PIPING; AIR,AIR MASTER (#67137) — 169 parça

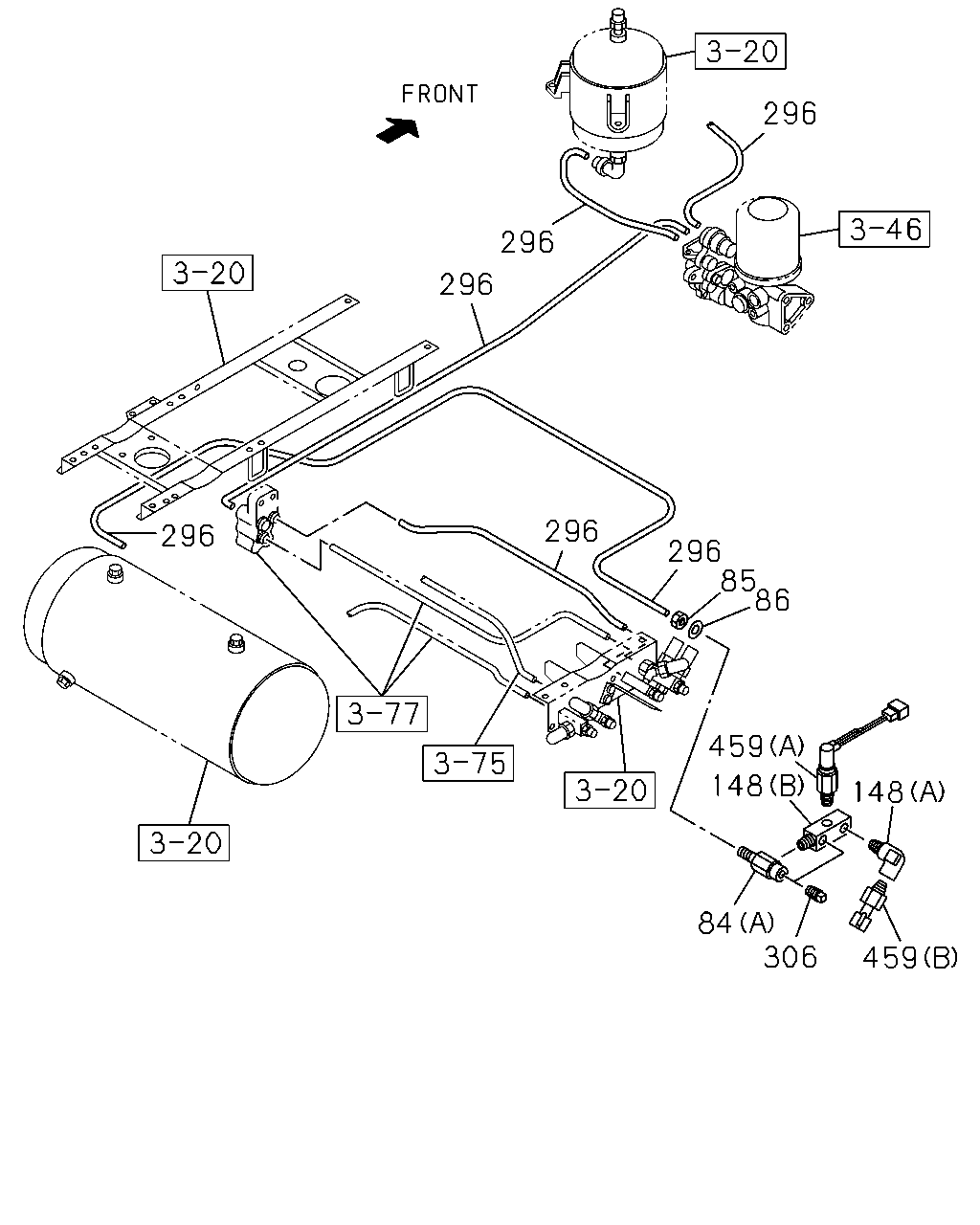

çizim 121256
296 296 296 296 86 85 296 296 459 148 84 306 148 459
BalonParca AdiParca NoAdetTipApplied Date A B
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0710-1002 ● ●
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 1003-1112 ● ●
84 UNION; NYLON TUBE
(B) 		1-09661-092-0 01 1 1201- ● ●
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0710- ● ●
85 NUT; UNION
M18 		0-91110-518-0 01 1 0710- ● ●
86 WASHER; LK,TUBE UNION
ID=18.2 		0-91510-518-0 01 1 0710- ● ●
148 CONNECTOR; UNION
6WG1 TC-C(72L) (B) 		1-09661-729-0 01 1 1003-1112 ●
148 CONNECTOR; UNION
(B) 		1-09661-729-0 01 1 1003-1112 ●
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) 		8-94338-417-0 01 1 0710- ●
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 0710-1002 ● ●
148 CONNECTOR; UNION
6WF1 TC-C(1B8) (B) PT1/4 4WAY 		1-09660-358-0 01 1 1003-1112 ●
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 1201- ● ●
148 CONNECTOR; UNION
(A) PT1/4 2WAY 		1-09660-693-0 01 1 0710-1002 ● ●
148 CONNECTOR; UNION
6WF1 TC-C(1B8) (A) PT1/4 2WAY 		1-09660-693-0 01 1 1003-1112 ●
148 CONNECTOR; UNION
(A) PT1/4 2WAY 		1-09660-693-0 01 1 1201- ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ●
306 PLUG; NYLON TUBE
6WG1 TC-C(72L) PT1/4 		9-99204-513-0 01 1 1003-1112 ●
306 PLUG; NYLON TUBE
PT1/4 		9-99204-513-0 01 1 1003-1112 ●
306 PLUG; NYLON TUBE
PT1/4 		9-99204-513-0 02 1 0710-1002 ● ●
306 PLUG; NYLON TUBE
6WF1 TC-C(1B8) PT1/4 		9-99204-513-0 02 1 1003-1112 ●
306 PLUG; NYLON TUBE
PT1/4 		9-99204-513-0 02 1 1201- ● ●
459 SWITCH; PRESS
(A) 		1-48340-065-0 01 1 0710-1002 ● ●
459 SWITCH; PRESS
(A) 		1-48340-065-0 01 1 1003-1112 ● ●
459 SWITCH; PRESS
(A) 		1-48340-065-0 01 1 1201- ● ●
459 SWITCH; PRESS
(B) THREAD R1/4 		1-80220-023-1 01 1 0710-1002 ● ●
459 SWITCH; PRESS
(B) THREAD R1/4 		1-80220-023-1 01 1 1003-1112 ● ●
459 SWITCH; PRESS
(B) THREAD R1/4 		1-80220-023-1 01 1 1201- ● ●

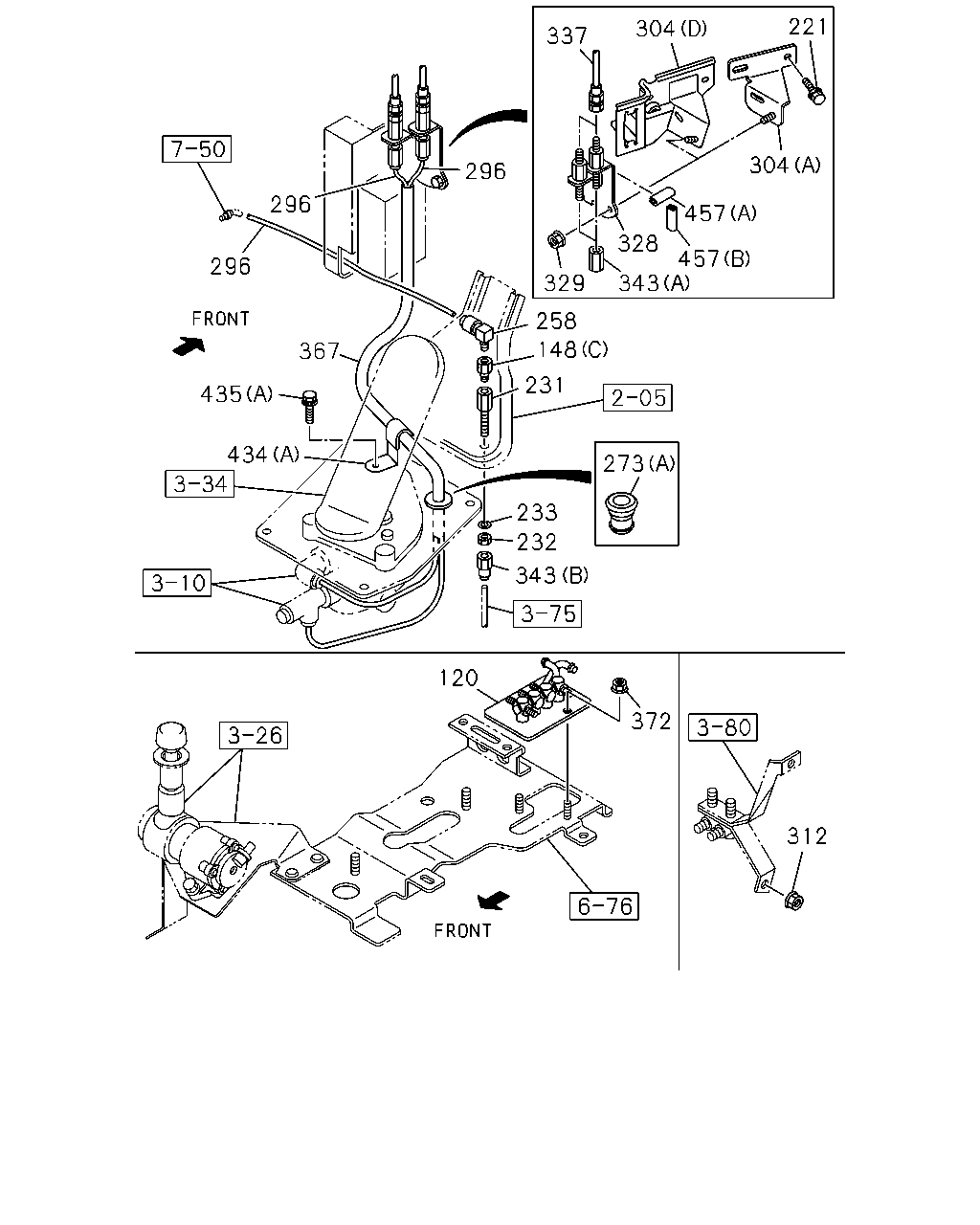

çizim 121456
221 304 337 304 296 296 457 328 457 343 296 329 258 148 367 231 435 434 273 233 232 343 120 372 312
BalonParca AdiParca NoAdetTipApplied Date A B
120 CONNECTOR; AIR PIPE 1-47470-604-0 01 1 0710- ● ●
148 CONNECTOR; UNION
6WG1 TC-C(72L) (B) 		1-09661-729-0 01 1 1003-1112 ●
148 CONNECTOR; UNION
(B) 		1-09661-729-0 01 1 1003-1112 ●
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) 		8-94338-417-0 01 1 0710- ●
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 0710-1002 ● ●
148 CONNECTOR; UNION
6WF1 TC-C(1B8) (B) PT1/4 4WAY 		1-09660-358-0 01 1 1003-1112 ●
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 1201- ● ●
148 CONNECTOR; UNION
(A) PT1/4 2WAY 		1-09660-693-0 01 1 0710-1002 ● ●
148 CONNECTOR; UNION
6WF1 TC-C(1B8) (A) PT1/4 2WAY 		1-09660-693-0 01 1 1003-1112 ●
148 CONNECTOR; UNION
(A) PT1/4 2WAY 		1-09660-693-0 01 1 1201- ● ●
221 BOLT; BRKT
6WF1 TC-C(1B8) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710- ●
231 UNION; AIR PIPE 1-09656-713-2 01 1 0710- ● ●
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 01 1 0710- ● ●
233 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 01 1 0710- ● ●
258 CONNECTOR; NYLON TUBE
TRI LC6X4-R1/8 		1-09660-760-1 01 1 0710- ● ●
273 GROMMET
6WF1 TC-C(1B8) (A) 		1-09332-135-0 01 1 0710- ●
273 GROMMET
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0710- ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ●
304 BRACKET; UNION
6WF1 TC-C(1B8) (A) 		1-71117-247-0 01 1 0710-0711 ●
304 BRACKET; UNION
6WF1 TC-C(1B8) (D) 		8-98106-470-0 01 1 0712- ●
304 BRACKET; UNION
(C) 		1-47478-359-0 01 1 0710- ● ●
304 BRACKET; UNION
(B) 		8-97610-319-1 01 1 0710- ● ●
312 NUT; UNION
M8 		0-91110-508-0 01 1 0710- ● ●
328 UNION; AIR PIPE
6WF1 TC-C(1B8) 		1-47470-442-0 01 1 0710- ●
329 NUT; UNION,AIR PIPE
6WF1 TC-C(1B8) M6 FLANGE 		0-91180-106-0 01 1 0710- ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
6WF1 TC-C(1B8) L=440 		0-57210-440-0 02 1 0710- ●
343 UNION; NYLON TUBE
6WF1 TC-C(1B8) (A) 		1-09660-796-1 02 1 0710- ●
343 UNION; NYLON TUBE
(B) 		1-09661-382-0 01 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710- ● ●
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
434 CLIP
6WF1 TC-C(1B8) (A) ID=17 		8-94449-734-1 01 1 0710- ●
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0710- ● ●
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0710-0904 ●
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
457 FINISHER; UNION
6WF1 TC-C(1B8) (A) L=50 		8-94270-377-1 01 1 0710- ●
457 FINISHER; UNION
6WF1 TC-C(1B8) (B) L=50 		8-94270-377-1 01 1 0710- ●

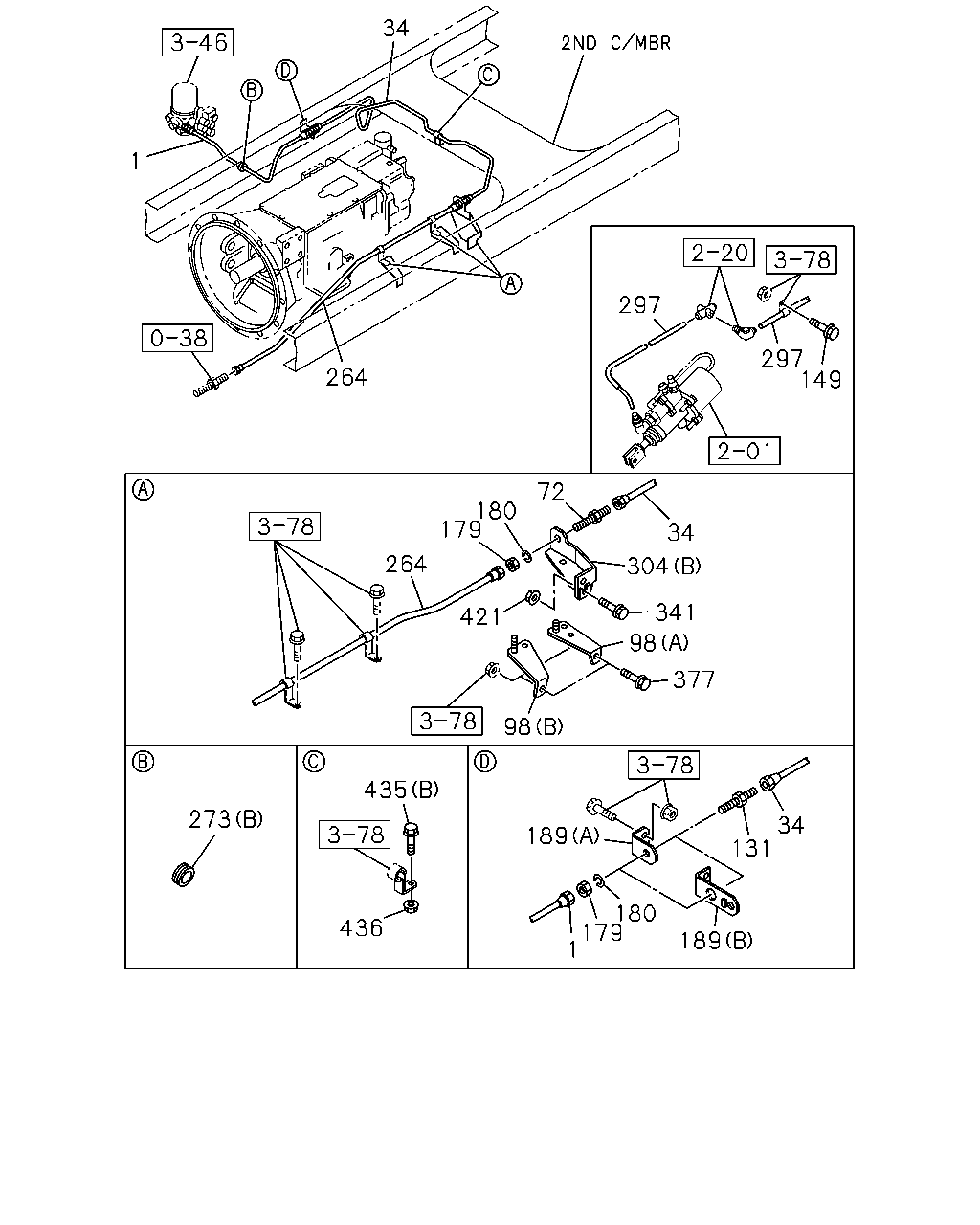

çizim 121699
34 1 264 297 297 149 72 264 34 304 180 179 421 341 98 377 98 435 273 436 189 1 179 180 131 34 189
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=1350 		1-09363-925-0 01 1 0710- ●
1 HOSE; FLEX,AIR TANK
L=660 		1-09363-766-0 01 1 0710- ●
34 PIPE; AIR
FULLER M/T<X9B> L=1188 		1-49124-867-0 01 1 0710- ●
34 PIPE; AIR
MJX16P M/T(Y3Z) L=1131 		1-49124-915-0 01 1 0710- ●
34 PIPE; AIR
L=1131 		1-49124-915-0 01 1 0710- ●
72 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 0710- ● ●
98 BRACKET; AIR PIPE
MJX16P M/T(Y3Z) (B) 		1-47479-639-0 01 1 0710- ●
98 BRACKET; AIR PIPE
(B) 		1-47479-639-0 01 1 0710- ●
98 BRACKET; AIR PIPE
MJX16P M/T(Y3Z) (A) 		1-47479-723-0 01 1 0710- ●
98 BRACKET; AIR PIPE
(A) 		1-47479-723-0 01 1 0710- ●
131 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 0710- ● ●
149 BOLT; TUBE CLIP
TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE 		0-28650-825-0 01 1 0710- ●
179 NUT; UNION
M22 		0-91111-522-0 02 1 0710- ● ●
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 02 1 0710- ● ●
189 BRACKET; FLEX HOSE
FULLER M/T<X9B> (A) 		1-47479-473-0 01 1 0710- ●
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) (B) 		1-47471-236-0 01 1 0710- ●
189 BRACKET; FLEX HOSE
(B) 		1-47471-236-0 01 1 0710- ●
264 HOSE; FLEX
L=1000 		1-09363-794-0 01 1 0710- ● ●
273 GROMMET
6WF1 TC-C(1B8) (A) 		1-09332-135-0 01 1 0710- ●
273 GROMMET
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
304 BRACKET; UNION
6WF1 TC-C(1B8) (A) 		1-71117-247-0 01 1 0710-0711 ●
304 BRACKET; UNION
6WF1 TC-C(1B8) (D) 		8-98106-470-0 01 1 0712- ●
304 BRACKET; UNION
(C) 		1-47478-359-0 01 1 0710- ● ●
304 BRACKET; UNION
(B) 		8-97610-319-1 01 1 0710- ● ●
341 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0710- ● ●
377 BOLT; BRKT FIX
MJX16P M/T(Y3Z) M8X30 FLANGE 		0-28650-830-0 02 1 0710- ●
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 0710- ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0710-0904 ●
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●

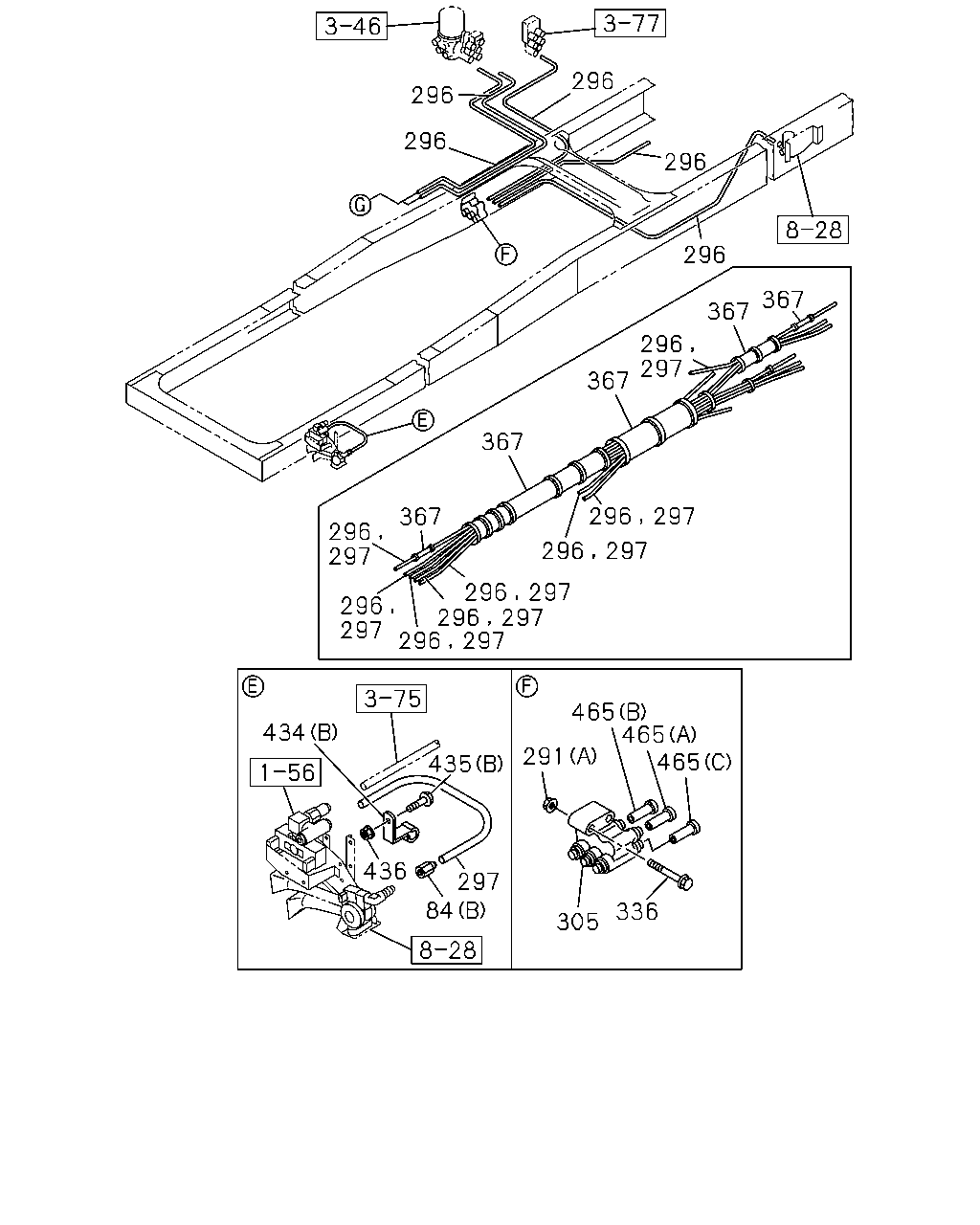

çizim 192739
296 296 296 296 296 367 367 297 296 367 367 296 297 297 296 296 296 296 297 296 297 297 297 297 296 367 434 435 297 436 84 291 465 465 465 305 336
BalonParca AdiParca NoAdetTipApplied Date A B
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0710-1002 ● ●
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 1003-1112 ● ●
84 UNION; NYLON TUBE
(B) 		1-09661-092-0 01 1 1201- ● ●
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0710- ● ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0710- ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 0710- ● ●
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28050-870-0 02 1 0710-0906 ● ●
336 BOLT; PIPE UNION
M8X60 FLANGE 		0-28050-860-0 02 1 0907- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710- ● ●
434 CLIP
6WF1 TC-C(1B8) (A) ID=17 		8-94449-734-1 01 1 0710- ●
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0710- ● ●
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0710-0904 ●
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 0710- ● ●
465 PLUG
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) OD=6 L=27 		1-09661-615-0 01 1 0710- ● ●
465 PLUG
(B) OD=8 		1-09661-616-0 01 1 0710- ● ●
465 PLUG
(C) OD=12 		1-09661-617-0 01 1 0710- ● ●

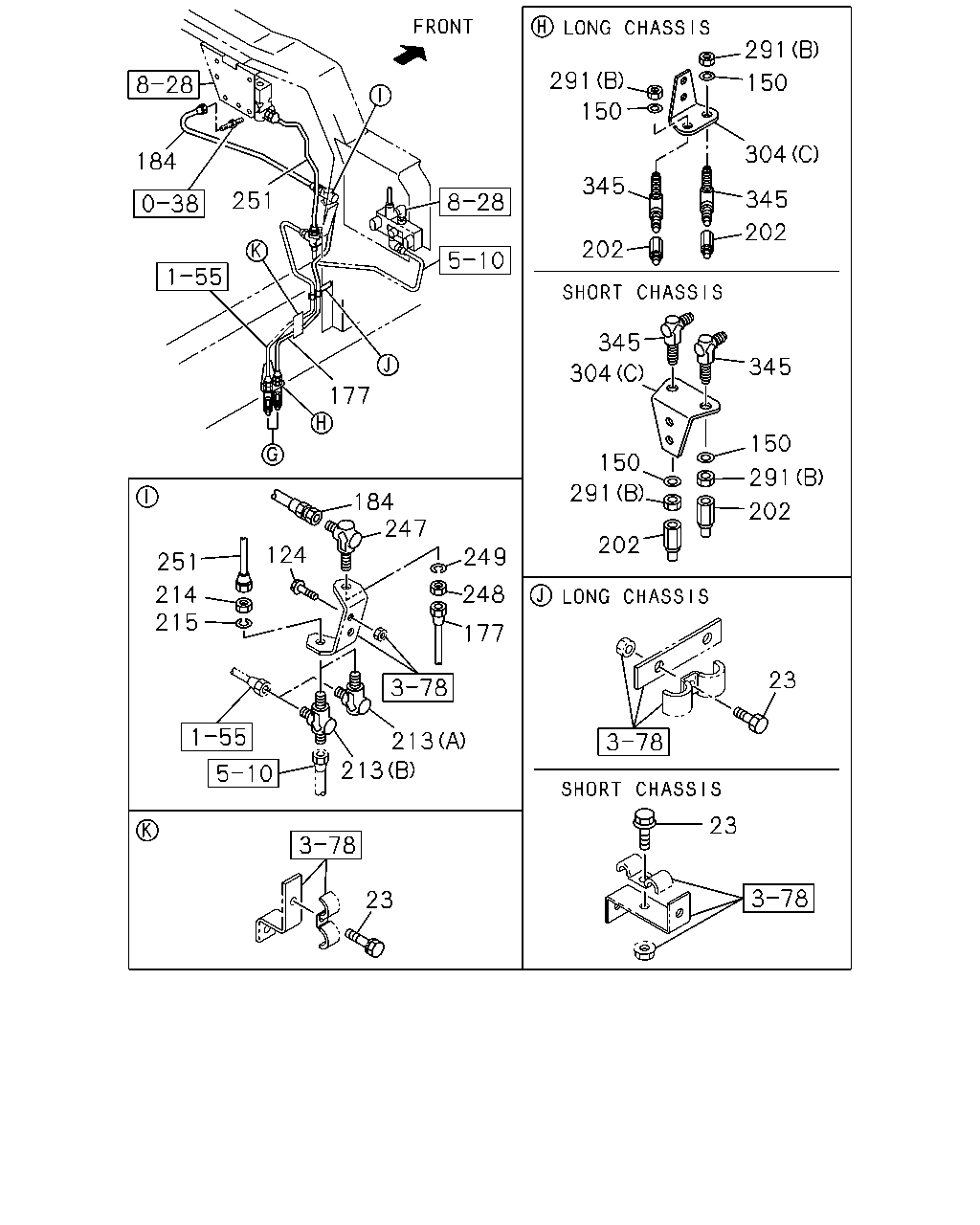

çizim 192741
184 177 251 291 150 345 291 150 202 202 345 304 345 345 304 150 150 202 291 291 202 184 247 124 251 214 215 249 248 177 213 213 23 23 23
BalonParca AdiParca NoAdetTipApplied Date A B
23 BOLT; BRKT,AIR PIPE
M8X12 FLANGE 		0-28050-812-0 01 1 0710- ●
23 BOLT; BRKT,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0710- ●
23 BOLT; BRKT,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 0710- ●
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0710- ● ●
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0710- ● ●
177 PIPE; AIR,UNION TO UNION
L=650 SERVICED BY L=650 		1-47428-810-0 01 1 0710- ●
177 PIPE; AIR,UNION TO UNION
L=811 SERVICED BY L=900 		1-47428-813-0 01 1 0710- ●
184 HOSE; FLEX,AIR GOV
L=780 		1-09363-620-0 01 1 0710- ● ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0710- ● ●
213 UNION; AIR PIPE
CAB SUSPENSION-FULL FLOATING(SMK) (A) M12 ELBOW 		0-92125-206-0 01 1 0710- ●
213 UNION; AIR PIPE
FULL FLOATING CAB(W16) (B) M12 3WAY 		0-92138-906-0 01 1 0710- ●
213 UNION; AIR PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 0710- ●
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0710- ● ●
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 0710- ● ●
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0710- ● ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0710- ● ●
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0710- ● ●
251 PIPE; AIR,UNION TO MAG VLV
6WF1 TC-C(1B8) 		1-49121-779-0 01 1 0710- ●
251 PIPE; AIR,UNION TO MAG VLV
6WG1 TC-C(72L) L=375 		1-49124-511-0 01 1 0710- ●
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 0710- ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0710- ● ●
304 BRACKET; UNION
6WF1 TC-C(1B8) (A) 		1-71117-247-0 01 1 0710-0711 ●
304 BRACKET; UNION
6WF1 TC-C(1B8) (D) 		8-98106-470-0 01 1 0712- ●
304 BRACKET; UNION
(C) 		1-47478-359-0 01 1 0710- ● ●
304 BRACKET; UNION
(B) 		8-97610-319-1 01 1 0710- ● ●
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
