◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11111 - CYZ NZ EURO3/JAPAN NEW SHORT TERM 2004 ▶ 3 - Brakes, Brake System ▶ 3-34 - BRAKE VALVE; AIR ▶
3-34 — BRAKE VALVE; AIR (#67131) — 26 parça

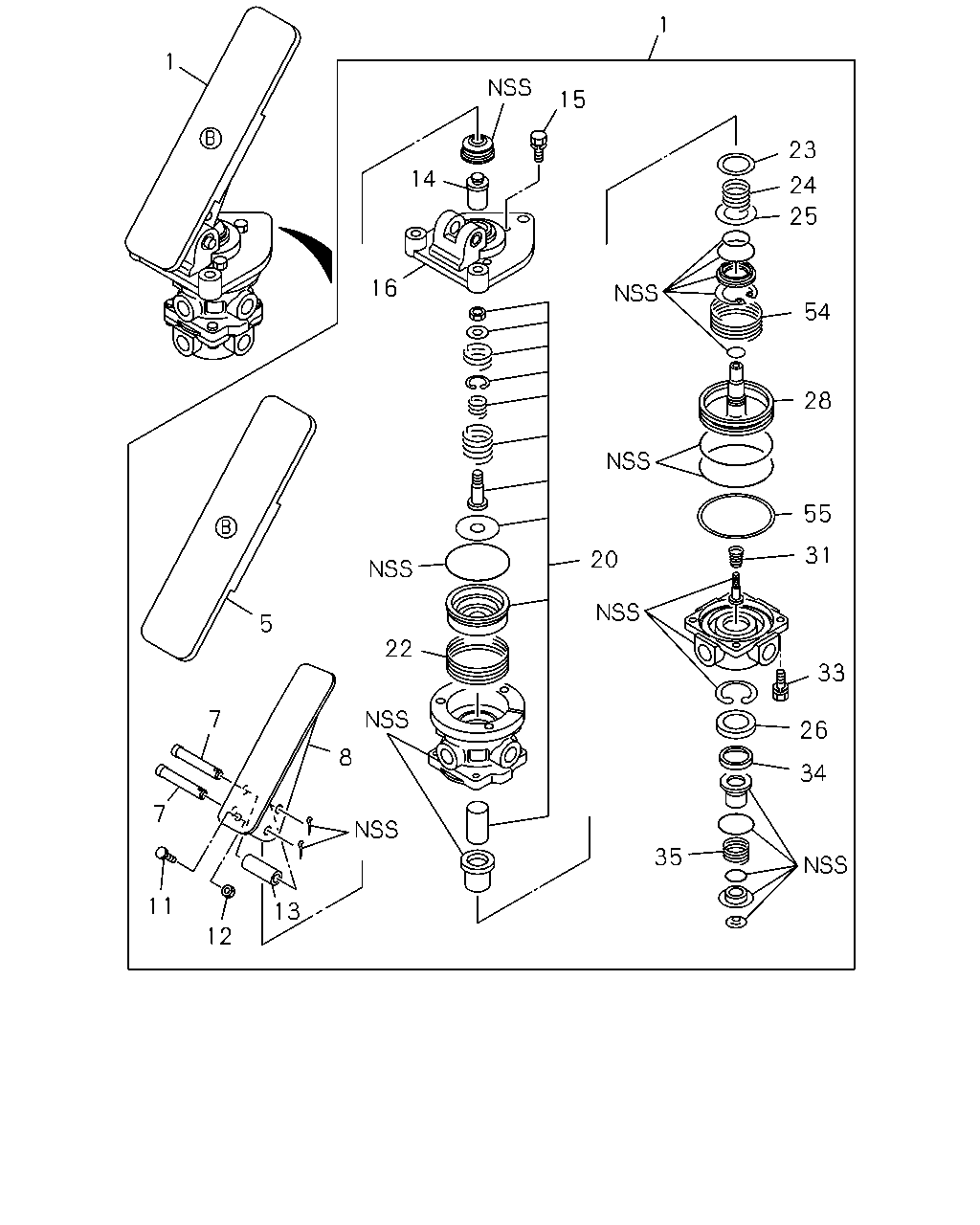

çizim 116958
1 1 14 15 16 5 7 7 11 12 8 13 22 20 31 55 28 54 25 24 23 33 26 34 35
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; BRK 1-48100-868-1 01 1 0710-1211 ● ●
1 VALVE; BRK 8-98222-801-0 01 1 1212- ● ●
5 COVER; PEDAL,BRK VLV 1-48119-432-0 01 1 0710- ● ●
7 PIN; PEDAL,BRK VLV 1-48119-431-0 02 1 0710- ● ●
8 PEDAL; BRK VLV 1-48119-429-0 01 1 0710- ● ●
11 SCREW; SET,BRK VLV 1-48119-003-1 01 1 0710- ● ●
12 NUT; SCREW,PEDAL,BRK VLV 9-88510-123-0 01 1 0710- ● ●
13 ROLLER; PEDAL,BRK VLV 1-48119-430-0 01 1 0710- ● ●
14 PLUNGER; BRK VLV 1-48119-434-0 01 1 0710- ● ●
15 BOLT; PLATE,BRK VLV 1-48219-039-0 03 1 0710- ● ●
16 PLATE; MTG,BRKT VLV 1-48119-433-0 01 1 0710- ● ●
20 PISTON; UPR,BRK VLV 1-48119-592-0 01 1 0710- ● ●
22 SPRING; PISTON,LWR,BRK VLV 1-48123-076-0 01 1 0710- ● ●
23 WASHER; UPR,BRK VLV 1-48129-299-0 01 1 0710- ● ●
24 SPRING; UPR,BRK VLV 1-48123-077-0 01 1 0710- ● ●
25 WASHER; PISTON,BRK VLV 1-48129-300-0 01 1 0710- ● ●
26 RETAINER; VLV,BRK VLV 1-48129-308-0 01 1 0710- ● ●
28 PISTON; LWR,BRK VLV 1-48129-302-0 01 1 0710- ● ●
31 SPRING; VLV,BRK VLV 1-48123-079-0 01 1 0710- ● ●
33 BOLT; BODY,BRK VLV 1-48119-213-0 04 1 0710- ● ●
34 RETAINER; VLV,BRK VLV 1-48129-307-0 01 1 0710- ● ●
35 SPRING; VLV,BRK VLV 1-48123-078-0 01 1 0710- ● ●
54 SPRING; PISTON,UPR,BRK VLV 1-48123-075-0 01 1 0710- ● ●
55 RETAINER; PLATE,BRK VLV 1-48129-305-0 01 1 0710- ● ●
çizim 192735
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; BRK VLV 1-85576-211-1 01 1 0710-1211 ● ●
2 REPAIR KIT; BRK VLV 8-98222-817-0 01 1 1212- ● ●
