Sayfa 3-26 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11111 - CYZ NZ EURO3/JAPAN NEW SHORT TERM 2004 ▶ 3 - Brakes, Brake System ▶ 3-26 - TRAILER CONTROL ▶

3-26 — TRAILER CONTROL (#67130) — 194 parça

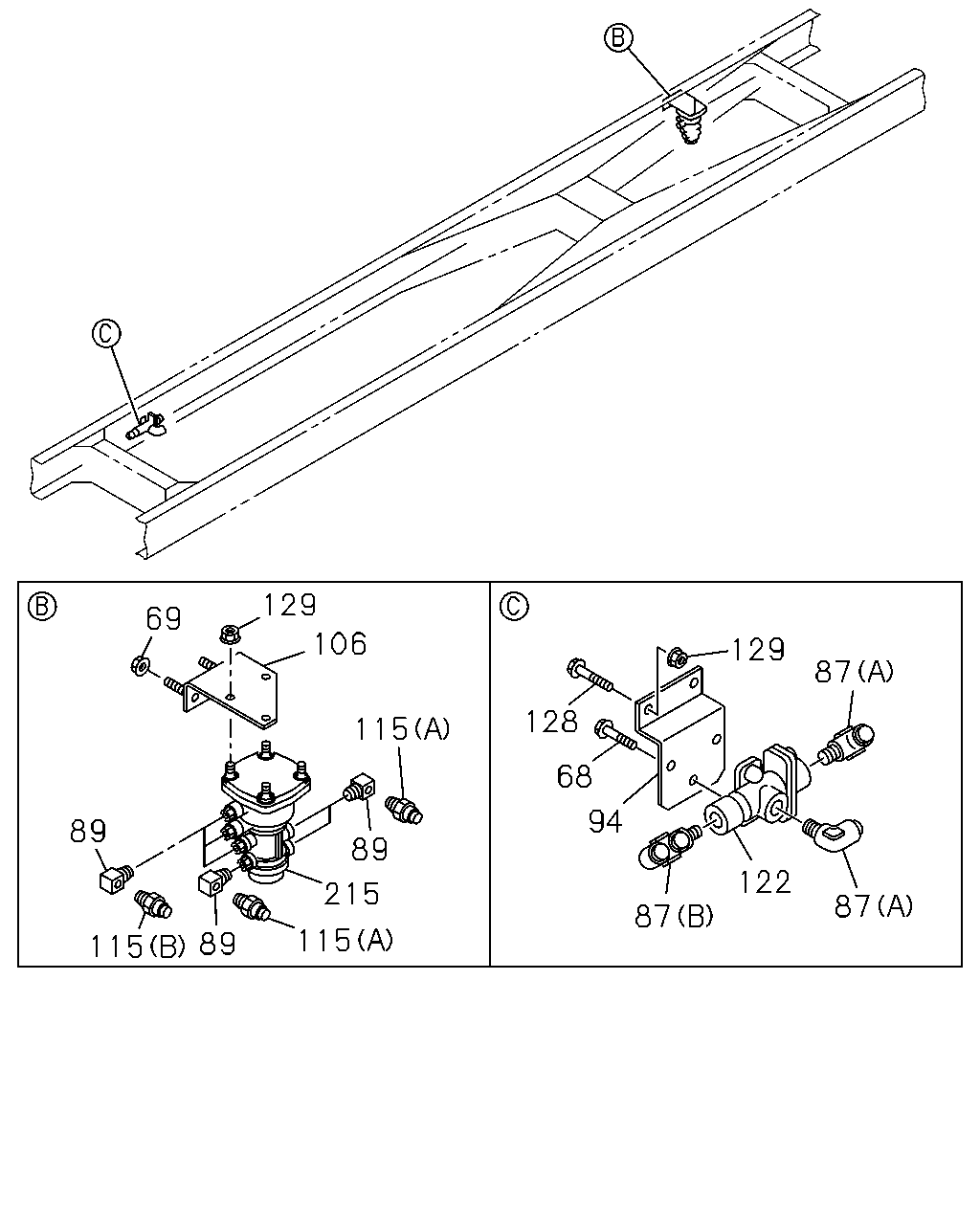

69 129 115 106 89 115 89 115 89 215 128 68 94 87 122 87 87 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
68	BOLT; DOUBLE CHECK VLV M8X14 FLANGE	0-28080-814-0	02	1	0710-	●	●
69	NUT; VLV BRKT M10 FLANGE	0-91180-210-0	02	1	0710-	●	●
87	CONNECTOR; DBL CHECK VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0710-	●	●
87	CONNECTOR; DBL CHECK VLV (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-	●	●
89	CONNECTOR; FLARE PT3/8 ELBOW	1-09660-696-0	06	1	0710-	●
94	BRACKET; CHECK VLV	1-47479-367-0	01	1	0710-	●	●
106	BRACKET; VLV	1-48495-282-1	01	1	0710-0907	●	●
106	BRACKET; VLV	8-98110-679-1	01	1	0908-	●	●
115	CONNECTOR; DUAL RELAY VLV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	0710-	●	●
115	CONNECTOR; DUAL RELAY VLV (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0710-	●	●
122	VALVE ASM; DOUBLE CHECK	1-48410-531-1	01	1	0710-	●	●
128	BOLT; VLV M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
129	NUT; VLV M8 FLANGE	0-91180-108-0	03	1	0710-	●	●
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
129	NUT; VLV M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
215	VALVE; TRAILER CONT	8-98091-694-0	01	1	0710-	●	●

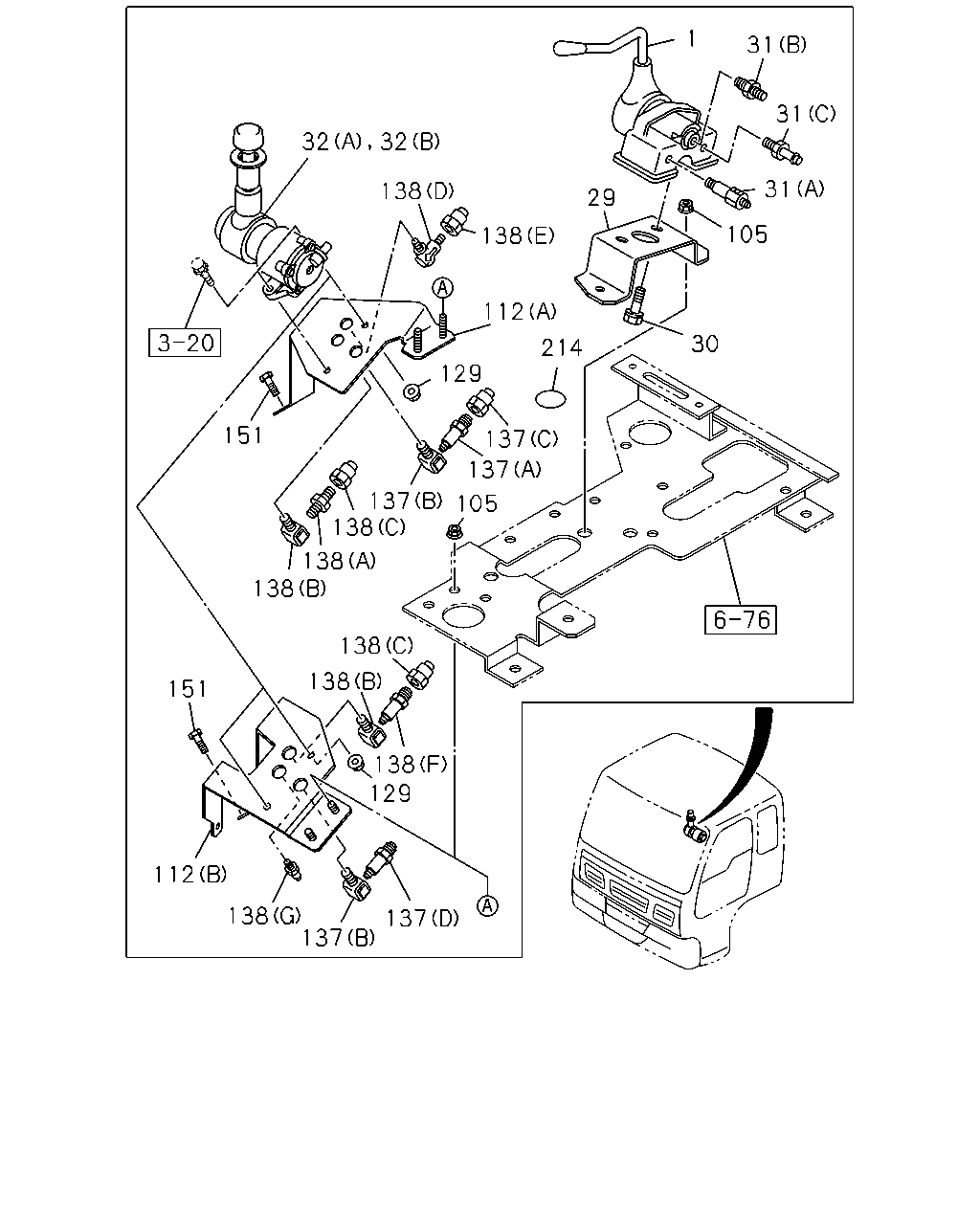

32 32 1 31 31 31 29 138 105 138 112 129 214 30 137 151 138 105 137 138 138 138 138 138 151 138 129 112 138 137 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE ASM; HAND BRK	1-48100-859-0	01	1	0710-	●	●
29	BRACKET; HAND BRK	1-79997-357-1	01	1	0710-	●	●
30	BOLT; BRKT,HAND BRK VLV M10X20 W/LK WASHER	0-50541-020-0	02	1	0710-	●	●
31	CONNECTOR; HAND BRK VLV (B) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	0710-	●	●
31	CONNECTOR; HAND BRK VLV (A) M14	1-09656-391-2	01	1	0710-	●	●
31	CONNECTOR; HAND BRK VLV (C) L=45	8-94338-874-0	01	1	0710-	●	●
32	VALVE; BRK,HAND CONT FULLER M/T<X9B> (B)	1-48460-316-0	01	1	0710-	●
32	VALVE; BRK,HAND CONT MJX M/T<Y9N> (A)	1-48460-339-1	01	1	0710-	●
32	VALVE; BRK,HAND CONT (A)	1-48460-339-1	01	1	0710-		●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0710-	●	●
112	BRACKET; CONT VLV FULLER M/T<X9B> (B)	1-79996-336-1	01	1	0710-	●
112	BRACKET; CONT VLV MJX M/T<Y9N> (A)	1-79996-387-0	01	1	0710-	●
112	BRACKET; CONT VLV (A)	1-79996-387-0	01	1	0710-		●
129	NUT; VLV M8 FLANGE	0-91180-108-0	03	1	0710-	●	●
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
129	NUT; VLV M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
137	CONNECTOR; SUPPLY FULLER M/T<X9B> (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0710-	●
137	CONNECTOR; SUPPLY MJX M/T<Y9N> (A)	1-09650-352-1	01	1	0710-	●
137	CONNECTOR; SUPPLY (A)	1-09650-352-1	01	1	0710-		●
137	CONNECTOR; SUPPLY MJX M/T<Y9N> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0710-	●
137	CONNECTOR; SUPPLY (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0710-		●
137	CONNECTOR; SUPPLY (B) PT1/4 2WAY	1-09660-693-0	01	1	0710-	●	●
138	CONNECTOR; DELIVERY FULLER M/T<X9B> (F) M14	1-09656-391-2	01	1	0710-	●
138	CONNECTOR; DELIVERY FULLER M/T<X9B> (G) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0710-	●
138	CONNECTOR; DELIVERY MJX M/T<Y9N> (D)	1-09650-263-2	01	1	0710-	●
138	CONNECTOR; DELIVERY (D)	1-09650-263-2	01	1	0710-		●
138	CONNECTOR; DELIVERY MJX M/T<Y9N> (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	0710-	●
138	CONNECTOR; DELIVERY (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	0710-		●
138	CONNECTOR; DELIVERY MJX M/T<Y9N> (E) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0710-	●
138	CONNECTOR; DELIVERY (E) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0710-		●
138	CONNECTOR; DELIVERY (B) PT1/4 2WAY	1-09660-693-0	01	1	0710-	●	●
138	CONNECTOR; DELIVERY (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0710-	●	●
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0710-	●	●
214	SEAL; COVER,HAND BRK OD=25 BLACK	1-76798-019-0	01	1	0710-	●	●

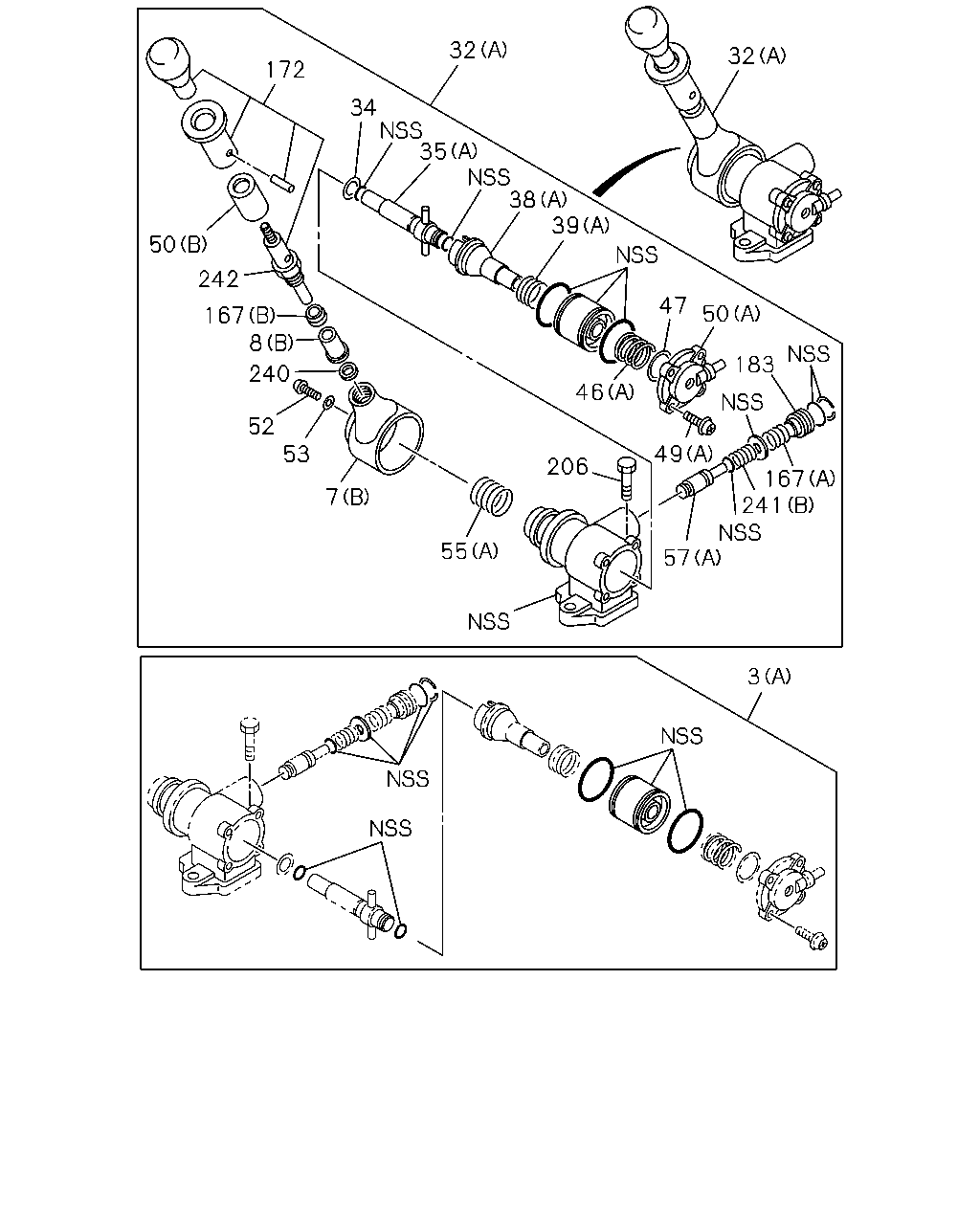

32 32 172 35 34 38 39 47 50 183 46 50 167 242 8 52 240 53 55 7 206 49 57 241 167 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	REPAIR KIT; HAND BRK VLV FULLER M/T<X9B> (B)	1-48469-083-0	01	1	0710-	●
3	REPAIR KIT; HAND BRK VLV MJX M/T<Y9N> (A)	1-85576-376-0	01	1	0710-	●
3	REPAIR KIT; HAND BRK VLV (A)	1-85576-376-0	01	1	0710-		●
7	HEAD; BRK VLV MJX M/T<Y9N> (B)	1-48469-201-0	01	1	0710-	●
7	HEAD; BRK VLV (B)	1-48469-201-0	01	1	0710-		●
7	HEAD; BRK VLV (A)	1-48119-577-1	01	1	0710-	●	●
8	STOPPER; BRK VLV MJX M/T<Y9N> (B)	1-48469-200-0	01	1	0710-	●
8	STOPPER; BRK VLV (B)	1-48469-200-0	01	1	0710-		●
8	STOPPER; BRK VLV (A)	1-48119-327-0	01	1	0710-	●	●
32	VALVE; BRK,HAND CONT FULLER M/T<X9B> (B)	1-48460-316-0	01	1	0710-	●
32	VALVE; BRK,HAND CONT MJX M/T<Y9N> (A)	1-48460-339-1	01	1	0710-	●
32	VALVE; BRK,HAND CONT (A)	1-48460-339-1	01	1	0710-		●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0710-	●	●
35	HOLDER; CAM FULLER M/T<X9B> (B)	1-48469-054-0	01	1	0710-	●
35	HOLDER; CAM MJX M/T<Y9N> (A)	1-48469-171-0	01	1	0710-	●
35	HOLDER; CAM (A)	1-48469-171-0	01	1	0710-		●
38	SEAT; EXH VLV FULLER M/T<X9B> (B)	1-48469-057-0	01	1	0710-	●
38	SEAT; EXH VLV MJX M/T<Y9N> (A)	1-48469-172-0	01	1	0710-	●
38	SEAT; EXH VLV (A)	1-48469-172-0	01	1	0710-		●
39	SPRING; RETURN,CAM RING FULLER M/T<X9B> (B)	1-48469-063-0	01	1	0710-	●
39	SPRING; RETURN,CAM RING MJX M/T<Y9N> (A)	1-48469-150-0	01	1	0710-	●
39	SPRING; RETURN,CAM RING (A)	1-48469-150-0	01	1	0710-		●
46	SPRING; MAIN,PISTON FULLER M/T<X9B> (B)	1-48469-119-0	01	1	0710-	●
46	SPRING; MAIN,PISTON MJX M/T<Y9N> (A)	1-48469-173-0	01	1	0710-	●
46	SPRING; MAIN,PISTON (A)	1-48469-173-0	01	1	0710-		●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0710-	●	●
49	SCREW; COVER FULLER M/T<X9B> (B)	1-48469-120-0	04	1	0710-	●
49	SCREW; COVER MJX M/T<Y9N> (A)	1-48469-169-0	04	1	0710-	●
49	SCREW; COVER (A)	1-48469-169-0	04	1	0710-		●
50	COVER; HAND BRK VLV FULLER M/T<X9B> (C)	1-48469-073-0	01	1	0710-	●
50	COVER; HAND BRK VLV MJX M/T<Y9N> (A)	1-48469-153-0	01	1	0710-	●
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	0710-		●
50	COVER; HAND BRK VLV MJX M/T<Y9N> (B)	1-48469-196-0	01	1	0710-	●
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	0710-		●
52	SCREW; HANDLE	1-48469-062-0	01	1	0710-	●	●
53	WASHER; HANDLE	1-48469-061-0	01	1	0710-	●	●
55	SPRING; RETURN,HANDLE FULLER M/T<X9B> (B)	1-48469-059-0	01	1	0710-	●
55	SPRING; RETURN,HANDLE MJX M/T<Y9N> (A)	1-48469-155-0	01	1	0710-	●
55	SPRING; RETURN,HANDLE (A)	1-48469-155-0	01	1	0710-		●
57	PLUNGER; HAND BRK VLV FULLER M/T<X9B> (B)	1-48469-076-0	01	1	0710-	●
57	PLUNGER; HAND BRK VLV MJX M/T<Y9N> (A)	1-48469-180-0	01	1	0710-	●
57	PLUNGER; HAND BRK VLV (A)	1-48469-180-0	01	1	0710-		●
167	SPRING; VALVE MJX M/T<Y9N> (A)	1-48469-177-0	01	1	0710-	●
167	SPRING; VALVE (A)	1-48469-177-0	01	1	0710-		●
167	SPRING; VALVE MJX M/T<Y9N> (B)	1-48469-184-0	01	1	0710-	●
167	SPRING; VALVE (B)	1-48469-184-0	01	1	0710-		●
172	KNOB; VALVE MJX M/T<Y9N>	1-48469-203-0	01	1	0710-	●
172	KNOB; VALVE	1-48469-203-0	01	1	0710-		●
183	RETAINER; VALVE MJX M/T<Y9N>	1-48469-185-0	01	1	0710-	●
183	RETAINER; VALVE	1-48469-185-0	01	1	0710-		●
206	BOLT; HAND BRK VALVE MJX M/T<Y9N>	1-48469-160-0	01	1	0710-	●
206	BOLT; HAND BRK VALVE	1-48469-160-0	01	1	0710-		●
240	RING; STOPPER MJX M/T<Y9N>	1-48469-199-0	01	1	0710-	●
240	RING; STOPPER	1-48469-199-0	01	1	0710-		●
241	SPRING; RETURN MJX M/T<Y9N> (B)	1-48469-182-0	01	1	0710-	●
241	SPRING; RETURN (B)	1-48469-182-0	01	1	0710-		●
241	SPRING; RETURN (A)	1-48119-576-0	01	1	0710-	●	●
242	NUT; LK MJX M/T<Y9N>	1-48469-179-0	01	1	0710-	●
242	NUT; LK	1-48469-179-0	01	1	0710-		●

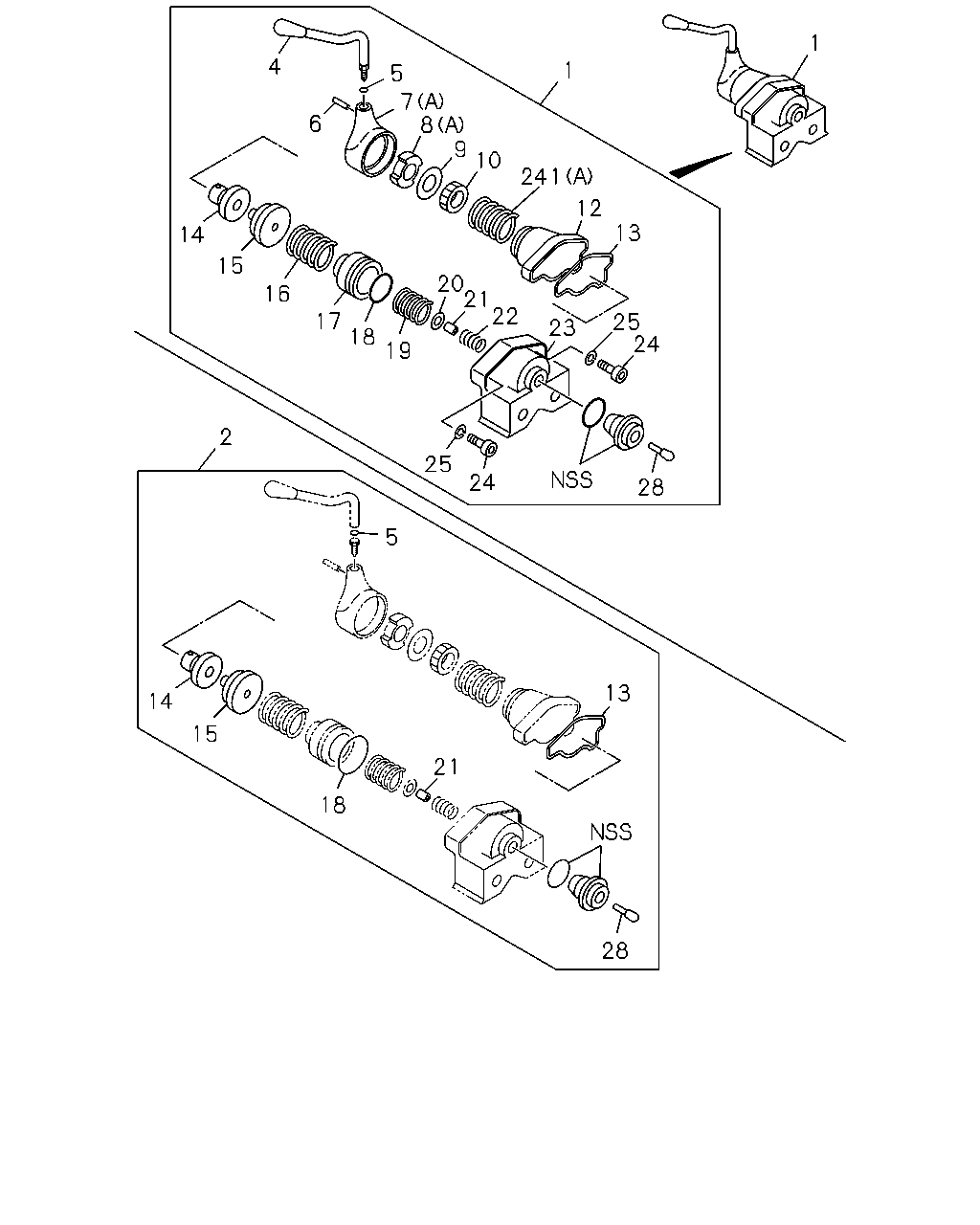

1 1 4 5 6 7 14 8 15 9 16 10 241 12 13 20 17 21 18 22 25 24 23 19 25 24 2 5 13 21 18 14 15 28 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE ASM; HAND BRK	1-48100-859-0	01	1	0710-	●	●
2	REPAIR KIT; HAND BRK VLV	1-85576-305-0	01	1	0710-	●	●
4	HANDLE ASM; BRK VLV	1-48119-580-1	01	1	0710-	●	●
5	GASKET; HANDLE	1-48119-128-0	01	1	0710-	●	●
6	PIN; SPR	1-48119-143-0	01	1	0710-	●	●
7	HEAD; BRK VLV MJX M/T<Y9N> (B)	1-48469-201-0	01	1	0710-	●
7	HEAD; BRK VLV (B)	1-48469-201-0	01	1	0710-		●
7	HEAD; BRK VLV (A)	1-48119-577-1	01	1	0710-	●	●
8	STOPPER; BRK VLV MJX M/T<Y9N> (B)	1-48469-200-0	01	1	0710-	●
8	STOPPER; BRK VLV (B)	1-48469-200-0	01	1	0710-		●
8	STOPPER; BRK VLV (A)	1-48119-327-0	01	1	0710-	●	●
9	WASHER; LK,ADJ	1-48119-123-0	01	1	0710-	●	●
10	RING; ADJ	1-48119-122-0	01	1	0710-	●	●
12	COVER; BRK VLV	1-48129-319-1	01	1	0710-	●	●
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	0710-	●	●
14	FOLLOWER; CAM	1-48129-135-0	01	1	0710-	●	●
15	CAM; FOLLOWER	1-48129-134-0	01	1	0710-	●	●
16	SPRING; GRUDUATING	1-48129-101-0	01	1	0710-	●	●
17	PISTON; SPR	1-48129-095-0	01	1	0710-	●	●
18	GASKET; BODY	1-48129-096-0	01	1	0710-	●	●
19	SPRING; PISTON	1-48129-094-0	01	1	0710-	●	●
20	GUIDE; VLV	1-48129-090-0	01	1	0710-	●	●
21	VALVE; IN & EXH	1-48121-017-0	01	1	0710-	●	●
22	SPRING; VLV	1-48123-024-0	01	1	0710-	●	●
23	BODY; BRK VLV	1-48111-060-1	01	1	0710-	●	●
24	BOLT; EXH VLV	1-48129-092-0	02	1	0710-	●	●
25	WASHER; LK,EXH VLV	1-48129-093-0	02	1	0710-	●	●
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	0710-	●	●
241	SPRING; RETURN MJX M/T<Y9N> (B)	1-48469-182-0	01	1	0710-	●
241	SPRING; RETURN (B)	1-48469-182-0	01	1	0710-		●
241	SPRING; RETURN (A)	1-48119-576-0	01	1	0710-	●	●

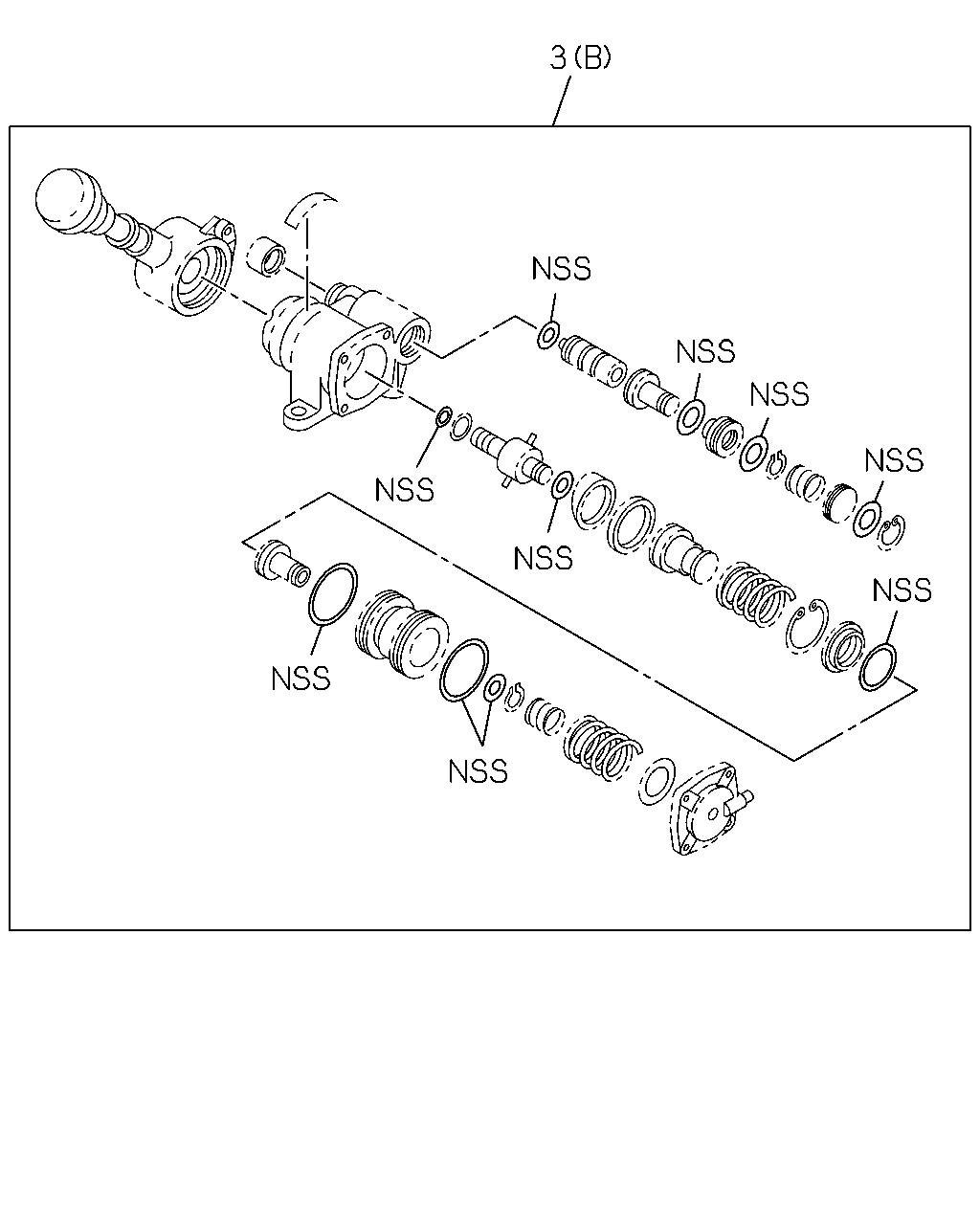

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	REPAIR KIT; HAND BRK VLV FULLER M/T<X9B> (B)	1-48469-083-0	01	1	0710-	●
3	REPAIR KIT; HAND BRK VLV MJX M/T<Y9N> (A)	1-85576-376-0	01	1	0710-	●
3	REPAIR KIT; HAND BRK VLV (A)	1-85576-376-0	01	1	0710-		●

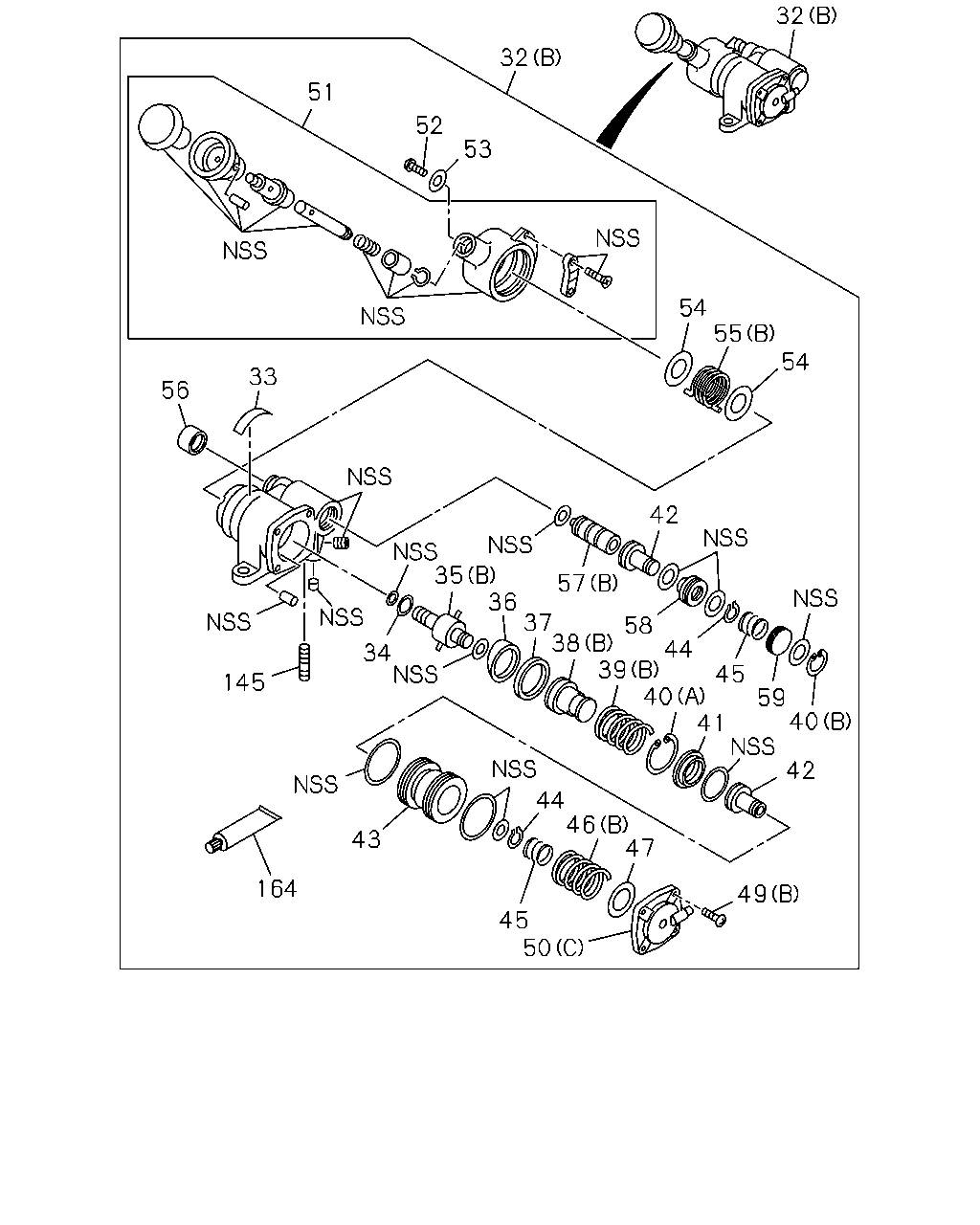

32 32 52 51 53 54 55 54 33 56 145 35 34 57 42 58 44 45 59 40 36 37 38 39 40 41 42 44 43 164 46 47 49 45 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT FULLER M/T<X9B> (B)	1-48460-316-0	01	1	0710-	●
32	VALVE; BRK,HAND CONT MJX M/T<Y9N> (A)	1-48460-339-1	01	1	0710-	●
32	VALVE; BRK,HAND CONT (A)	1-48460-339-1	01	1	0710-		●
33	PLATE; CAUTION FULLER M/T<X9B>	1-48469-121-0	01	1	0710-	●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0710-	●	●
35	HOLDER; CAM FULLER M/T<X9B> (B)	1-48469-054-0	01	1	0710-	●
35	HOLDER; CAM MJX M/T<Y9N> (A)	1-48469-171-0	01	1	0710-	●
35	HOLDER; CAM (A)	1-48469-171-0	01	1	0710-		●
36	RING; CAM FULLER M/T<X9B>	1-48469-056-0	01	1	0710-	●
37	GUIDE; CAM RING FULLER M/T<X9B>	1-48469-058-0	01	1	0710-	●
38	SEAT; EXH VLV FULLER M/T<X9B> (B)	1-48469-057-0	01	1	0710-	●
38	SEAT; EXH VLV MJX M/T<Y9N> (A)	1-48469-172-0	01	1	0710-	●
38	SEAT; EXH VLV (A)	1-48469-172-0	01	1	0710-		●
39	SPRING; RETURN,CAM RING FULLER M/T<X9B> (B)	1-48469-063-0	01	1	0710-	●
39	SPRING; RETURN,CAM RING MJX M/T<Y9N> (A)	1-48469-150-0	01	1	0710-	●
39	SPRING; RETURN,CAM RING (A)	1-48469-150-0	01	1	0710-		●
40	RING; SNAP FULLER M/T<X9B> (A)	1-48469-067-0	01	1	0710-	●
40	RING; SNAP FULLER M/T<X9B> (B)	1-48469-079-0	01	1	0710-	●
41	SEAT; FEED VLV FULLER M/T<X9B>	1-48469-066-0	01	1	0710-	●
42	VALVE; FEED FULLER M/T<X9B>	1-48469-065-0	02	1	0710-	●
43	PISTON; HAND BRK VLV FULLER M/T<X9B>	1-48469-064-0	01	1	0710-	●
44	RING; SNAP,FEED VLV FULLER M/T<X9B>	1-48469-068-0	02	1	0710-	●
45	SPRING; FEED VLV FULLER M/T<X9B>	1-48469-070-0	02	1	0710-	●
46	SPRING; MAIN,PISTON FULLER M/T<X9B> (B)	1-48469-119-0	01	1	0710-	●
46	SPRING; MAIN,PISTON MJX M/T<Y9N> (A)	1-48469-173-0	01	1	0710-	●
46	SPRING; MAIN,PISTON (A)	1-48469-173-0	01	1	0710-		●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0710-	●	●
49	SCREW; COVER FULLER M/T<X9B> (B)	1-48469-120-0	04	1	0710-	●
49	SCREW; COVER MJX M/T<Y9N> (A)	1-48469-169-0	04	1	0710-	●
49	SCREW; COVER (A)	1-48469-169-0	04	1	0710-		●
50	COVER; HAND BRK VLV FULLER M/T<X9B> (C)	1-48469-073-0	01	1	0710-	●
50	COVER; HAND BRK VLV MJX M/T<Y9N> (A)	1-48469-153-0	01	1	0710-	●
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	0710-		●
50	COVER; HAND BRK VLV MJX M/T<Y9N> (B)	1-48469-196-0	01	1	0710-	●
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	0710-		●
51	HANDLE ASM; HAND BRK VLV FULLER M/T<X9B>	1-48469-060-0	01	1	0710-	●
52	SCREW; HANDLE	1-48469-062-0	01	1	0710-	●	●
53	WASHER; HANDLE	1-48469-061-0	01	1	0710-	●	●
54	SEAT; SPRING FULLER M/T<X9B>	1-48469-082-0	02	1	0710-	●
55	SPRING; RETURN,HANDLE FULLER M/T<X9B> (B)	1-48469-059-0	01	1	0710-	●
55	SPRING; RETURN,HANDLE MJX M/T<Y9N> (A)	1-48469-155-0	01	1	0710-	●
55	SPRING; RETURN,HANDLE (A)	1-48469-155-0	01	1	0710-		●
56	BOOT; PLUNGER FULLER M/T<X9B>	1-48469-080-0	01	1	0710-	●
57	PLUNGER; HAND BRK VLV FULLER M/T<X9B> (B)	1-48469-076-0	01	1	0710-	●
57	PLUNGER; HAND BRK VLV MJX M/T<Y9N> (A)	1-48469-180-0	01	1	0710-	●
57	PLUNGER; HAND BRK VLV (A)	1-48469-180-0	01	1	0710-		●
58	HOLDER; FEED VLV FULLER M/T<X9B>	1-48469-077-0	01	1	0710-	●
59	HOLDER; SPRING FULLER M/T<X9B>	1-48469-078-0	01	1	0710-	●
145	STUD; HAND BRK VLV FULLER M/T<X9B>	1-48469-069-0	01	1	0710-	●
164	GREASE; HAND BRK VLV FULLER M/T<X9B>	1-48469-084-0	01	1	0710-	●

180

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	180	REPAIR KIT; RELAY VLV	1-85576-449-0	01	1	0710-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
